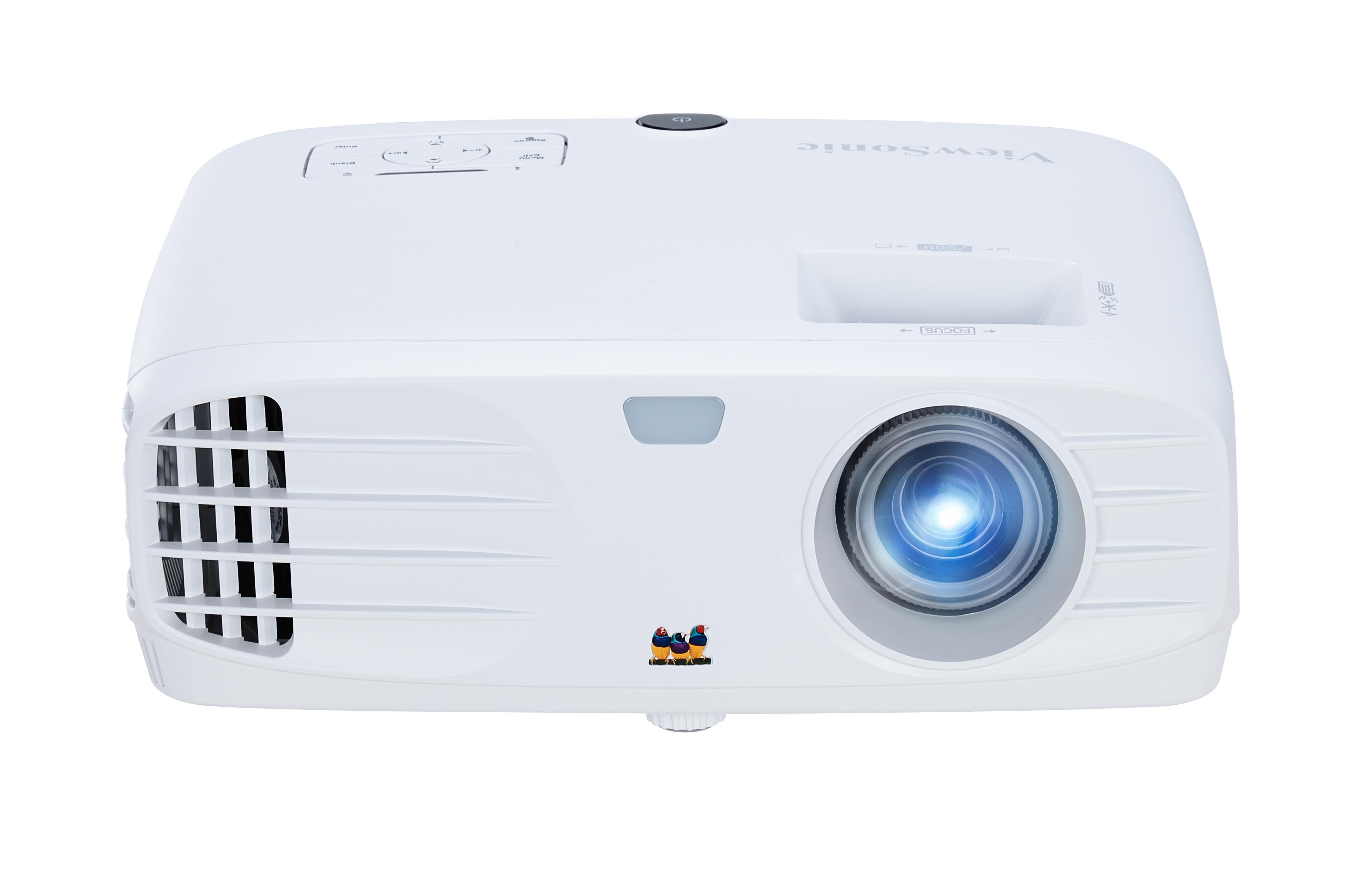

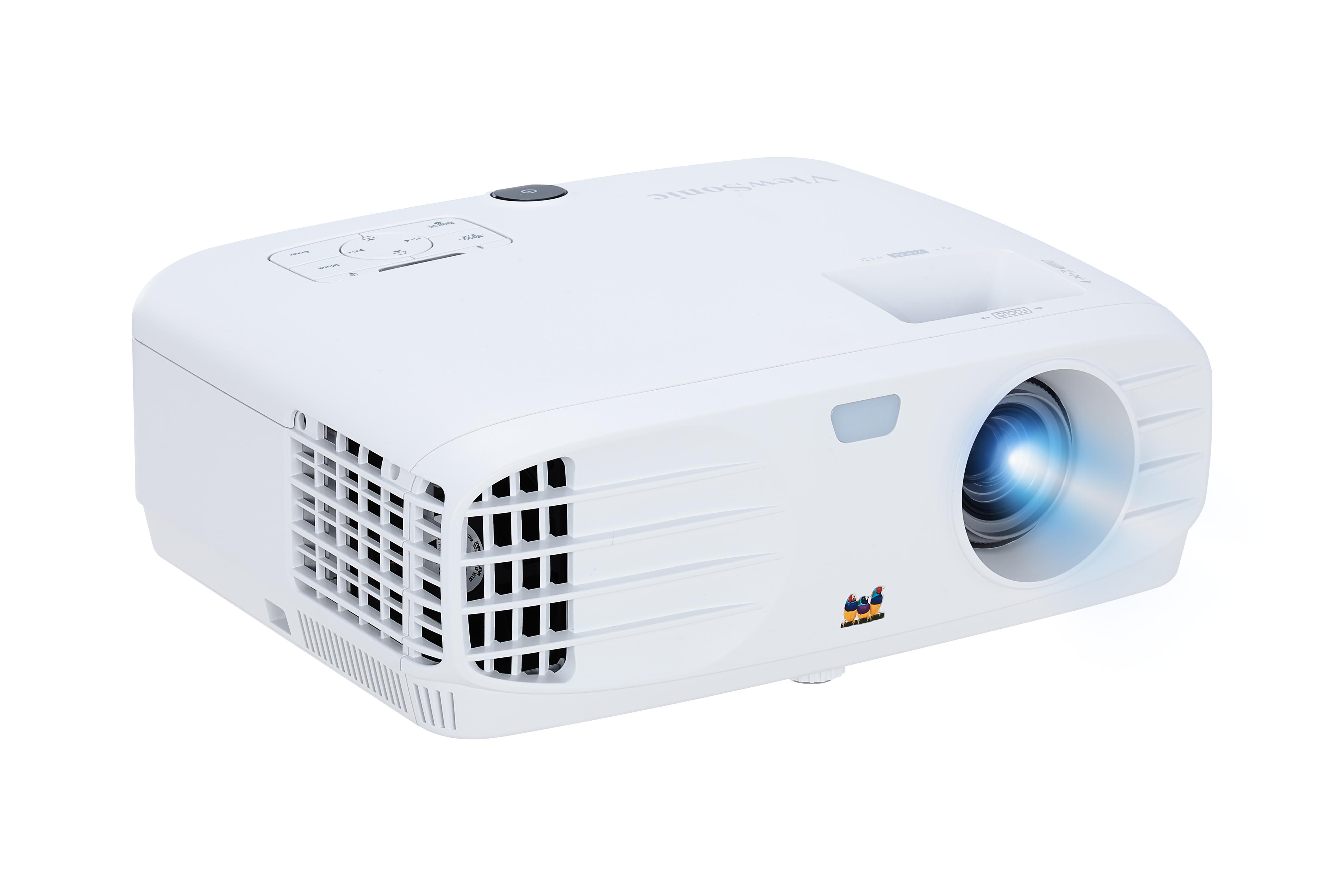

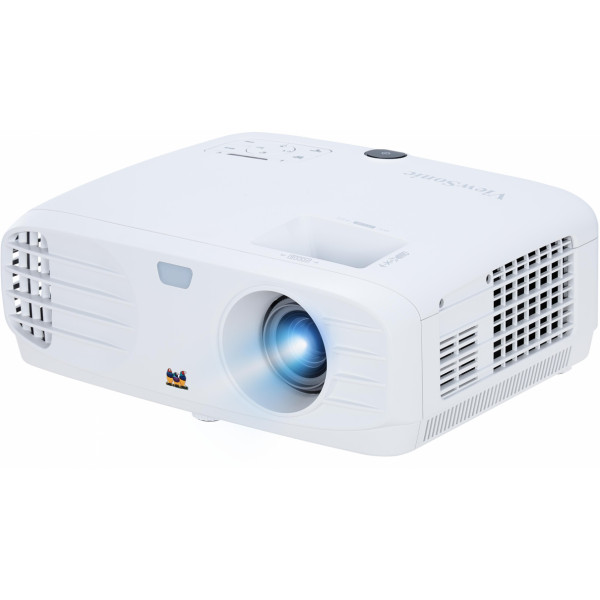

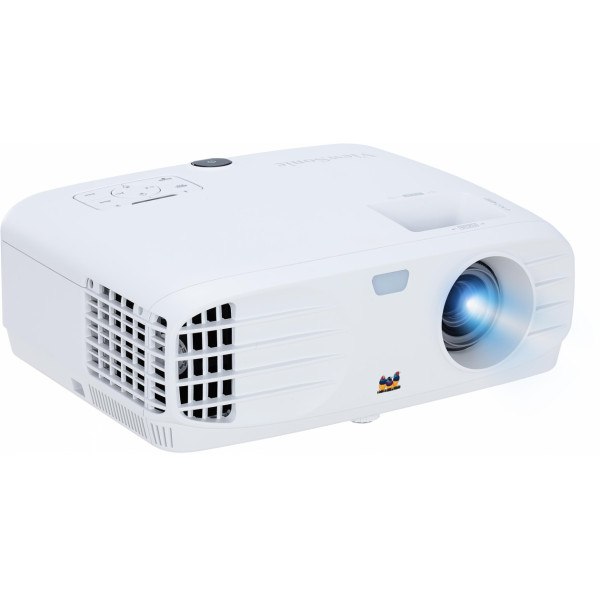

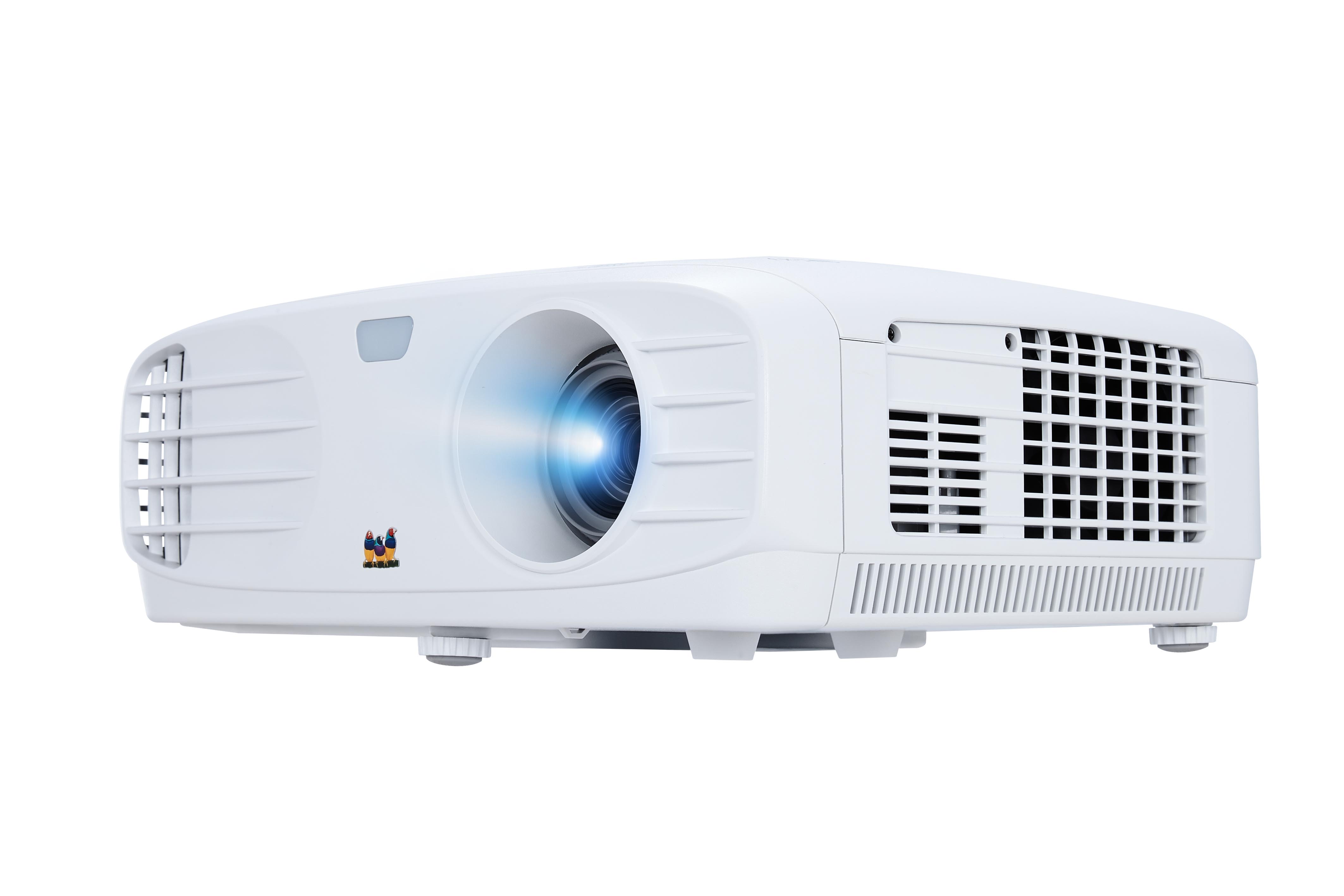

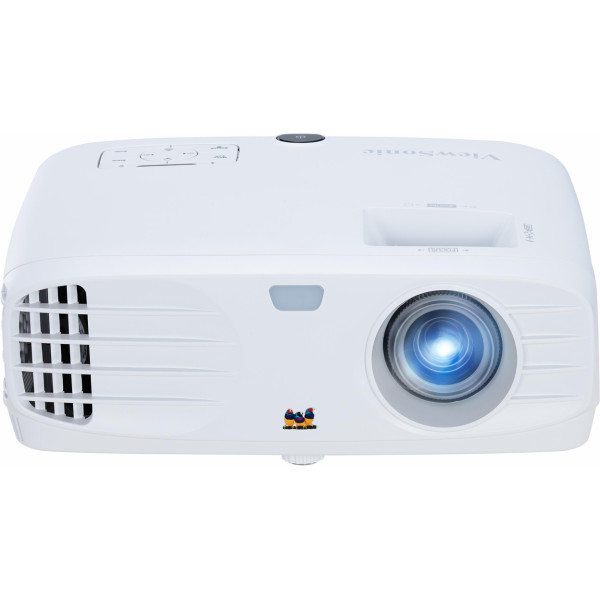

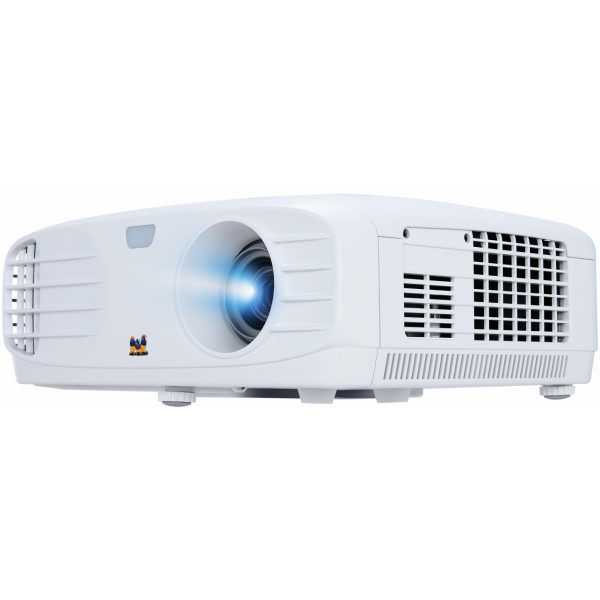

PG705WU

4,000 Lumens WUXGA Business Projector

  • SuperColor™ technology
  • Dual HDMI inputs and USB power supply
  • LAN control support- Crestron, AMX, PJ Link and Extron
  • Auto power on
  • Smart Energy
Projector Warranty Extension

SPECIFICATIONS


  • SPECIFICATION
    Projection system: 0.48” WUXGA
    Native Resolution: 1920x1200
    DC type: DC3
    Brightness: 4000lm
    Contrast Ratio with SuperEco mode: 12000:1
    Display Color: 1.07 Billion Colors
    Light Source: Lamp
    Light source life (Nor/SuperEco): 4000/15000
    Lamp Watt: 240W

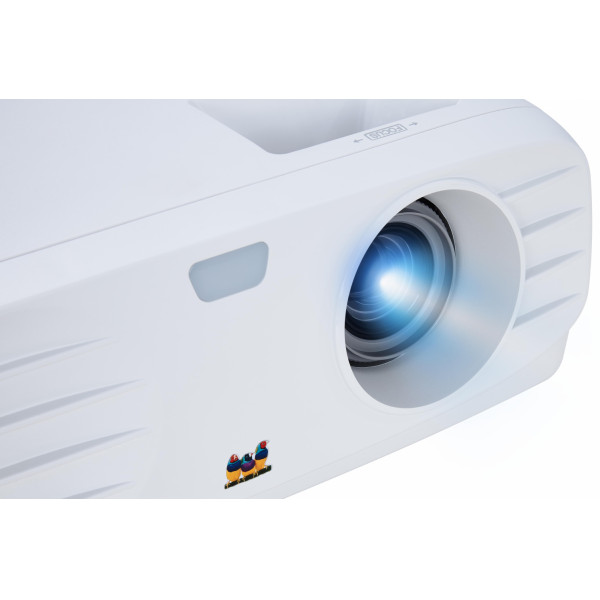

    Lens: F=1.94-2.06, f=15.57-18.67mm
    Projection Offset: 100%+/-6%
    Throw Ratio: 1.47-1.76
    Image size: 30" - 300"
    Throw Distance: 0.95m-11.37m(100" @3.17m)
    Keystone: ±40° (Vertical)
    Optical Zoom: 1.2x
    Audible Noise (Eco): 27dB
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz

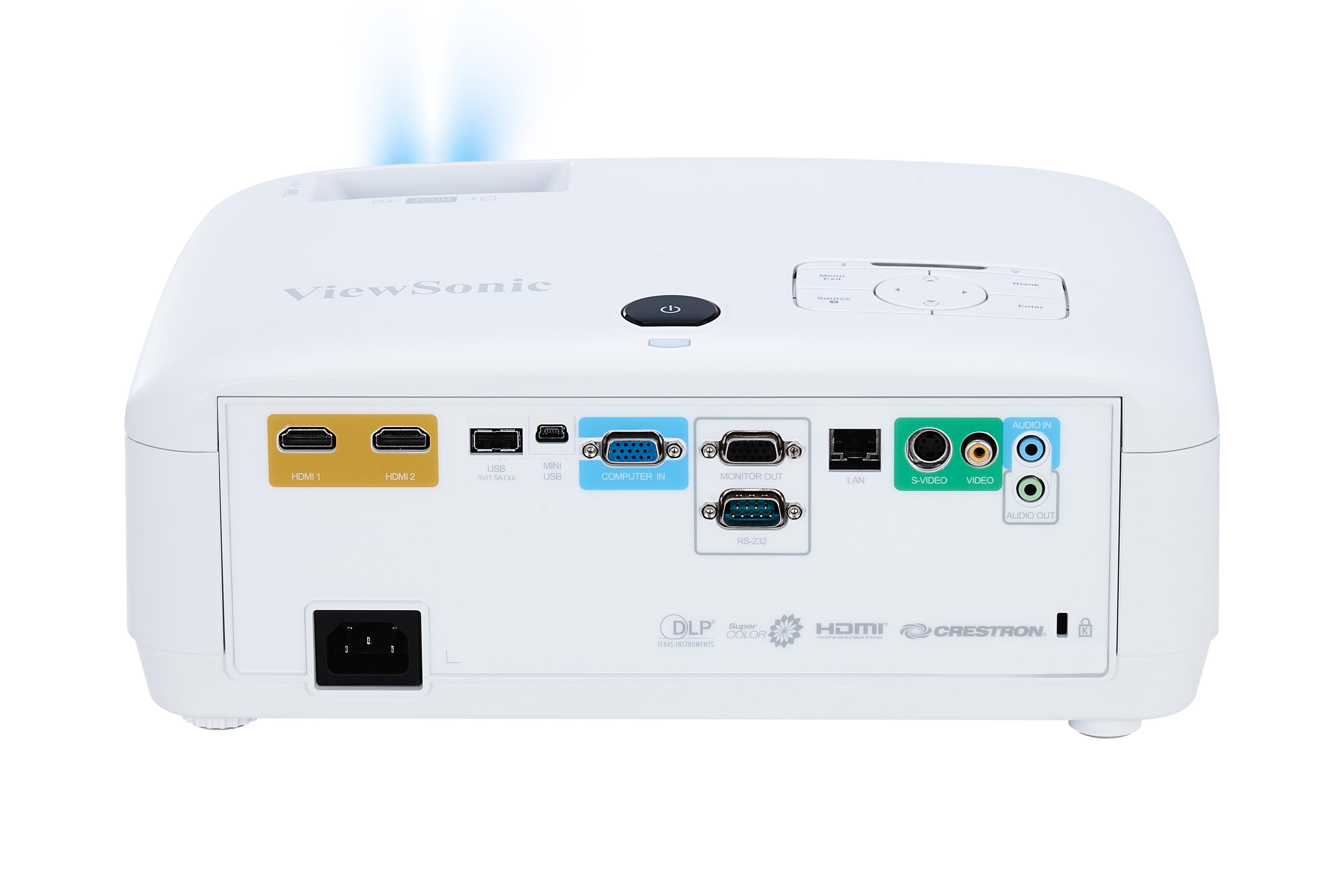

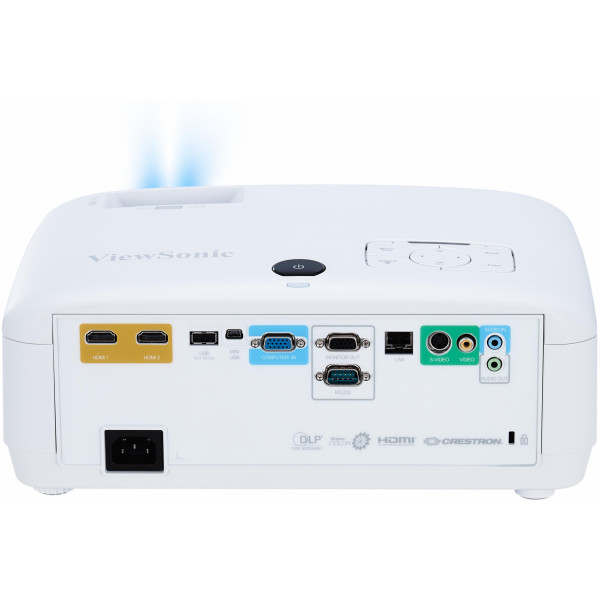

  • Input
    Computer in (D-SUB 15 pin): 1
    Composite: 1
    S-video: 1
    Audio-in (3.5mm): 1
    HDMI (HDCP): 2 (Back)
    (HDMI 1.4/ HDCP 1.4)
  • Output
    Monitor out (D-SUB 15 pin): 1
    Audio out (3.5mm): 1
    Speaker: 10W
    USB type A (Power): 1 (5V/1.5A)
