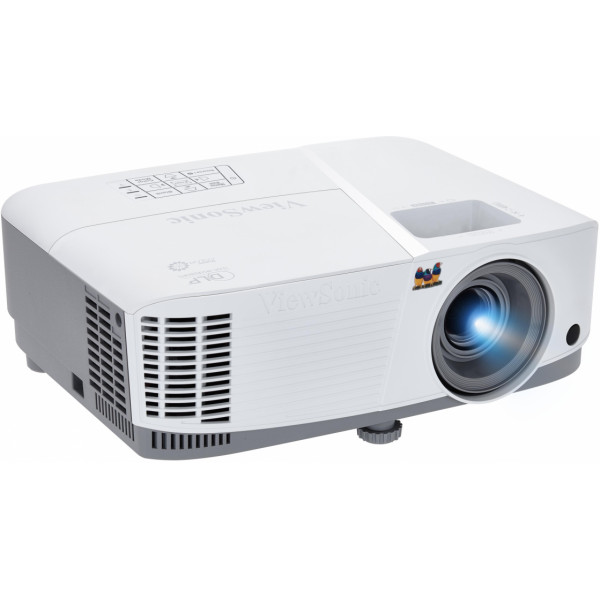

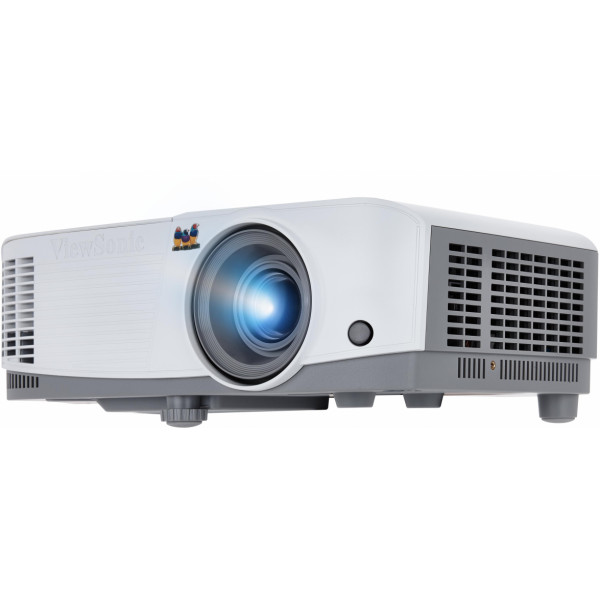

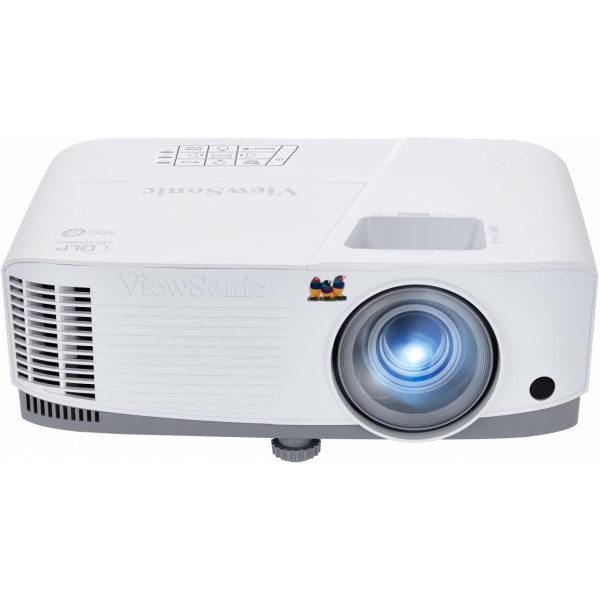

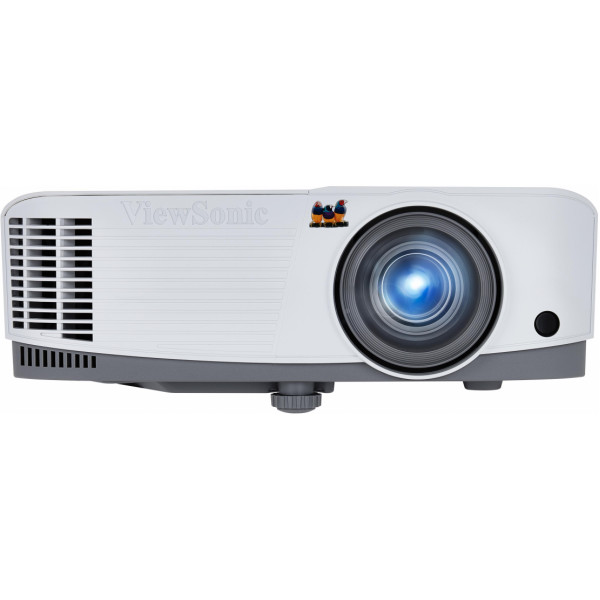

PG603X

3,800 ANSI Lumens XGA Business Projector

  • 22,000:1 contrast ratio
  • Integrated USB reader
  • Screen mirroring for smart devices via USB
  • LAN/WiFi display with vPresenter Pro
  • Horizontal and Vertical keystone
Projector Warranty Extension

SPECIFICATIONS


  • Specification
    Projection System: 0.55" XGA
    Native Resolution: 1024x768
    Brightness: 3800 ANSI Lumens
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors

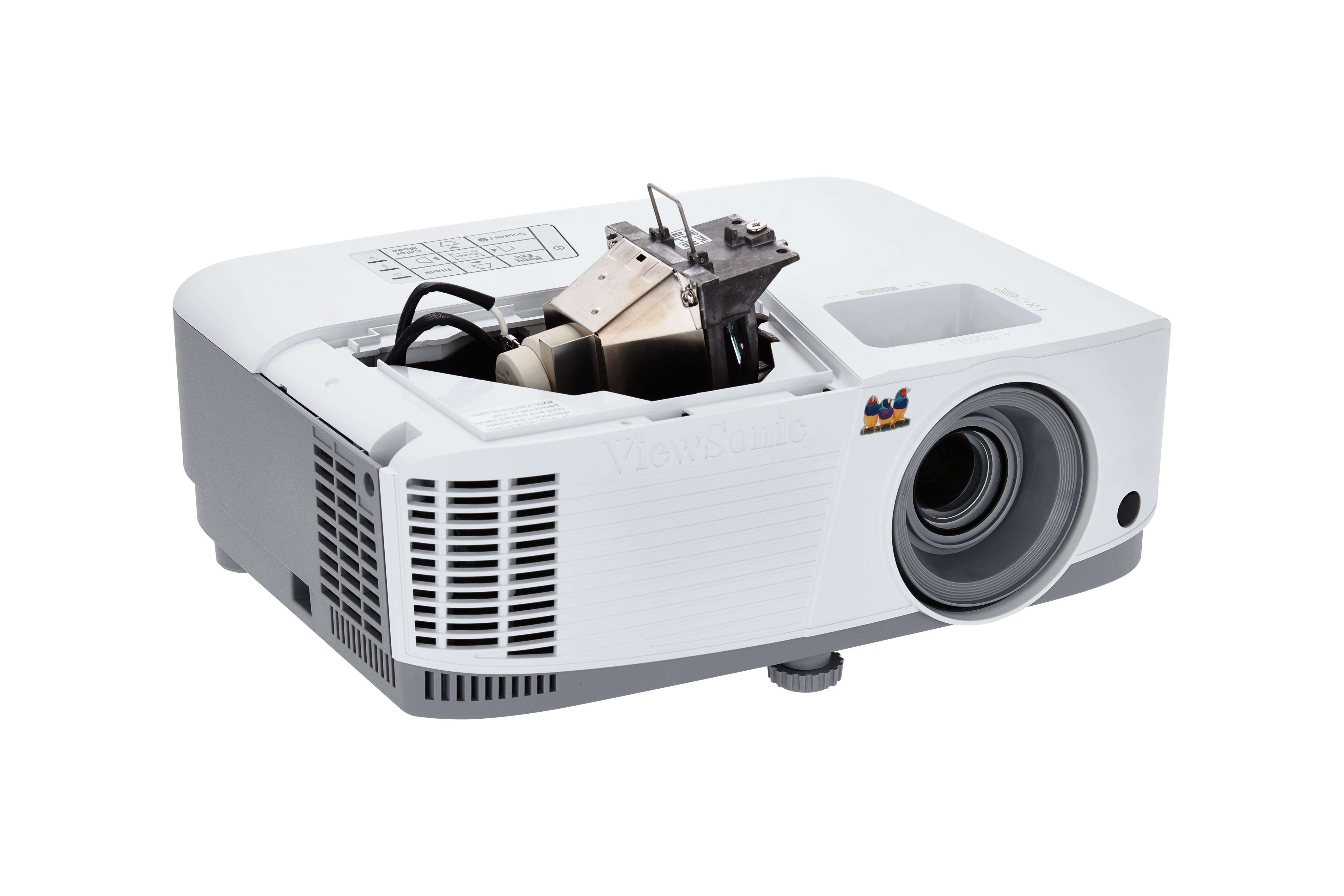

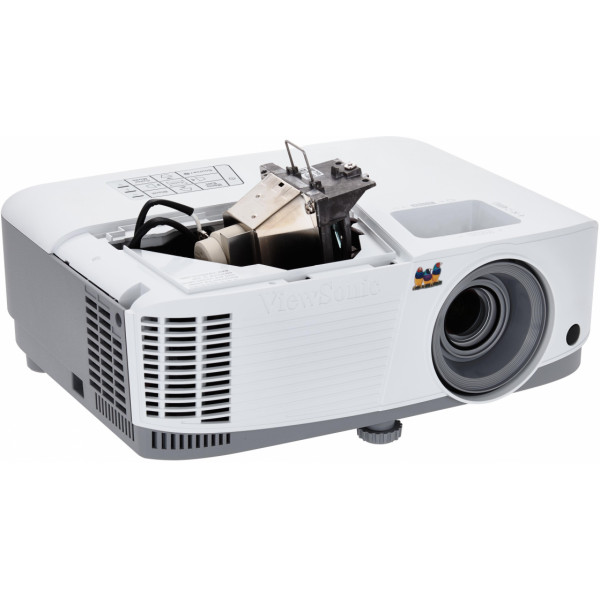

    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 15000
    Lamp Watt: 190W
    Lens: F=2.56-2.68, f=22-24.1mm
    Projection Offset: 120%+/-5%
    Throw Ratio: 1.96-2.15
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.19m-13.11m
    (100"@3.98m)
    Keystone: H:+/-20° , V:+/-30°
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 54ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz

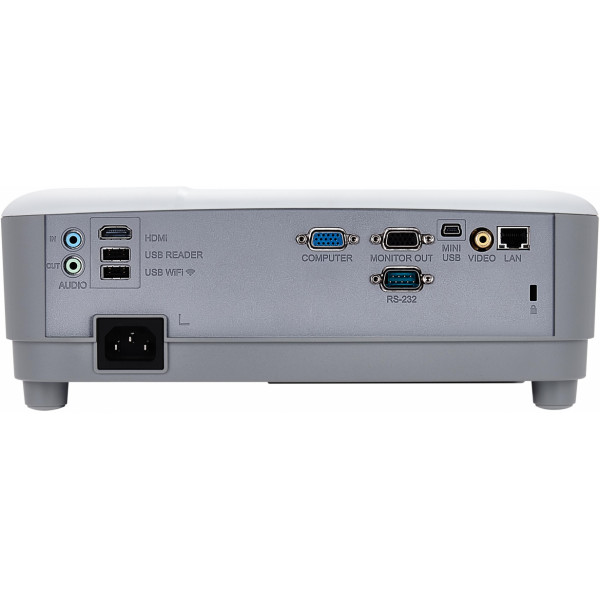

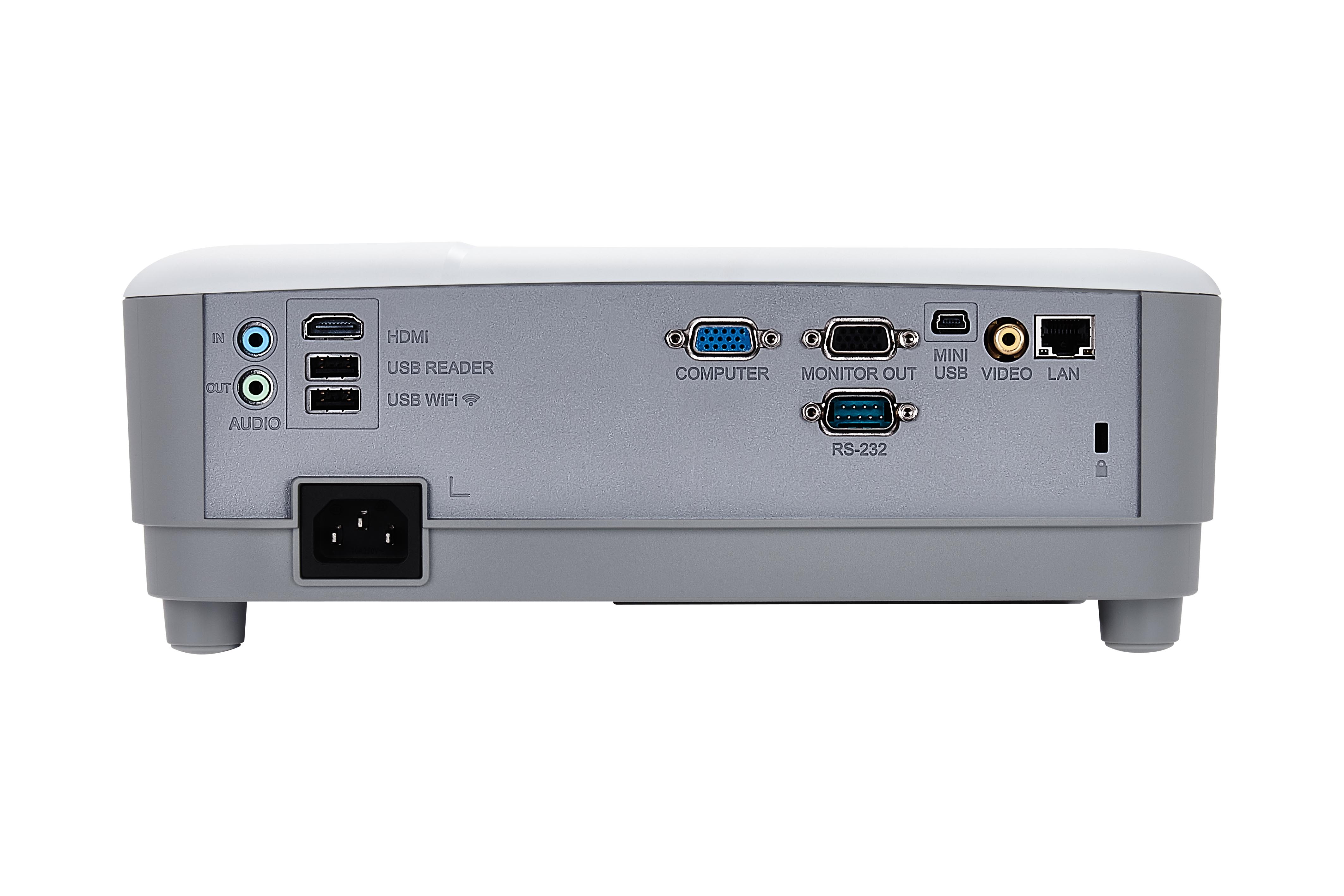

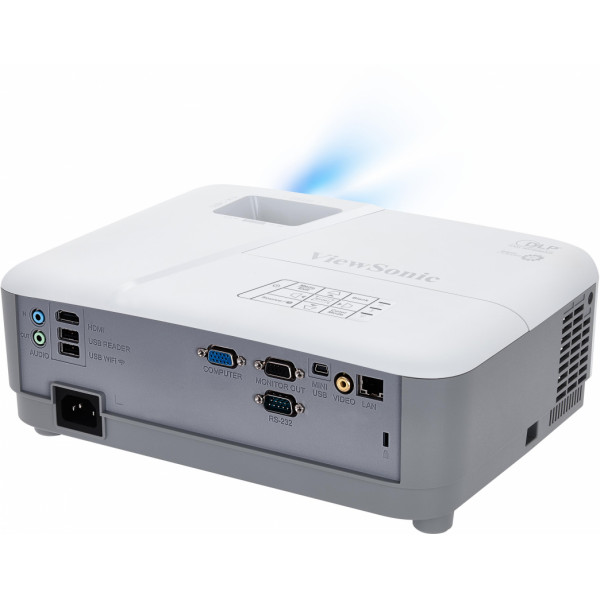

  • Input
    Computer in (share with component): 1
    Composite: 1
    HDMI: 1
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    USB Type A: 2
    (USB2.0 Reader x1,
    Wifi dongle x 1)
  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 2
    (USB2.0 - 5V/500mA,
    share with USB A Input)
