SPECIFICATIONS
- DisplayDisplay Size (in.): 32
Viewable Area (in.): 32
Panel Type: IPS Technology
Resolution: 2560 x 1440
Resolution Type: QHD (Quad HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 120M:1
High Dynamic Range: VESA HDR600
Light Source: LED
Brightness: 280 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (MPRT): 0.5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 175
Variable Refresh Rate Technology: G-Sync compatible
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: Adobe RGB: 99% coverage (Typ)
NTSC: 112% size (Typ)
sRGB: 158% size / 99% coverage (Typ)
Pixel Size: 0.277 mm (H) x 0.277 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 10/11 certified; macOS tested

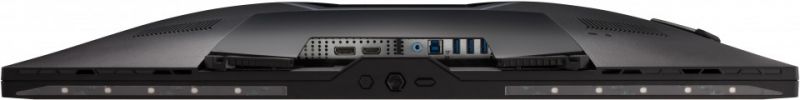

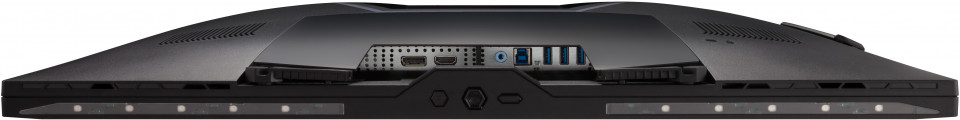

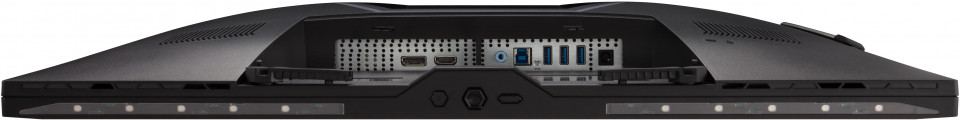

Mac® Resolution (min): 2560x1440 - ConnectorUSB 3.2 Type A Down Stream: 3
USB 3.2 Type B Up Stream: 1
Micro USB: 1
3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- AudioInternal Speakers: 5Watts x2
- PowerEco Mode (Conserve): 38.3W
Eco Mode (optimized): 40.7W
Consumption (typical): 43.8W
Consumption (max): 67.2W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
Cable Organization: Yes - ControlsPhysical Controls: Joystick key: Up, Right, Down, Left, Center; Quick Access; Power
On Screen Display: Game Modes, Display, Input Select, ViewMode, Audio Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: HDMI (v2.0): 30 ~ 230KHz, DisplayPort (v1.4): 30 ~ 254KHz
Frequency Vertical: HDMI (v2.0): 48 ~ 144Hz, DisplayPort (v1.4): 48 ~ 175Hz - Video InputDigital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)

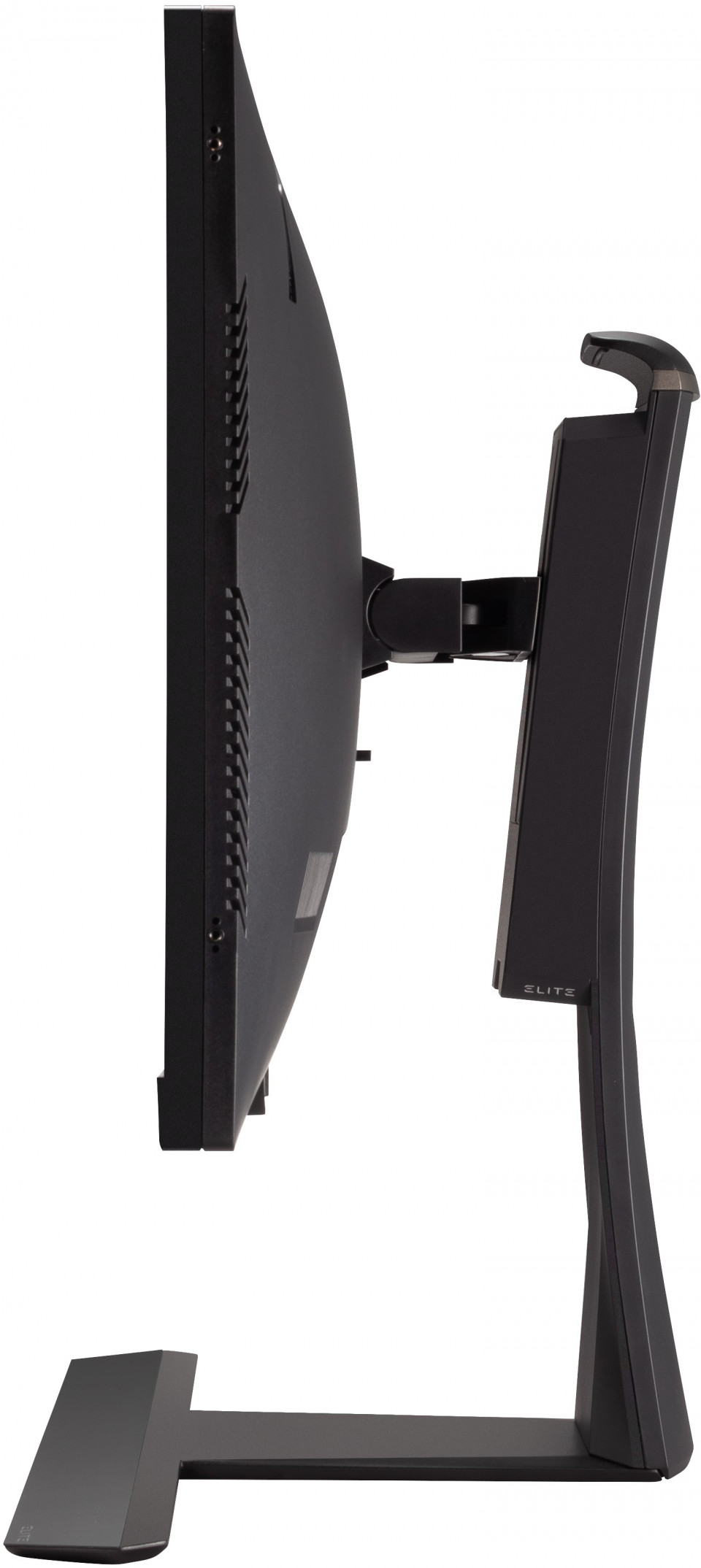

- ErgonomicsHeight Adjust (mm): 120
Swivel: 50º
Tilt (Forward/Back): -5º / 20º - Weight (imperial)Net (lbs): 22.2
Net Without Stand (lbs): 15.6
Gross (lbs): 32.1 - Weight (metric) Net (kg): 10.1
Net Without Stand (kg): 7.1
Gross (kg): 14.6 - Dimensions (imperial) (wxhxd)Packaging (in.): 33.5 x 20.7 x 12.9
Physical (in.): 28.6 x 18.99~23.71 x 10.4
Physical Without Stand (in.): 28.6 x 17 x 3.4 - Dimensions (metric) (wxhxd)Packaging (mm): 850 x 527 x 327
Physical (mm): 726 x 482.3~602.3 x 265
Physical Without Stand (mm): 726 x 432 x 87 - GeneralPACKAGE CONTENTS: XG320Q x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
