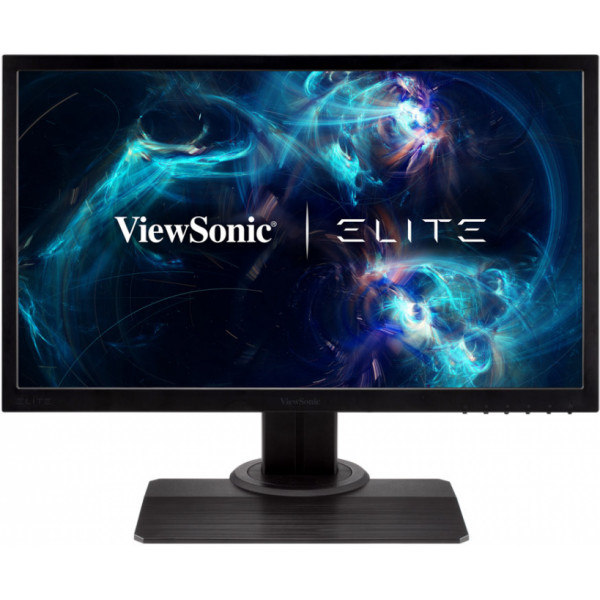

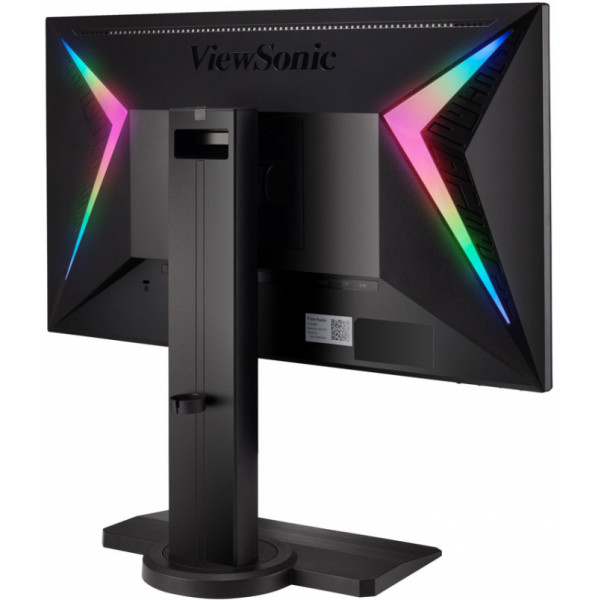

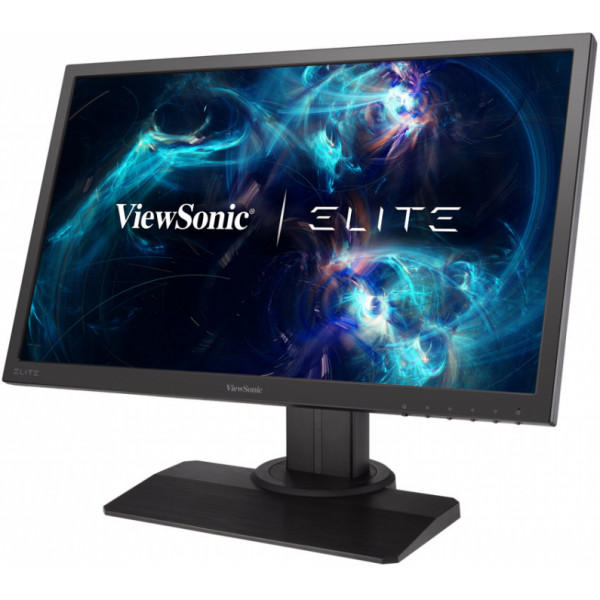

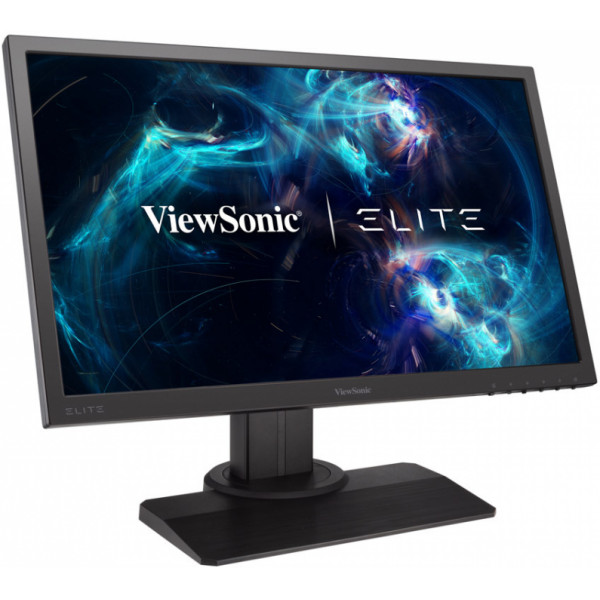

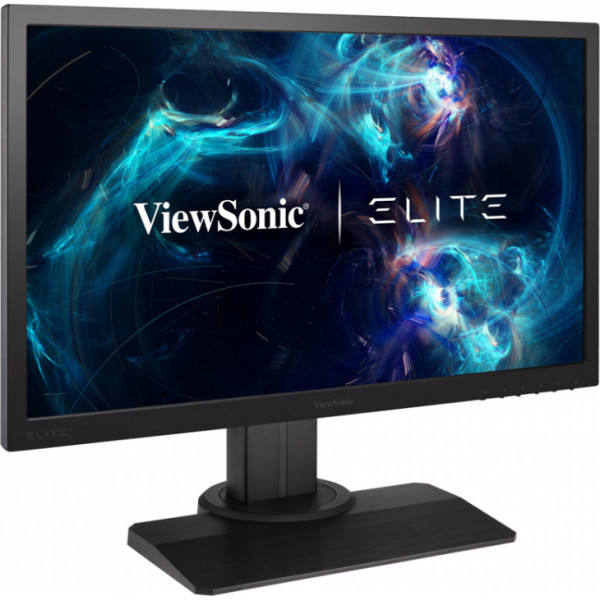

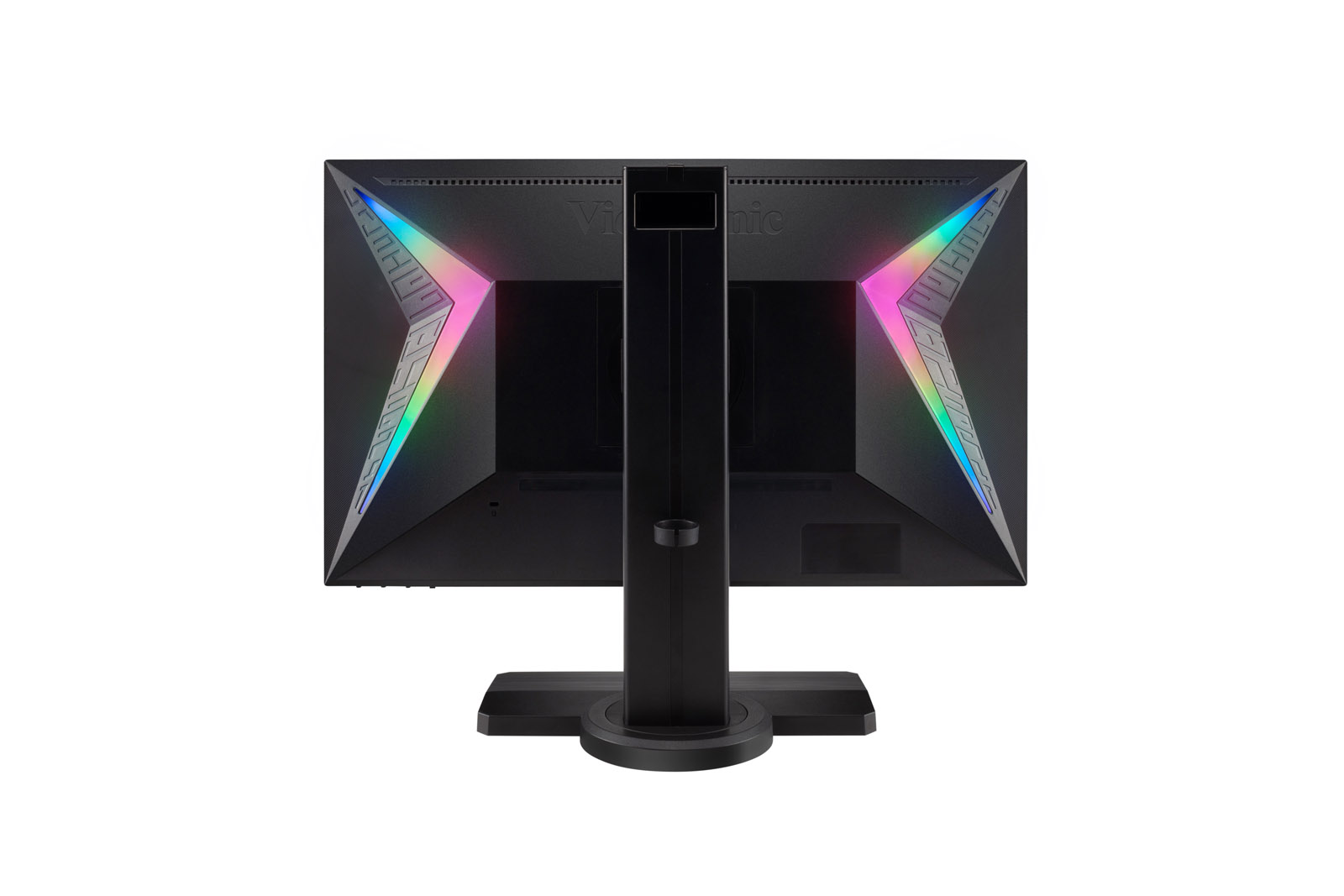

XG240R

24” RGB Gaming Monitor

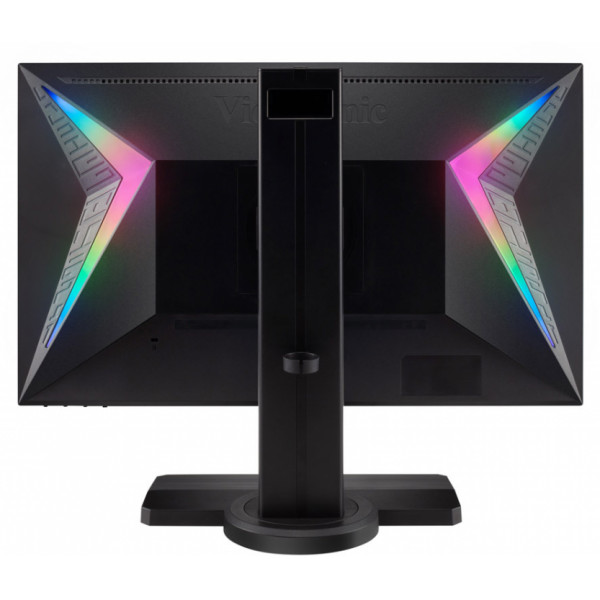

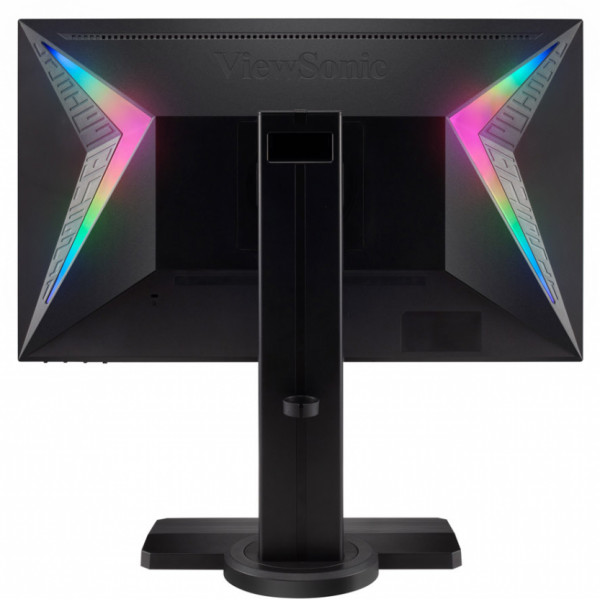

ELITE RGB Alliance
144Hz refresh rate
1ms response time
Game Mode
AMD FreeSync™ Premium technology

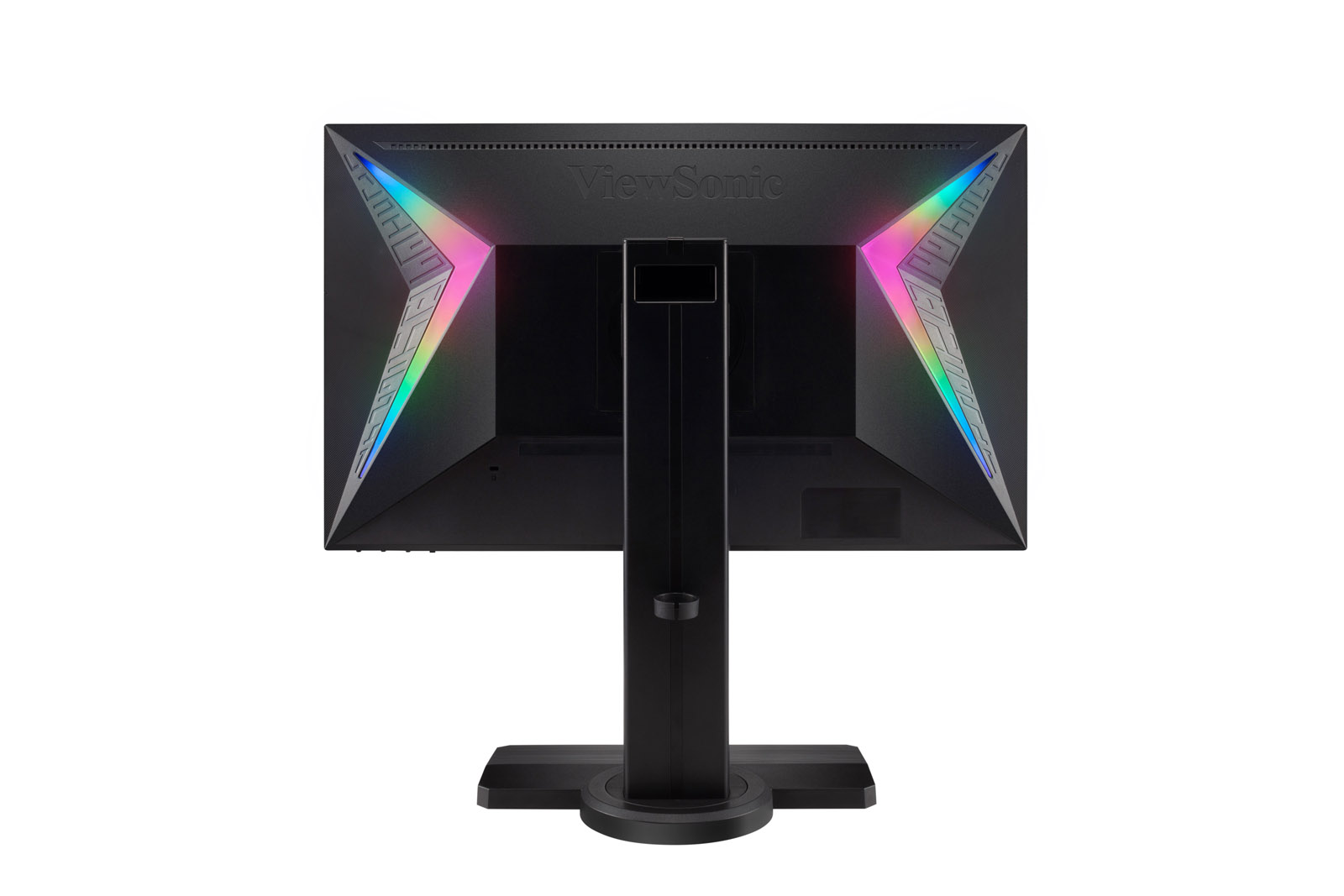

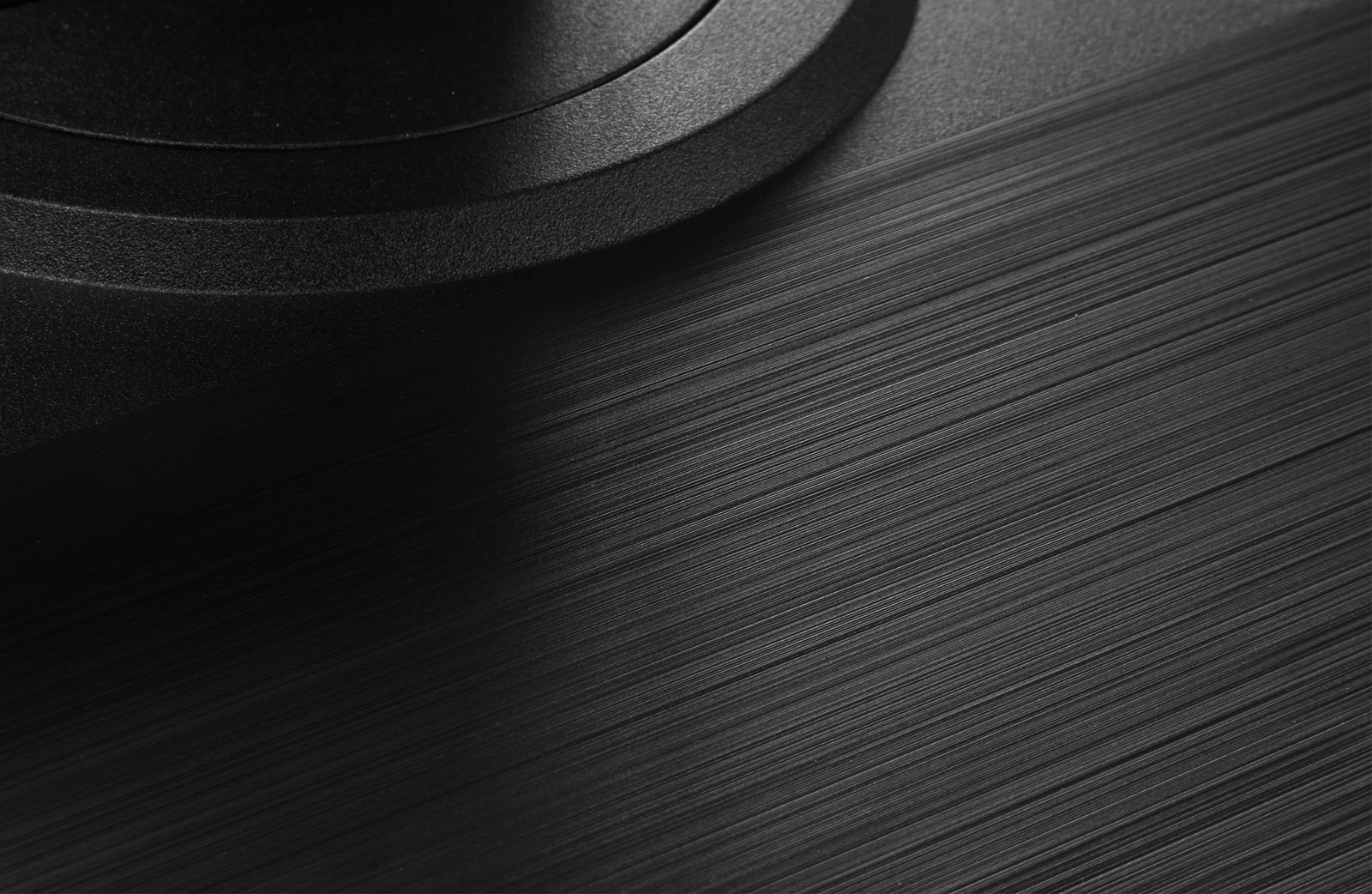

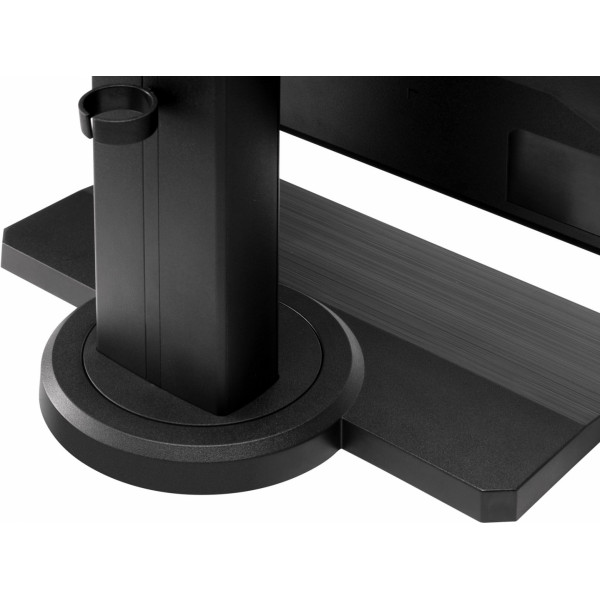

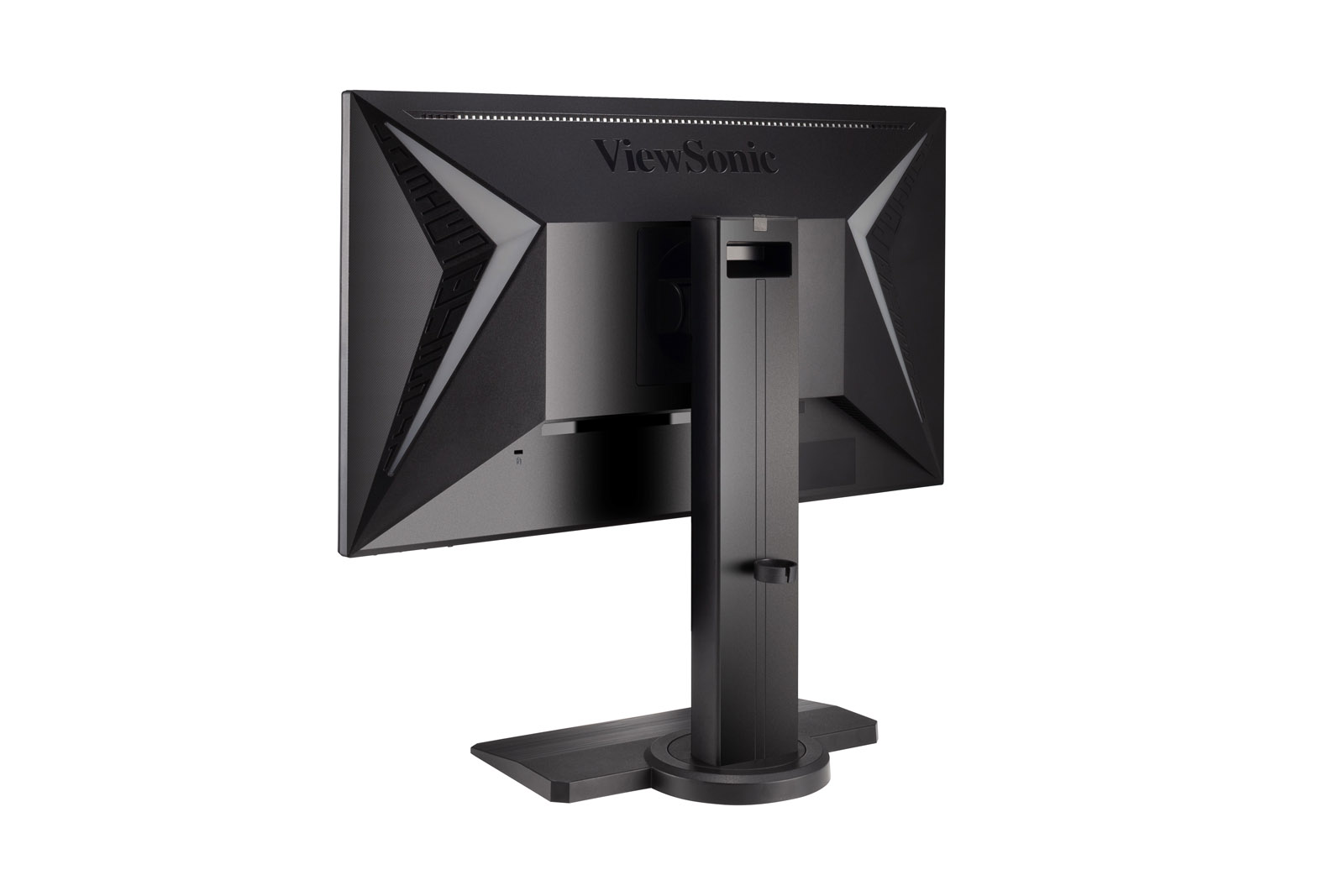

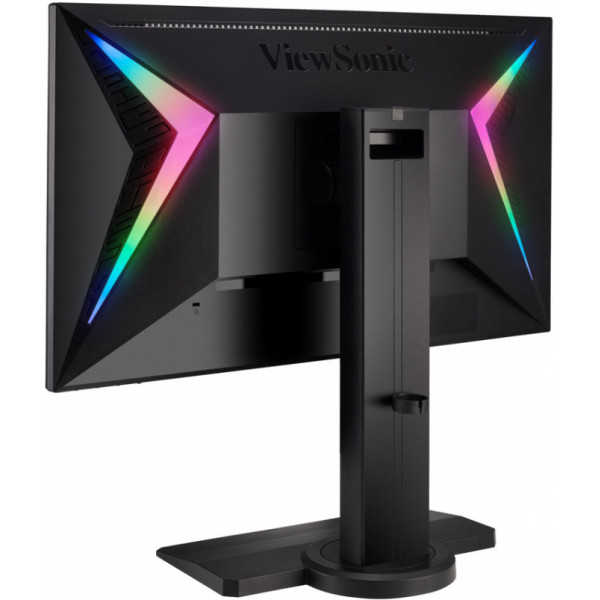

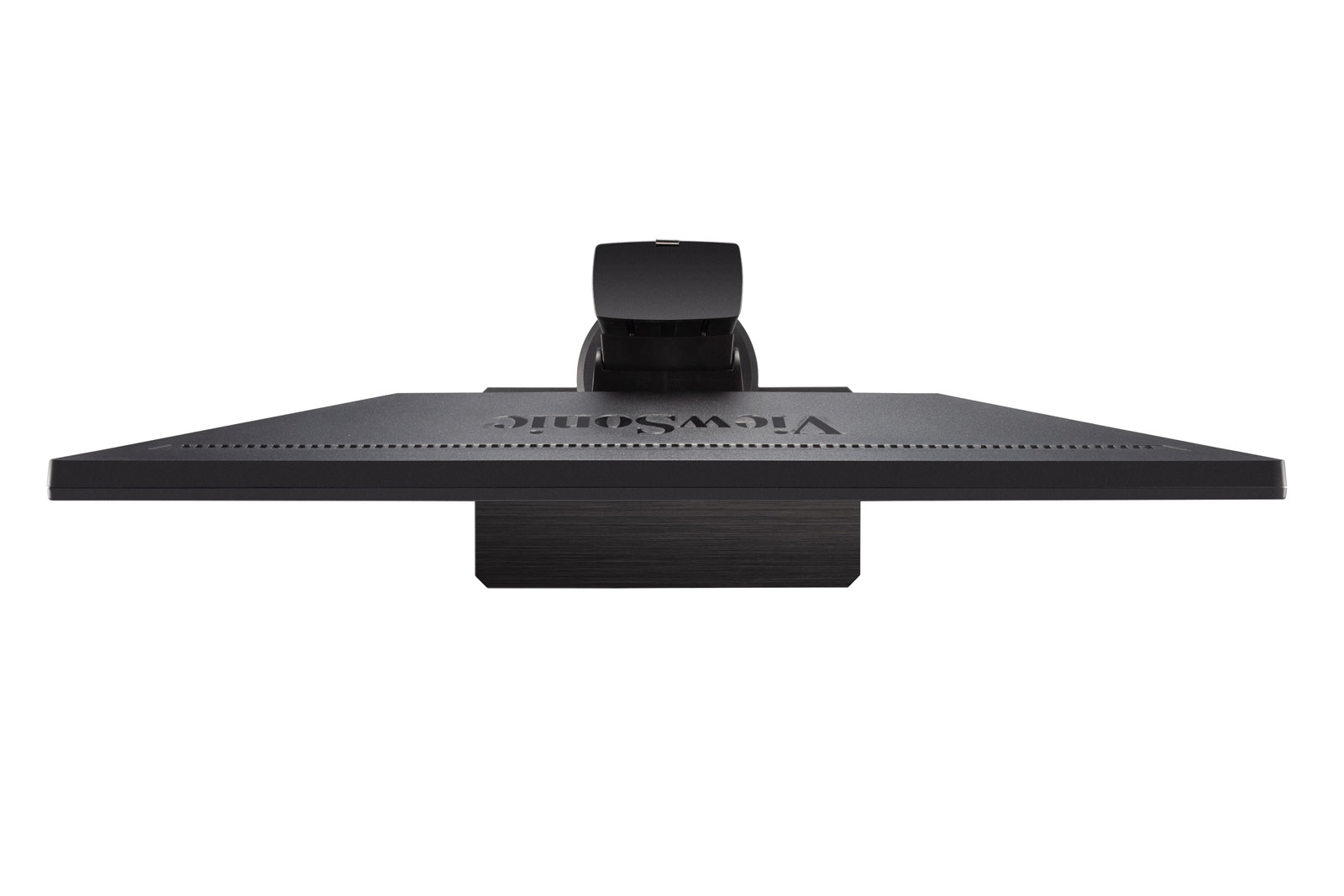

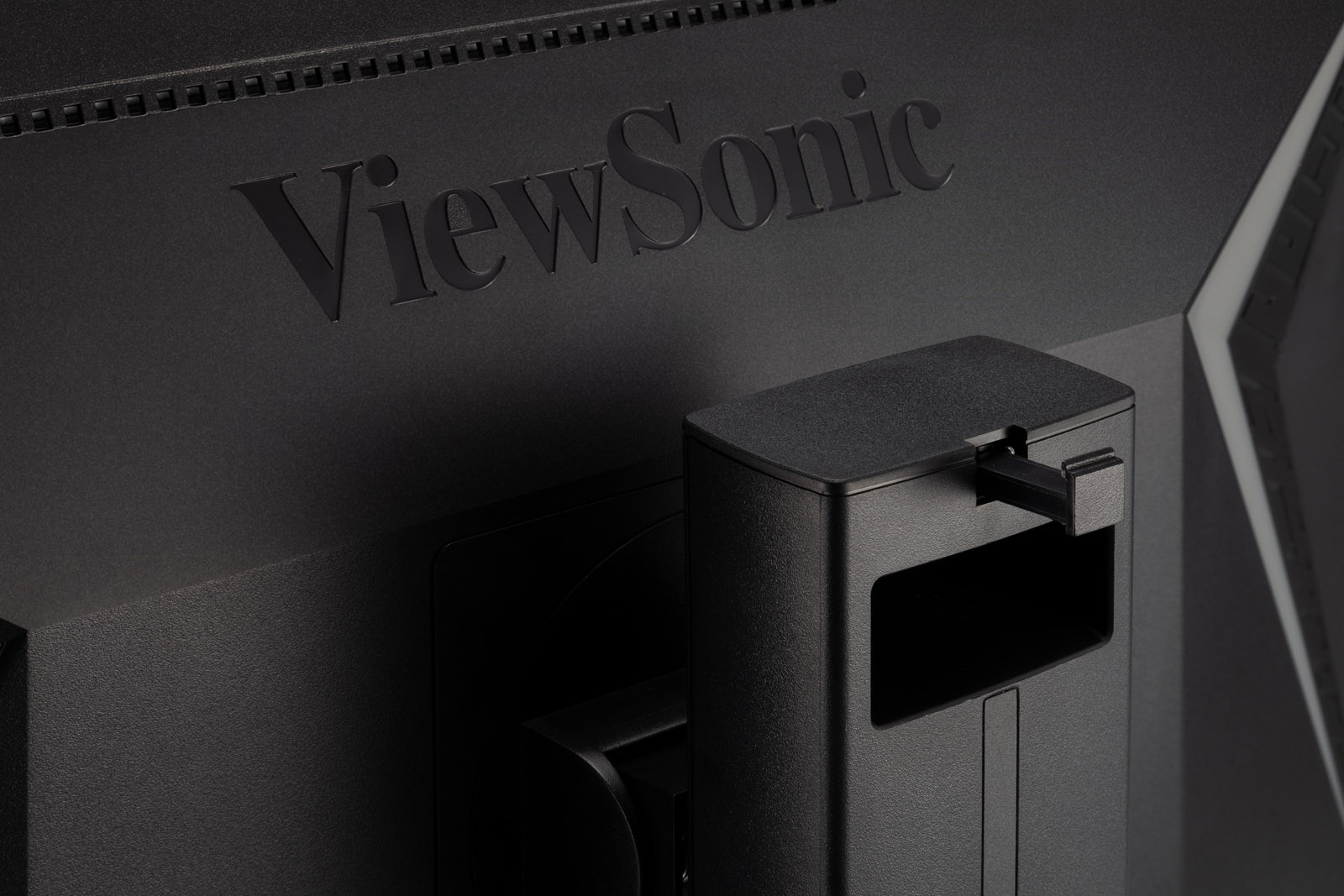

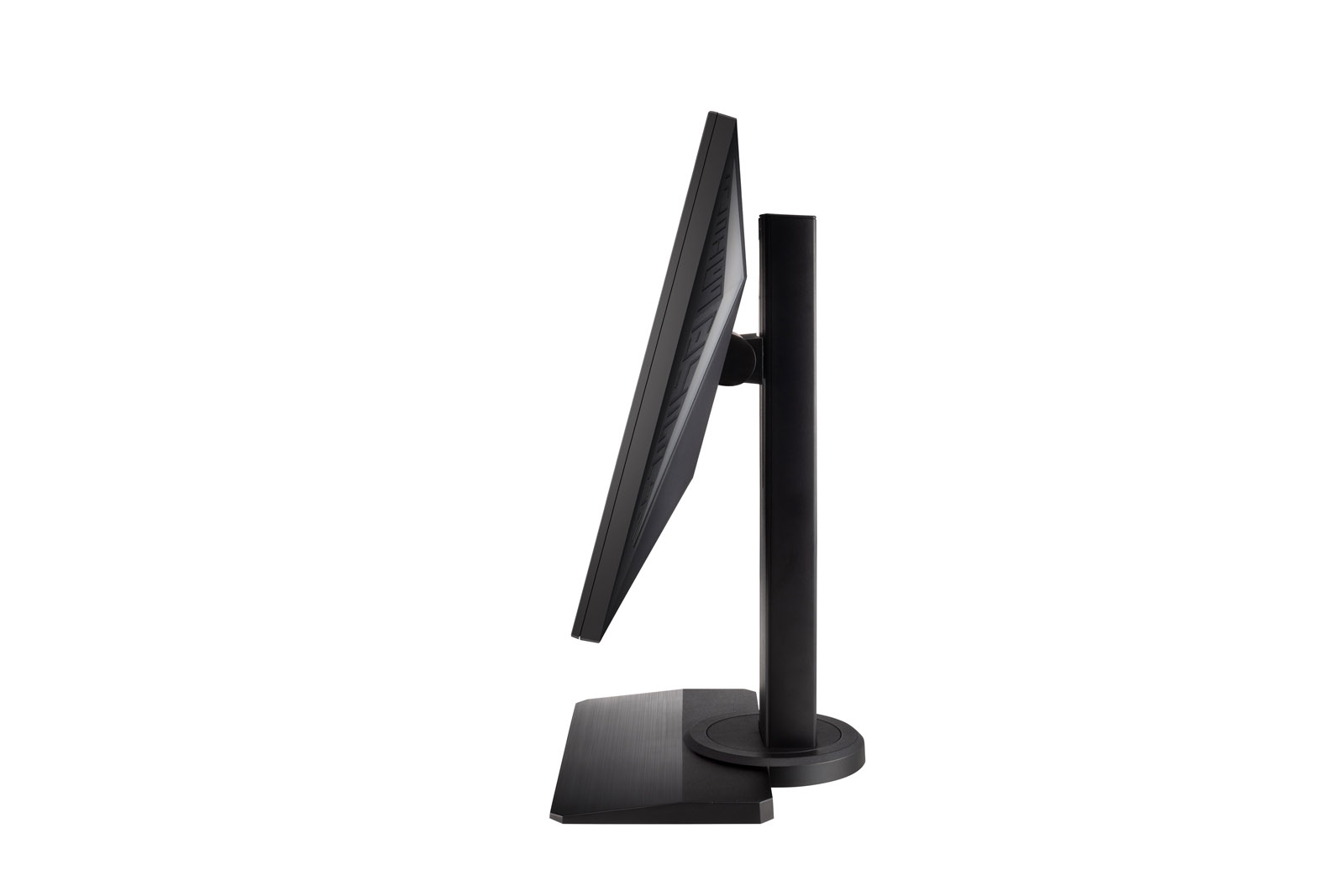

GALLERY

REVIEWS

Gold Award and Recommended Product

“ViewSonic ELITE XG240R - In general, we must say that the image quality is excellent, with bright colours and a sensational brightness.”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 24
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 120M:1
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 1ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync Premium
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.277 mm (H) x 0.277 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080

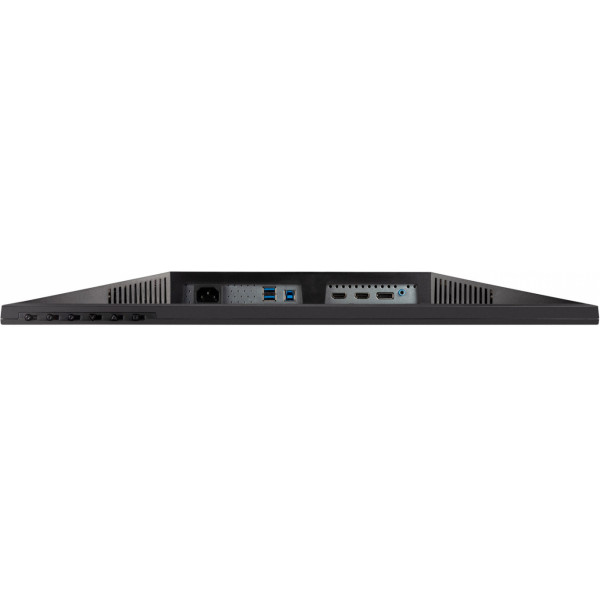

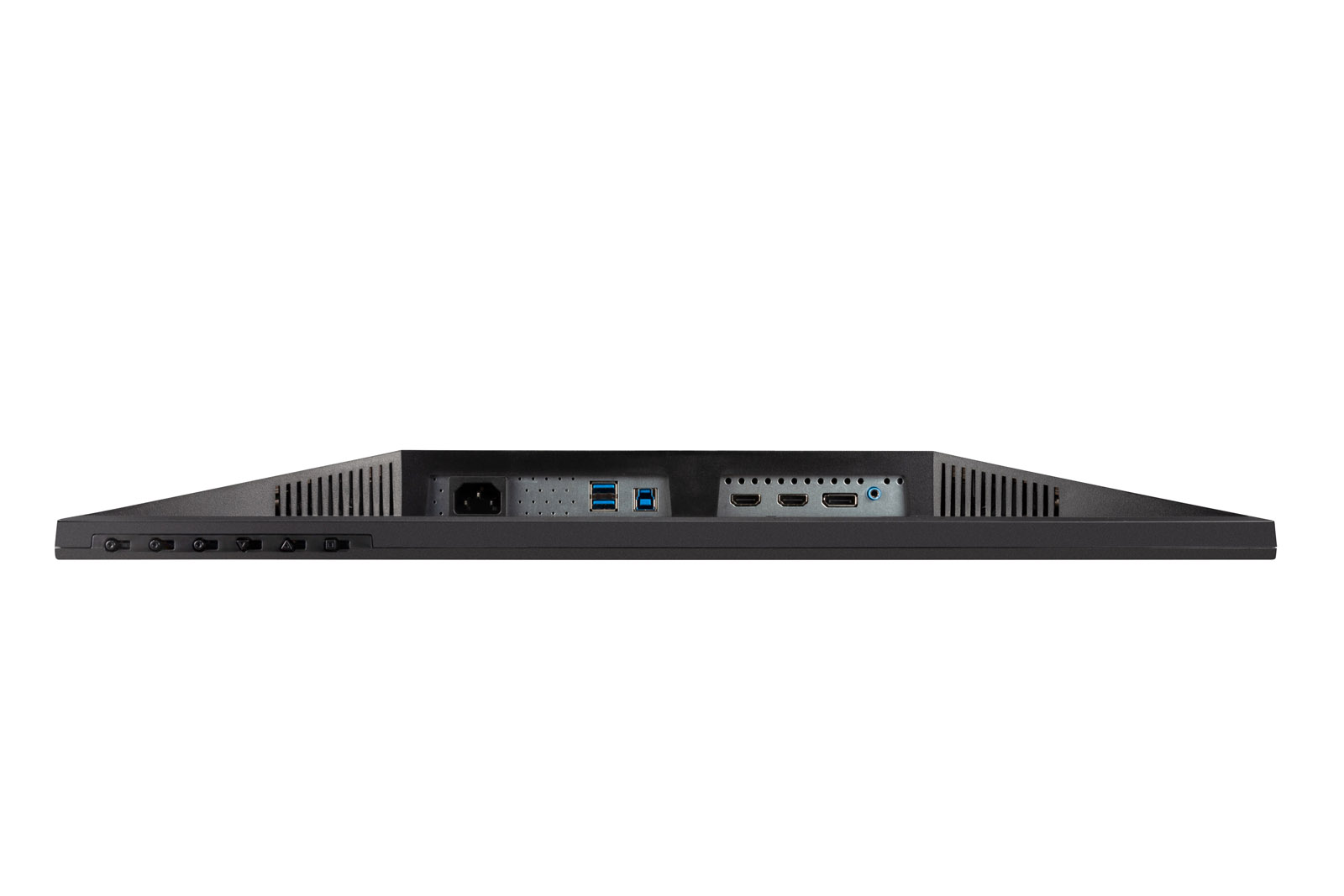

Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
3.5mm Audio Out: 1
HDMI 1.4: 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 18 (RGB off)W
Eco Mode (optimized): 24 (RGB off)W
Consumption (typical): 30 (RGB off)W
Consumption (max): 32 (RGB off)W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Gaming Settings, Display, Input Selet, ViewMode, Audio Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: HDMI (v1.4): 15 ~ 160KHz, DisplayPort (v1.2): 30 ~ 160KHz
Frequency Vertical: HDMI (v1.4): 24 ~ 144Hz, DisplayPort (v1.2): 48 ~ 146Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

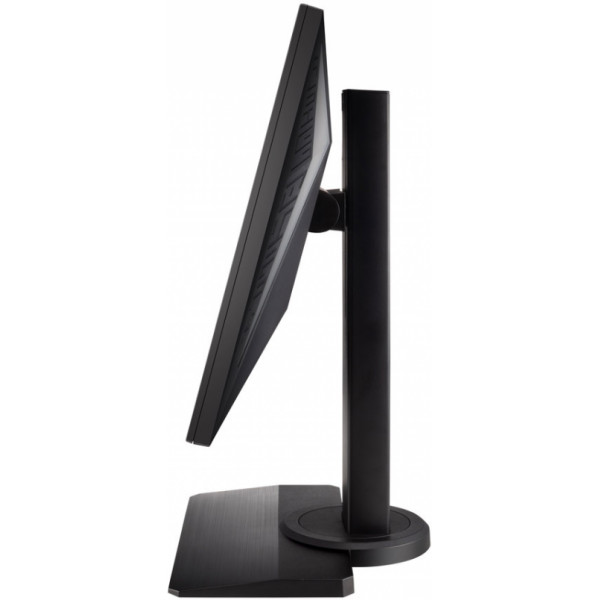

Ergonomics
Height Adjust (mm): 120
Swivel: 90º
Tilt (Forward/Back): -5º / 15º

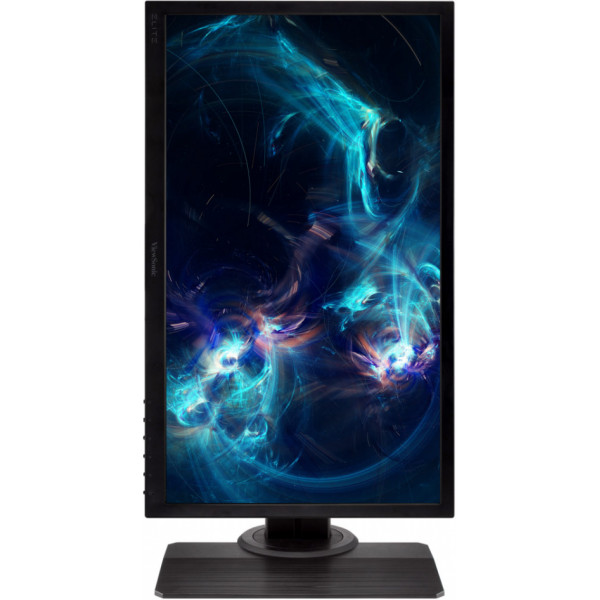

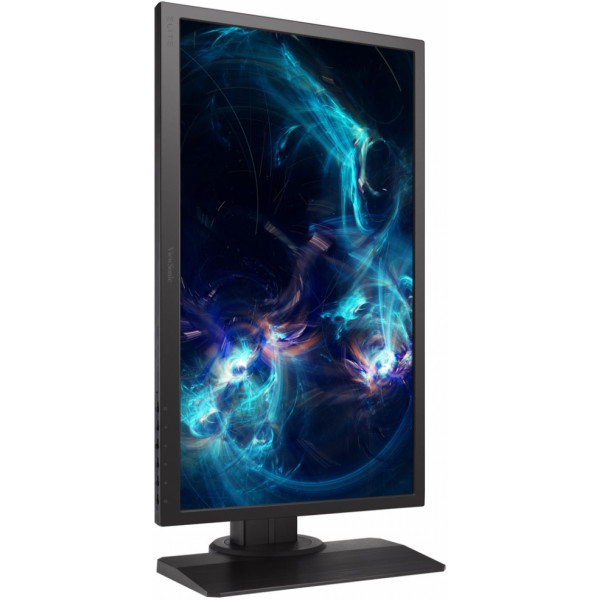

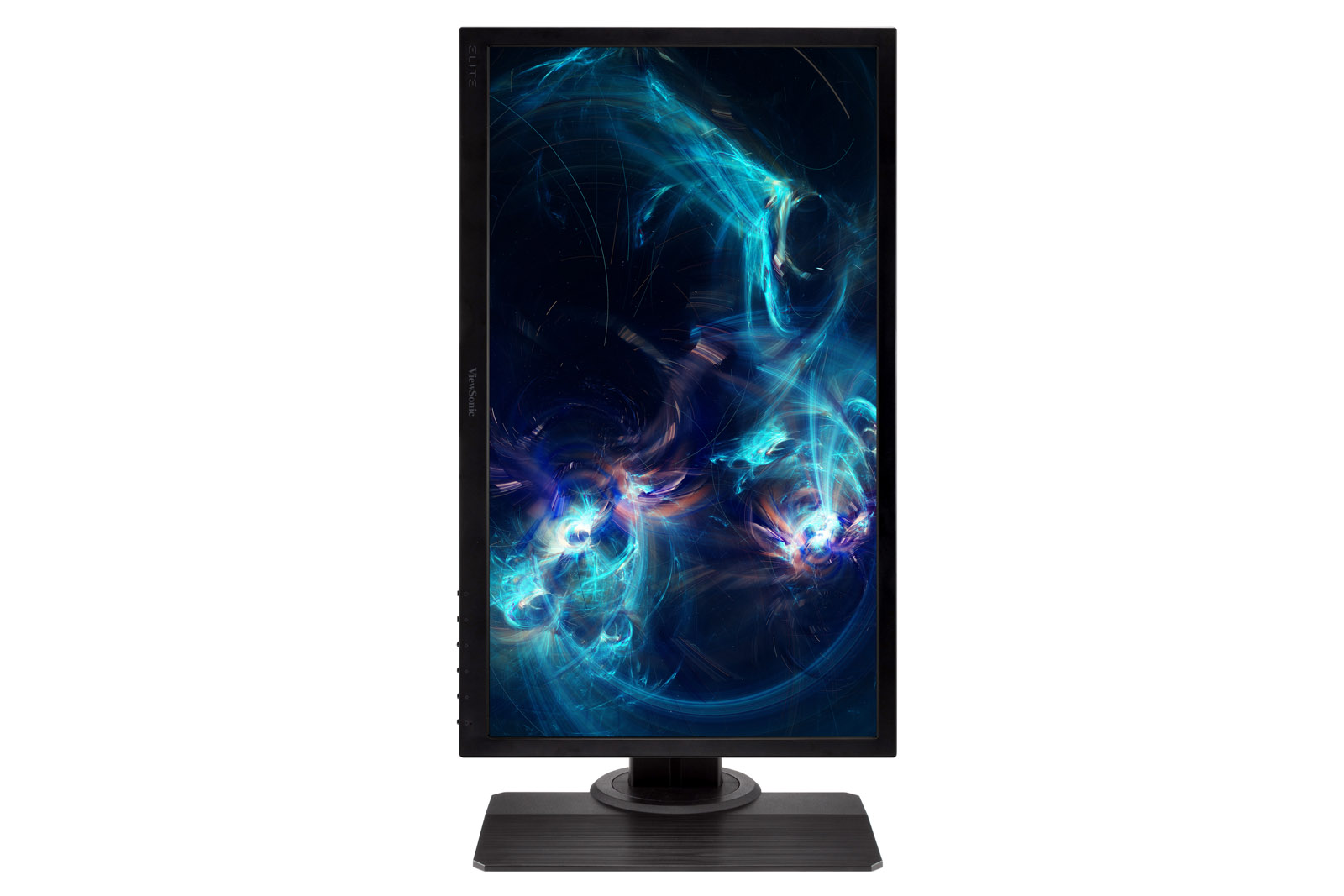

Pivot (Right/Left): 90º / 0º
Weight (imperial)
Net (lbs): 14.8
Net Without Stand (lbs): 7.5
Gross (lbs): 18.7
Weight (metric)
Net (kg): 6.7
Net Without Stand (kg): 3.4
Gross (kg): 8.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 25.2 x 15.6 x 8.1
Physical (in.): 22.3 x 17.08~20.87 x 9.4
Physical Without Stand (in.): 22.3 x 13.4 x 2.4
Dimensions (metric) (wxhxd)
Packaging (mm): 640 x 396 x 207
Physical (mm): 566 x 433.9~530.18 x 239
Physical Without Stand (mm): 566 x 341 x 60
General
PACKAGE CONTENTS: XG240R x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
