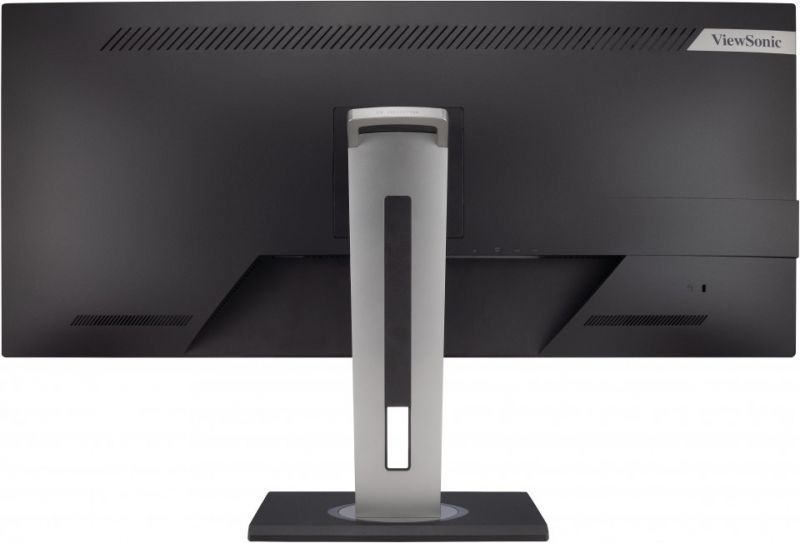

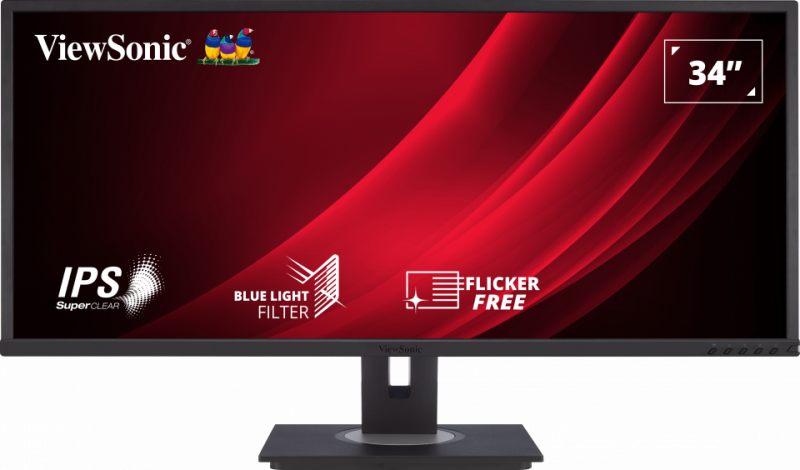

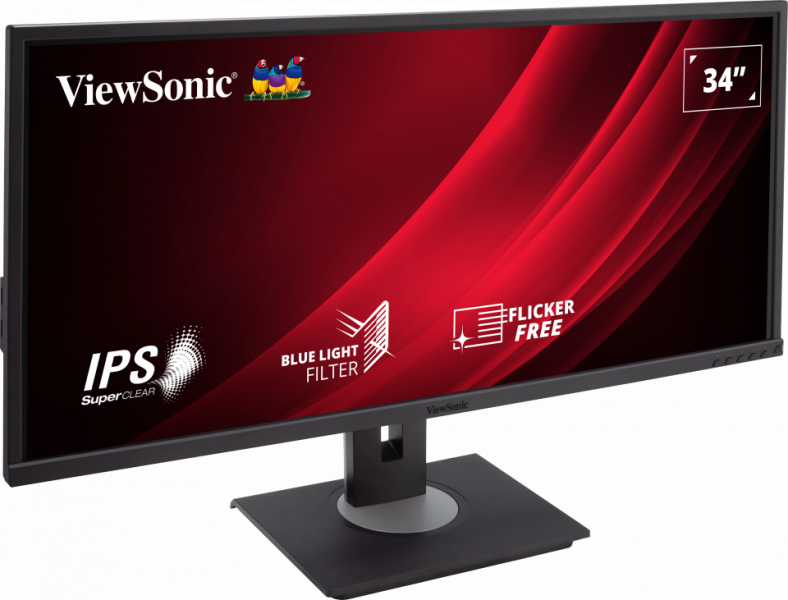

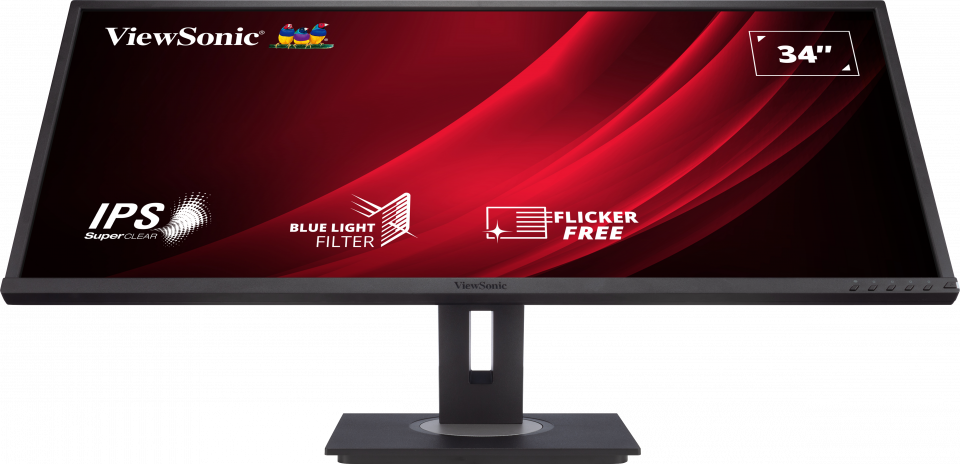

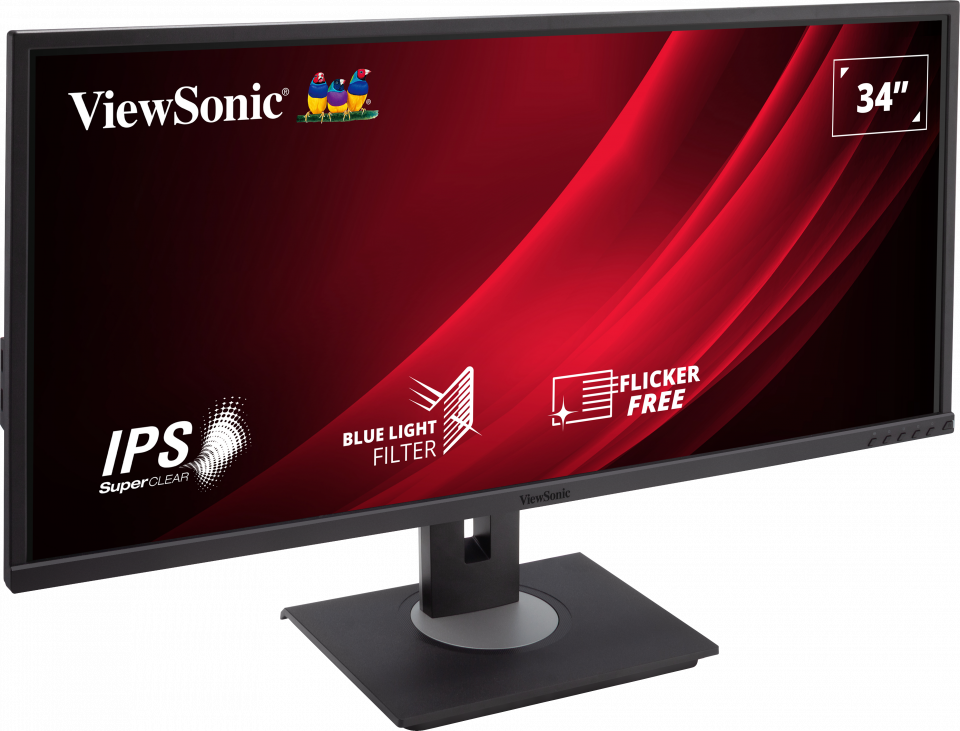

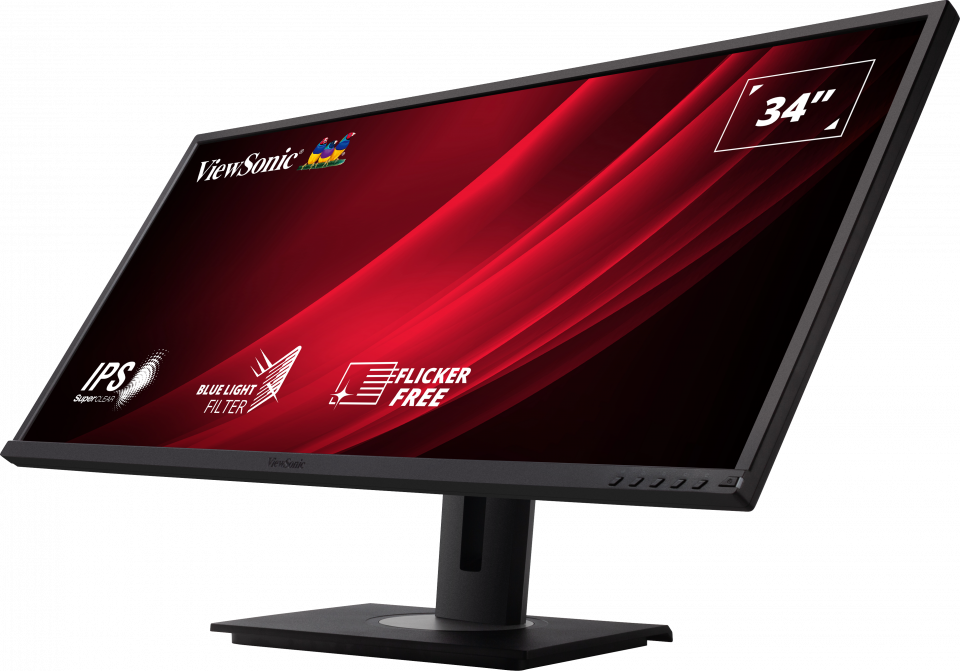

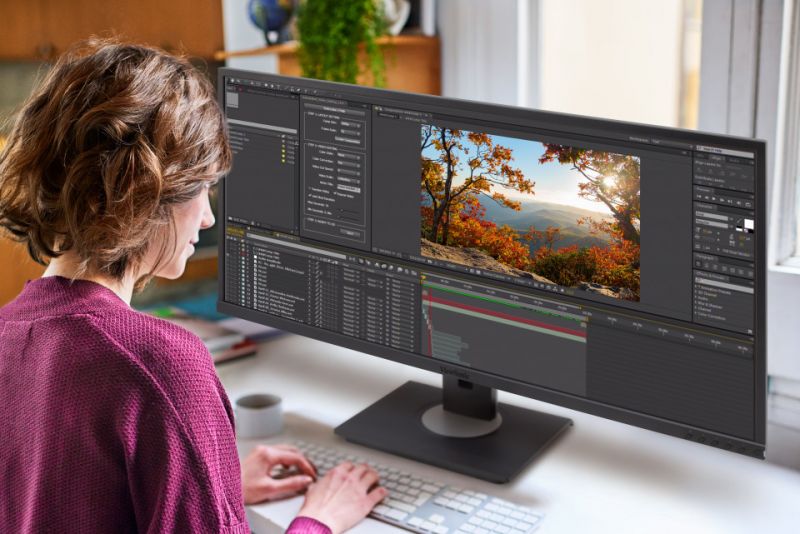

VG3448

34” Ultrawide 21:9 Advanced Ergonomics Business Monitor

WQHD 1440p resolution
Narrow bezel
HDMI, DisplayPort and Mini DP inputs
SuperClear^® VA technology
Client mount support

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 34
Viewable Area (in.): 34.1
Panel Type: VA Technology
Resolution: 3440 x 1440
Resolution Type: UWQHD (UltraWide QHD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 300 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + FRC)
Aspect Ratio: 21:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: Adobe RGB: 79% size / 74% coverage (Typ)
NTSC: 72% size (Typ)
sRGB: 106% size / 95% coverage (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 3440x1440
Mac® Resolution (max): 3440x1440
PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
Mac® Resolution (min): 3440x1440

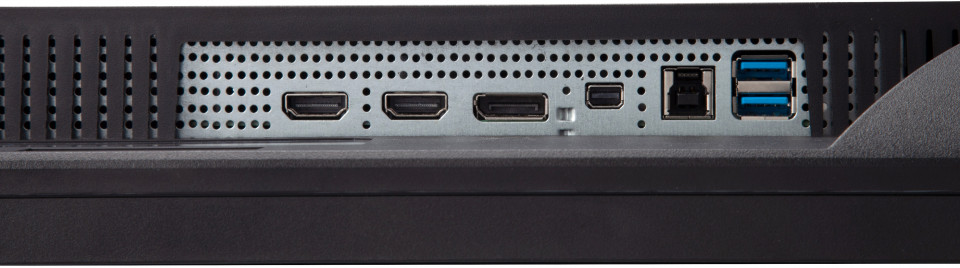

Connector

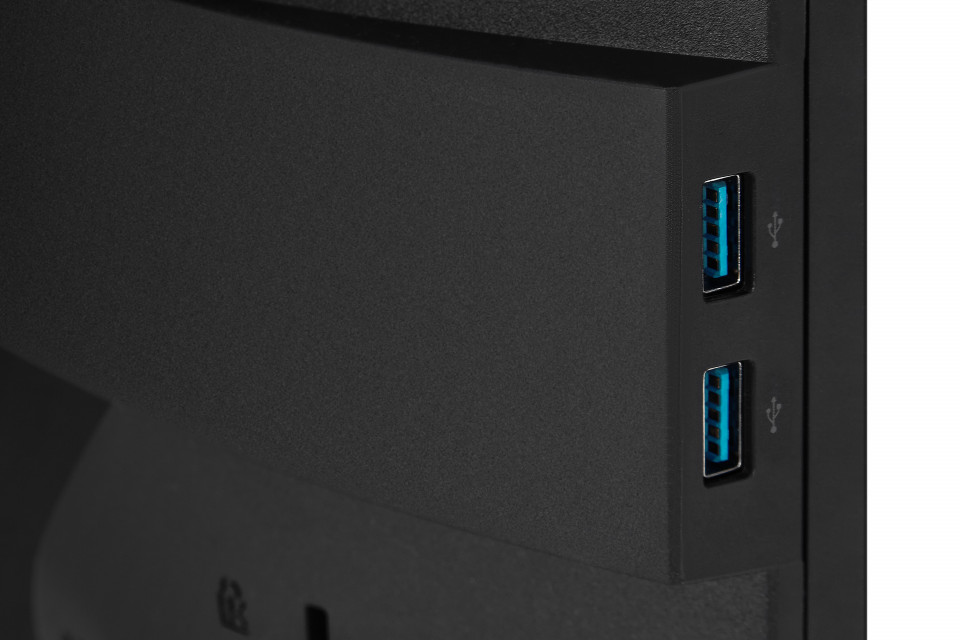

USB 3.2 Type A Down Stream: 4
USB 3.2 Type B Up Stream: 1
HDMI 1.4: 2
DisplayPort: 1
Mini DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 3Watts x2
Power
Eco Mode (Conserve): 30W
Eco Mode (optimized): 32W
Consumption (typical): 35W
Consumption (max): 46W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 15 ~ 150KHz
Frequency Vertical: 24 ~ 100Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), PCI-E - mini DisplayPort (v1.2)
Ergonomics
Height Adjust (mm): 130
Swivel: 120º
Tilt (Forward/Back): -5º / 40º
Weight (imperial)
Net (lbs): 19
Net Without Stand (lbs): 13.2
Gross (lbs): 29.5
Weight (metric)
Net (kg): 8.6
Net Without Stand (kg): 6
Gross (kg): 13.4
Dimensions (imperial) (wxhxd)
Packaging (in.): 37.2 x 20.7 x 9.2
Physical (in.): 32.5 x 16.07~21.19 x 9.3
Physical Without Stand (in.): 32.5 x 14.4 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 945 x 525 x 234
Physical (mm): 825 x 407.8~537.8 x 236
Physical Without Stand (mm): 825 x 366 x 51
General
PACKAGE CONTENTS: VG3448 x1, 3-pin Plug (IEC C13 / CEE22) x1, mini DisplayPort to DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
