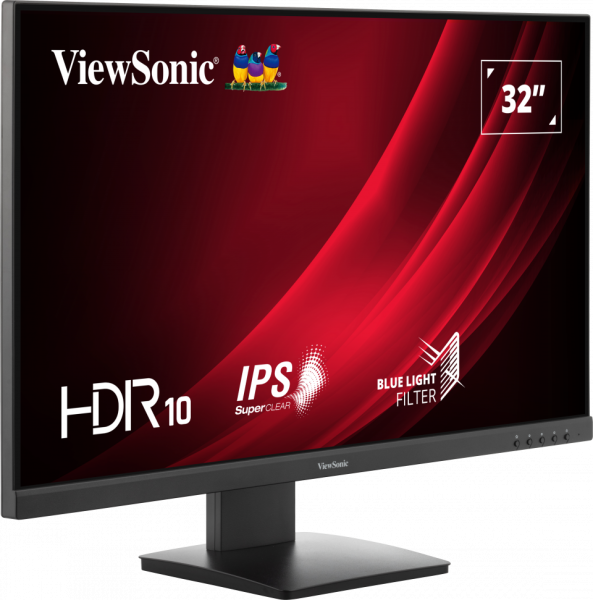

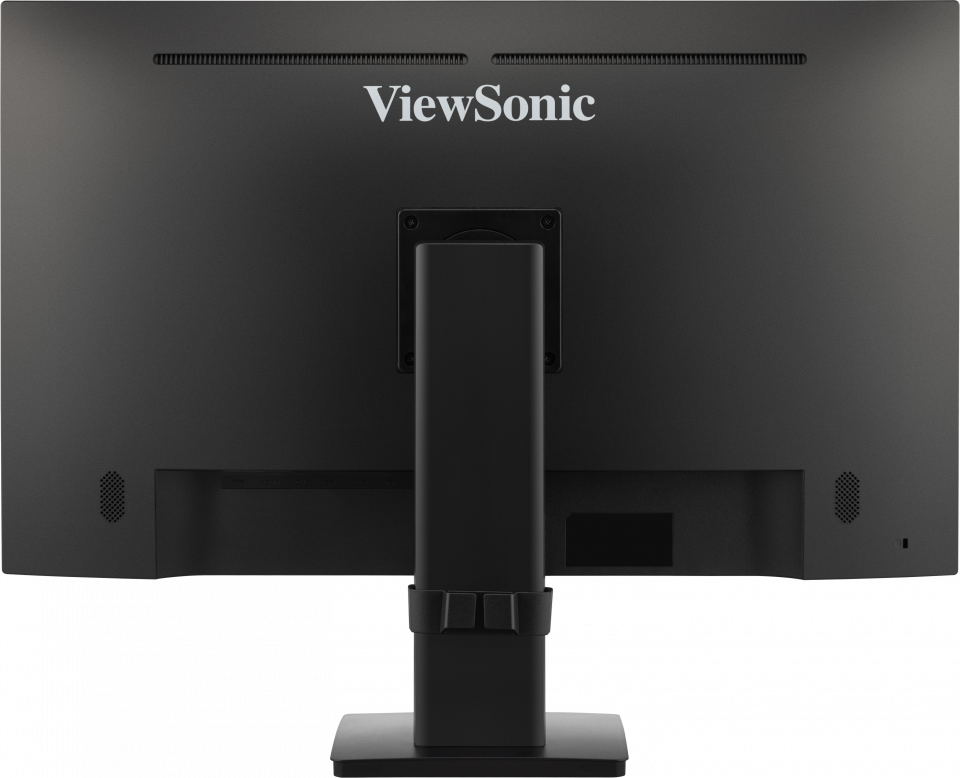

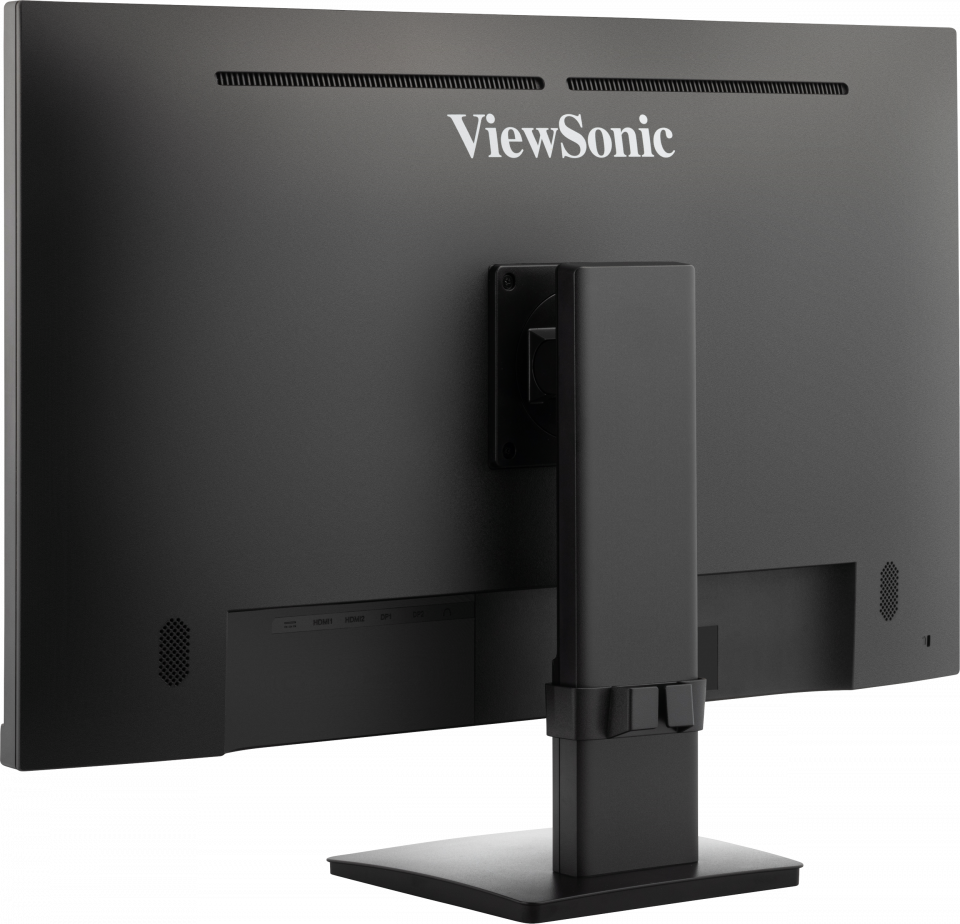

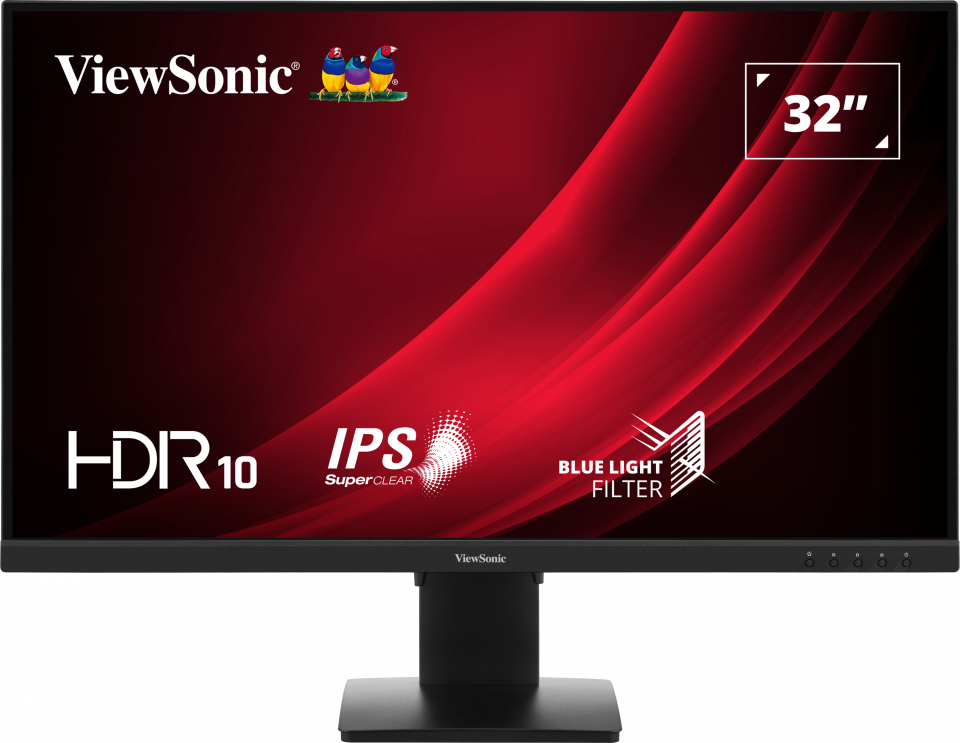

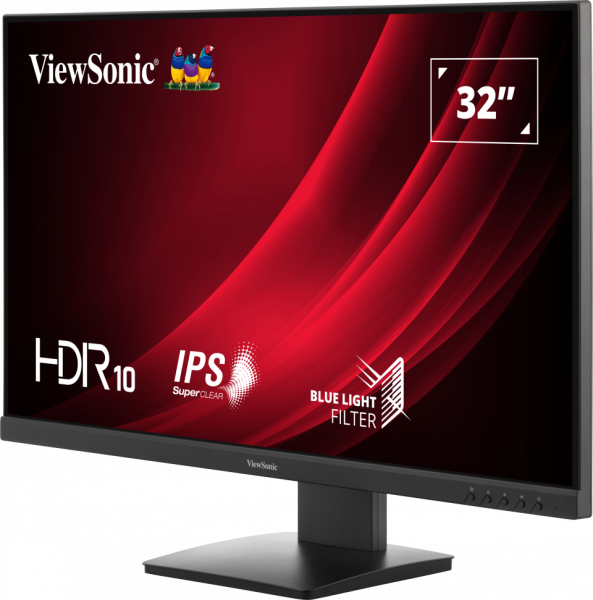

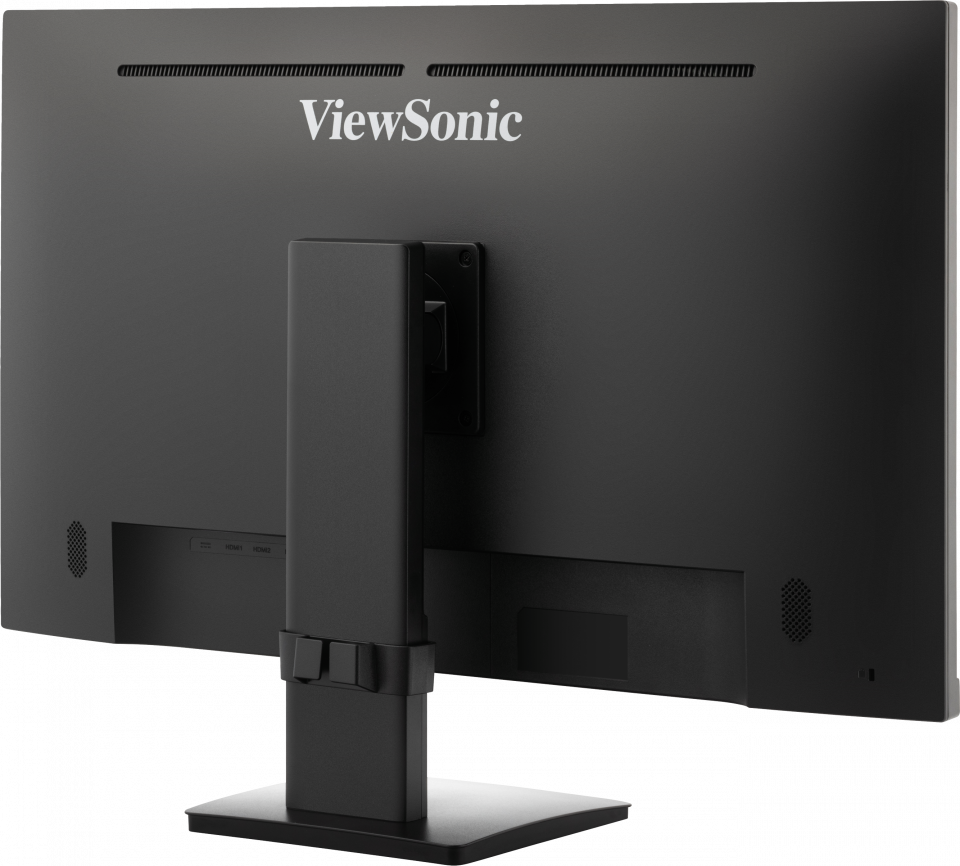

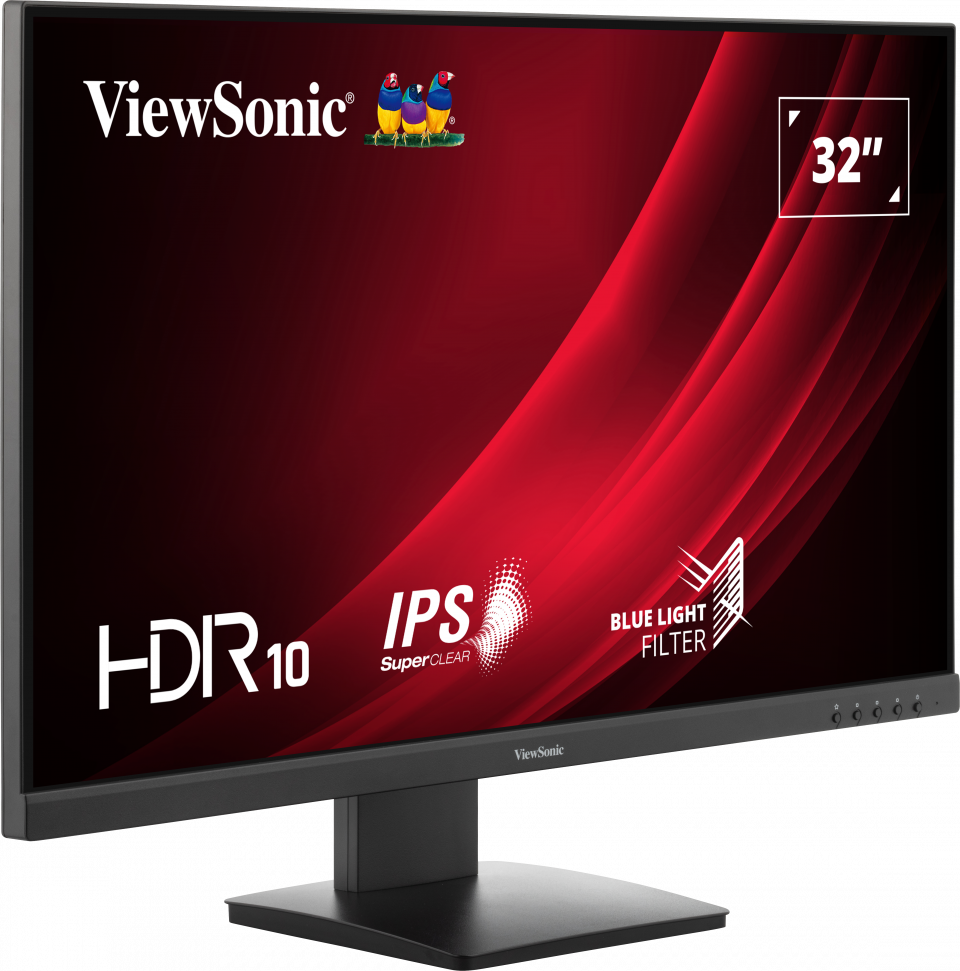

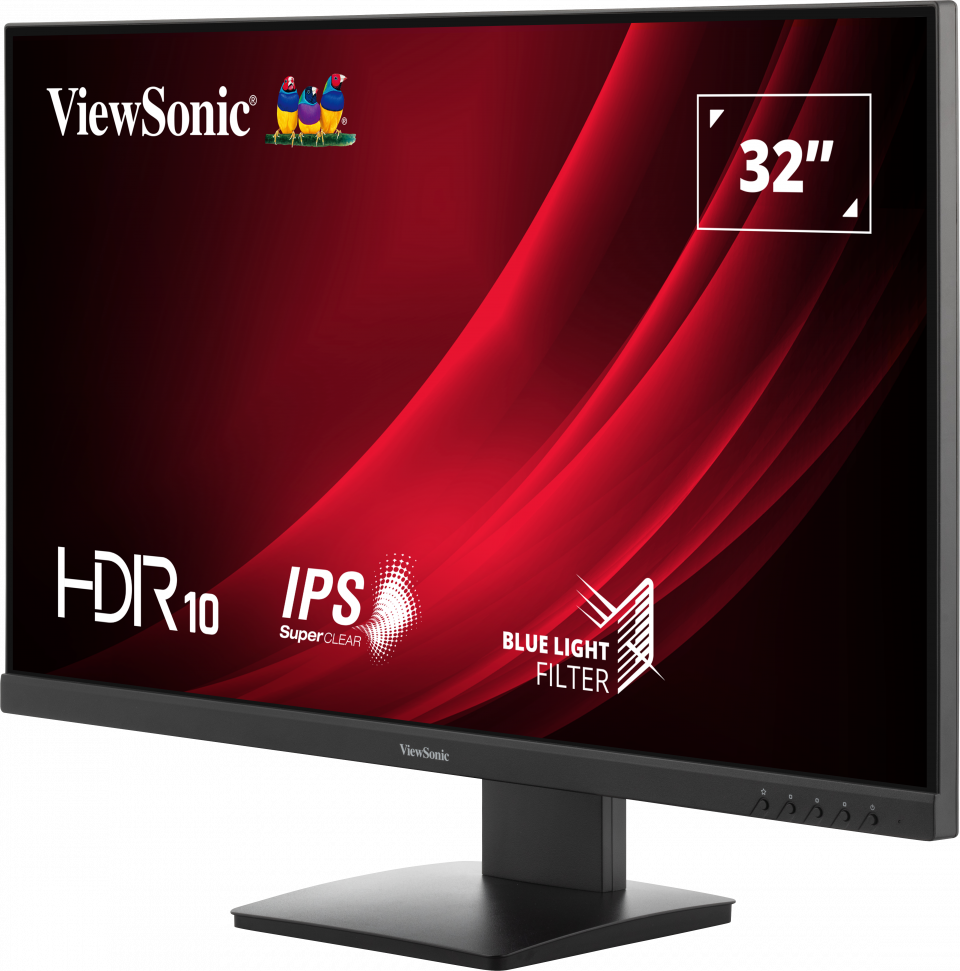

VG3209-4K

32” 4K UHD Monitor with Built-in Speakers

4K UHD 3840 x 2160 resolution
SuperClear® IPS panel

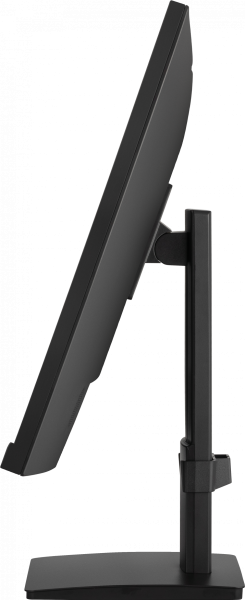

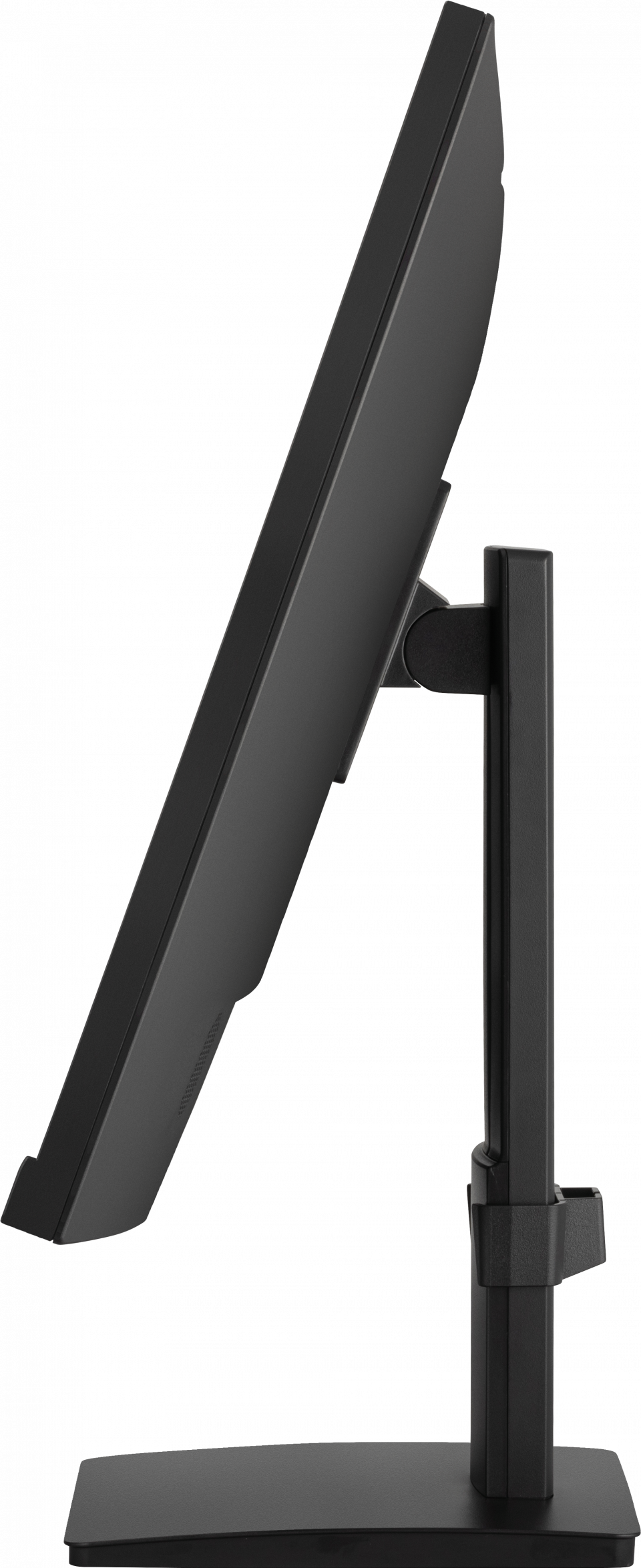

Height-adjustable swivel stand with tilt function
HDMI and Display Port inputs for simple connectivity
HDR10 Delivers Stellar Contrast

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 32
Viewable Area (in.): 31.5
Panel Type: IPS Technology
Resolution: 3840 x 2160
Resolution Type: UHD (Ultra HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 91% size (Typ)
sRGB: 128% size / 99% coverage (Typ)
Pixel Size: 0.182 mm (H) x 0.182 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 3840x2160
Mac® Resolution (max): 3840x2160
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 3840x2160
Connector
3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
DisplayPort: 2
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 2.5Watts x2
Power
Eco Mode (Conserve): 25W
Eco Mode (optimized): 33W
Consumption (typical): 40W
Consumption (max): 42W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: HDMI (v2.0): 15 ~ 140KHz, DisplayPort (v1.4): 24 ~ 140KHz
Frequency Vertical: HDMI (v2.0): 24 ~ 75Hz, DisplayPort (v1.4): 48 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)
Ergonomics
Height Adjust (mm): 90
Swivel: 360º
Tilt (Forward/Back): -4º / 20º
Weight (imperial)
Net (lbs): 19.6
Net Without Stand (lbs): 14.8
Gross (lbs): 24
Weight (metric)
Net (kg): 8.9
Net Without Stand (kg): 6.7
Gross (kg): 10.9
Dimensions (imperial) (wxhxd)
Packaging (in.): 34.1 x 19.8 x 5.7
Physical (in.): 28.1 x 18.47~22.01 x 7.9
Physical Without Stand (in.): 28.1 x 16.8 x 2.3
Dimensions (metric) (wxhxd)
Packaging (mm): 865 x 503 x 144
Physical (mm): 714 x 469~559 x 202
Physical Without Stand (mm): 714 x 428 x 59
General
PACKAGE CONTENTS: VG3209-4K x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
