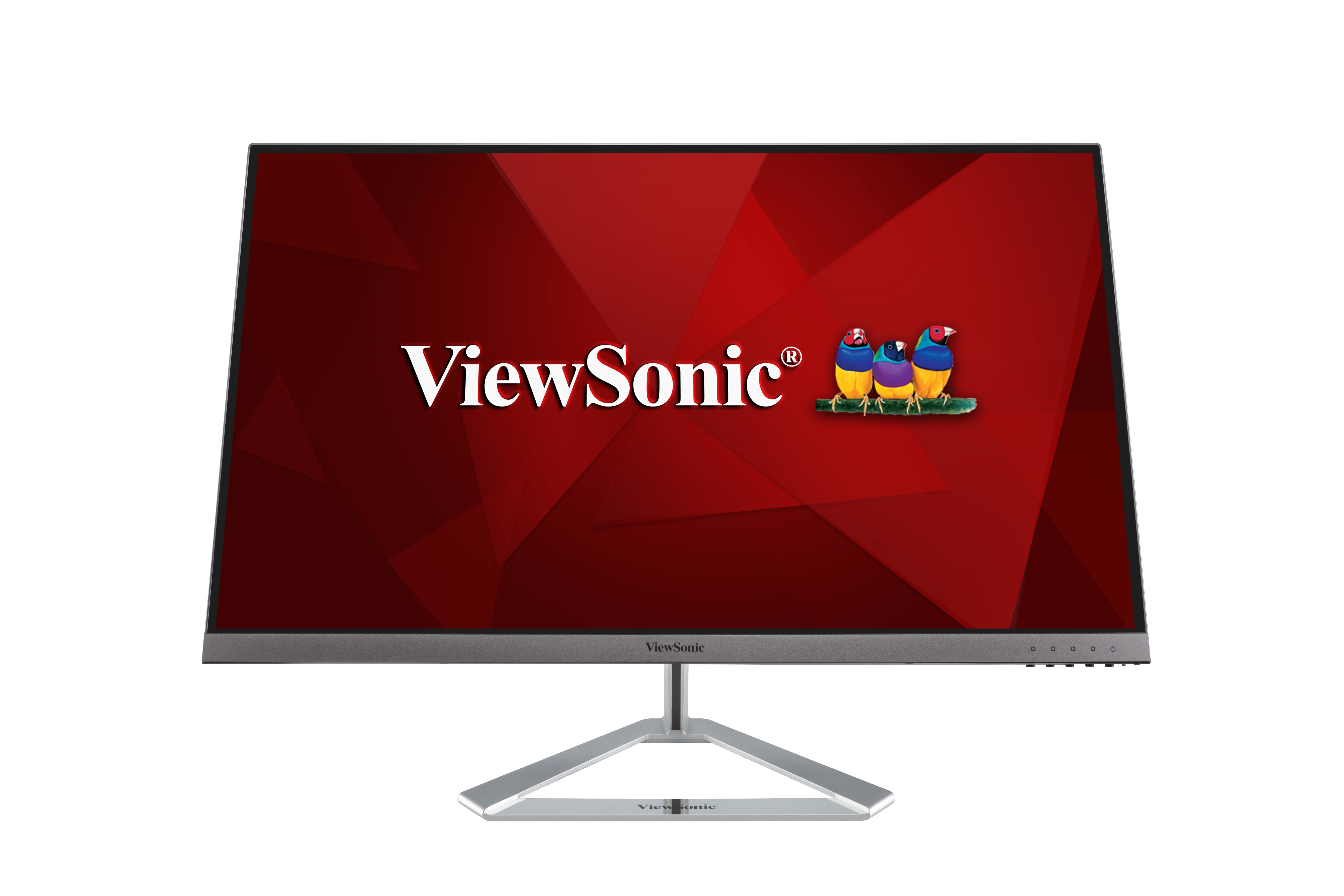

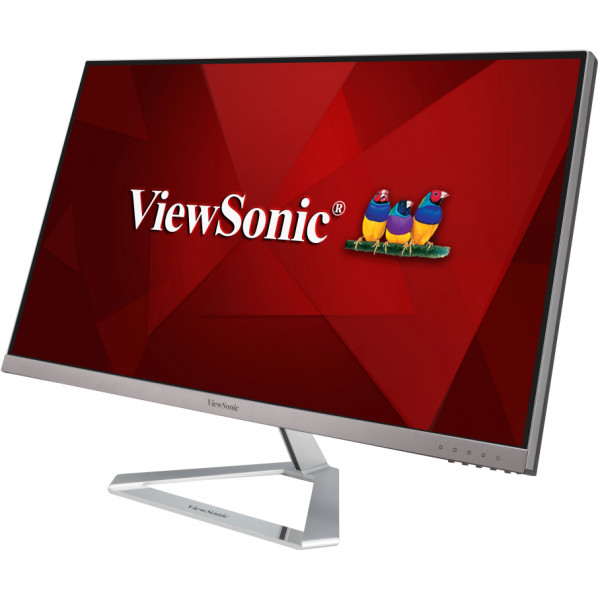

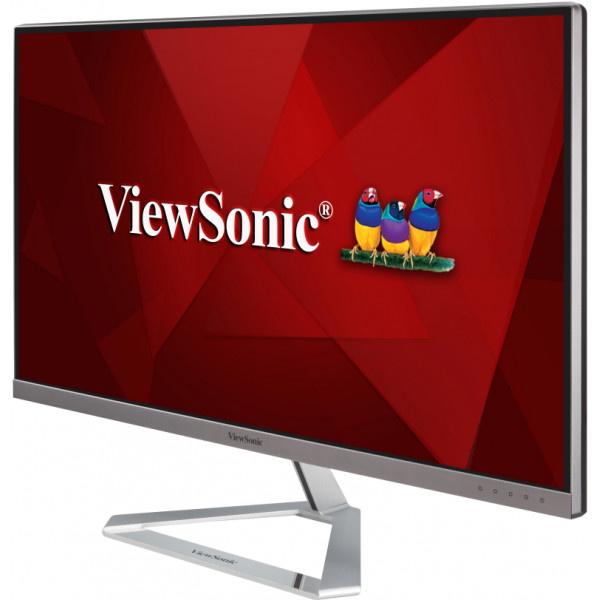

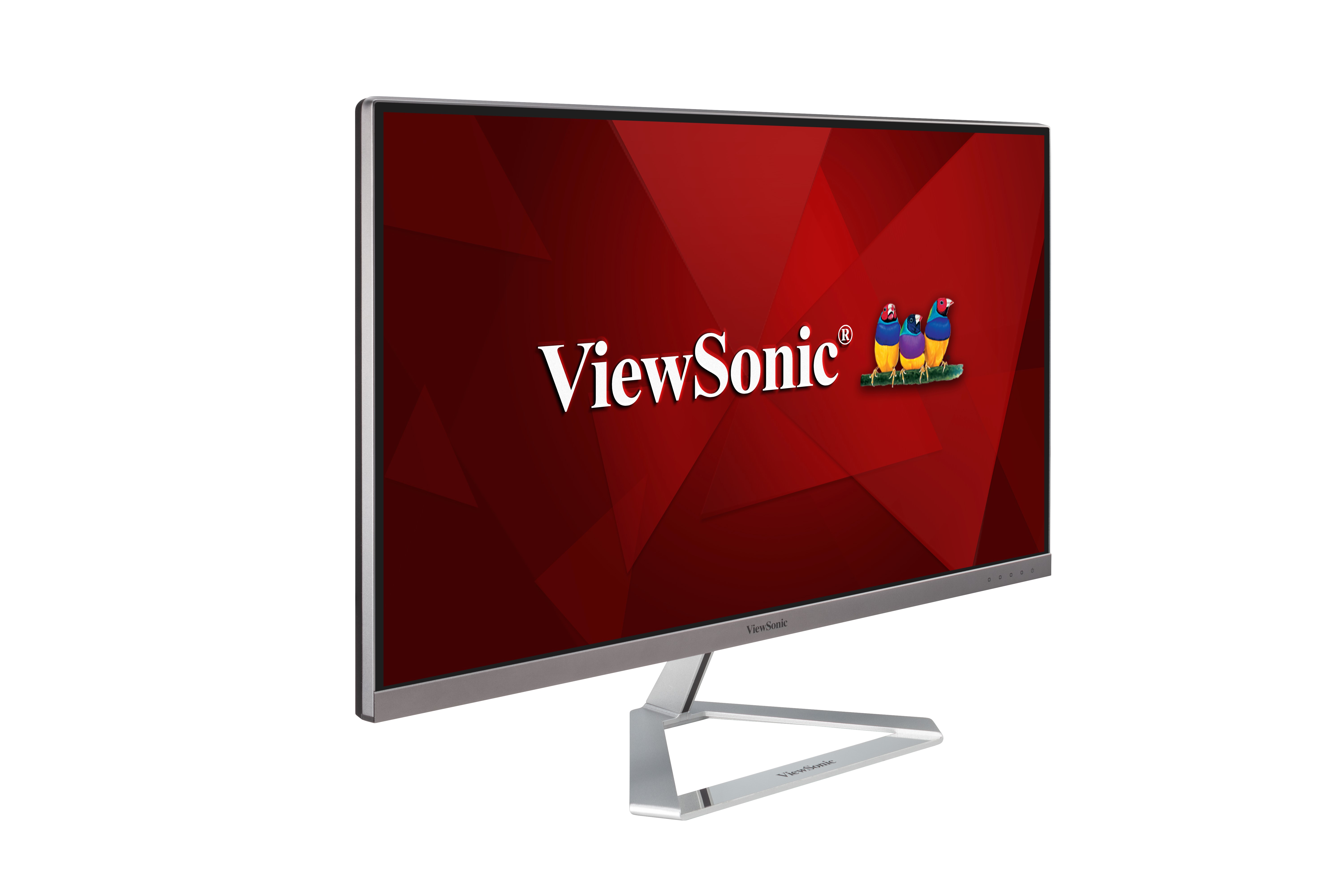

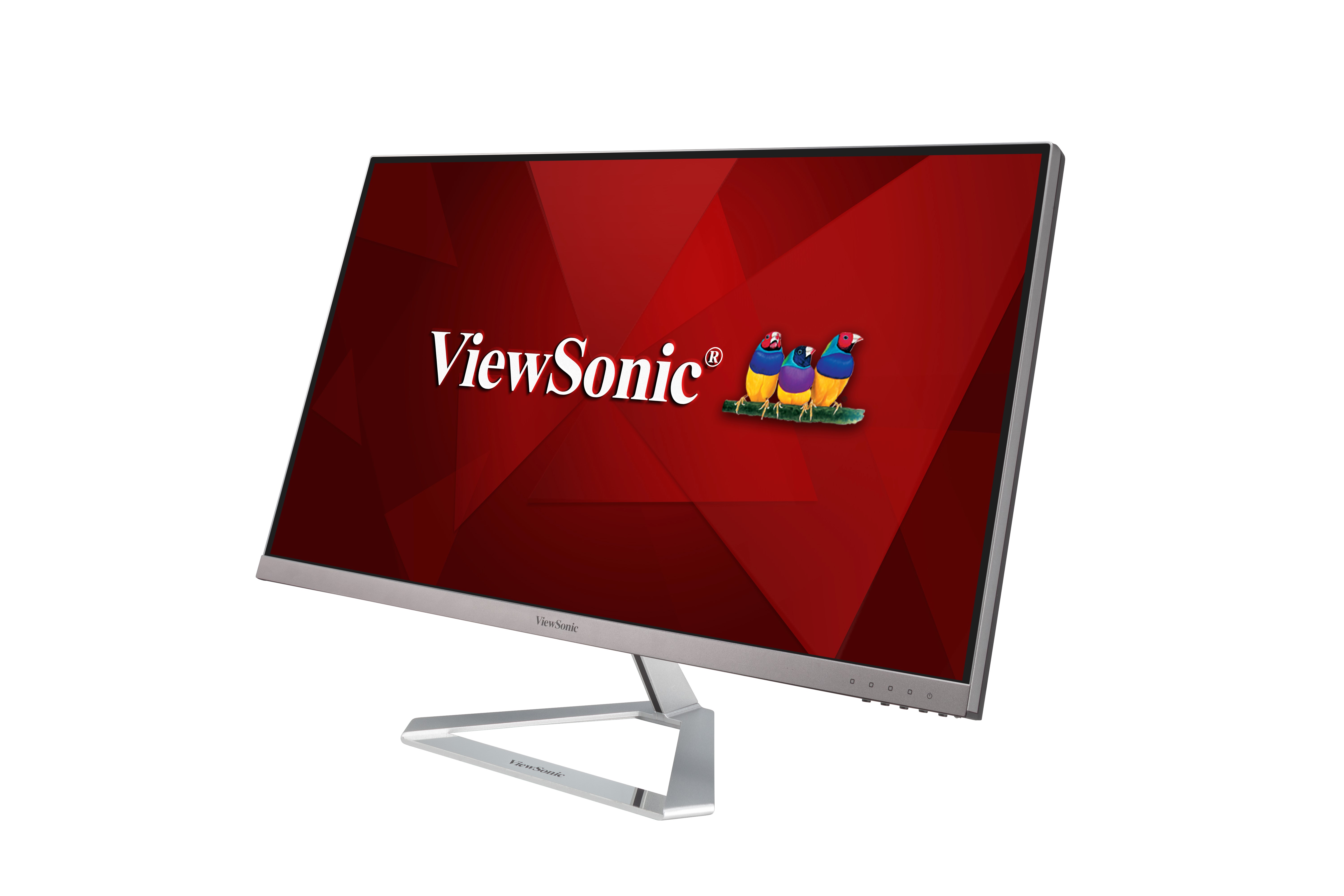

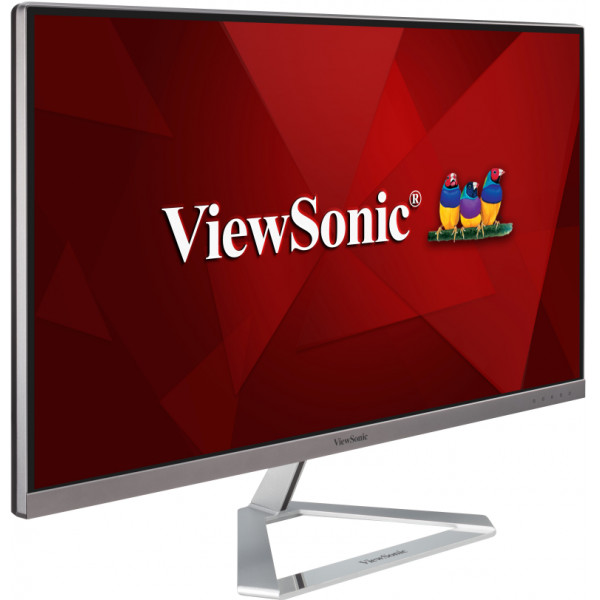

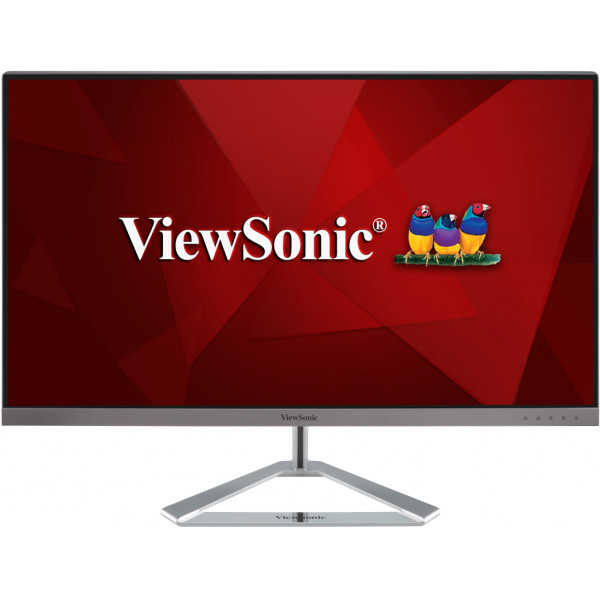

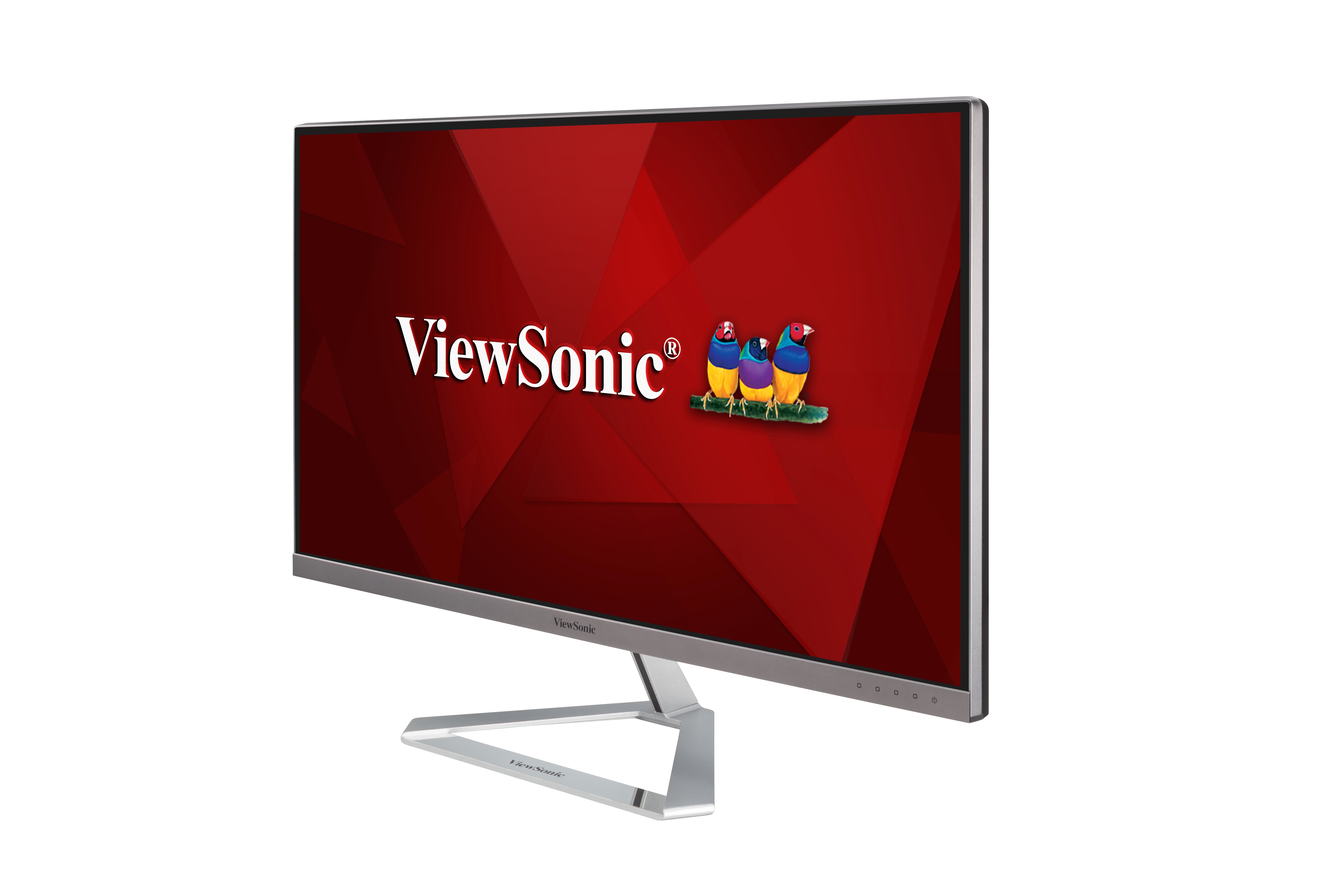

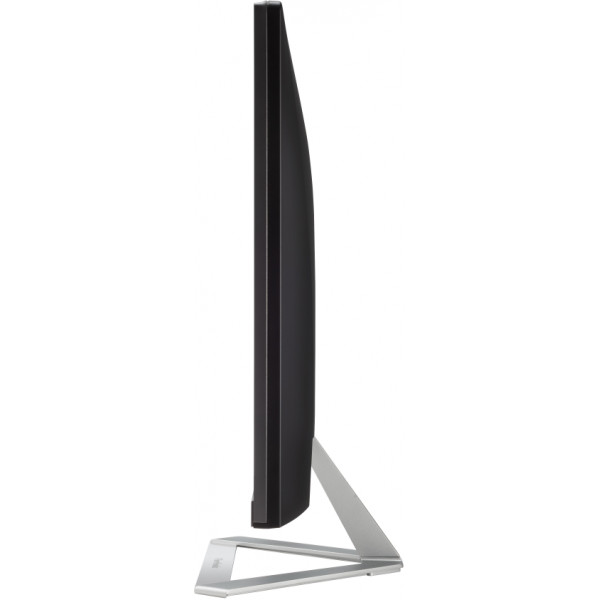

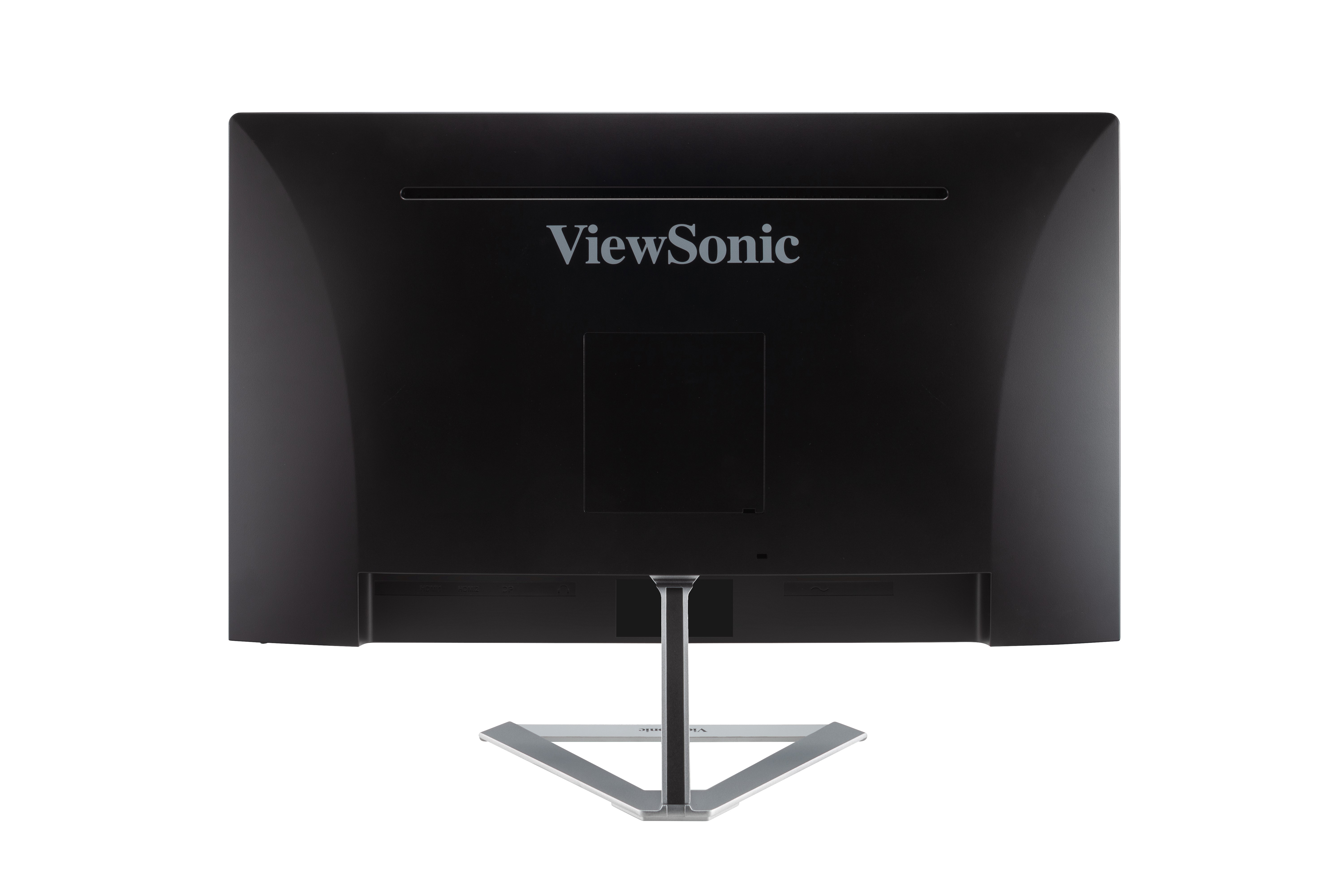

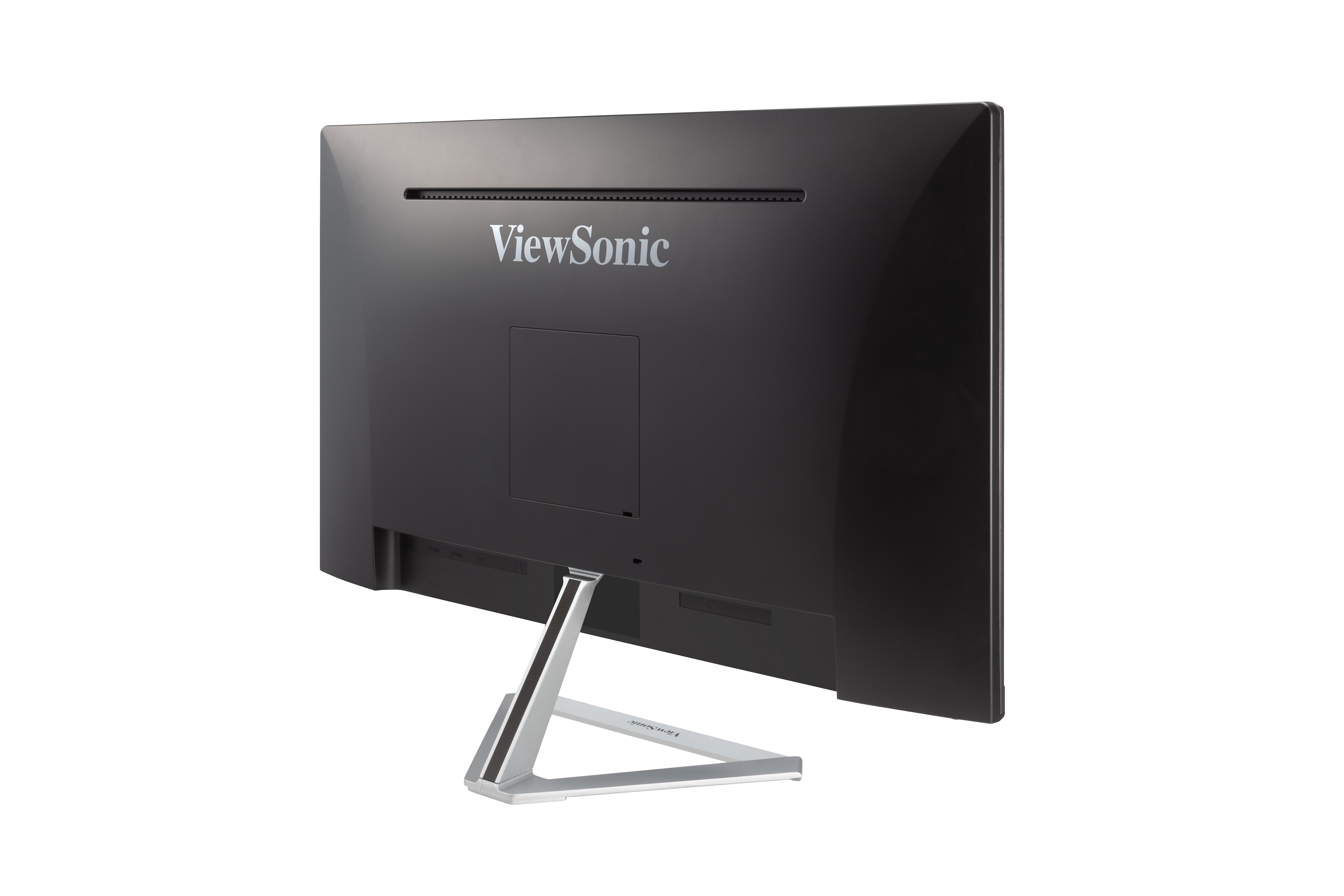

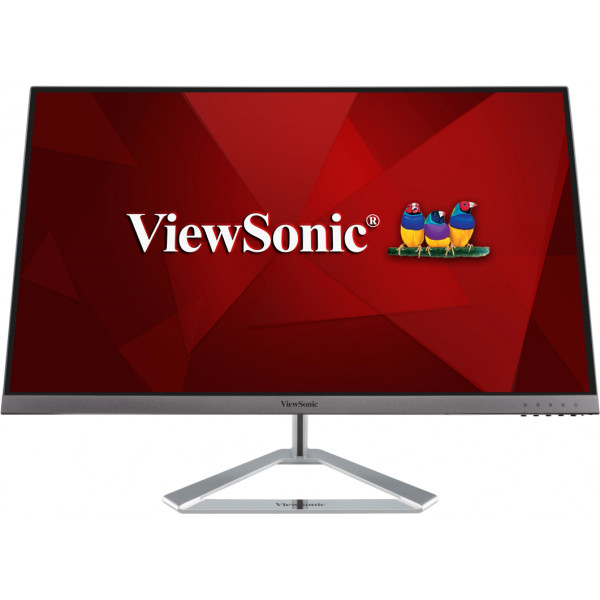

VX2776-4K-MHD

27” (27” Viewable) UHD IPS Monitor with HDR10 and Frameless Bezel

HDR10 content support
SuperClear® IPS technology

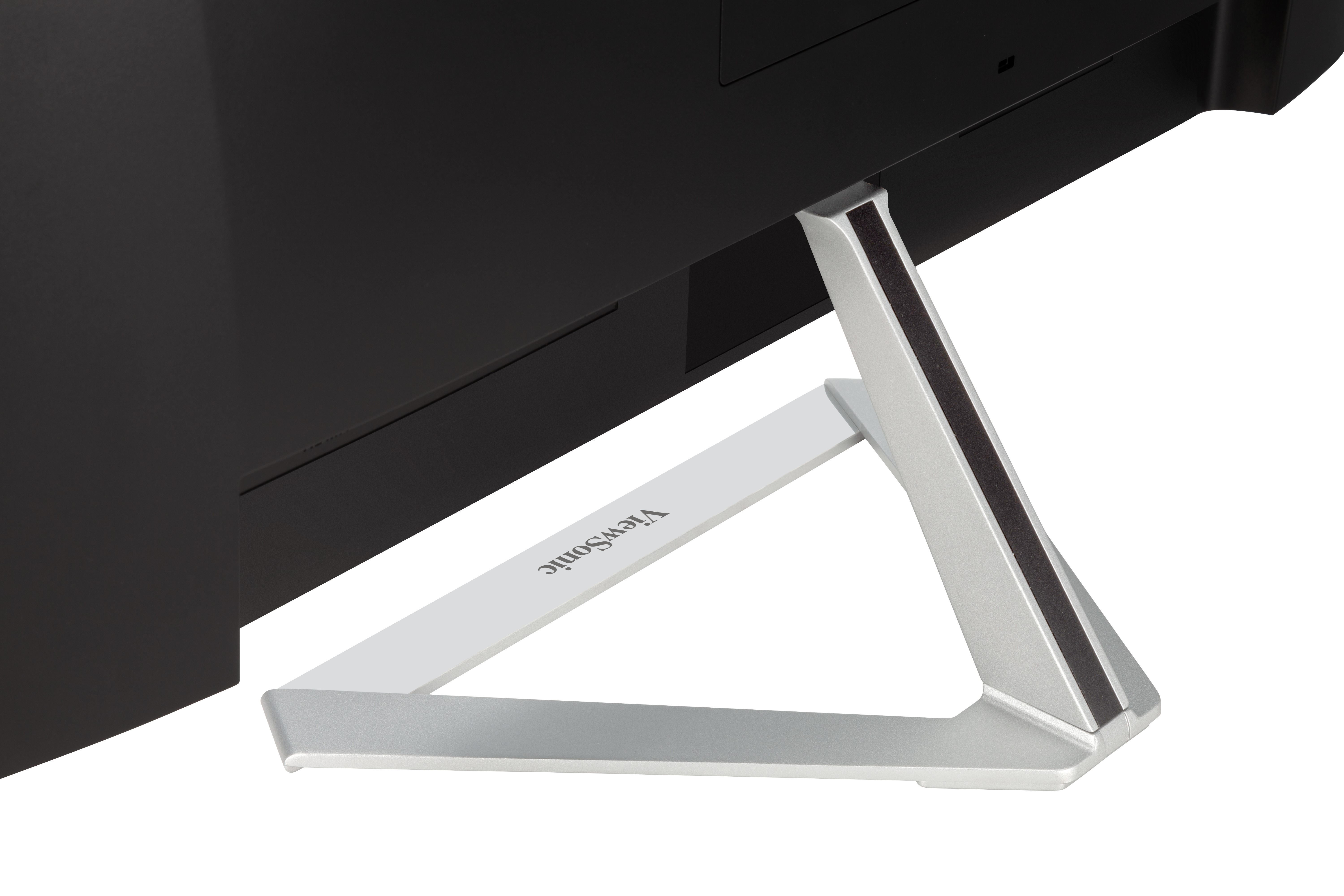

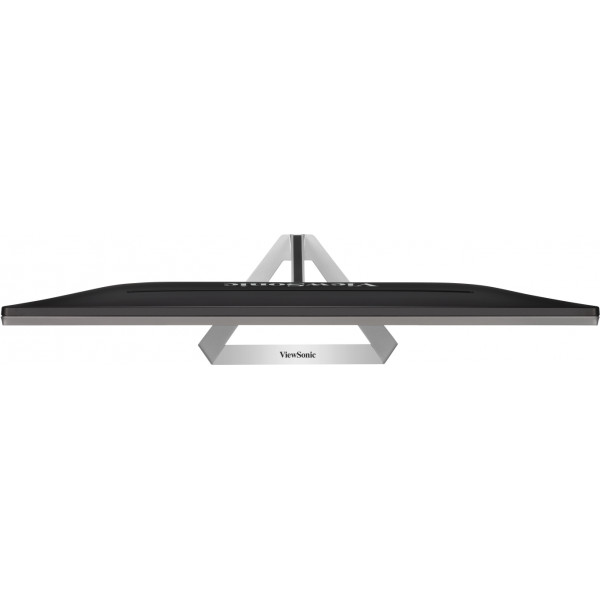

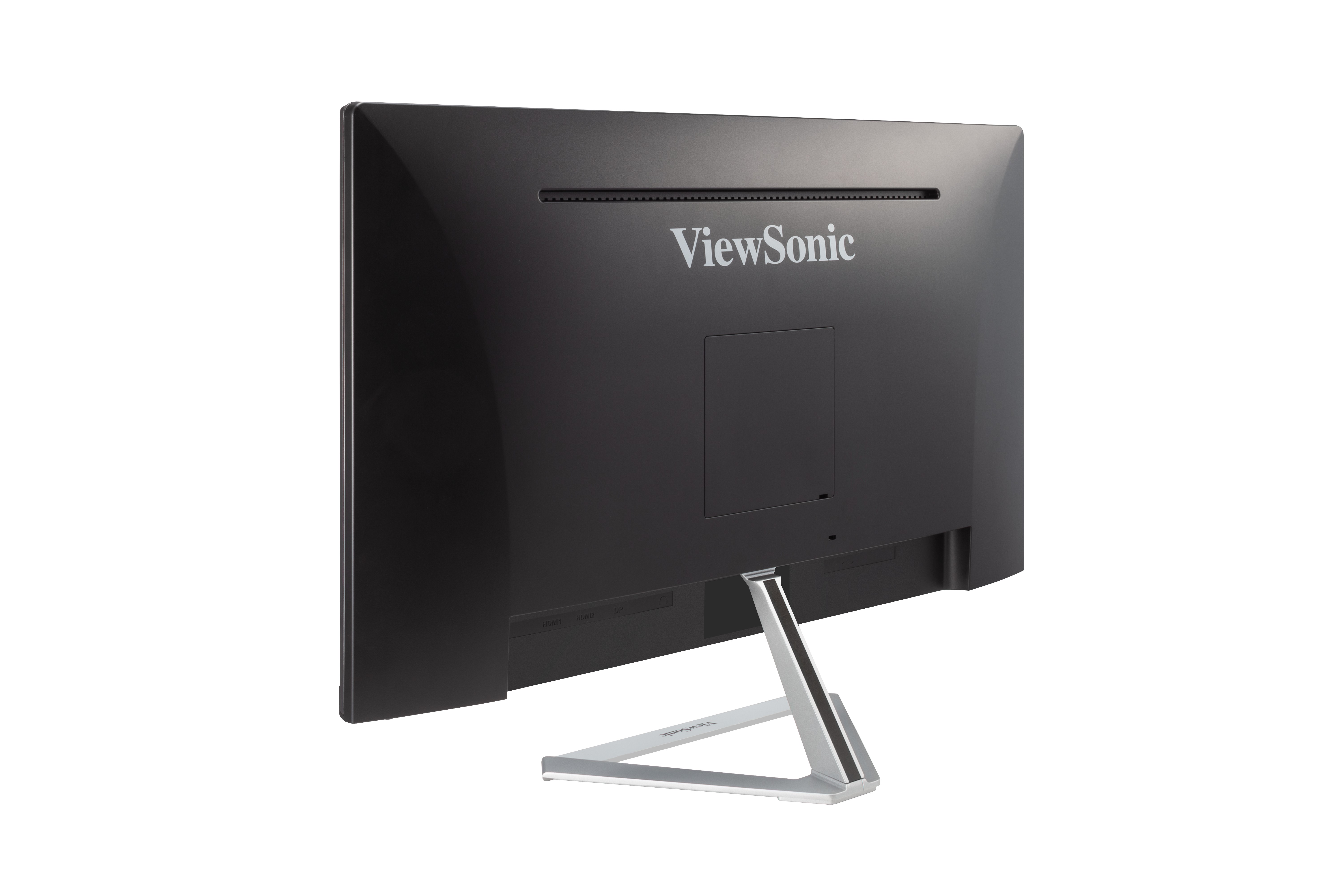

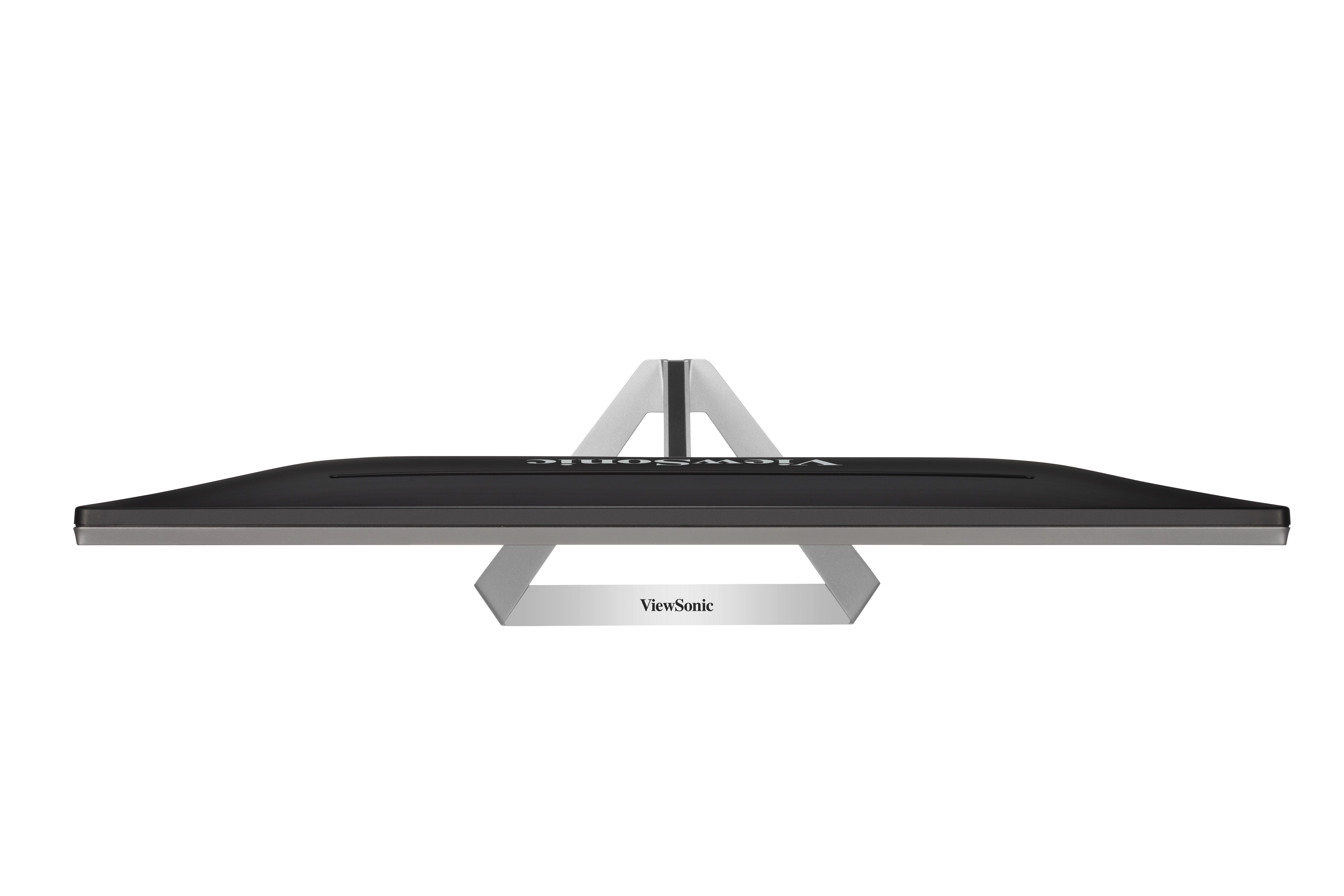

Frameless bezel and metallic triangle stand
10-bit colour
Dual HDMI and DisplayPort inputs

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 3840 x 2160
Resolution Type: UHD (Ultra HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (GTG w/OD): 3.8ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 110% size (Typ)
Pixel Size: 0.155 mm (H) x 0.155 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 3840x2160
Mac® Resolution (max): 3840x2160
PC Operating System: Windows 11 certified; macOS tested
Mac® Resolution (min): 3840x2160

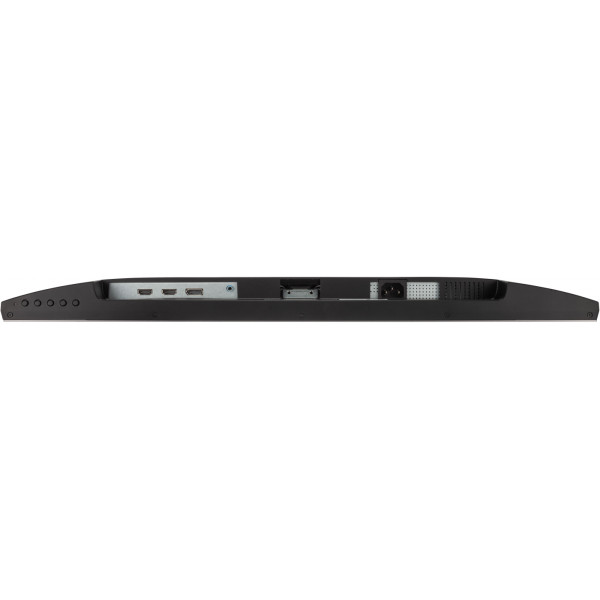

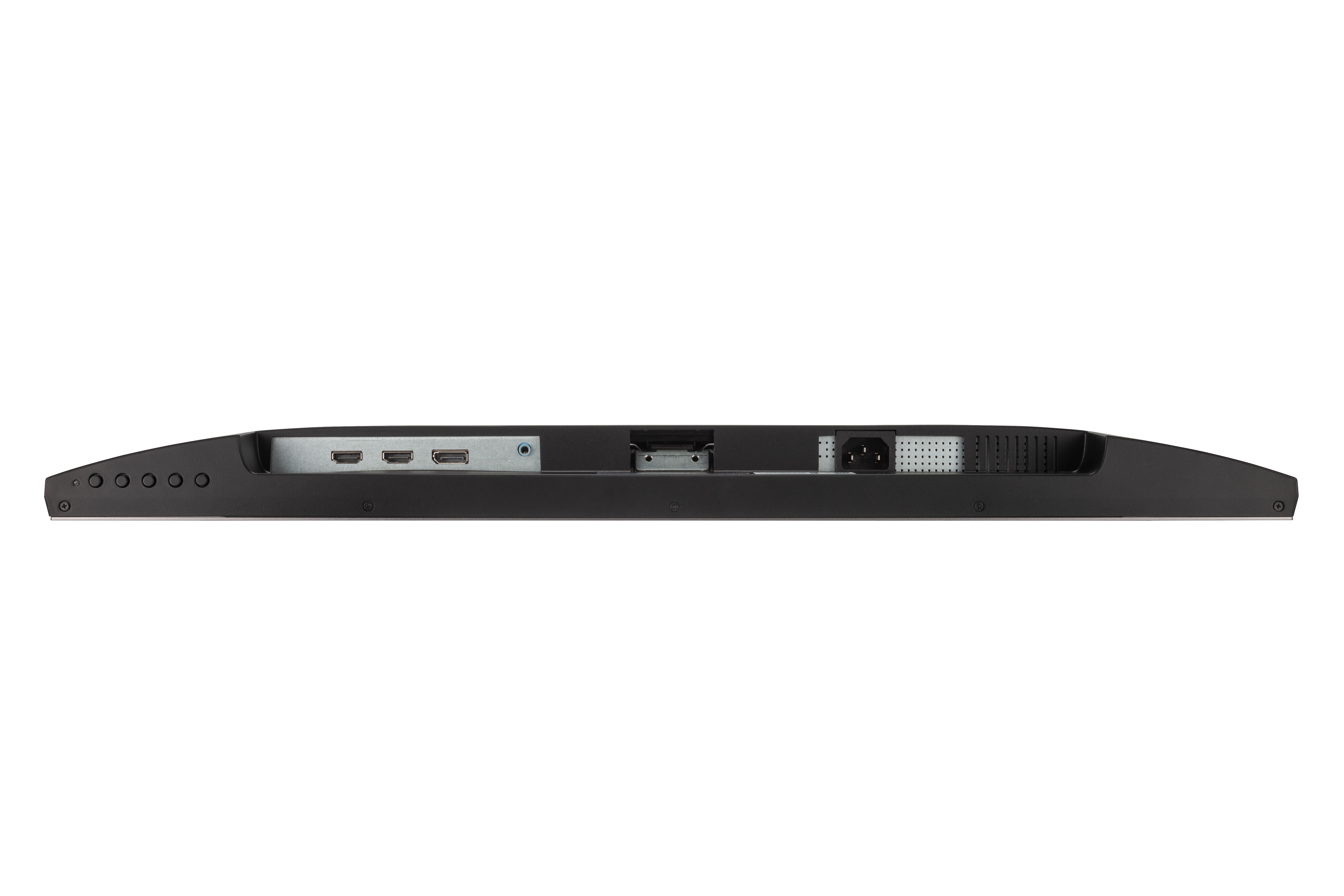

Connector
3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2.5Watts x2
Power
Eco Mode (Conserve): 33W
Eco Mode (optimized): 38W
Consumption (typical): 43W
Consumption (max): 44W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls

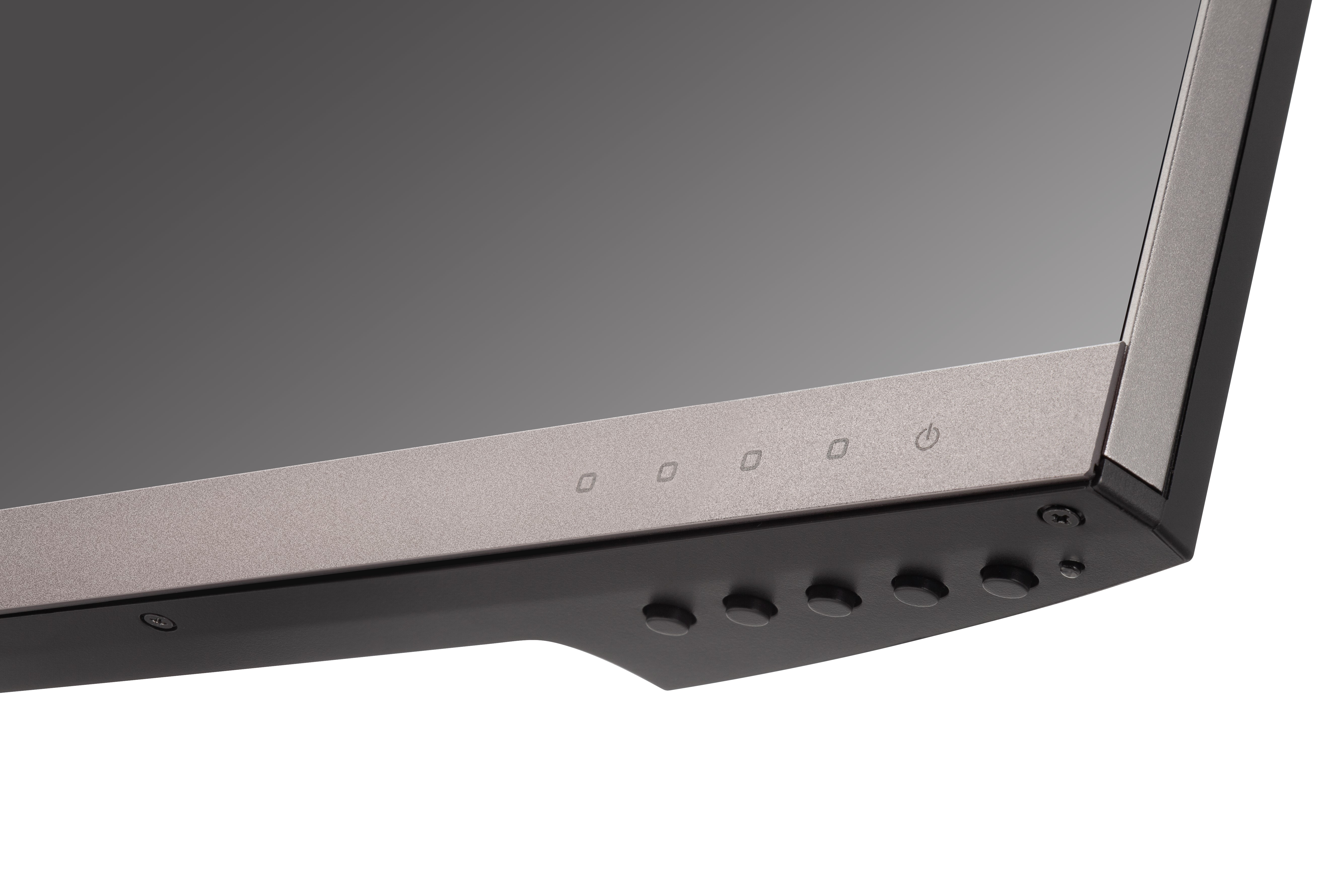

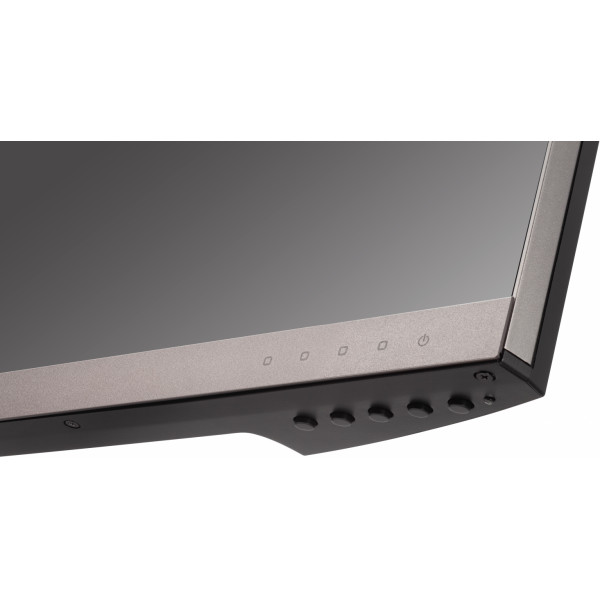

Physical Controls: Key 1, Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 15 ~ 160KHz
Frequency Vertical: 40 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)
Ergonomics

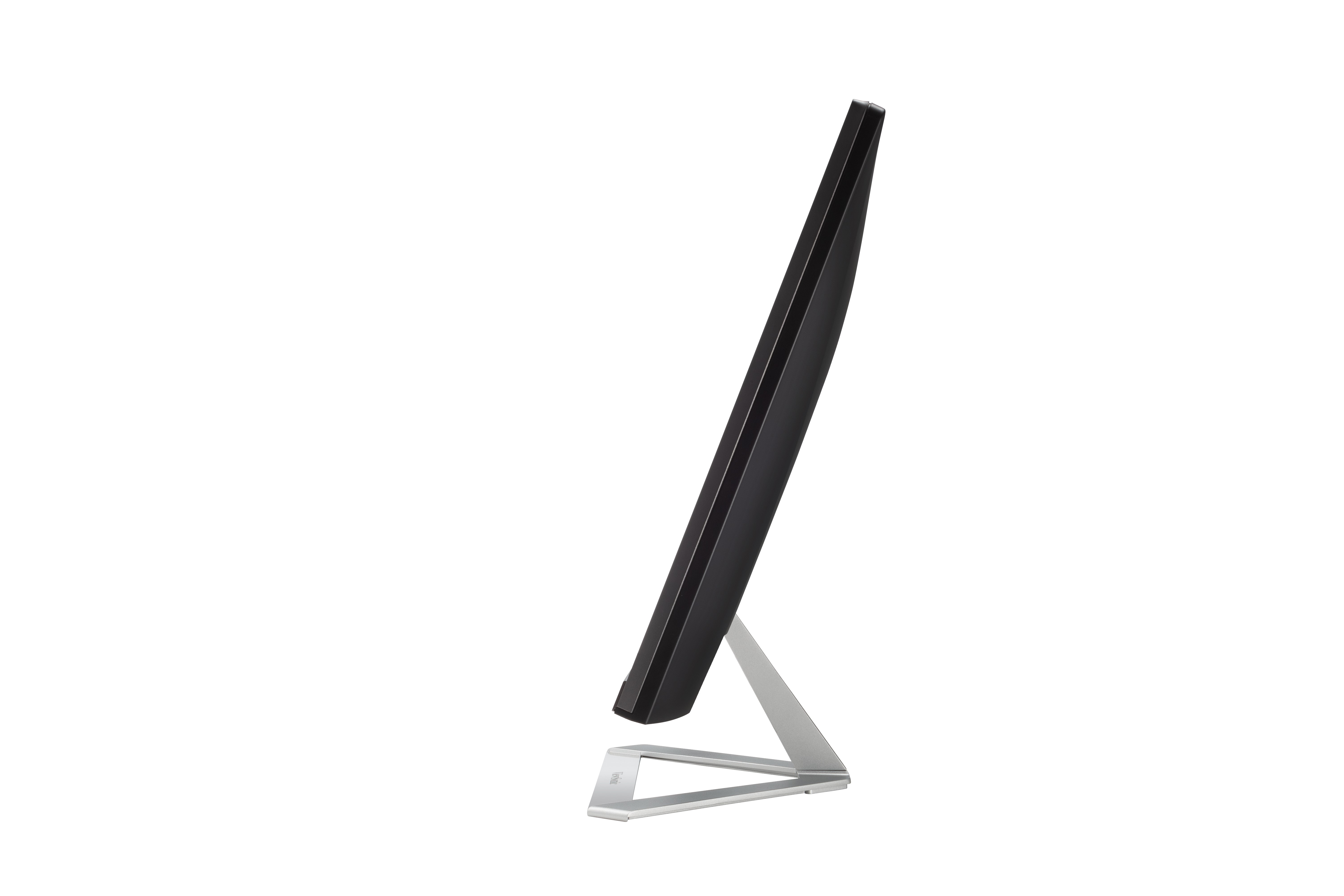

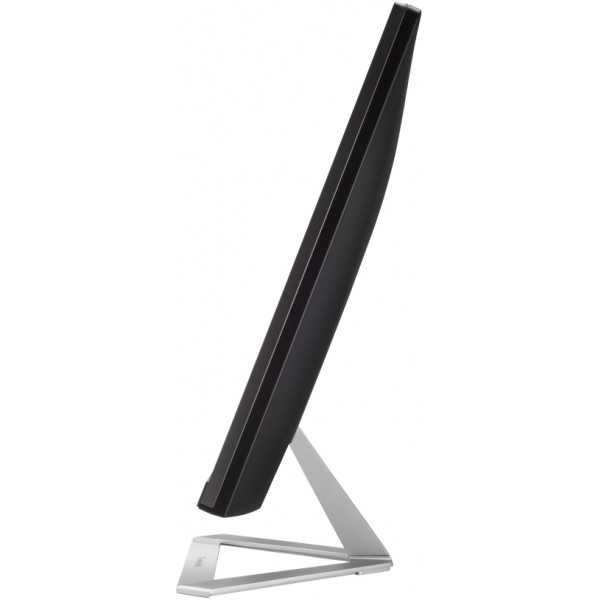

Tilt (Forward/Back): -3º / 20º
Weight (imperial)
Net (lbs): 12.3
Net Without Stand (lbs): 11
Gross (lbs): 15.4
Weight (metric)
Net (kg): 5.6
Net Without Stand (kg): 5
Gross (kg): 7
Dimensions (imperial) (wxhxd)
Packaging (in.): 27.4 x 18.2 x 5.2
Physical (in.): 24.3 x 17.8 x 7.2
Physical Without Stand (in.): 24.3 x 14.4 x 1.8
Dimensions (metric) (wxhxd)
Packaging (mm): 697 x 462 x 132
Physical (mm): 616 x 451 x 184
Physical Without Stand (mm): 616 x 366 x 46
General
PACKAGE CONTENTS: VX2776-4K-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
