Activar el RGB de tu monitor

1.) Conecta el cable USB 3.0 al monitor y al PC.

Tipo-A (rectángulo) se conecta al PC.
Tipo-B (cuadrado) se conecta al monitor.

2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.

Desactivar la señal de advertencia

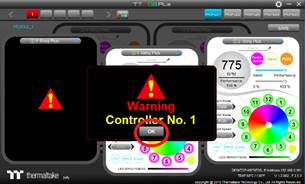

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.

2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.

Sincronizar el XG240R con el software TT RGB PLUS

1.) Click the square RGB button at the top, center of the program.

2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.

Control de los LED

**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).

Tu monitor ejecutará los mismos comandos dados al dispositivo en Port 1.

1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

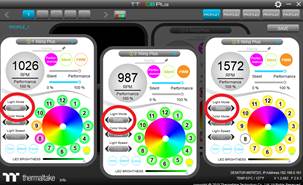

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

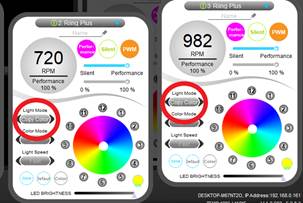

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.

4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.

RGB simple



5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.

Frozen LED Units Unfrozen LED Units

Sigue la pantalla (Modo Reproductor)

1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.

2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.

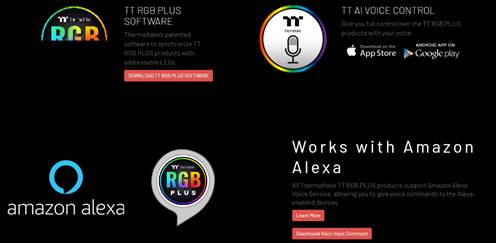

Voice Control and Additional Info Link
For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/

PRODUCTOS COMPATIBLES

Sincronizar la iluminación de acento RGB de su monitor ViewSonic Elite con el ecosistema RGB de Thermaltake actualmente
sólo funciona si dispones de uno de los siguientes productos TT "imprescindibles".

Consulta la lista de productos compatibles a continuación. Para obtener más información, visita el sitio web de Thermaltake.

Producto imprescindible¹	Productos Sincronizables²
	AIO Liquid Coolers
	Floe Riing RGB 360 TT Edición Premium
	Floe Riing RGB 280 TT Edición Premium
	Floe Riing RGB 240 TT Edición Premium
	Bomba + Depósito
	Pacific PR22-D5 Plus
	Radiadores
	Pacific CL360 Plus RGB Radiator
	Pacific RL360 Plus RGB Radiator
	Bloques de agua
	Pacific W4 Plus CPU Water Block
	Pacific W5 CPU Water Block
	Pacific W6 CPU Water Block (AMD Ryzen Threadripper TR4)
	Pacific V-GTX 1080Ti Plus Transparent (ASUS ROG)
	Pacific V-GTX 1080Ti Plus Transparent (MSI GAMING X)
	Pacific V-RTX 2080 Plus Series Founders Edition
	Ventiladores
	Riing Trio 12 LED RGB Ventilador de Radiador TT Edición Premium (Pack de 3 Ventiladores)
	Riing Trio 14 LED RGB Radiator Fan TT Premium Edition (Pack de 3 ventiladores)
	Riing Plus 20 TT Premium Edition (Pack de un ventilador con controlador)
	Riing Plus 14 TT Premium Edition (Pack de 5 ventiladores)
	Riing Plus 14 TT Premium Edition (Pack de 3 ventiladores)
	Riing Plus 12 TT Premium Edition (Pack de 5 ventiladores)
	Riing Plus 12 TT Premium Edition (Pack de 3 ventiladores)
	Riing Plus 12 TT Premium Edition (Pack de un ventilador)
	Pure Plus 12 TT Premium Edition (3-Fan Pack)
	Pure Plus 14 LED RGB Radiator Fan TT Premium Edition (3-Fan Pack)
	Chasis
	View 91 Tempered Glass RGB Edition Super Tower Chassis
	Level 20 Tempered Glass Edition Full Tower Chassis
	Level Level 20 GT RGB Plus Edition Full Tower Chassis
	Fuentes de alimentación
	Toughpower iRGB PLUS 1250W Titanio
	Toughpower iRGB PLUS 1200W Platinumm
	Toughpower iRGB PLUS 1050W Platinum
	Toughpower iRGB PLUS 850W Platinum
	Accesorios
	Pacific Lumi Plus LED Strip 3Pack
	Pacific Rad Plus LED Panel
	Teclados
	Teclado TT Premium X1 Cherry MX Speed Silver
	Teclado TT Premium X1 RGB Cherry MX Blue
	Teclado gaming Level 20 RGB Titanium (Speed Silver)
	Nivel 20 Teclado de titanio Gaming RGB (Blue Switchl)
	Teclado gaming Level 20 RGB Cherry MX Blue
	Teclado gaming Level 20 RGB Cherry MX Speed Silver
	Auriculares
	Cronos Riing RGB 7.1 gaming headset (Coming Soon)
	Soporte de auriculares próximamente***
	Ratones
	Nemesis Switch RGB gaming mouse
	Ratón gaming Iris RGB

* Las variaciones de modo, las funciones de personalización y cualquier otra función o uso se basarán y estarán sujetos a las condiciones de uso, al acuerdo de licencia de usuario final y a las capacidades de software especificadas o proporcionadas en el software de los socios.

¹Para sincronizar su monitor Viewsonic con los productos Thermaltake RGB,
los usuarios deben tener el XG240R o el XG350R-C y uno de los marcados "debe tener"

Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
