VP3481a
34” (Viewable) UWQHD Pantone validated 100% sRGB Curved monitor with docking station

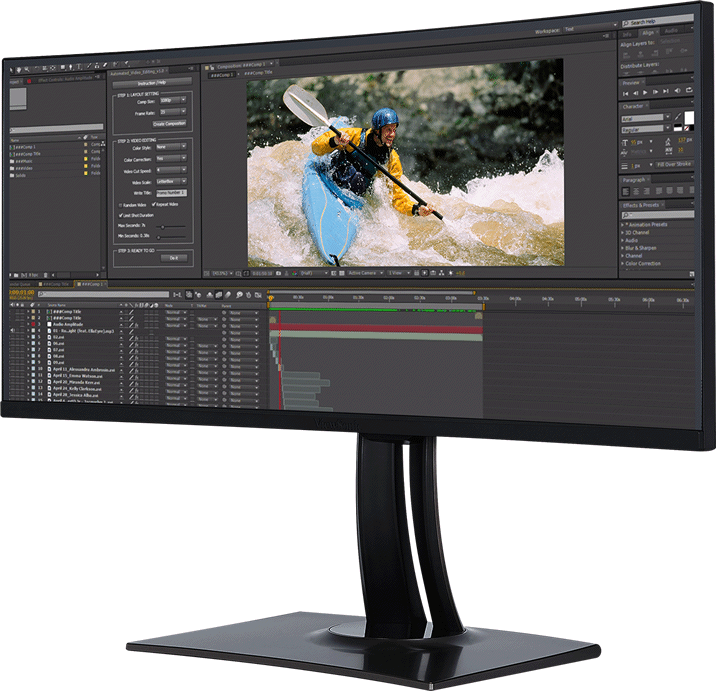

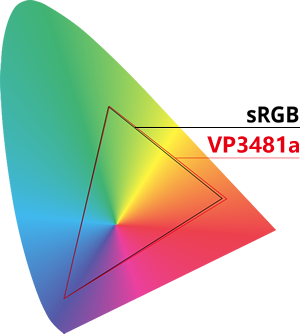

- 100% sRGB wide colour gamut coverage
- Hardware color calibration

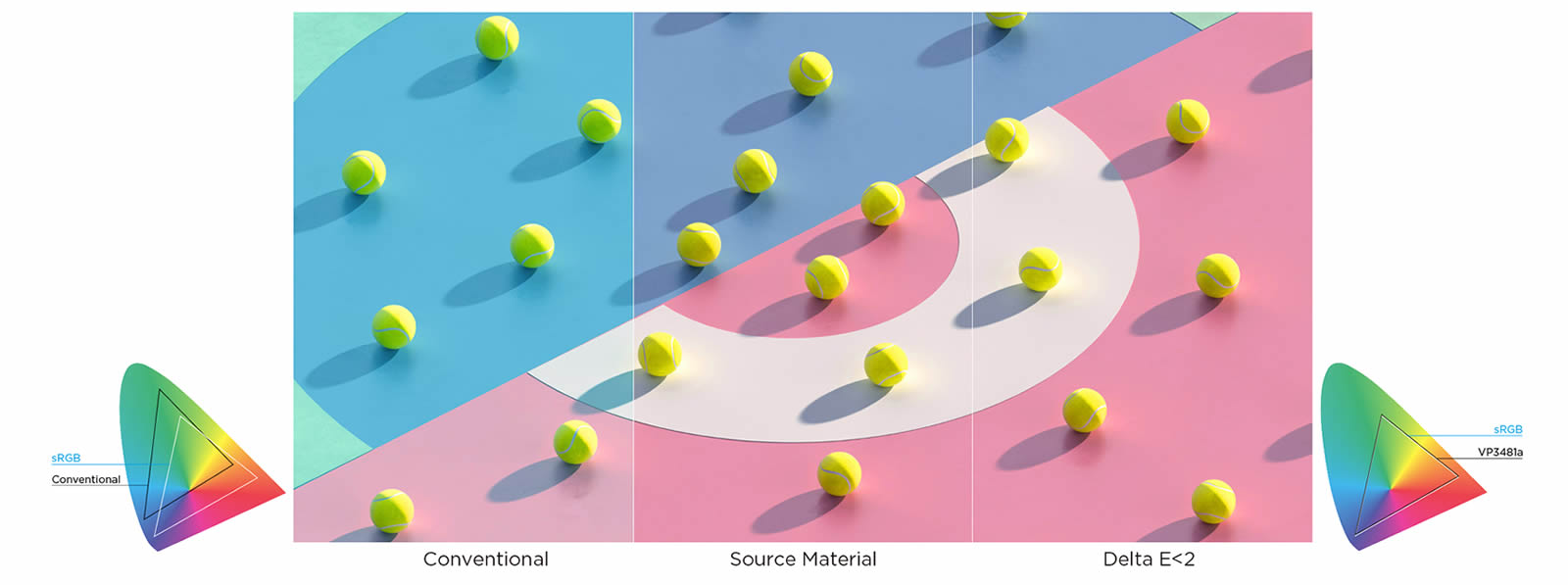

- Delta E < 2 color accuracy
- Pre-calibrated uniformity correction

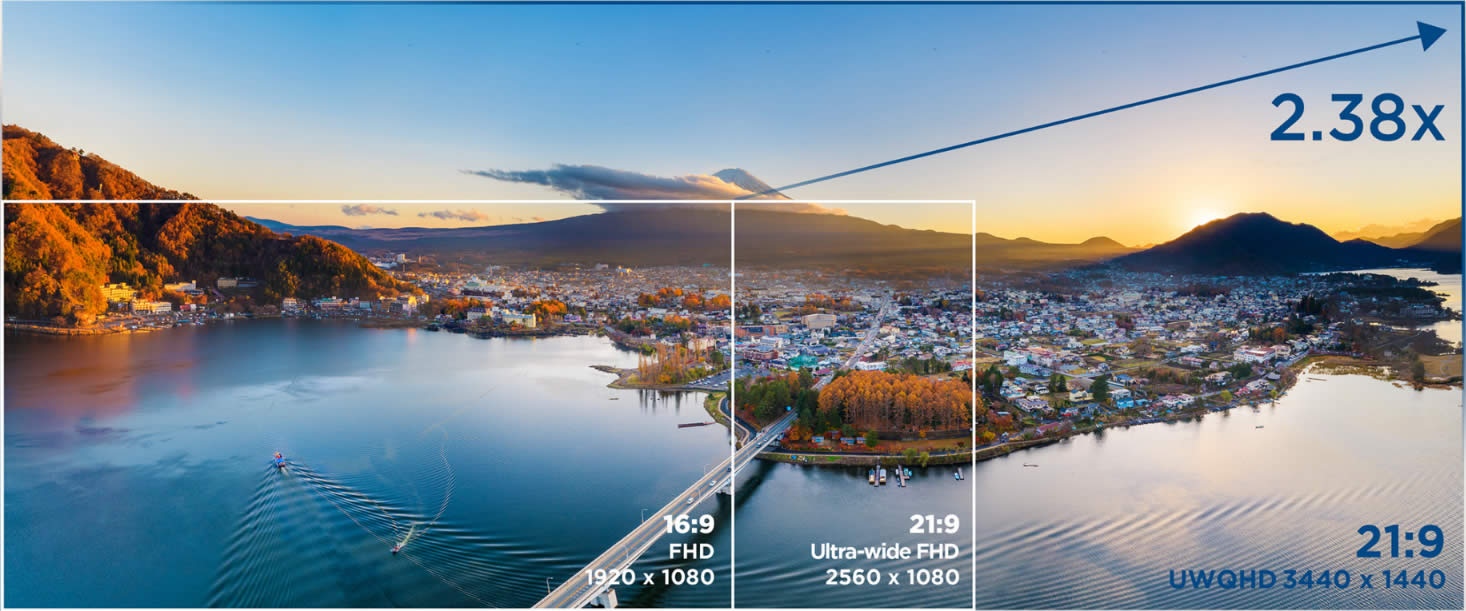

- 21:9 aspect ratio
OVERVIEW

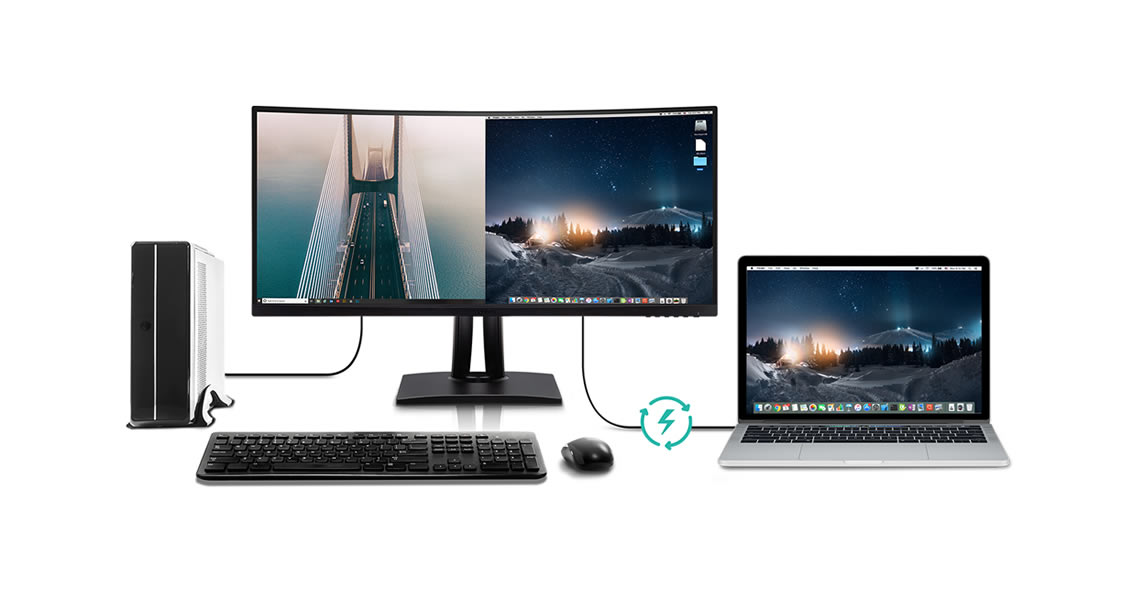

With an immersive curved screen and stunning UWQHD 3440 x 1440 resolution, the ViewSonic VP3481a monitor elevates your viewing experience from flat to panoramic. With Pantone validated 100% sRGB colour coverage, and an amazing Delta E<2 value, this 4K monitor provides industry standard colour accuracy to ensure superior results, while HDR10 compatibility delivers a wider dynamic range of vivid colours and richer contrast. Thanks to an expansive 34” frameless screen, ultra-wide 21:9 aspect ratio, and integrated speakers, this monitor is ideal for video editing, content development, and other colour-critical applications. Featuring an incredible 100Hz refresh rate and AMD FreeSync™ technology, this monitor delivers smooth, tear-free playback ideal for video editors and game developers. With a sleek and modern design, the VP3481a features a future-proof USB-C port as well as DisplayPort technology, and HDMI. What’s more, HDCP 2.2 content protection is standard across all ports to provide secure 4K content playback, streaming and gaming. An integrated colour uniformity function ensures consistent chromaticity across the screen, while a 14-bit 3D look-up table generates a stunningly smooth palette of 4.39 trillion colours. Hardware calibration is also available with the optional ViewSonic Colorbration Kit, which allows you to quickly and easily calibrate the monitor for photography, graphic design, and other professional applications.SPECIFICATIONS
- DisplayDisplay Size (in.): 34
Viewable Area (in.): 34
Panel Type: VA Technology
Resolution: 3440 x 1440
Resolution Type: UWQHD (UltraWide QHD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 400 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 21:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: 1800R
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: Adobe RGB: 89% size / 83% coverage (Typ)
DCI-P3: 88% size / 88% coverage (Typ)
EBU: 119% size / 100% coverage (Typ)
REC709: 120% size / 100% coverage (Typ)
SMPTE-C: 130% size / 100% coverage (Typ)
NTSC: 85% size (Typ)
sRGB: 120% size / 100% coverage (Typ)
Pixel Size: 0.232 mm (H) x 0.232 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 3440x1440
Mac® Resolution (max): 3440x1440
PC Operating System: Windows 11 certified; macOS tested
Mac® Resolution (min): 3440x1440 - Connector
- AudioInternal Speakers: 5Watts x2
- PowerEco Mode (Conserve): 24.8W
Eco Mode (optimized): 28.7W
Consumption (typical): 33.6W
Consumption (max): 38.6W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
Cable Organization: Yes - ControlsPhysical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: 15 ~ 135KHz
Frequency Vertical: 24 ~ 100Hz - Video InputDigital Sync: PCI-E - DisplayPort (v1.4), TMDS - HDMI (v2.0), Micro-Packet - Type C

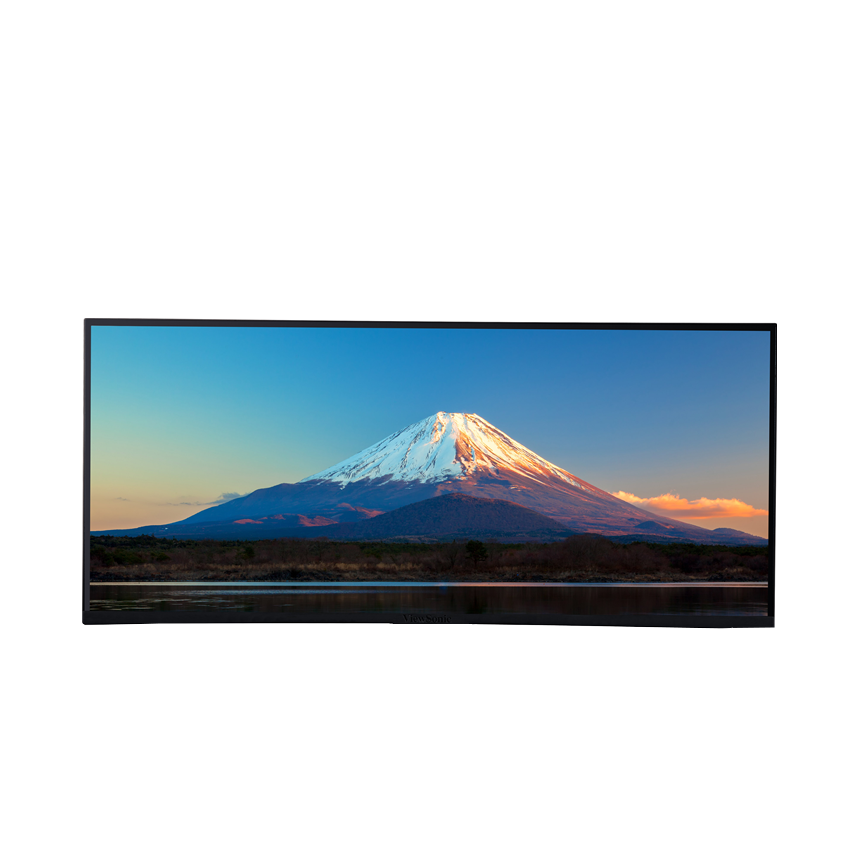

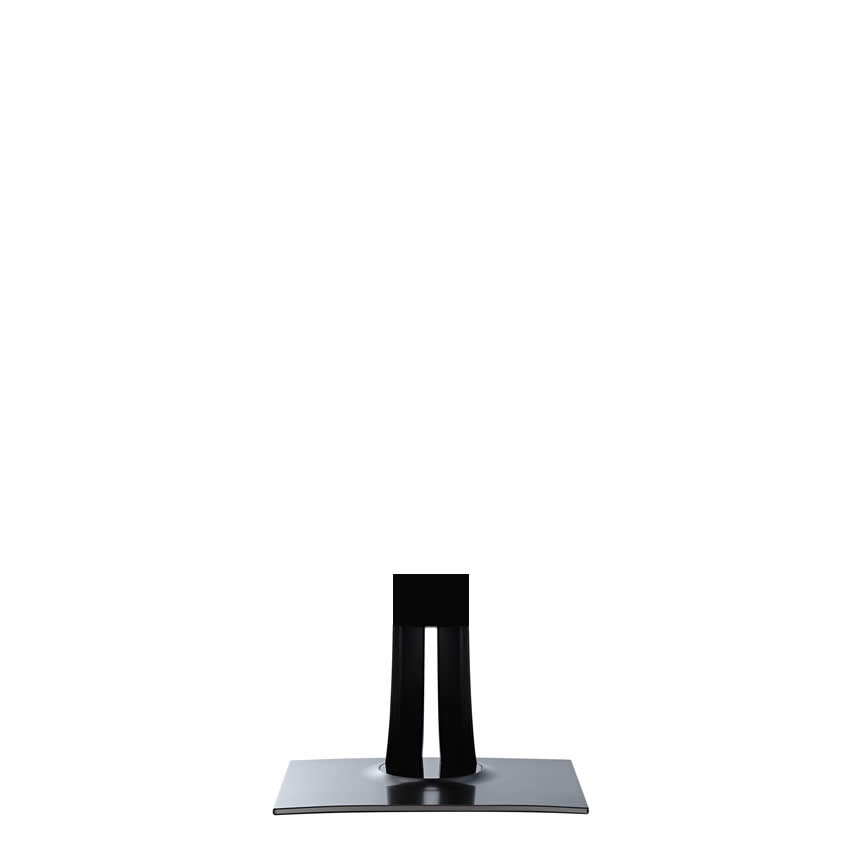

- ErgonomicsHeight Adjust (mm): 130

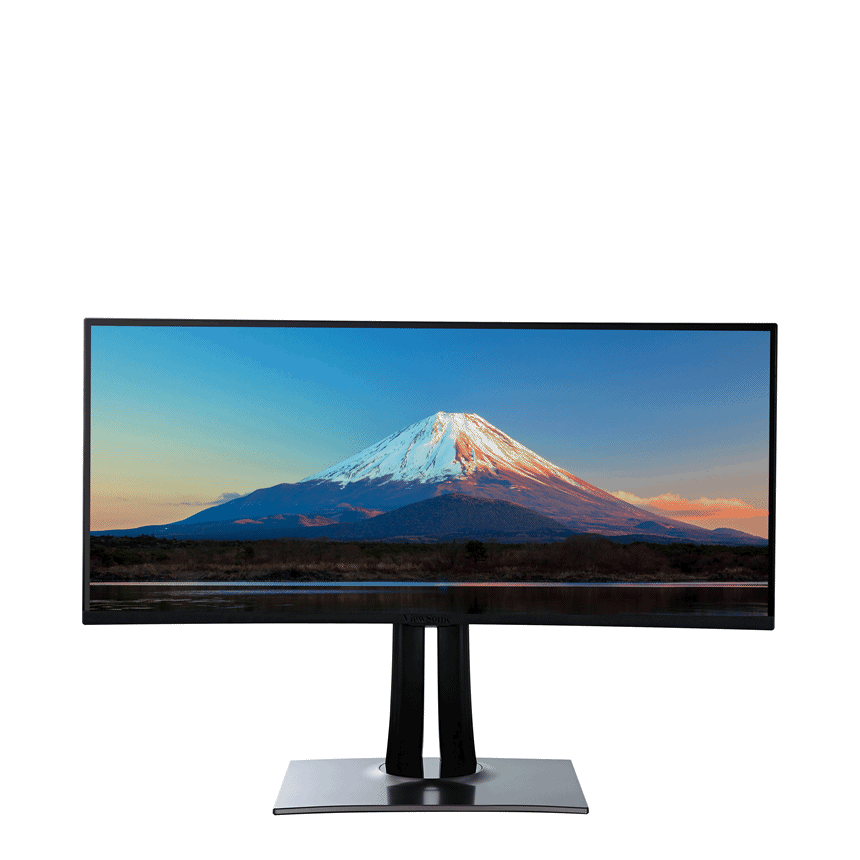

Swivel: 120º
Tilt (Forward/Back): -6º / 21º - Weight (imperial)Net (lbs): 24.6
Net Without Stand (lbs): 16.1
Gross (lbs): 37.9 - Weight (metric) Net (kg): 11.2
Net Without Stand (kg): 7.3
Gross (kg): 17.2 - Dimensions (imperial) (wxhxd)Packaging (in.): 38 x 20.7 x 14.6
Physical (in.): 31.9 x 18.91~21.23 x 9.6
Physical Without Stand (in.): 31.9 x 14.4 x 4.1 - Dimensions (metric) (wxhxd)Packaging (mm): 965 x 525 x 370
Physical (mm): 809 x 480.46~539.23 x 243
Physical Without Stand (mm): 809 x 366 x 105 - GeneralRegulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM
PACKAGE CONTENTS: VP3481A x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, HDMI Cable (v2.0; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
