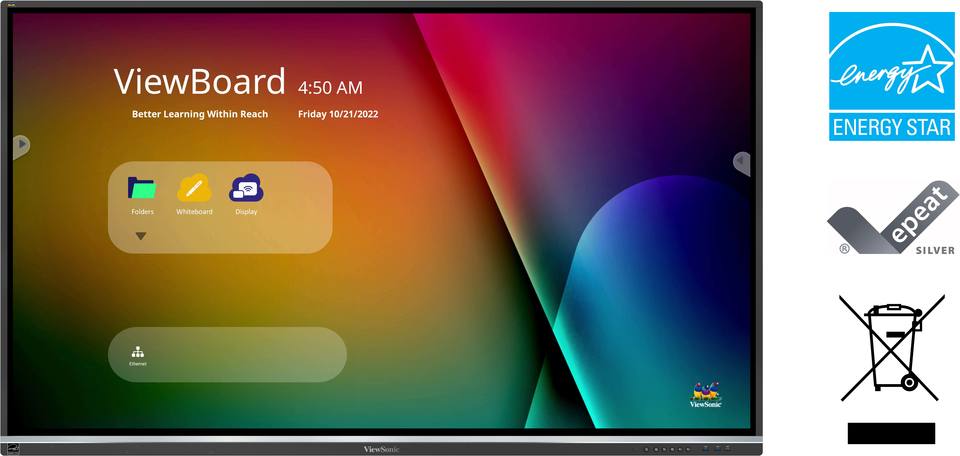

ViewBoard IFP7550-5

ViewBoard® 75” 4K Interactive Display

Ultra Fine Touch Technology offering up to 40-point touch for a pen-on-paper writing experience
myViewBoard Whiteboard software with engaging classroom tools
Screen share via USB-C or wirelessly via myViewBoard Display and ViewBoard Cast with Airplay and Chromecast
Intuitive remote device control and multimedia broadcast with myViewBoard Manager
Android 11 OS powered by an octa-core CPU for optimized efficiency and security (Upgradable to Android 13)

SPECIFICATIONS

Display
Panel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight. IPS
Display Area (mm): 1650.24(H) × 928.26(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160
Colors: 1.07B colors (10bit)
Brightness: 450 nits (typ.)
Contrast Ratio: 1200:1 (typ.) 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours(Min)
Surface Treatment: Hardness: 7H, Anti-glare coating
Bezel: Slim
Orientation: Landscape
Platform
Processor: ARM Cortex-A73*4 + Cortex-A53*4
RAM: 4GB
Storage: 32GB
Touch
Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32768 ×32768
Touch Point: Windows: 40 points of touch, Android : 20 points of touch

INPUT
HDMI: 2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232: x1
OPS: x1
WiFi: x 1 module slot
OUTPUT
HDMI: x1 (4K@60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
LAN
RJ45: x2
USB
Type A: 2.0 x 2
3.0 x 4
Type B: x2, for touch
Type C: x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M)
SPEAKERS
12W x 2 + 16W x 1 subwoofers
Top Camera Plate
Yes
Embedded OS
Android 13
Bundle Software
Basic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: vCast/myViewBoard Display App/AirSync*
*myViewBoard Display will be replaced by AirSync in Q1 2025.
Special Features
All-in-one USB port: “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: Yes
Light Sensor: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 135W(typ.), 0.5W (off)
ERGONOMICS
Wall Mount (VESA® ): 800 mm x 400 mm
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 67.28 x 40.16 x 3.39 in / 1709 x 1020 x 86 mm
Packaging (inch / mm): 73.35 x 44.88 x 8.86 in / 1863x 1140 x 225 mm
WEIGHT
Net (lb / kg): 117.73lb/53.4kg
Gross (lb / kg): 151.9lb/68.9kg
PACKAGE CONTENTS
1. Power cord
2. Remote control with AAA battery
3. Touch USB cable
4. Touch pen x 2
(VB-PEN-009)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8
10. HDMI cable
Compatible Slot-in PC
• VPC2-O series
• VPC2-O-B series
• VPC25-W33-O1-1B
• VPC27-W53-O1-1B
• VPC12-WPO-17
• VPC12-WPO-18
