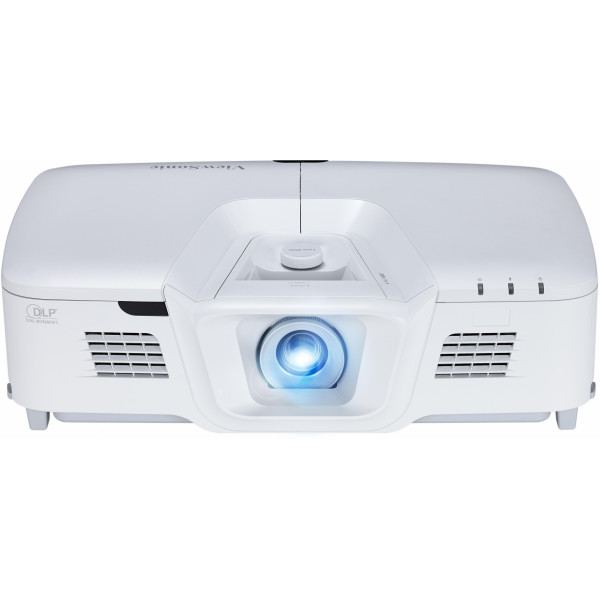

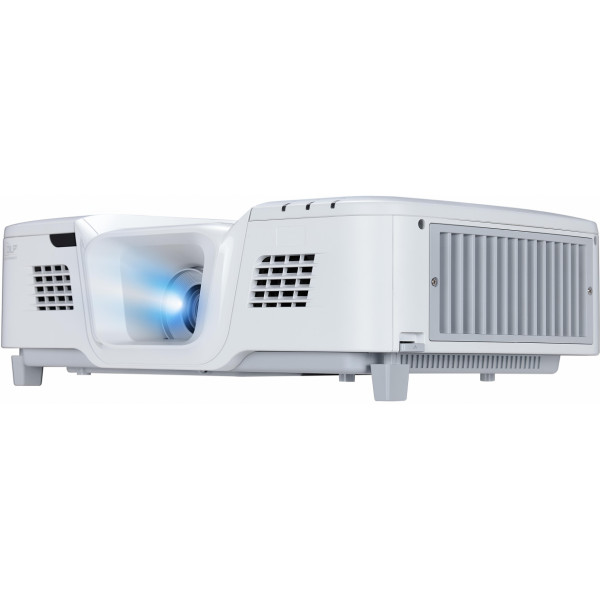

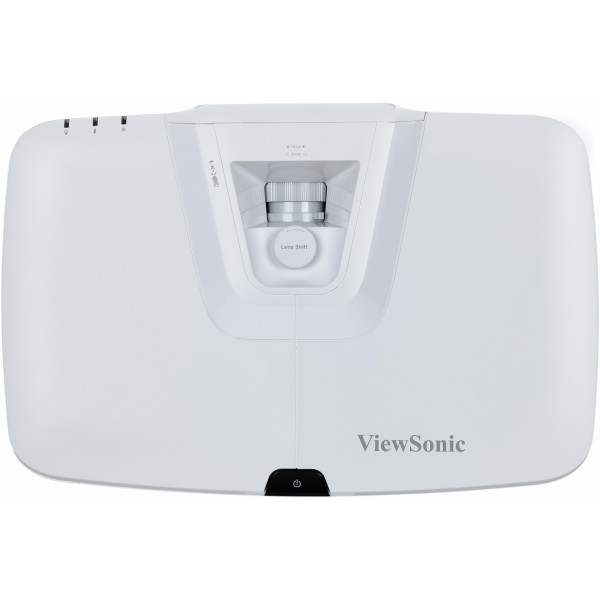

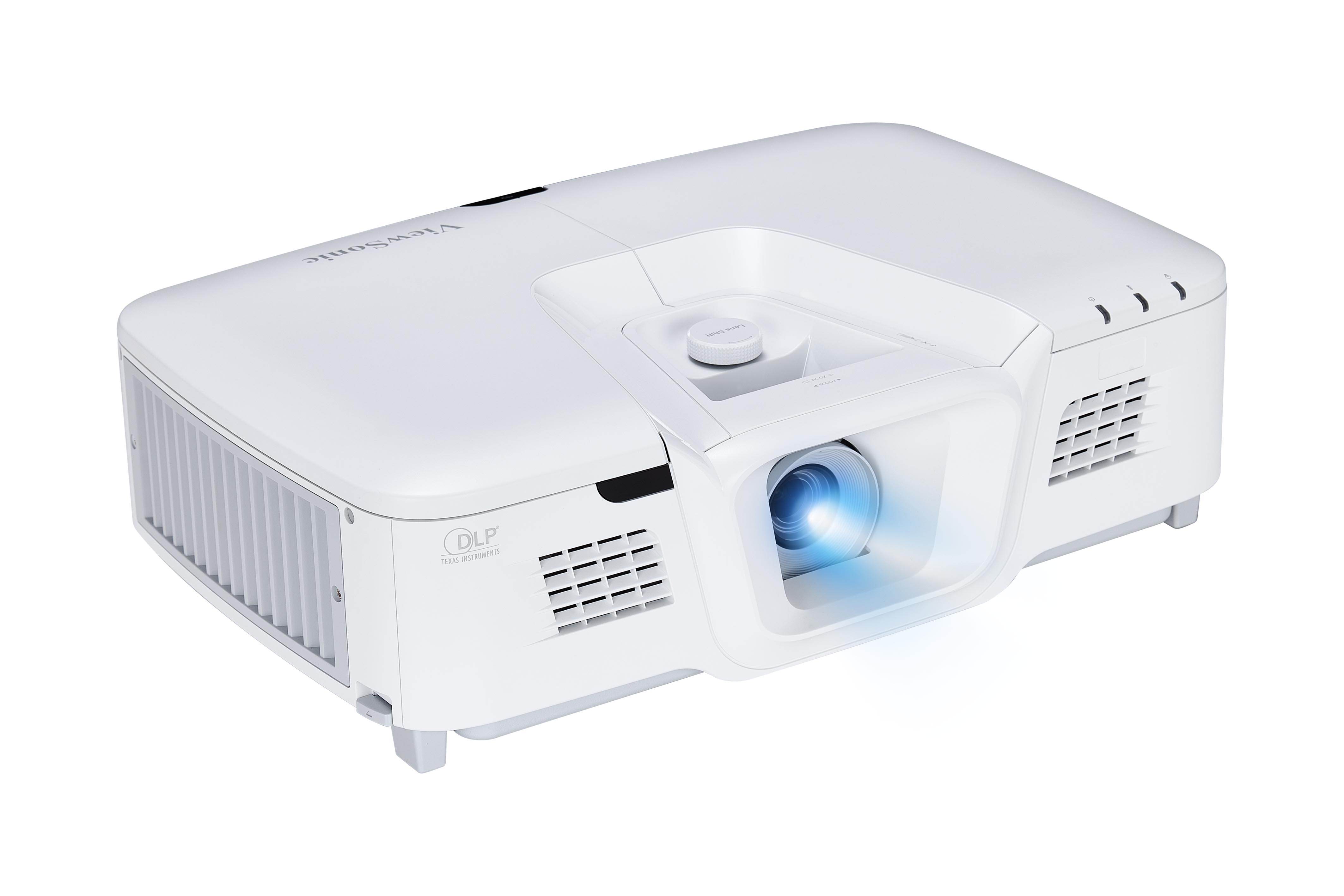

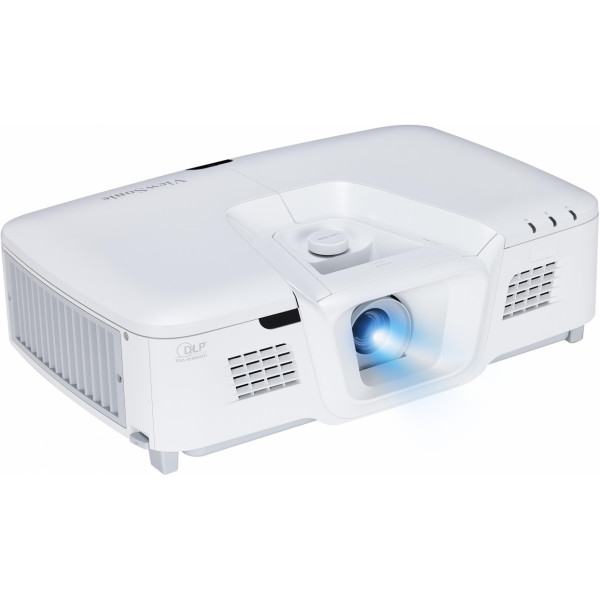

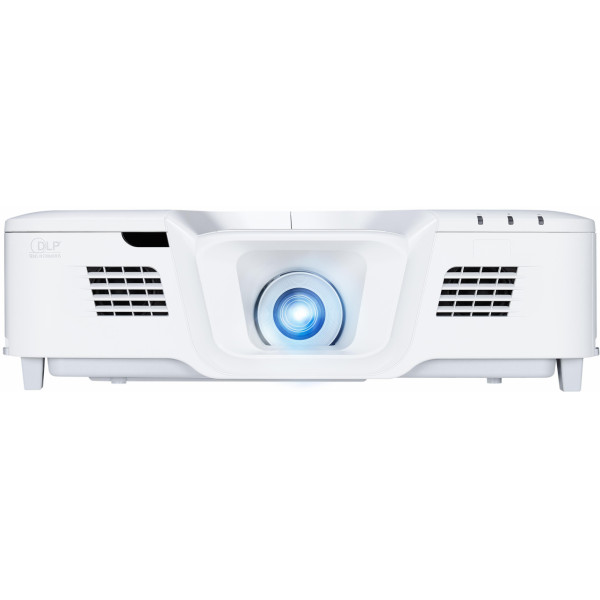

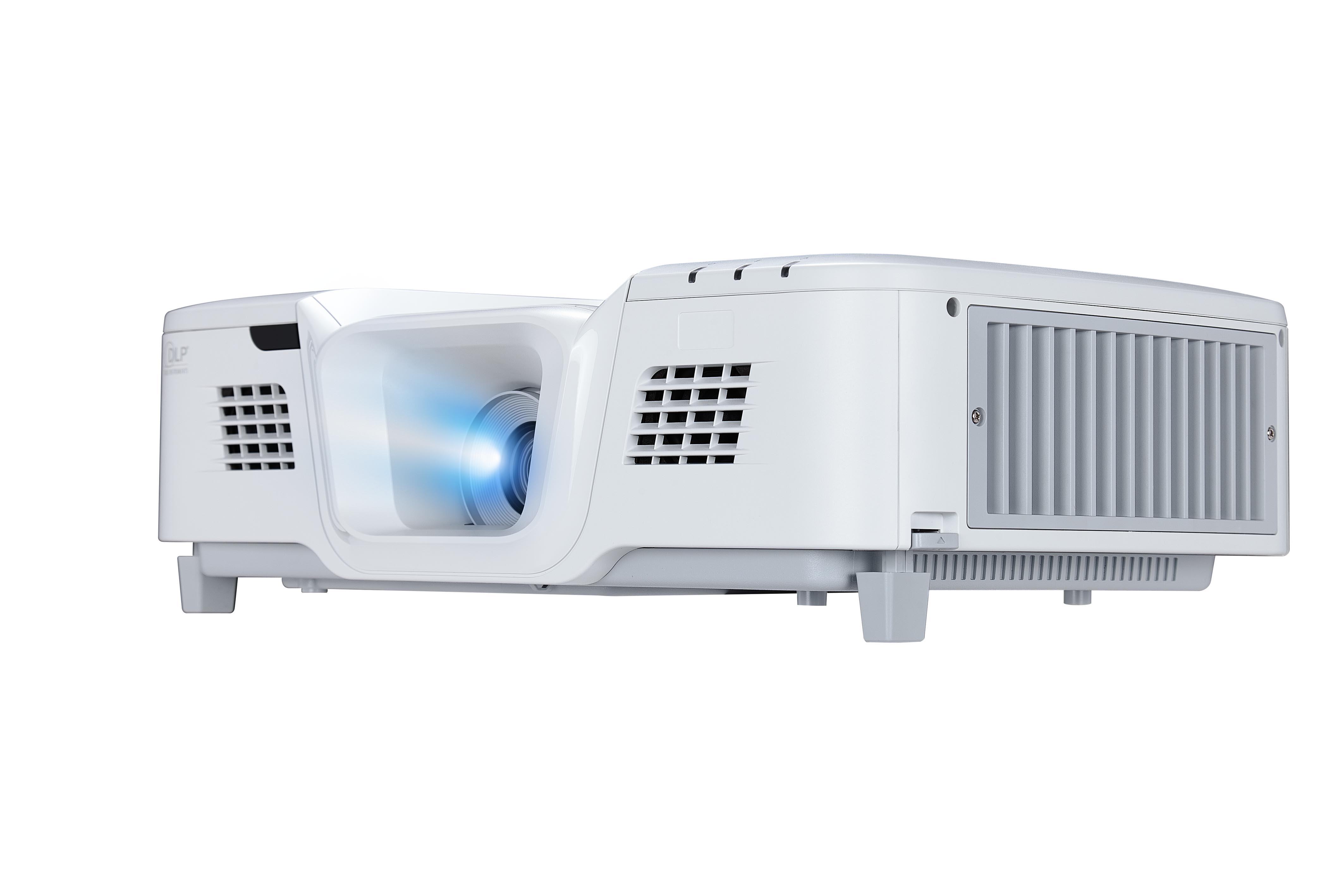

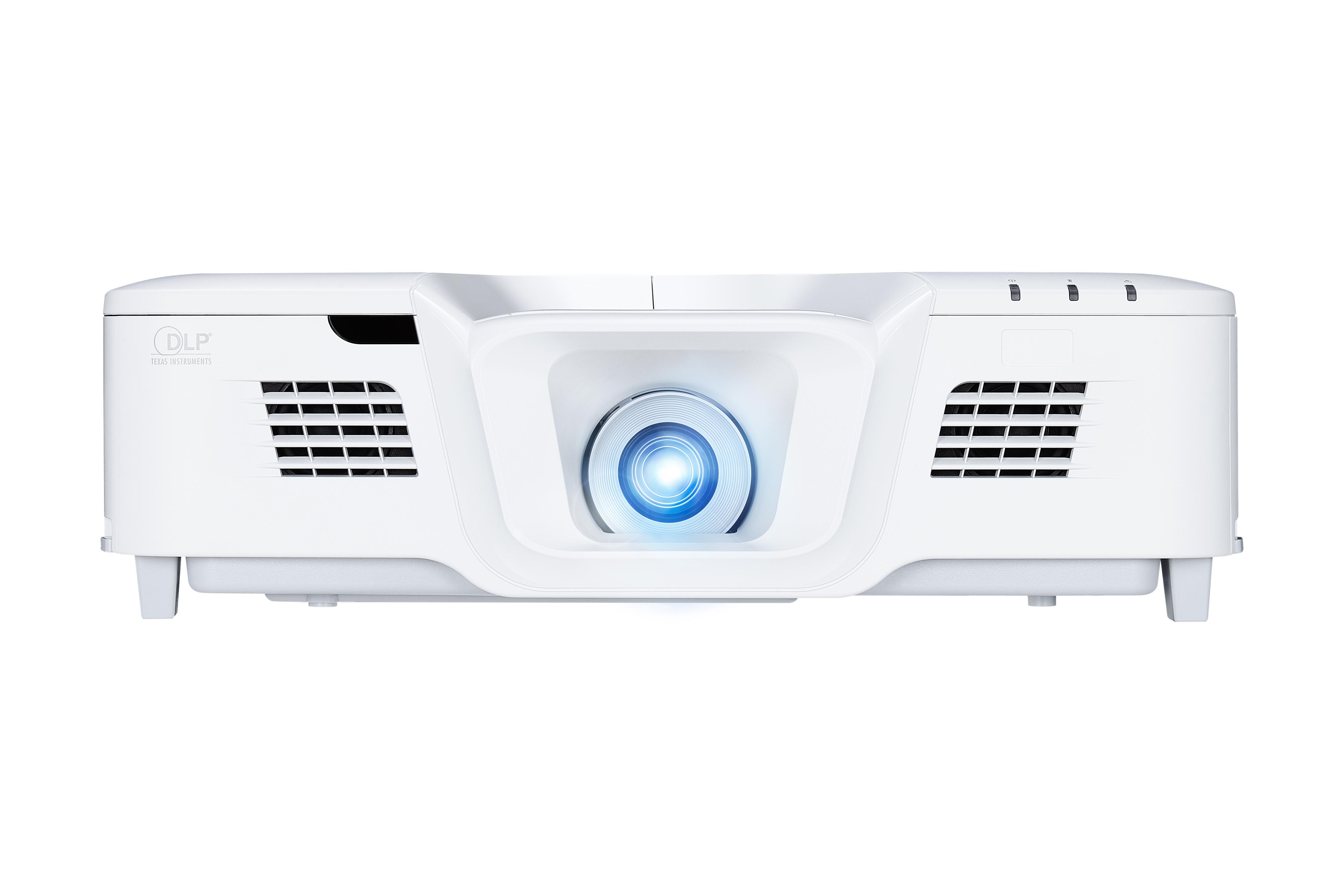

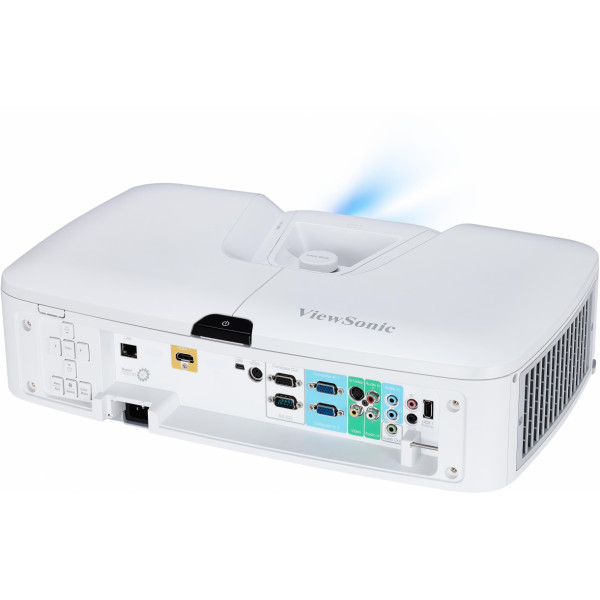

PG800HD

5,000 Lumens Installation Projector

  • Full HD 1080p resolution

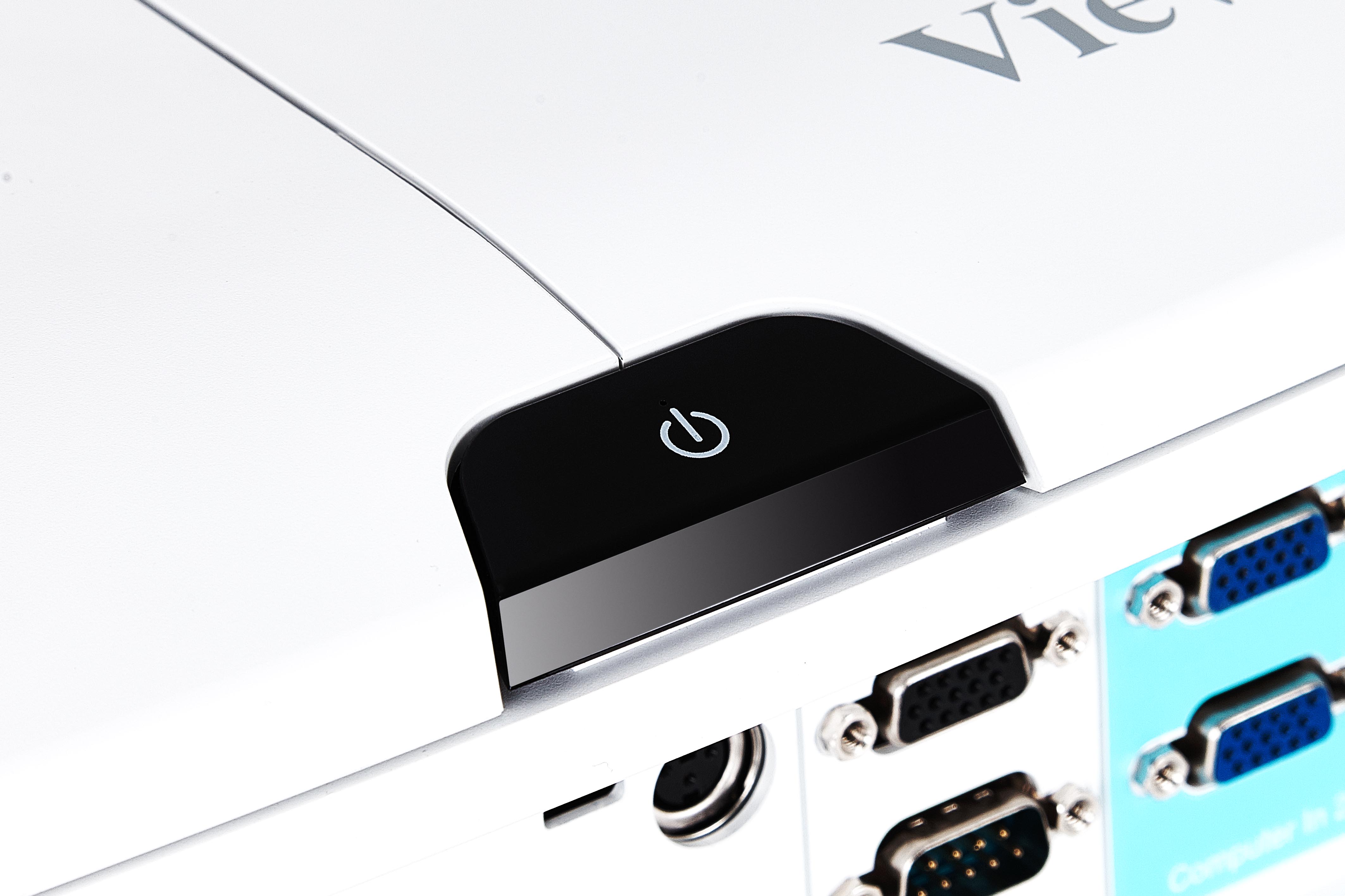

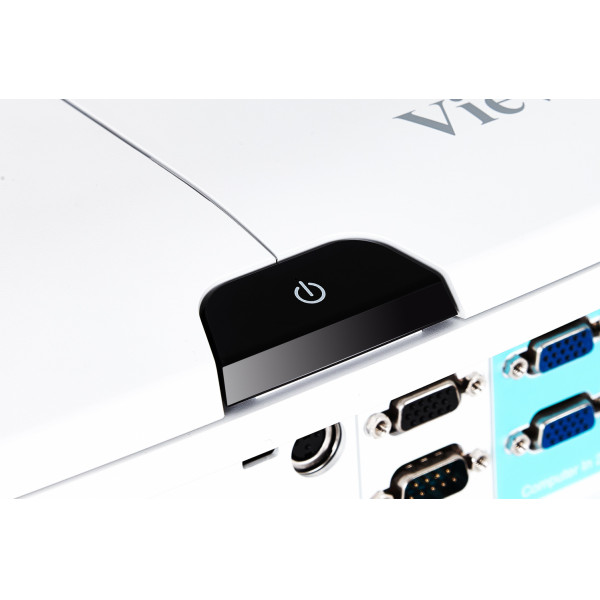

  • 4-in-1 power button

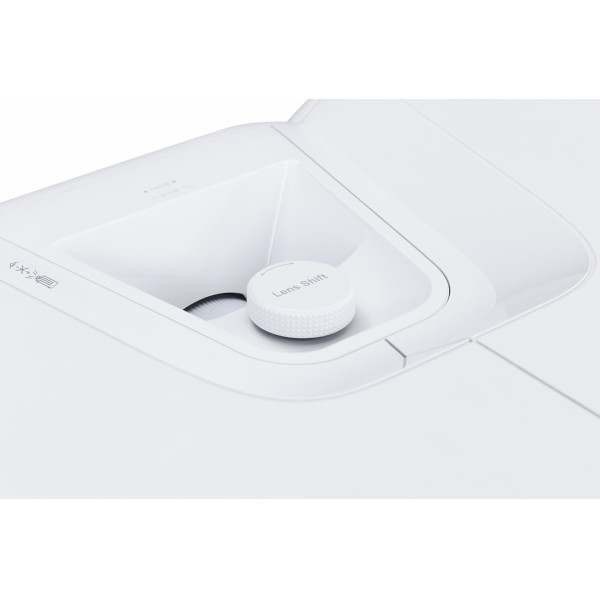

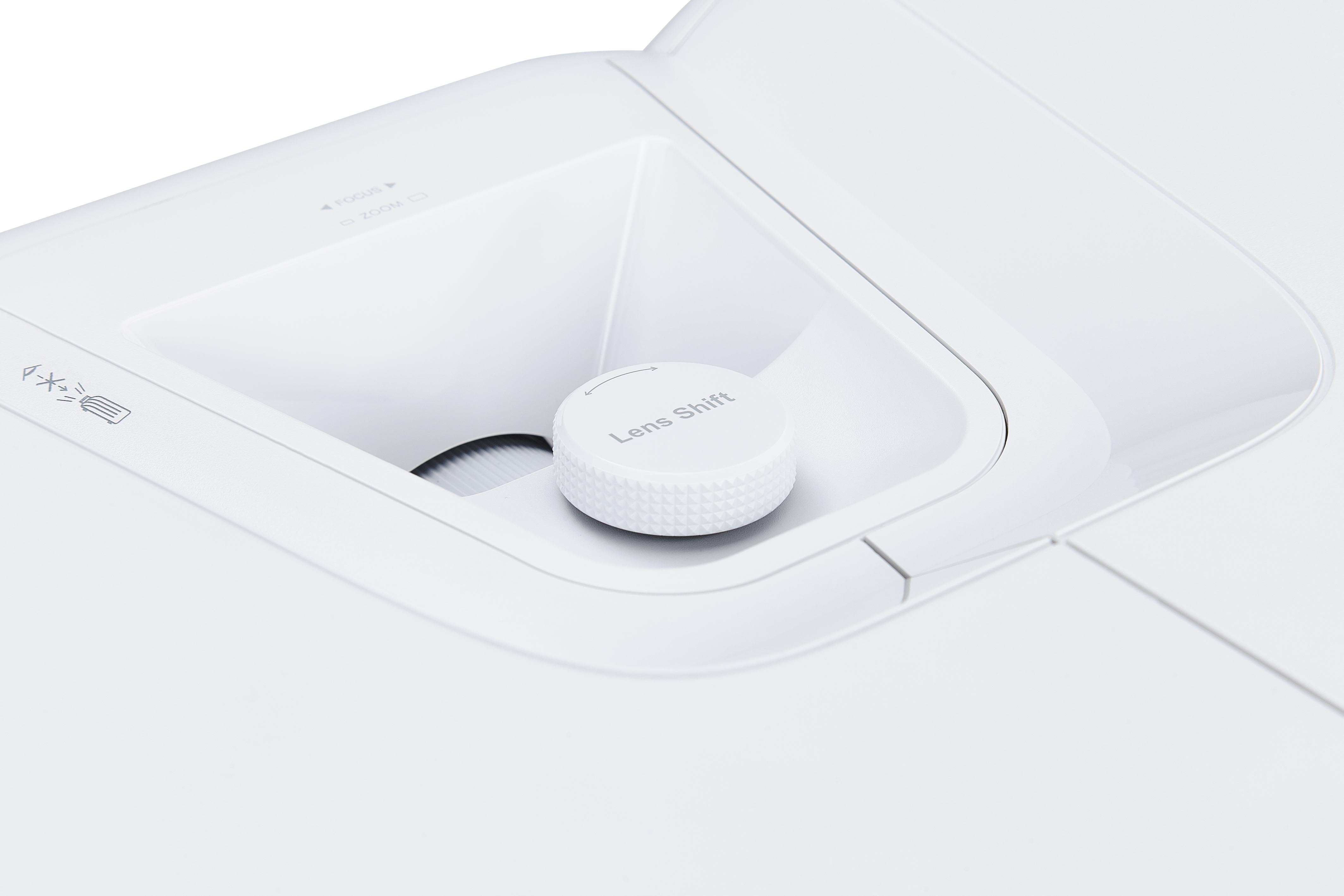

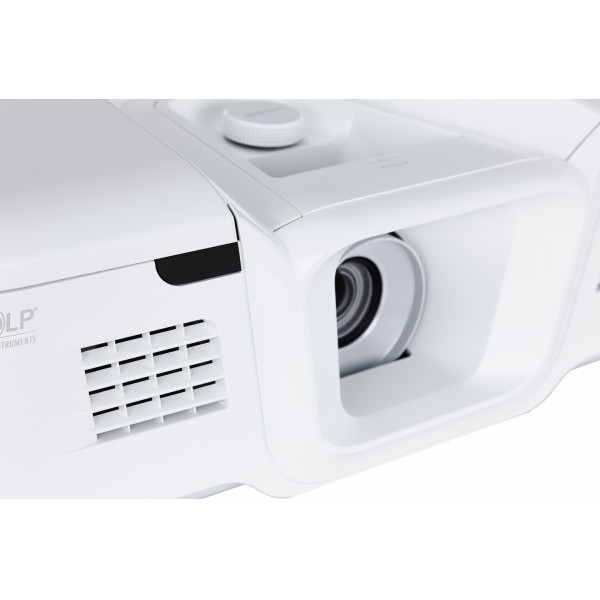

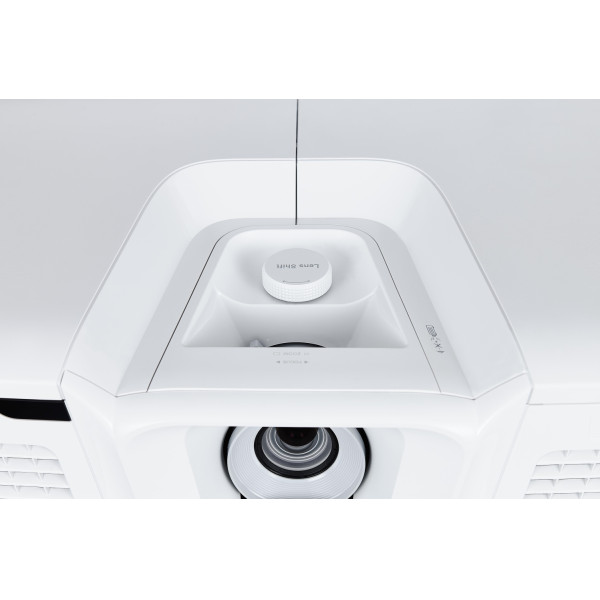

  • Vertical lens shift with centered lens

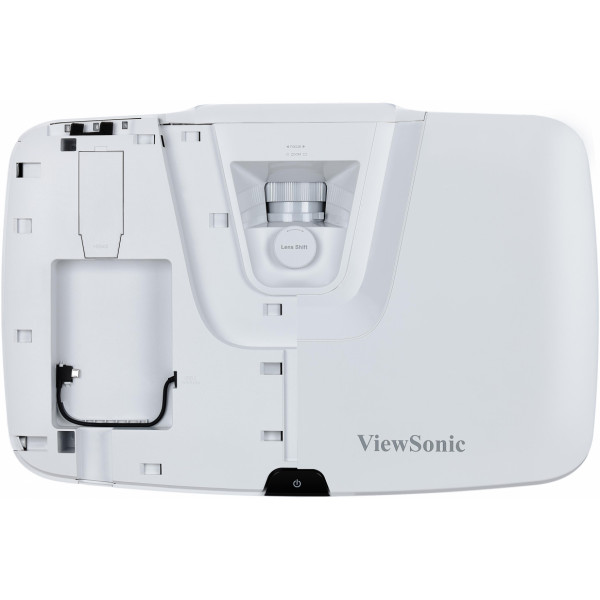

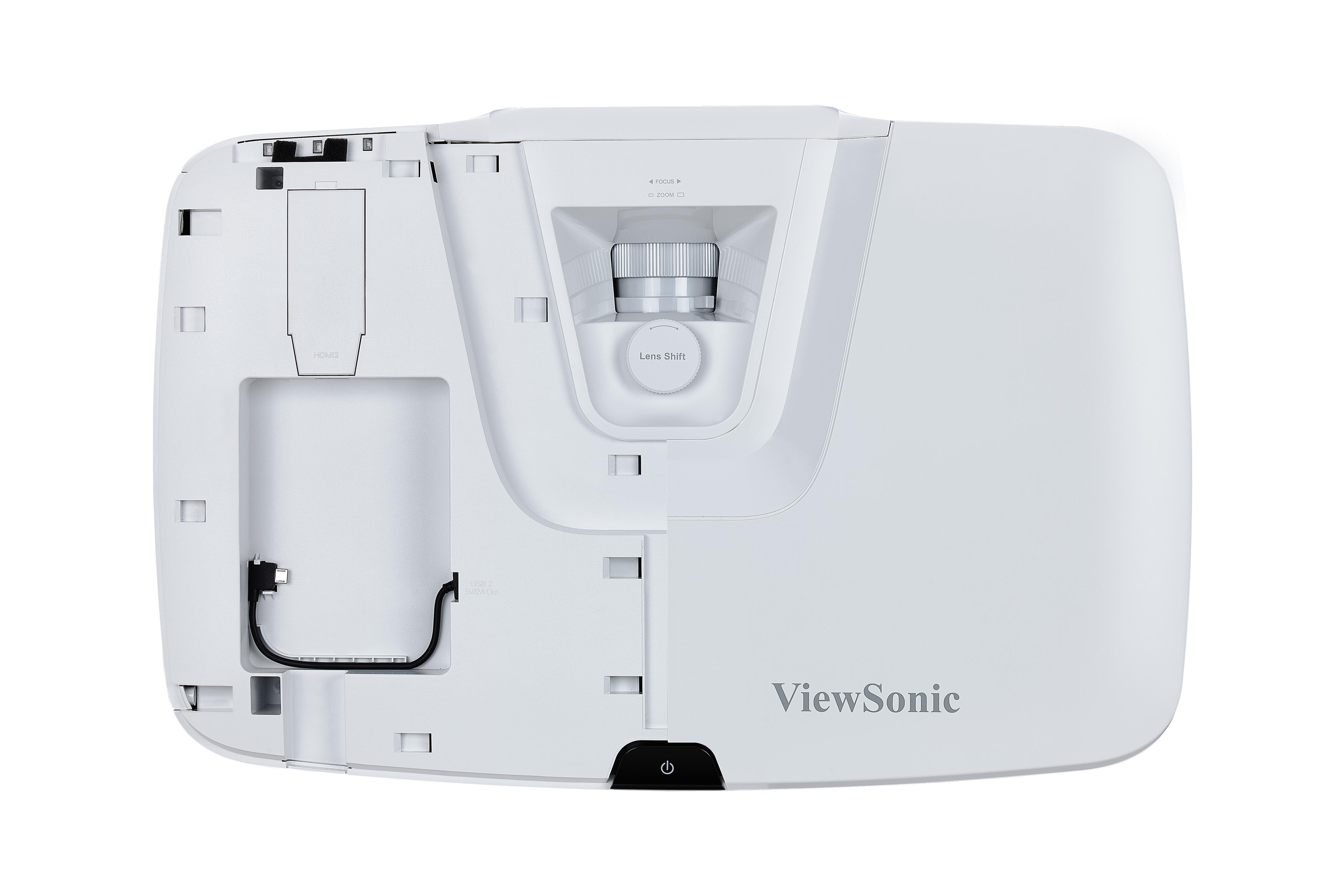

  • PortAll® compartment for wireless dongle
  • LAN control support-Crestron, AMX and PJ Link

REVIEWS


Hifitest.de

“The PG800HD will look as good in clubs and other venues as it does in schools or other classroom settings.”

Read Review

Heimkino

“The ViewSonic PG800HD can be used very well across the board.”

Hifitest.de

“The PG800HD will look as good in clubs and other venues as it does in schools or other classroom settings.”

Read Review

SPECIFICATIONS


  • SPECIFICATION
    Projection system: 0.65" 1080p
    Native Resolution: 1920 x 1080P
    DC type: DC3
    Brightness: 5000 ANSI Lumens
    Contrast Ratio with SuperEco mode: 5000:1 (with Eco mode)
    Display Colour: 1.07 Billion Colours

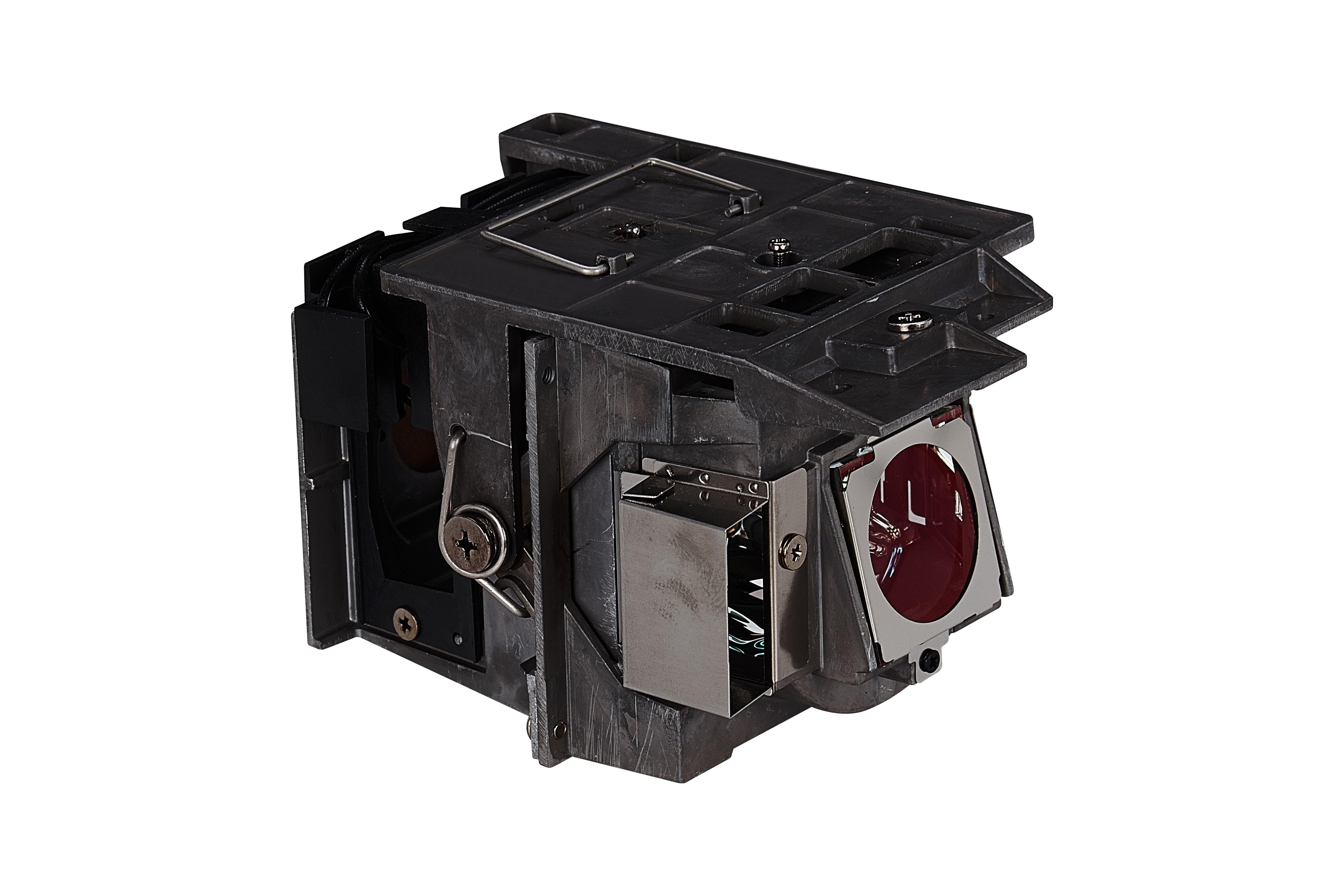

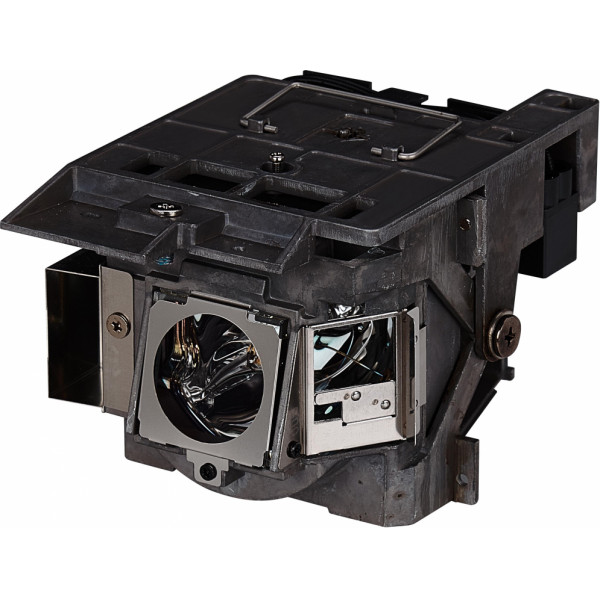

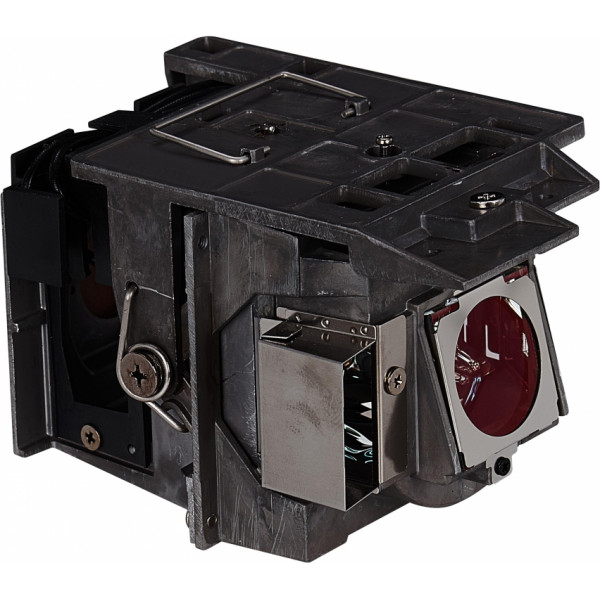

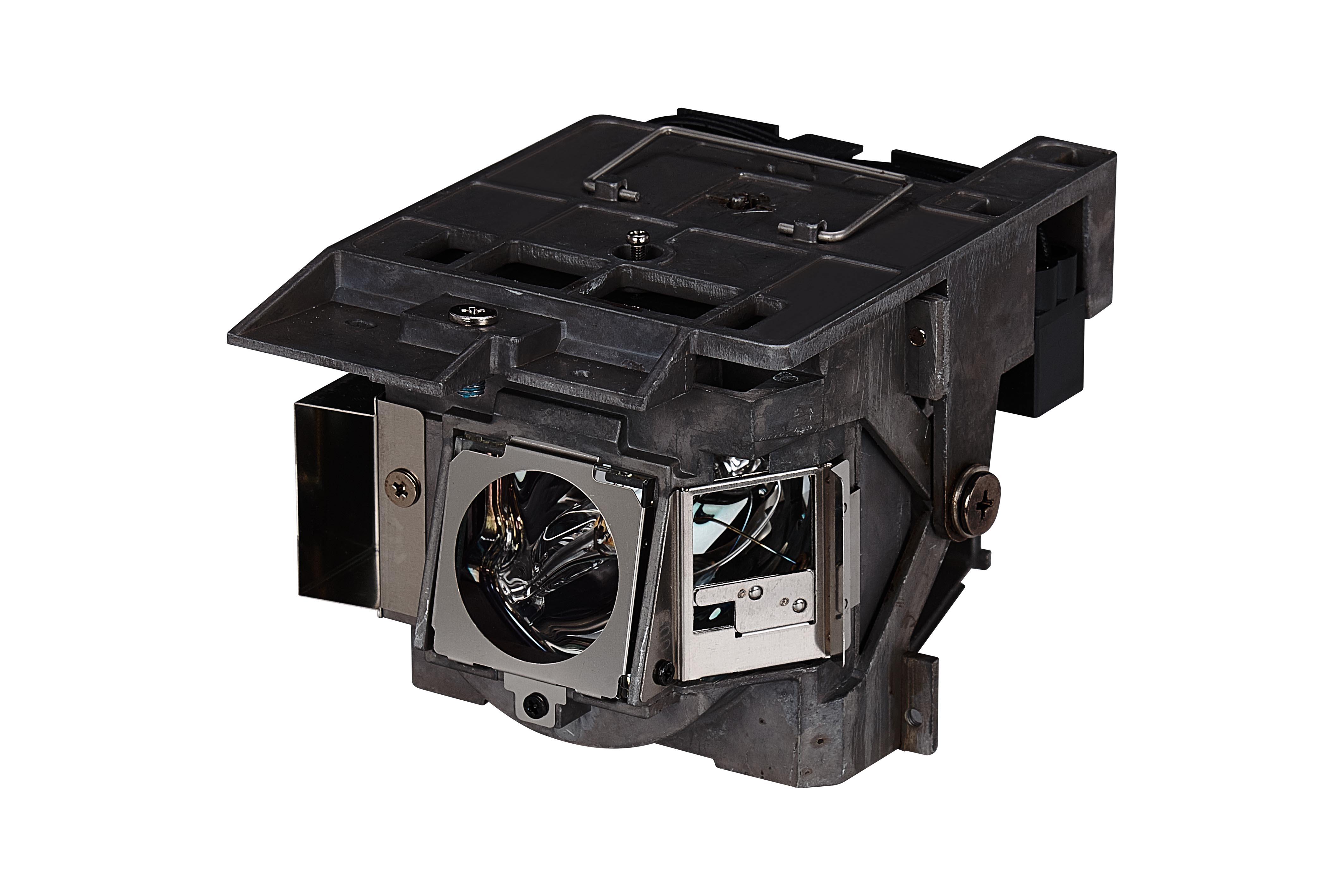

    Light Source: Lamp
    Light source life (Nor/SuperEco): 2000/2500 (Nor/Eco)
    Lamp Watt: 370W
    Lens: F=2.59-2.87, f=16.88-21.88mm
    Projection Offset: 116%+/-5%
    Throw Ratio: 1.15-1.5
    Image size: 30" - 300"
    Throw Distance: 0.76m-9.96m(100" @2.55m)
    Keystone: ±40° (Vertical)
    Lens Shift V. Range: Yes (+7%, -0%)
    Optical Zoom: 1.3x
    Audible Noise (Eco): 33dB
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz

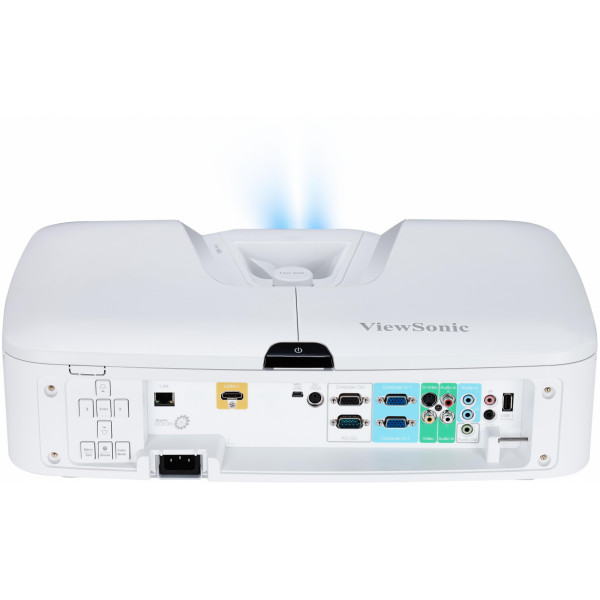

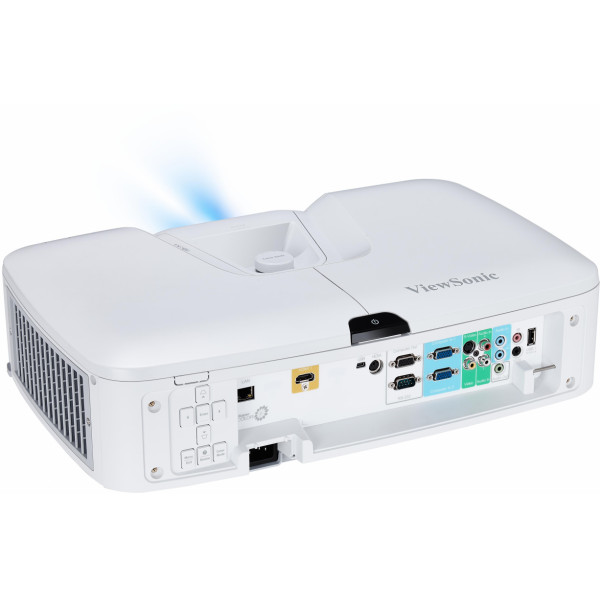

  • Input
    Computer in (D-SUB 15 pin): 2
    Composite: 1
    S-video: 1
    Audio-in (3.5mm): 2
    Audio-in (RCA R/L): 1
    Microphone in: 1 (shared with Audio-in 2)
    HDMI: 2 (Back & PortALL)
    3D VESA (Sync): 1
  • Output
    Monitor out (D-SUB 15 pin): 1
    Audio out (3.5mm): 1
    Speaker: 10W Cube x 2
    USB type A (Power): 1 (5V2A)
    USB type Micro B (Power): 1 (5V2A Front)
    12V Trigger: 1 (3.5mm)
    IR out: 1
