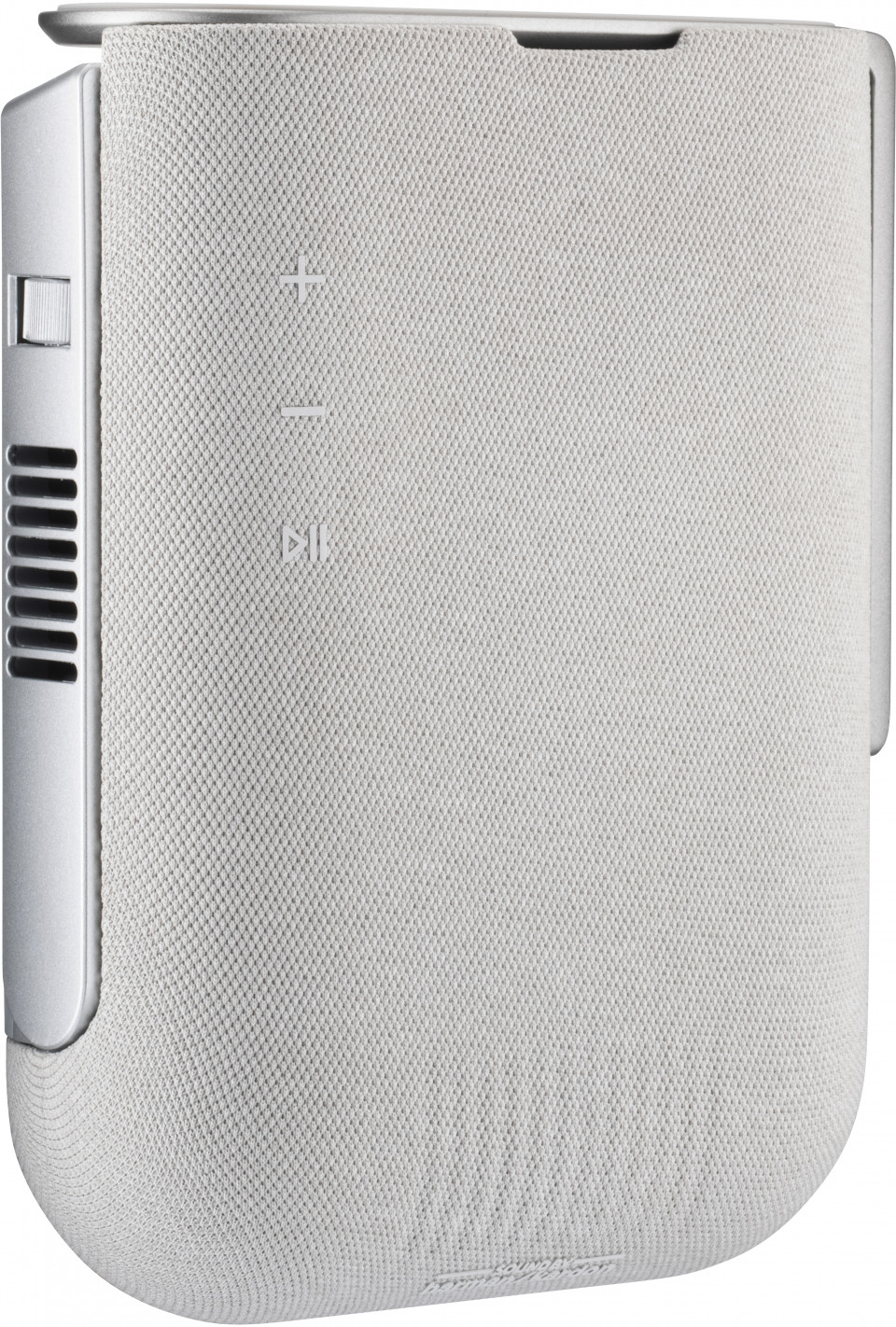

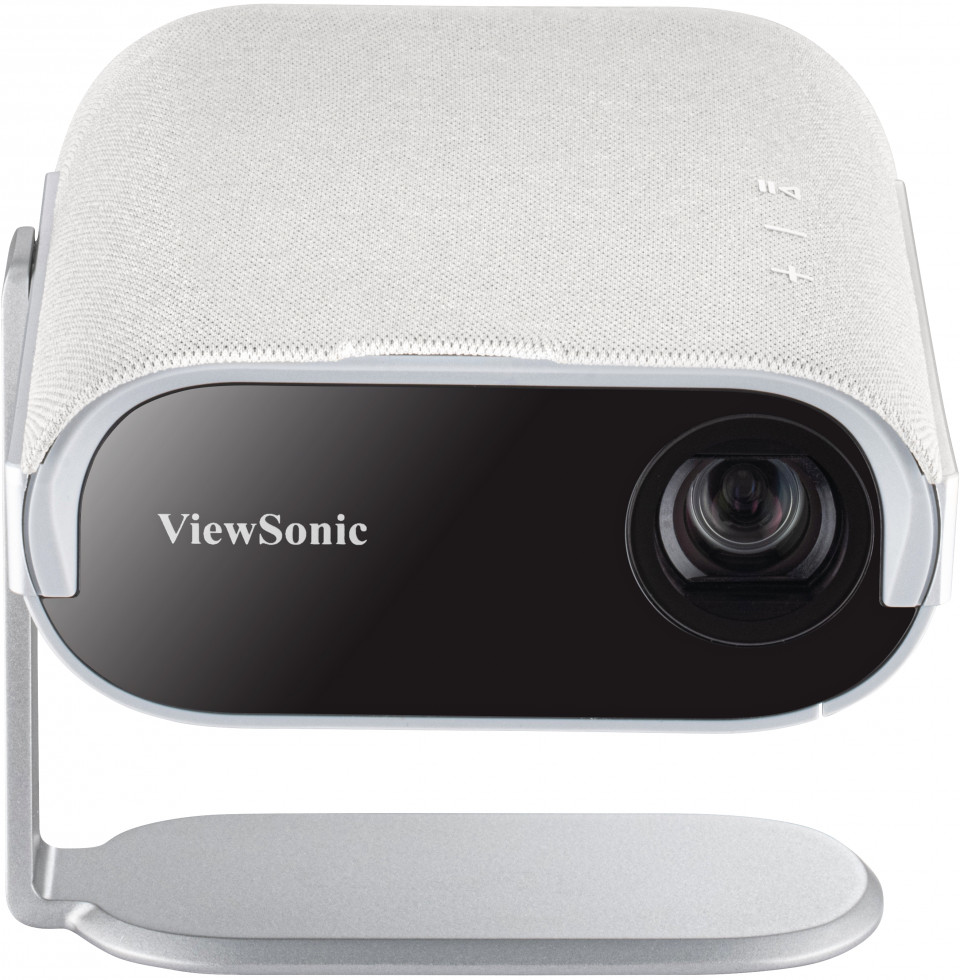

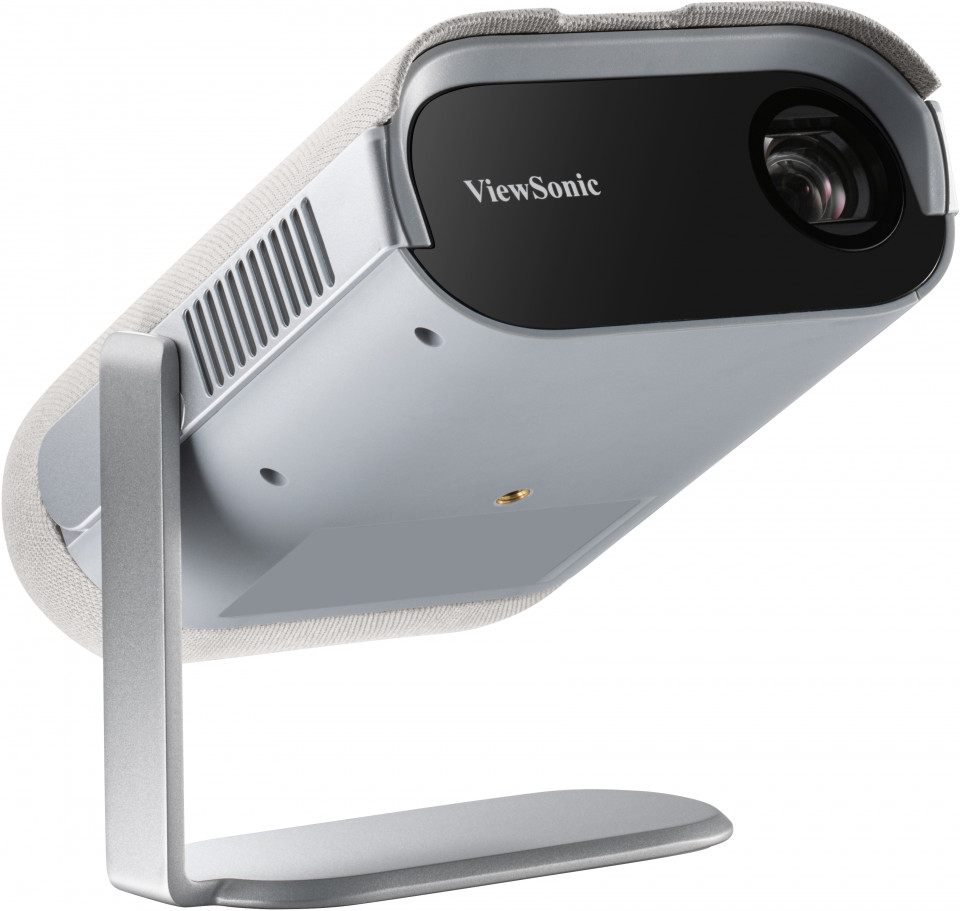

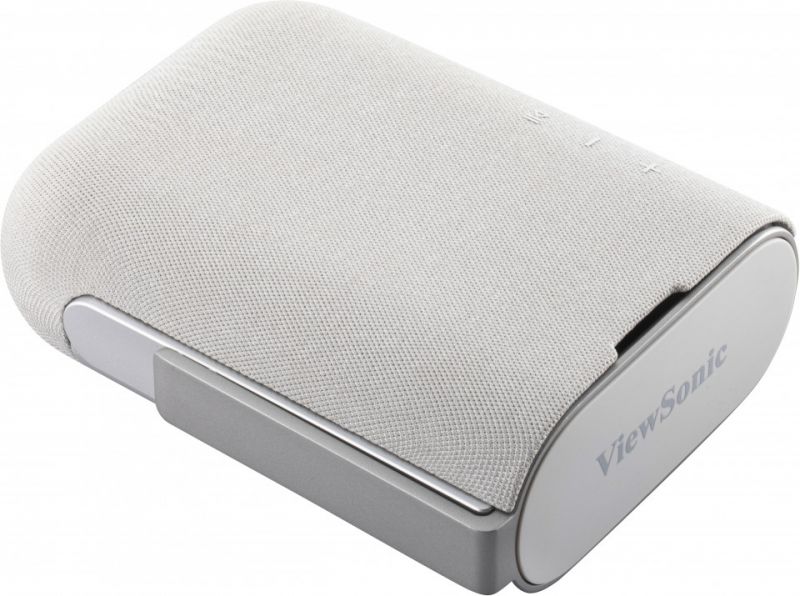

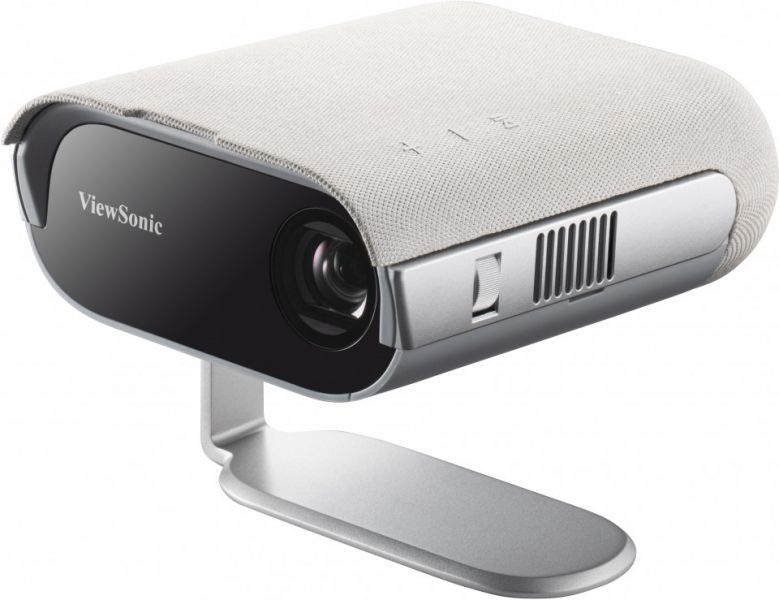

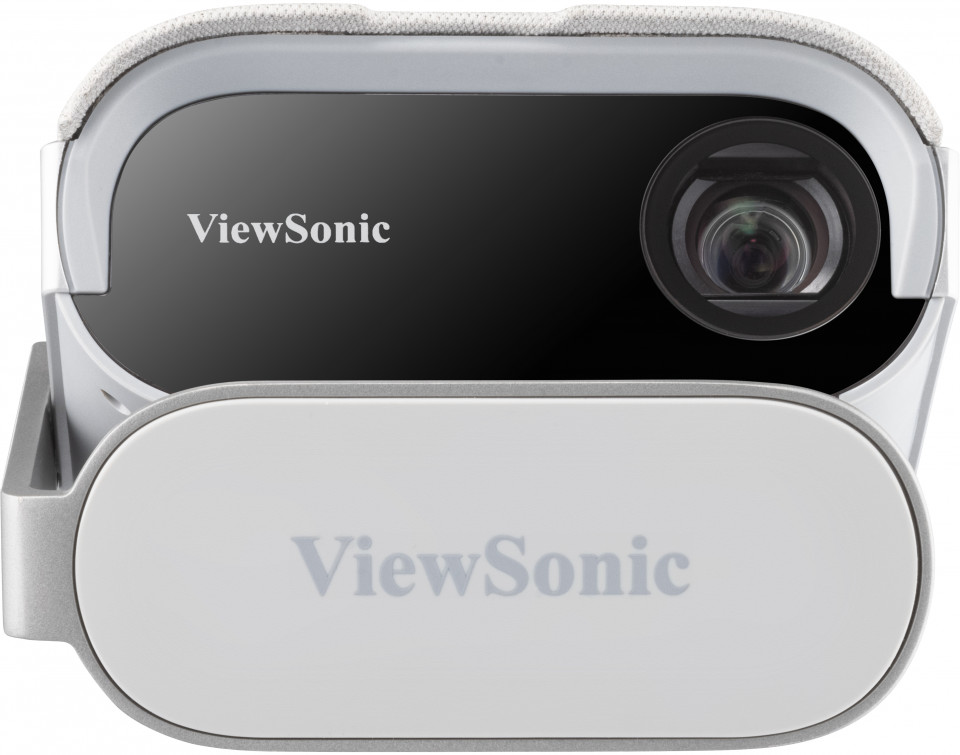

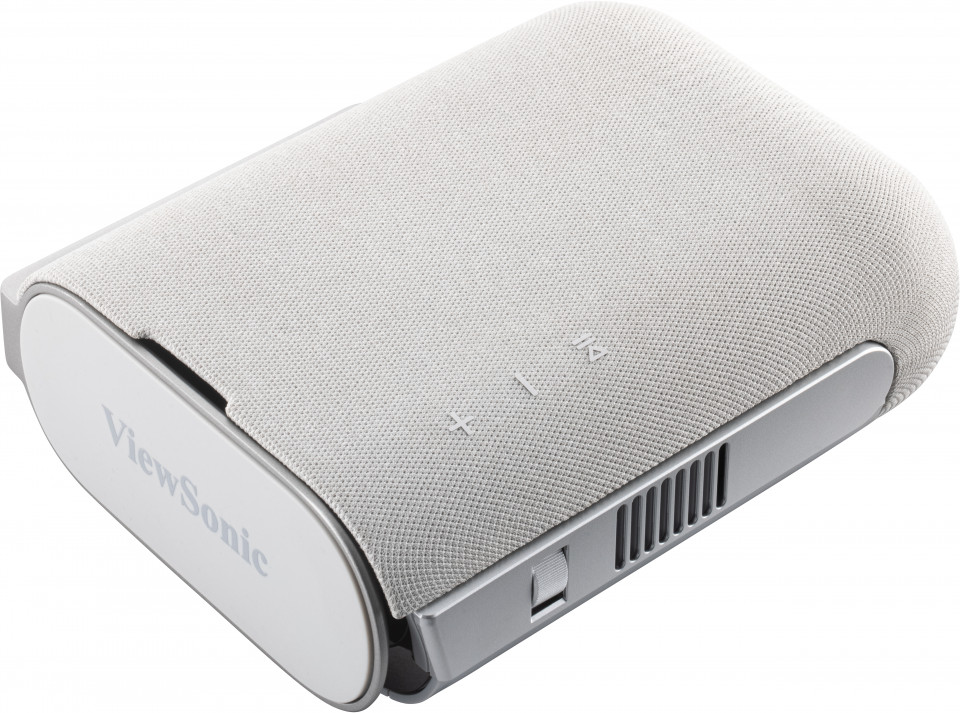

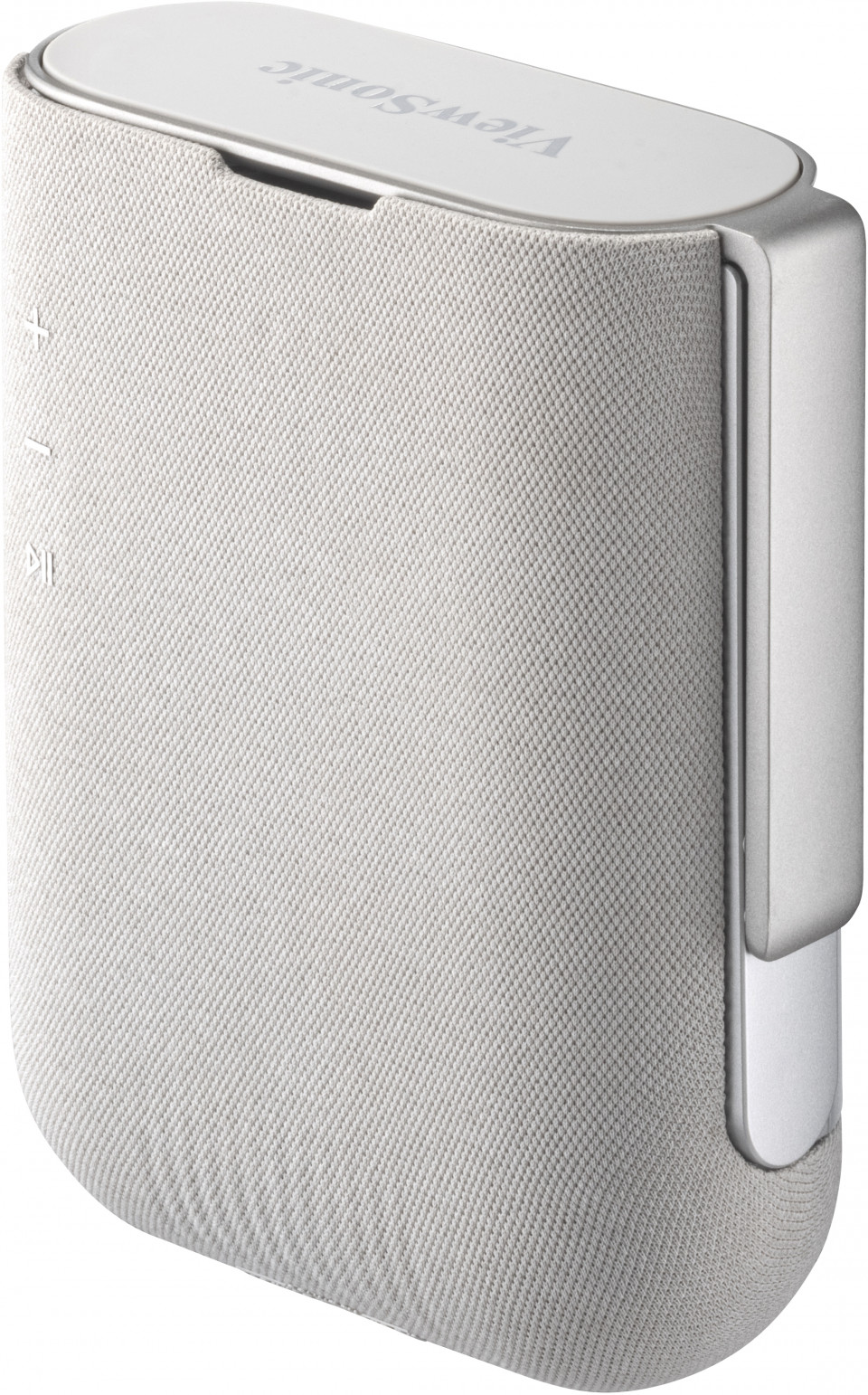

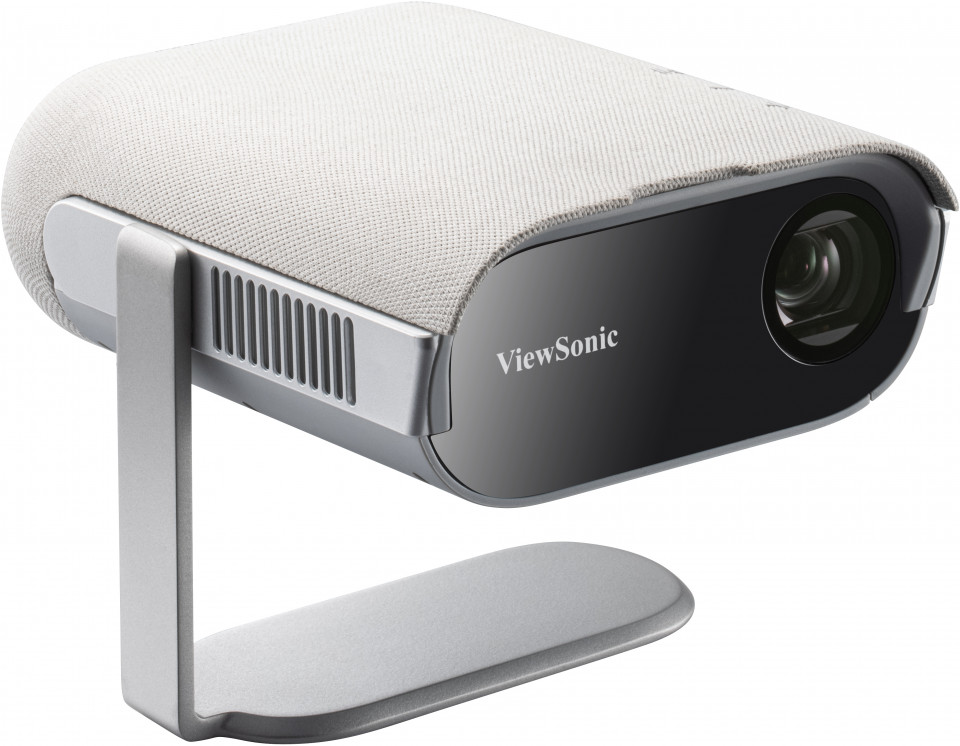

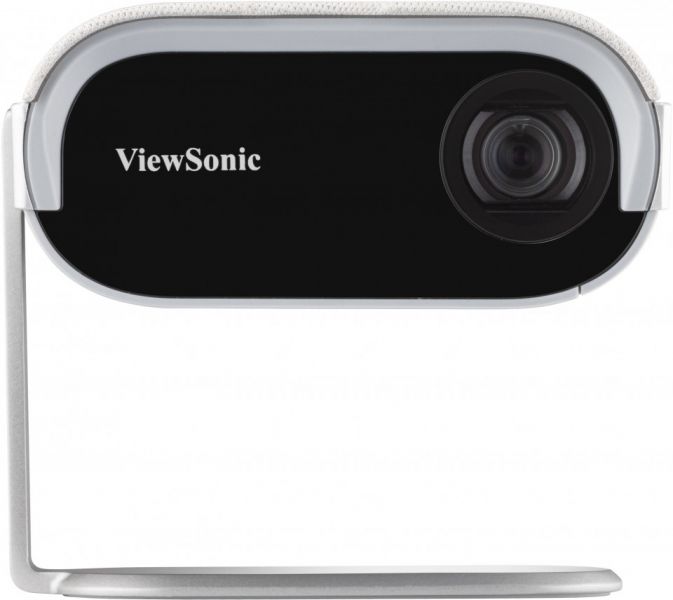

M1 Pro
Smart LED Portable Projector with Harman Kardon® Speakers

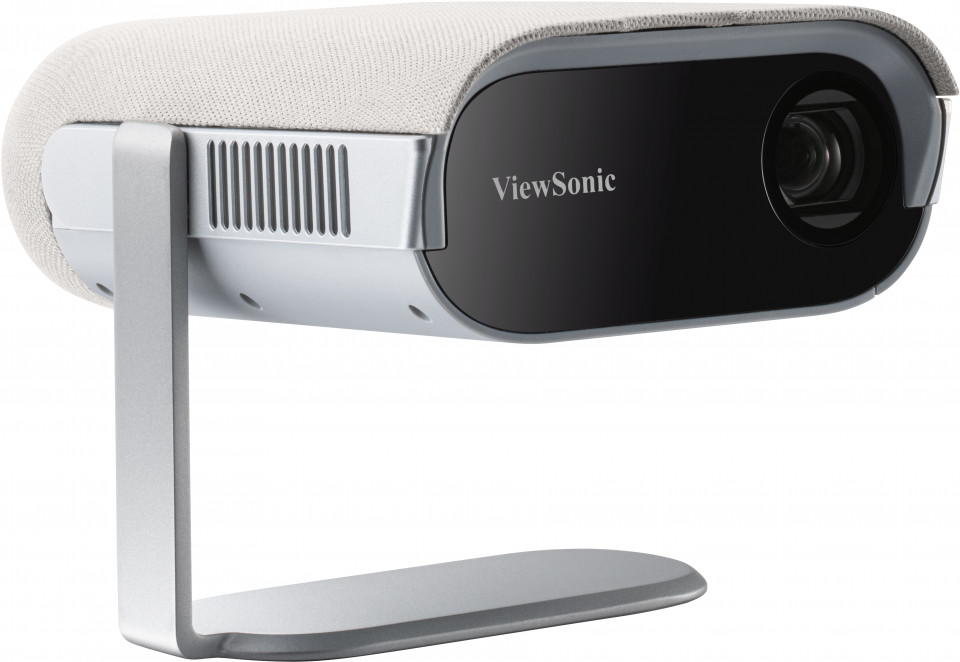

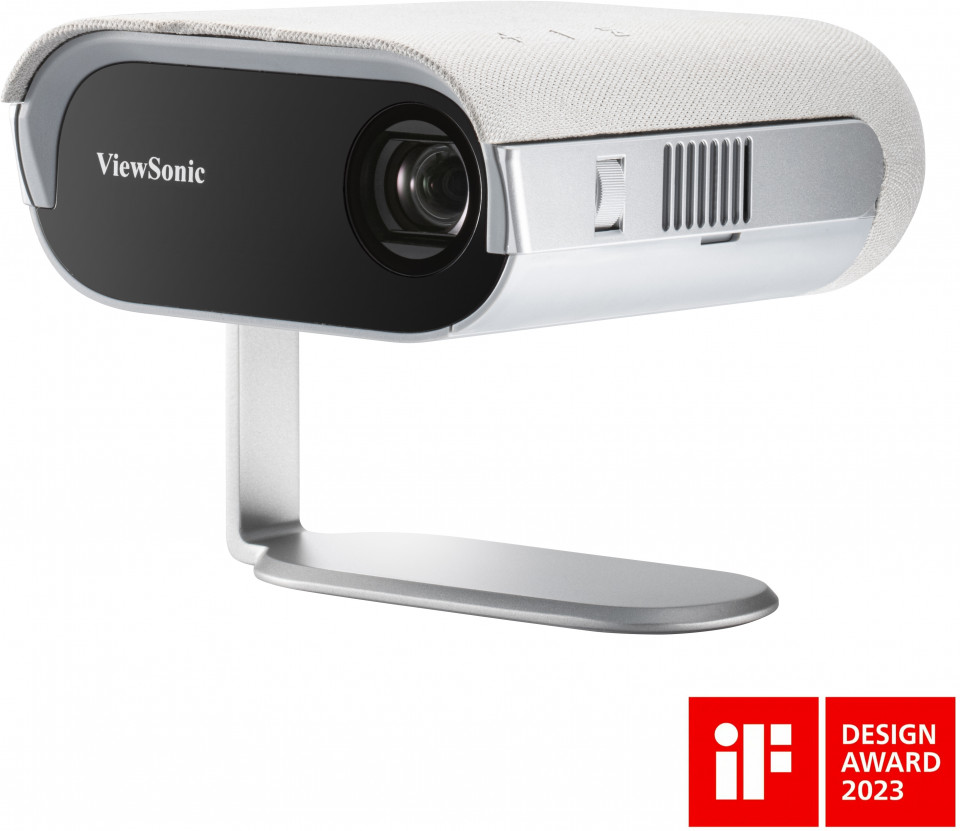

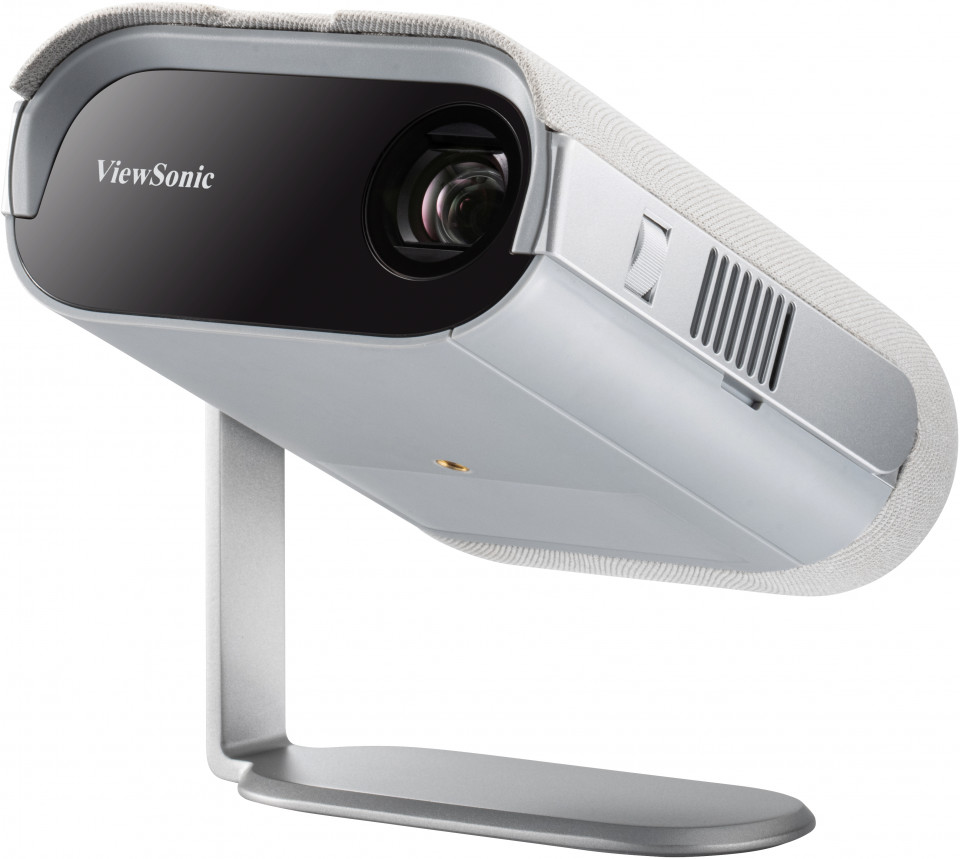

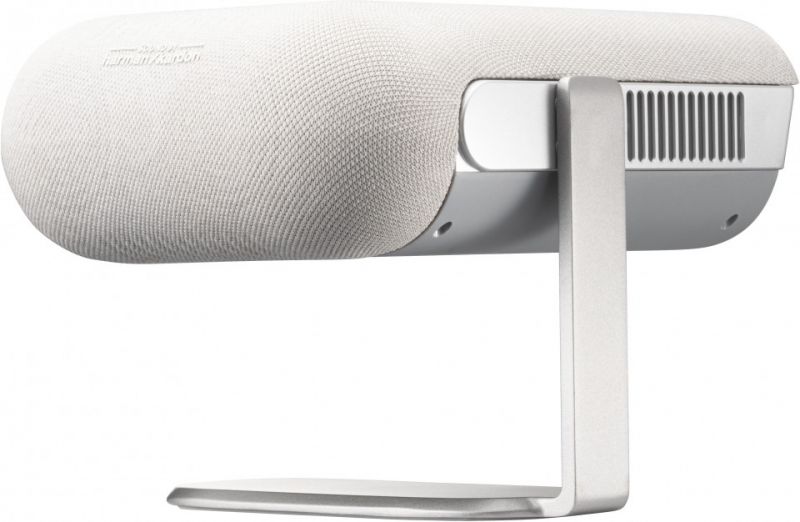

- 3-in-1 smart stand for 360° projection
- Embedded battery and power bank compatibility

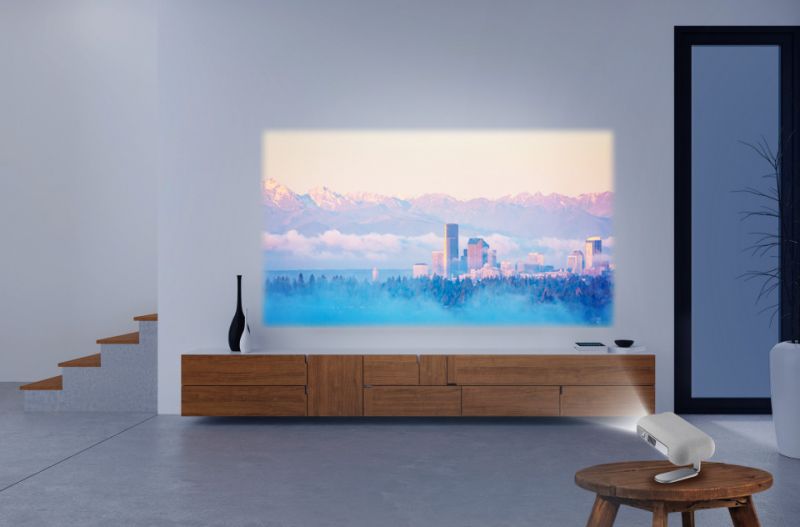

- 100" large screen in 720p HD resolution

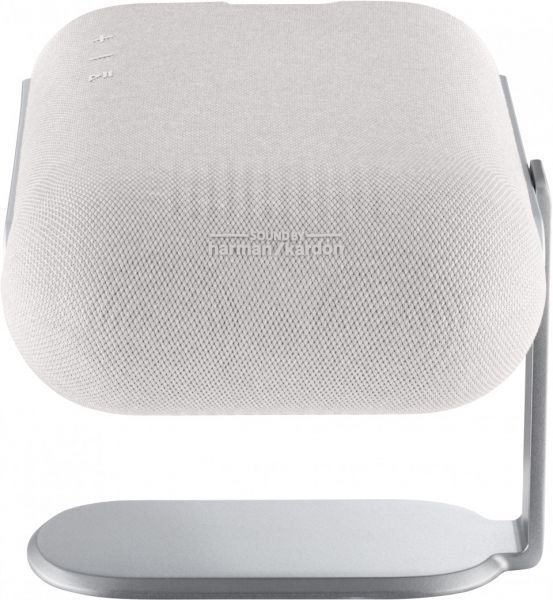

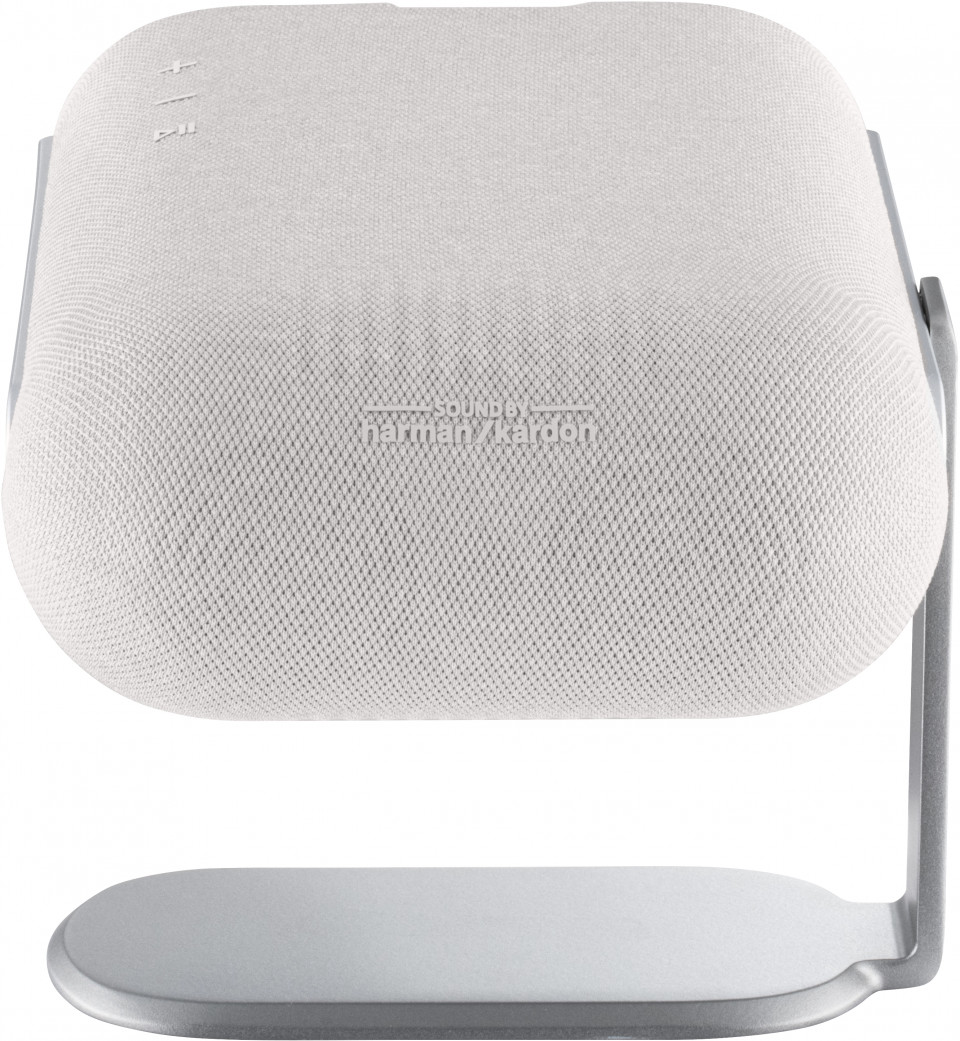

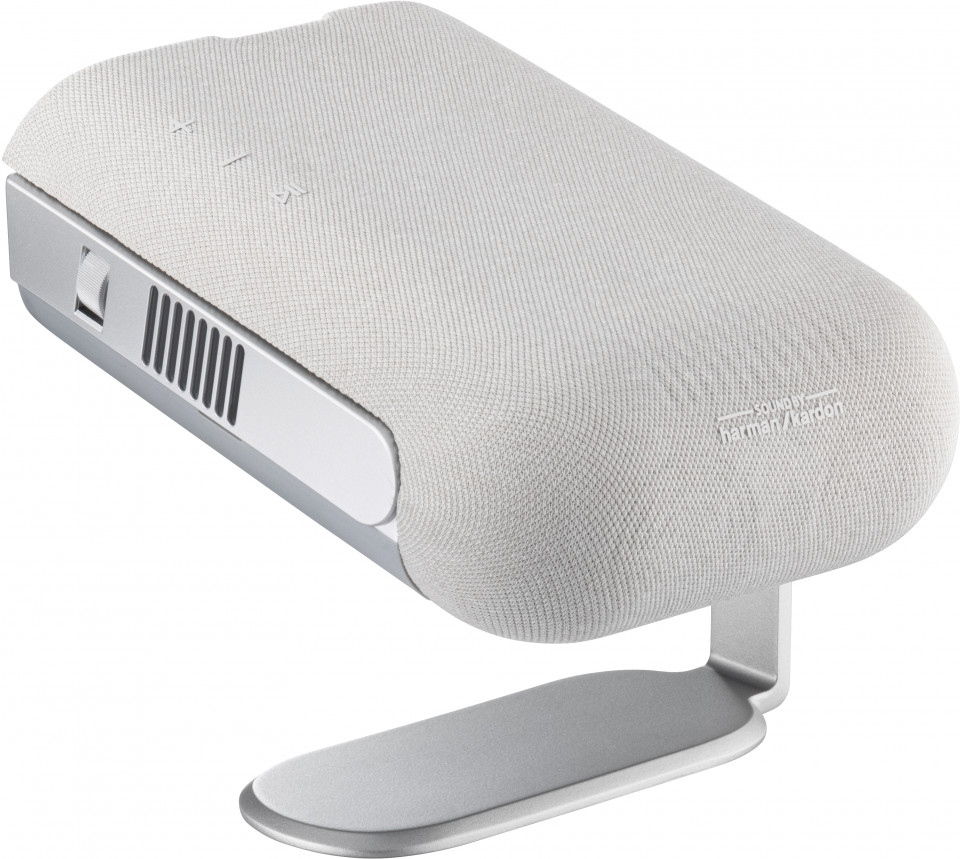

- Powerful sound by Harman Kardon speakers
- Smart capabilities: Wi-Fi screen mirroring, USB-C streaming, and Bluetooth connectivity
SPECIFICATIONS
- SpecificationProjection System: 0.3" 720p
Native Resolution: 1280x720
Brightness: 600 (LED Lumens)
Contrast Ratio: 120000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lens: F=1.7, f=7.4mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.07
Optical Zoom: Fixed
Digital Zoom: 0.8x-1.0x
Image Size: 40"-150"
Throw Distance: 0.94m-3.52m
(42.6"@1m)
Keystone: H:+/-40° , V: +/-40°
Audible Noise (Normal): 26dB
Audible Noise (Eco): 25dB
Local Storage: Total 16GB
(12GB available storage)
Input Lag: 68ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz

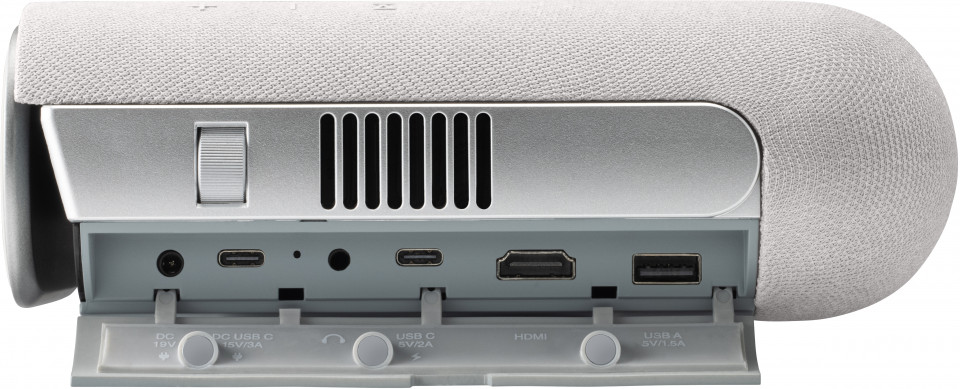

Vertical Scan Rate: 23-120Hz - InputHDMI: 1
(HDMI 1.4/ HDCP 1.4)
USB Type C: 2 (Video/5V/2A out *1,
DC in /15V/3A *1)
Audio-in (Bluetooth): 1 (BT4.2)
USB Type A: 1
(USB2.0 Reader)
Wifi Input: 1 (5Gn) - OutputAudio-out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT4.2)
Speaker: 3W Cube x2
(Full range x2)
USB Type A (Power): 1
(USB2.0 - 5V/1.5A,
share with USB A Input)
- ControlUSB Type A (Services): 1
(share with USB A Input) - OthersPower Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19VDC / 3.42A
Battery:
12000mAh(4000mAh 3.7Vx3)
(1.4hrs@Normal, 2hrs@Eco)
Power Consumption: Normal: 45W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Color
Net Weight: 0.95Kg
Gross Weight: 2.8Kg
Dimensions (WxDxH) with Adjustment Foot: 182x140x62mm
Packing Dimensions: 453x242x94mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungary Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard AccessoryPower Cord: 1
USB-C Cable: 1 (1m)

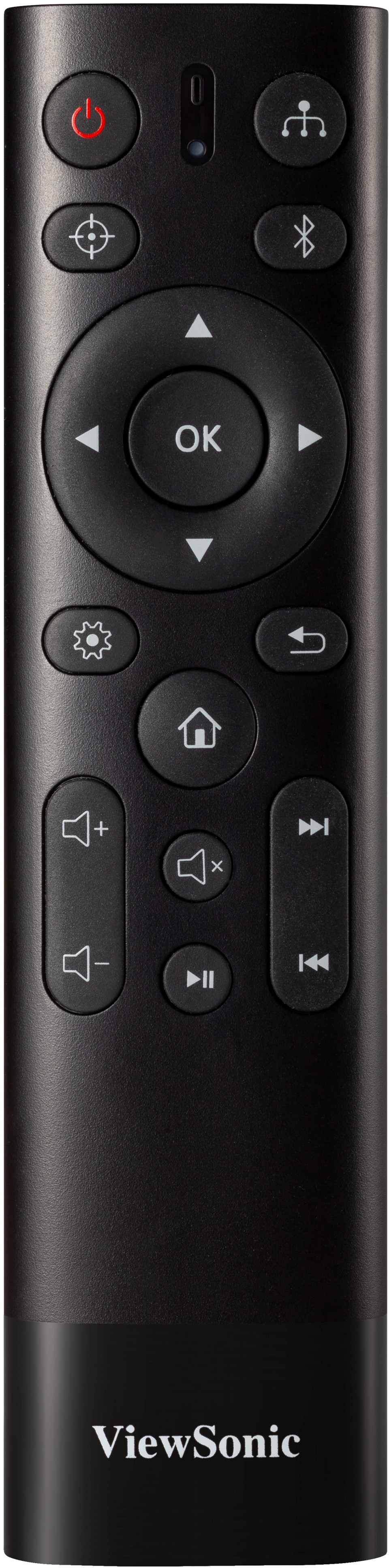

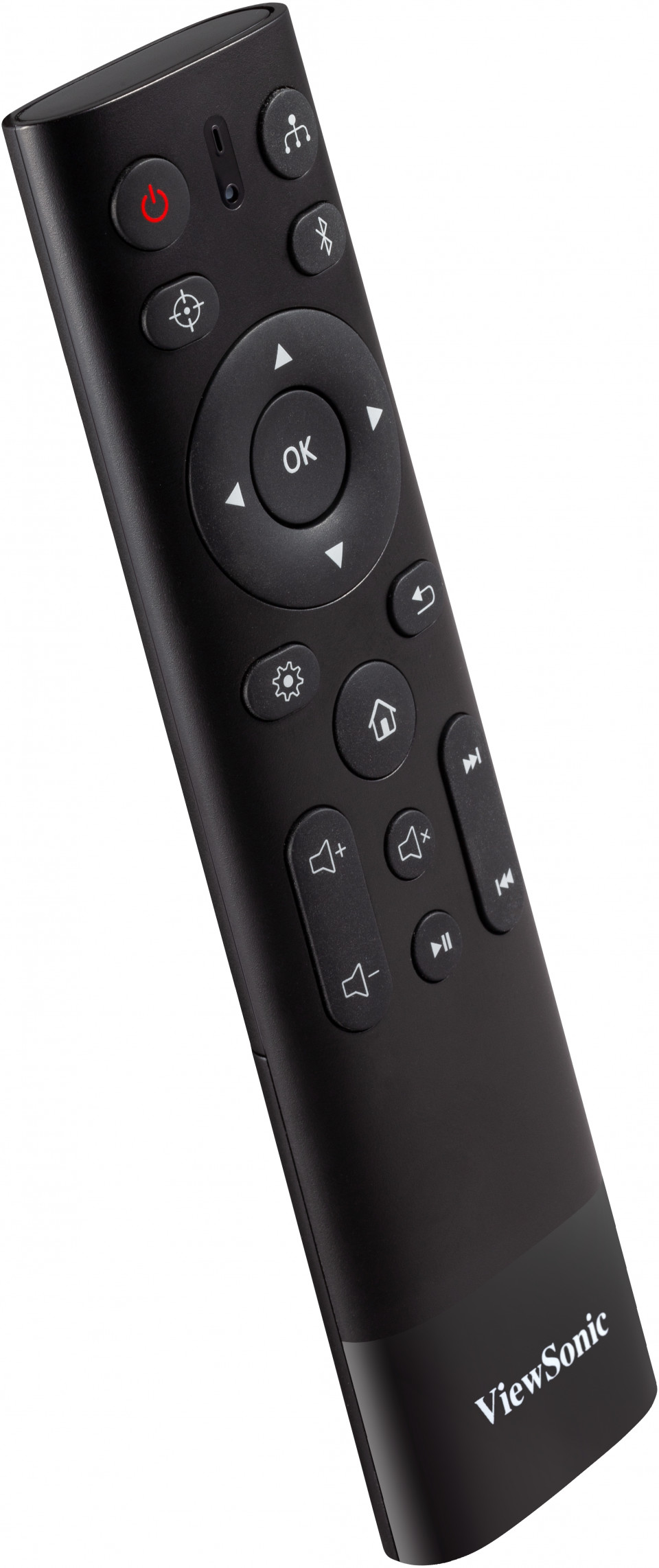

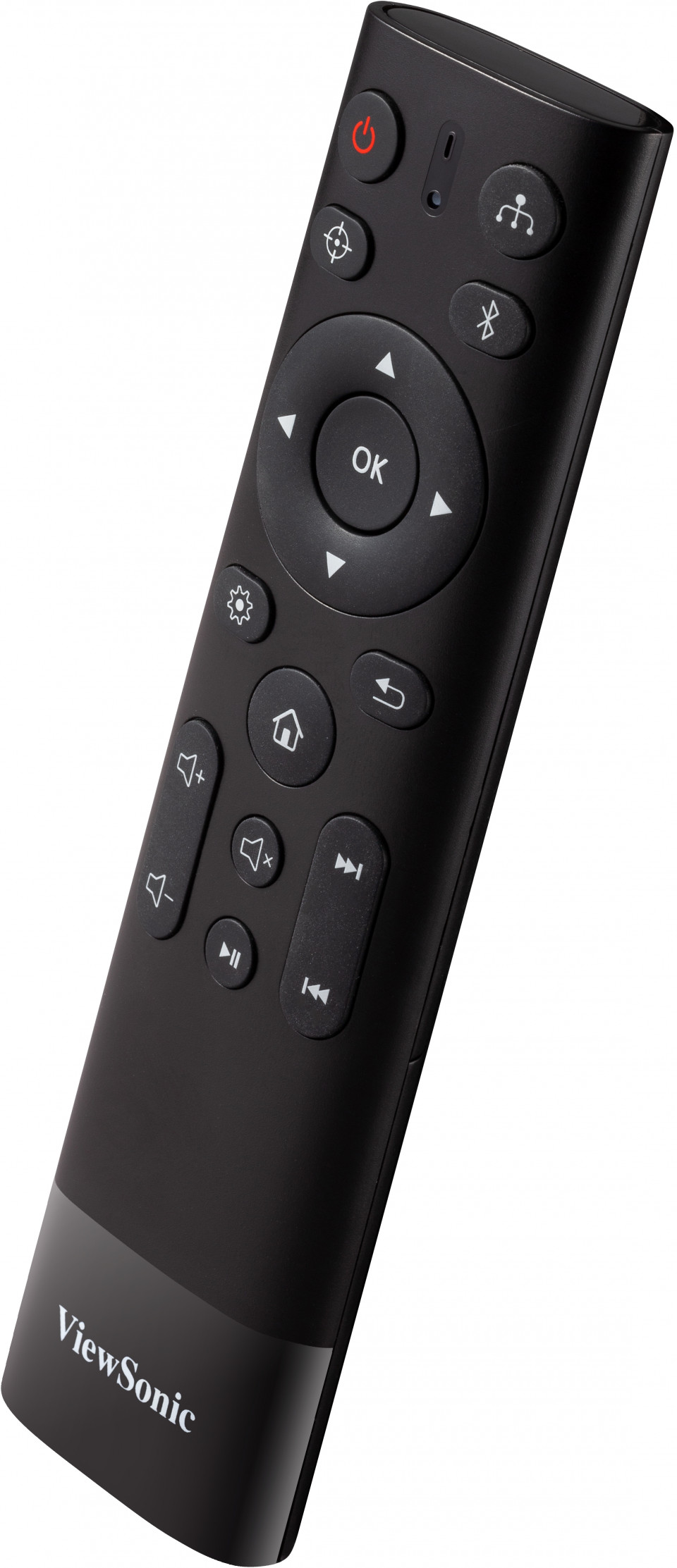

Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN & JP)
Carry Bag: Yes
