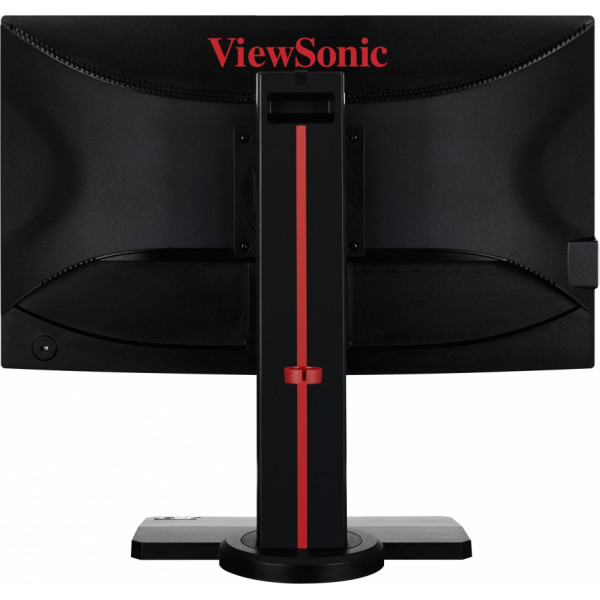

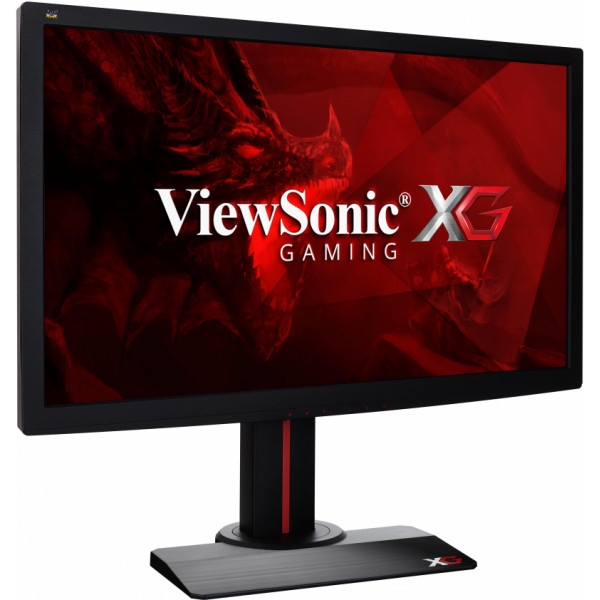

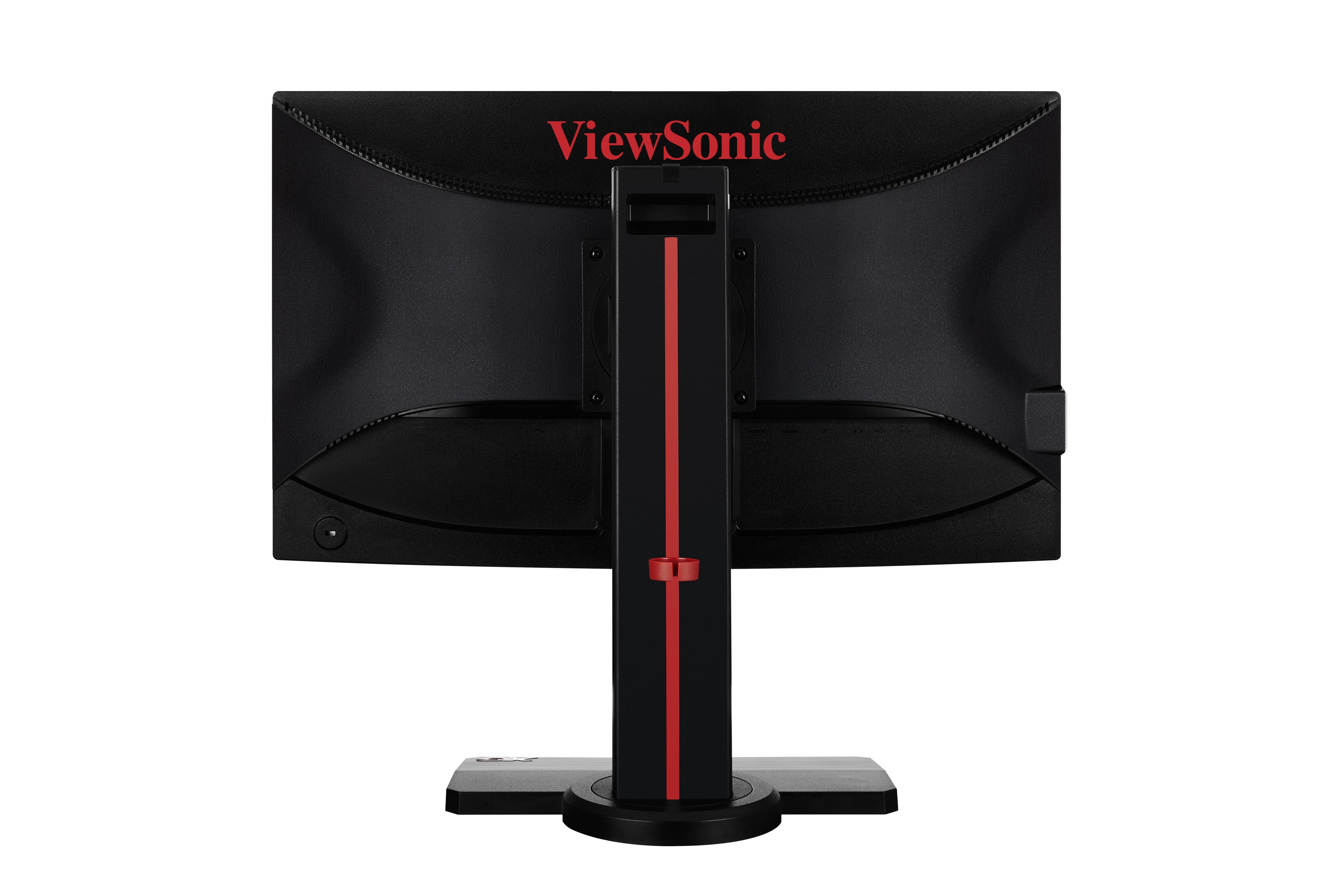

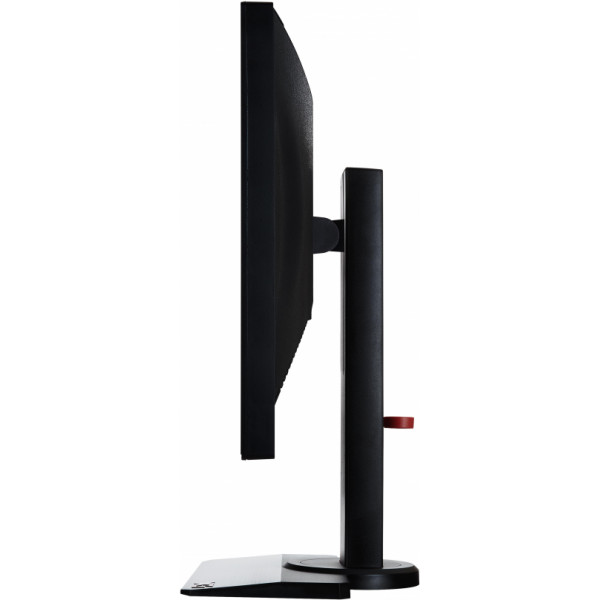

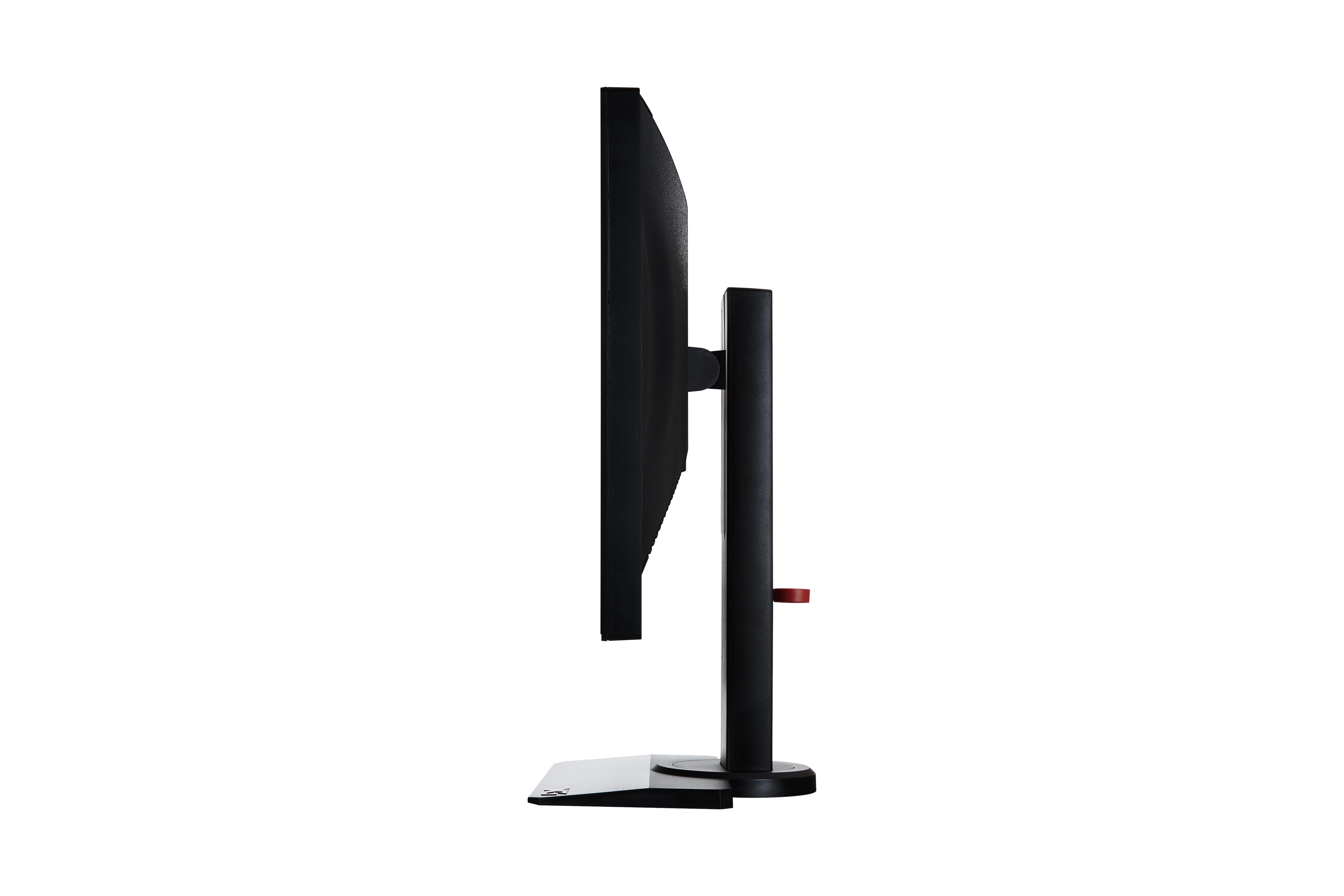

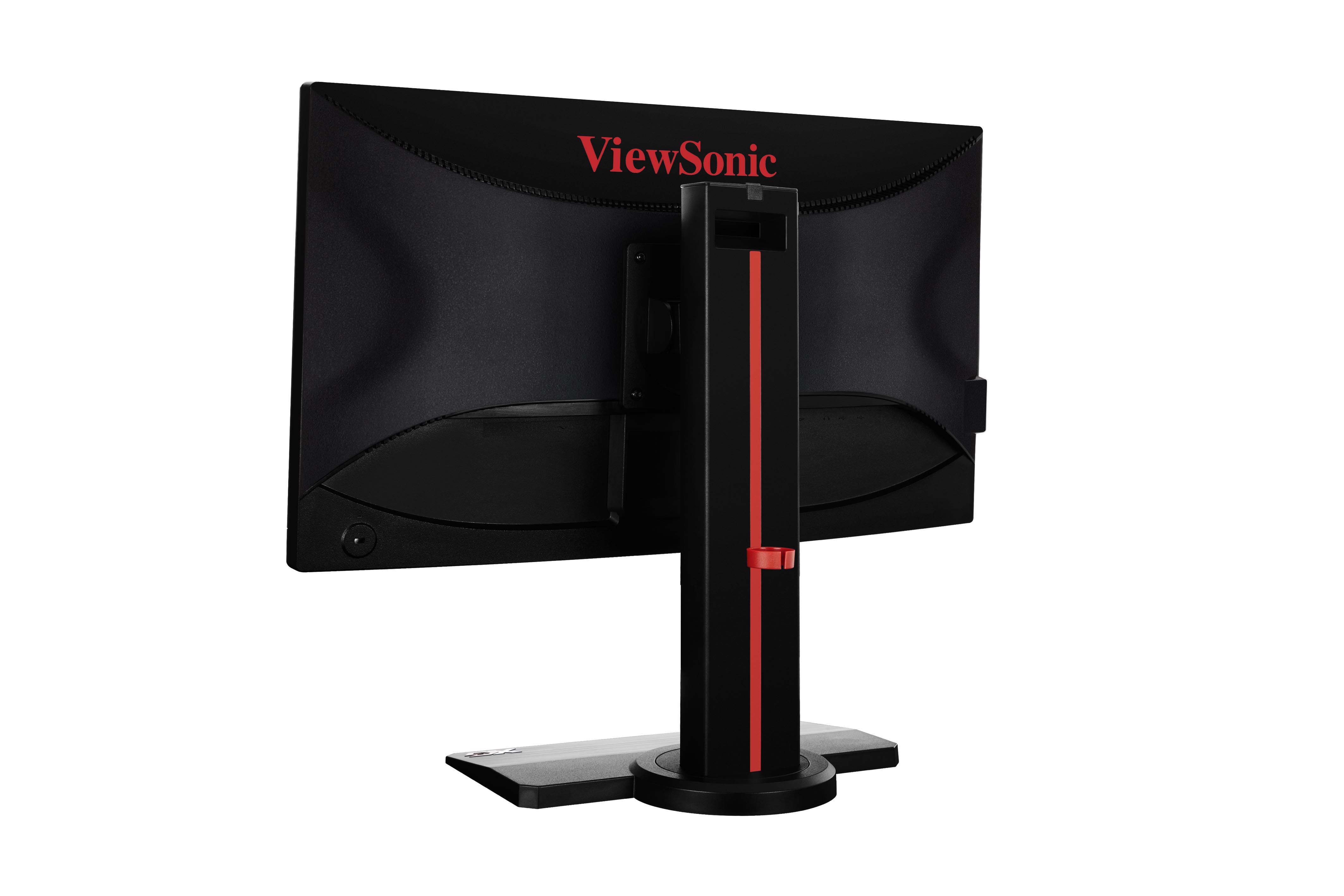

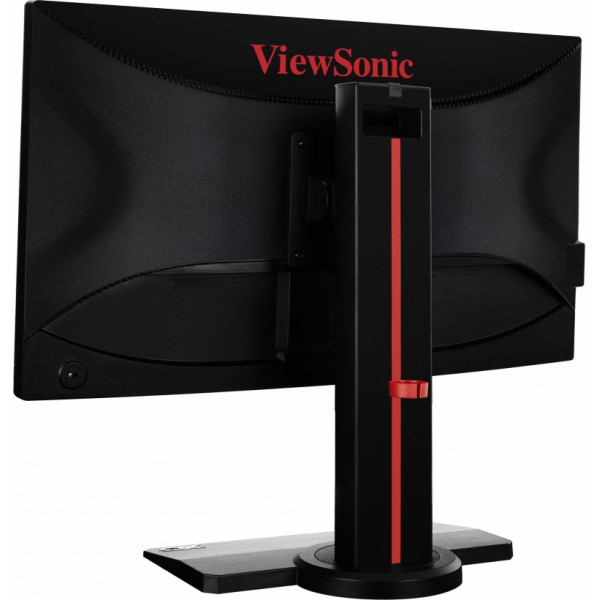

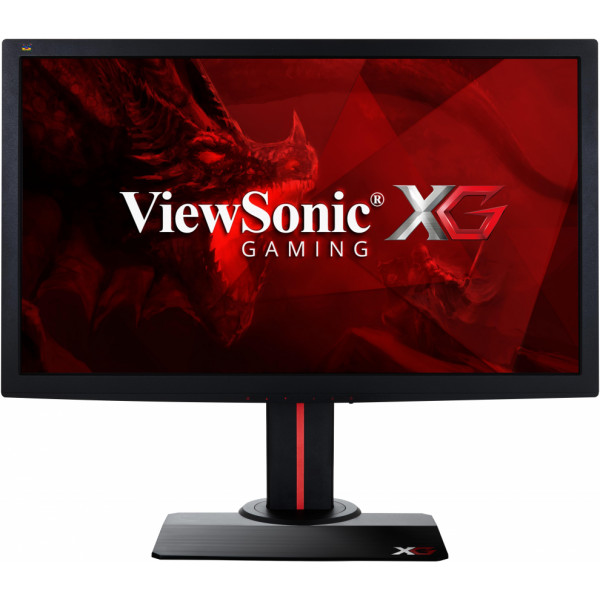

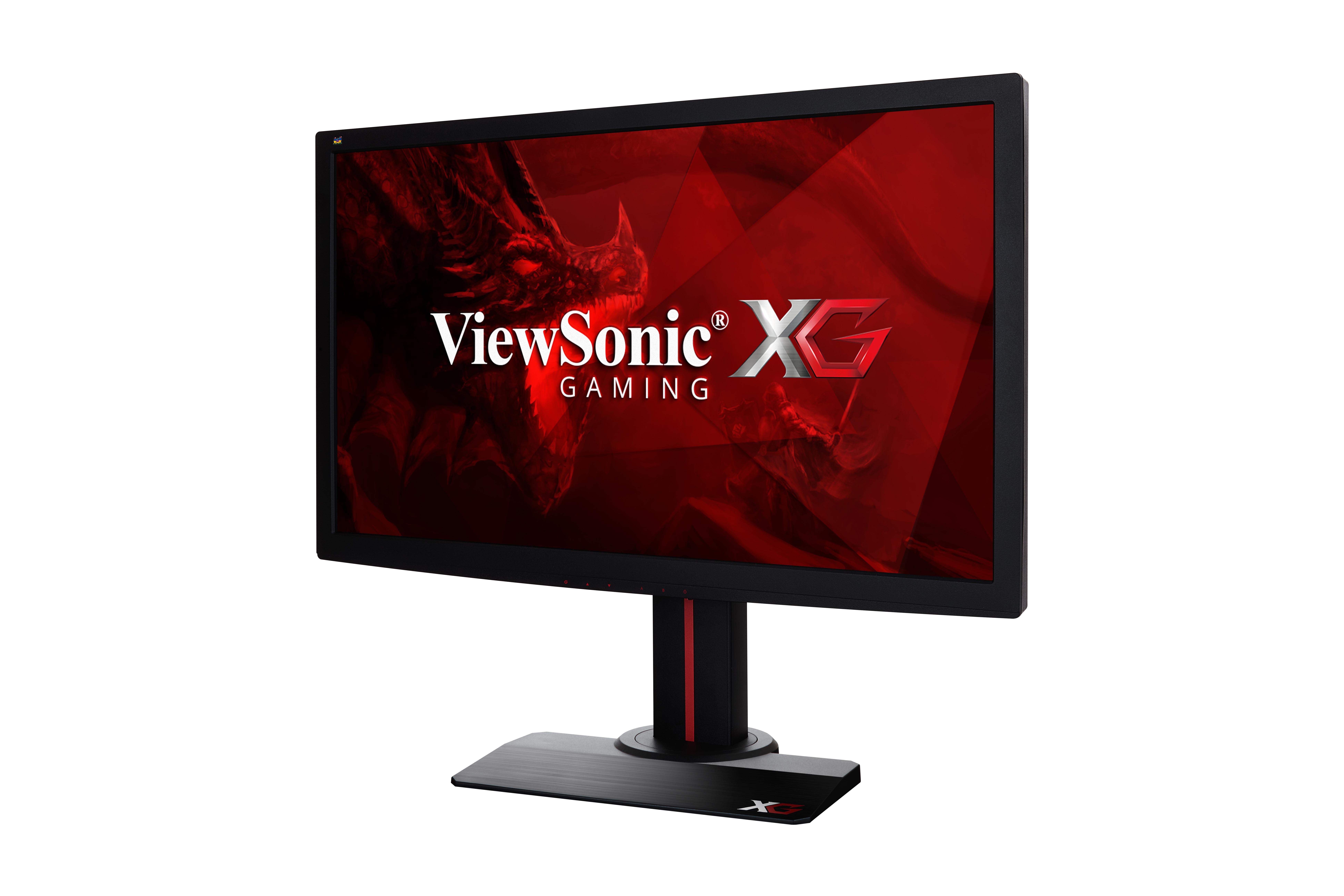

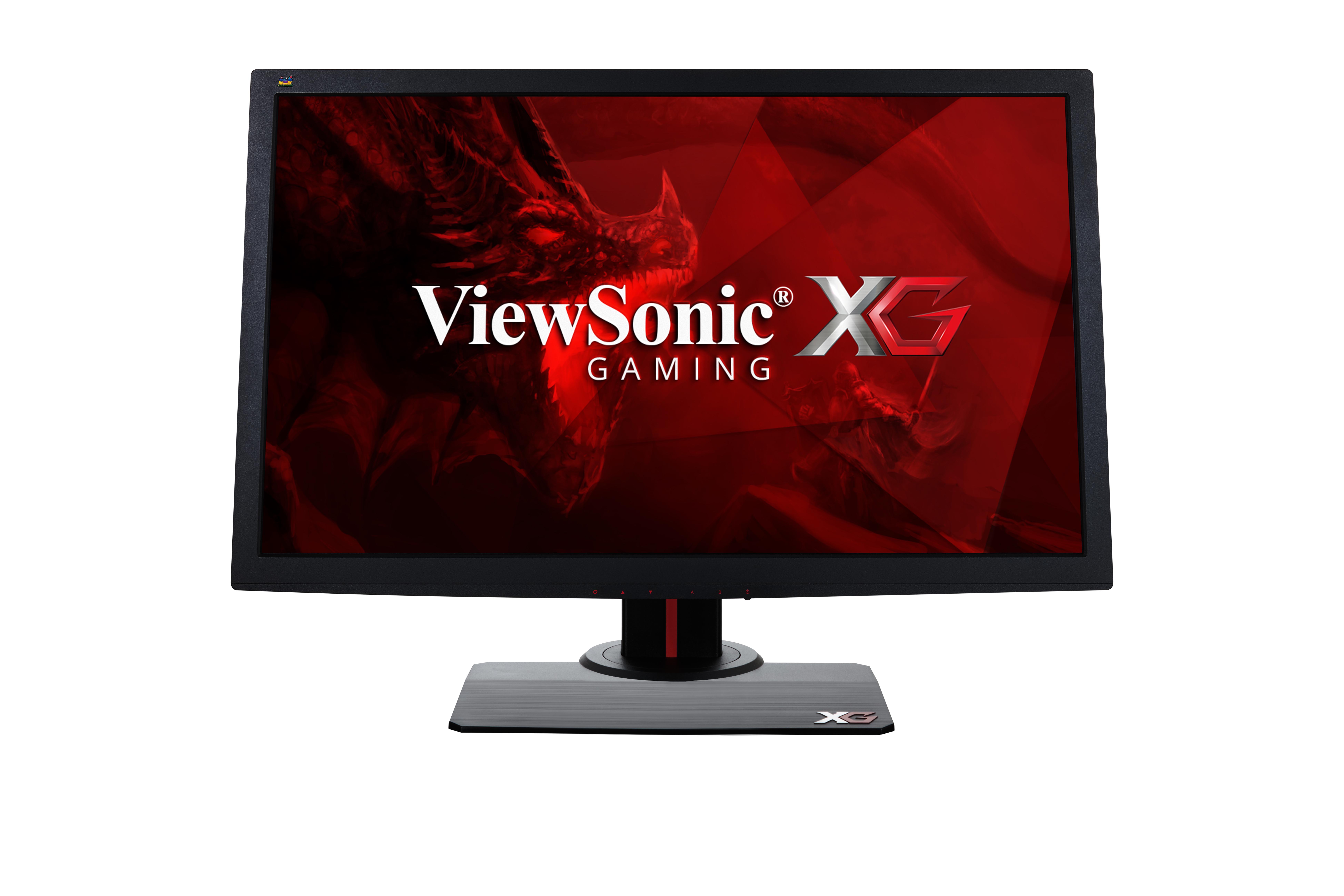

XG2702

27” 144Hz Gaming Monitor

Full HD 1080p resolution
AMD FreeSync™ technology
Ultra-fast 1ms response time
2 HDMI, DisplayPort inputs, USB ports and speakers built-in
Flicker-Free & Blue Light Filter eyecare technologies

Sales Enquiry Share

GALLERY

SPECIFICATIONS

DISPLAY
Monitor Size: 27'' (27'' / 68.58cm viewable)
Panel Technology: TN Type TFT LCD
Resolution: 1920 x 1080
Display Area: 597.6mm (H) x 336.15mm (V)
Aspect Ratio: 16:9
Brightness: 400 cd/m² (Typ)
Contrast Ratio: 1000:1 (Typ)
Dynamic Contrast Ratio: 120,000,000:1
Viewing Angle: 170° / 160° (Typ)
Refresh Rate: 144Hz
Response Time: GTG : 1ms
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
INPUT SIGNAL
Frequency: HDMI 1.4: Fh = 15 ~ 180KHz ; Fv = 24 ~ 144Hz
HDMI 2.0: Fh = 15~ 180KHz ; Fv = 24 ~ 144Hz
DisplayPort 1.2: Fh = 15 ~ 180KHz ; Fv = 48 ~ 144Hz
Video: HDMI (v1.4) (1920 x 1080 @144Hz)
HDMI (v2.0) (1920 x 1080 @144Hz)
DisplayPort (v1.2) (1920 x 1080 @144Hz)
COMPATIBILITY
PC: Windows 10 certified
Mac®: Power Mac tested

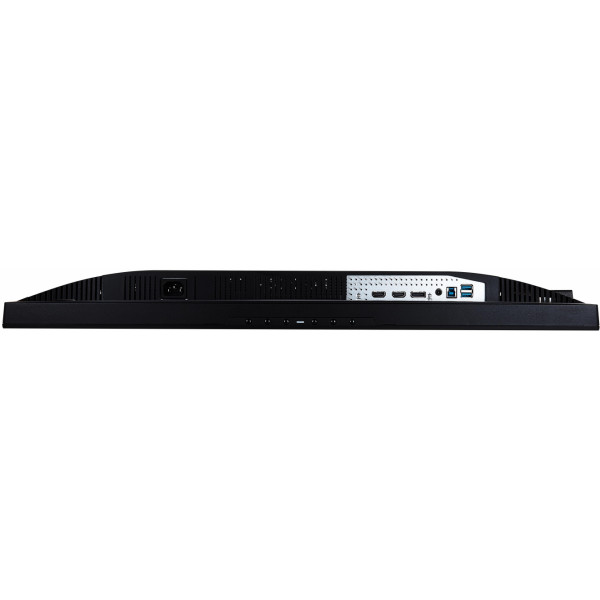

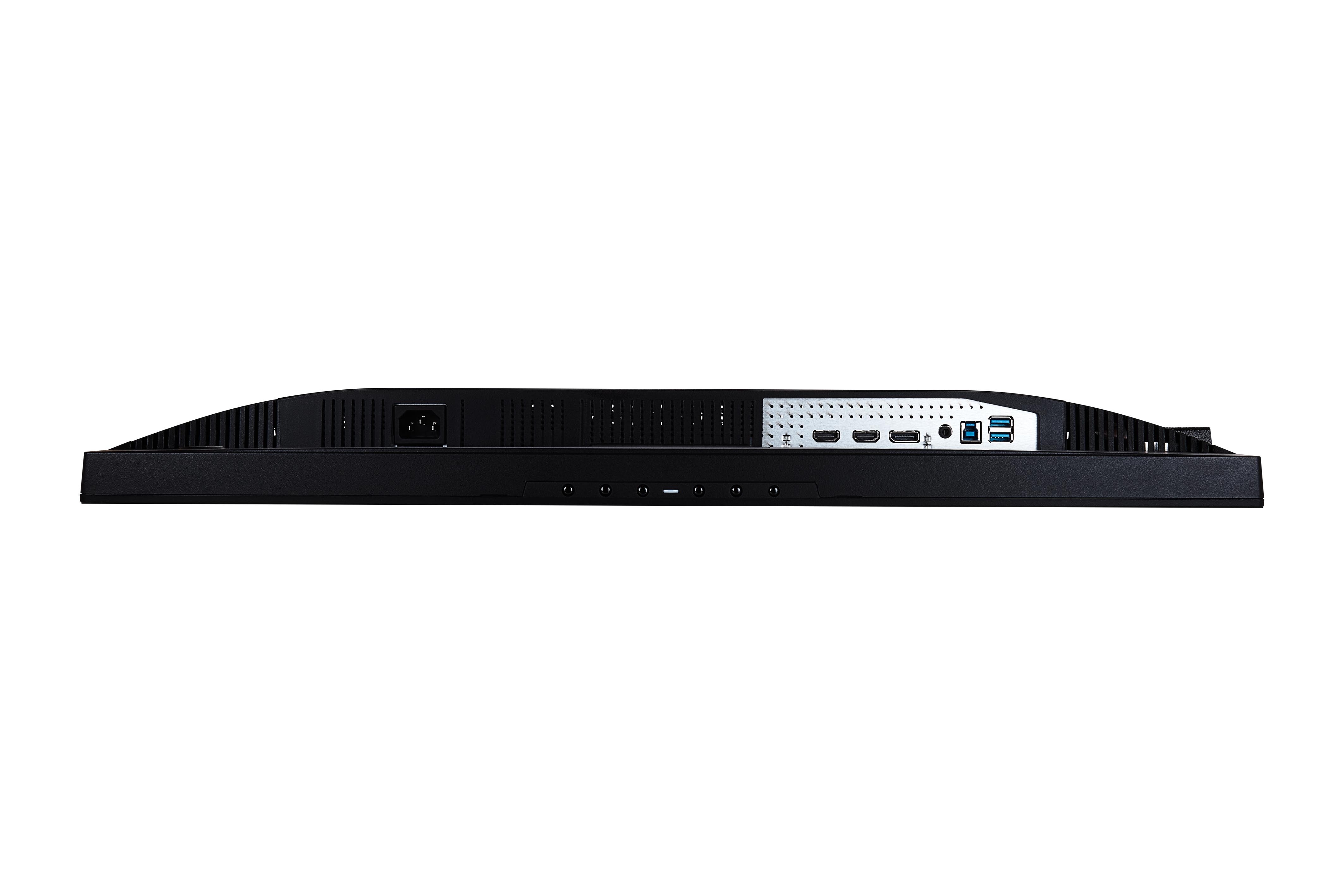

CONNECTOR
Input: HDMI 1.4 x 1
HDMI 2.0 x 1
DisplayPort 1.2 x 1
Output: Earphone out x 1 (3.5mm plug)
AUDIO
Speaker: Amplifier: 3W
Speaker: 3W x 2
USB
Upstream: USB3.0 Type B x 1
Downstream: USB3.0 Type A x 4
POWER
Power: 3-pin plug (CEE22) x 1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 37W
Optimise: 30W
Conserve: 26W

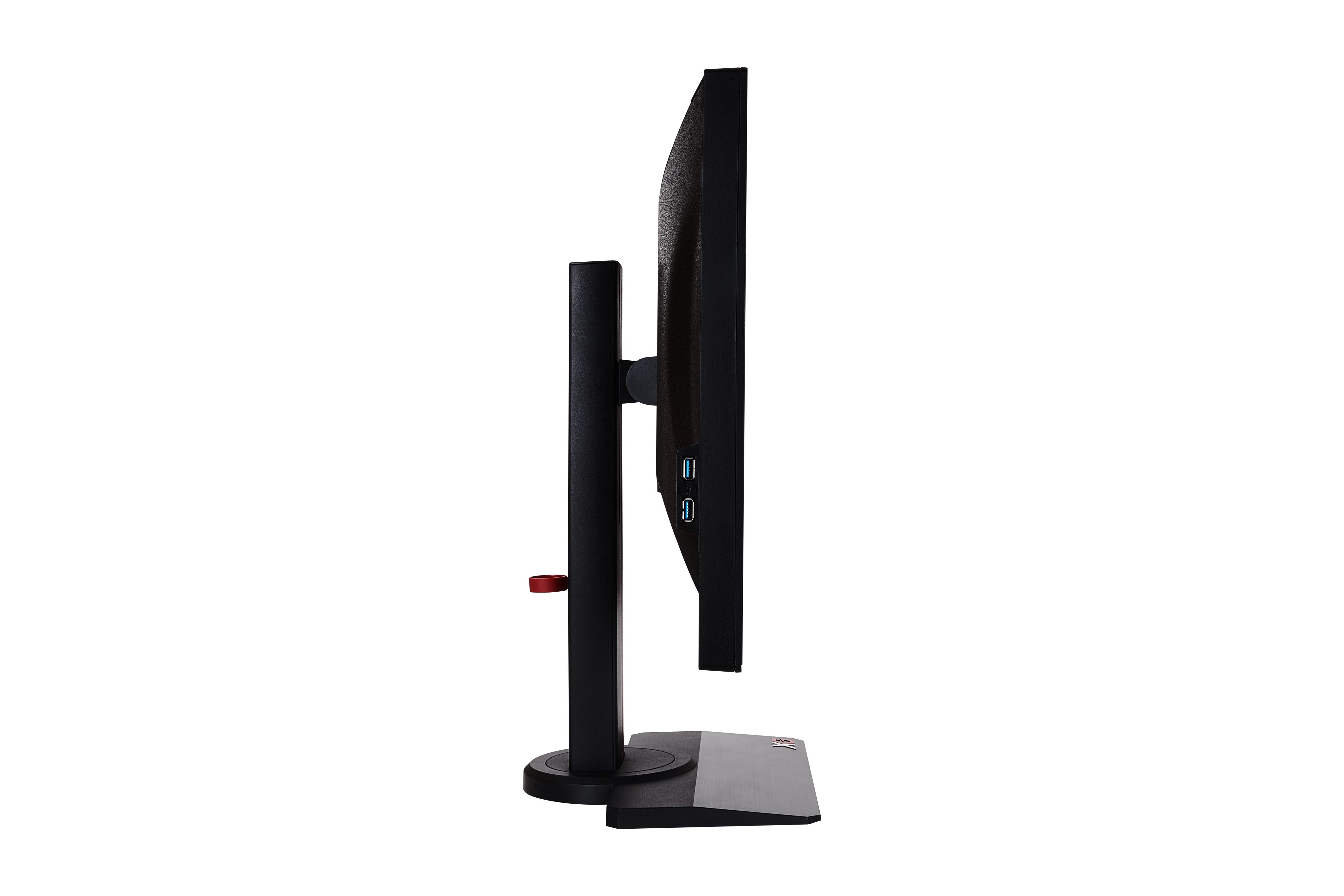

ERGONOMICS
Tilt: -5 ~ 15 degrees
Swivel: -45 ~ 45 degrees
Pivot: 0 ~ 90 degrees
Height Adjustment: 0 ~ 120mm
WALL MOUNT
VESA®: 100mm x 100mm
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation)
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 642mm (W) x 436mm (H) x 239mm (D)
Physical without stand (mm): 642mm (W) x 391mm (H) x 65mm (D)
Packaging (mm): 755mm (W) x 469mm (H) x 215mm (D)
WEIGHT
Net with stand: 8.95kg
Net without stand: 5.71kg
Gross: 11.22kg
REGULATIONS
cULus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, VCCI, PSE, CCC, China RoHS, China Energy Label
PACKAGE CONTENTS
LCD Display
Power Cable (1.5m)
DisplayPort Cable (1.8m)
USB3.0 Cable (1.8m)
Quick Start Guide
