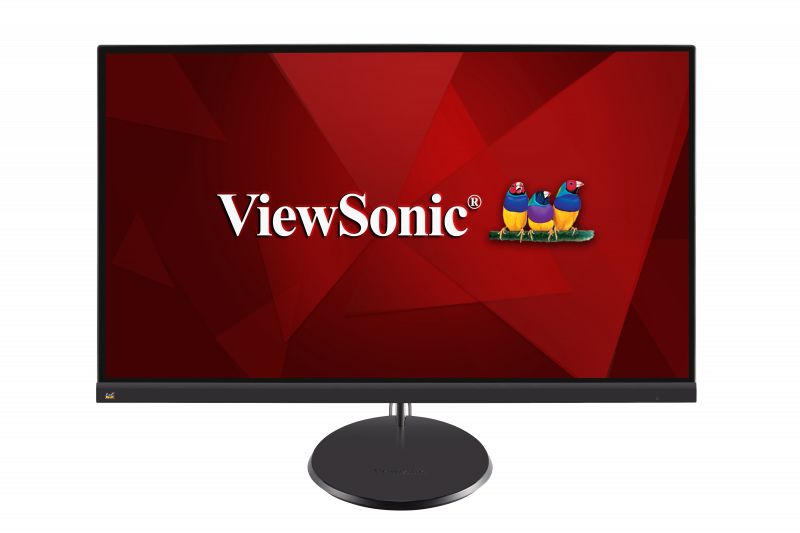

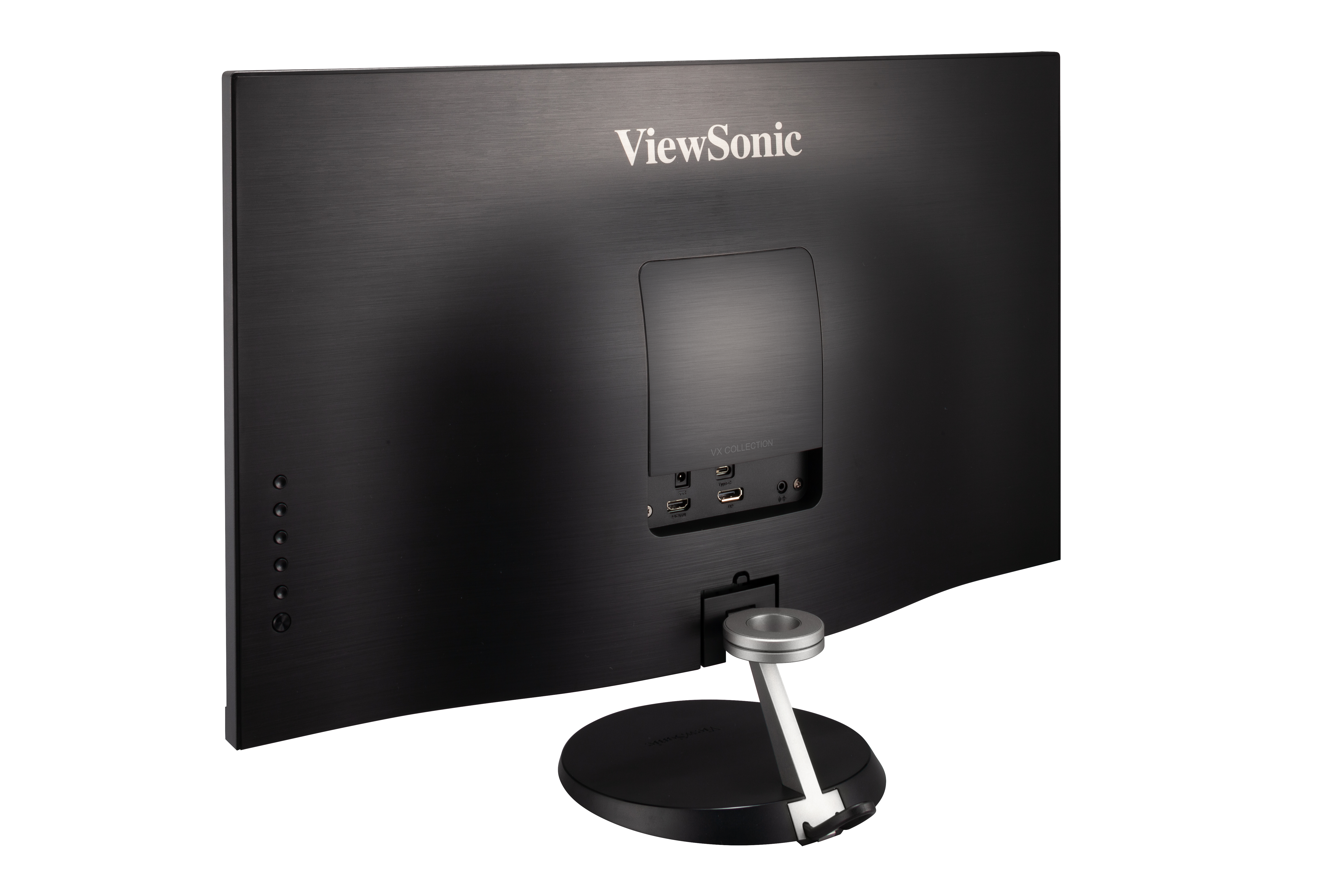

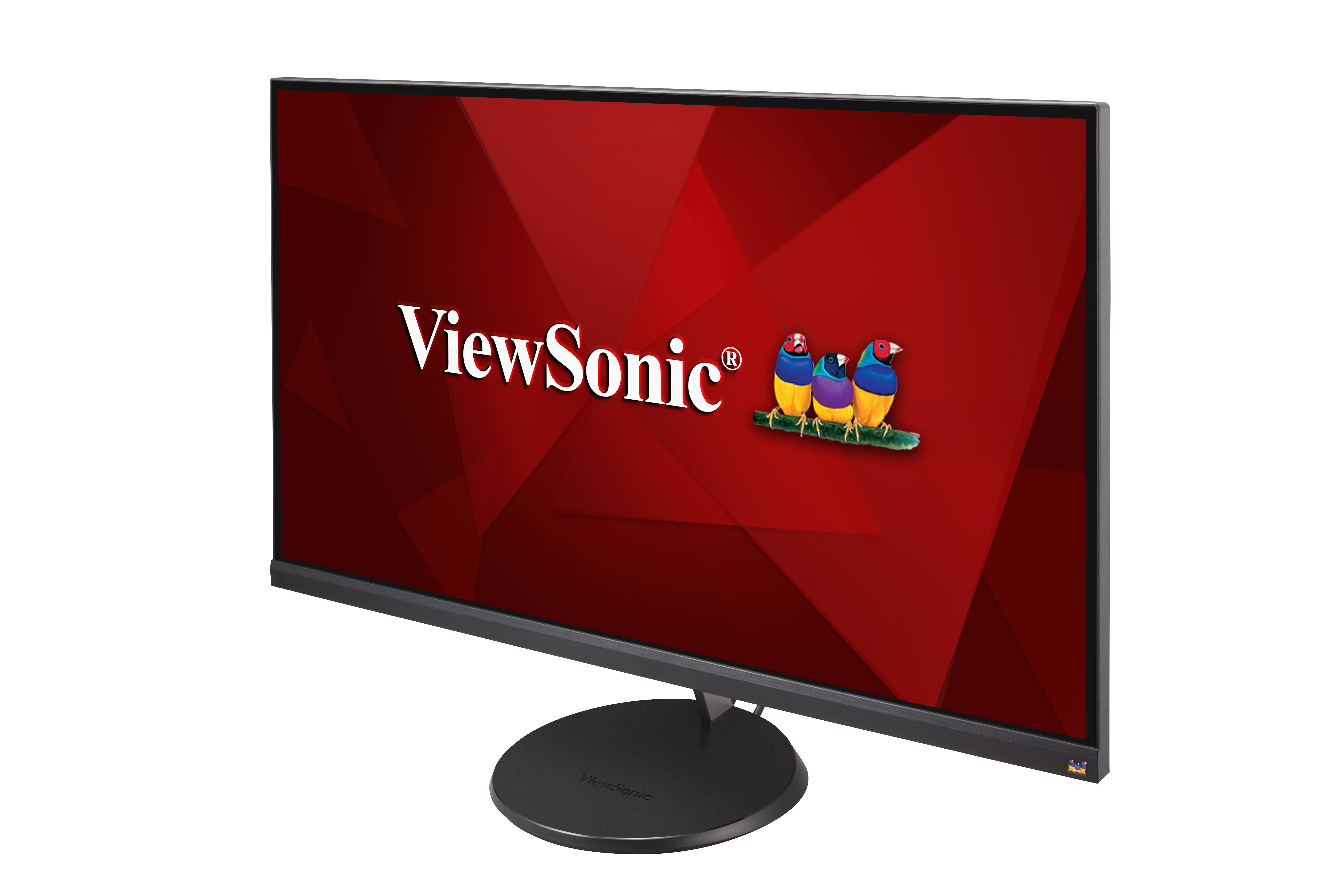

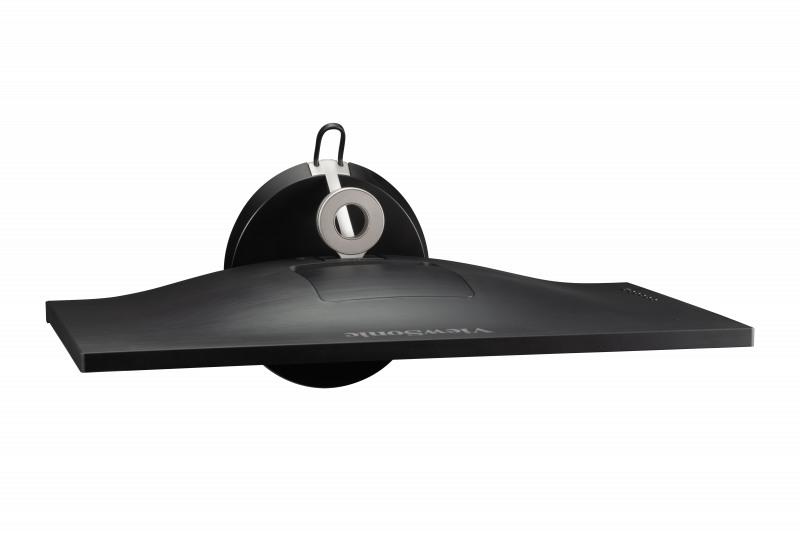

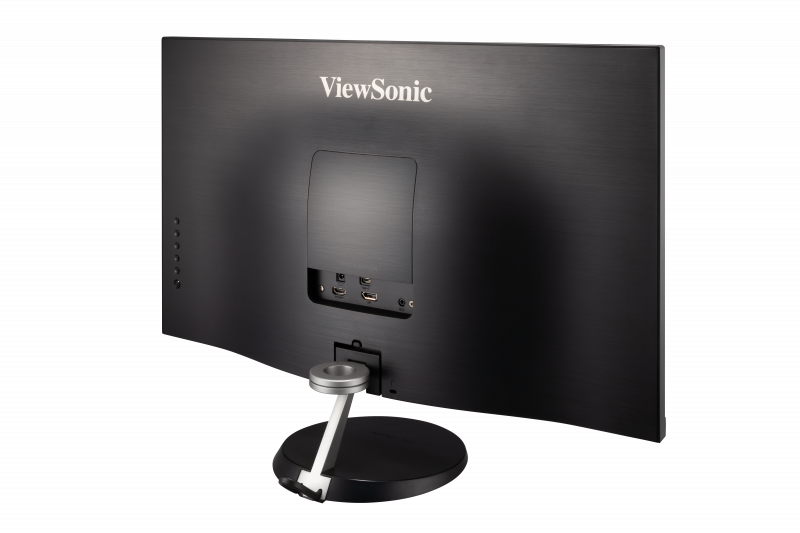

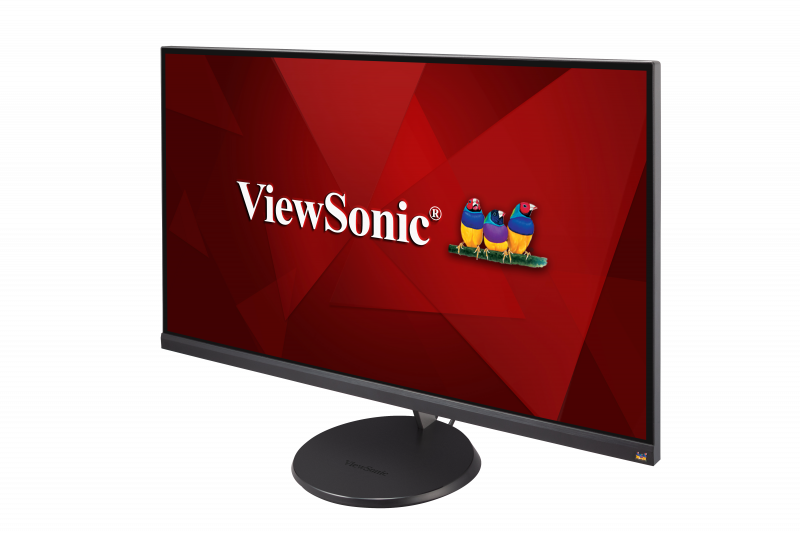

VX2785-2K-MHDU

27’’ 2K IPS 3-side Borderless Monitor with USB Type-C Connectivity

iF award winning design
Connection flexibility with USB Type-C, HDMI, and DisplayPort
SuperClear® IPS technology
AMD FreeSync technology
TUV certificated Flicker-Free and Blue Light Filter

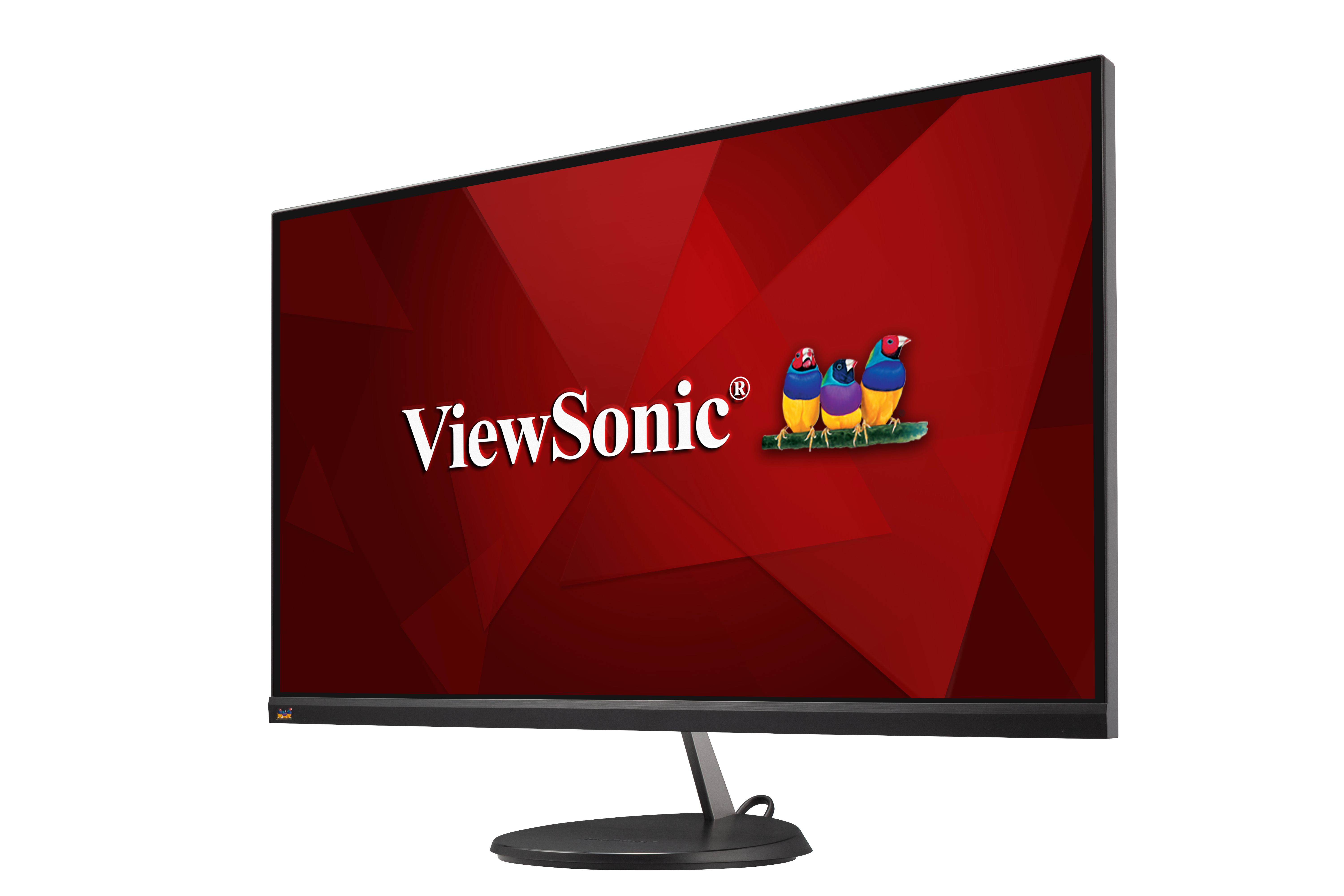

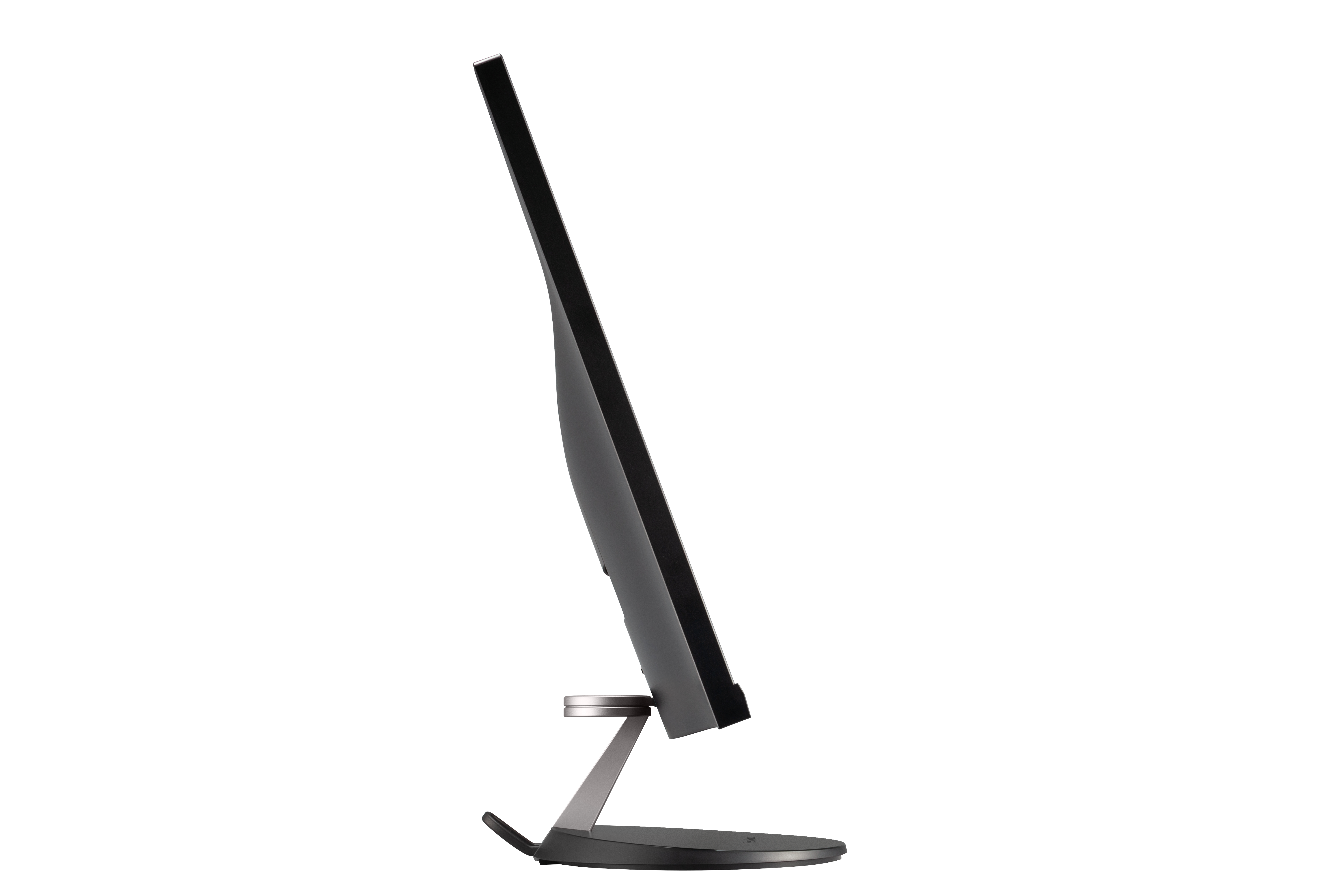

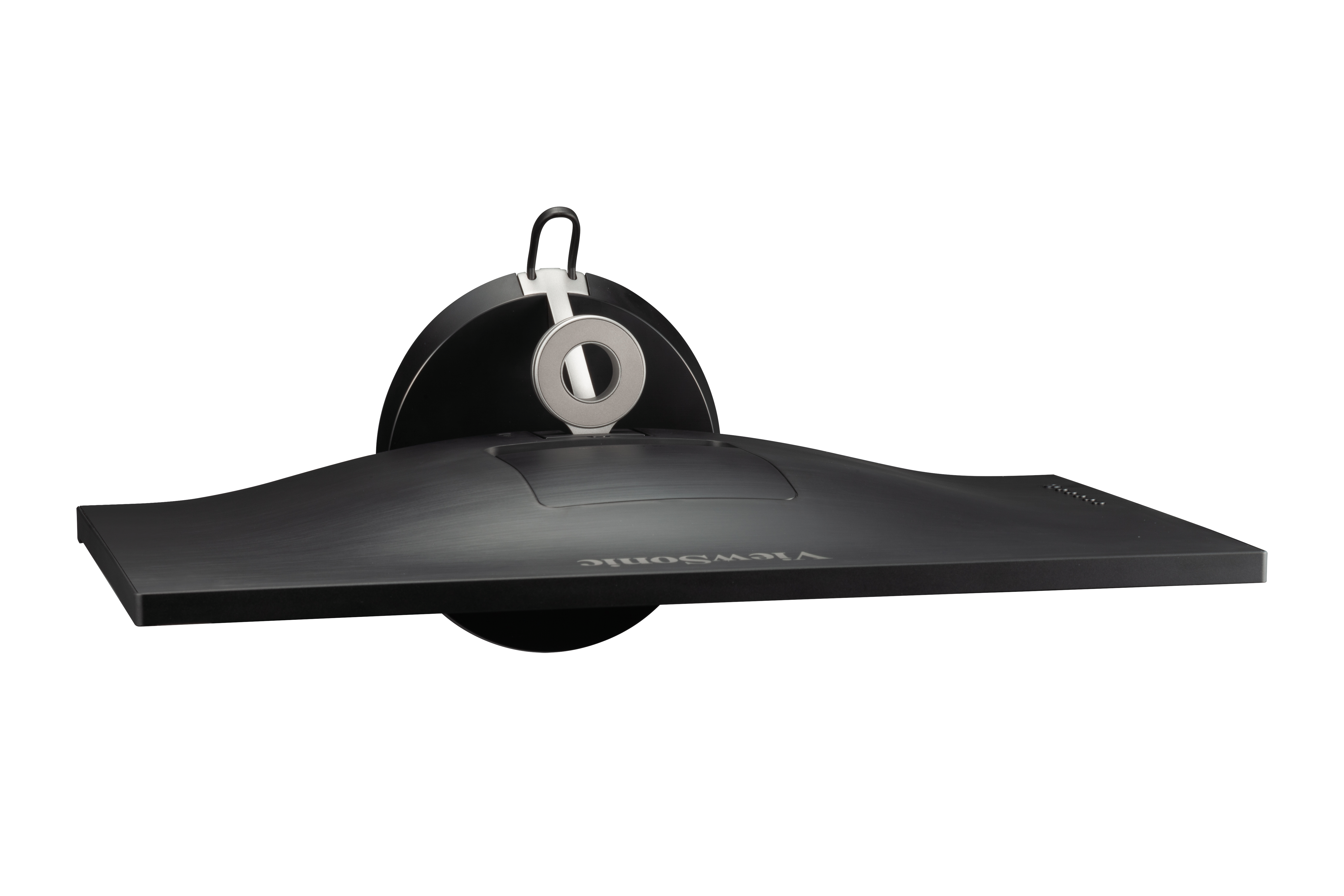

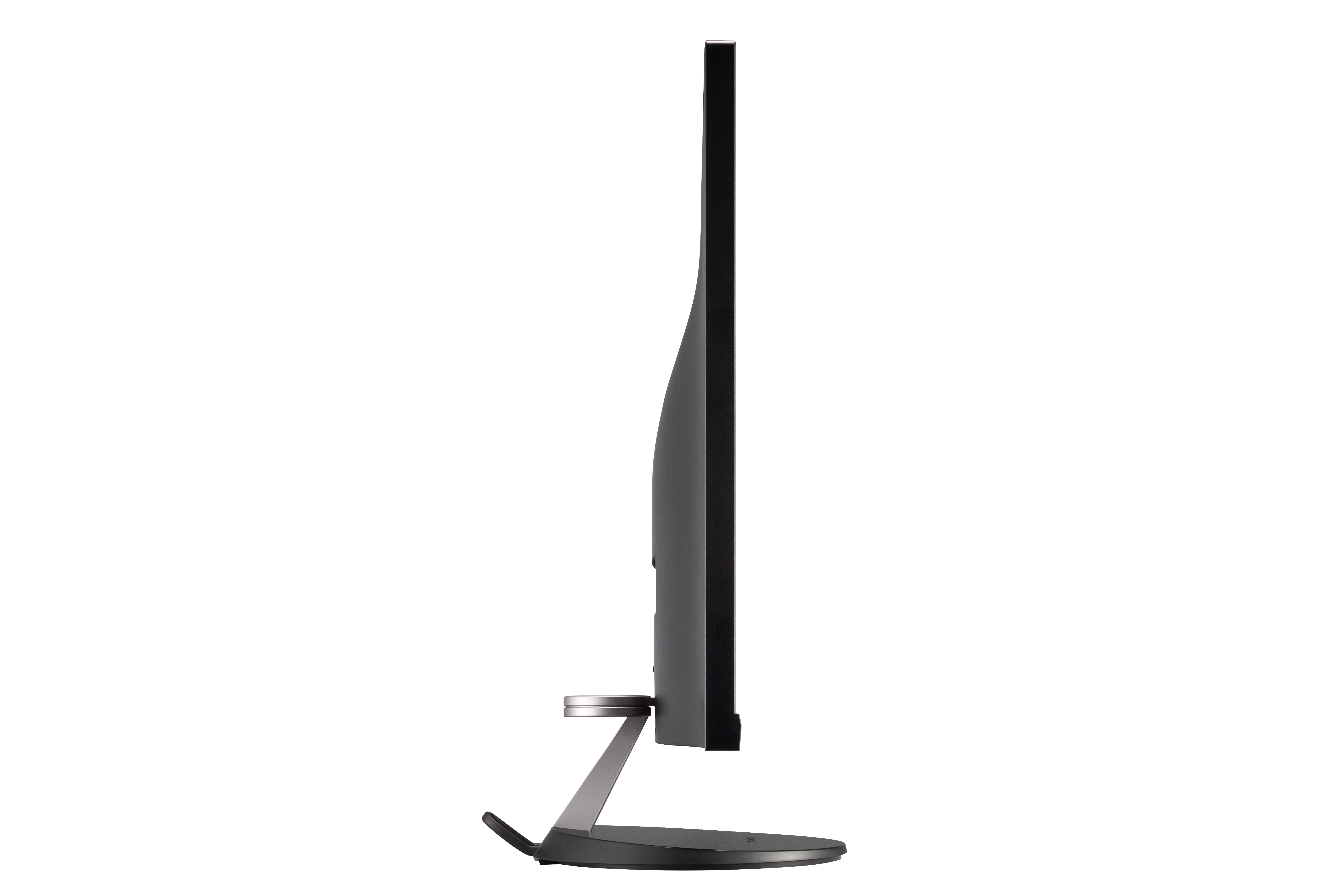

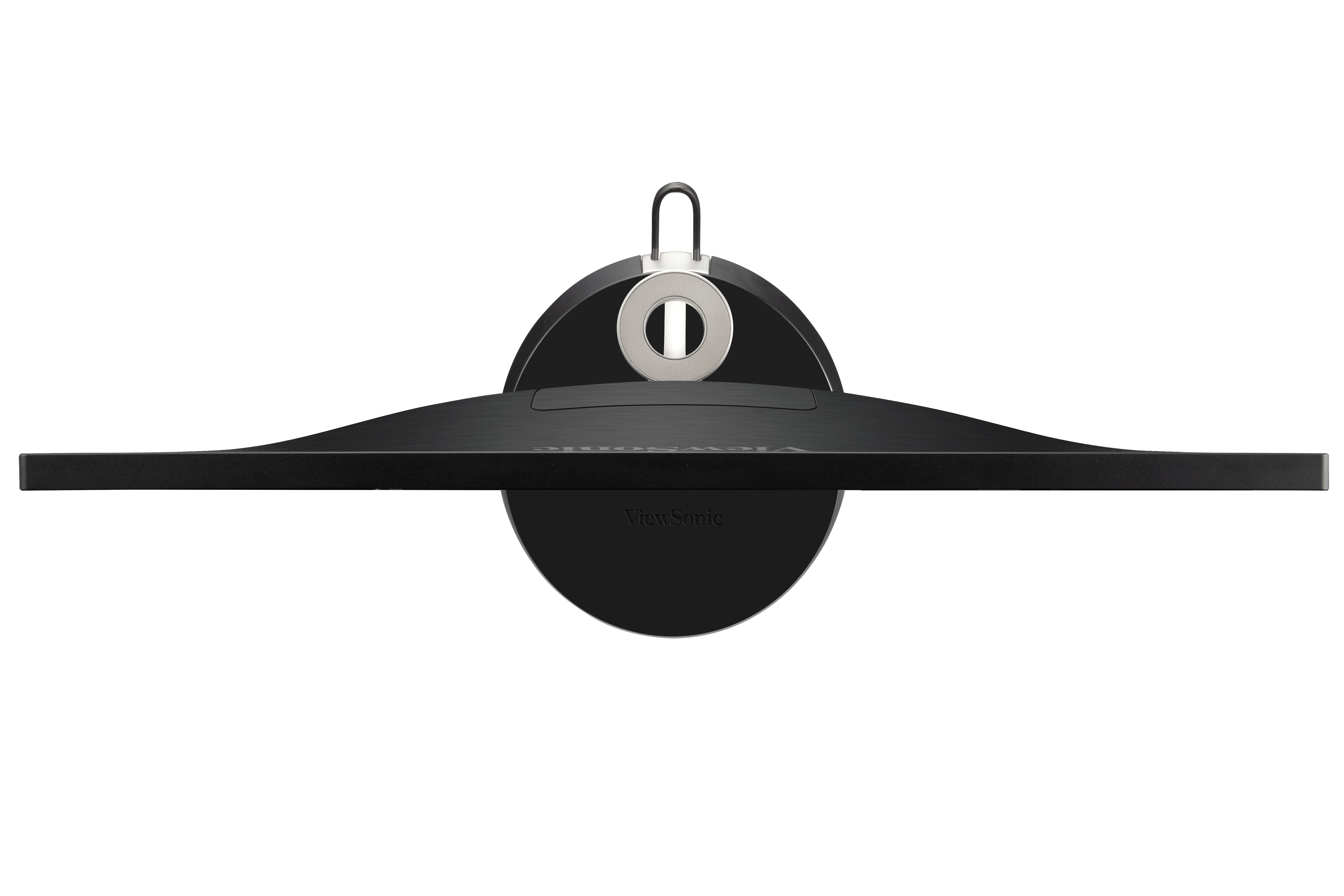

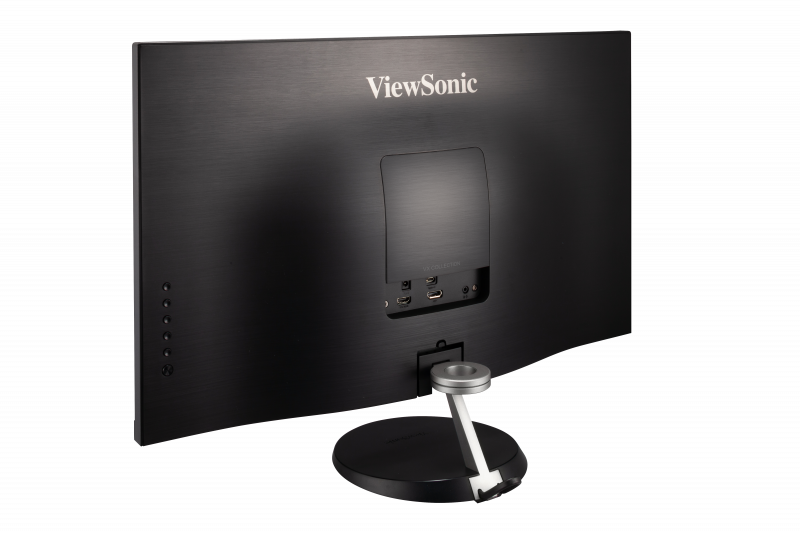

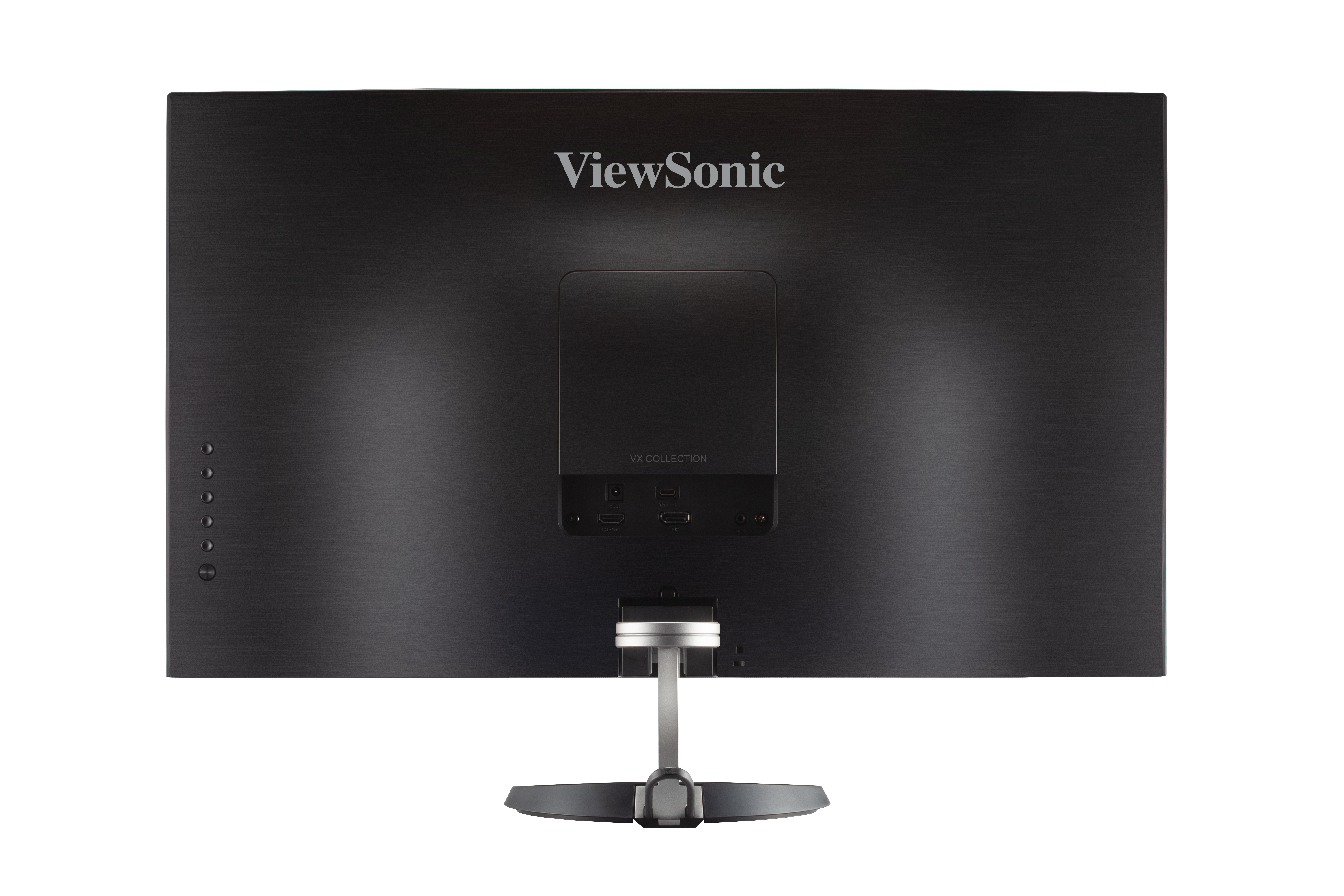

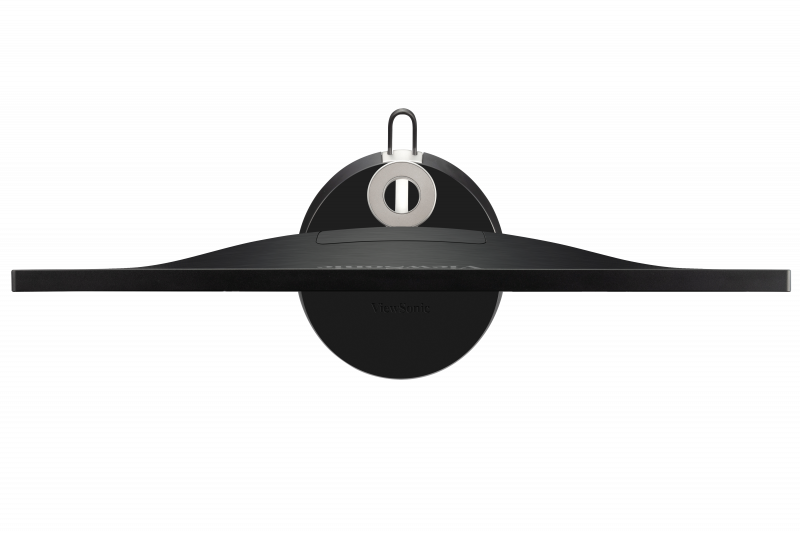

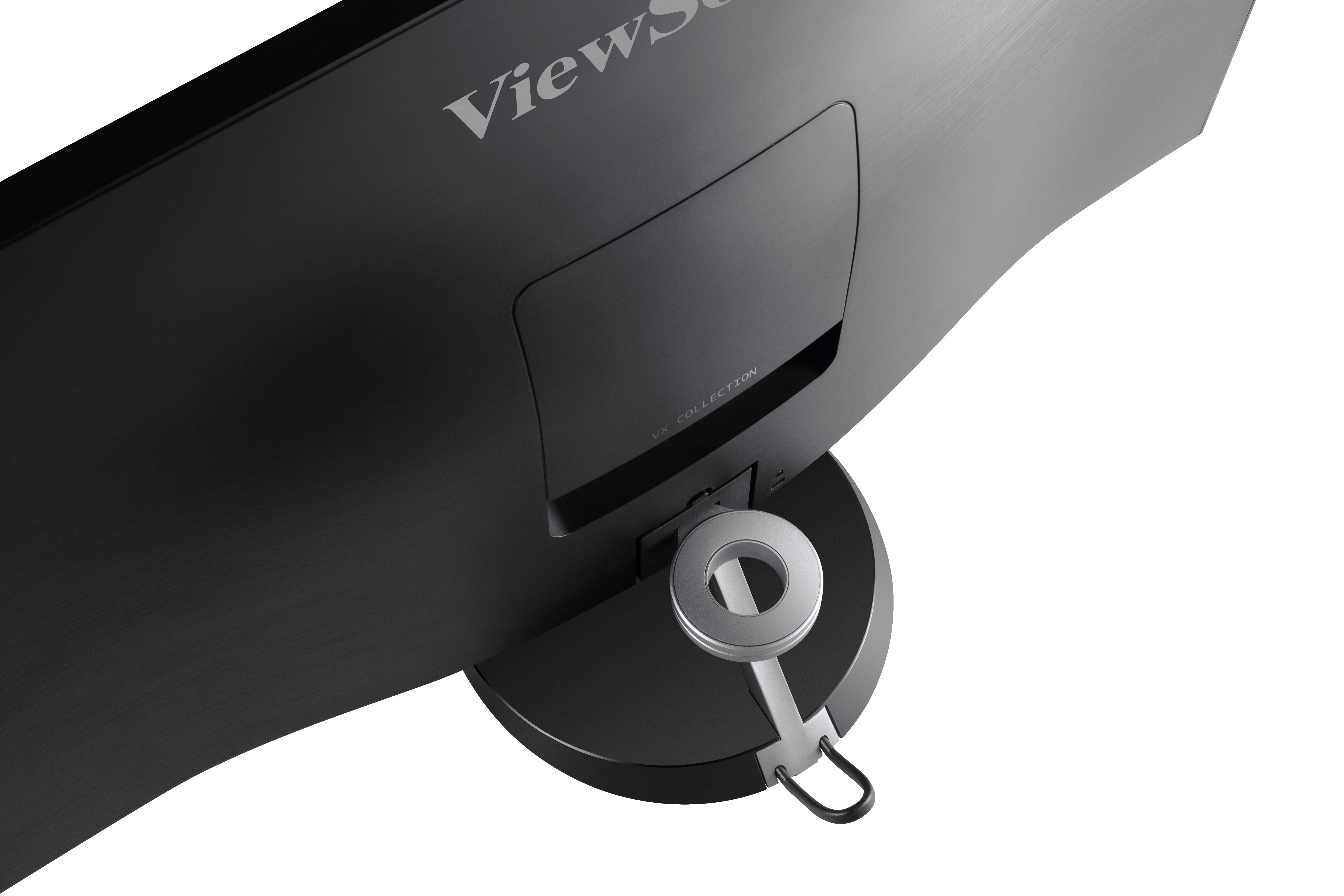

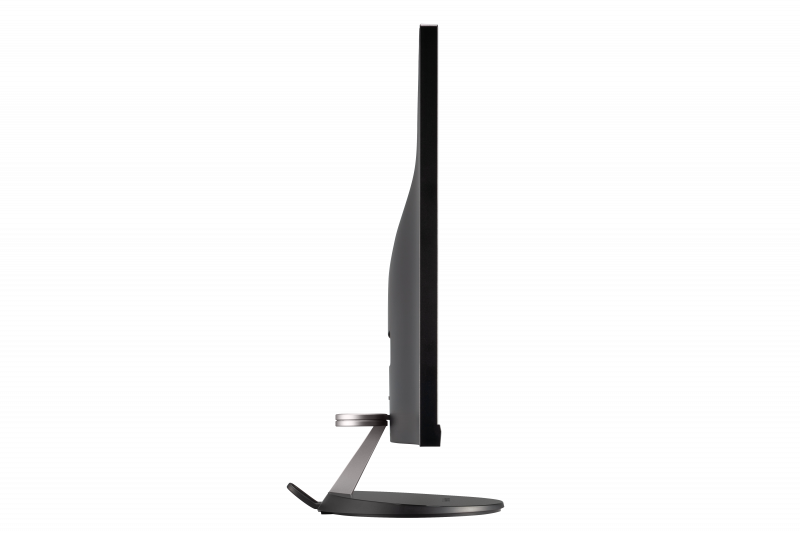

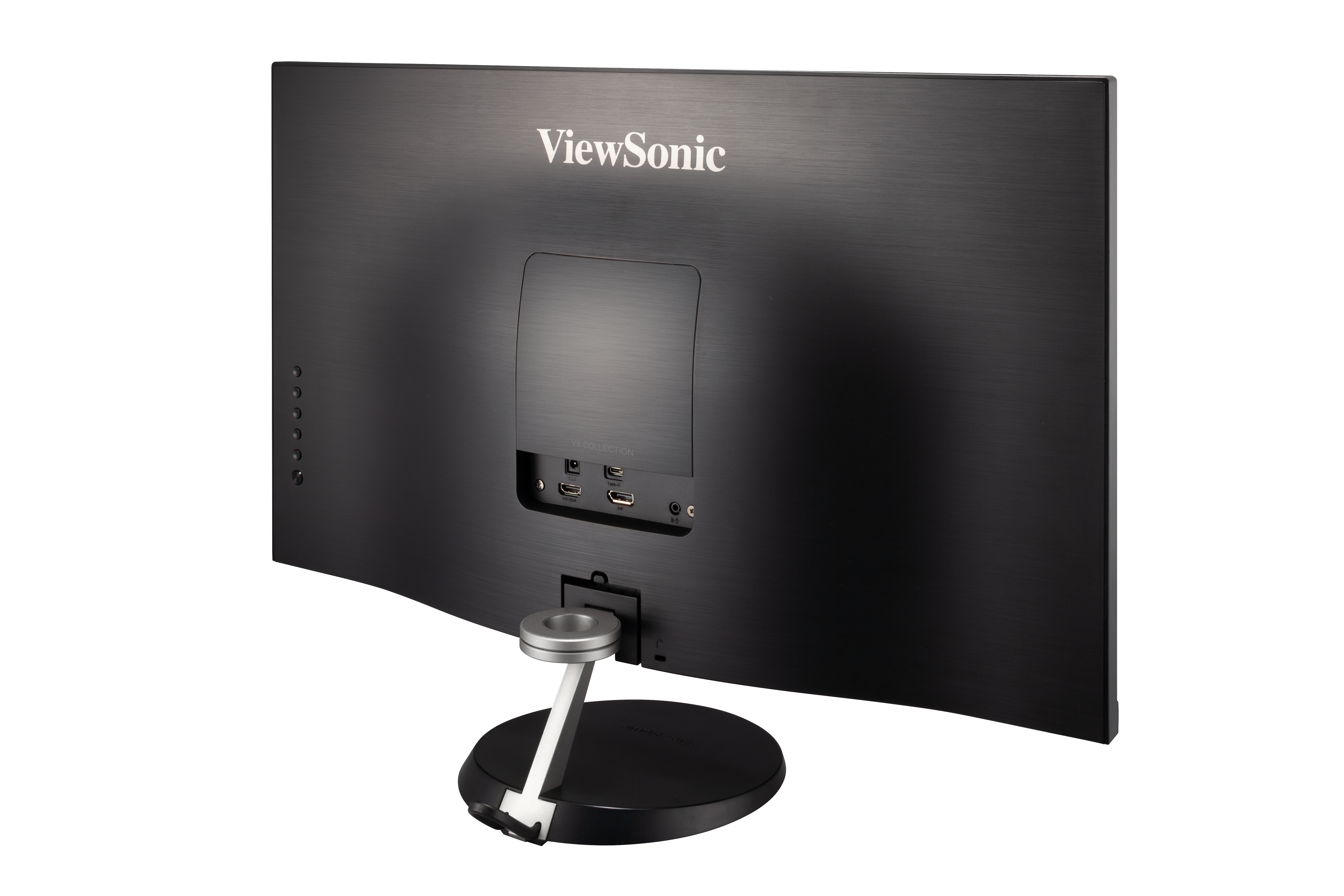

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 2560 x 1440
Resolution Type: QHD
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 300 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): Max. 75Hz (HDMI (V1.4))^[1]
Variable Refresh Rate Technology: FreeSync
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ), sRGB: 102% size (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 8.1/10 certified; macOS tested
Mac® Resolution (min): 2560x1440

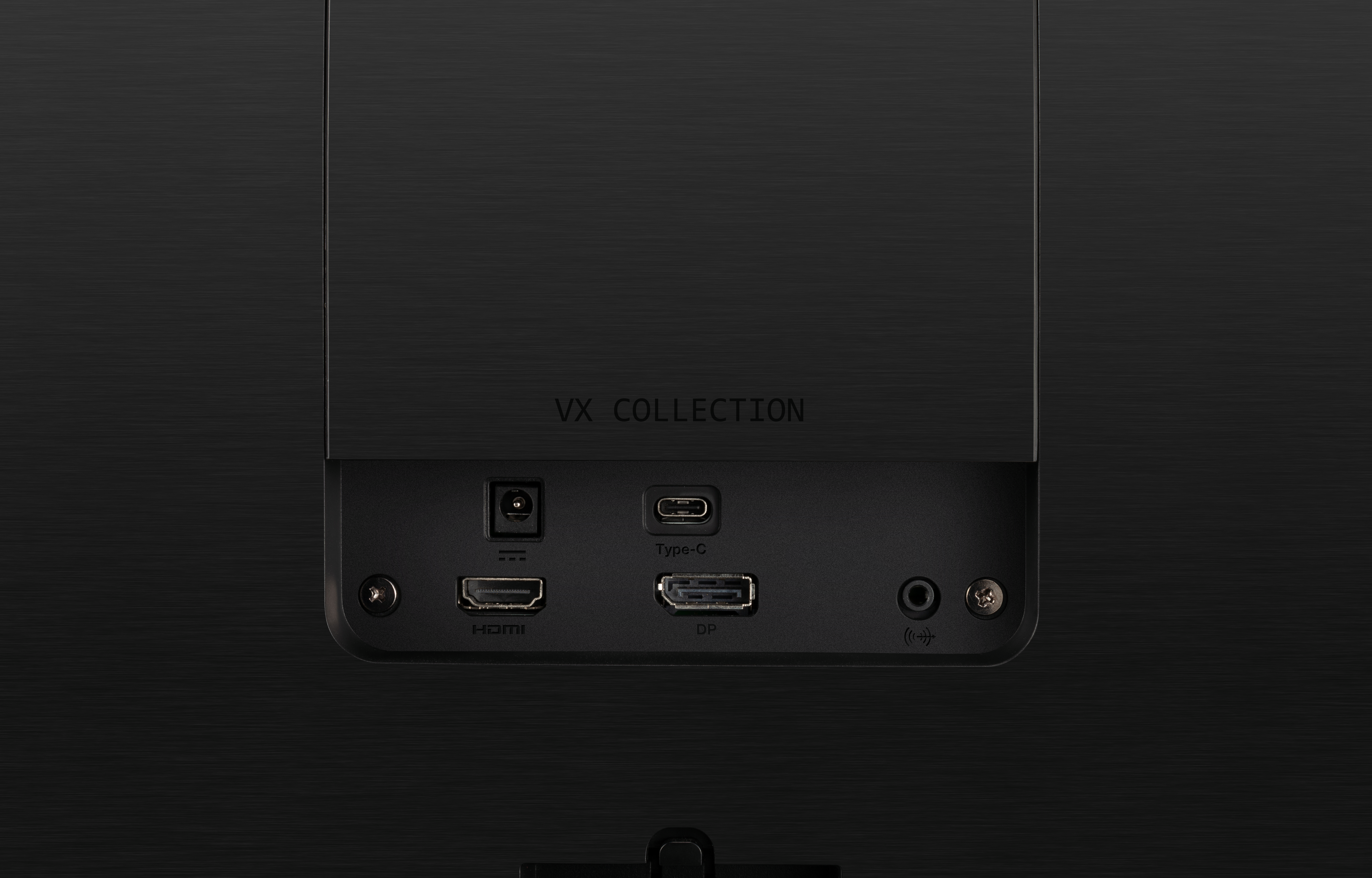

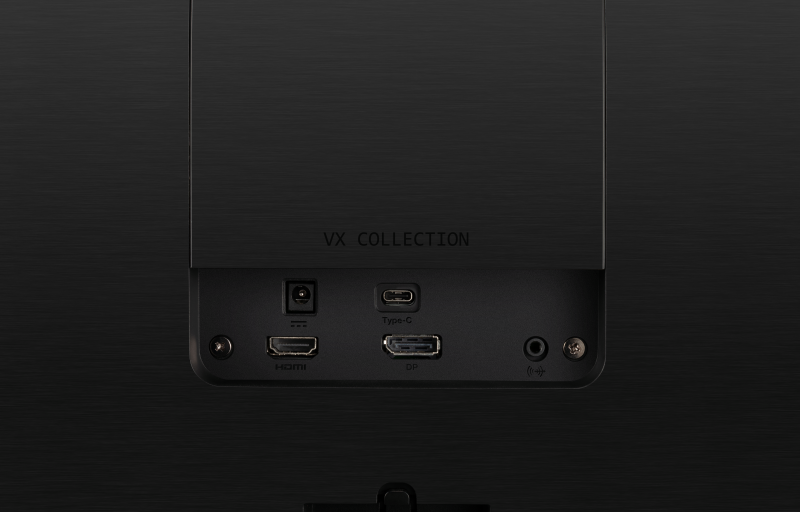

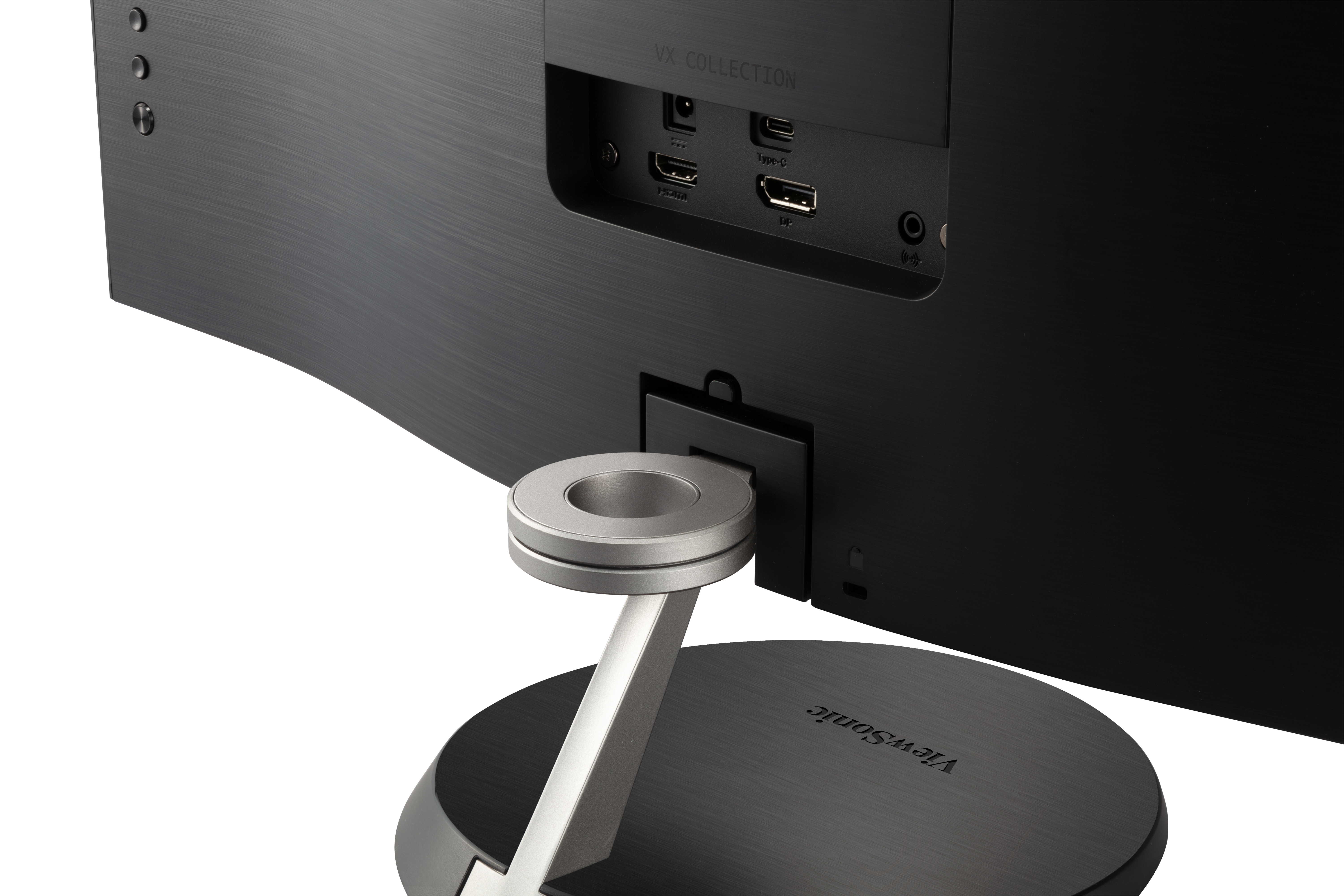

Connector
USB 3.1 Type C: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Display Port: 1
Power in: External power adapter

Audio
Internal Speakers: 3Watts x2
Power
Eco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 24.5W
Consumption (max): 25W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: External
Additional Hardware
Kensington Lock Slot: 1

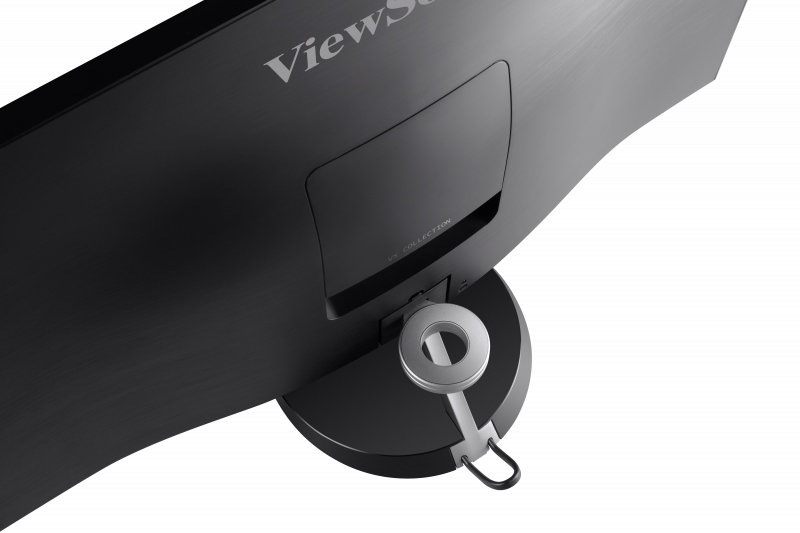

Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 16 ~ 112KHz
Frequency Vertical: 40 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
Ergonomics

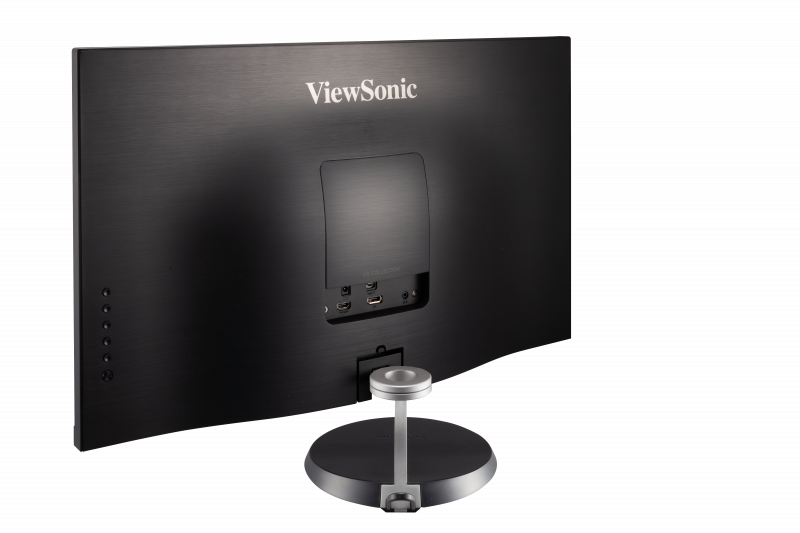

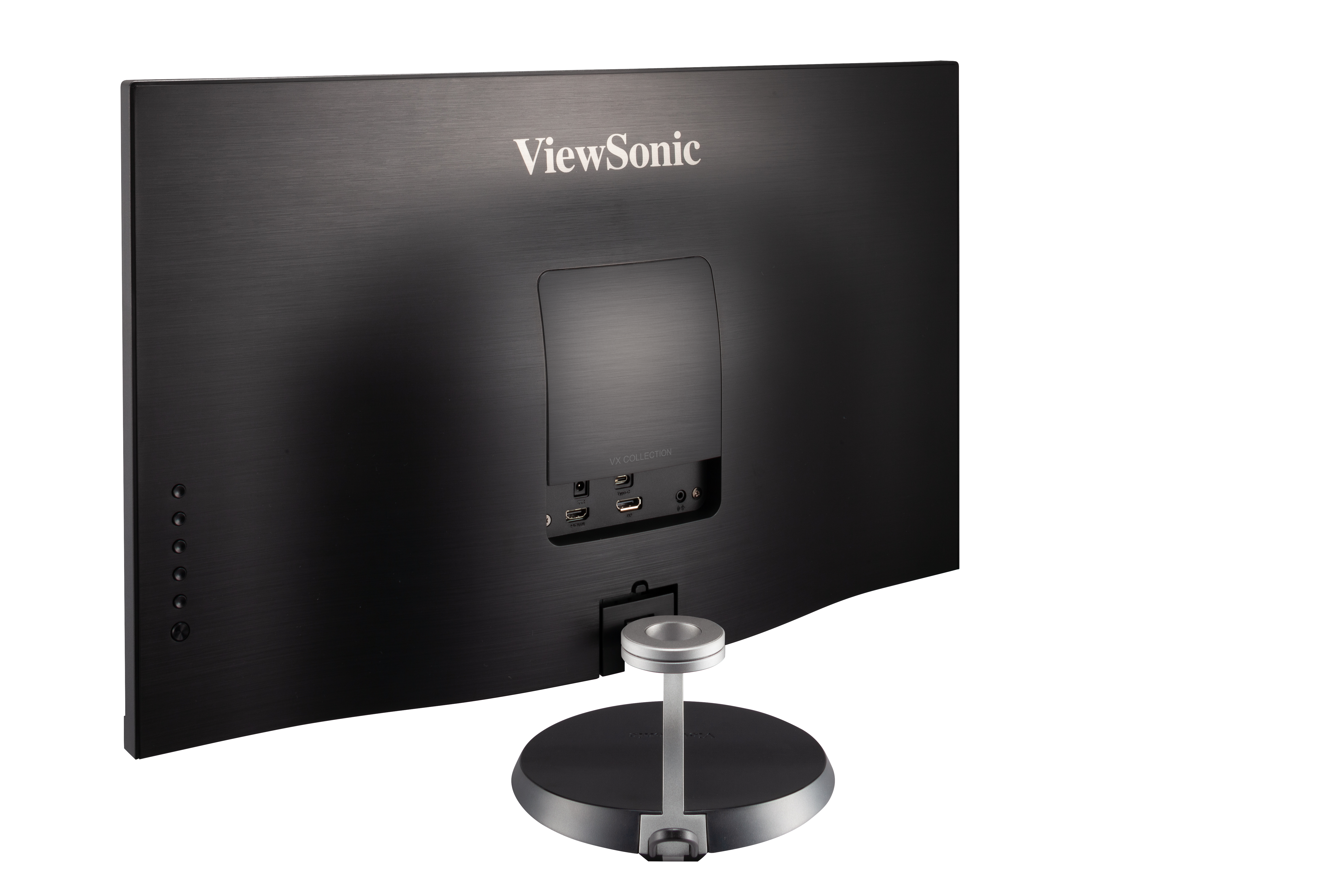

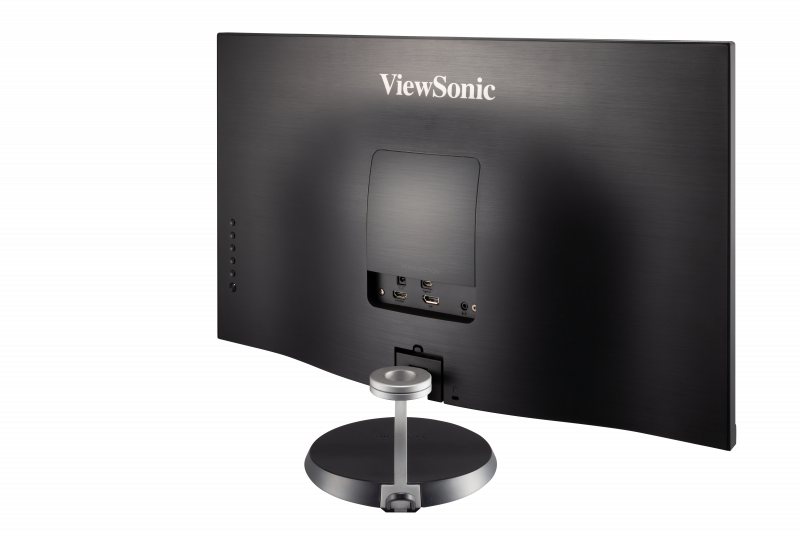

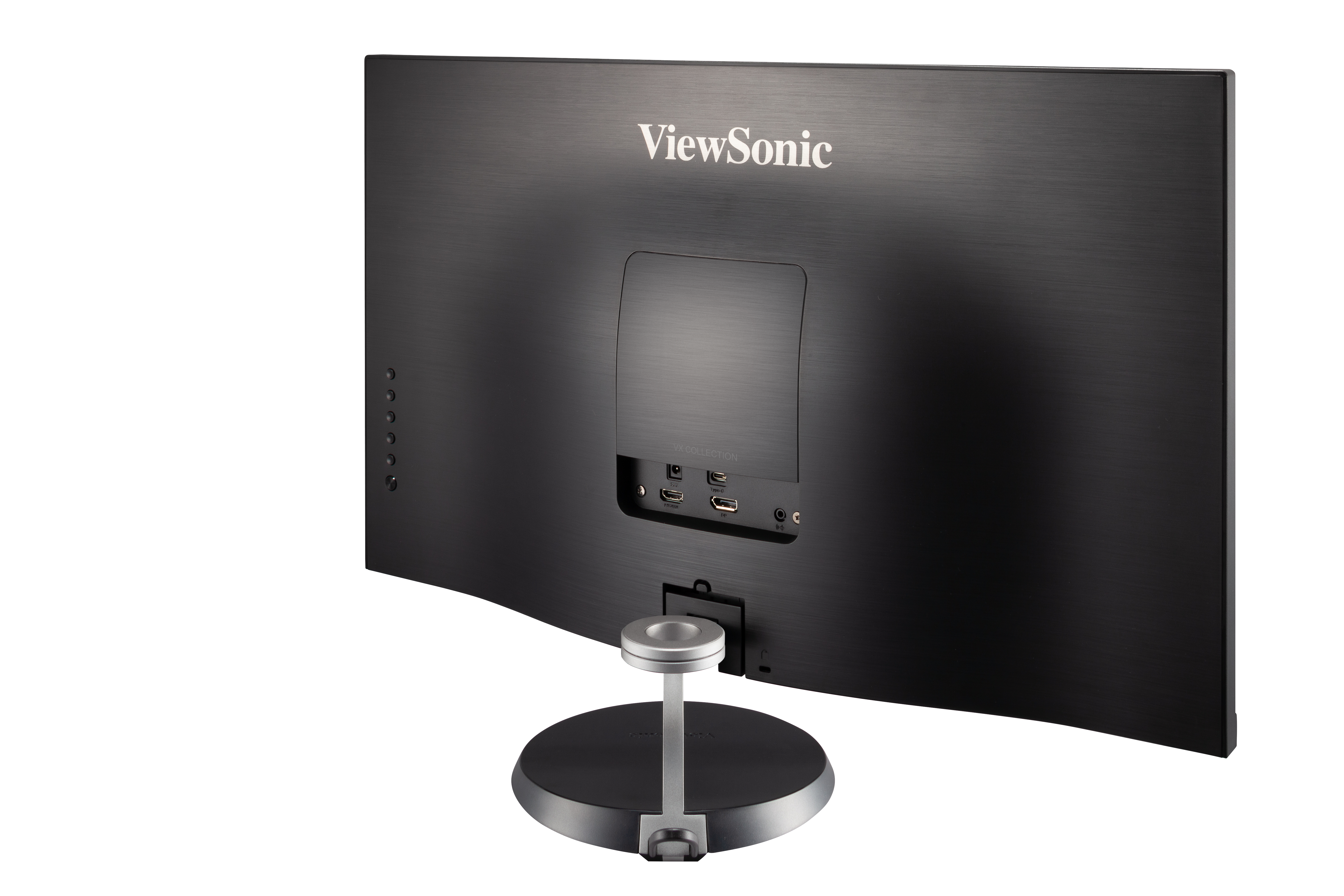

Swivel: 60º

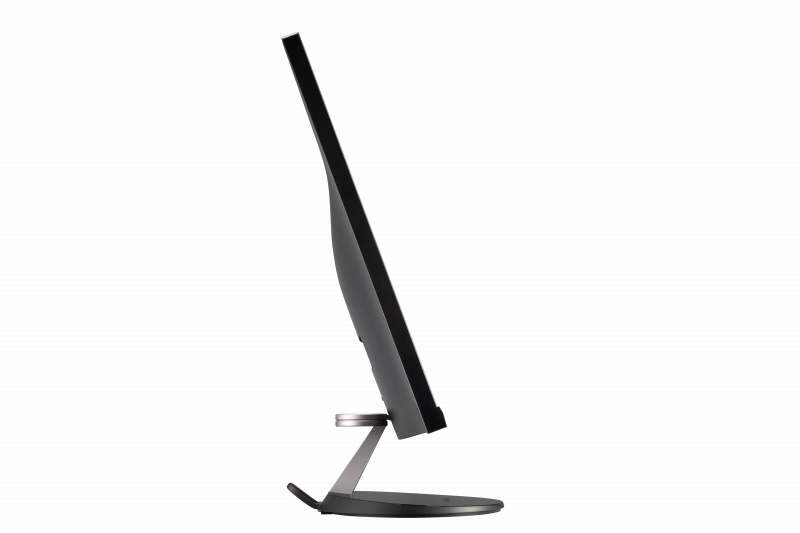

Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 11.1
Net Without Stand (lbs): 7.9
Gross (lbs): 15.2
Weight (metric)
Net (kg): 5
Net Without Stand (kg): 3.6
Gross (kg): 6.9
Dimensions (imperial) (wxhxd)
Packaging (in.): 27.6 x 17.2 x 4.9
Physical (in.): 24.1 x 17.6 x 9.8
Physical Without Stand (in.): 24.1 x 14.3 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 700 x 438 x 125
Physical (mm): 613 x 446 x 250
Physical Without Stand (mm): 613 x 364 x 50
General
PACKAGE CONTENTS: VX2785-2K-MHDU x1, 3-pin Mickey Mouse Plug (IEC C5) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT

The Max. refresh rate may vary by I/O port, resolution, user environment and settings. For additional information please check the the “Specifications” section in the user guide.
