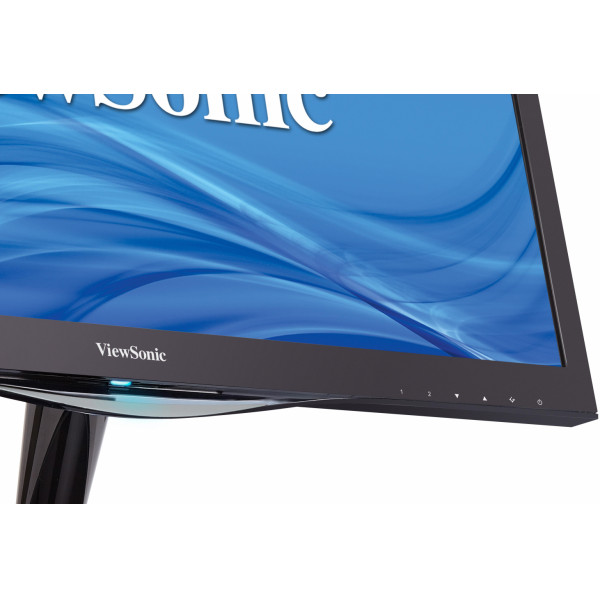

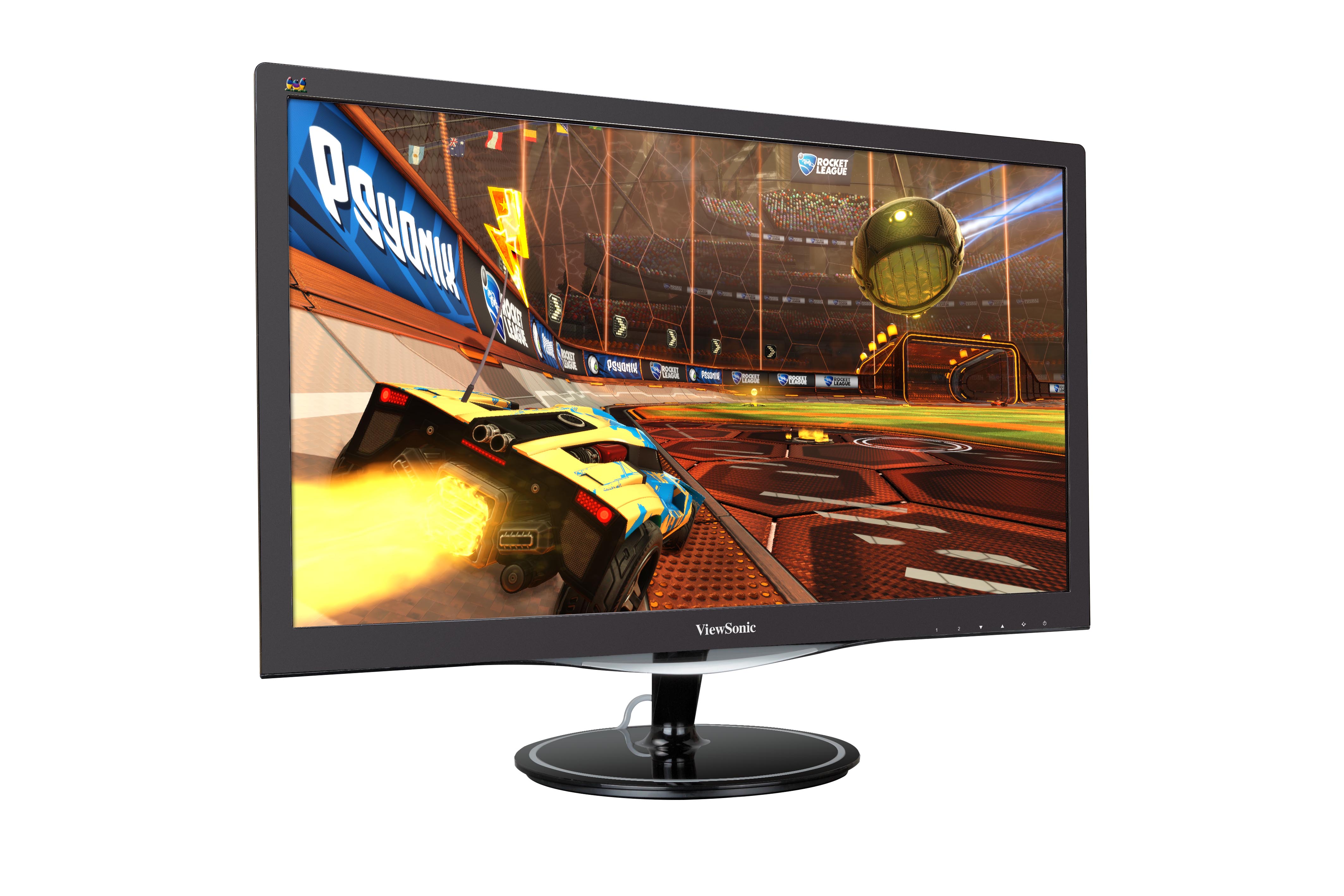

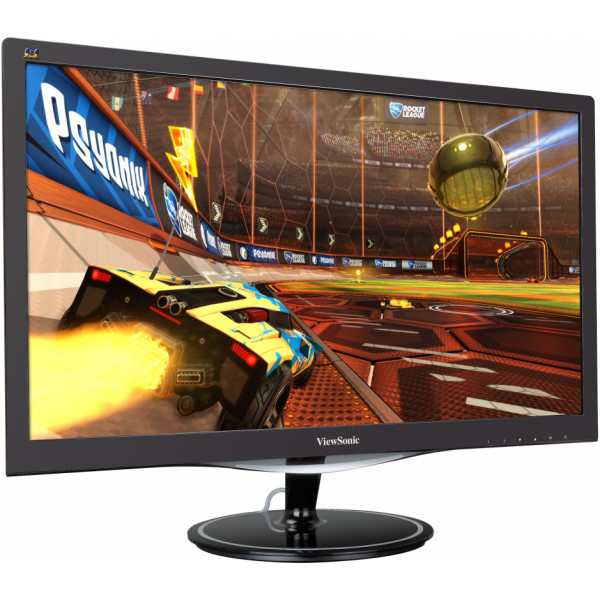

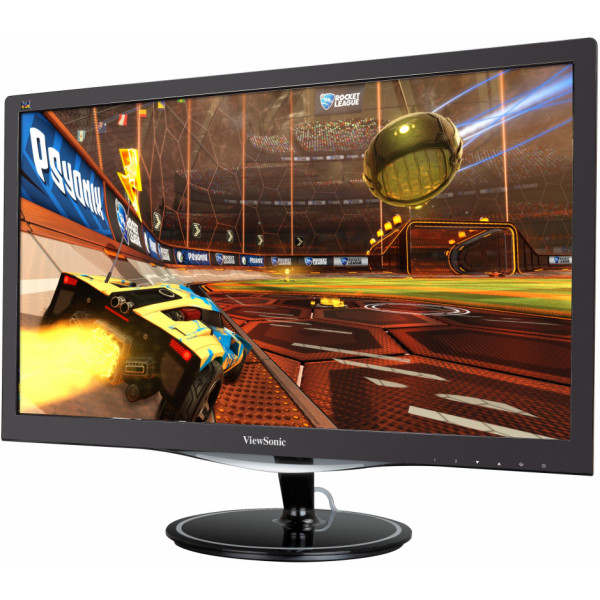

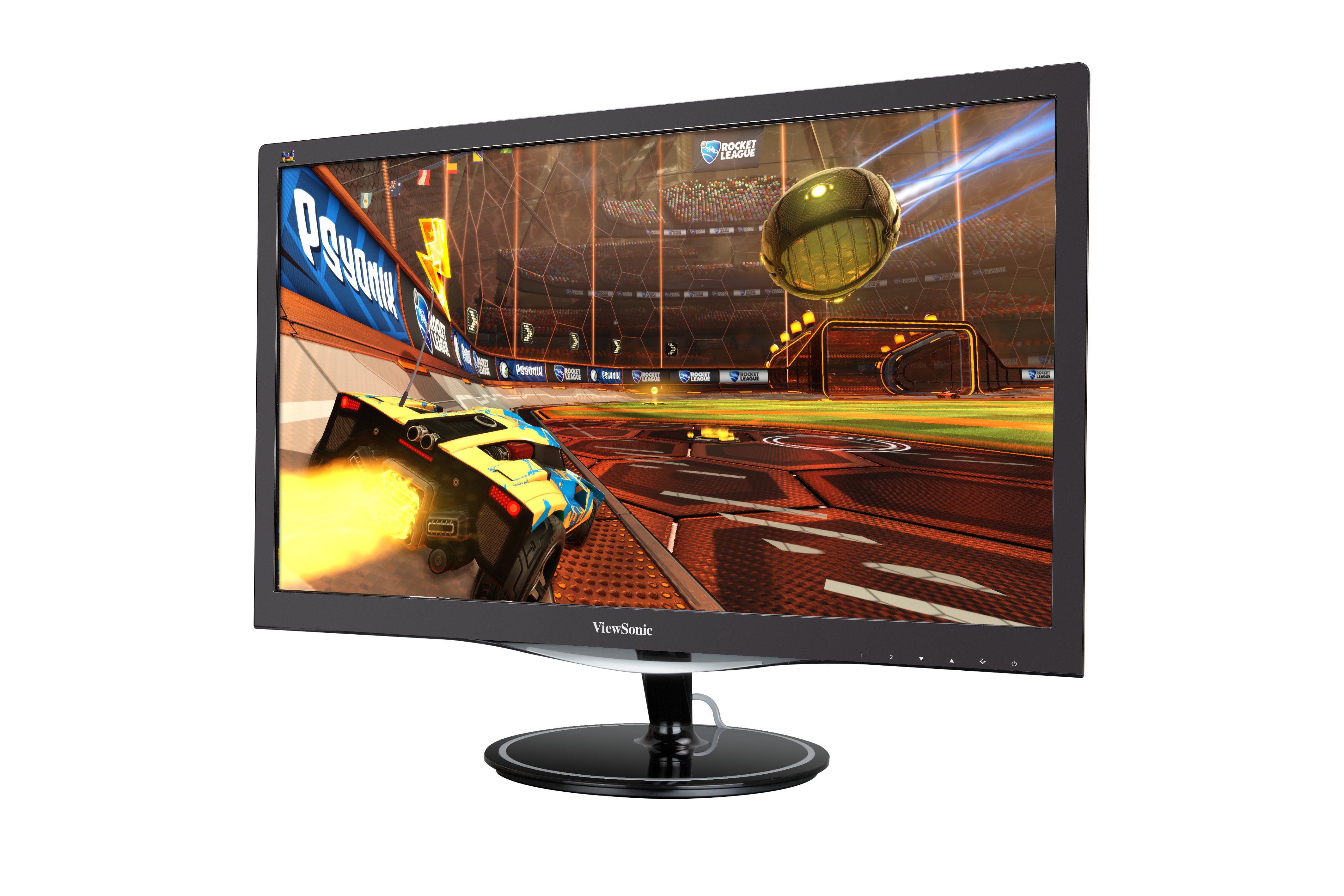

VX2257-mhd

22" 1080p Gaming Monitor

DISPLAY
Type: 22”W (21.5” Viewable) TN LED
Display Area: 476.64mm (H) x 268.11mm (V)
Resolution: Full HD 1920 x 1080
Brightness: 250 cd/m² (Typ)
Contrast Ratio: 1000:1 (Typ)
Dynamic Contrast Ratio: 80,000,000:1
Viewing Angles: 170 degrees / 160 degrees (Typ)
Response Time: GTG(AVG): 1ms
INPUT SIGNAL
Frequency: VGA: Fh = 24 ~ 83KHz ; Fv = 47 ~ 75Hz
HDMI: Fh = 24 ~ 84KHz ; Fv = 47 ~ 75Hz
DisplayPort: Fh = 24 ~ 84KHz ; Fv = 47 ~ 75Hz

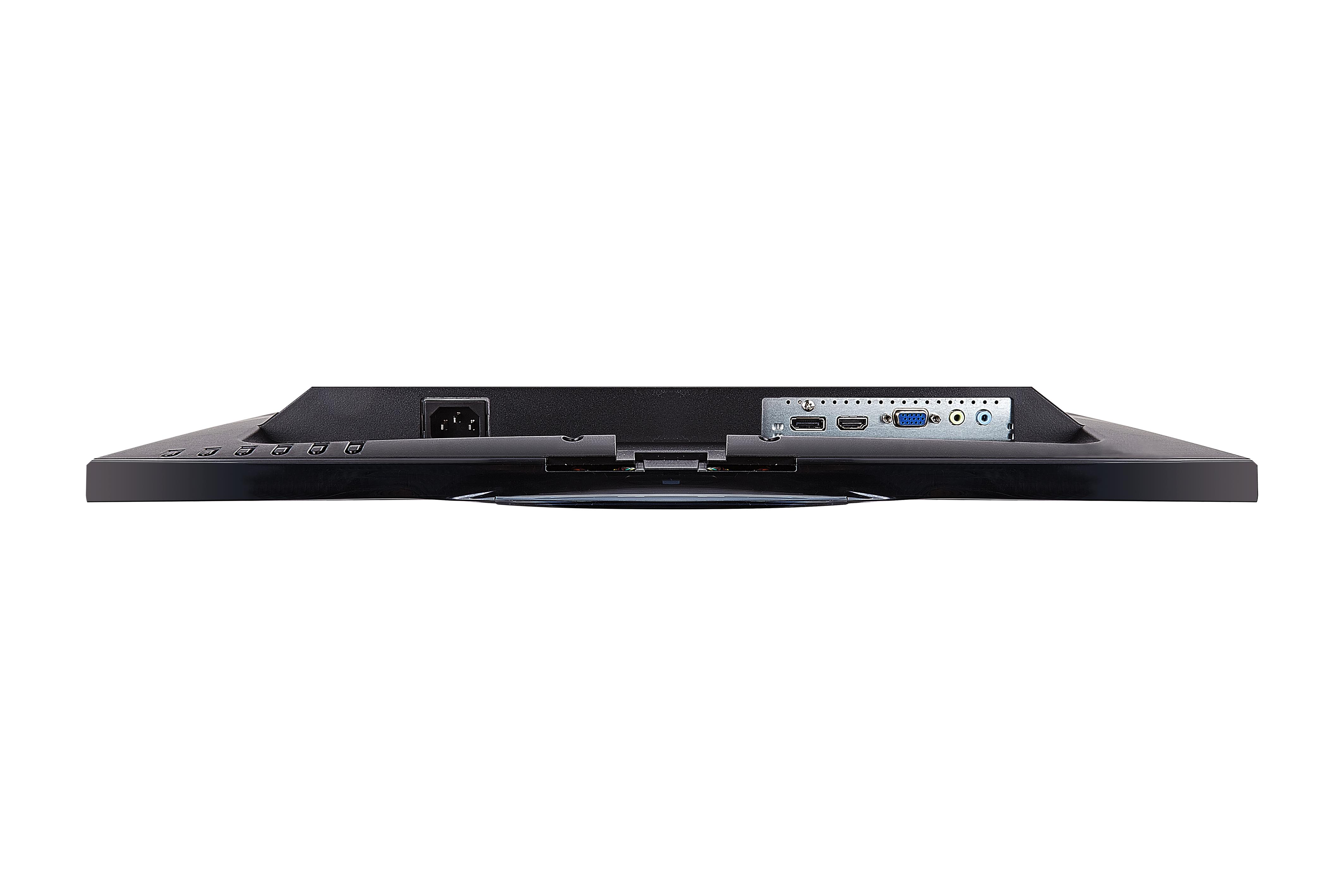

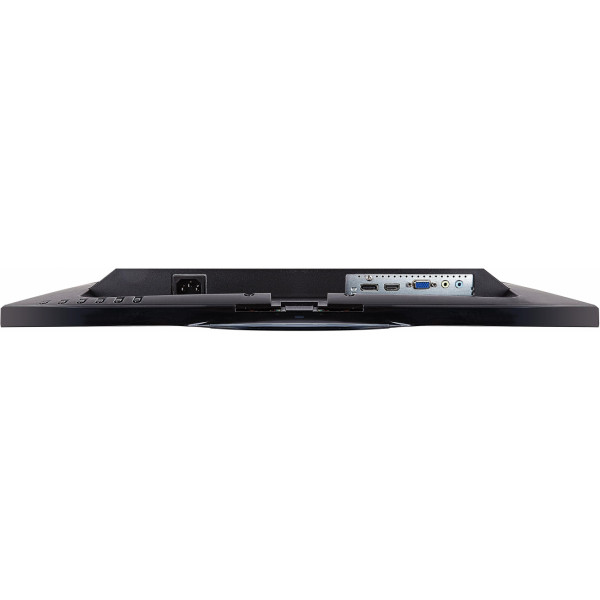

CONNECTOR
Video: VGA, HDMI, DisplayPort
Audio: Audio in, Earphone out x 1

SPEAKERS
Speakers: 2W x 2
Amplifier: 2W
ERGONOMICS

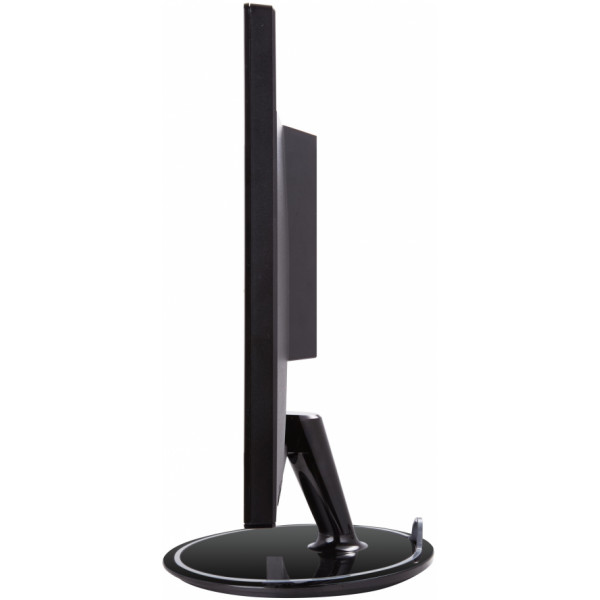

Tilt: 23 ~ -5 degrees
SPECIAL FEATURES
Special Features: Support AMD FreeSync, Black stabilization, User customized game mode, Game mode hot key, Flicker Free, Low EMI

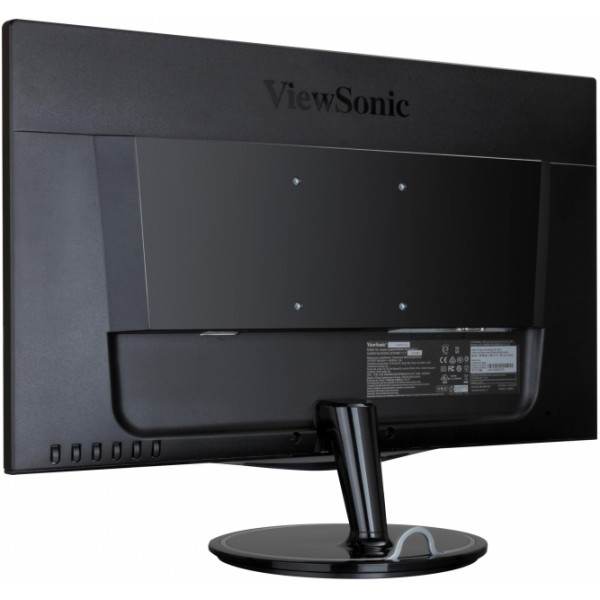

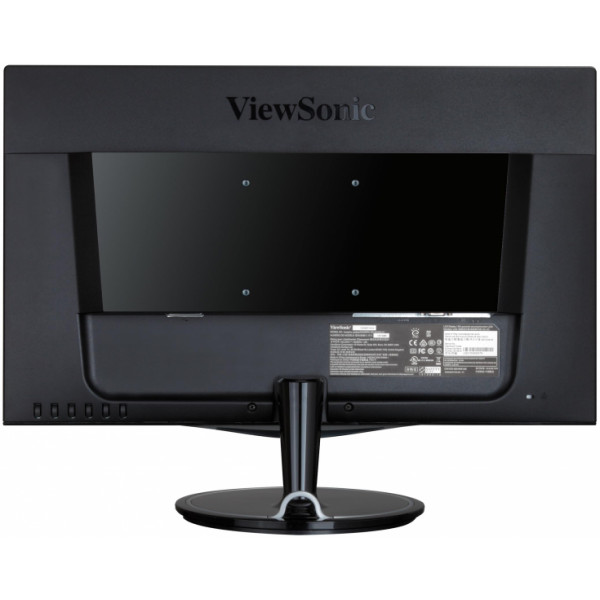

WALL MOUNT

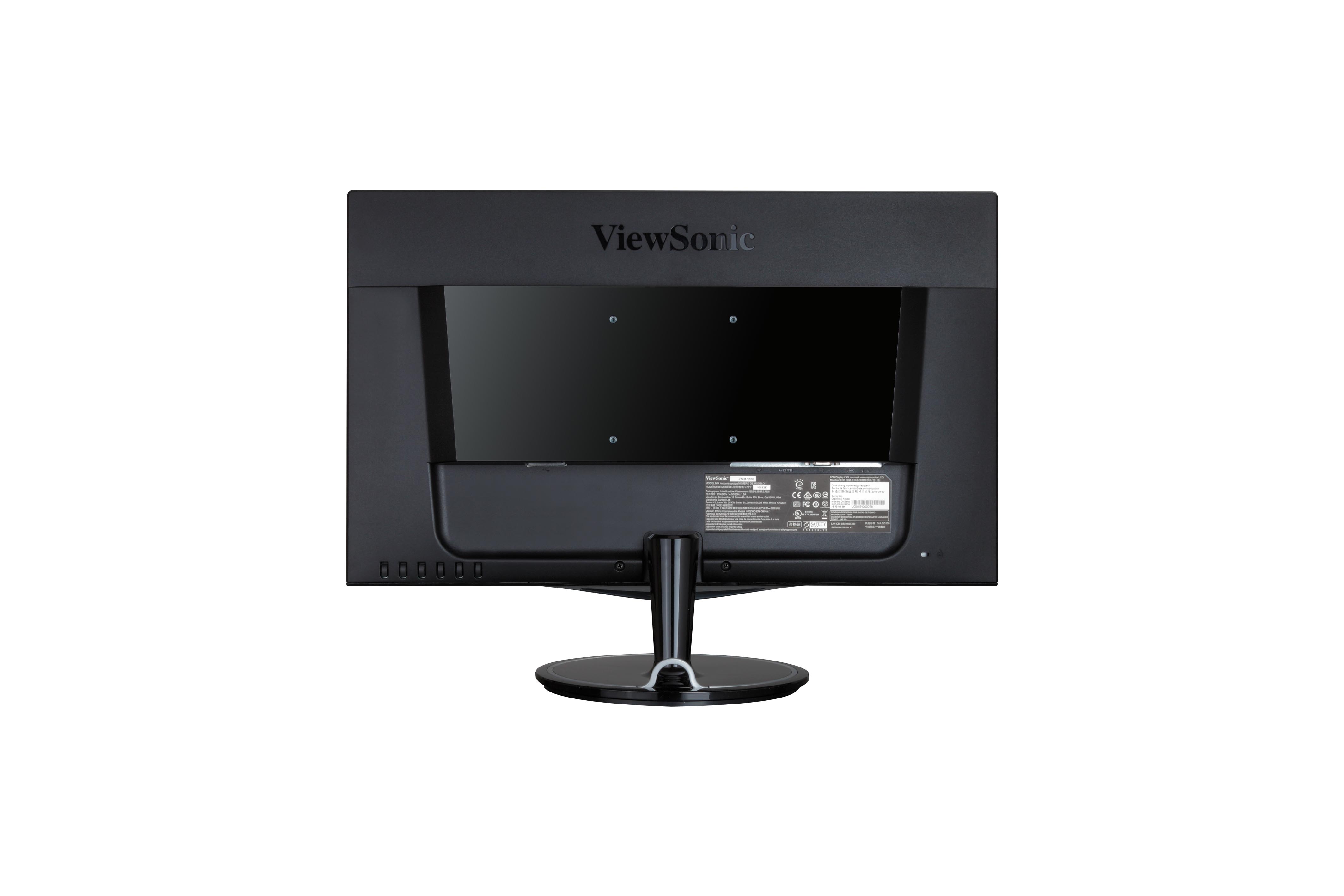

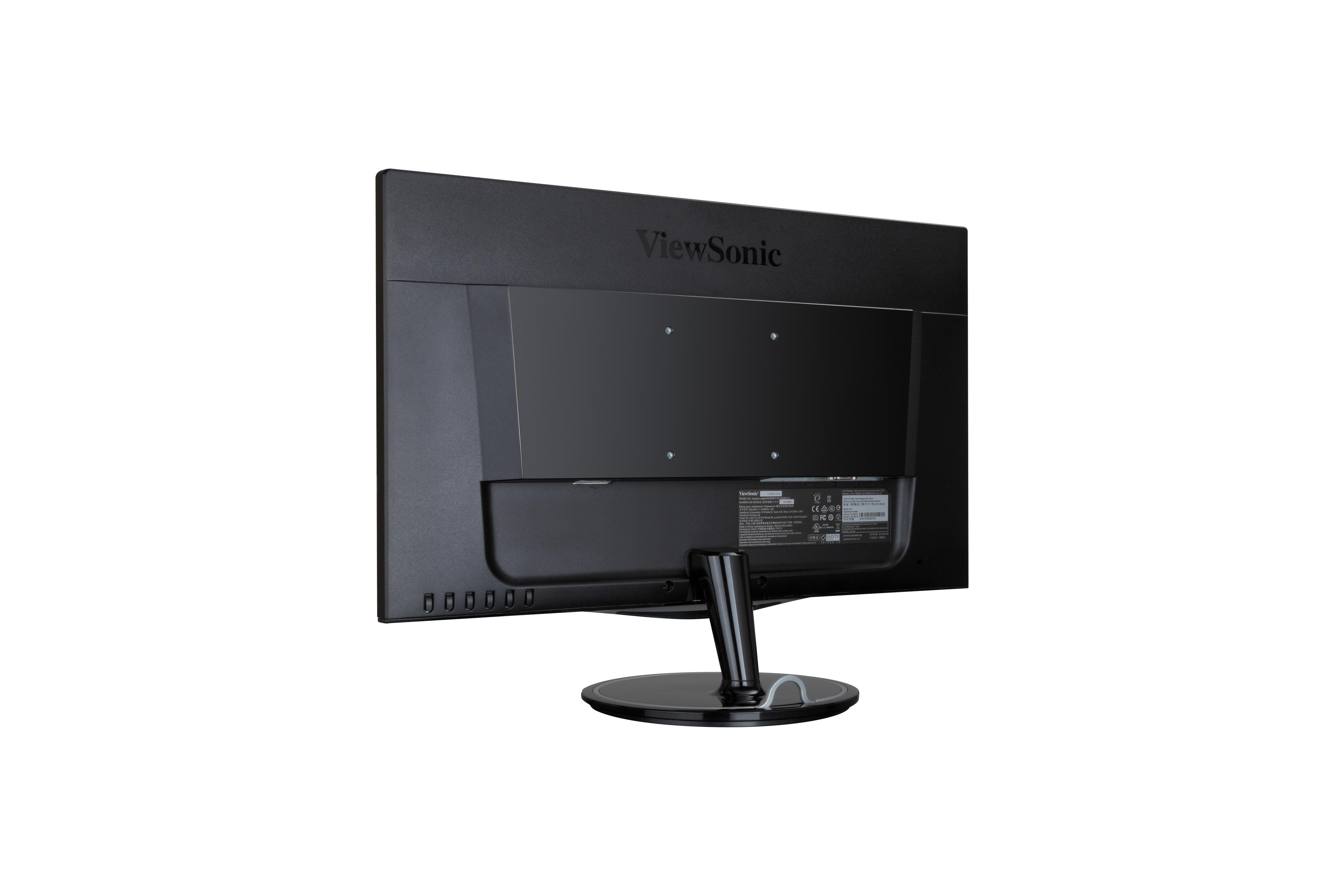

VESA®: 100mm x 100mm
POWER
Power: Internal Power Board , 3-pin plug (CEE22) x1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 21W
Optimize: 17W
Conserve: 14W
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation)
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 511.4mm (W) x 394.4mm (H) x 229.7mm (D)
Physical without stand (mm): 511.4mm (W) x 327.1mm (H) x 45.5mm (D)
Packaging (mm): 568mm (W) x 464mm (H) x 123mm (D)
WEIGHT
Net with stand (kg): 3.63 kg
Net without stand (kg): 3.2kg
Gross (kg): 4.85kg
REGULATIONS
Compliance: cULus, FCC-B, ICES003, Energy Star 8.0, CEC, S-mark, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, VCCI, PSE, KC, e-Standby, China RoHS, China Energy Label
PACKAGE CONTENTS
LCD Display
Power Cable
Audio Cable
VGA Cable
HDMI Cable
Quick Start Guide

*Actual content may differ from market to market
