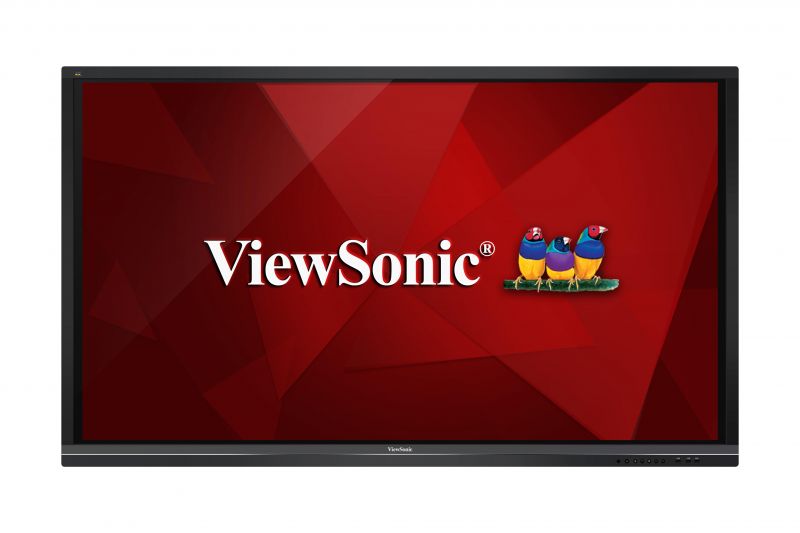

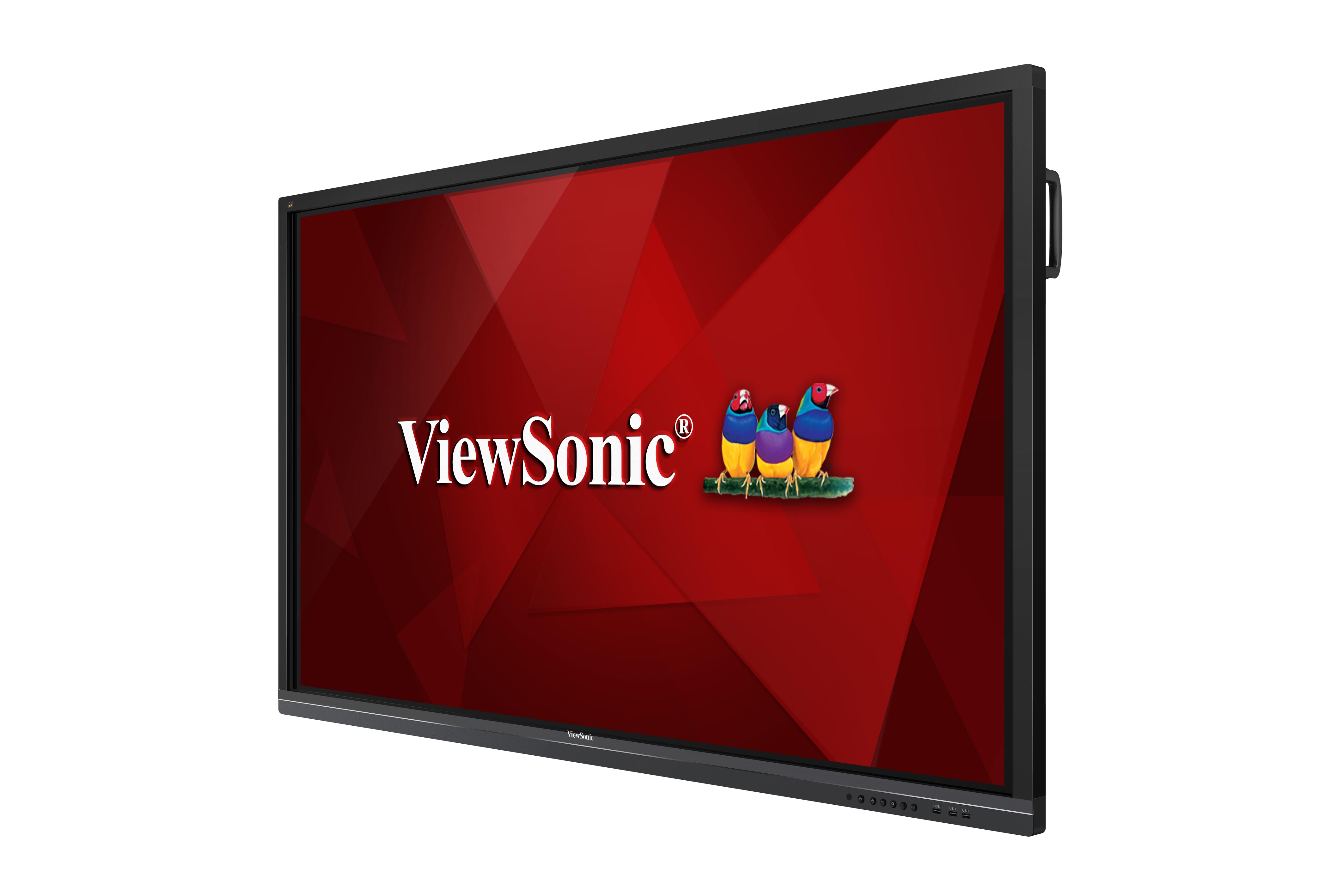

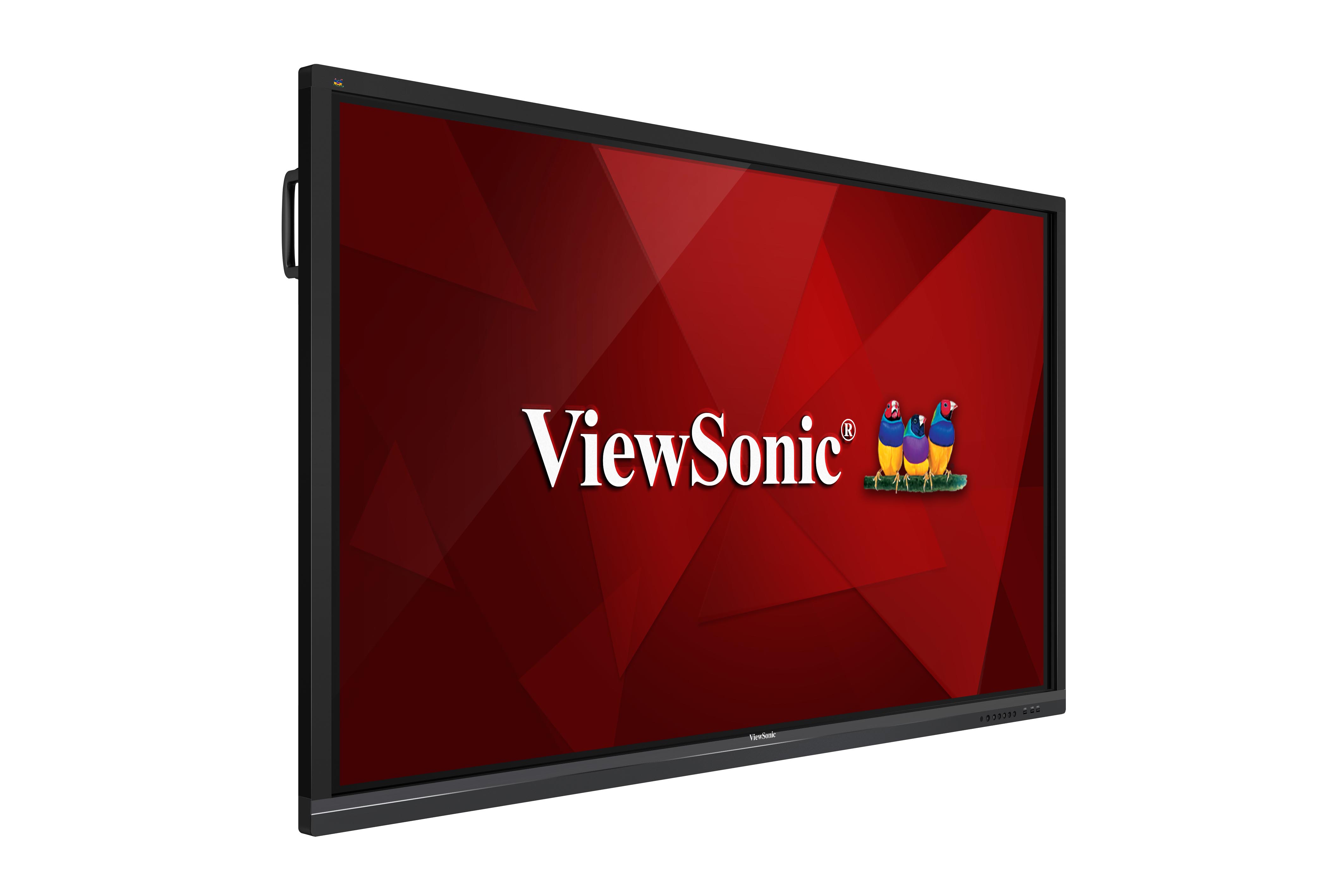

IFP7550
75 吋 Ultra HD ViewBoard® 智慧互動電子白板
- 3840 x 2160 4K 解析度
- 20點觸控功能
- Floating Pen 隨需註記工具列
- ViewBoard® Cast 互動式觸控白板軟體
- 內建ARM Quad-core CPU 及16GB 記憶體
- 內建協同合作
評測
“Smartboards are beginning to infiltrate businesses and organizations everywhere, so we’ve got the ViewSonic ViewBoard IFP7550 here to show you how you could make use of one in your organization.”
規格
- 液晶面板面板尺寸: 75"
型/ 技術: TFT LCD Module with DLED Backlight
展示面積 (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
長寬比: 16:9
解析度: 3840 x 2160
色彩: 1.07B colors (10bit)
亮度: 350 nits (typ.) 300 nits (min.)
對比度: 1200:1 (typ.)
反應時間: 8 ms
可視角度: H = 178, V = 178 (typ.)
背光: DLED
背光壽命: 30,000 Hours Min.
硬度: 7H - 觸控型/ 技術: IR Recognition
觸控解析度: 32767 x 32767
觸控點: 20 points touch, 10 points writing
反應時間: <15ms
適用系統: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome

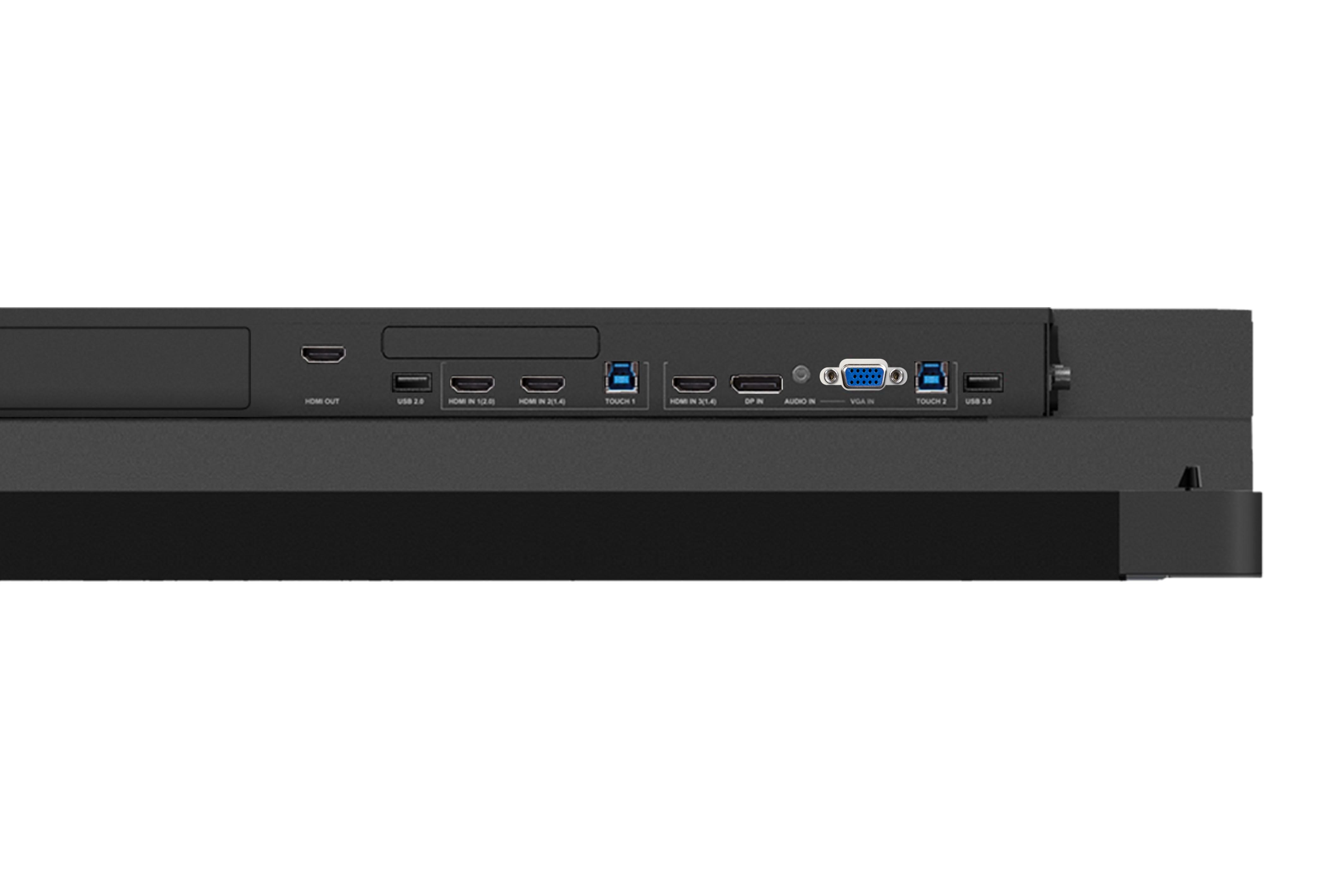

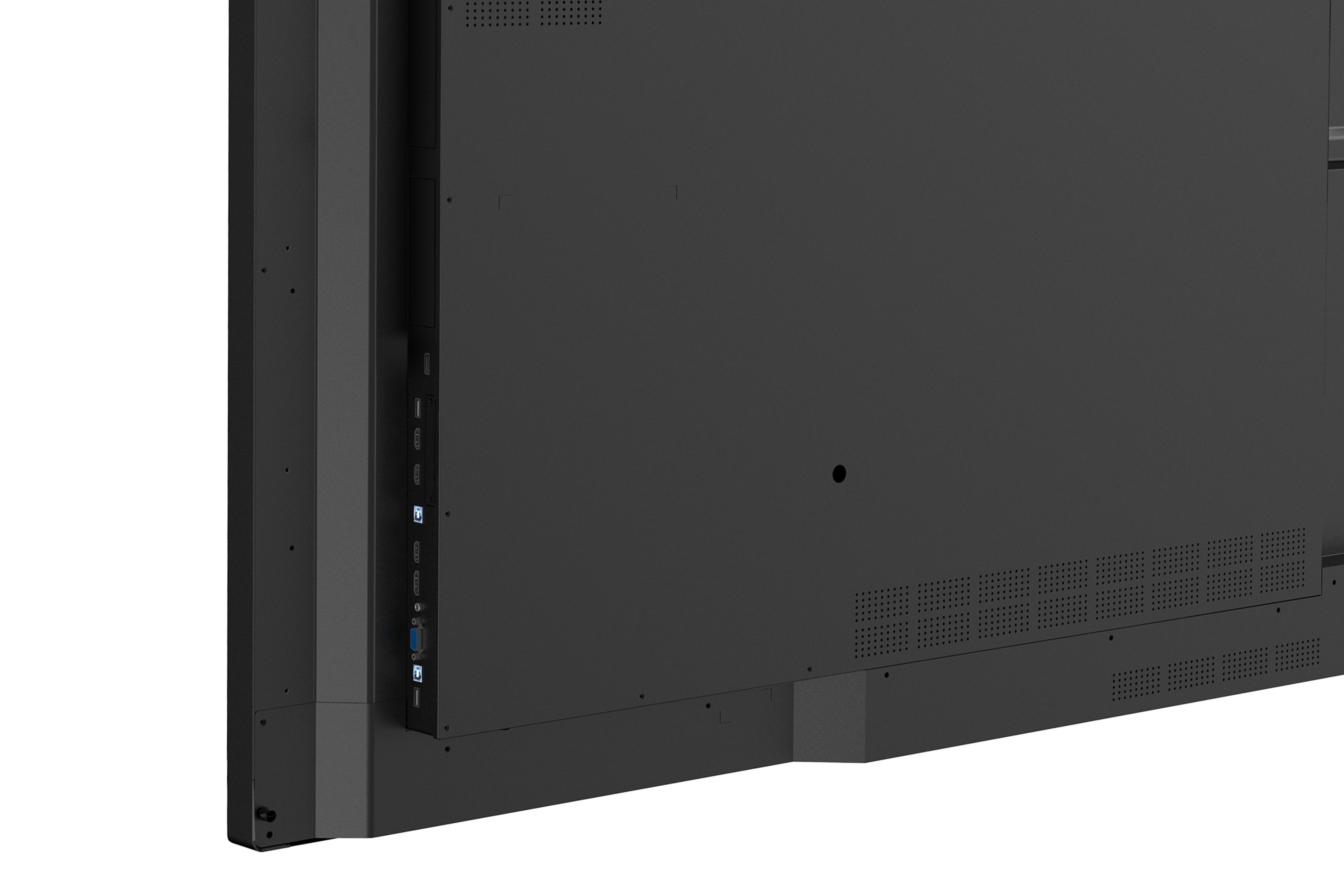

生命週期: 80,000hrs - 輸入訊號HDMI: x 3
RGB / VGA: x 1
Display Port: x 1
音訊: x 1
CVBS (AV): x 1
RS232: x 1
PC Slot: x 2

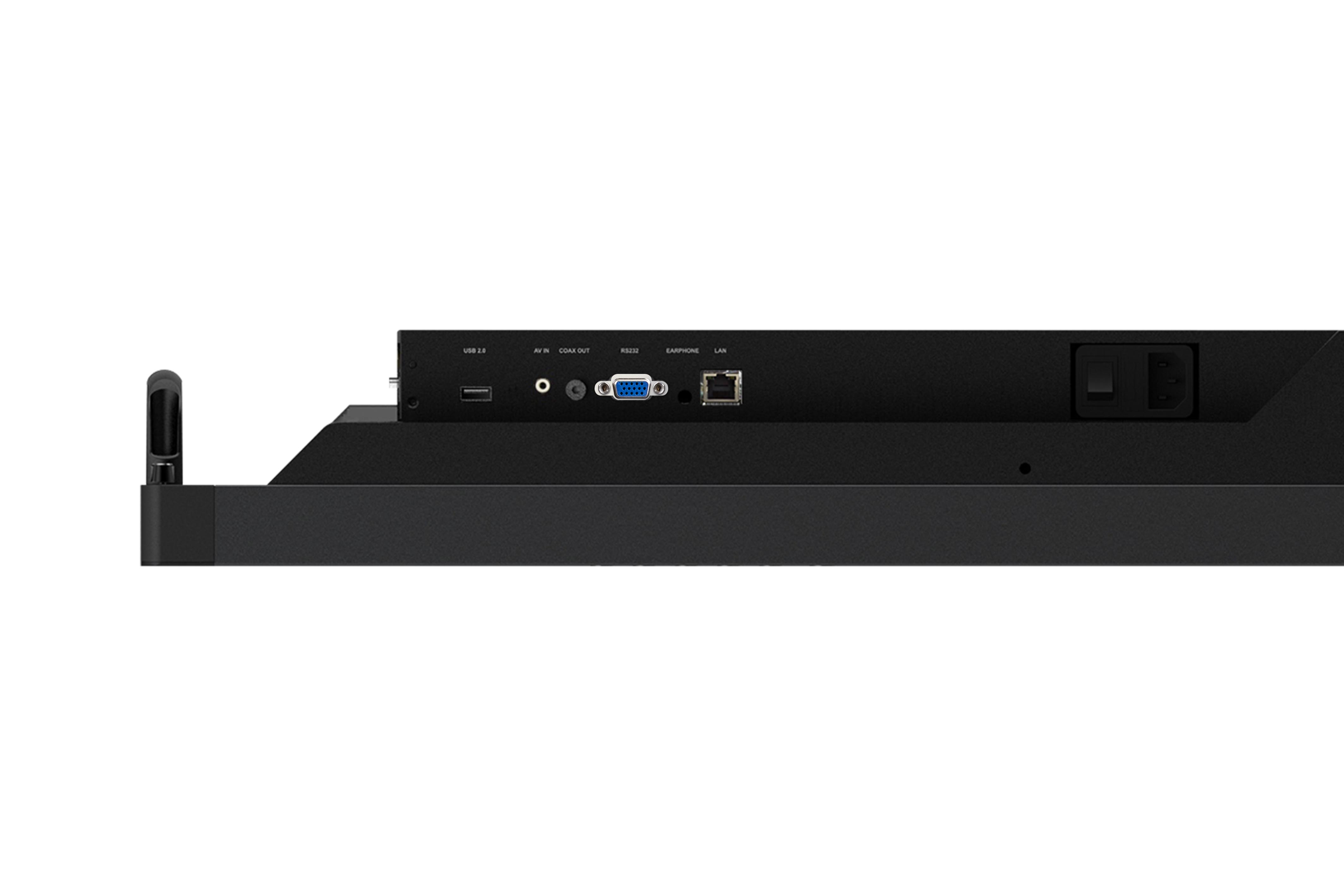

- 輸出訊號HDMI: x 1 (for all sources)
Audio (Earphone out): x 1
SPDIF: x 1 - LANRJ45: x 1
- USB2.0 Type A: x 4 (前 x 2, 嵌入式 player 和 slot-in PC
3.0 Type A: x 2 (前 x 1, 嵌入式 player 和 slot-in PC )
2.0 Type B (For touch): x 2 - 喇叭16W x 2
- 內建 PC處理器: ARM Cortex A53 Quad Core 1.2G Hz CPU
圖像處裡器: ARM Mali-450 Quad Core
記憶體: 2GB DDR3
容量: 16GB eMMC
網路: 10/100M auto-identification and DHCP - 相容性VGA: Refer to timing table
HDMI: 3840x2160
DP: 3840x2160
CVBS: 480i - 電源電壓: 100-240VAC +/- 10% Wide Range

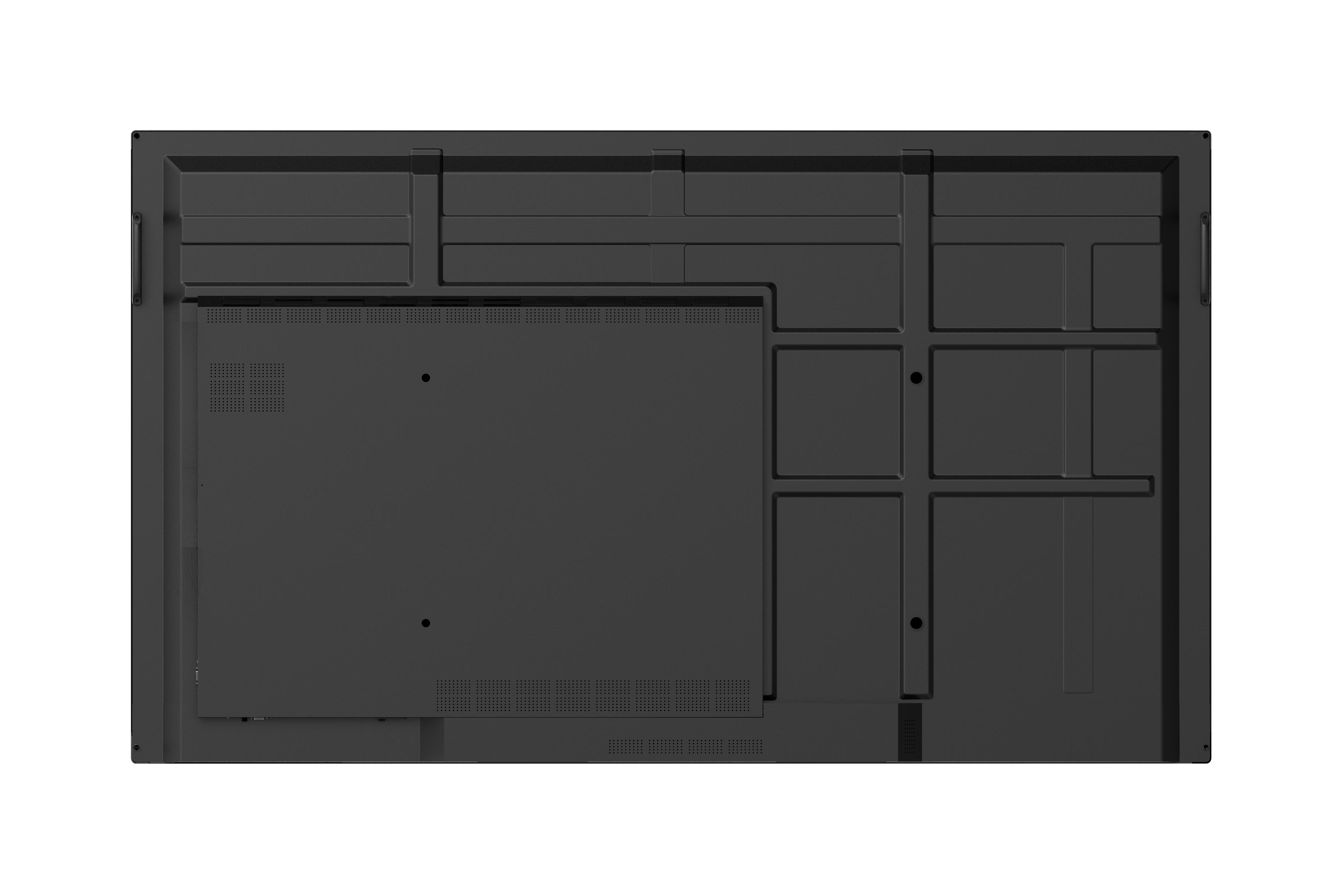

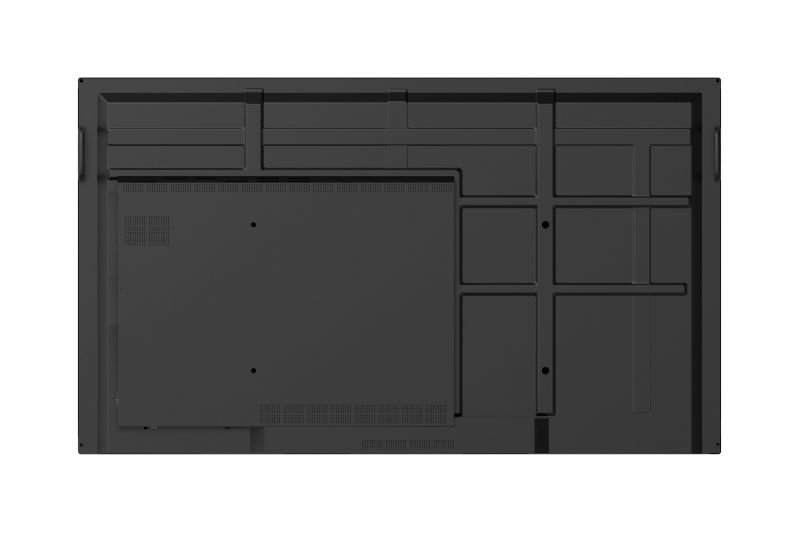

耗電: 292 W (未含嵌入式電腦)；387 W (含嵌入式電腦) - 人體工學壁掛 (VESA®): 800 x 400mm; Screw: M8 x 25mm
- 操作環境溫度 (º C): 32°F to 104°F (0°C to 40°C)

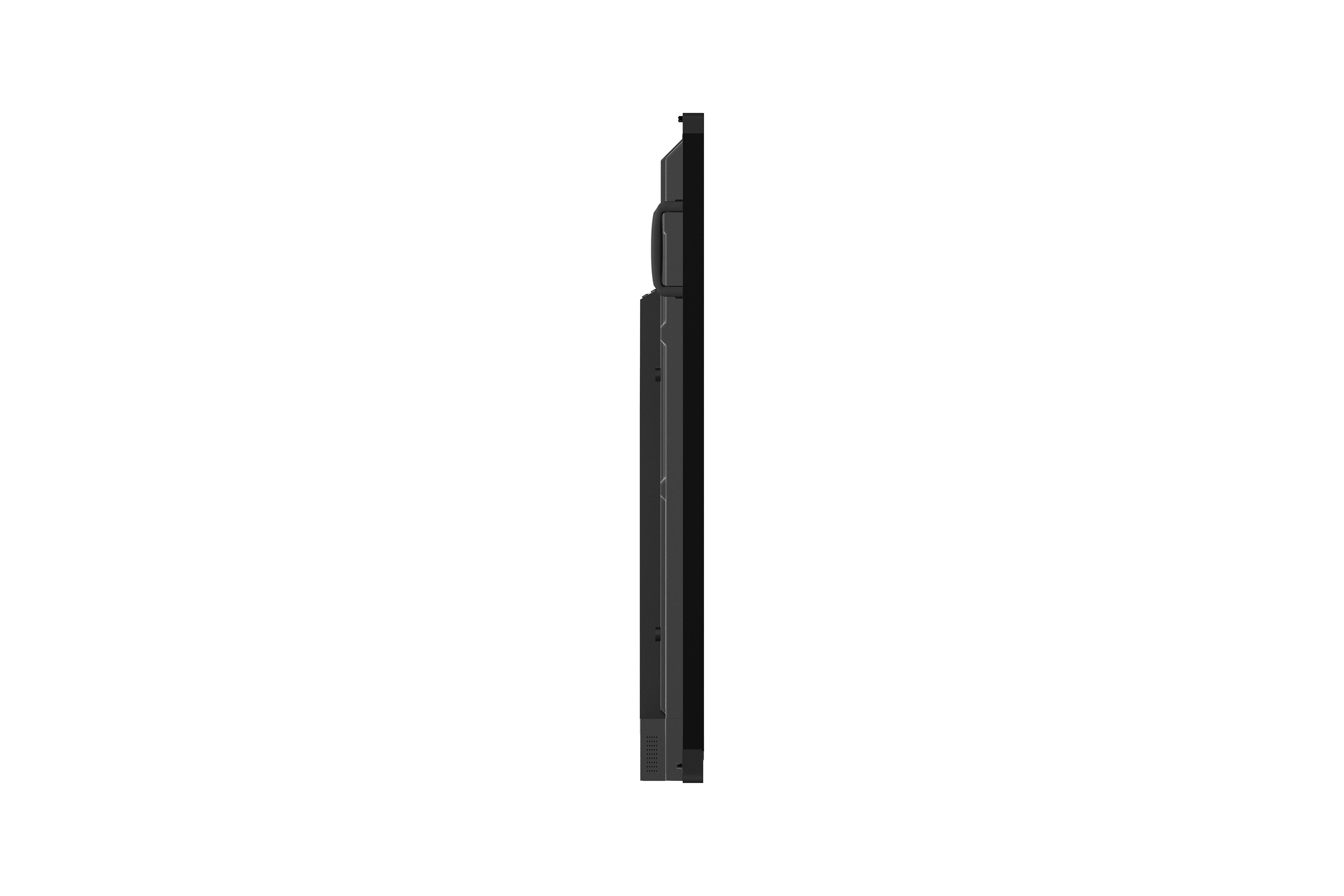

濕度: 10% ~ 90% non-condensing - 外觀尺寸 (寬 X 高 X 深)實體 (不含底座): 1763 x 1042 x 99 / 69.4 x 41.0 x 3.9
外箱尺寸 (mm / Inch): 1913 x 1225 x 280 / 75.3 x 48.2 x 11.0 - 重量淨重 (kg / lb): 58.5kg / 128.97lbs

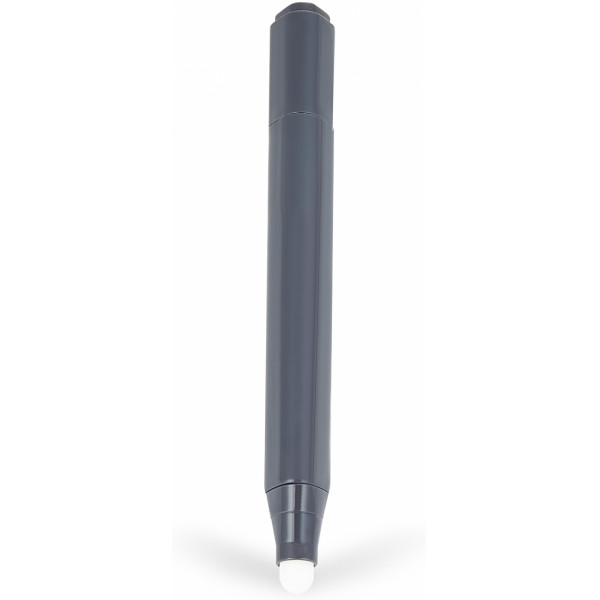

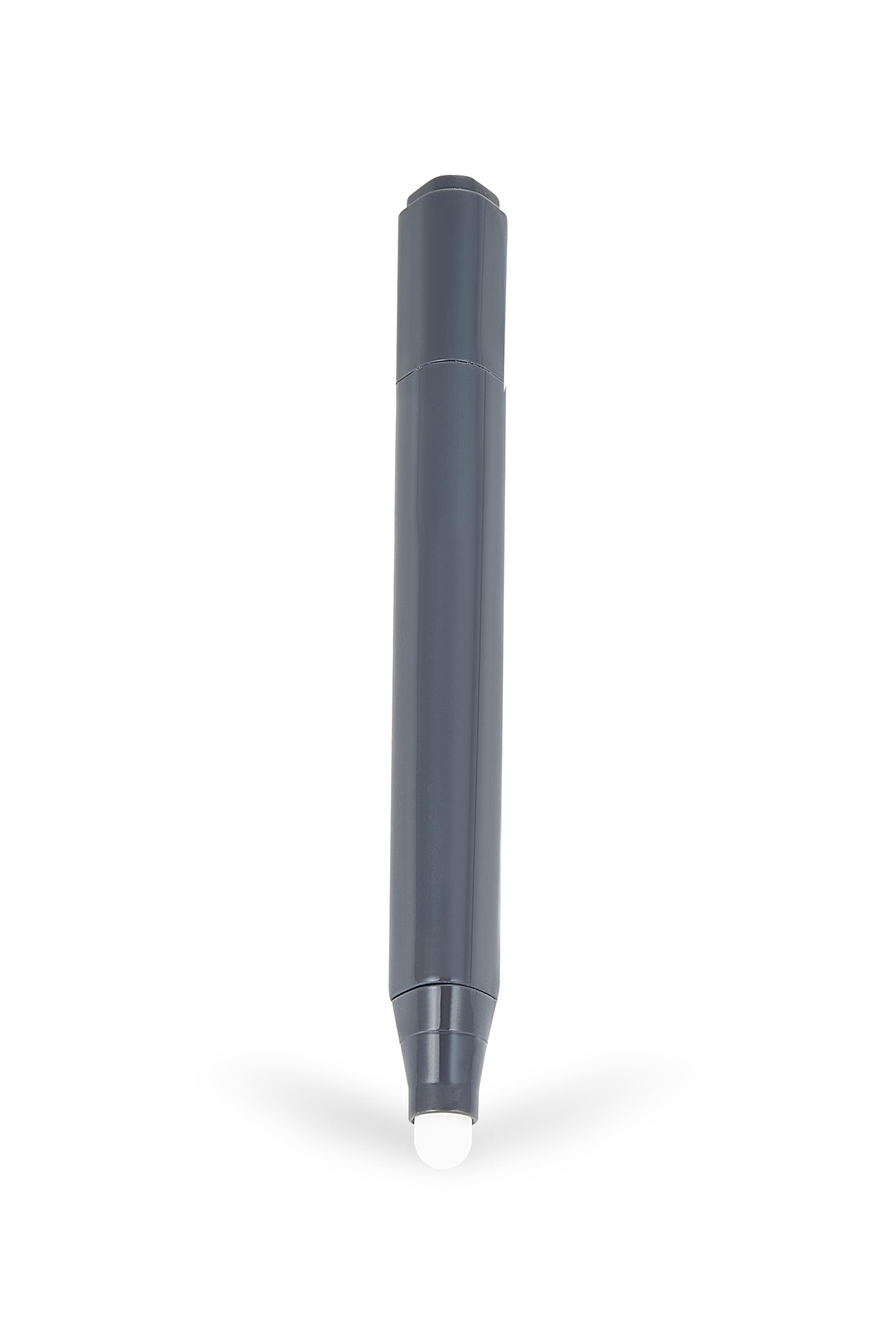

毛重 (kg / lb): 76kg / 167.55lbs - 包裝內容VGA cable(5 meters)//電源線(3 meters) x 4/遙控器/USB 線(3 meters)/聲音線(5 meters)/AV cable/觸控筆 x 3/CD導覽操作手冊/快速導覽/RS232 適配器/鉗 x 5/金屬骨固定裝置/螺旋丁 x 3
