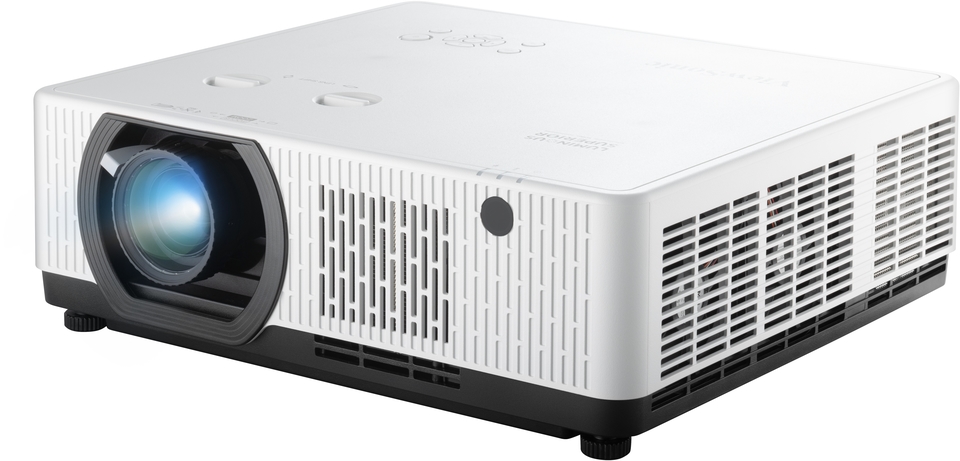

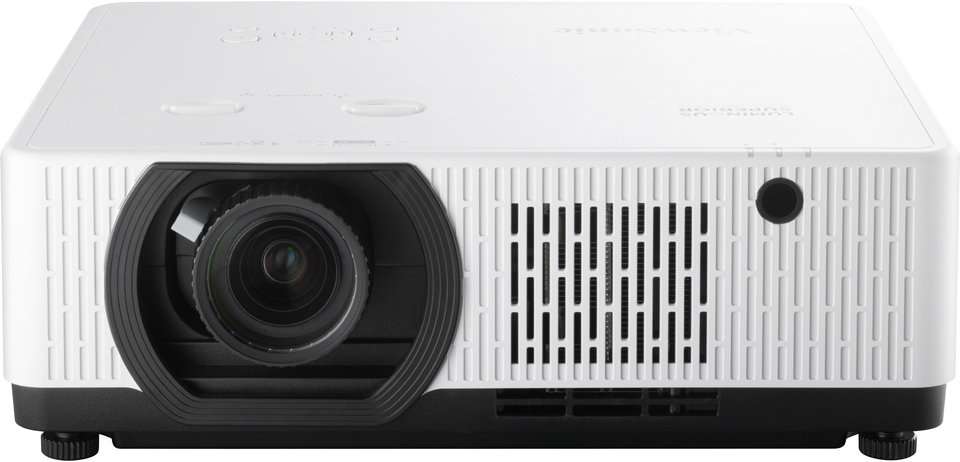

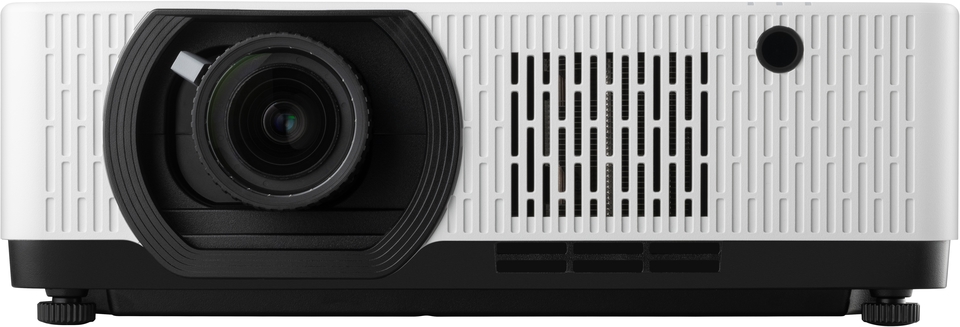

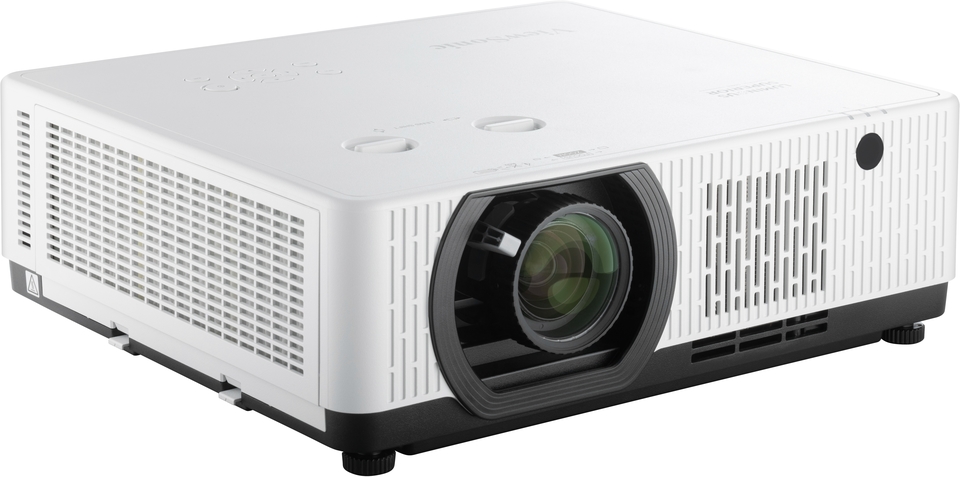

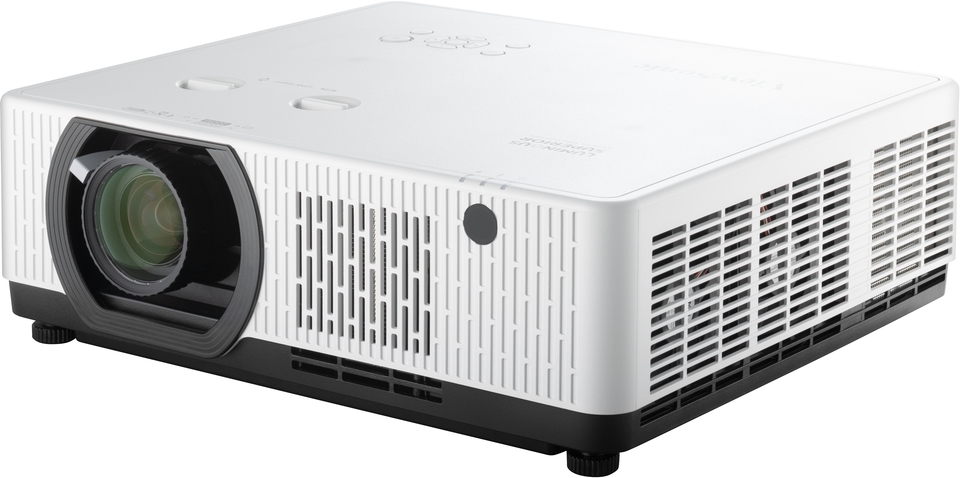

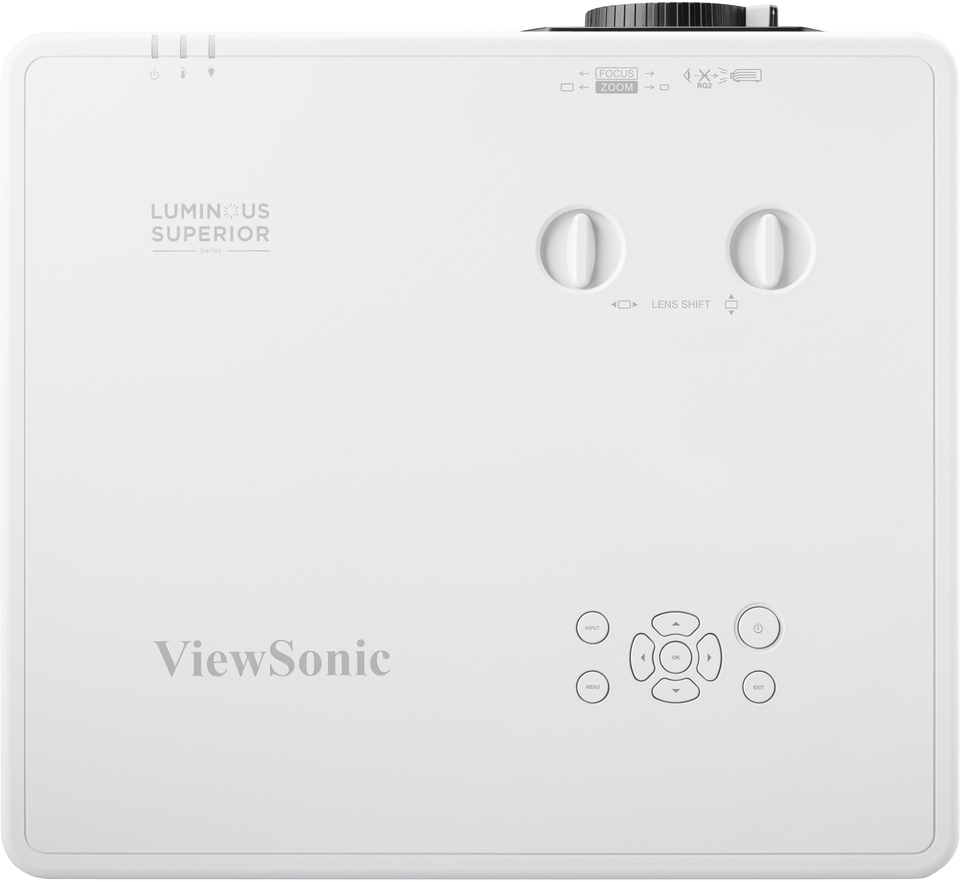

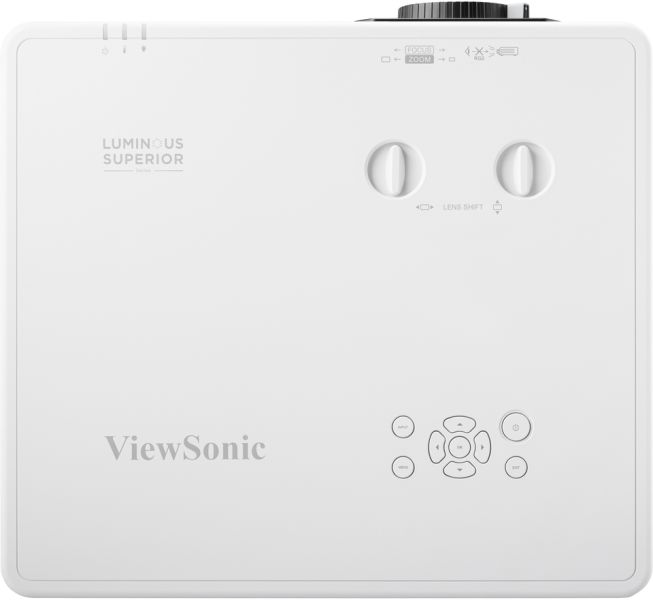

LSC700-4K

7,000 ANSI Lumens 4K Laser Installation Projector

  • 4K HDR professional-quality visuals
  • 7,000 ANSI Lumens offering bright images in any environment
  • Up to a 300" ultra-large screen with a lower cost-per-inch

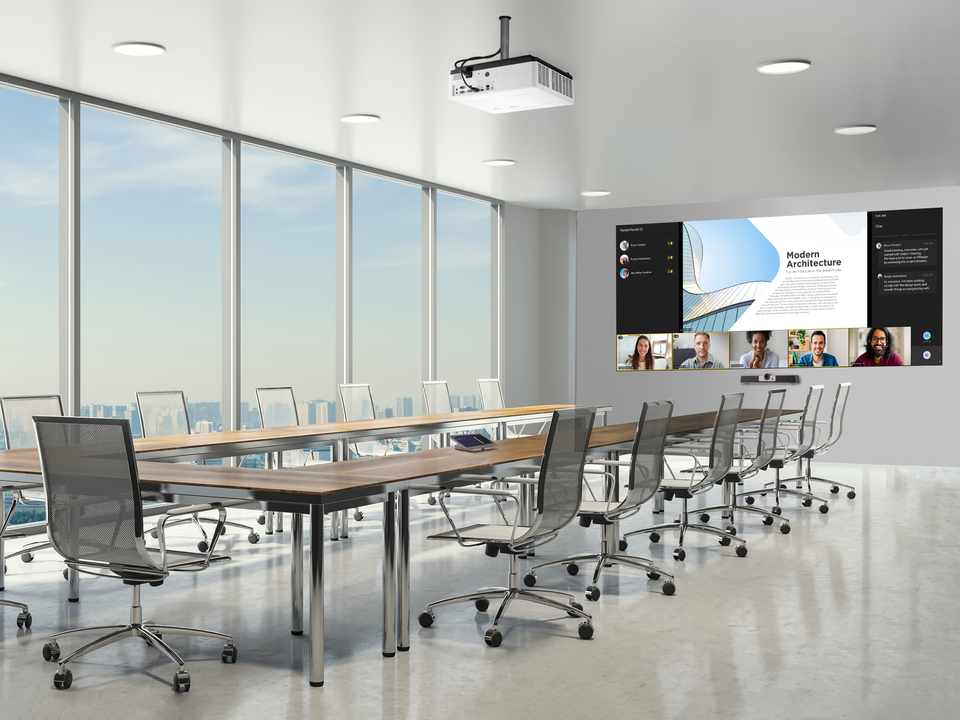

  • Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
  • Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
  • 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
  • Centralized LAN control for efficient management

規格


  • 規格資訊
    投影系統: 3LCD (3x0.64" with MLA)
    原始解析度: WUXGA with 4K Enhancement
    亮度: 7000 (ANSI Lumens)
    Brightness (Center Lumens): 7600
    對比率: 3000000:1
    Display Color: 1.07 Billion Colors
    光源類型: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    鏡頭: F=1.5-2.08, f=17.2-27.7mm
    投影偏移: 0%+/-5%
    投射比: 1.2-2.0
    光學變焦: 1.6X
    數位變焦: 1.0x-2.0x
    投影尺寸: 30"-300"
    投影距離: 0.80-13.35m
    (100"@2.66m)
    Keystone: H:+/-25° , V:+/-30°
    鏡頭垂直位移範圍: +66%, 0%
    鏡頭水平位移範圍: +29%, -29%
    噪音標準 (正常): 37dB
    Audible Noise (Eco): 26dB
    輸入延遲: 32ms
    支援解析度: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV 相容性: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    水平頻率: 15K-135KHz
    垂直掃描率: 24-85Hz

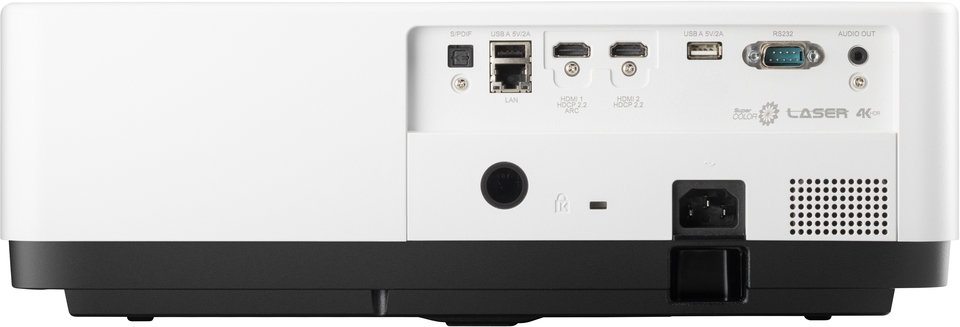

  • 輸入
    HDMI: 2
    (HDMI 2.0, HDCP 1.4/2.2)
    音源輸入 (3.5 mm): 1
    USB Type A: 2 (5V/2A)
    RJ45 Input (Internet): Yes
  • 輸出
    Audio-out (3.5mm): 1
    Audio-out (HDMI ARC): 1
    (Share with HDMI Input)
    S/PDIF: 1
    喇叭: 16W
    USB Type A (供電): 2
    (USB2.0 - 5V/2A,
    share with USB A Input)
