LS750WU

5,000 ANSI Lumens WUXGA Laser Installation Projector

  • 5,000 ANSI Lumens offering bright images in any environment
  • 2nd generation Laser Phosphor technology with 20,000 hours lifespan
  • 360° projection and 1.3x optical zoom for flexible installation
  • Cost-effective compact size
  • Throw ratio match for a hassle-free equipment upgrade
BUY Share

OVERVIEW

The ViewSonic LS750WU is a 5,000 ANSI Lumens WUXGA laser projector for installation. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. 1.3x optical zoom and 360° projection make for satisfying flexibility. In addition, the compact size and throw ratio match for a hassle-free equipment upgrade, ensuring the desired cost-effectiveness. The LS750WU serves as a reliable projector to ensure your installations are smooth and sound, especially ideal for medium-to-large meeting/training rooms and public displays.

High Brightness

Packed with 5,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.

5,000
ANSI Lumens

Ultra-high Contrast Ratio

Boasting a 3,000,000:1 ultra-high contrast ratio, even the finest shades of colour are enhanced – a key characteristic for delivering razor-sharp images.

3M:1 Contrast Ratio

2nd Generation Laser Phosphor Technology

The ViewSonic new laser projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent colour performance, lamp-free design, and instant on/off switch from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

2nd Generation Laser Phosphor Technology

Long-lasting Lifespan

Laser technology offers a lifespan up to 20,000 hours (4 hours per day for more than 13 years), delivering reliable long-term performance with no degradation in brightness over time so that your installations are consistently vibrant.

20,000 hours
Lifespan

Adaptable to any environment

Equipped with a 1.3x optical zoom lens, the projector provides mounting flexibility with a wider throw distance range.

1.3x Optical Zoom

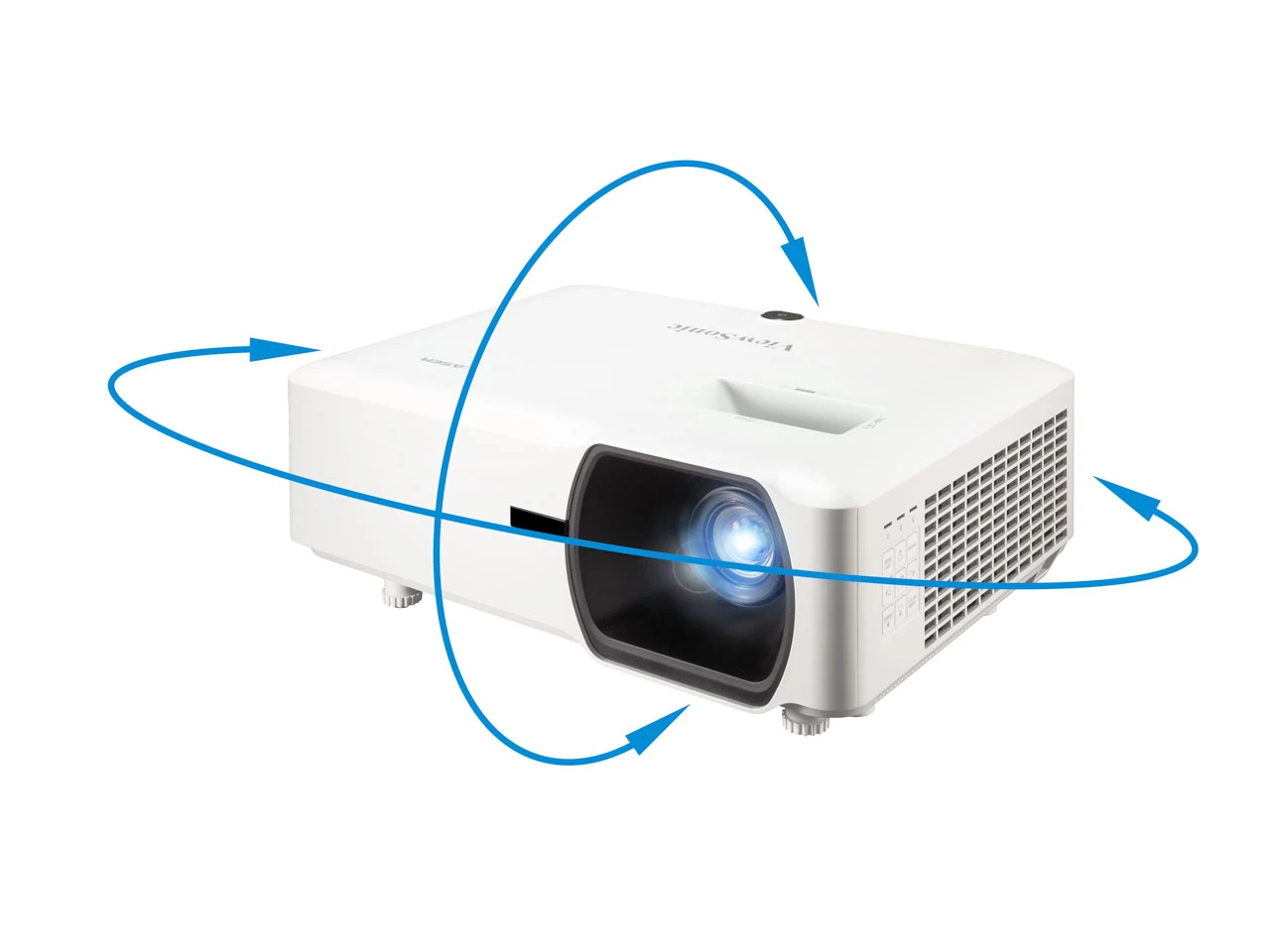

360° Creative Applications

The projector can freely rotate at any angle vertically to help with creative applications, allowing projection onto ceilings, walls, or angled signage.

360-degree
Projection

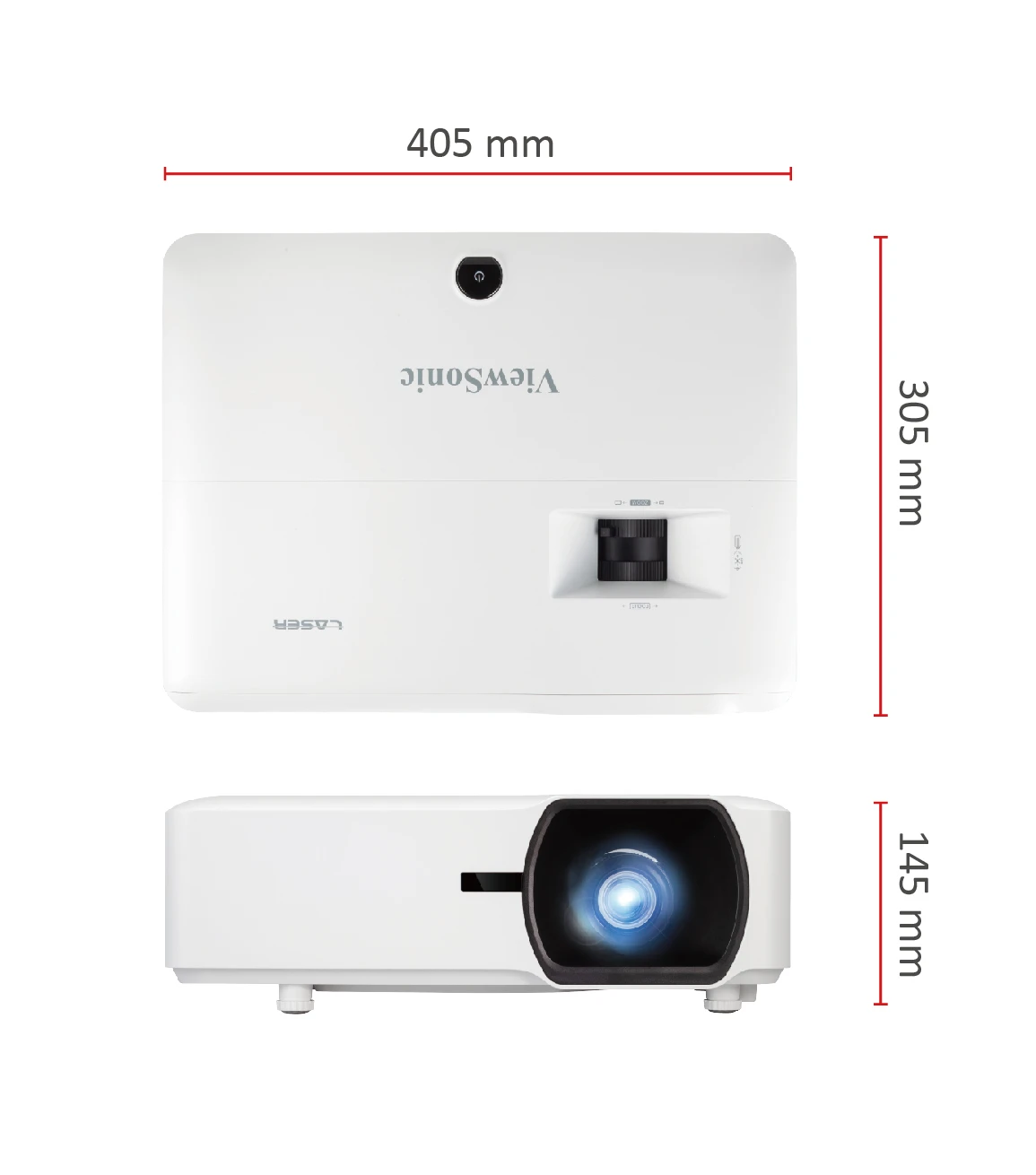

Lighter Weight and Compact Size

It is almost half the weight and 35% smaller in size compared to its predecessor, which reduces the cost of transportation and enhances the ease of installation.

Lighter Weight
Compact Size

Matching throw ratio for a hassle-free upgrade

With a throw ratio matching mainstream WUXGA installation conditions, the projector can be fitted to an existing ceiling mount and project an image within a pre-installed screen, perfect for a hassle-free equipment upgrade.

1.13-1.47 Throw Ratio

Non-stop 24/7 Operation

With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.

24/7 Operation

Network Management

This projector is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic vController, an easy-to-use network management tool.

LAN Control

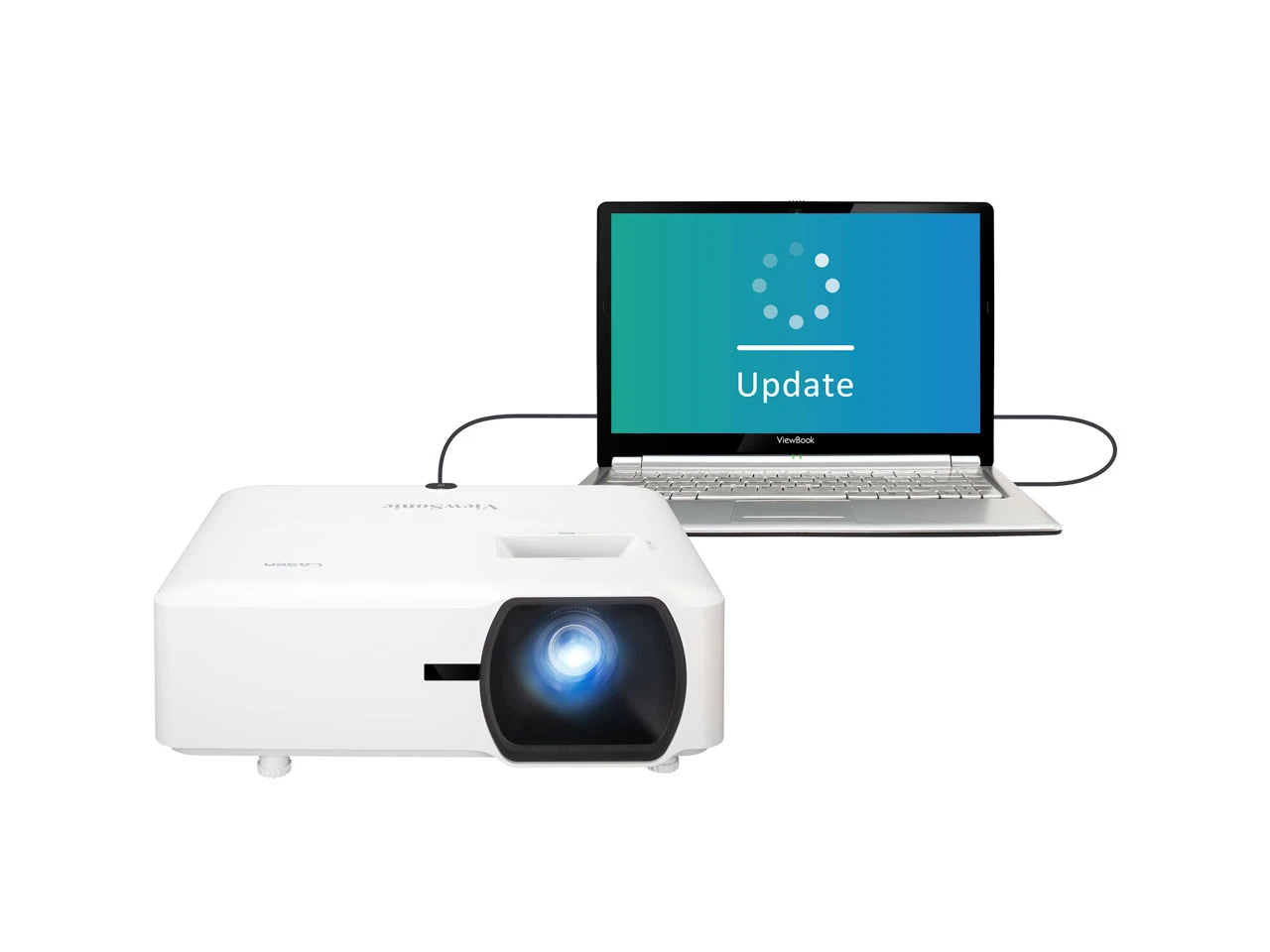

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service centre for software updates.

*The latest projector software update can be found in the download section at the bottom of the page when available.

Projector Software Update

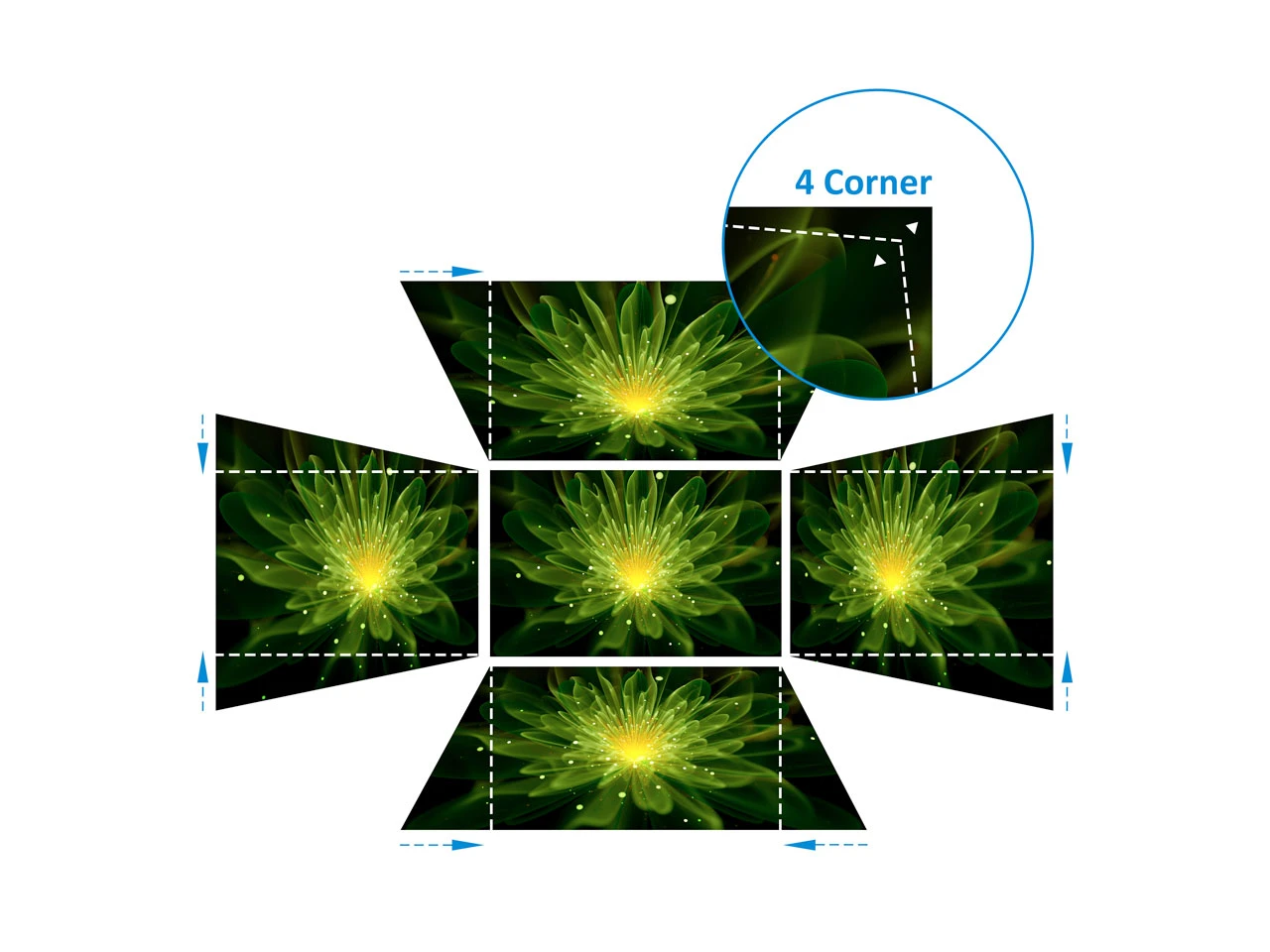

Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone
4 Corner Adjustment

Amazing Colour Accuracy

ViewSonic’s proprietary SuperColor™ Technology displays a wide colour range, ensuring that users enjoy a true-to-life colour performance in both bright and dark environments without sacrificing image quality.

SuperColor™
Technology

Sealed Optical Engine with IP5X

The advanced sealed optical engine prevents dust and moisture from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.

IP5X

Reduced Energy Consumption

When no signal has been detected, the projector will automatically power off to conserve energy and therefore prolongs its lifespan.

Auto Power Off

Energy Efficiency

Power Saving Mode allows users to extend the projector’s lifespan and minimise energy consumption. When in Power Saving Mode, the projector will automatically switch into SuperEco Mode whenever there is no signal input detected.

Power saving

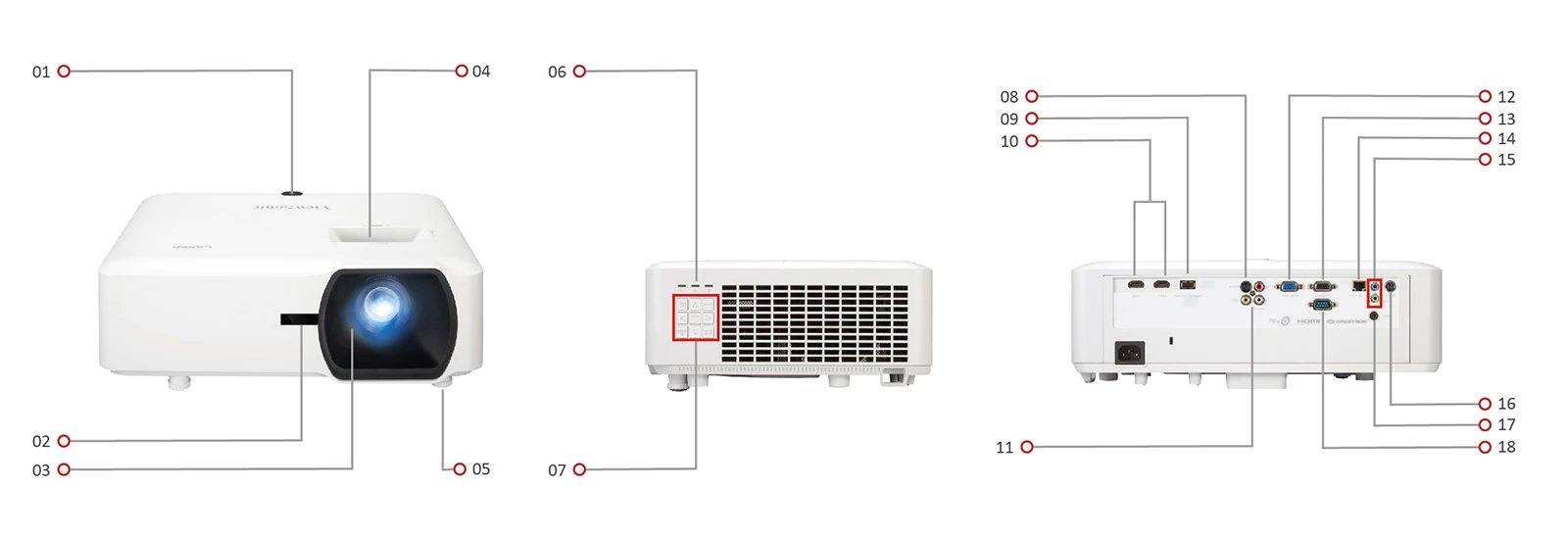

Exterior & Rear I/O Connectors

  1. Power Key & IR
  2. Front IR
  3. Lens
  4. Zoom/Focus Ring
  5. Adjustment Foot
  6. LED Indicator
  7. Keypad
  8. S-Video
  9. USB Type A(5V/1.5A)
  10. HDMI X 2
  11. Composite
  12. Computer In
  13. Monitor Out
  14. LAN
  15. Audio In & Out
  16. 3D VESA
  17. 12V OUT
  18. RS-232

SPECIFICATIONS


  • Specification
    Projection System: 0.48" WUXGA
    Native Resolution: 1920x1200
    Brightness: 5000 (ANSI Lumens)
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor system
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lamp Watt: Nichia 67W x2
    Lens: F=1.94-2.06, f=12-15.6mm
    Projection Offset: 100%+/-5%
    Throw Ratio: 1.13-1.47
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.73-9.50m
    (100"@2.43m)
    Keystone: H:+/-40° , V:+/-40°
    Audible Noise (Normal): 35dB
    Audible Noise (Eco) : 28dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • Input
    Computer in (share with component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    3D VESA (Sync): 1
  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W x2
    USB Type A (Power): 1 (5V/1.5A)
    12V Trigger (3.5mm): 1
