HB10B

The 1st HDBT dongle in the world

Sales Enquiry  Share

OVERVIEW

Take your digital video installations to new lengths with the high-performance, small form factor ViewSonic HB10B HDBT Transmitter and Receiver kit. Featuring the world’s first integrated HDMI connector, as well as a miniature form factor, the HDBT receiver seamlessly integrates into almost any display device with an HDMI input. Utilizing HDBT technology, the HB10B kit is capable of sending uncompressed ultra-HD audio & video, 100BaseT Ethernet, IR controls, and power from up to 70 meters away via network cable. With an integrated IR blaster and receiver ports, the HB10B kit lets you take control of your media equipment on both ends with bi-directional control. The HDBT receiver comes equipped with PoC and microUSB power, making it one of the most versatile receivers in the market. In addition to seamlessly integrating with almost any HDMI-based display devices such as televisions, large format displays, digital signage, etc., the HDBT receiver (Dongle type) also fits into any PortAll® compartment available on select ViewSonic projectors – enabling you to discreetly stream uncompressed multimedia content from set-top boxes, Blu-ray players, AV receivers and more.

Long Distance Video, Audio, and IR Control Transmission Solution

World's 1st HDBT Dongle

Featuring a miniature form factor, the HB10B receiver can be carried by installers easily, when deploying the Pro AV system in a large venue.

Extended Signal-Transmitted Application

Utilizing HDBT technology, this kit is capable of sending uncompressed HD video and audio via network cable – so it’s perfect for sending content over long distances to your display devices. Transmit 4K/2K video from up to 35 meters away, and transmit 1080p video from up to 70 meters away.

HDMI 3D Content and HDCP Compliance

With compliance to the HDMI specification, all audio and video transmitted, including 3D content, meets high-def standards for capacity, performance, resolution, and color. With HDCP compliance, data is encrypted when transmitted between the source and the display, thus preventing the possibility of illegal interception or copying of the data.

Seamless Installation with Display Devices

Featuring an integrated HDMI connector, as well as a miniature form factor, the HDBT receiver seamlessly integrates into almost any display device with an HDMI input. This includes televisions, large format displays, digital signage, and projectors.

Command Remote Multimedia Devices

Through IR extended cables, the integrated IR blaster and receiver ports allow you to take control of your media equipment on both ends with bi-directional control.

Discretely Streaming Fit into ViewSonic Projector PortAll®

ViewSonic's exclusive PortAll® feature is a hidden compartment with an integrated and secure MHL/HDMI port that lets you discretely stream multimedia content from the HB10B.

SPECIFICATIONS


  • Connectivity
    Transimitter: HDMI in x1 / HDBT x1 (LAN) / IR receiver x1(3.5mm) IR Blaster x1 (3.5mm) / Power socket x1 (with lock)
    Receiver: HDMI out x1 / HDBT x1 (LAN) / IR receiver x1(3.5mm) IR Blaster x1 (3.5mm) / Power socket x1 ( by Micro USB)
  • Compatibility
    Support Output Resolution
    (by Cat 5e/6/6a/7):     HDMI: 1080P up to 70m
    HDMI: 4K/2k@30 up to 40m
    HDCP / CEC compliant
  • Power
    Transmitter: 100~240VAC @ 50/60Hz, 12V/1A output (power adaptor)
    Power consumption: 3W (Maximum)
    Receive: from Transmitter or USB power (5V/1.5A)
    Power consumption: 7W (Maximum)

COMPATIBLE WITH HB10B

LS500WHE

3,000 ANSI Lumens WXGA LED Business/Education Projector

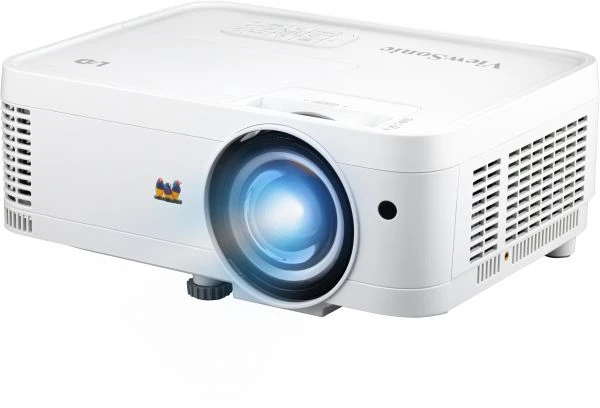

LS550WHE

3,000 ANSI Lumens WXGA Short Throw LED Business/Education Projector

LS560WE

3,200 ANSI Lumens WXGA Short Throw LED Business/Education Projector

LS560WHE

3,200 ANSI Lumens WXGA Short Throw LED Business/Education Projector

LS600W

3,000 ANSI Lumens WXGA LED Business/Education Projector

LS600WE

3,800 ANSI Lumens WXGA LED Business/Education Projector

LS610WHE

4,500 ANSI Lumens WXGA LED Business/Education Projector

LS711HD

4,200 ANSI Lumens 1080p Short Throw Laser Installation Projector

LS711W

4,200 ANSI Lumens WXGA Short Throw Laser Installation Projector

LS740HD

5,000 ANSI Lumens 1080p Laser Installation Projector

LS740W

5,000 ANSI Lumens WXGA Laser Installation Projector

LS741HD

5,000 ANSI Lumens 1080p Laser Installation Projector

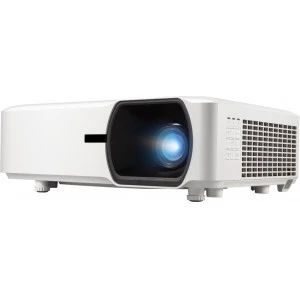

LS750WU

5,000 ANSI Lumens WUXGA Laser Installation Projector

LS751HD

5,000 ANSI Lumens 1080p Laser Installation Projector

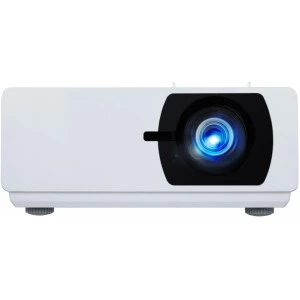

LS800HD

5000 Lumens Laser Light Projector

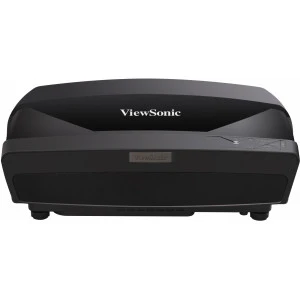

LS810

5,200 Lumens Installation Projector

LS832WU

5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector​

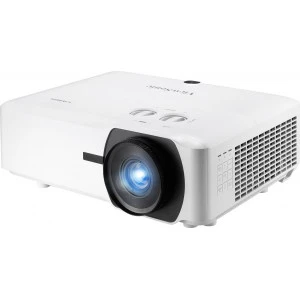

LS850WU

5,000 ANSI Lumens WUXGA Installation Projector

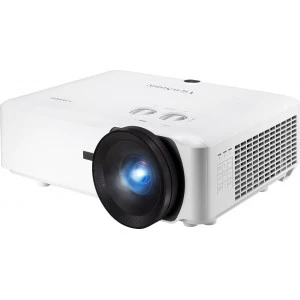

LS860WU

5,000 ANSI Lumens WUXGA Installation Projector

LS901-4K

5,500 ANSI Lumens 4K HDR Laser Installation Projector​

LS901HD

6,000 ANSI Lumens 1080p Laser Installation Projector​

LS920WU

6,000 ANSI Lumens WUXGA Laser Installation Projector

LS921WU

6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector

LS950WU

7,100 ANSI Lumens WUXGA Laser Installation Projector

LS951WU

8,000 ANSI Lumens Short Throw WUXGA Laser Installation Projector

LS960WU

8,500 ANSI Lumens WUXGA Laser Installation Projector

LX60HD

1080p Smart LED Projector with Built-in Google TV

LX700-4K

3,500 ANSI Lumens 4K Laser Home Projector​

M1 Max

1080p Smart LED Portable Projector with Built-in Google TV

M10

Portable RGB Laser Smart Projector with Harman Kardon Speaker​

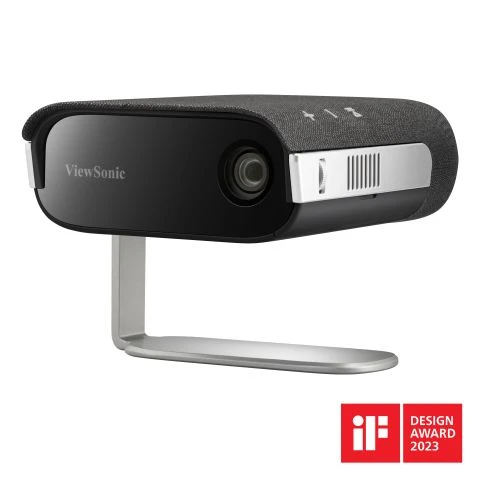

M1X

Smart LED Portable Projector with Harman Kardon Speakers​​

PA700S

4,500 ANSI Lumens SVGA Business & Education Projector

PA700W

4,500 ANSI Lumens WXGA Business & Education Projector​

PA700X

4,500 ANSI Lumens XGA Business & Education Projector​

PG707W

4,000 ANSI Lumens WXGA Business/Education Projector

PS502W

4,000 ANSI Lumens WXGA Short Throw Business & Education Projector​

PS502X

4,000 ANSI Lumens XGA Short Throw Business & Education Projector

PX701-4K

3,200 ANSI Lumens 4K Home Projector

PX704HD

4,000 ANSI Lumens 1080p Home & Business Projector

PX749-4K

4,000 ANSI Lumens 4K Home Projector​

SP3

4,800 ANSI Lumens SVGA Business Projector

SP6

4,800 ANSI Lumens XGA Business Projector

SP7

4,800 Lumens WXGA Business Projector

T46W

5,000 ANSI Lumens WXGA Business & Education Projector​

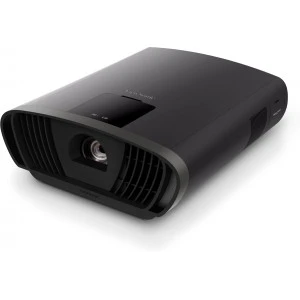

X100-4K+

4K UHD Home Cinema LED Projector

X1000-4K+

4K HDR Ultra Short Throw Smart LED Soundbar Projector

X11-4KP

4K HDR Short Throw Smart Portable LED Projector

X2

3,100 LED Lumens Full HD Short Throw Smart LED Home Projector

X2-4K Pro

4K HDR Short Throw Smart LED Home Projector​ with Built-in Google TV

X2000B-4K

4K HDR Ultra Short Throw Smart Laser Projector
