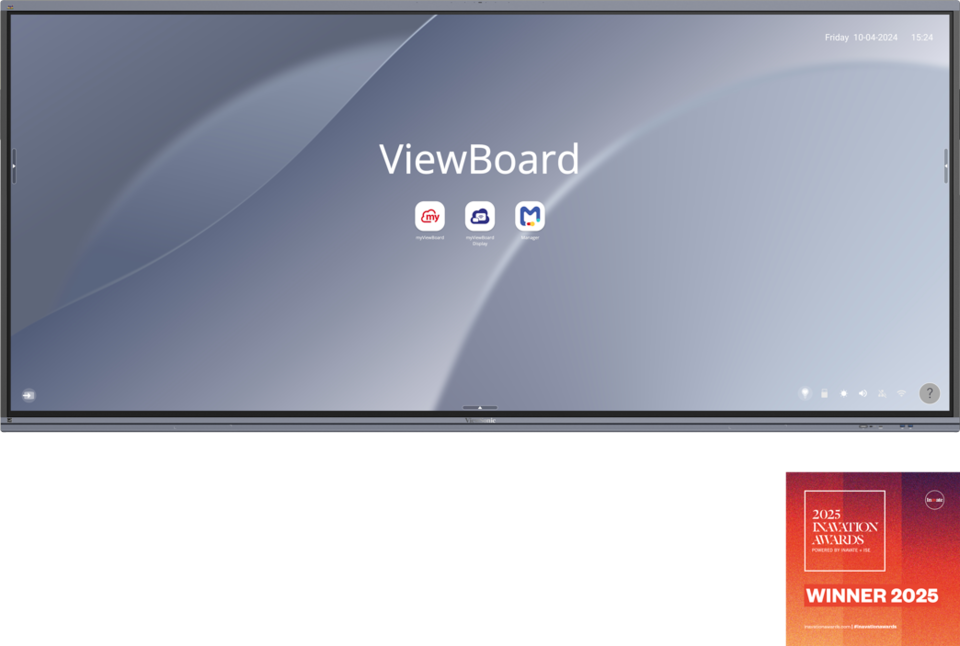

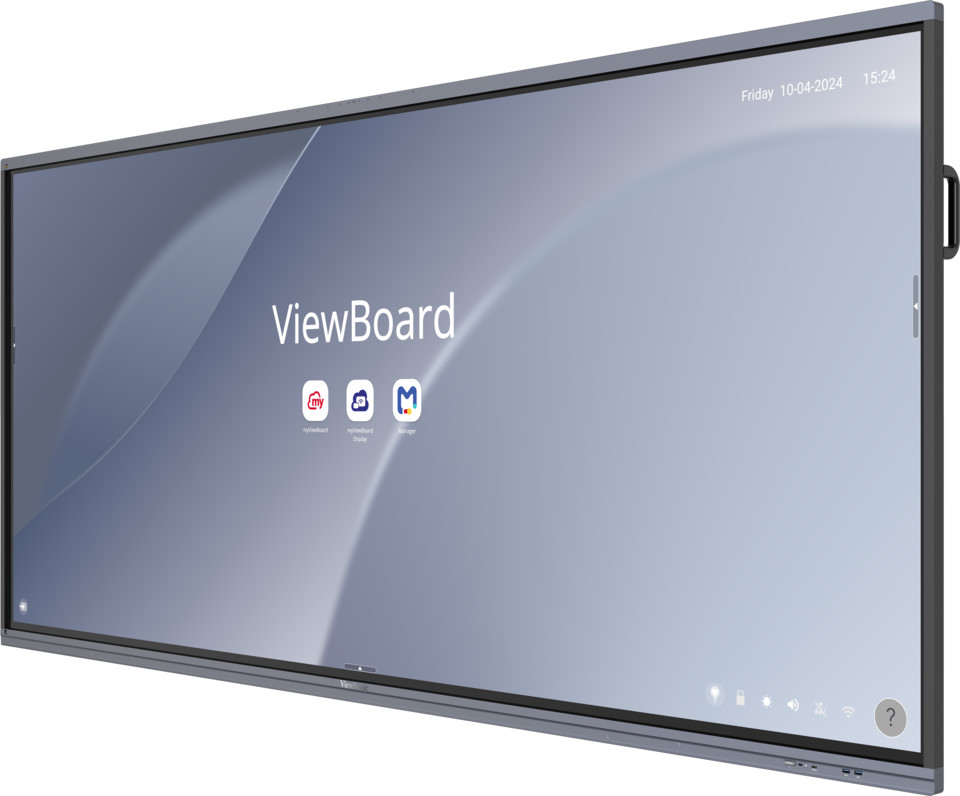

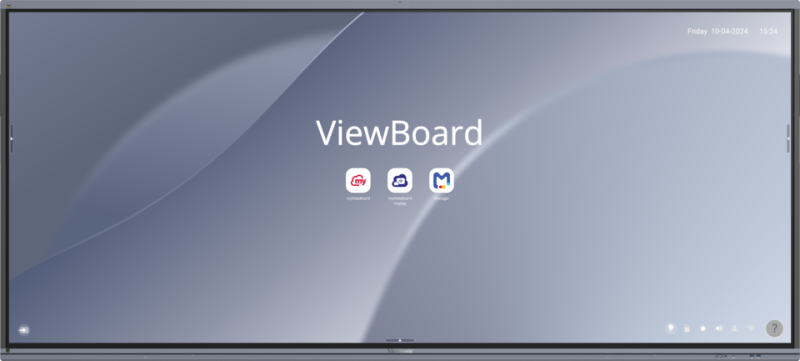

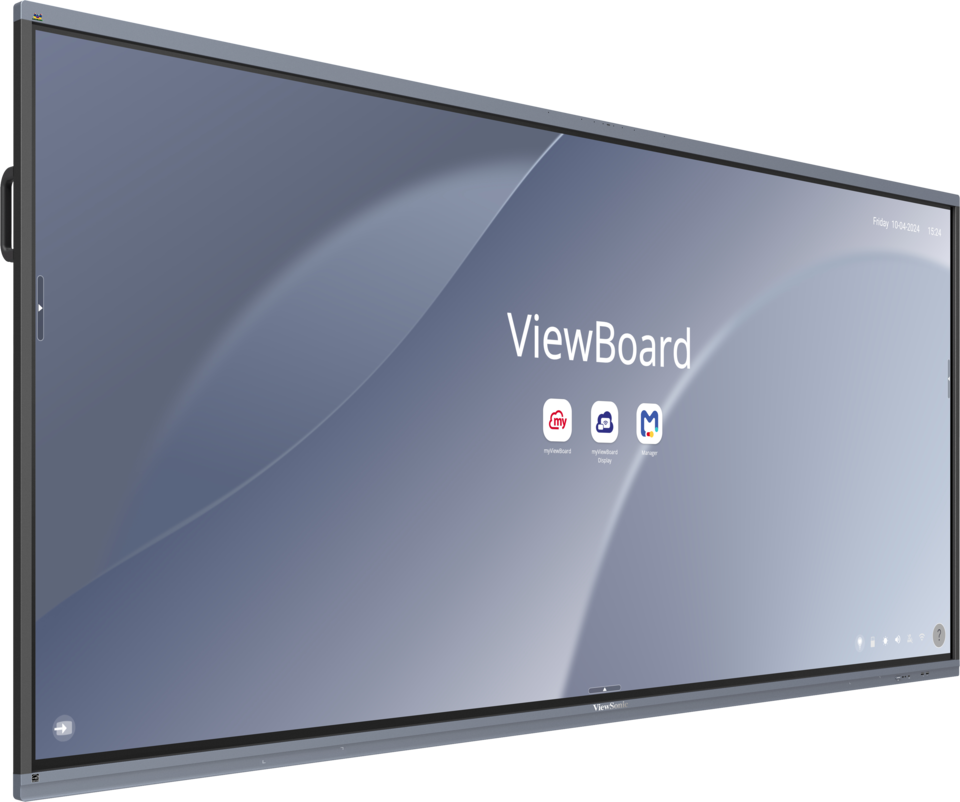

ViewBoard IFP105UW

ViewBoard® 105" 5K Interactive Display

  • Seamless video conferencing with comprehensive 8-mic array
  • Pen-on-paper writing experience with Ultra Fine Touch Technology, up to 40 touch point
  • Effortless wireless screen sharing of up to 9 devices with vCast
  • USB-C ports for enhanced productivity
Pytanie dotyczące sprzedaży  udostępnić

PRZEGLĄD

The ViewBoard IFP105UW delivers an expansive interactive experience with its 21:9 aspect ratio and stunning 5K resolution. The 105” display allows for multitasking with split-screen functionality, enhancing collaboration and productivity. With highly responsive 40-point touch capabilities, every input is registered naturally and intuitively. Enjoy seamless wireless screen casting and sharing through vCast. Designed for both in-person and hybrid collaboration, the ViewBoard IFP105UW is an ideal solution for meeting rooms, enabling seamless presentations, ideation, and decision-making.

Make Space for Collaboration

ViewBoard® IFP105UW

Seamless Integration to Any Collaborative Spaces

Co-working Space
Meeting Room
Lecture Hall

Immersive Visuals

Seamless Collaboration

Enhanced Productivity

Centralized Device Control

Immersive Visuals

Transform Collaboration with Ultra-high Resolution

Elevate your meetings with the future-ready 5K resolution of the ViewBoard IFP105UW, delivering stunning visuals and precise details. With its higher pixel density, you can present with unparalleled clarity, collaborate with precision, and effortlessly interact with content in ultra-high resolution.

Ultrawide Collaborative Display

Create a forward-looking collaborative environment with an impressive 105” interactive screen that features a landscape 21:9 aspect ratio, providing you with expansive room for seamless teamwork.

Seamless Collaboration

Empower Hybrid Meeting

Purpose-built for hybrid meetings, the ViewBoard IFP105UW offers abundant space to fully leverage advanced video conferencing features like Front Row or Gallery Mode in Zoom Rooms and Teams Rooms, while allowing for clear presentations, seamless chat, and effortless file sharing.

Crystal-clear Hybrid Communication

Complete with powerful speakers and an 8-microphone array with acute background noise detection and reduction, the ViewBoard IFP105UW enables seamless communication during all video conferences and presentations.

Simultaneous Input for Enhanced Collaboration

The ViewBoard IFP105UW takes team collaboration to a new level. With 40 touch points, multiple individuals can simultaneously write on-screen content using their fingers or a stylus, fostering group brainstorming sessions and compelling presentations.

Efficient Multi-screen Multitasking

Enhance meetings and collaborative sessions with multi-window and split-screen modes. Use multi-window mode to display up to 4 windows simultaneously for a comprehensive document overview during brainstorming. Sketch on the board or share resources while monitoring the ongoing video conference side by side in split-screen mode.*

*Split-screen mode supports only embedded apps. Multi-window mode allows one embedded app and one source input.

Comprehensive Wireless Screen Sharing

Don’t waste valuable meeting time on setup. Enjoy instant, simultaneous wireless screen sharing of up to 9 devices through vCast for effective communication and efficient collaboration during team meetings.

Enhanced Productivity

User-centric Design

The user-centric design of the ViewBoard IFP105UW ensures easy access to all I/O ports. The front panel features two USB slots for quick connection and switching between flash drives, and the versatile connectivity is complete with one front-facing and one side-facing USB-C port. Simply plug in your laptop to either one of them and instantly benefit from power charging, fast data transfer, multimedia broadcasting, and ethernet.

Maximize Productivity with Integrated Windows Experience

Unlock new productivity possibilities and work in the familiar Windows OS by coupling the ViewBoard with an optional slot-in PC. Equipped with dual-band Wi-Fi, Bluetooth, a powerful Intel® Core™ CPU, abundant memory, and ample data storage, this module delivers solid computing performance to support even the most demanding applications.

Enhance Collaboration With a Customized Meeting Space

Tailor your meeting space to match your workflow and meeting requirements by customizing the ViewBoard with various compatible add-ons such as a conference camera, expansion microphone, slot-in PC, Wi-Fi module, AirPen, and more.

Conferencing Camera

VB-CAM-201

All-in-one 4K conference camera with a 121° super wide-lens and a powerful built-in microphone.

Slot-in PC

VPC35/VPC37 Series

The Slot-in PC with Intel® processors enhances ViewBoard intelligent computing performance and supports Windows OS.

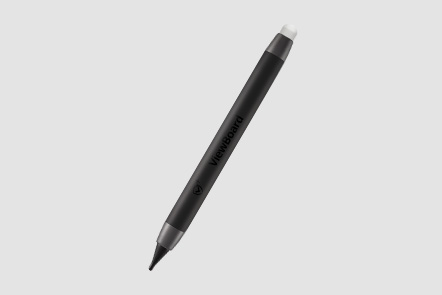

Stylus

VB-PEN-002

Dual-tip stylus with sleek design for intuitive drawing and writing.

Wi-Fi Module

VB-WIFI-004

The wireless module delivers a fast internet connection to smoothly stream video conferences.

Trolley Cart

VB-STND-009

Height-adjustable and stable trolley cart with 360° silent wheels for easy mobility.

Centralized Device Control

Powerful Remote Management

The built-in ViewSonic® Manager software empowers IT teams and administrators to centrally manage one or multiple ViewBoards. It enables automatic on/off scheduling to reduce power consumption, multimedia message broadcasting, quick troubleshooting, and facilitates issue resolution. Additionally, it allows for remote optimization of device configurations based on real-time usage reports.*

*Optional ViewSonic® Manager Advanced subscription is required for certain functionalities.

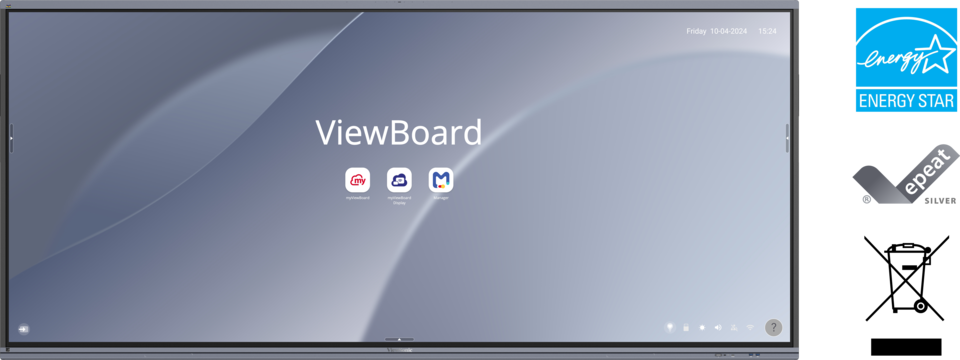

Energy-efficient Solution

Dedicated to sustainability, ViewSonic is actively working to incorporate advanced energy efficiencies and eco-friendly concepts throughout its product lines. The ViewBoard IFP105UW has achieved EPEAT Silver and Energy Star 8.0 certifications, meeting the required criteria for energy consumption, supply chain carbon emissions, and end-of-life management.

Dimensions & I/O Ports

  1. Power
  2. USB Type-C 2
  3. USB3.0
  4. USB3.0
  5. VESA® Wall Mount (1000x400 mm)
  6. USB3.0
  7. USB3.0
  8. Slot-in PC
  9. AC Power
  10. WiFi Slot
  11. SPDIF
  12. LAN
  13. RS232
  14. Touch 3
  15. USB 2.0
  16. HDMI 1
  17. DP IN
  18. Touch 1
  19. Audio In
  20. Audio Out
  21. USB 3.0
  22. USB 3.0
  23. HDMI Out
  24. Touch 2
  25. HDMI 2
  26. HDMI 3
  27. HDMI 4
  28. USB Type-C 1

DANE TECHNICZNE


  • Wyświetlacz
    Rozmiar panelu: 105"
    Typ panelu: TFT LCD Module with DLED Backlight, VA
    Obszar wyświetlania (mm): 2449.92(H) x 1033.56 (V) (104.6”diagonal)
    Proporcje obrazu: 21:9
    Rozdzielczość: WUHD 5120x2160(Pixels)
    Colors: 1.07B colors
    Jasność: 400 nits (typ.)
    Współczynnik kontrastu: 4000:1(Typ.)
    5000:1(Max. with DCR enabled)
    Czas reakcji: 6.5ms
    Kąty widzenia: H = 178, V = 178 (Typ.)
    Czas pracy podświetlenia: 30,000 Hours (Min.)
    Obróbka powierzchni: Panel Hard Coating 3H
    Glass Anti-Glare 7H
    Ramka: 19.5/19.5/29.8/41.2 mm
    Orientacja: Landscape
  • PLatforma
    Procesor: Octa-Core CPU (A76*4 + A55*4)
    RAM: 8GB LPDDR
    Pamięć masowa: 128GB eMMC
  • Touch
    Rodzaj/Technologia: IR Recognition
    Czułość dotyku: 32767 x 32767
    Punkt dotyku: Windows: 40 Android: 20
