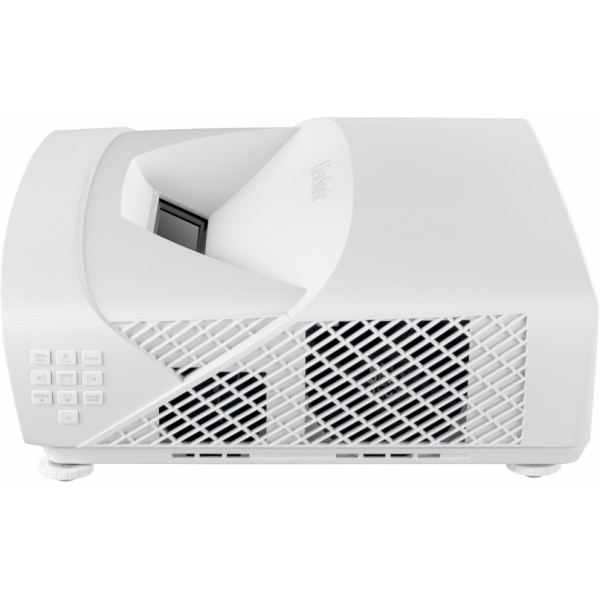

LS831WU

4,500 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector

  • 0.25 ultra short throw for space saving installation
  • 2nd generation Laser Phosphor technology with 20,000 hours lifespan
  • 4,500 ANSI Lumens offering bright images in any environment
  • Cost-effective built-in HDBaseT receiver
  • Creativity realized by 360° projection
Pytanie dotyczące sprzedaży  udostępnić

PRZEGLĄD

ViewSonic’s LS831WU is an advanced 4,500 ANSI Lumens WUXGA ultra short throw installation projector perfect for public and commercial display applications. With a 0.25 throw ratio, users can easily get 100” screen from only 21 cm away. Screen size can further be expanded to up to 150" at a lower cost-per-inch compared to commercial displays. Adopting the 2nd generation laser phosphor technology, it offers consistent high brightness for a reliable 20,000 hours lifespan. Built-in HDBaseT receiver and 360° projection capability together ensure the ease of use desired. The embedded 20W cube speakers offer powerful audio right out of the box with three fine-tuned audio modes suitable for different application scenarios.

Maximum Space Saving

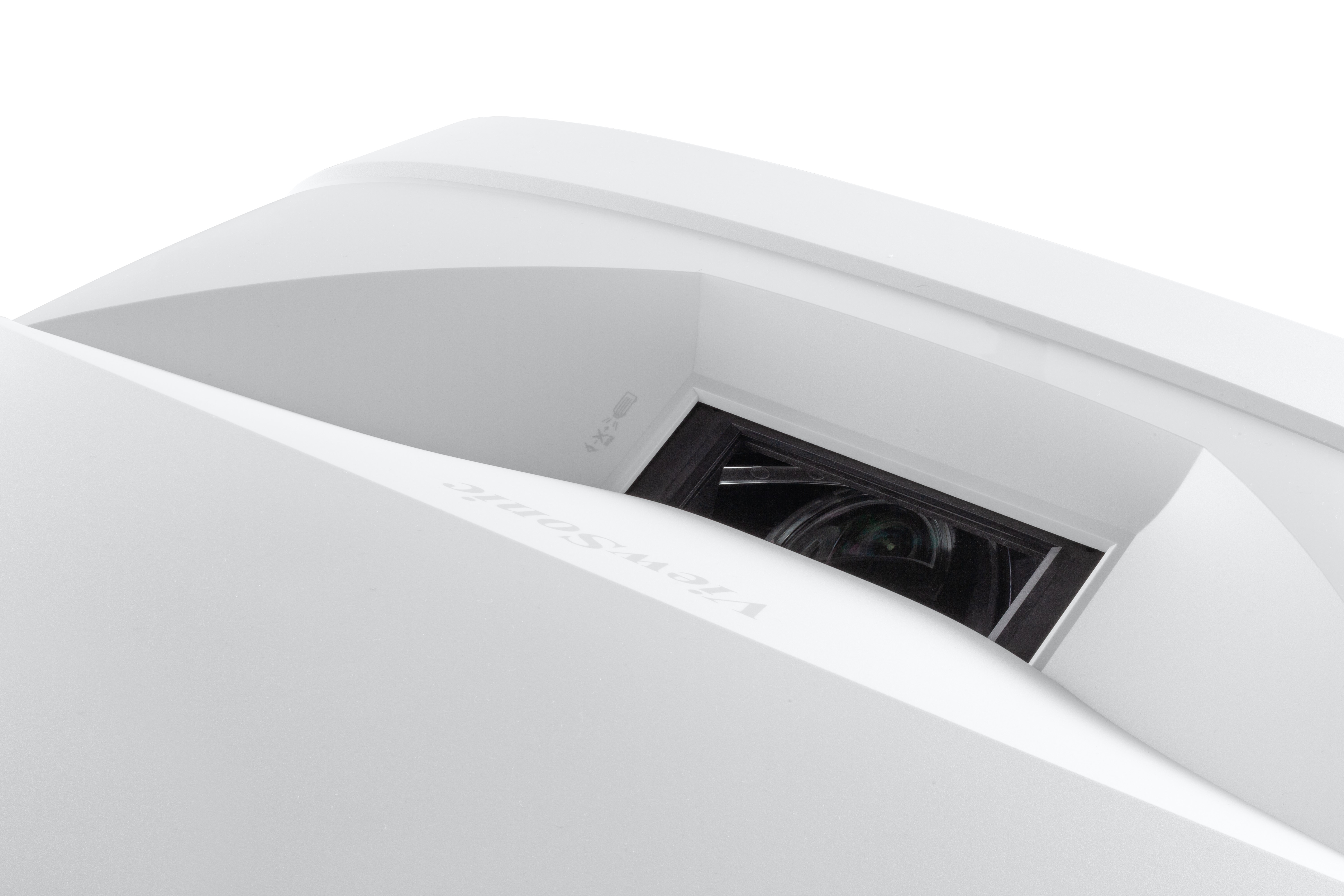

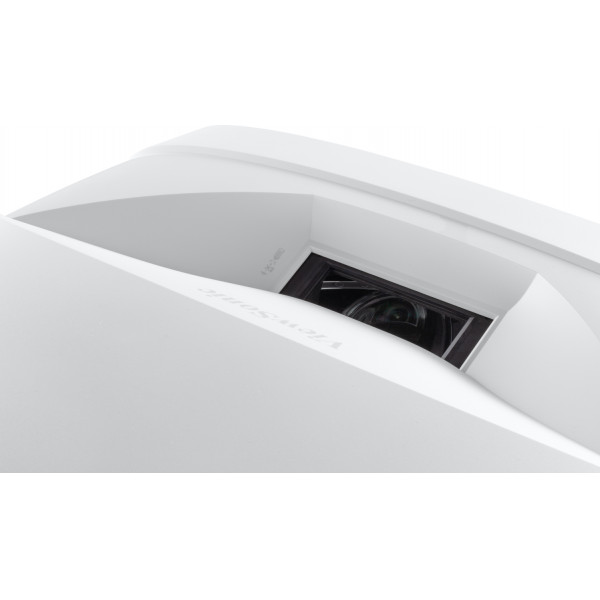

The 0.25 ultra-short throw lens allows for projecting a 100” image from only 21 cm away. Save your space!
0.25 Ultra-short Throw

Upgraded Performance

Thanks to 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent color performance, lamp-free design and instant on/off switch.
Brighter, Smaller, Safer

Reliable Long-term Performance

The laser technology offers a maintenance-free lifespan up to 20,000 hours (4 hours per day for more than 13 years). And the cooling design enables 24/7 operation without degradation of quality or performance.

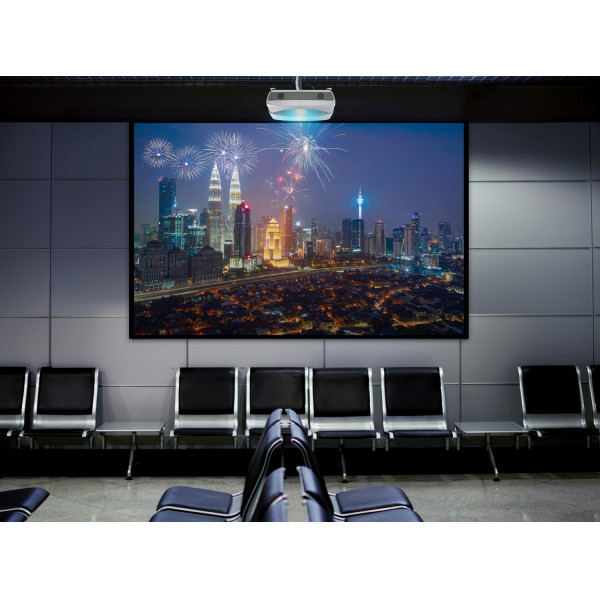

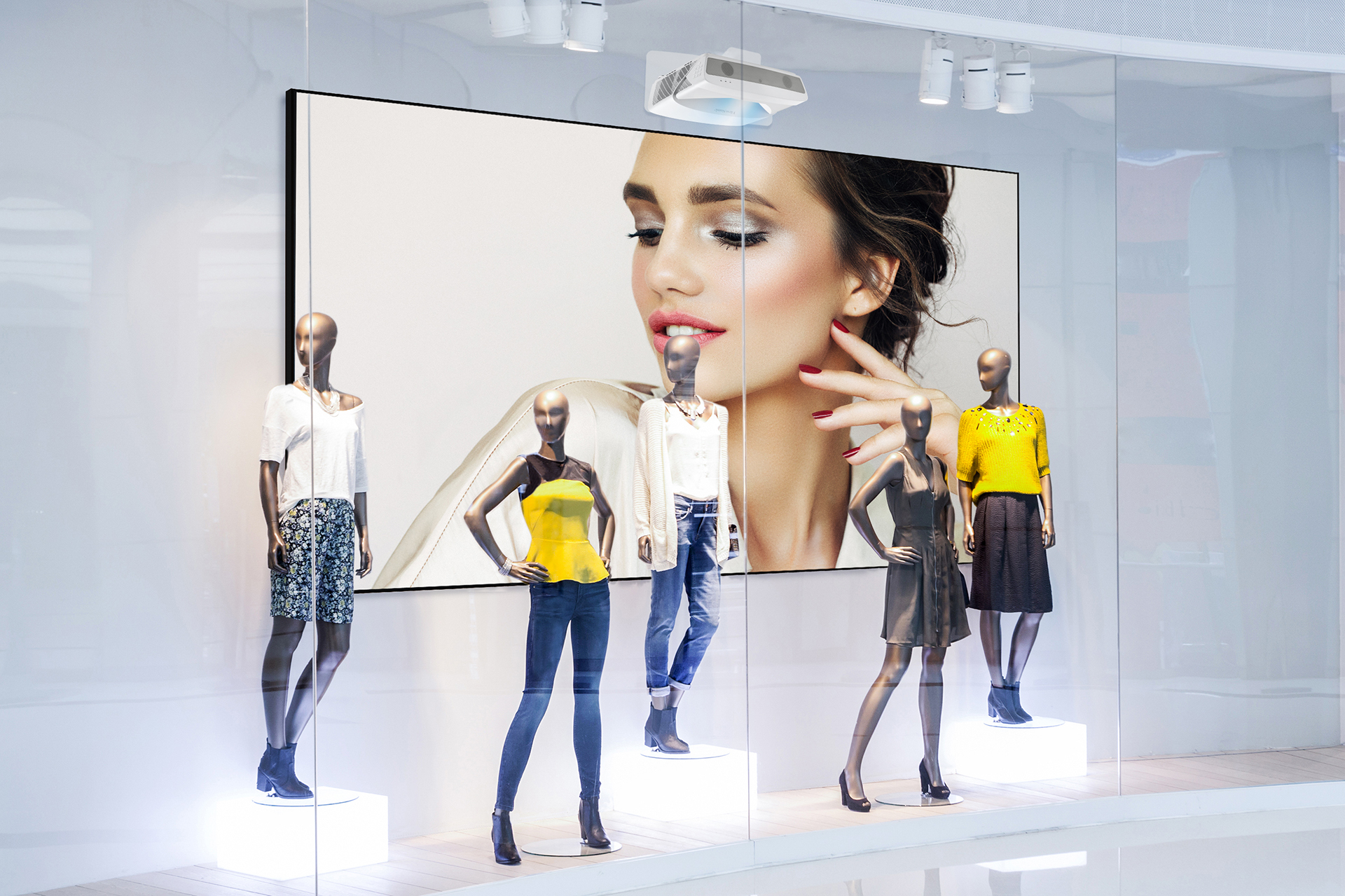

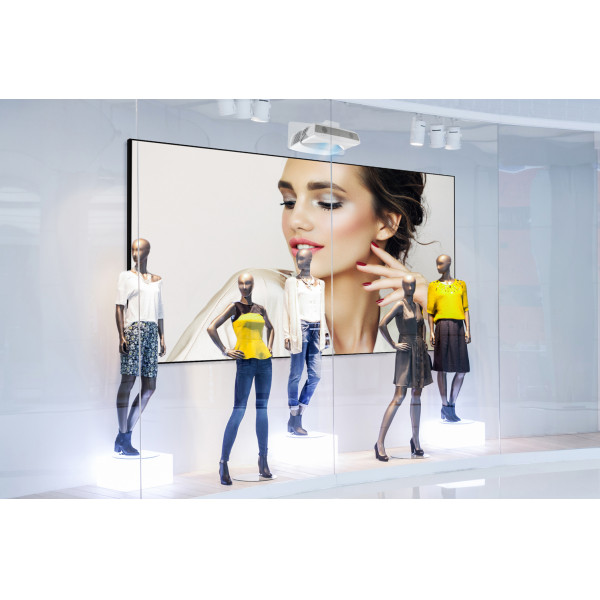

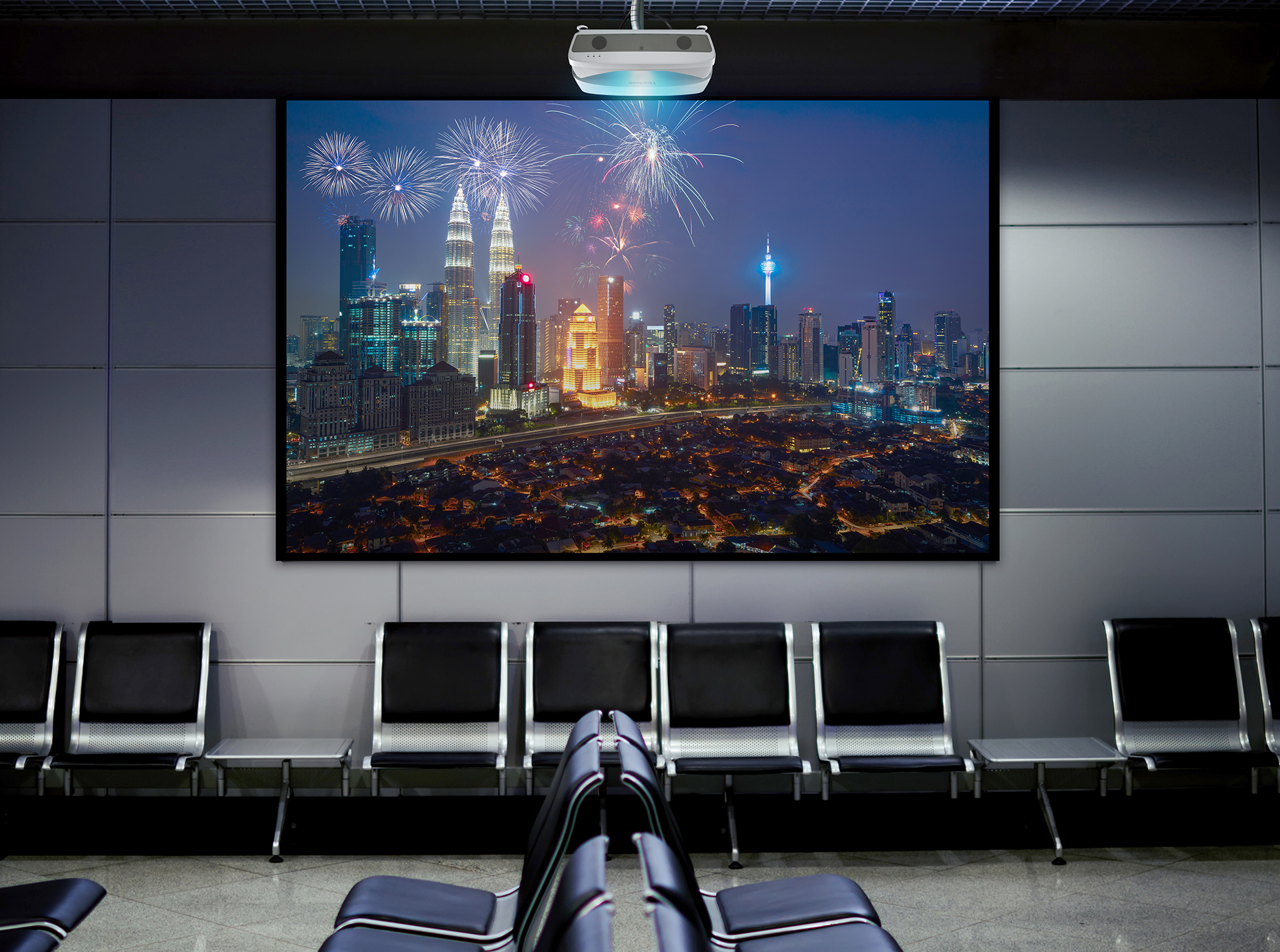

Bright Images for Public/Commercial Display

Packed with 4,500 ANSI Lumens and 3,000,000:1 contrast ratio, this projector can deliver bright and razor-sharp images in open spaces with high ambient light.

Larger Screen Size with Lower Cost-per-inch

Flexible installation and effortless transportation of the projector to show a 100’’ screen in comparison to 4-way split images on 4 commercial displays that requires more manpower and money.

Cost-effectively Receive AV Signal over Long Distance

With an integrated HDBT receiver, this projector can receive uncompressed HD video and audio over long distances (100 m for 1080p) via a Cat.5e/6 single network cable.

360° Creative Applications

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

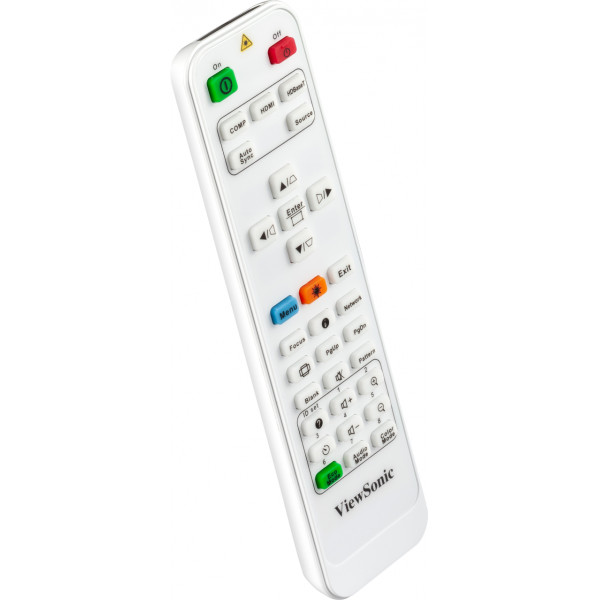

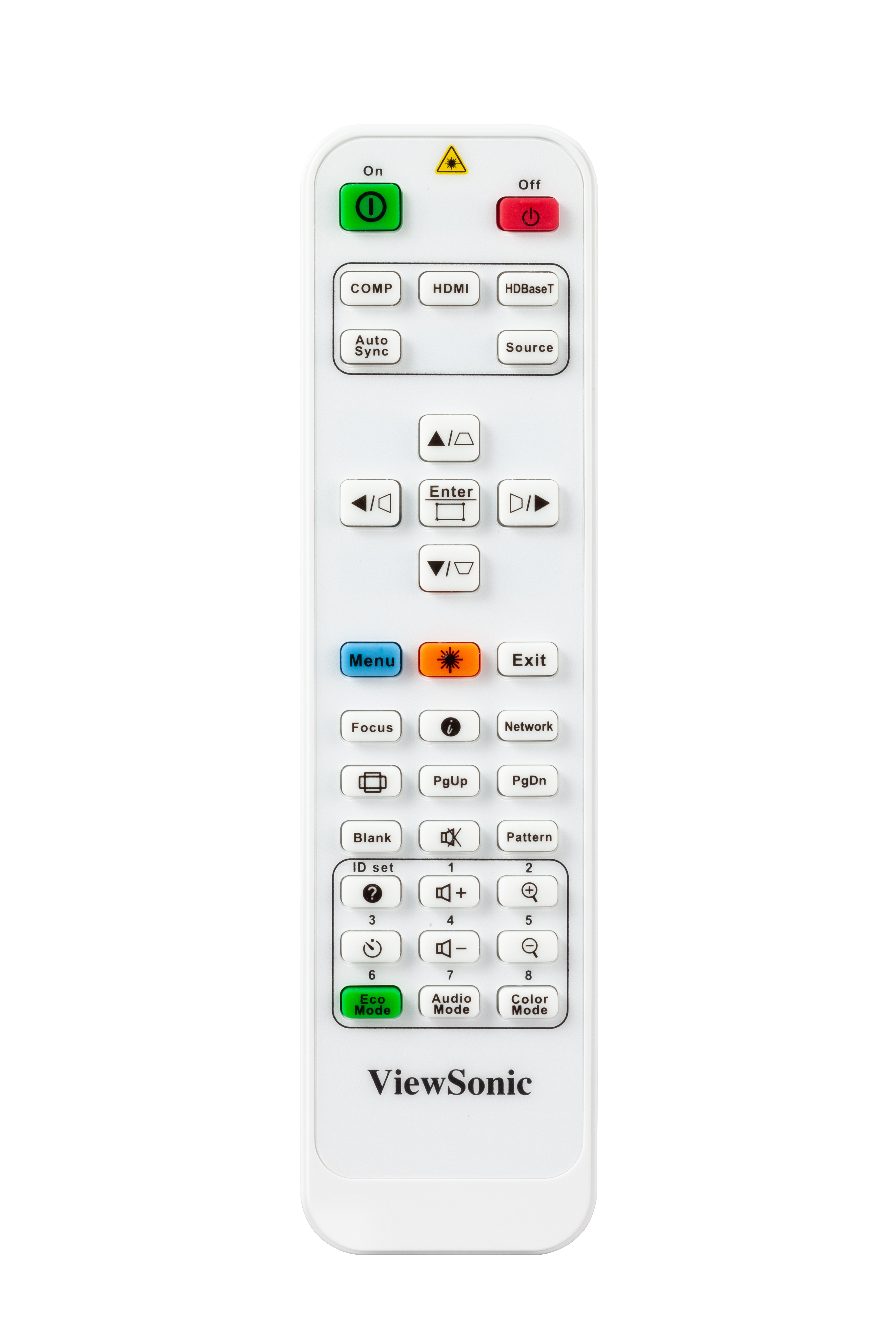

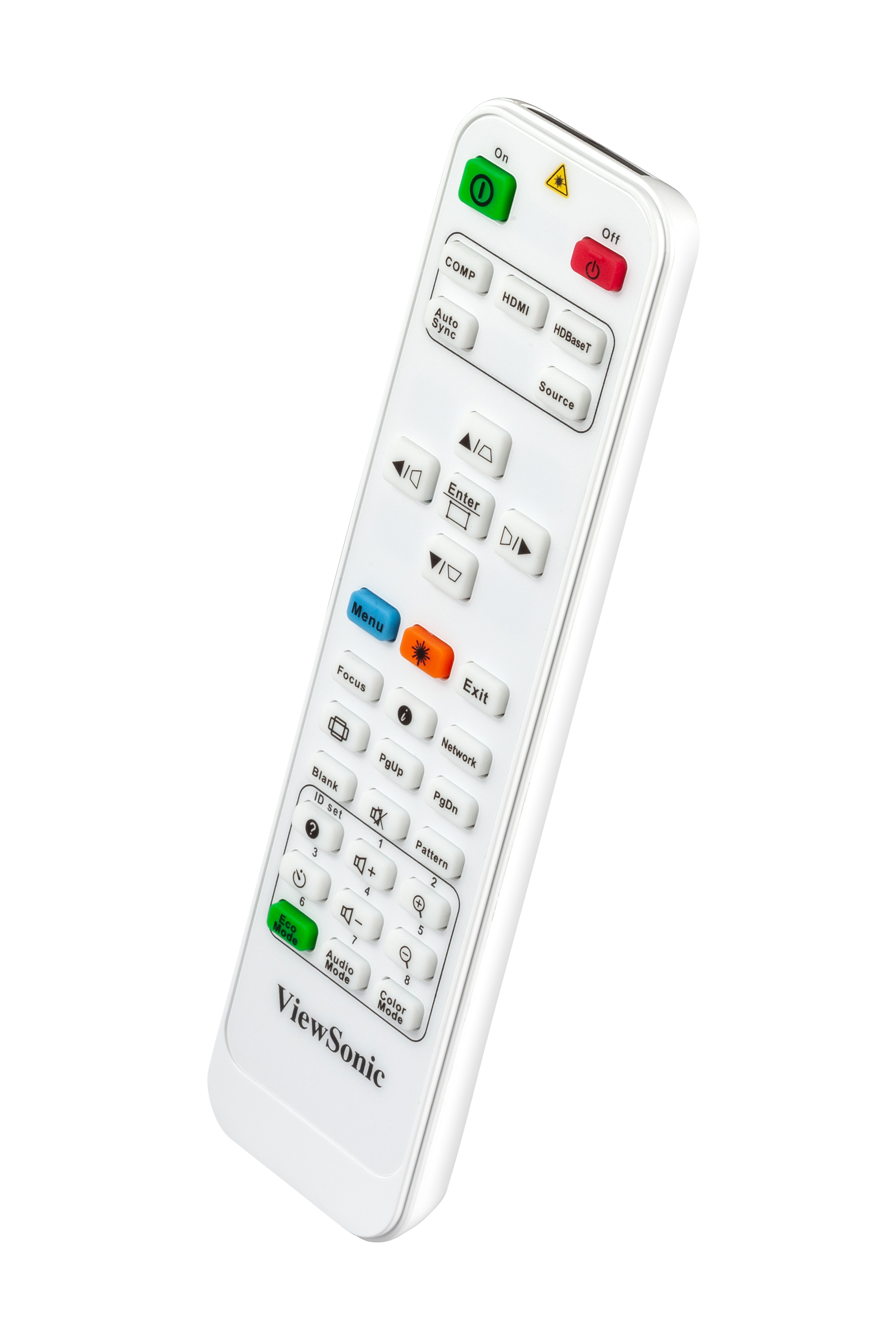

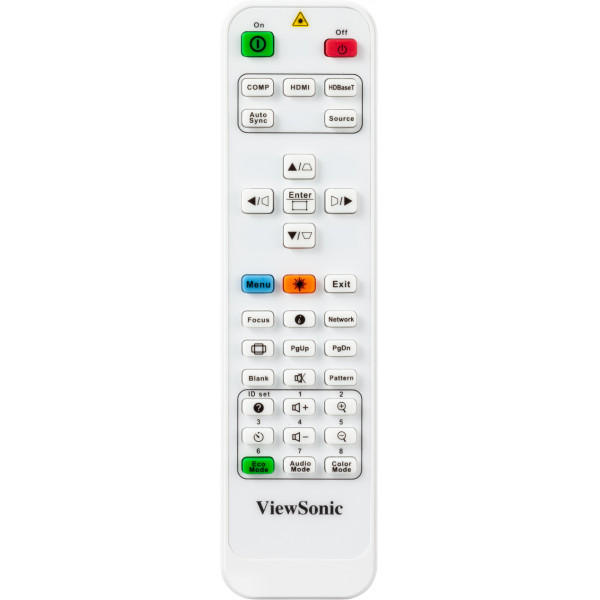

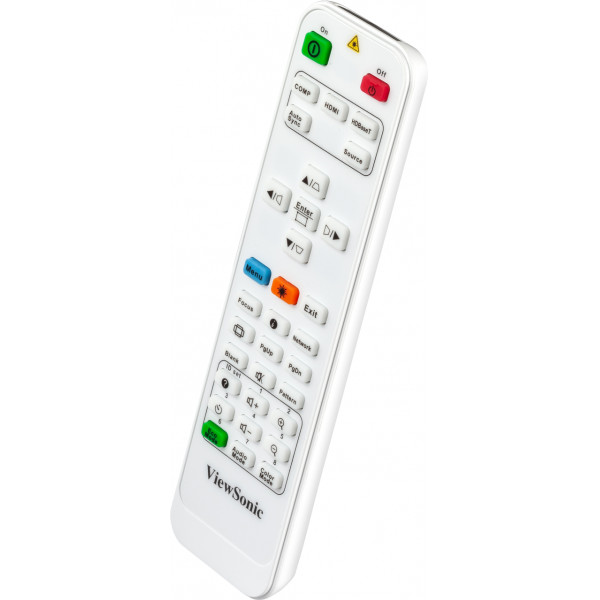

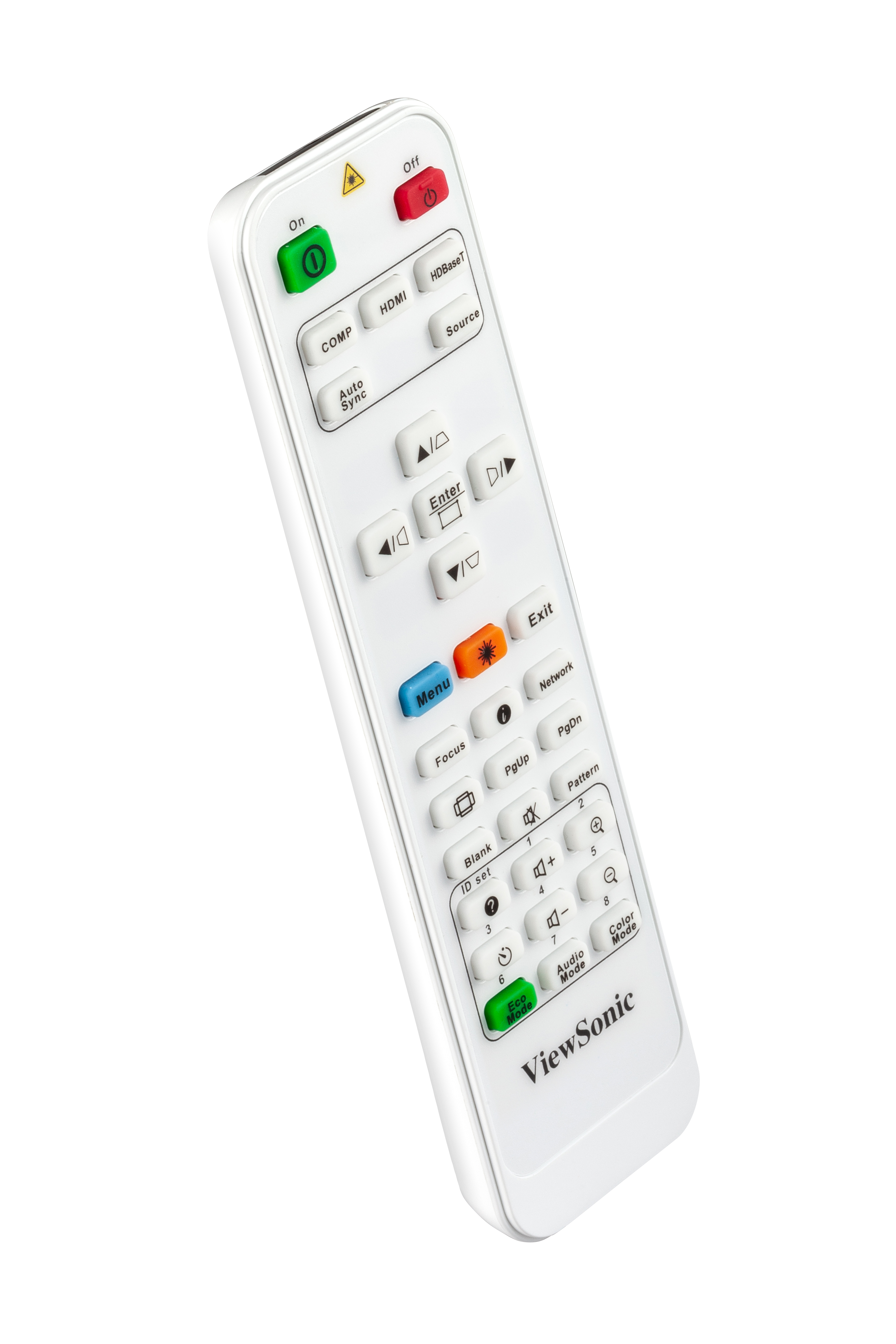

Remote Control of Motorized Focus

Make your images sharp and clear effortlessly with the motorized focus triggered by commands on the remote control. Free from manual adjustment that requires approaching the ceiling-mounted projector and may disturb the original projection setting.

Centralized Control for Management Efficiency

This projector comes equipped with Control 4, Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.

*The Control 4 driver will be built into the device in advance and get certification once it has finished the verification process.

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.

*The latest projector software update can be found in the download section at the bottom of the page when available.

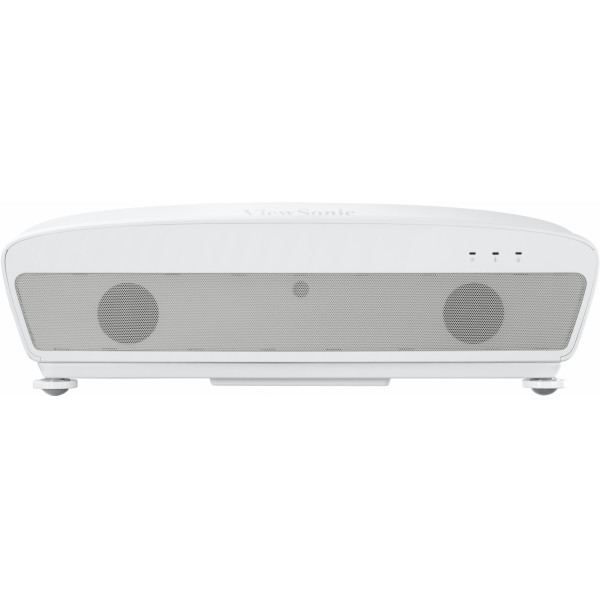

Powerful Audio with 3 Modes

Three audio modes (speech, music, and movie) powered by 20W cube speakers and DSP chip to deliver the fine-tuned sound performance suitable for different scenarios.

SuperColor™ Accuracy

ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.

Advanced Sealing with IP5X Certification

The sealed optical engine prevents dust and moisture from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.

Vivid and Immersive Display with BrilliantColorPanel™

Engineered with innovative panel technology, the ridged surface of optional BrilliantColorPanel™ is designed to deflect 90% of ambient light, and keeps the true color displayed on the screen unaffected. Meanwhile, it achieves a contrast ratio 4-times higher than that of an average projector screen and helps to eliminate washed-out images.

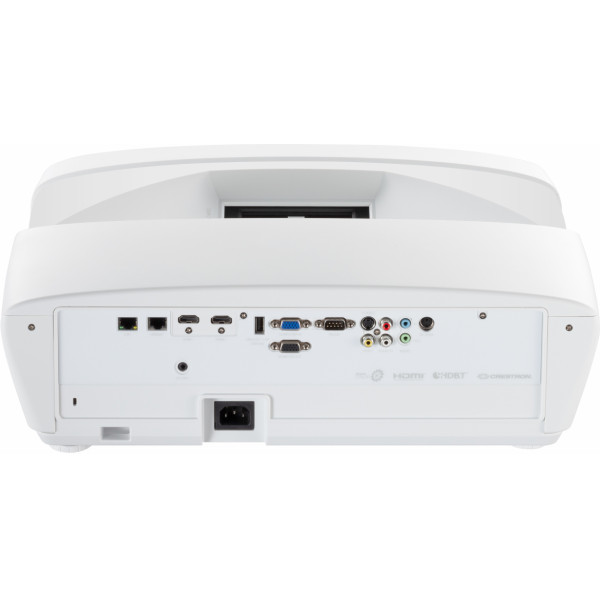

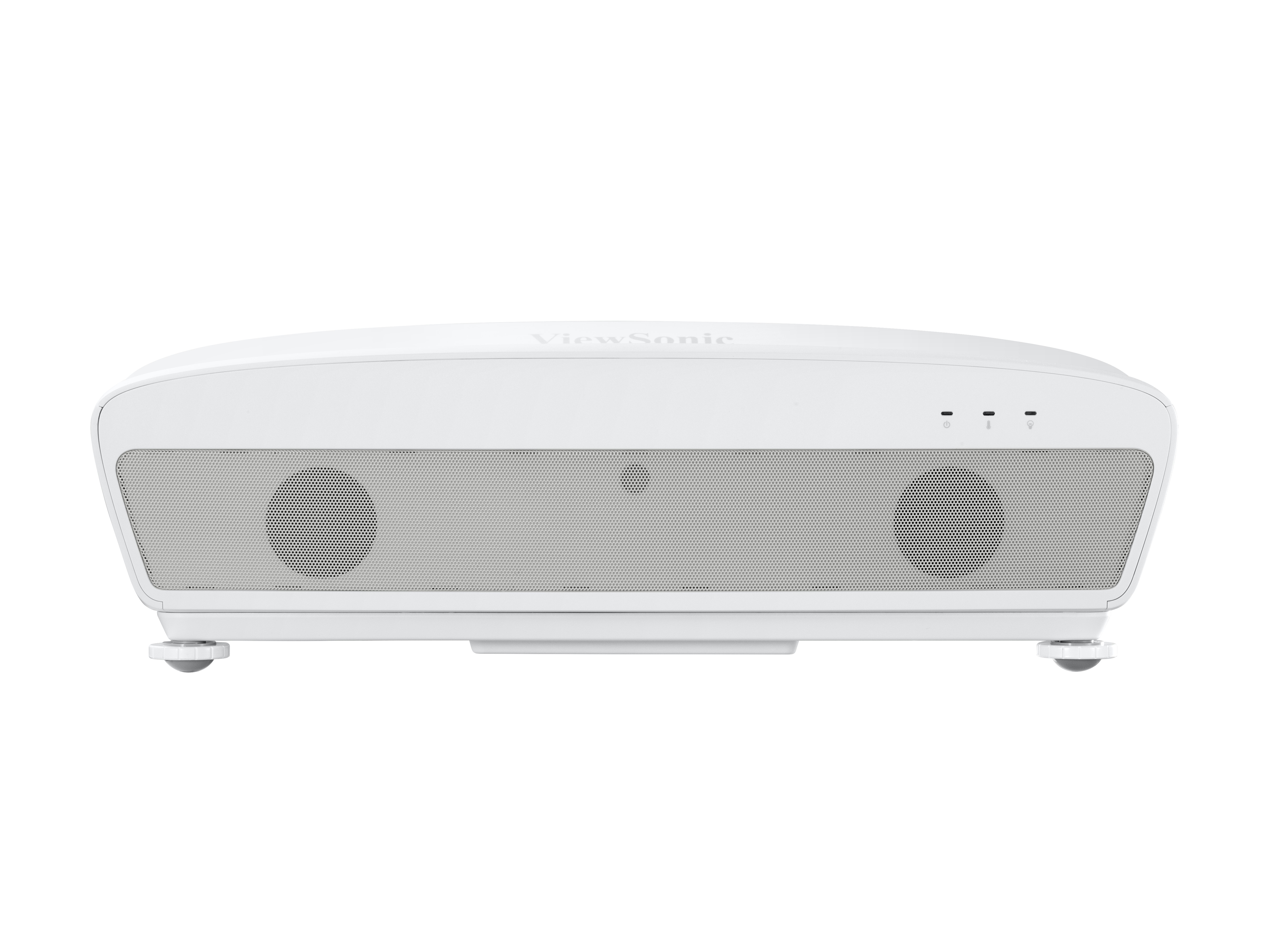

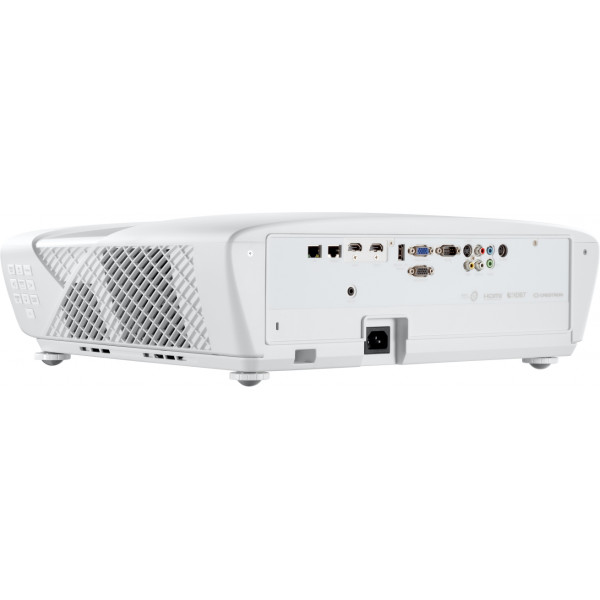

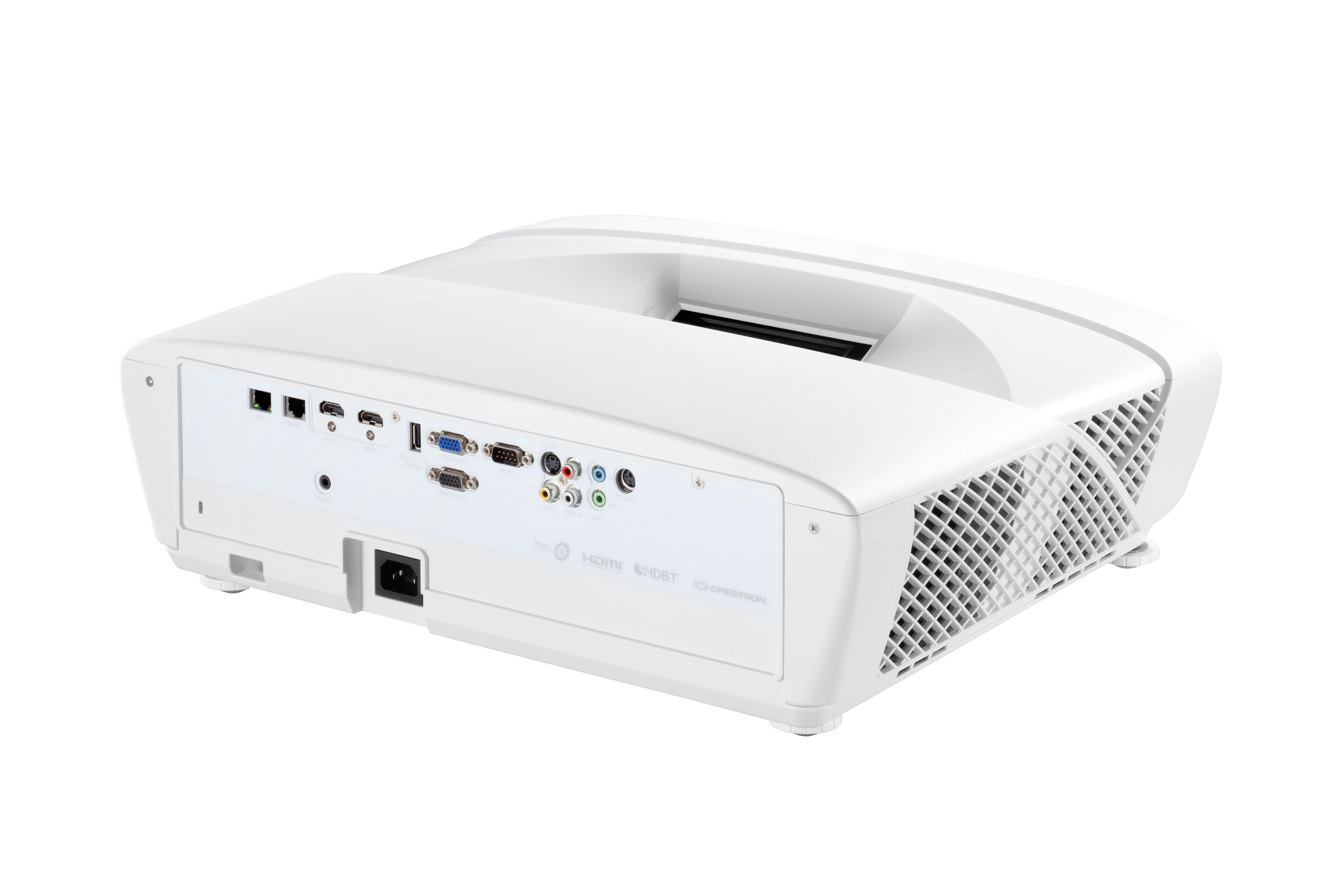

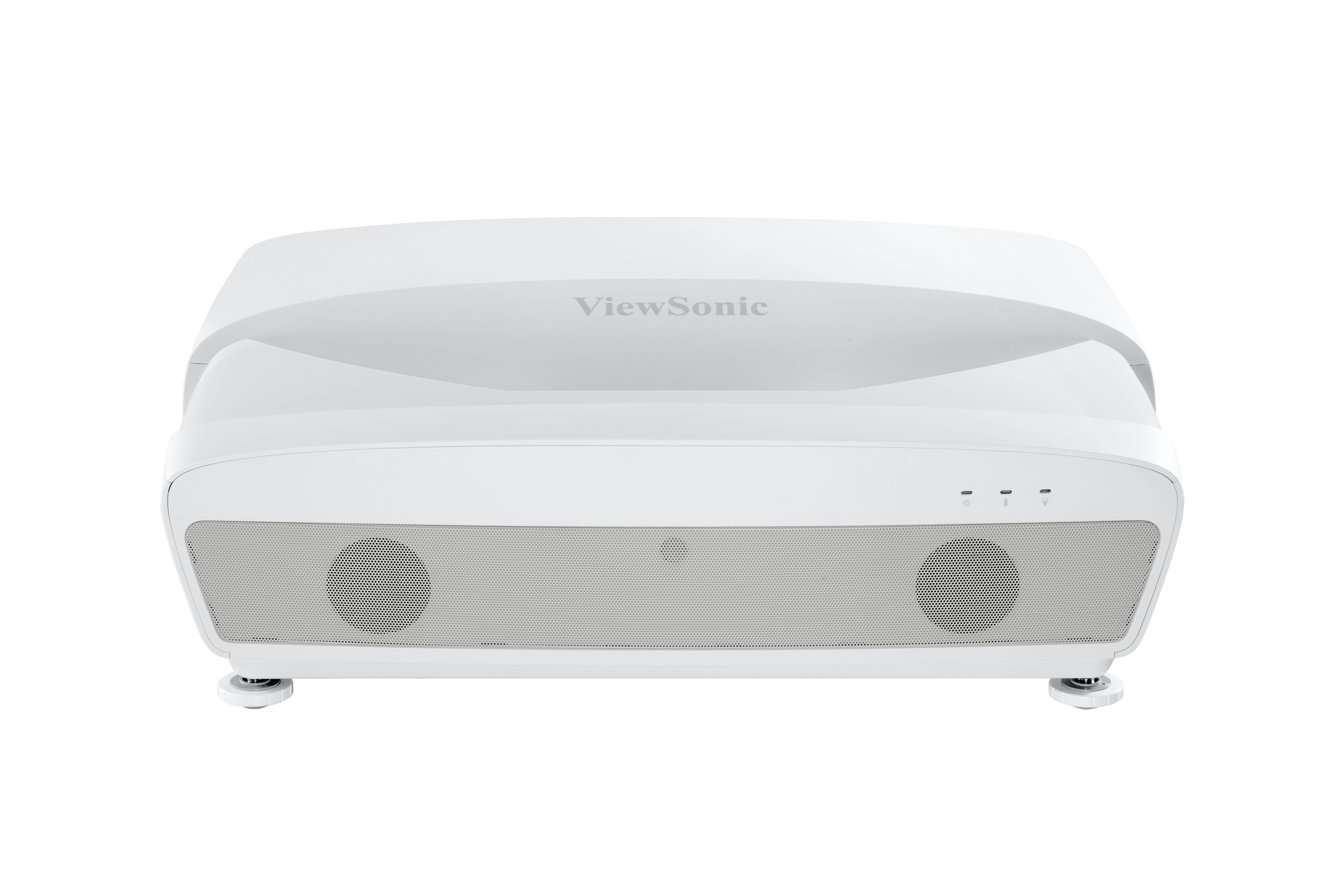

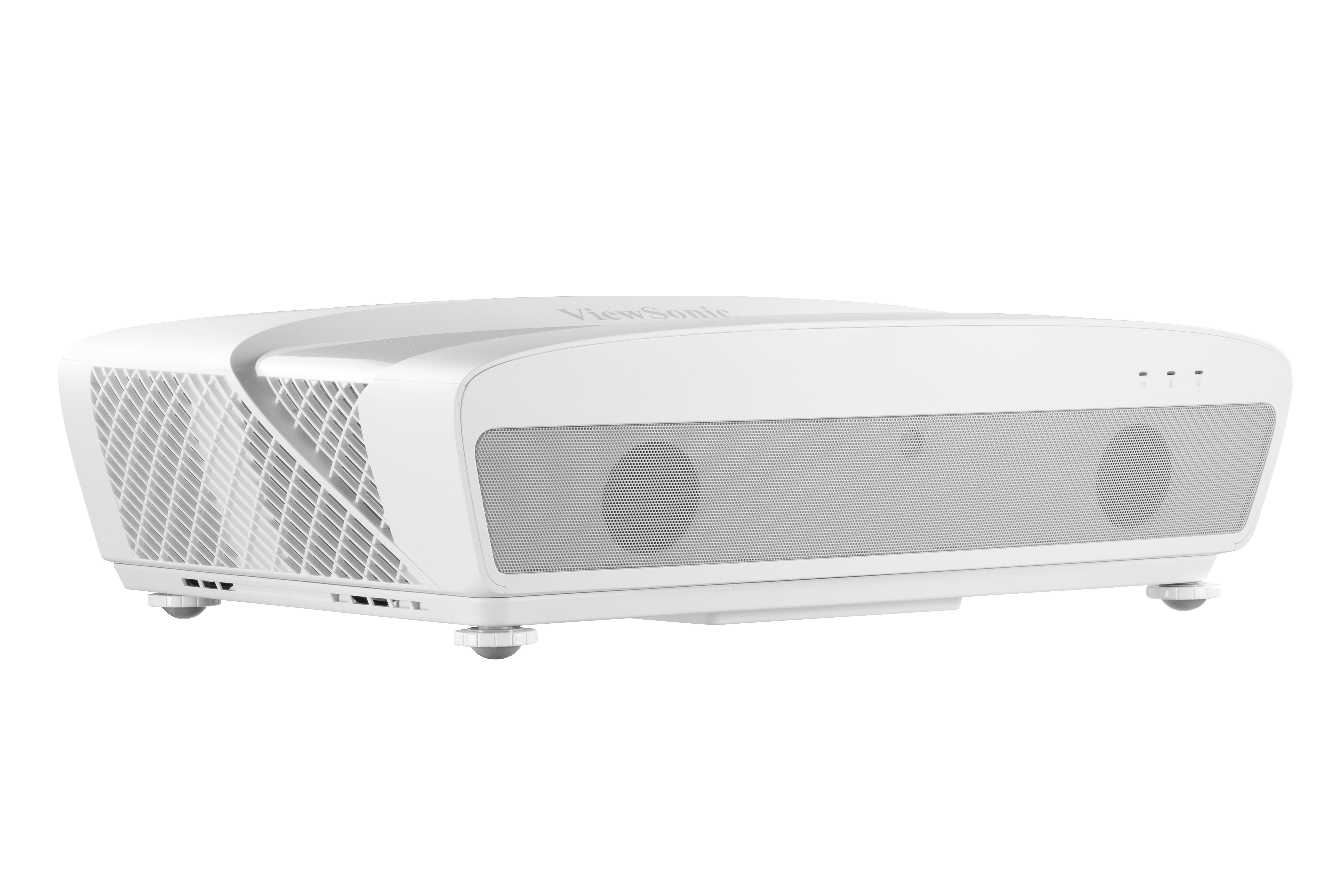

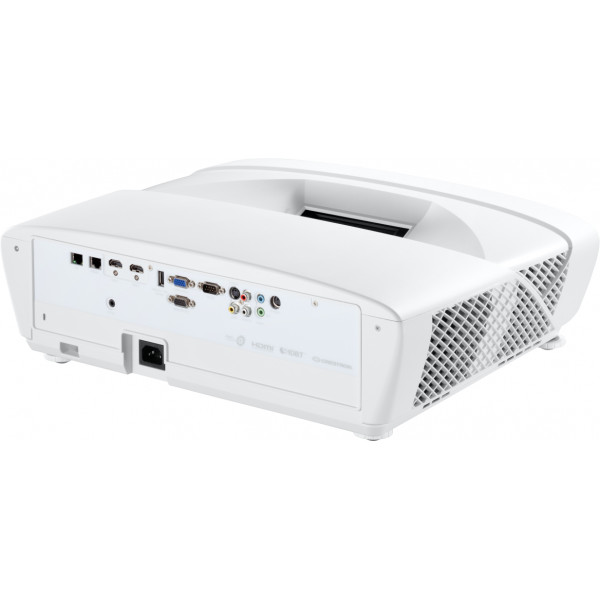

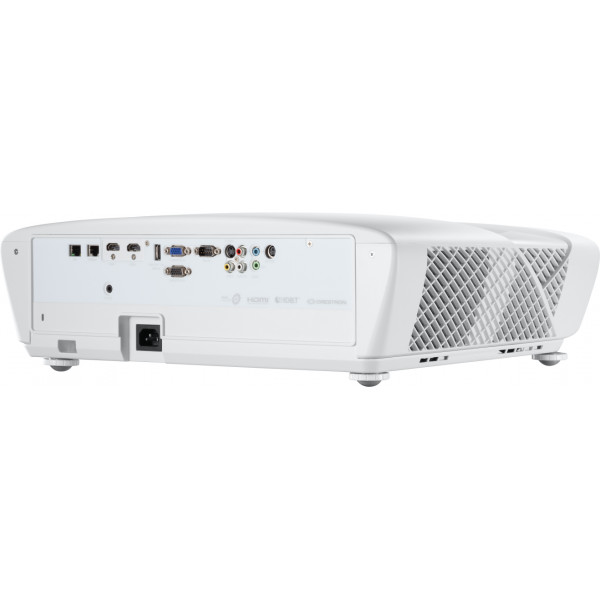

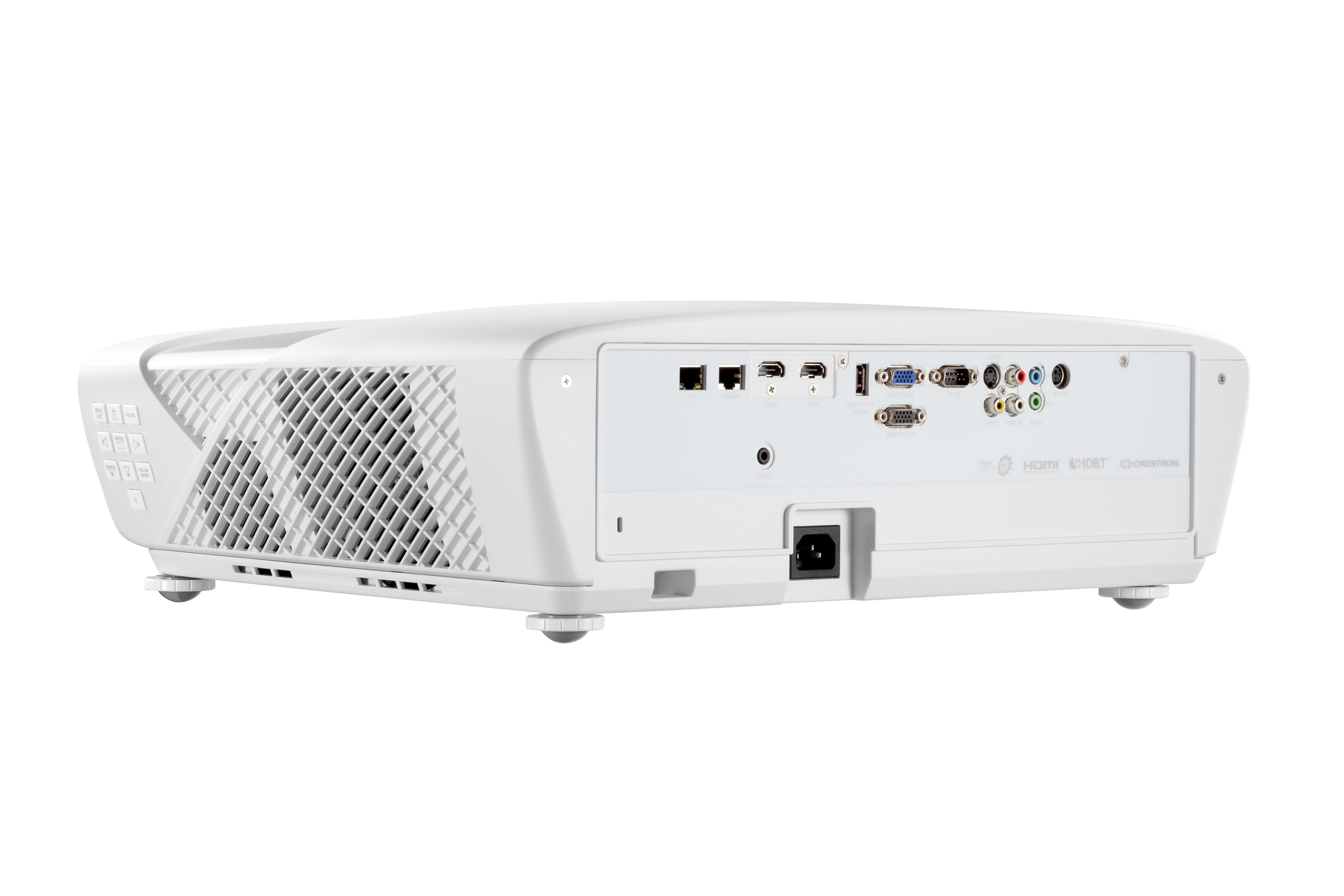

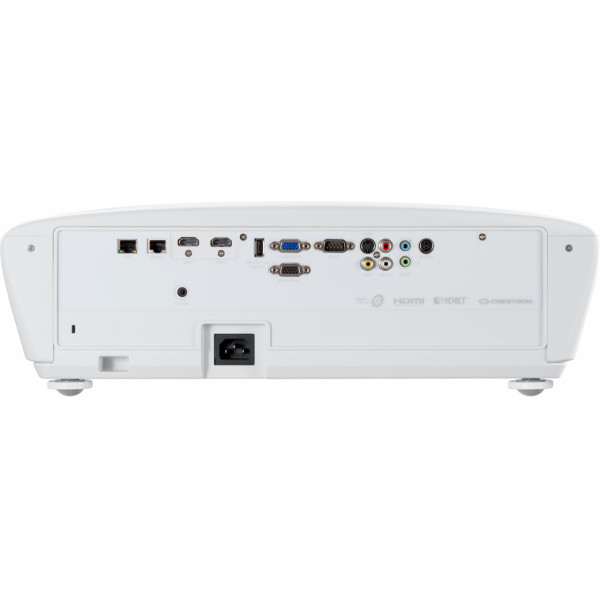

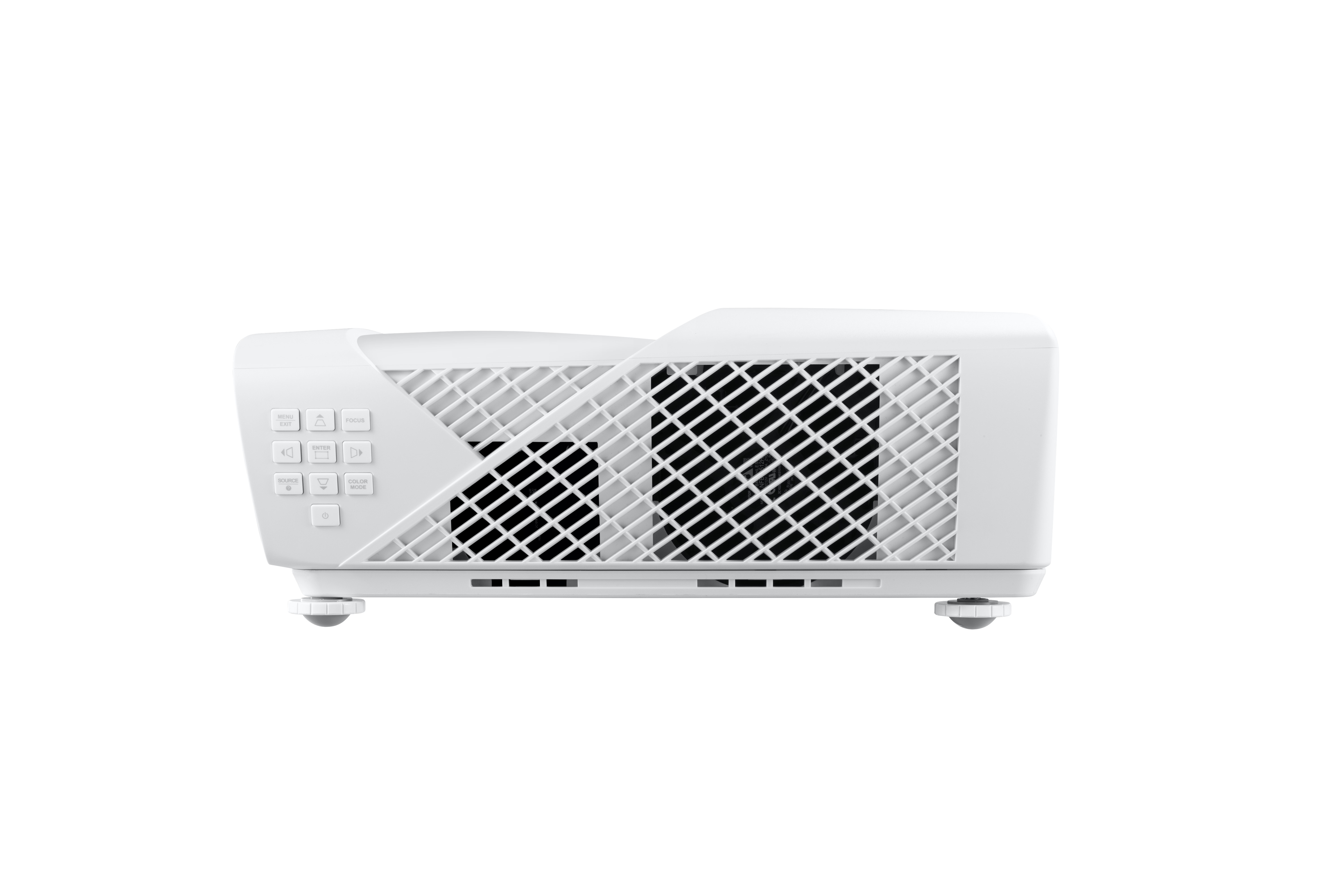

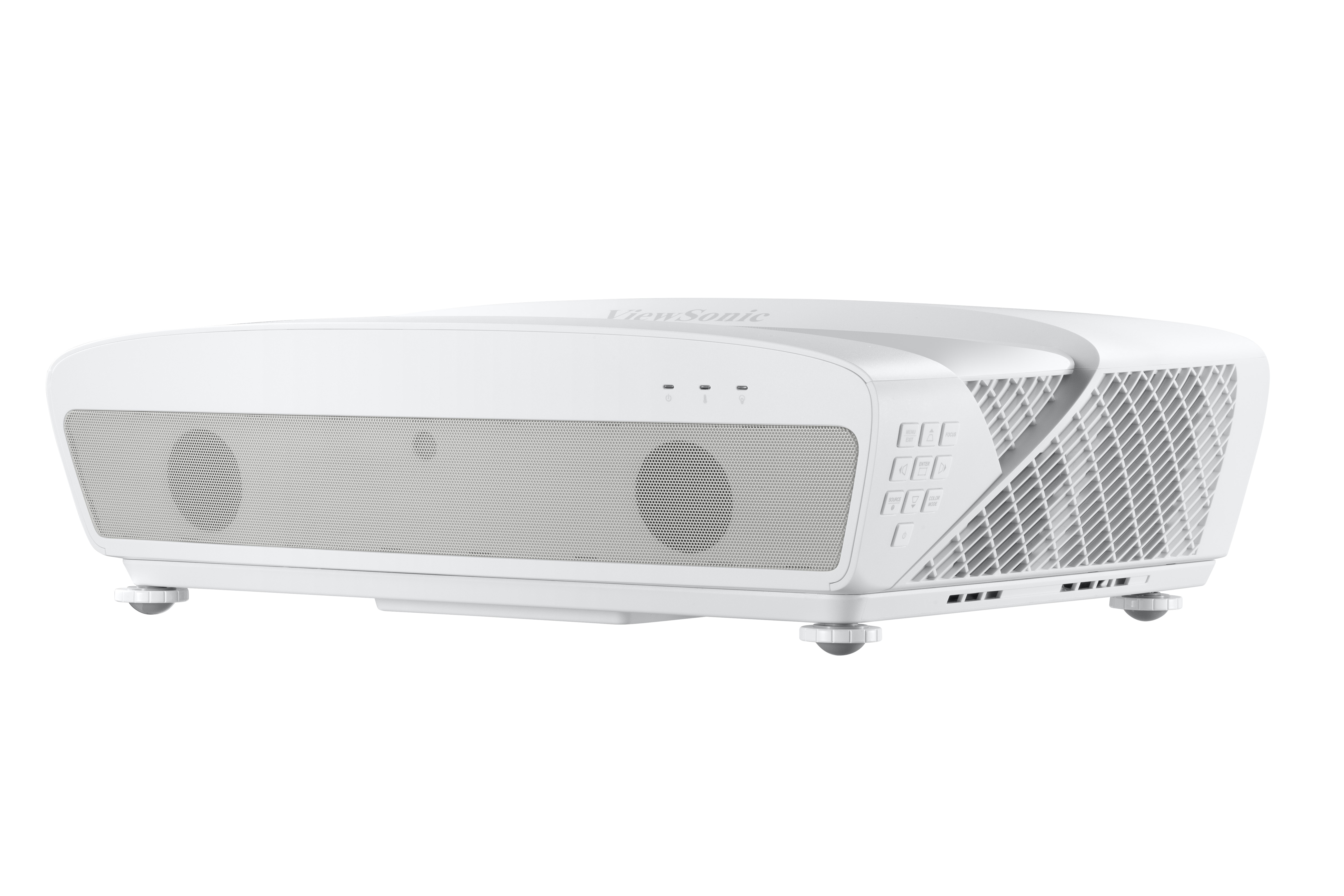

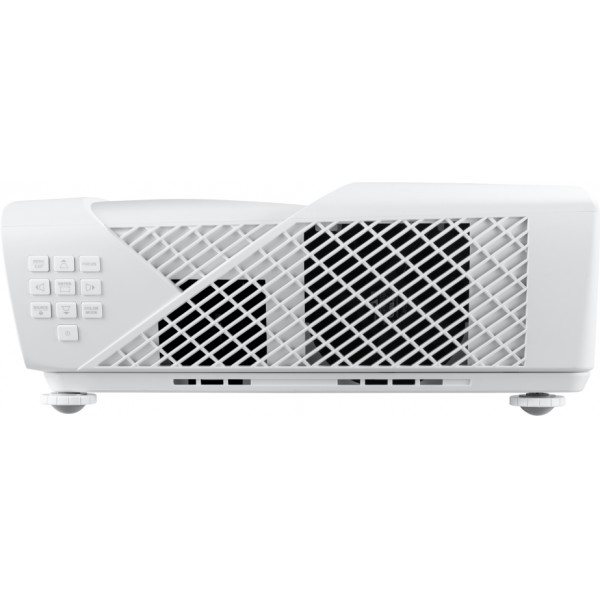

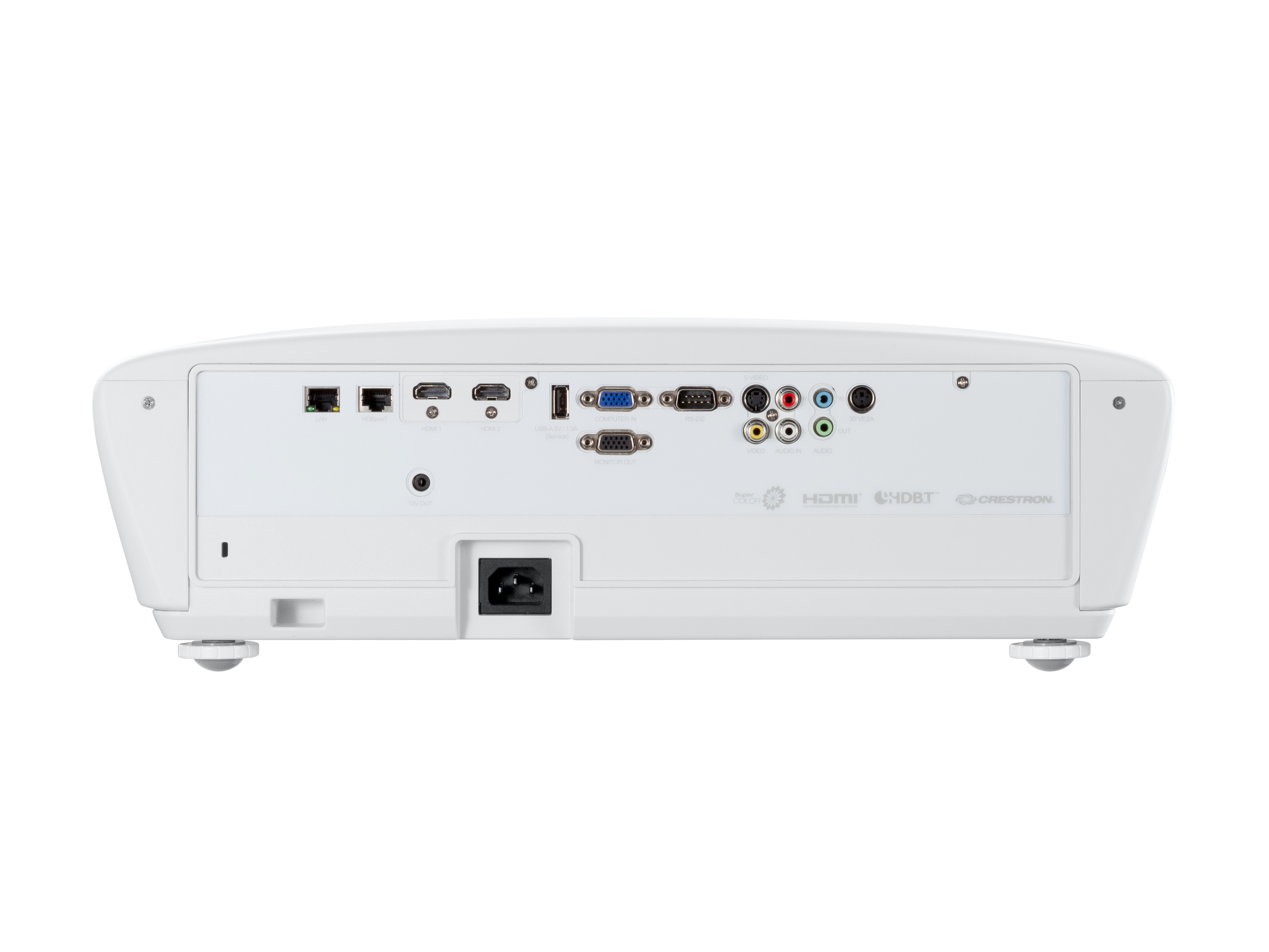

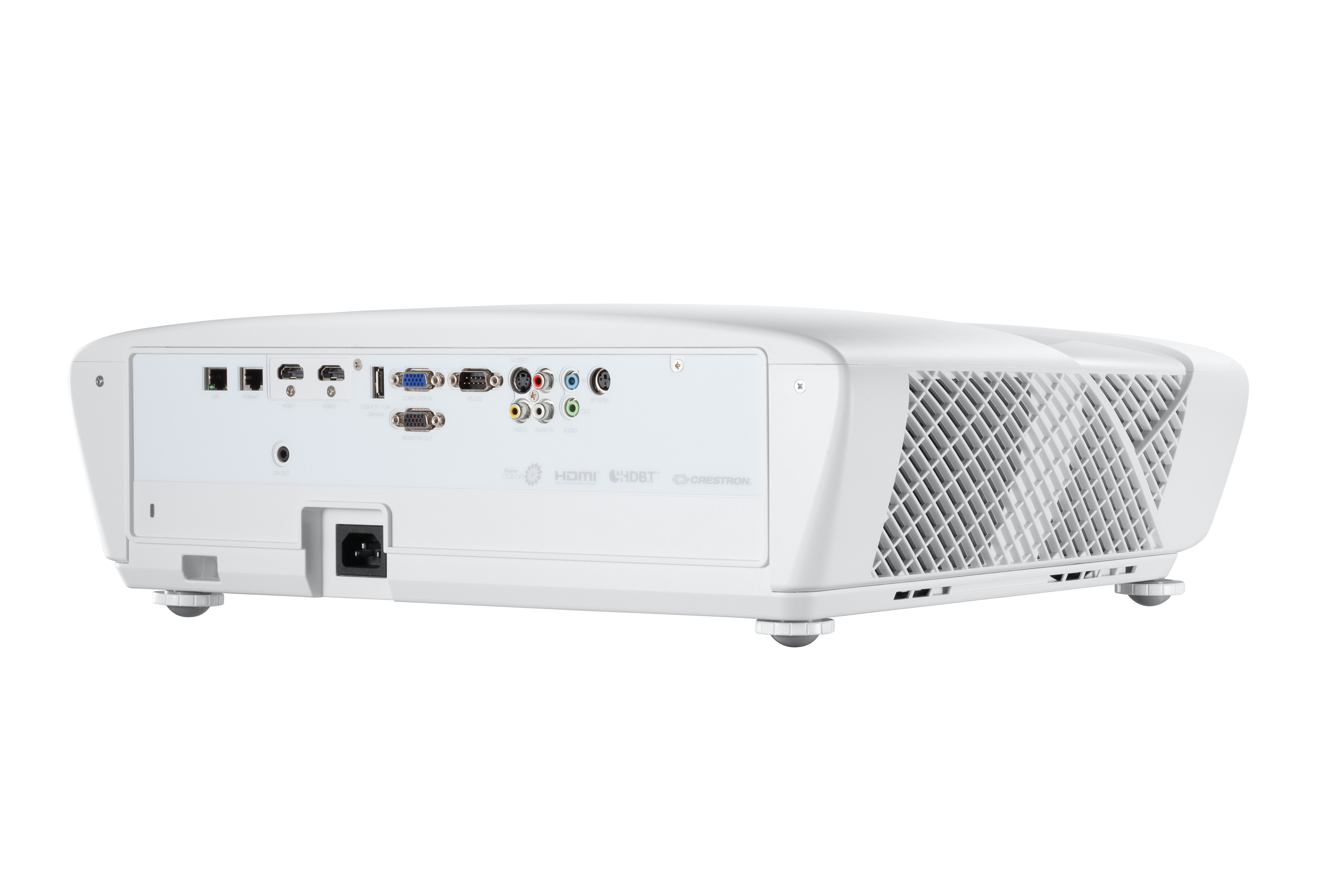

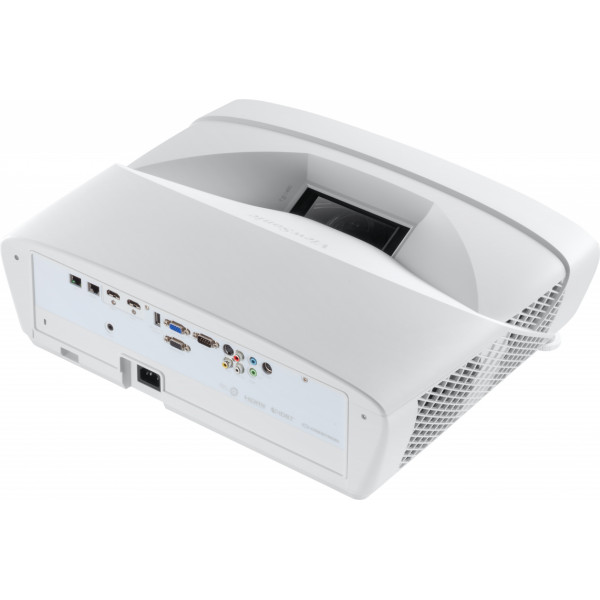

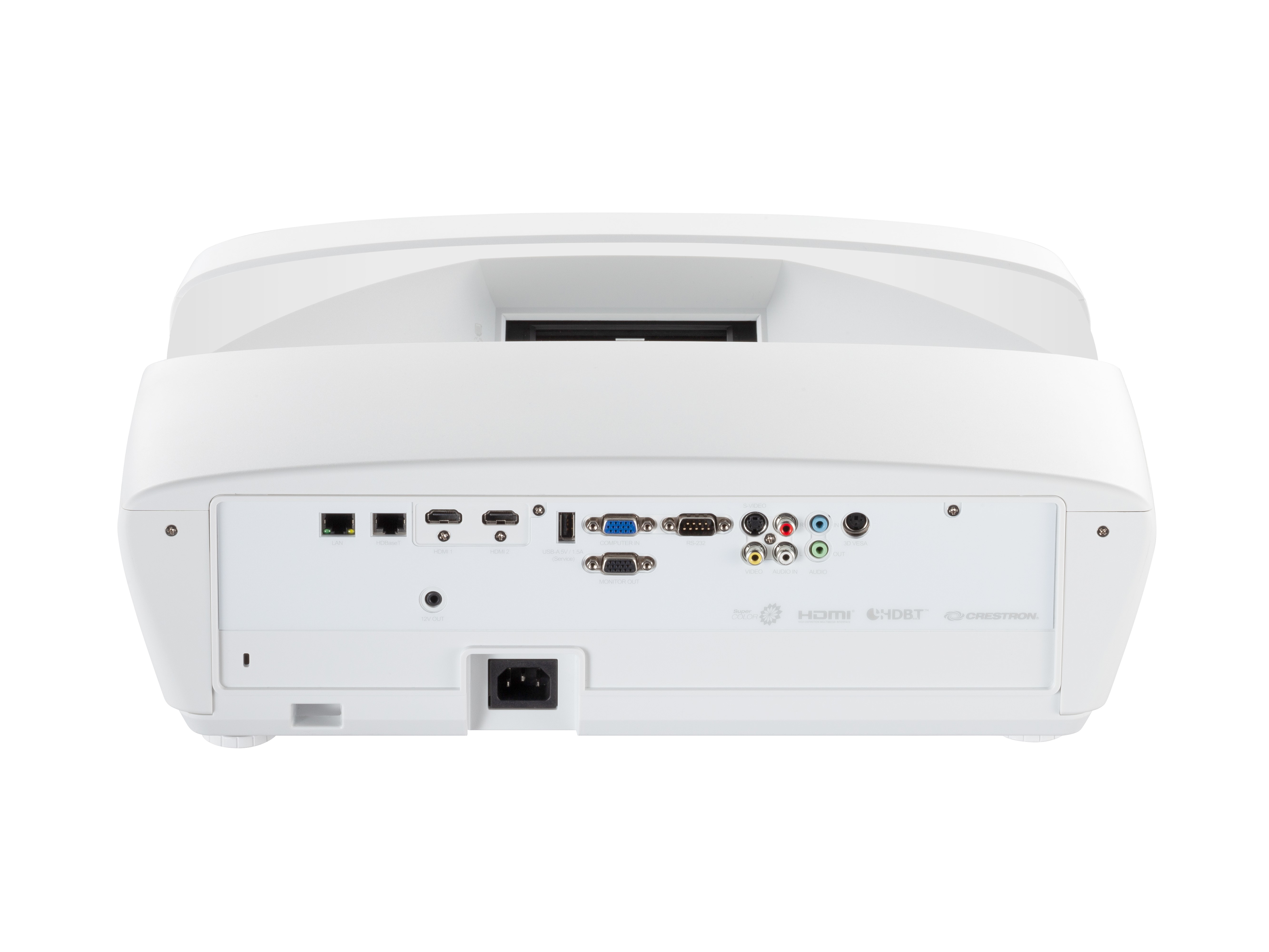

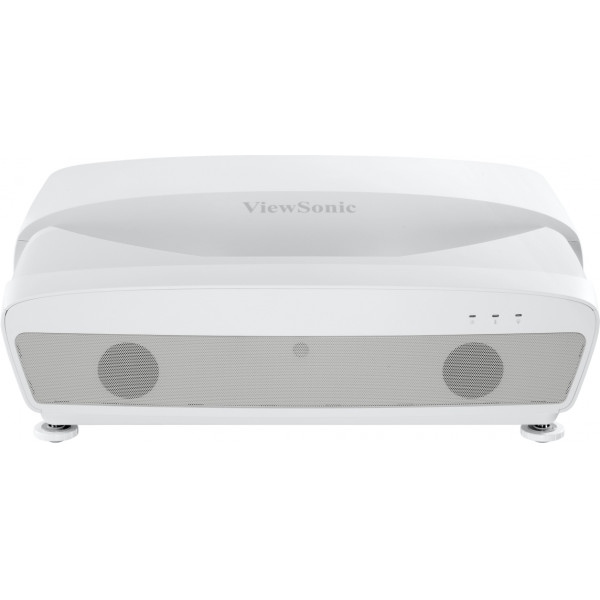

Exterior & Rear I/O Connectors

  1. Speaker Area
  2. Front IR
  3. LED Indicator

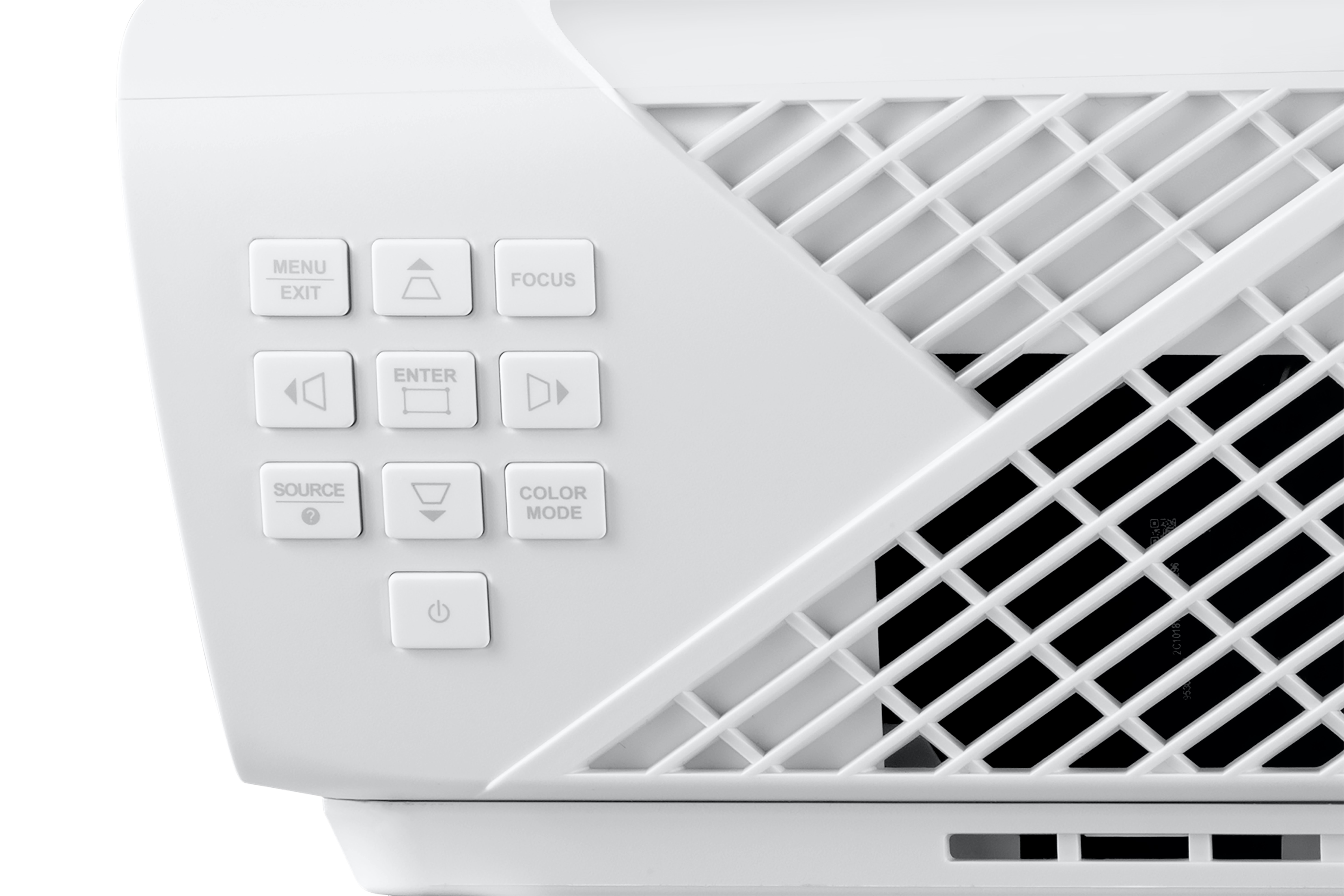

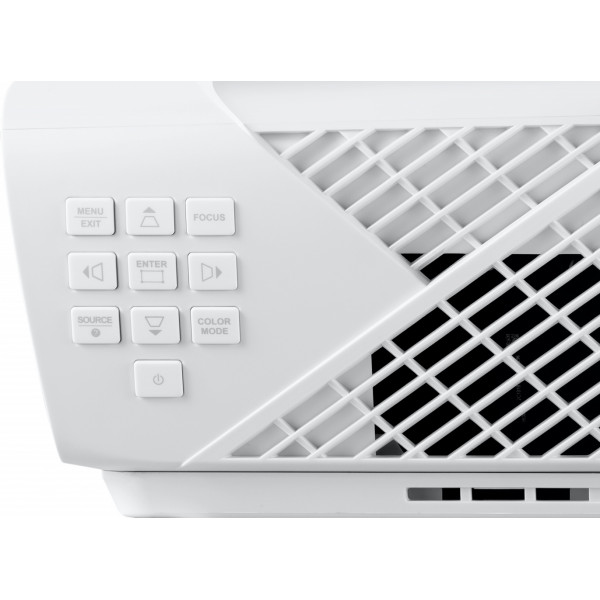

  4. Keypad
  5. Adjustment Foot
  6. USB Type A(5V/1.5A)
  7. HDMI x 2
  8. HDBaseT
  9. LAN
  10. 12V Out
  11. Computer In
  12. RS-232
  13. S-Video
  14. Composite
  15. 3D VESA
  16. Audio In & Out
  17. Monitor Out

DANE TECHNICZNE


  • Specyfikacja
    System projekcji: 0.48" WUXGA
    Rozdzielczość Natywna: 1920x1200
    Matryca DMD: DC3
    Jasność: 4500 ANSI Lumens
    Współczynnik kontrastu: 3000000:1
    Display Color: 1.07 Billion Colors
    Rodzaj źródła światła: Laser Phosphor system
    Żywotność źródła światła (tryb normalny): up to 20000
    Moc lampy: Nichia 67W x2
    Obiektyw: F=2, f=2.44mm
    Przesunięcie projekcji: 140%±6%
    Współczynnik rzutu: 0.252
    Powiększenie optyczne: Fixed
    powiększenie cyfrowe: 0.8x-2.0x
    Wielkość obrazu: 70"~200"
    Odległość rzutu: 0.06-0.72m, (100”@0.21m)
    Korekcja trapezowa: H:+/-5° , V:+/-5°
    Dźwięk (tryb normalny): 34dB
    Audible Noise (Eco): 29dB
    Opóźnienie sygnału wejściowego: 16ms
    Obsługa rozdzielczości: VGA(640 x 480) to 4K(3840 x 2160)
    Kompatybilność z HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Zgodność wideo: NTSC, PAL, SECAM
    Częstotliwość w poziomie: 15K~102KHz
    Częstotliwość skanowania pionowego: 23~120Hz
  • Wejście
    Wejście komputera (współdzielony z podzespołem): 1
    Kompozyt: 1
    S-Video: 1
    HDMI: 2 , (HDMI 2.0 (HDCP 2.2)
    Wejście audio (3,5 mm): 1
    Wejście audio (RCA R/L): 1
    Synchronizacja 3D VESA: 1
    HDBaseT: 1
    Wejście RJ45: 1, (LAN control)
  • Wyjście
    Wyjście monitorowe: 1
    Wyjście audio 3,5 mm: 1
    Głośnik: 10W Cube x 2
    USB typu A (zasilanie): 1 (5V/ 1.5A), (share with service)
    Sygnał 12V (gniazdo 3,5 mm): 1 (3.5mm)
