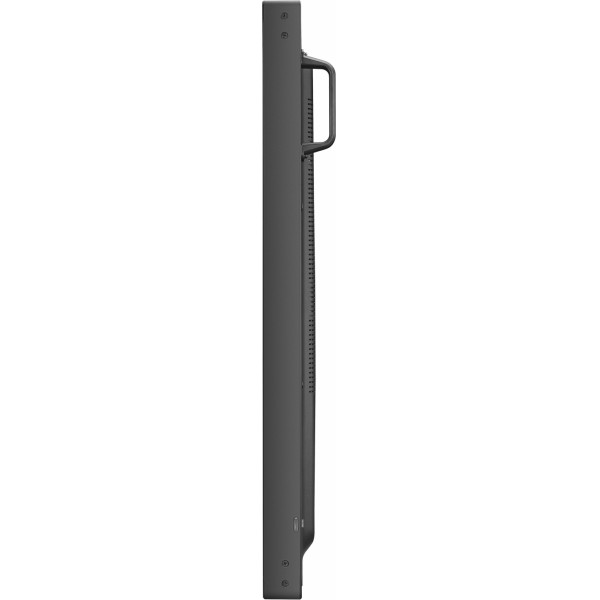

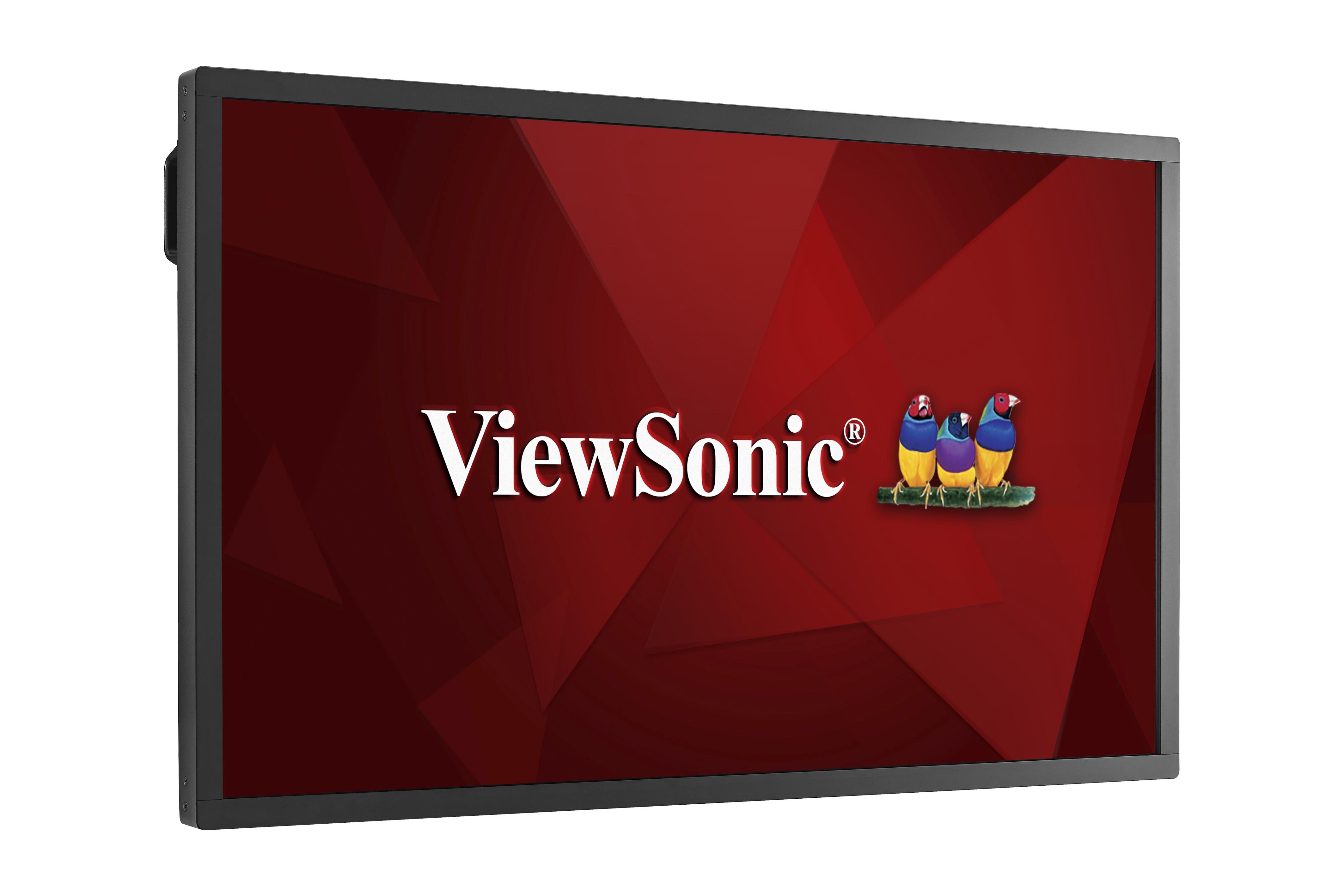

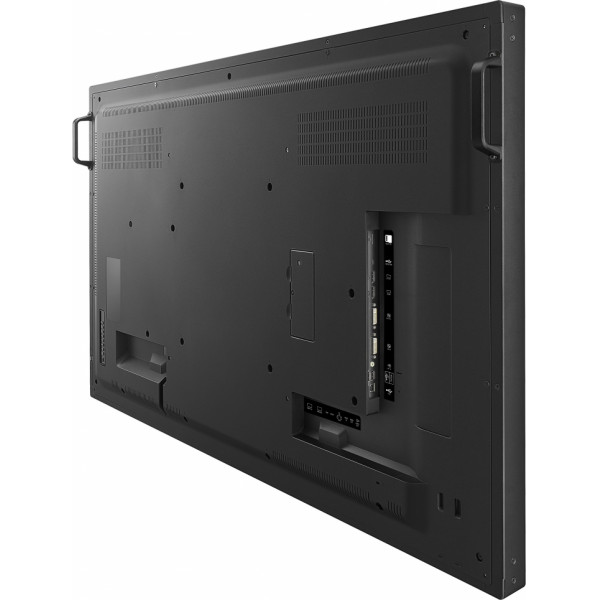

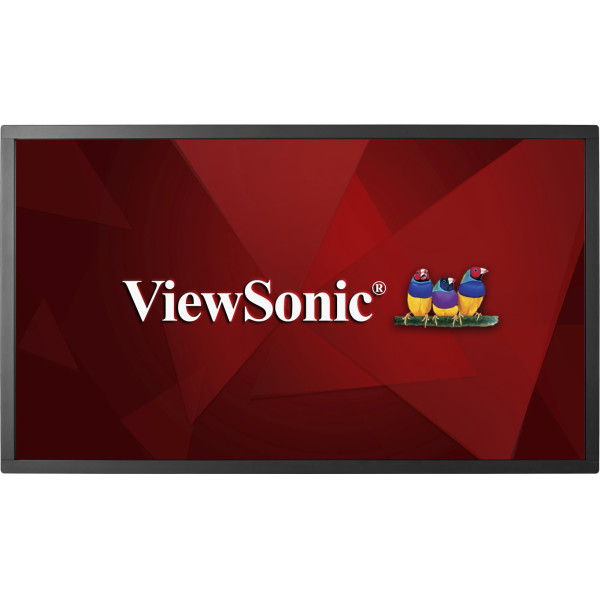

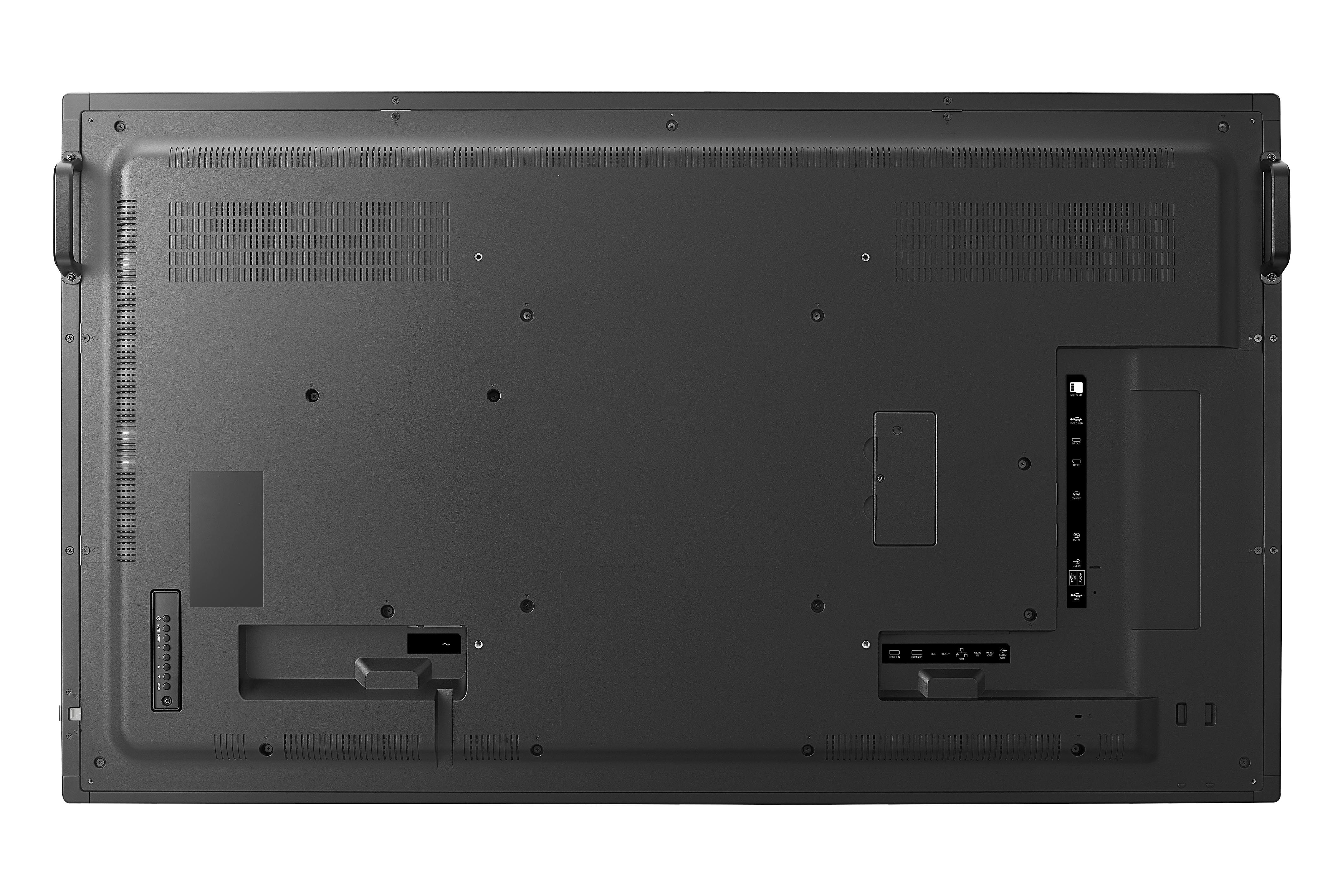

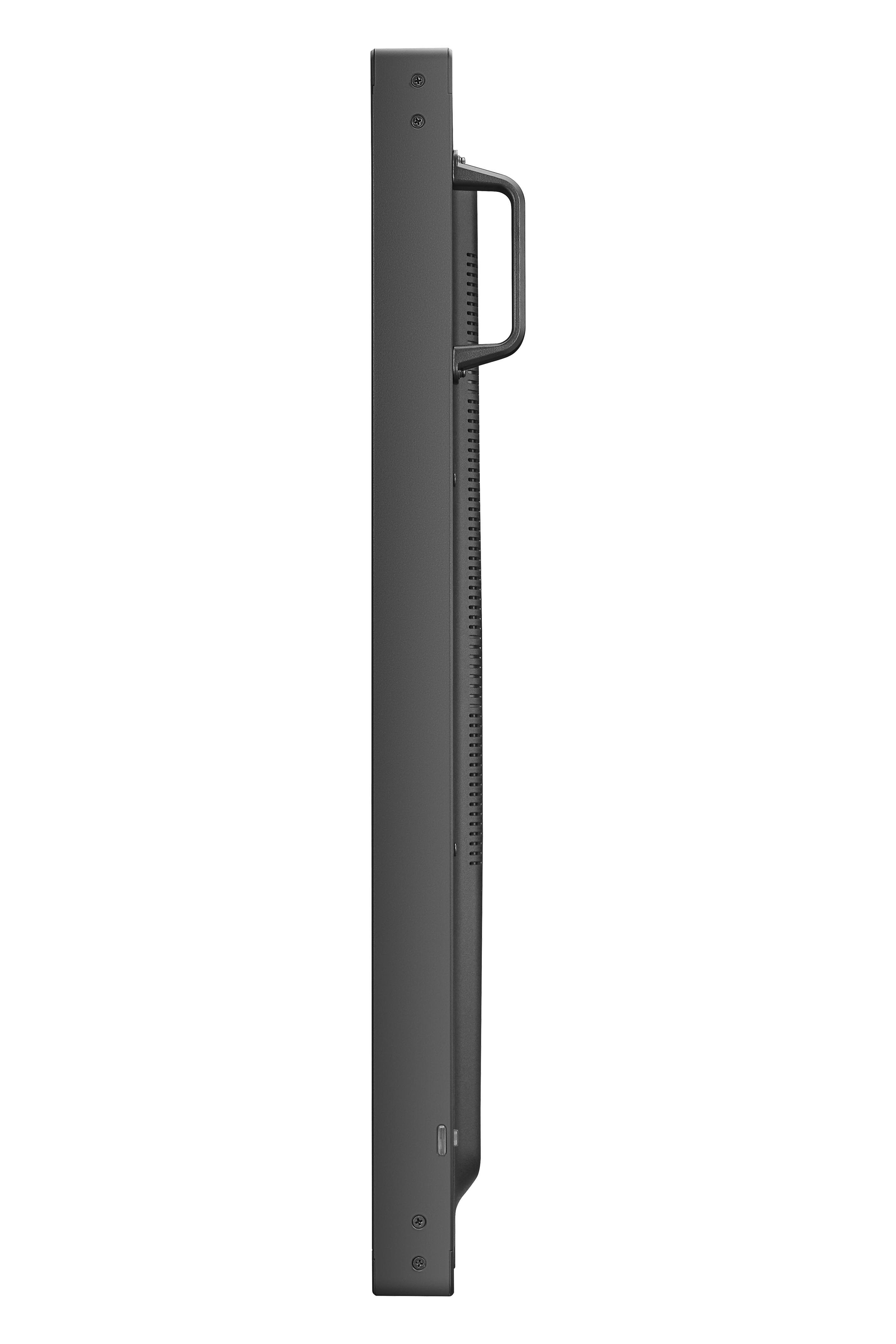

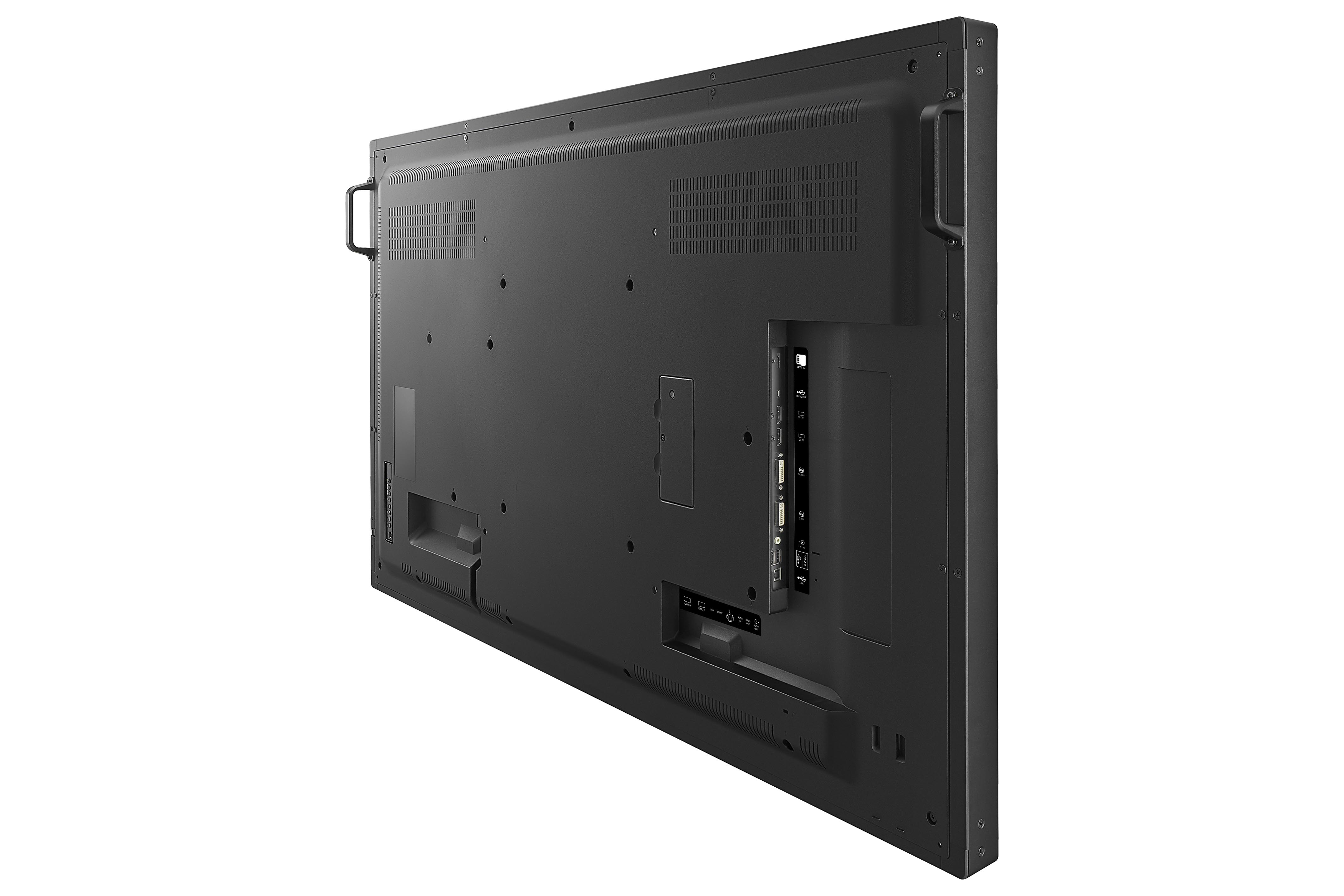

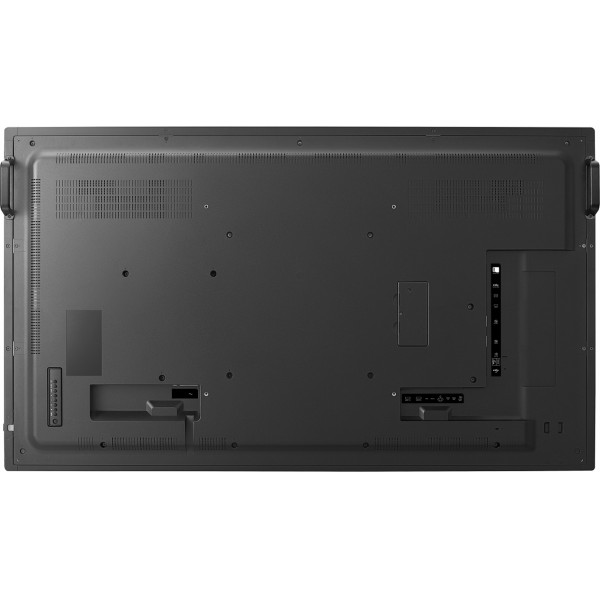

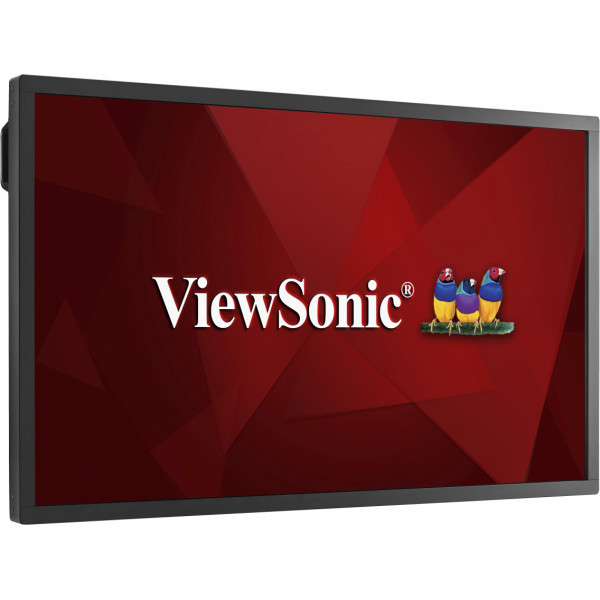

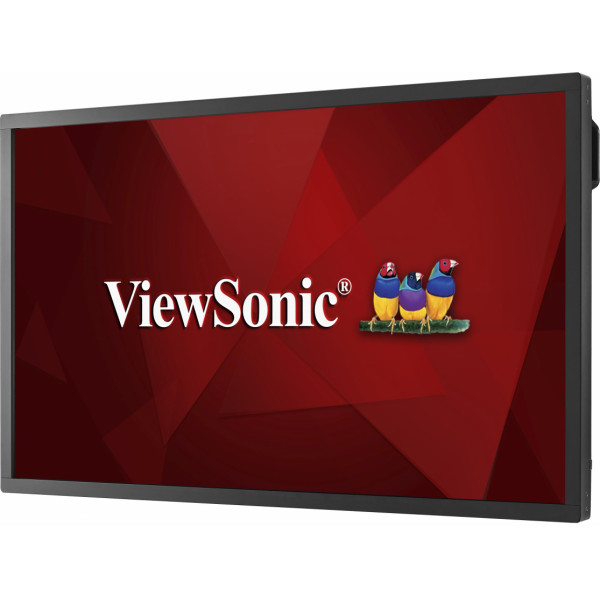

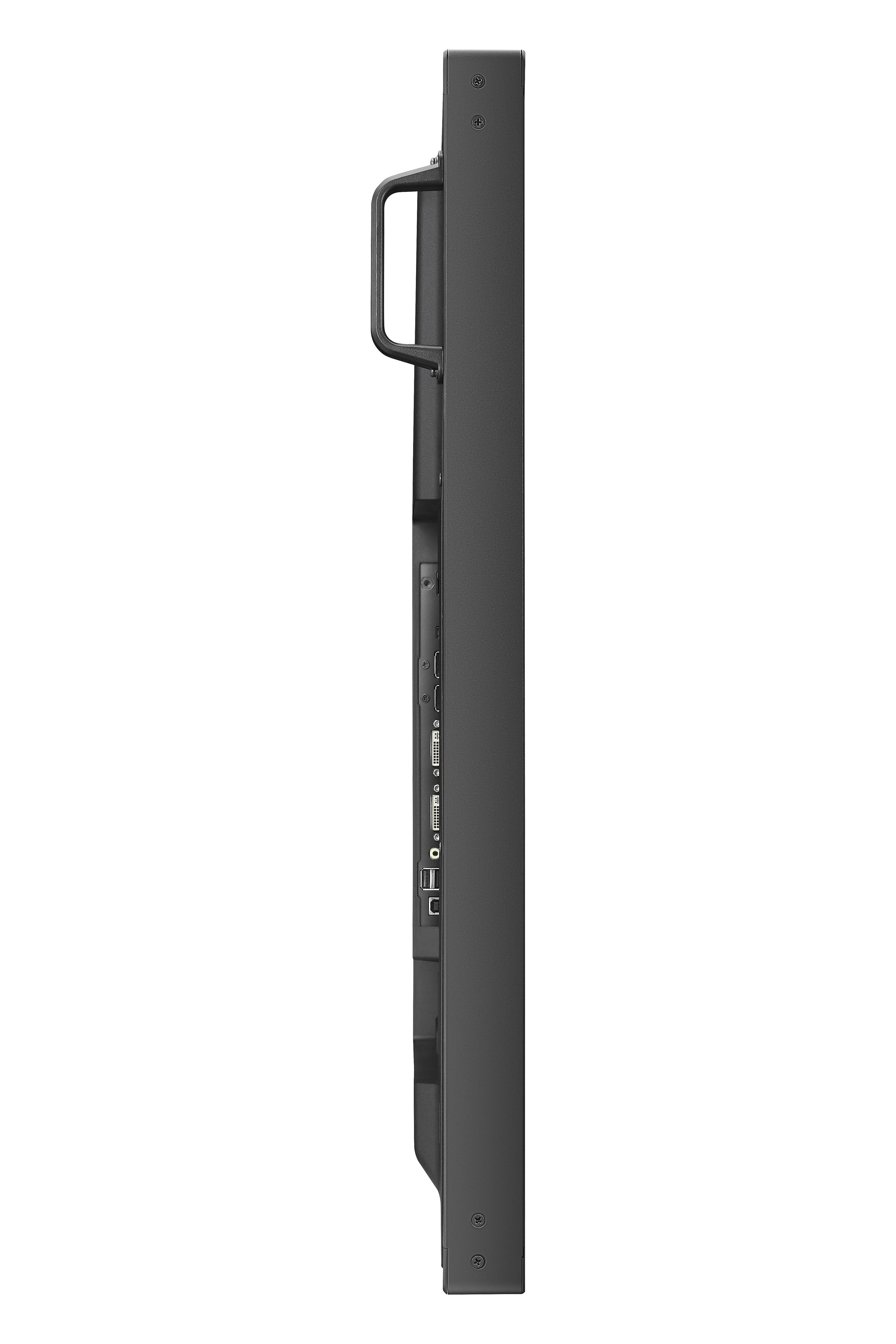

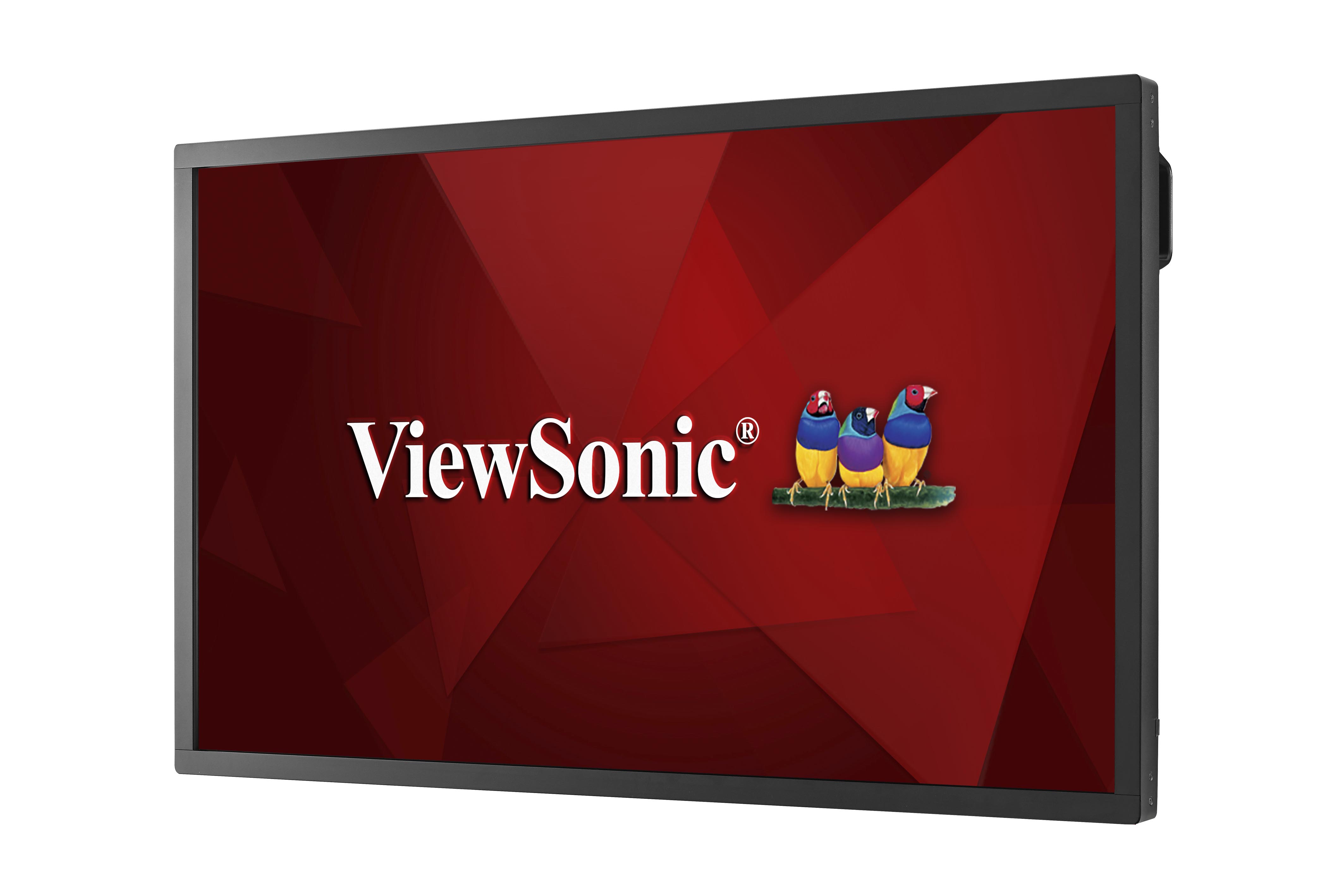

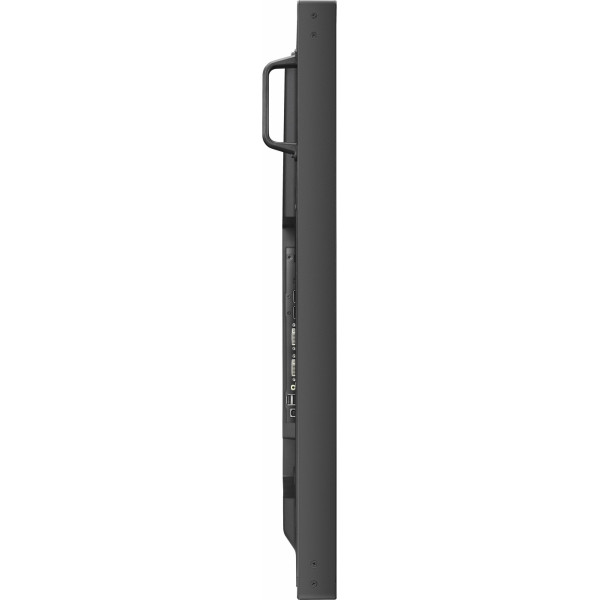

CDM5500T
55" 10-point Multi-touch Presenation Display
- 24 hours a day 7 days a week operations
- Built-in Quad Core Media Player with 16GB Storage
- Embedded LAN and Wi-Fi
- Internal Scheduler
- Content Management Software
DANE TECHNICZNE
- SPECIFICATIONRozmiar panelu: 55'' (54.64” diagonal)
Rodzaj/Technologia: IPS type
Obszar wyświetlania (mm): 1209.6 (H) x 680.4 (V)
Proporcje obrazu: 16:09
Rozdzielczość: 1920 x 1080
Colors: 16.7 M colors
Jasność: 450 nits (typ.)
Współczynnik kontrastu: 1100:1 (typ.)
Czas reakcji: 12 ms
Kąty widzenia: H = 178, V = 178 (typ.)
Backlight: ELED
Czas pracy podświetlenia: 50,000 Hours (typ.)
Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%) - TOUCHRodzaj/Technologia: Infrared
Punkt dotyku: 10 Points - INPUTHDMI: x 2 (HDMI1.4)
DisplayPort: x 1
DVI: x 1
Dźwięk: x 1
RS232: x 1
SD/SDHC: Micro SD card slot (Up to 32GB)
IR: x 1
- OUTPUTDisplayPort: x 1
DVI: x 1
RS232: x 1
IR: x 1 - Sieć lokalnaRJ45: x 1
- USBTyp A: x 2 (Multi-media playback x 1, 5V/2A x 1)
Typ B: x 1 (Touch out)
Micro USB: x 1 (Support USB OTG) - Głośniki10W x 2
- BUILT-IN PCProcesor: Quad core A9, 1.6G
Pamięć masowa: eMMC 16G - COMPATIBILITYVGA: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz - CONTROLSPhysical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
PCTURE: Brightness, Contrast, Sharpness, Black level, Tint, Color, Noise reduction, Gamma selection, Color temperature, Color control, Picture Mode, Overscan, Flicker Free, Blue Filter, Picture reset
SCREEN: H Position, V Position, Clock, Clock phase, Zoom mode, Custom Zoom, Auto adjust, Screen reset
AUDIO: Balance, Treble, Bass, Volume, Maximum volume, Minimum volume, Mute, Audio source, Audio out, Sync. Volume, Audio reset
PIP: Sub mode, PIP size, PIP position, PIP change, PIP source, PIP audio, PIP reset
CONFIGURATION 1: Switch on state, Panel saving, RS232 routing, Boot on source, WOL, DDC/CI, Light sensor, Human sensor, Power LED light, Configuration 1 reset, Factory reset
CONFIGURATION 2: OSD turn off, OSD H position, OSD V position, OSD transparency, Information OSD, Logo, Monitor ID, Heat status, Monitor information, DP version, Window selection, Rotation, Language, QR code, Configuration 2 reset
ADVANCED OPTION: Input resolution, IR control, Keybard conrol, Off timer, Date and time, Schedule, HDMI with One Wire, Auto signal detection, Power Save, Scaler FW Update, Auto FW Update, USB cloning, Advanced option reset - POWERNapięcie: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Zużycie energii: Normal 76W, Max 143W
Uchwyt do montażu na ścianie (standard VESA®): 400x400mm ; Screw: M6*(10+X) mm (X=thickness of wall mount plate) - OPERATING CONDITIONSTemperatura (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait)
Wilgotność powietrza: 20% ~ 80% non-condensing - WYMIARY (S x W x G)Wymiary fizyczne (cale / mm): 50.0 x 31.87 x 15.75 / 1271 x 809.45 x 400
Physical w/o Stand (inch / mm): 50.0 x 29.2 x 2.52 / 1271 x 741.8 x 64
Opakowanie (cale/mm): 60.12 x 38.78 x 11.02 / 1527 x 985 x 280 - WEIGHTWaga netto (lb / kg): 77.38 / 35.1
Net w/o Stand (lb / kg): 68.34 / 31
Brutto (Ib/kg): 87.3 / 39.6 - What's in the box?1. CDM5500T presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. DVI to VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm).
9. IR sensor cable
10. USB cable (Type A-B)
