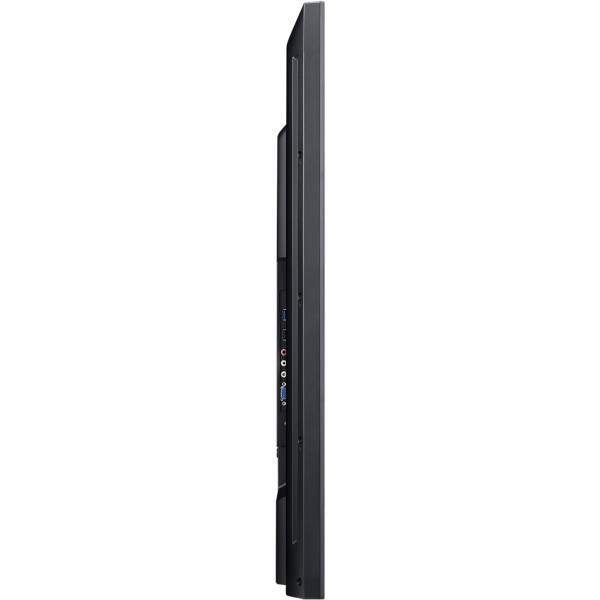

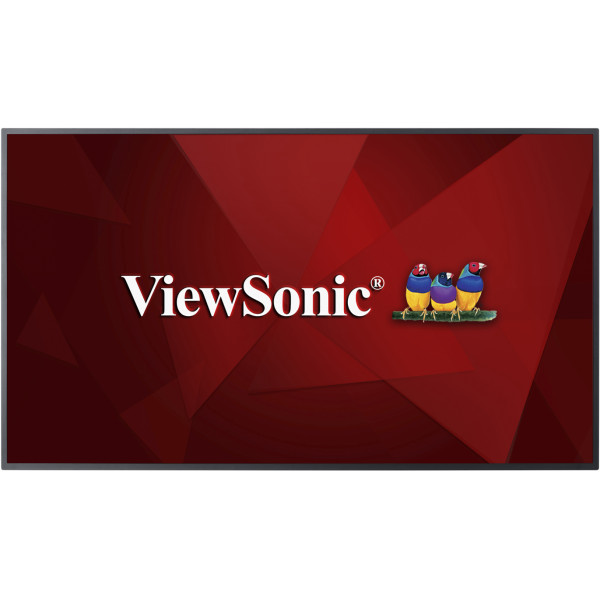

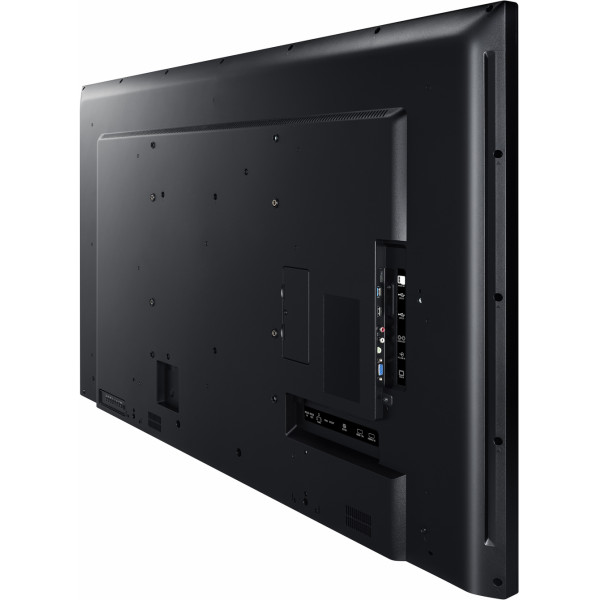

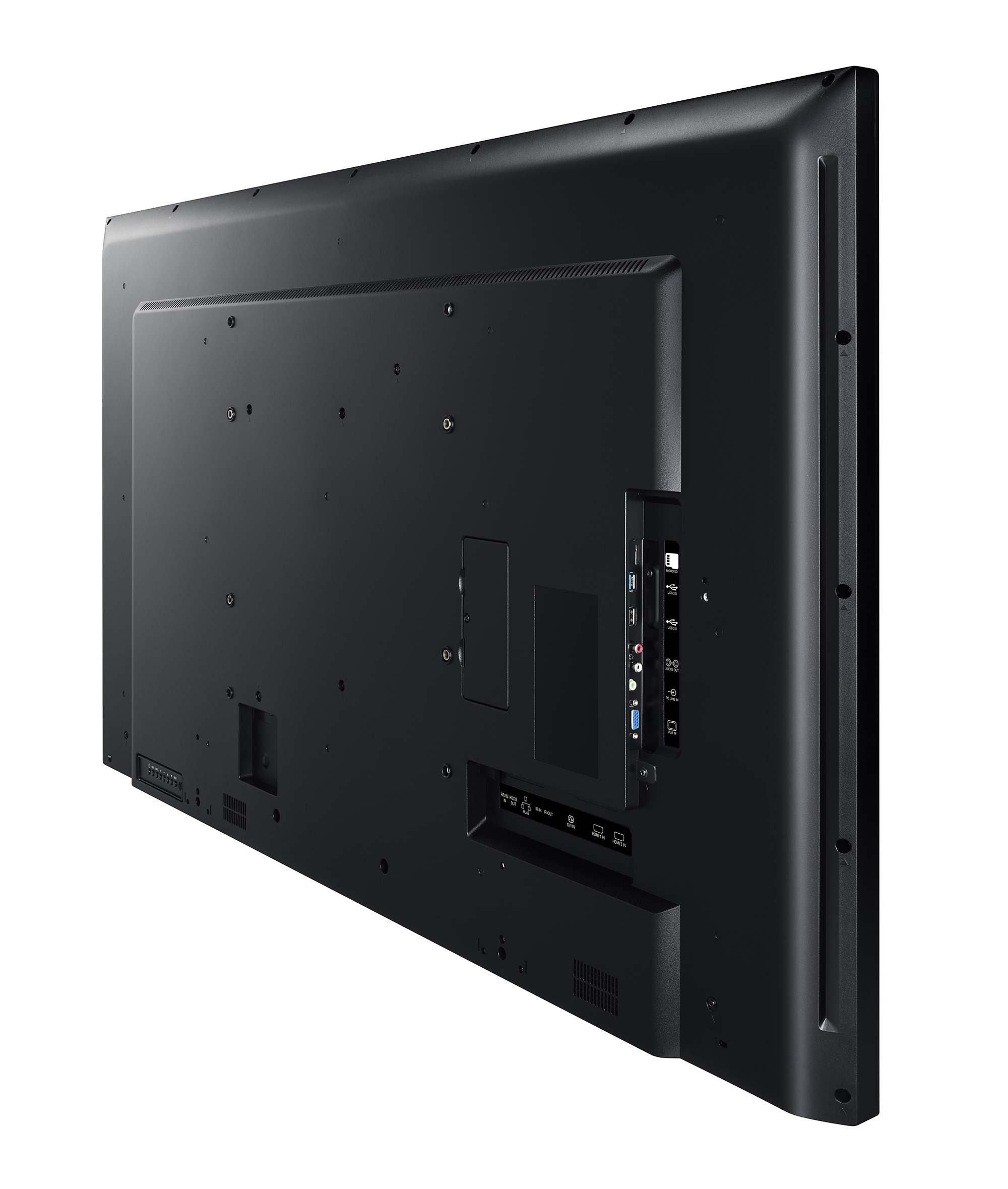

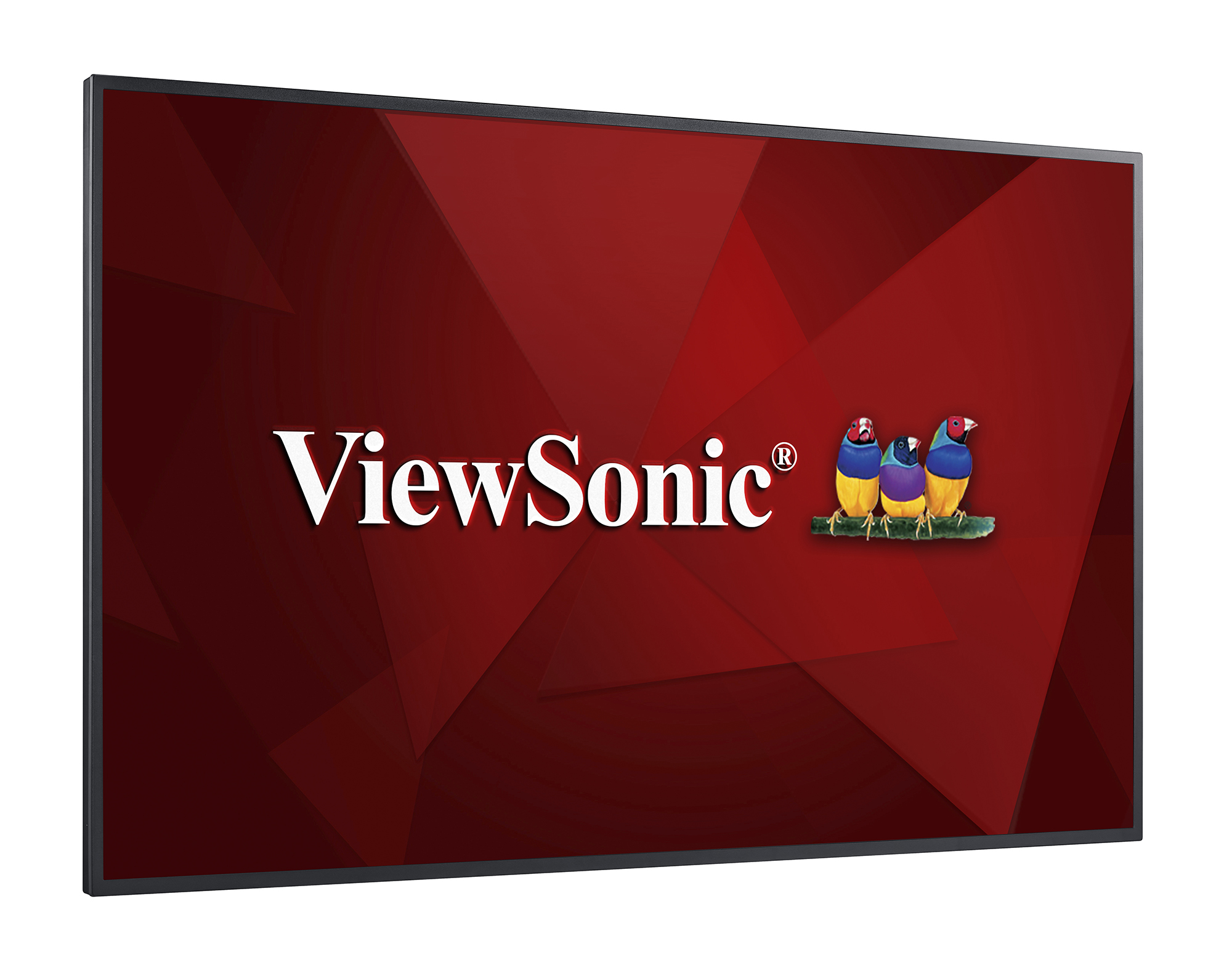

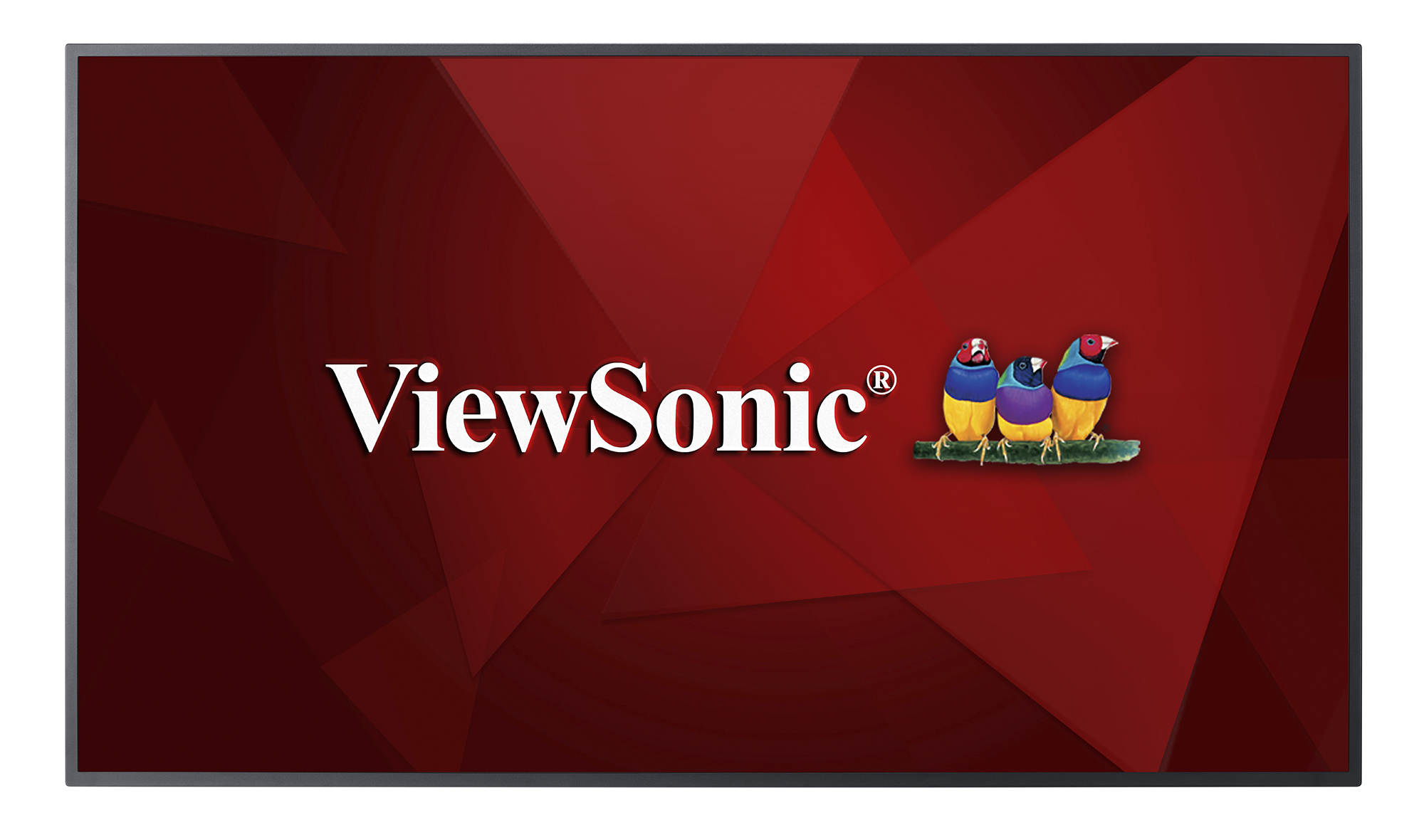

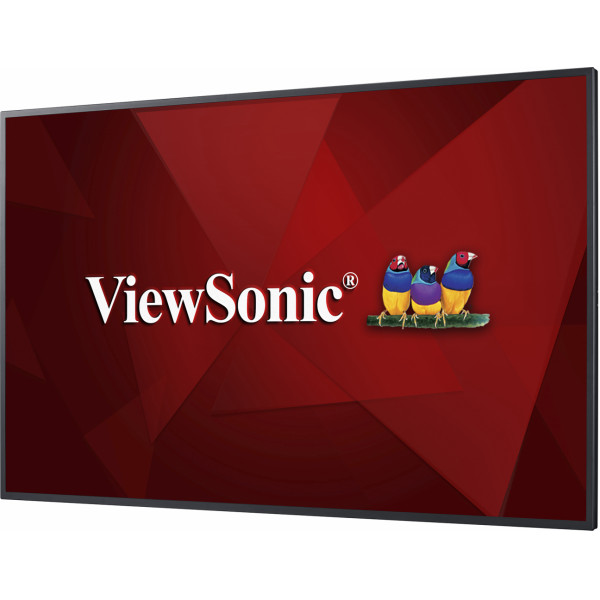

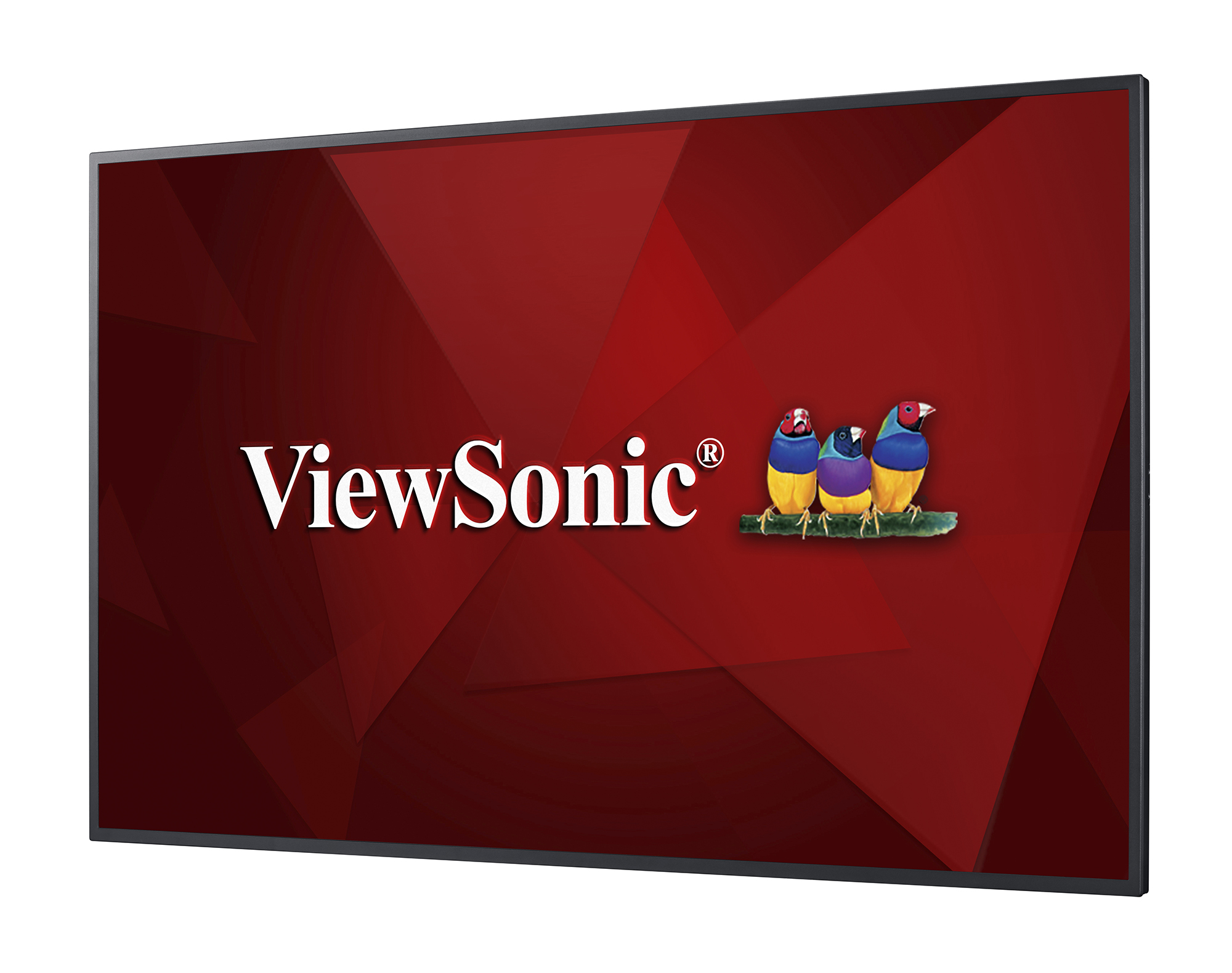

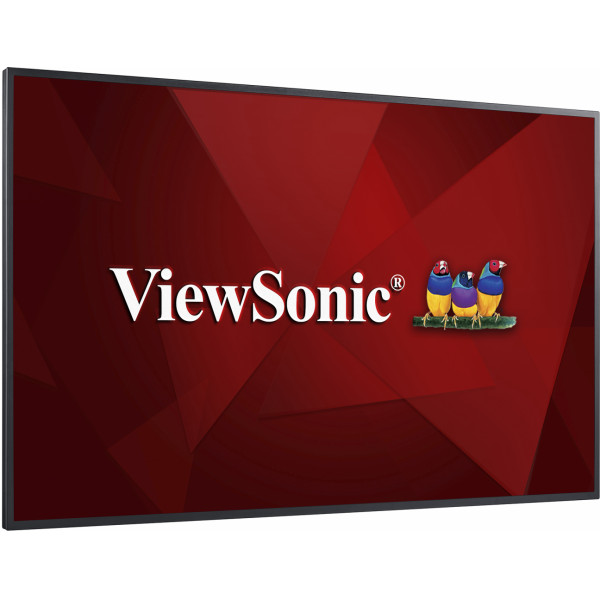

CDE5510
55" 4K Ultra HD Presenation Display
- Embedded Android SOC supports Android apps
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through
- VGA, DVI, USB, IR, RJ45 input compatibility
DANE TECHNICZNE
- LCD PANELRozmiar panelu: 55"
Rodzaj/Technologia: TFT LCD Module with LED Backlight
Obszar wyświetlania (mm): 1209.6(H) x 680.4(V)
Proporcje obrazu: 16:09
Rozdzielczość: 3840x2160 @60Hz
Colors: 1.07B colors
Jasność: 350 nits (typ.)
Współczynnik kontrastu: 4000:1 (typ.)
Czas reakcji: 8 ms
Kąty widzenia: H = 178, V = 178 (typ.)
Backlight: DLED
Czas pracy podświetlenia: 30,000 Hours Min.

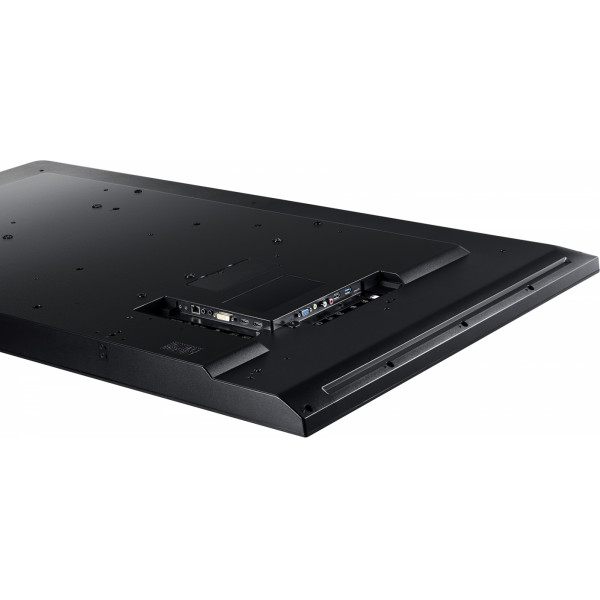

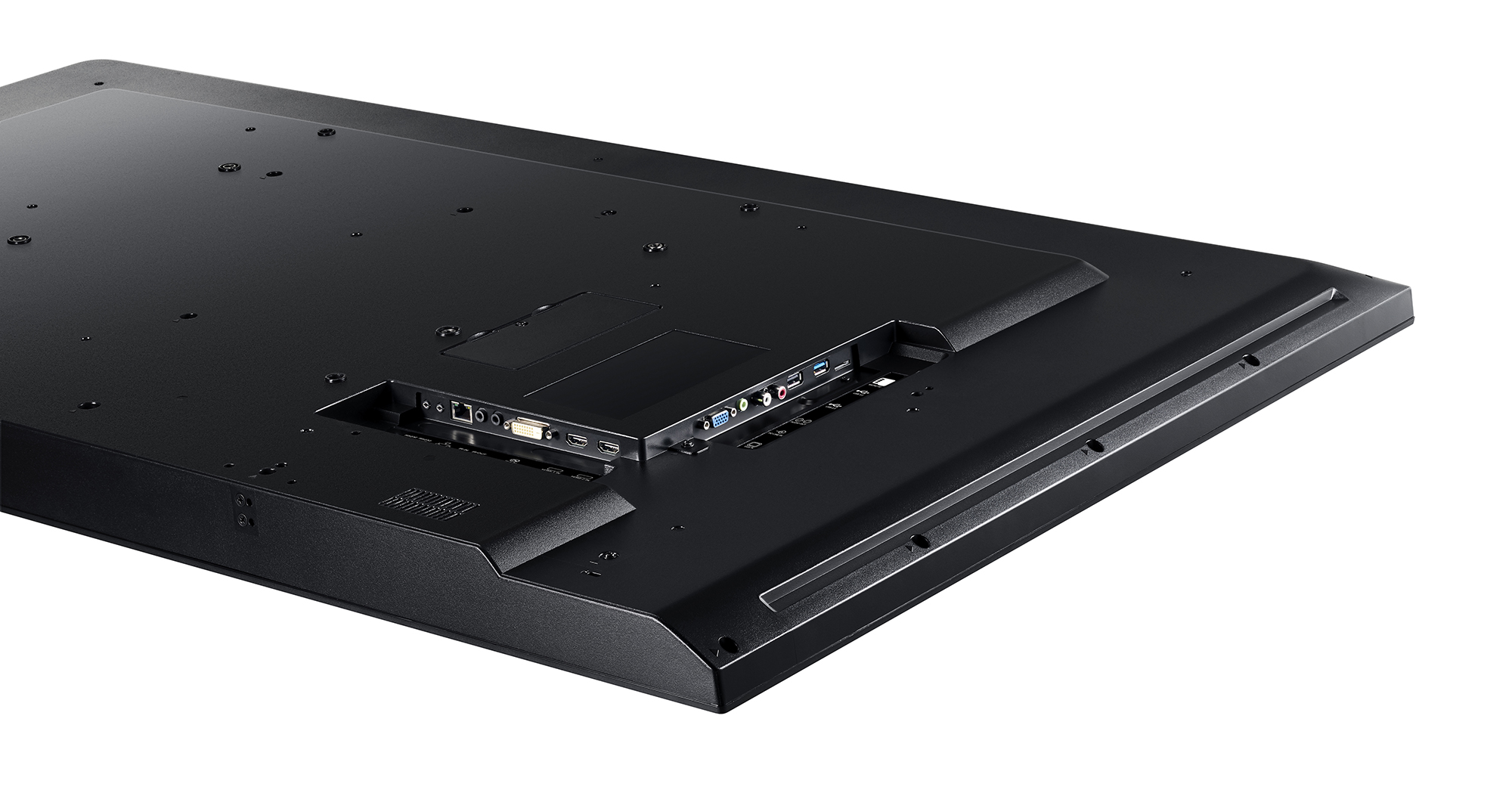

Hardness: 3H - INPUTHDMI: x 2
RGB / VGA: x 1
DVI: x 1
Dźwięk: x1 PC audio (3.5 mm)
YPbPr: x 1
RS232: x 1
SD/SDHC: x 1
IR: x 1 (over audio port) - OUTPUTDźwięk: x 1 (RCA L/R)
RS232: x 1
IR: x 1 (over audio port)
- Sieć lokalnaRJ45: x 1
- USB2.0 Type A: x 1 (USB Playback)
3.0 Type A: x 1 (USB Playback) - Głośniki10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DVI: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERNapięcie: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Zużycie energii: Normal 145 W, Max 190 W

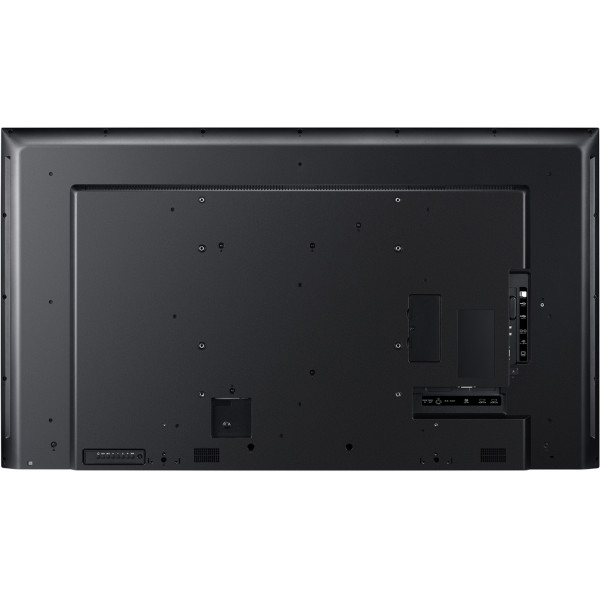

Uchwyt do montażu na ścianie (standard VESA®): 400 x 400 mm / 400 x 200 mm; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
EEI Rating: A - OPERATING CONDITIONSTemperatura (º C): 5°C to 40°C
Wilgotność powietrza: 20% ~ 80% non-condensing - "DIMENSIONS (W x H x D)"Physical (mm / inch): 1239.2 x 751.9 x 329.81 mm / 48.79 x 29.6 x 12.98 in. (with Stand)
Physical w/o Stand (mm / inch): 1239.2 x 711.6 x 61.7 mm / 48.79 x 28.02 x 2.43 in. (w/o Stand)
Packaging (mm / inch): 1365 x 864 x 185 mm / 53.74 x 34.02 x 7.28 in - WEIGHTNet (kg / lb): 17.76 kg / 39.15 lbs (with Stand)
Net w/o Stand (kg / lb): 15.96 kg / 35.19 lbs (w/o stand)
Gross (kg / lb): 22.33 kg / 49.23 lbs - What's in the box?1. CDE5510 presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm)
9. IR sensor cable
