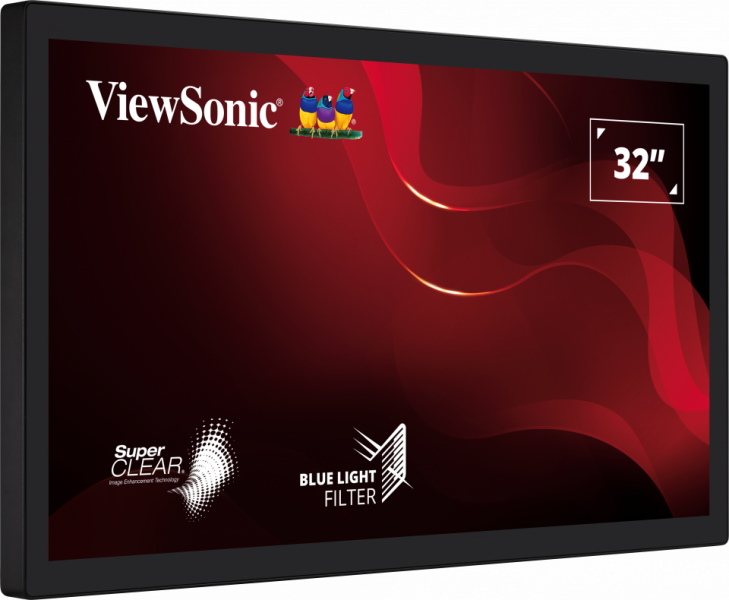

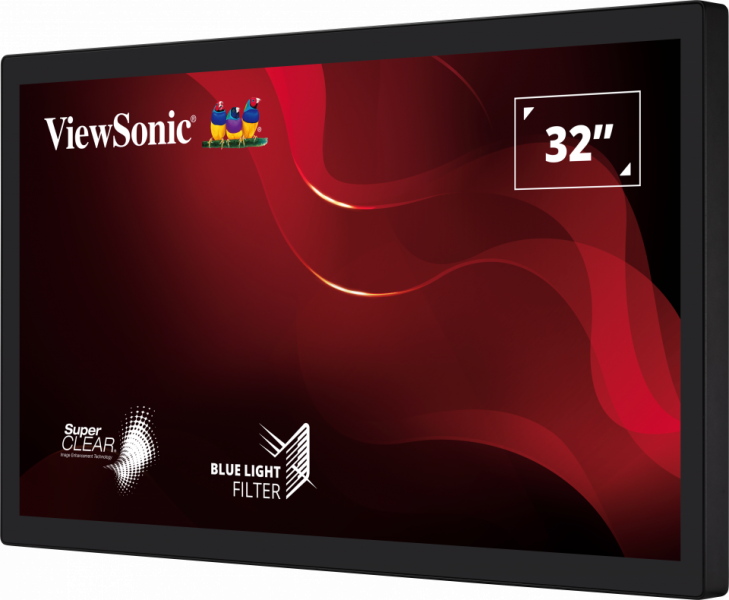

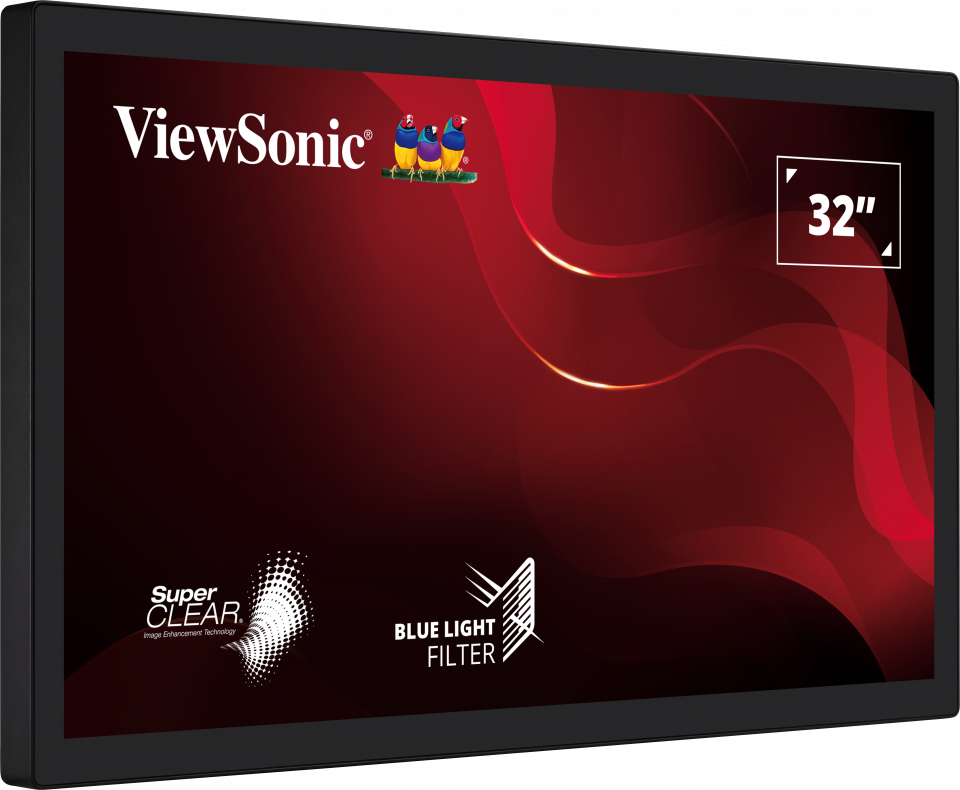

TD3207

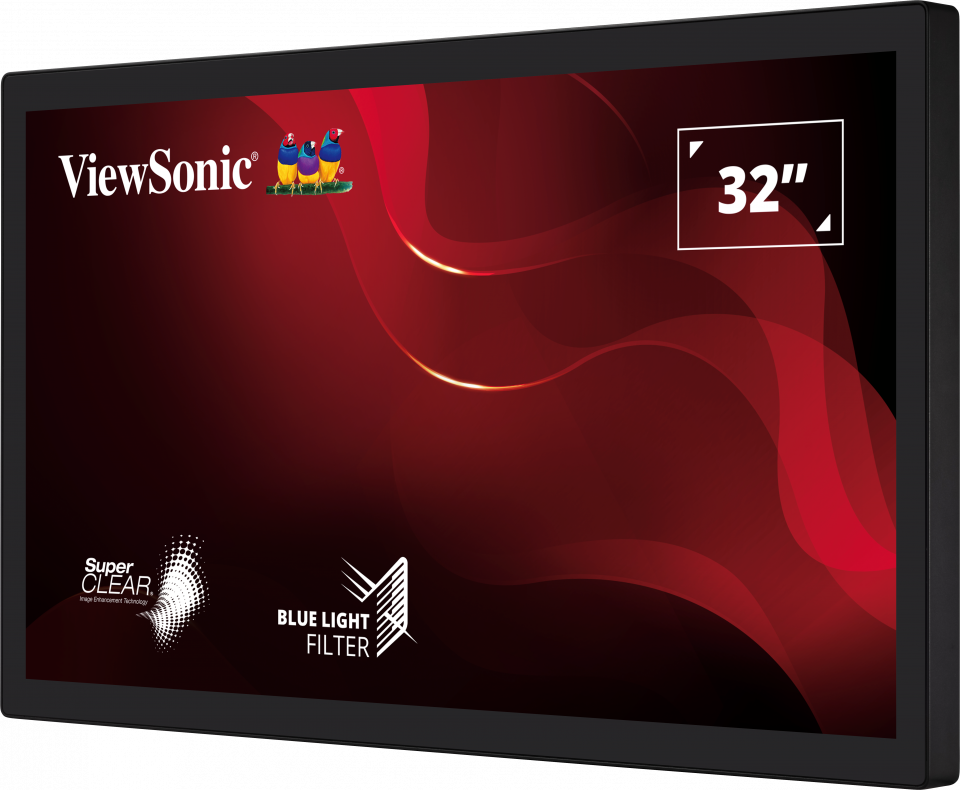

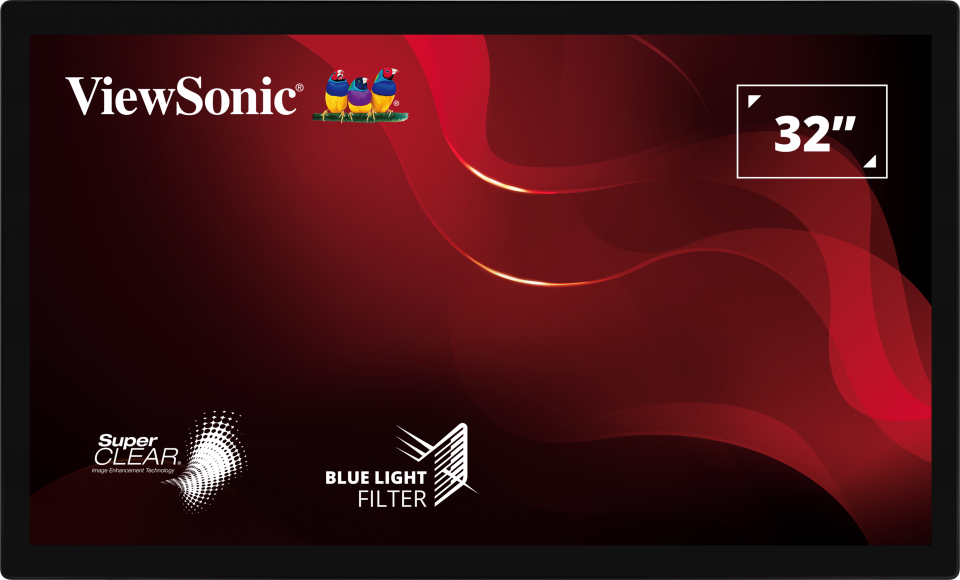

32” Open Frame Touch Monitor with 24/7 Operation

  • Durable and scratch-resistant IP65 front touchscreen
  • Highly responsive 10-points PCAP touch technology
  • Long-lasting 24/7 usage
  • Adaptable to multi-screen orientations

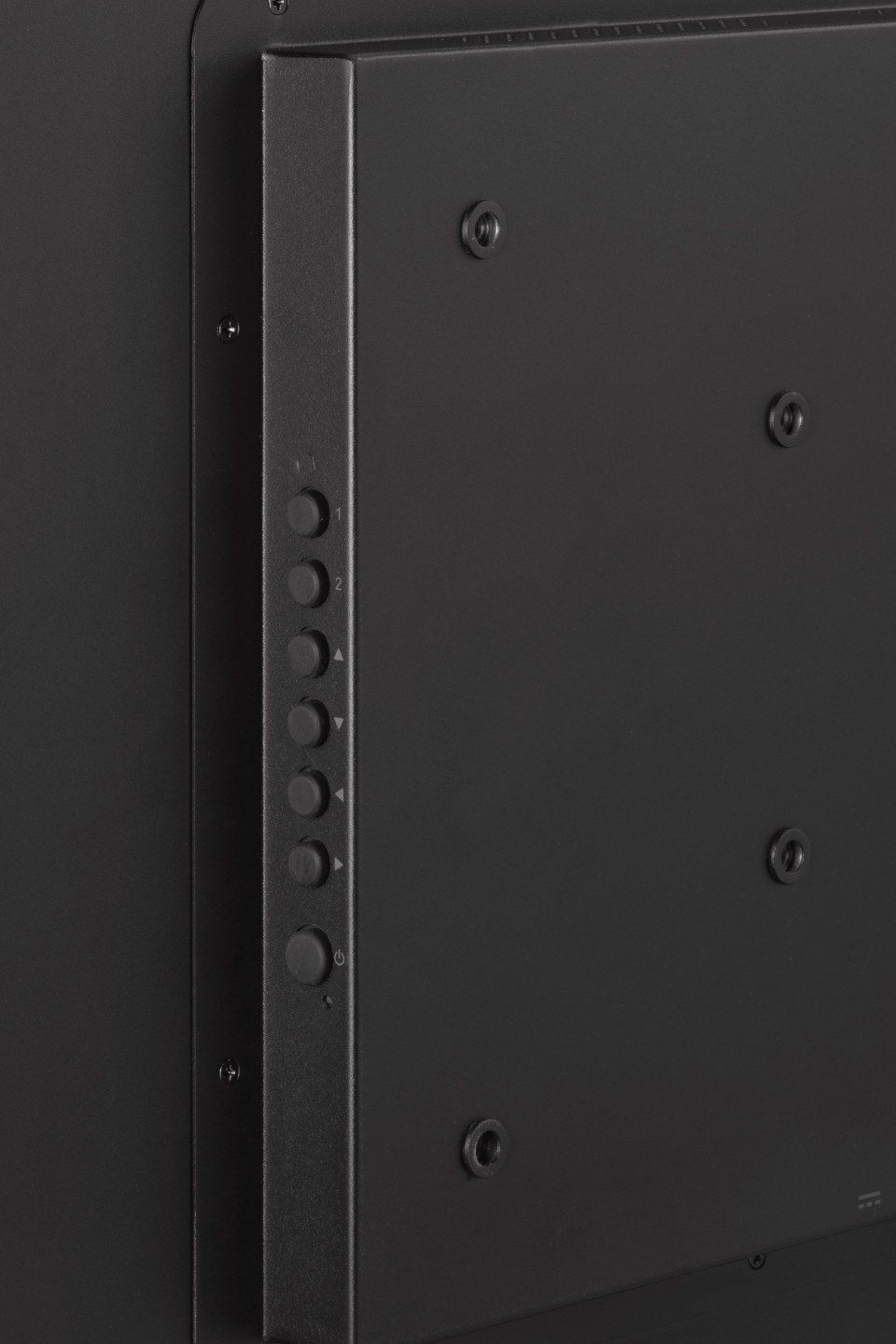

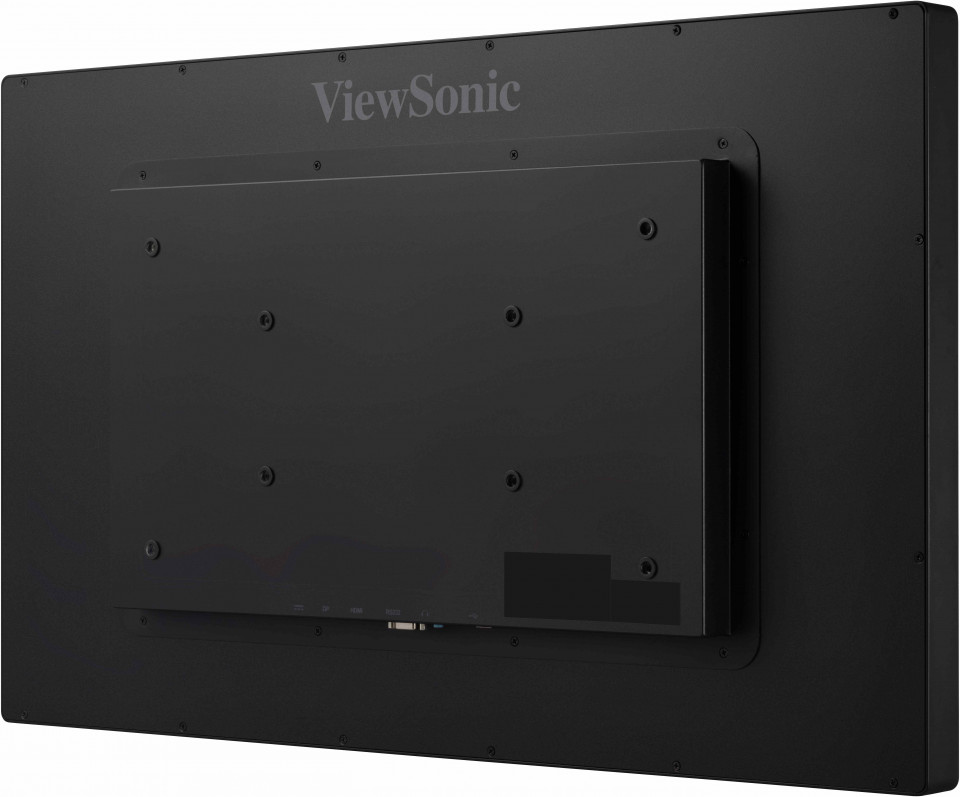

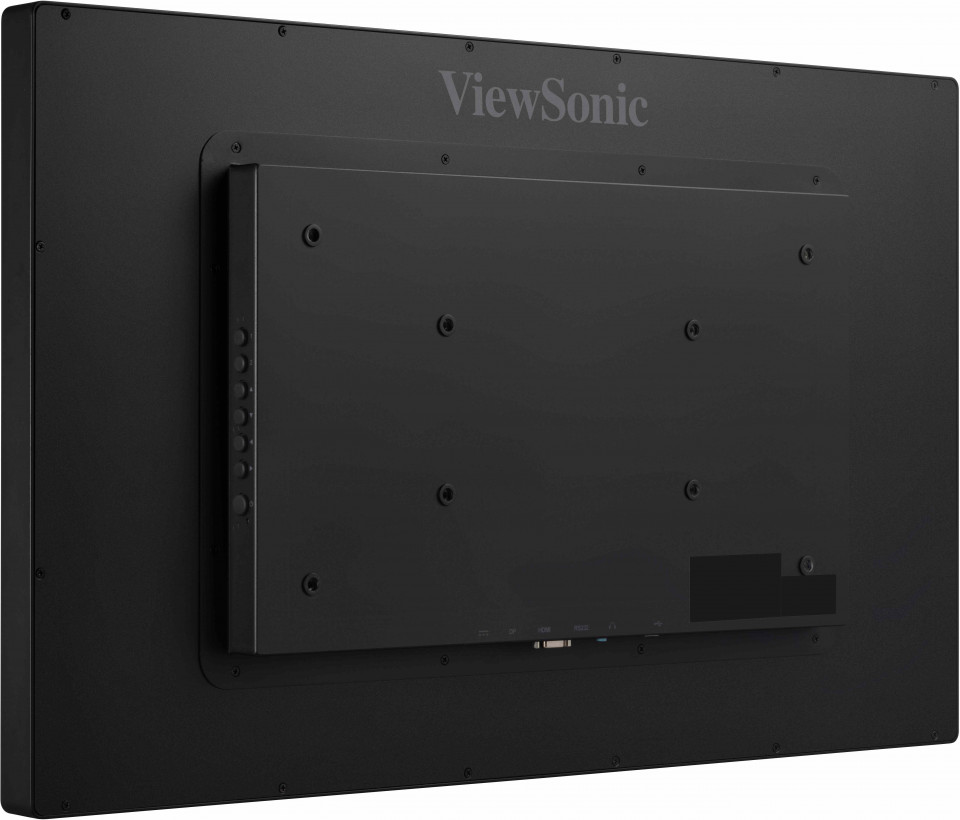

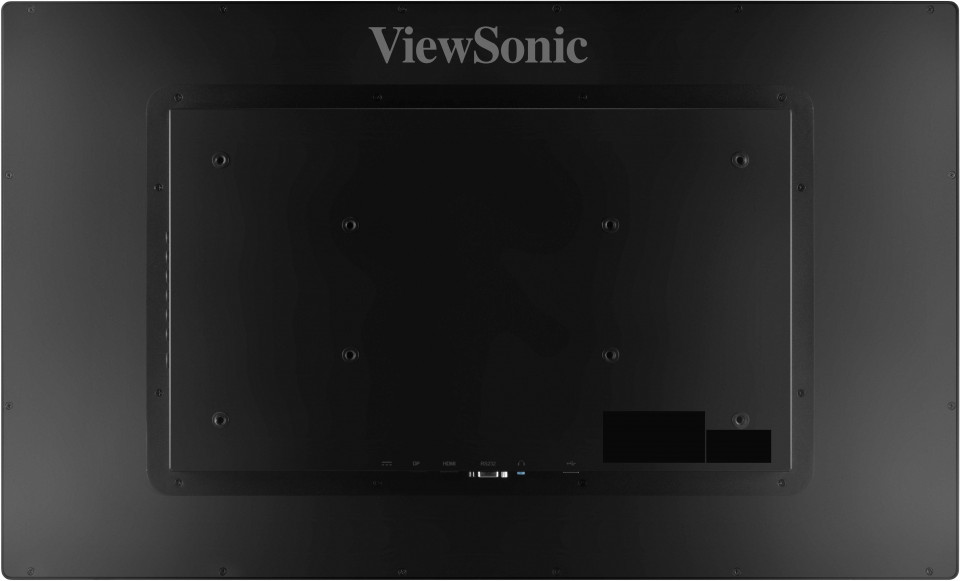

  • Ease of installation with VESA-mountable design

SPECIFICATIONS


  • Display
    Display Size (in.): 32
    Viewable Area (in.): 31.5
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 4,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 450 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 4.6ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 50000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Blue Light Filter: Yes
    Low Blue Light: Software solution
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Pixel Size: 0.364 mm (H) x 0.364 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 3mm
  • Protection Rating
    IP65: Water & dust resistant (front panel)
    IK08: Impact resistant
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
