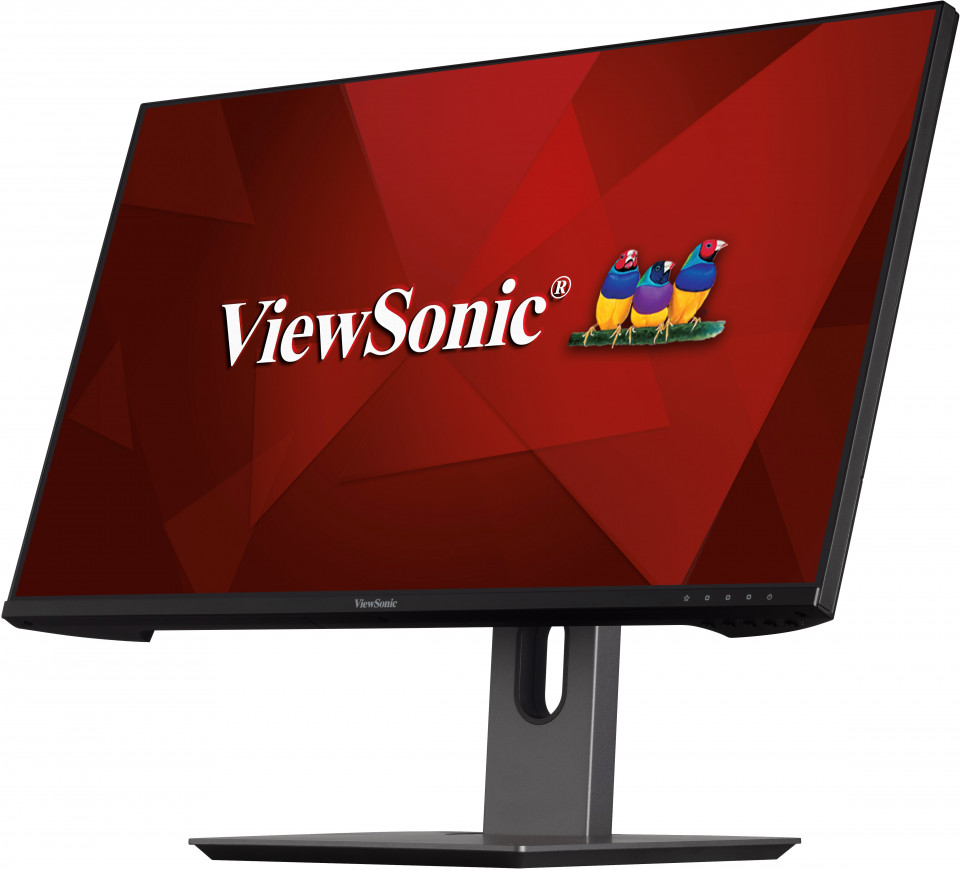

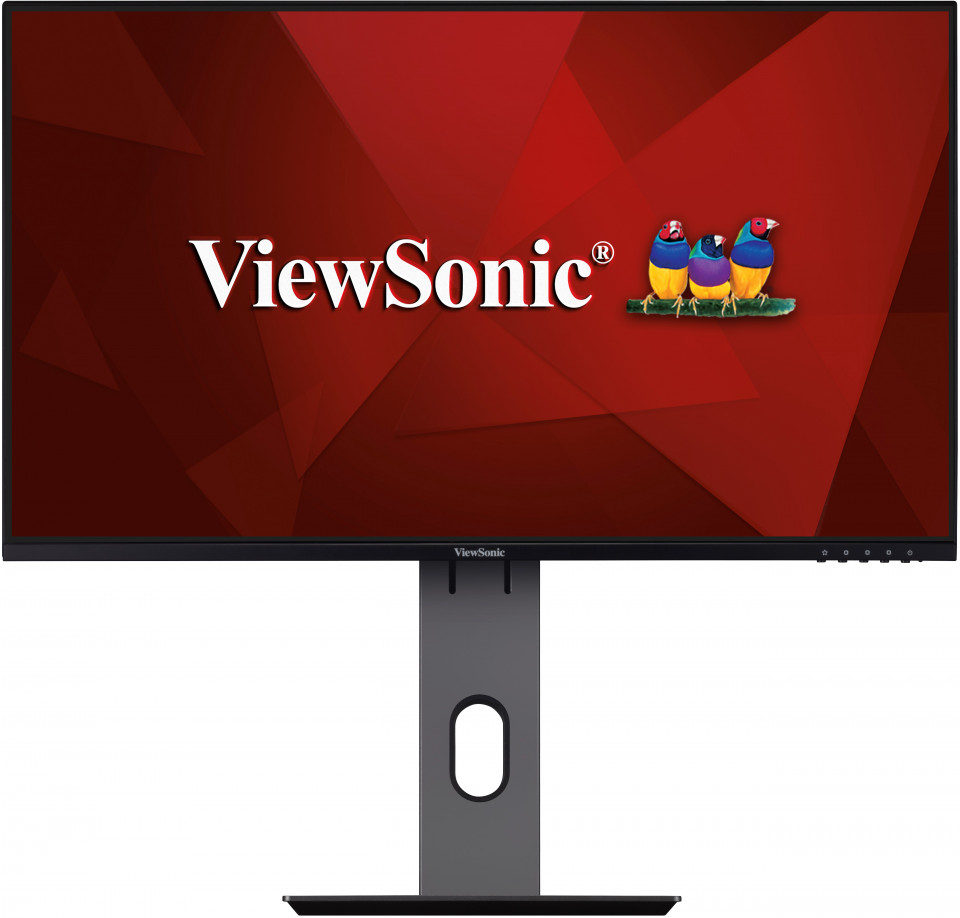

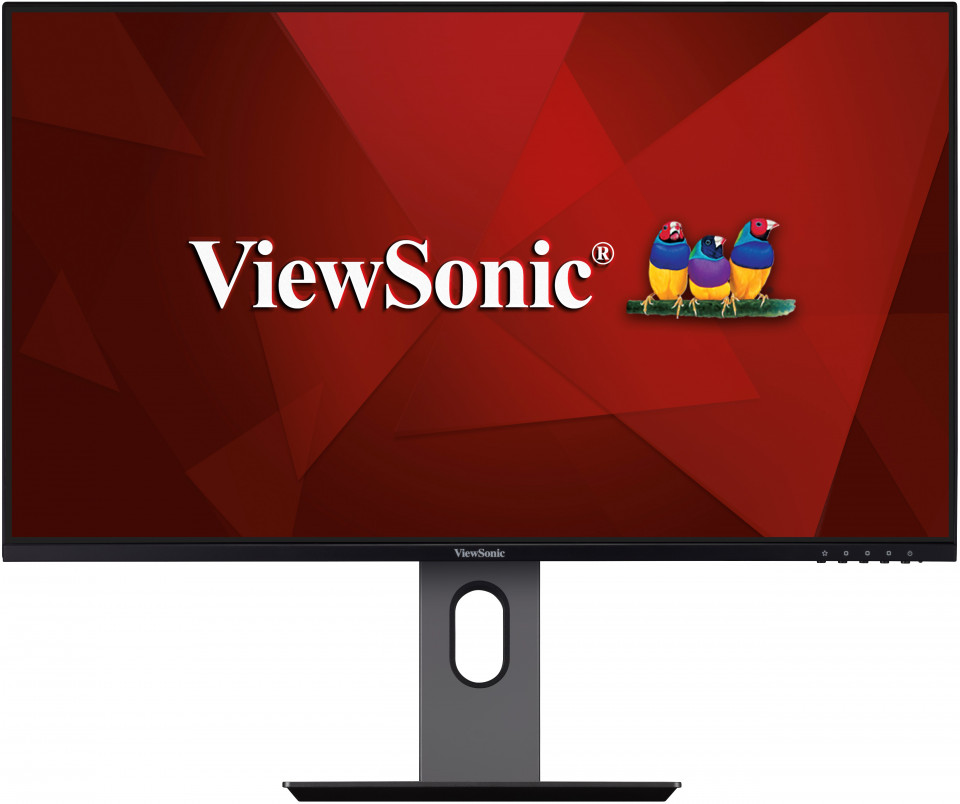

VX2480-SHDJ

24” Full HD IPS Entertainment Monitor

Full HD resolution for high detail
SuperClear® IPS Technology
75Hz Refresh Rate
Adjustable Ergonomic Stand
VGA, HDMI and DisplayPort connectivity

GALLERY

REVIEWS

HANOICOMPUTER - Video

“Trên Tay Và Đánh Giá Nhanh Màn Hình Viewsonic VX2480 SHDJ”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (GTG w/OD): 3.96ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Power
Eco Mode (Conserve): 18W
Eco Mode (optimized): 20W
Consumption (typical): 22W
Consumption (max): 23W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 20% to 90% (no condensation)
Humidity (non-condensing): -4°F to 140°F (-20°C to 60°C)
Wall Mount
VESA Compatible: 100 x 100, mm
Input Signal
Frequency Horizontal: 24 ~ 83KHz
Frequency Vertical: 48 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate - RGB Analog
Ergonomics
Height Adjust (mm): VESA Compatible
Swivel: 90º

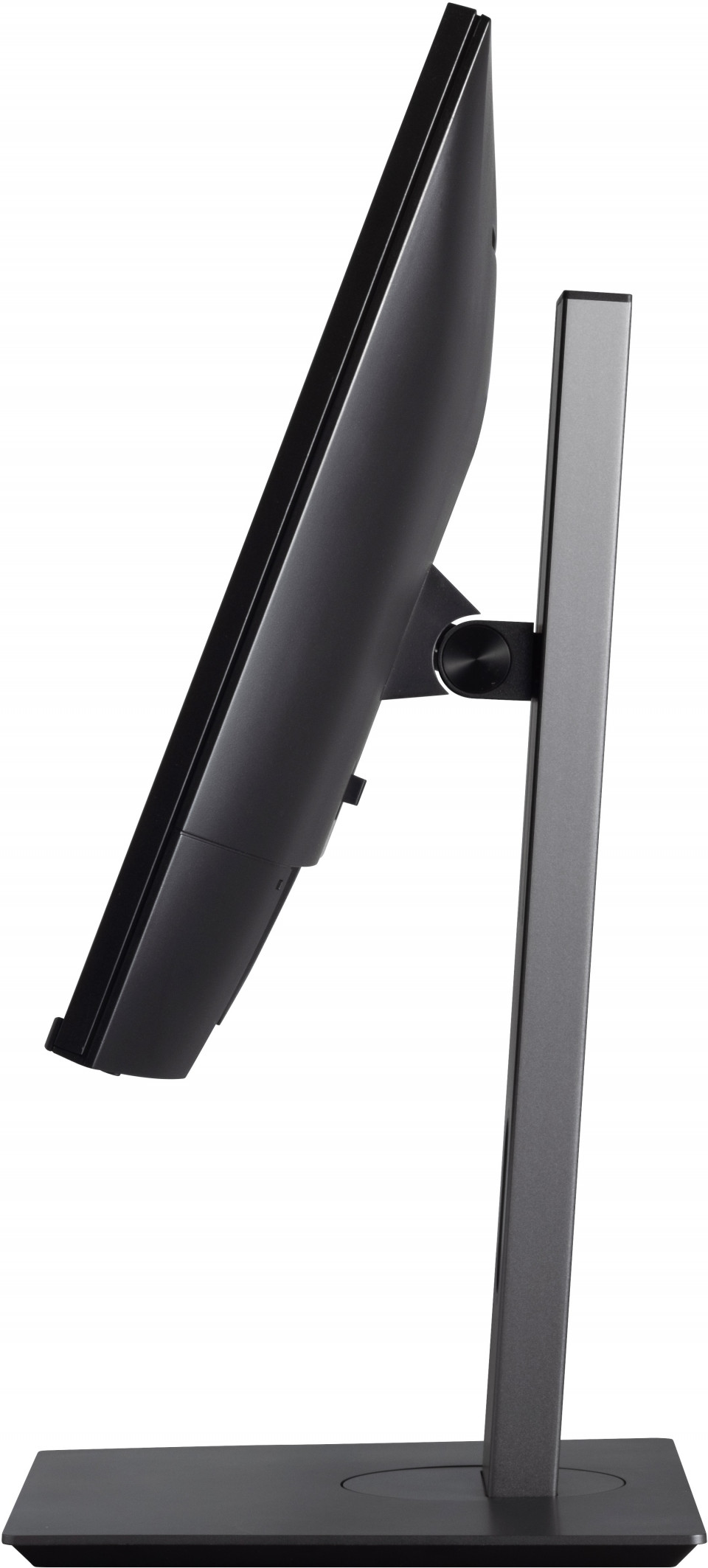

Tilt (Forward/Back): 20º / -45º

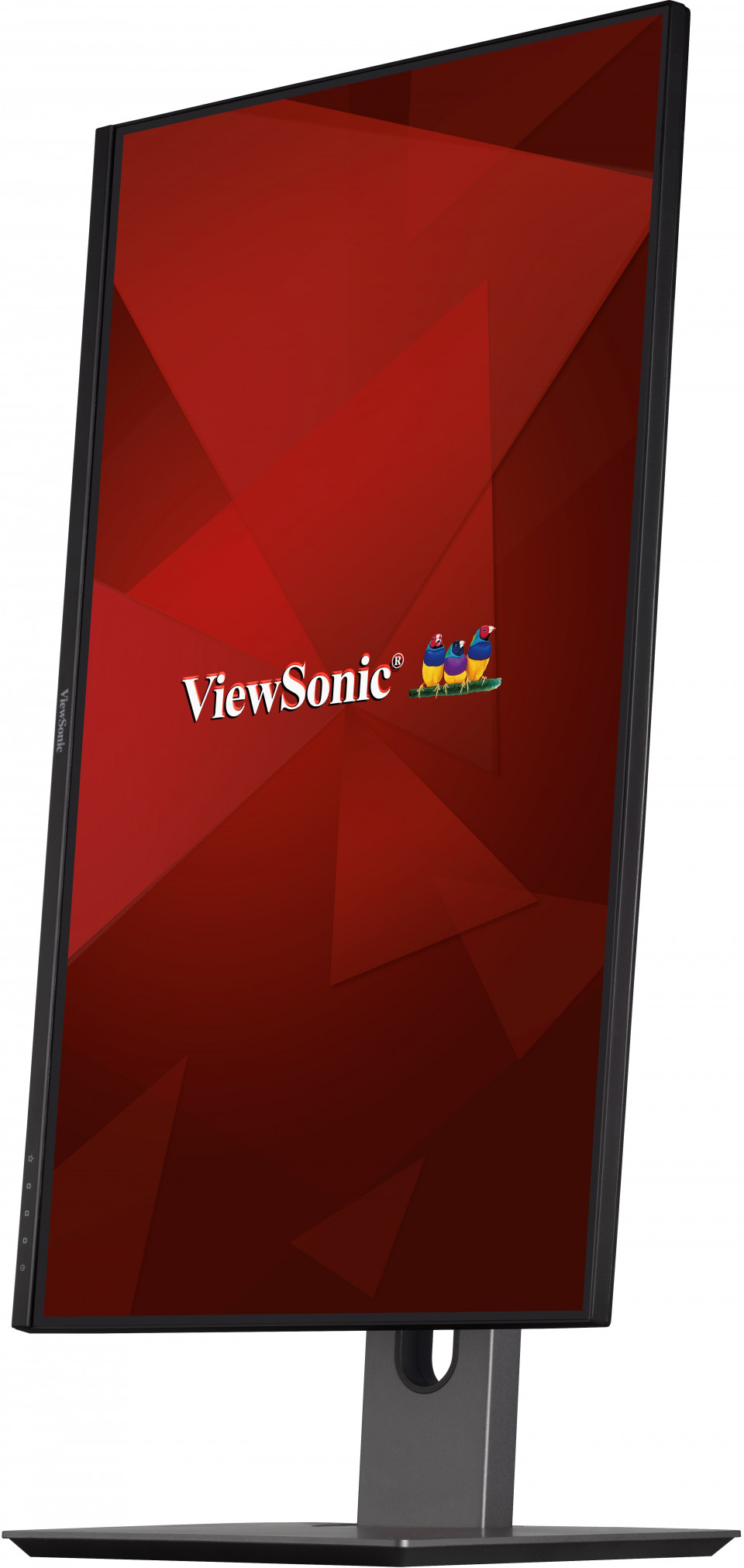

Pivot (Right/Left): 150º / 0º
Weight (imperial)
Net (lbs): 3.3
Net Without Stand (lbs): 6.9
Weight (metric)
Net (kg): 11.9
Net Without Stand (kg): 7.3
Gross (kg): 15.1
Dimensions (imperial) (wxhxd)
Packaging (in.): 422 x 132 x 5.4
Physical (in.): 384.5~534.5 x 214 x 539
Physical Without Stand (in.): 317 x 50 x 769
Dimensions (metric) (wxhxd)
Packaging (mm): 30.3 x 16.6 x 5.2
Physical (mm): 21.2 x 15.14~21.04 x 8.4
Physical Without Stand (mm): 21.2 x 12.5 x 2
General
PACKAGE CONTENTS: 1 x3-pin Plug (IEC C13 / CEE22), AC/DC Adapter x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
