SPECIFICATIONS
- DisplayDisplay Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.249 mm (H) x 0.241 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)
- AudioInternal Speakers: 2Watts x2
- PowerEco Mode (Conserve): 16W
Eco Mode (optimized): 18W
Consumption (typical): 20W
Consumption (max): 22W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)

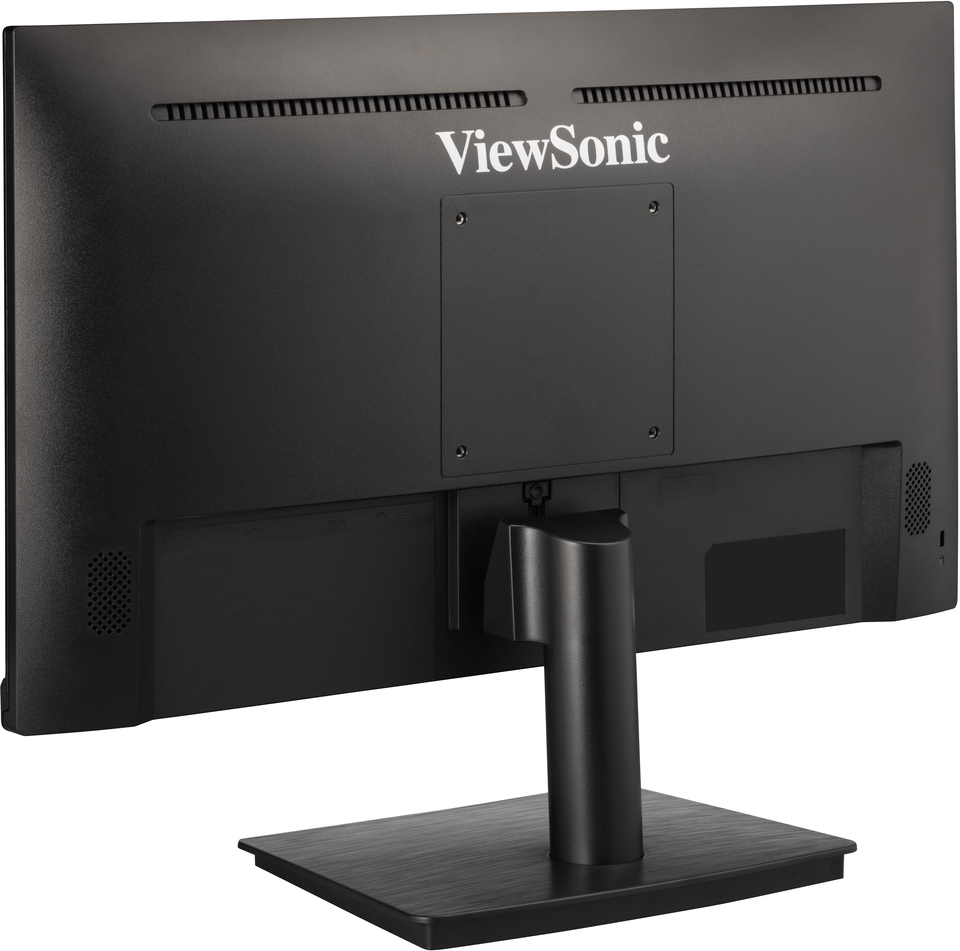

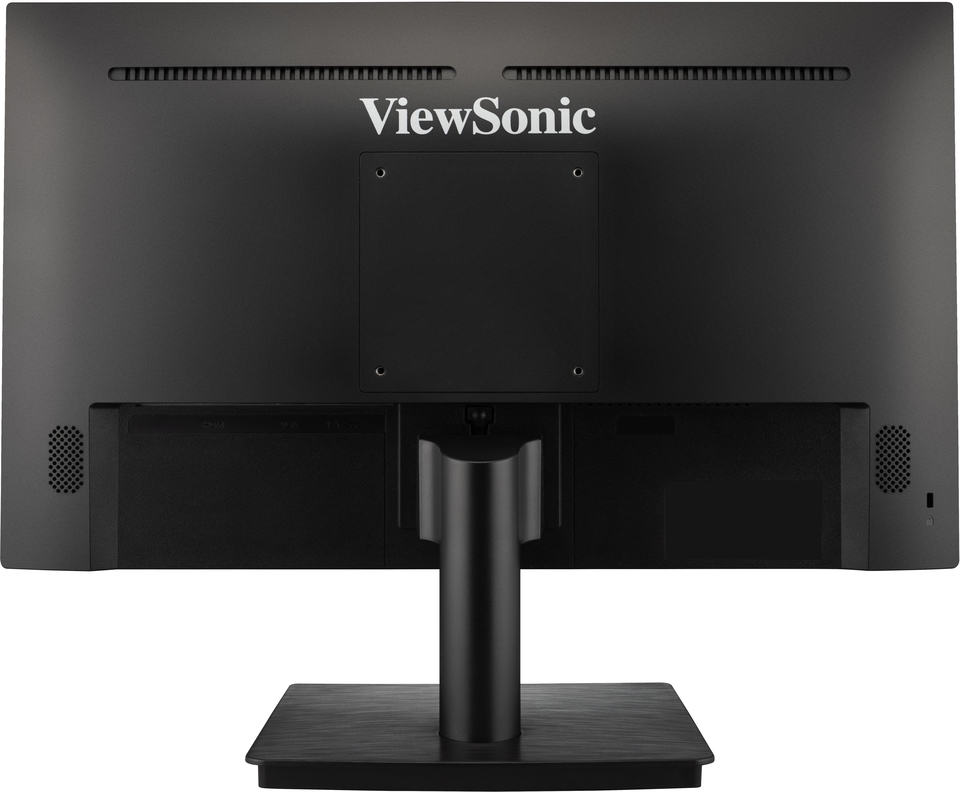

Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz
Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz - Video InputDigital Sync: TMDS - HDMI (v1.4)

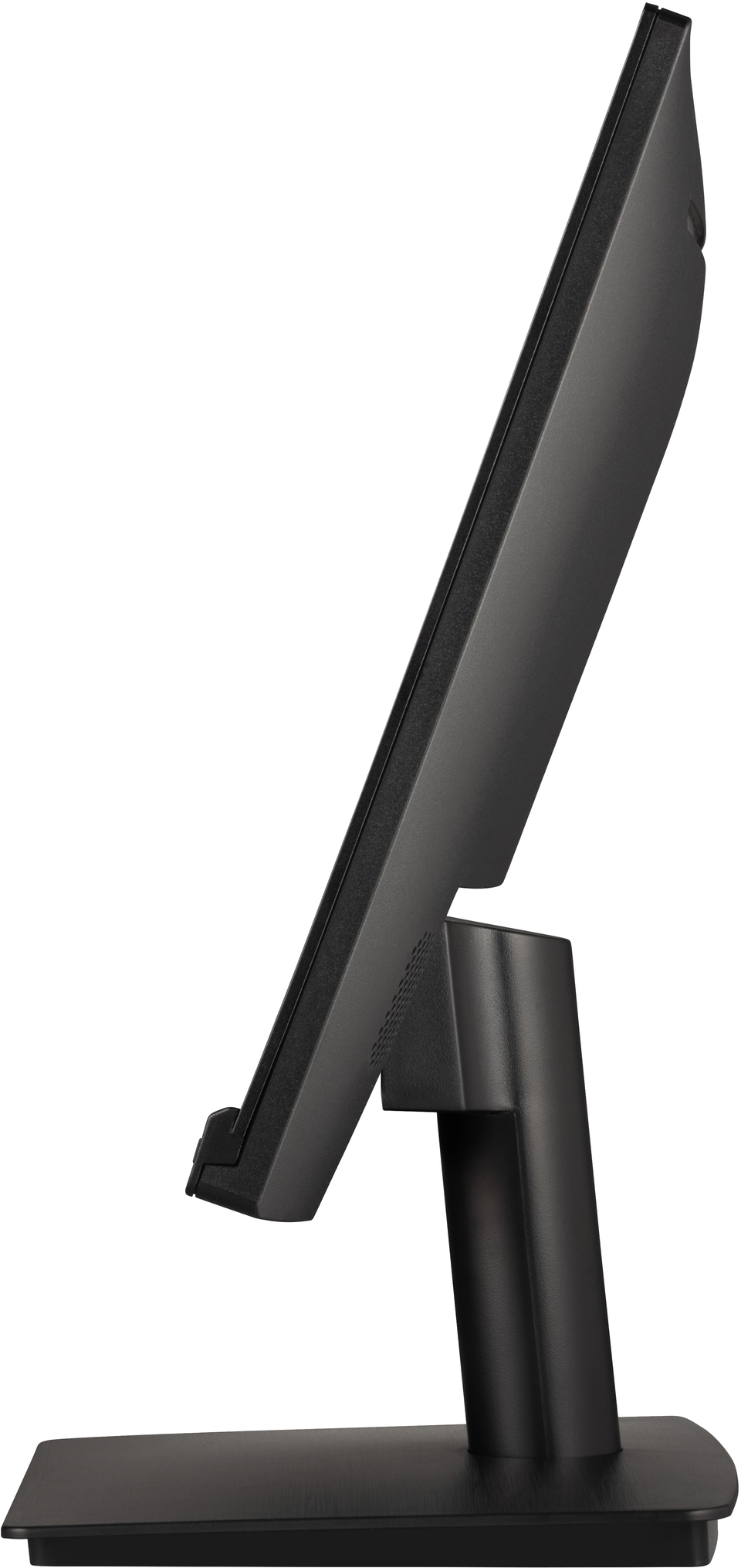

Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -3º / 20º
- Weight (imperial)Net (lbs): 5.1
Net Without Stand (lbs): 4.2
Gross (lbs): 7.3 - Weight (metric) Net (kg): 2.3
Net Without Stand (kg): 1.9
Gross (kg): 3.3 - Dimensions (imperial) (wxhxd)Packaging (in.): 21.5 x 15.6 x 4.7
Physical (in.): 19.3 x 15 x 7.4
Physical Without Stand (in.): 19.3 x 11.5 x 1.6 - Dimensions (metric) (wxhxd)Packaging (mm): 545 x 395 x 120
Physical (mm): 491 x 381 x 189
Physical Without Stand (mm): 491 x 291 x 39 - GeneralPACKAGE CONTENTS: VA2209-MH x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
