IFP7552-1A

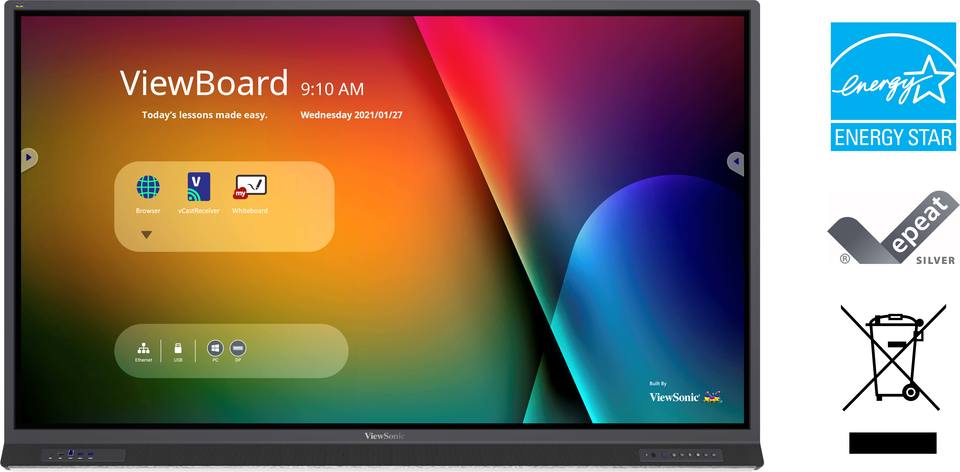

ViewBoard® 75" 4K Interactive Display
- Singe-cablesolution fortouch, audio, video, and power via USB-C
- Angulardesign forelevated sound and ease-of-use duringclass
- Lag-free, pen-on-paper writing experience with Ultra Fine Touch Technology
- Blue light filter, True Flicker-Free and Zero-Bonding Technology for an increased visual experience
- QuadCoreA73CPUpoweredby Android9.0 OS
SPECIFICATIONS
- DisplayPanel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1649.644(H) x 927.936(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors (10bit)
Brightness: 400 nits (typ.)
Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours (Typ.)
Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating - PlatformProcessor: ARM Cortex A73*4
RAM: 4GB (IFP7552-1A), 8GB (IFP7552-1B)
Storage: 32GB (IFP7552-1A), 64GB (IFP7552-1B) - TouchType/ Tech: UFT (Ultra Fine Touch) Technology
Touch Resolution: 32767 x 32767
Touch Point: Windows: 33 points touch, Android: 20 points touch
- INPUTHDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x1), x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
RGB / VGA: x1 (1920x1080 @60Hz)
DisplayPort: x1 (3840x2160 @60Hz)
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1
WiFi: module slot x 1 - OUTPUTHDMI: x1 (on demand)
Audio: x1 (Earphone out)
SPDIF: x1 (optical) - LANRJ45: x1
- USBType A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)
Type B: x2, for touch
Type C: x1 (USB3.0, DP1.2 Alt Mode, 100M Ethernet, 60W PD) - SPEAKERS15W x 2 + 15W x 1 subwoofer
- MICROPHONEbuilt-in 8-array microphone
- Top Camera PlateYes
- Embedded OSAndroid 11
- Bundle SoftwareBasic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display - Special FeaturesAll-in-one USB port: USB 3.0 x 4
Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
Light Sensor: Yes - PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: 159.4W (Typ.) < 0.5 W (""Off"") - ERGONOMICSWall Mount (VESA® ): 800 x 400
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 1720.1 (W) x 1069.6 (H) x 118.4 (D) mm, 67.72 (W) x 42.11 (H) x 4.66 (D) inch
Packaging (inch / mm): 1880 (W) x 1160 (H) x 280 (D) mm, 74.02 (W) x 45.67 (H) x 11.02 (D) inch - WEIGHTNet (lb / kg): 125.22 lb / 56.8 kg
Gross (lb / kg): 158.95 lb / 72.1 kg - PACKAGE CONTENTS1. Power cable(3 meters) 2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. 13. AAA Battery x 2
- Compatible Slot-in PCVPC12 & VPC25/27-O & VPC25/27-O-B series
