IFP6552-1A

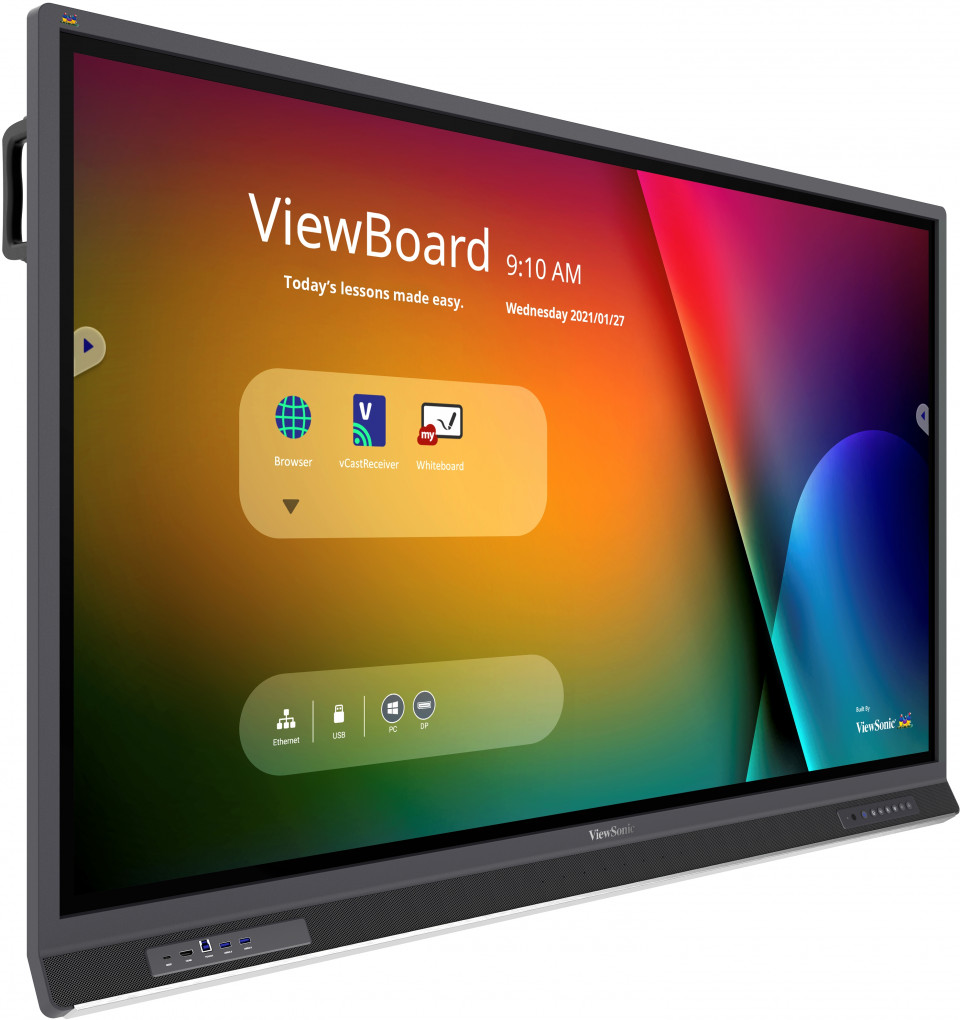

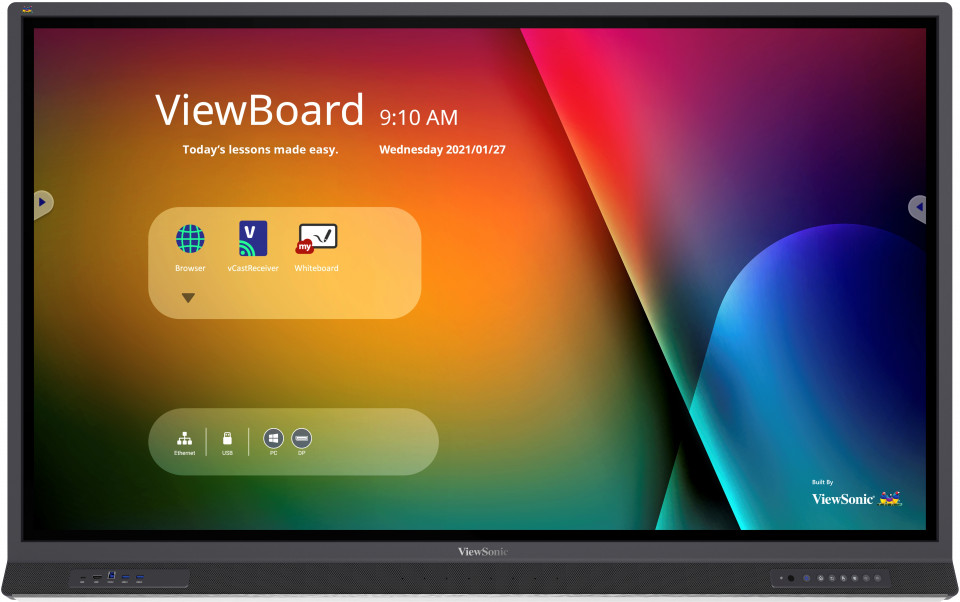

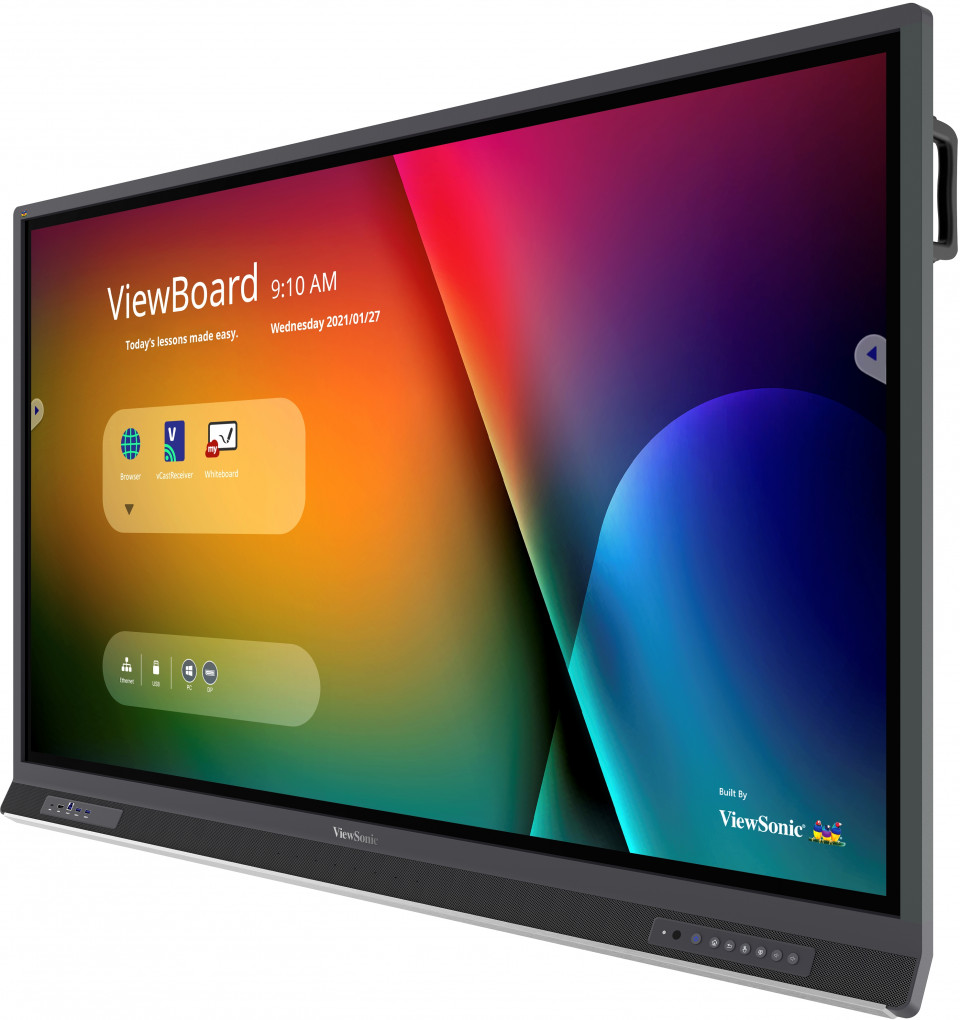

ViewBoard® 65" 4K Interactive Display

Single-cable solution for touch, audio, video, and power via USB-C
Angular design for elevated sound and ease-of-use during class
Lag-free, pen-on-paper writing experience with Ultra Fine Touch Technology
Blue light filter, True Flicker-Free and Zero-Bonding Technology for an increased visual experience
Quad Core A73 CPU powered by Android 9.0 OS

SPECIFICATIONS

Display
Panel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1428.48(H) x 803.52(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors (10bit)
Brightness: 400 cd/m2 (typ.)
Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Response Time: 8ms
Frame Rate: 60 Hz
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours (Typ.)
Ambient Light & Interface Sensor: Yes
Tracking Technology: Advanced Infrared
Surface Treatment: Hardness: 7H and Anti-glare, Anti-fingerprint coating
Platform
Processor: ARM Cortex A73*4
GPU: ARM Mali-G52
RAM: 4GB (IFP6552-1A)8GB (IFP6552-1B)
Storage: 32GB (IFP6552-1A)64GB (IFP6552-1B)
Touch
Type/ Tech: UFT (Ultra Fine Touch) Technology
Glass Type: 4 mm Level 9 Mohs Anti-Glare and Protective Temper Glass
Touch Resolution: 32767 x 32767
Touch Point: Windows: 33 points touch Android: 20 points touch
Touch Response Time: ≤8ms
Minimum object size: 2.0mm
Touch Accuracy: +/- 1mm
Detection: Smart Object Detection: Pen, Finger, Palm

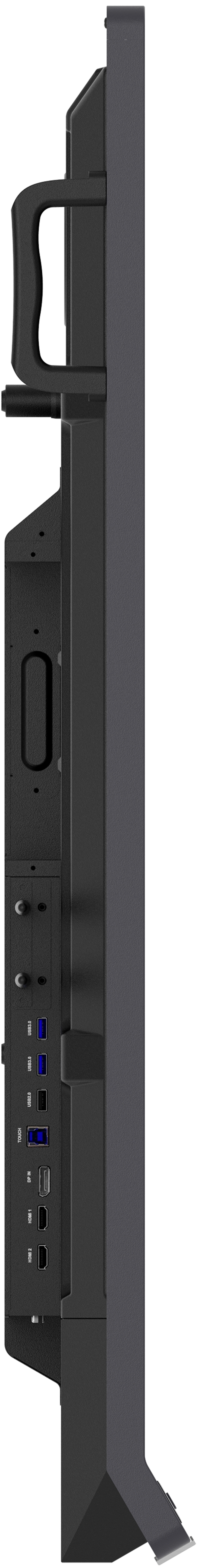

INPUT
HDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x1)x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
RGB / VGA: x1 (1920x1080 @60Hz)
DisplayPort: x1 (3840x2160 @60Hz)
Audio: x1 (PC audio in)
RS232: x1
OUTPUT
HDMI: x1 (up to 4K60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
LAN
RJ45: x2 (IFP x 1 & slot PC x 1)
USB
Type A: USB 2.0 x 1(Side x1)USB 3.0 x 4 (Front x2, Side x2, SmartPort™ USB)
Type B: x2, for touch
Type C: x1 (USB3.0, DP1.2 Alt Mode, 100M Ethernet, 60W PD)
SPEAKERS
15W x 2 + 15W x 1 subwoofer
MICROPHONE
built-in 8-array microphone
Embedded OS
Android 9 (IFP) and Windows 10 Pro (Slot-in PC)
Bundle Software
Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display
Special Features
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): USB 3.0 x 4
Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
Light Sensor: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range 50Hz to 60Hz
Consumption: 190W (Typ.) < 0.5 W (""Off"")
ERGONOMICS

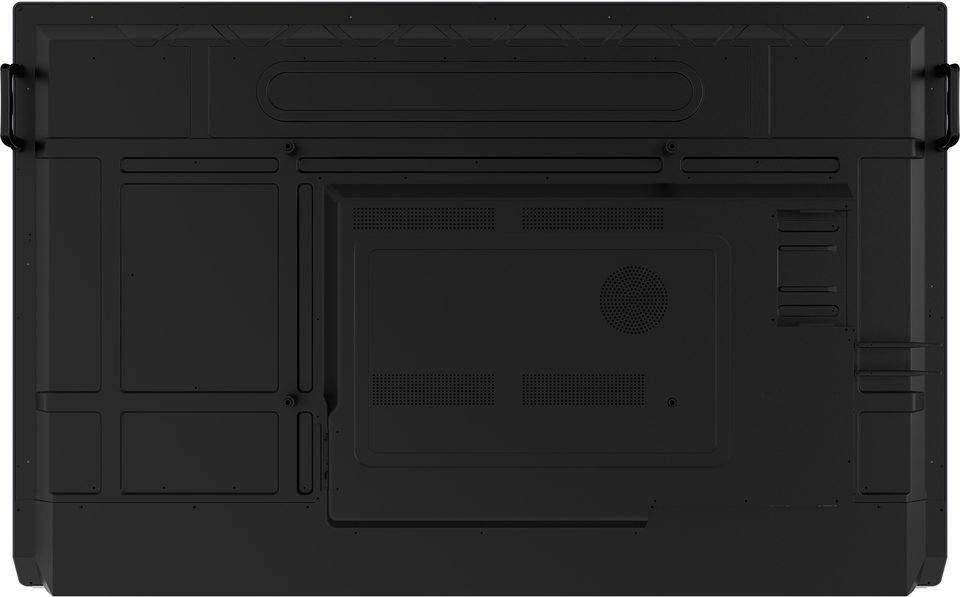

Wall Mount (VESA® ): 600 x 400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 1509.1 (W) x 955.4 (H) x 119.1 (D) mm 59.41 (W) x 37.61 (H) x 4.69 (D) inch
Packaging (inch / mm): 1660 (W) x 1045 (H) x 245 (D) mm 65.35 (W) x 41.14 (H) x 9.65 (D) inch
WEIGHT
Net (lb / kg): 96.78 lb / 43.9 kg
Gross (lb / kg): 122.14 lb / 55.4 kg
PACKAGE CONTENTS
1. Power cable (3 meters) 2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser
Compatible Slot-in PC
VPC12 & VPC25/27-O series

COMPATIBLE WITH IFP6552-1A

VPC25-W33-O1-1B
