VA2215-MH

22” Full HD Monitor with Dual 2W speakers

100Hz FreeSync to eliminate screen tearing and reduce stuttering
1ms (MPRT) response time for precision
Eyecare technology for comfortable viewing
ViewMode color rendering options
HDMI and VGA inputs for connectivity

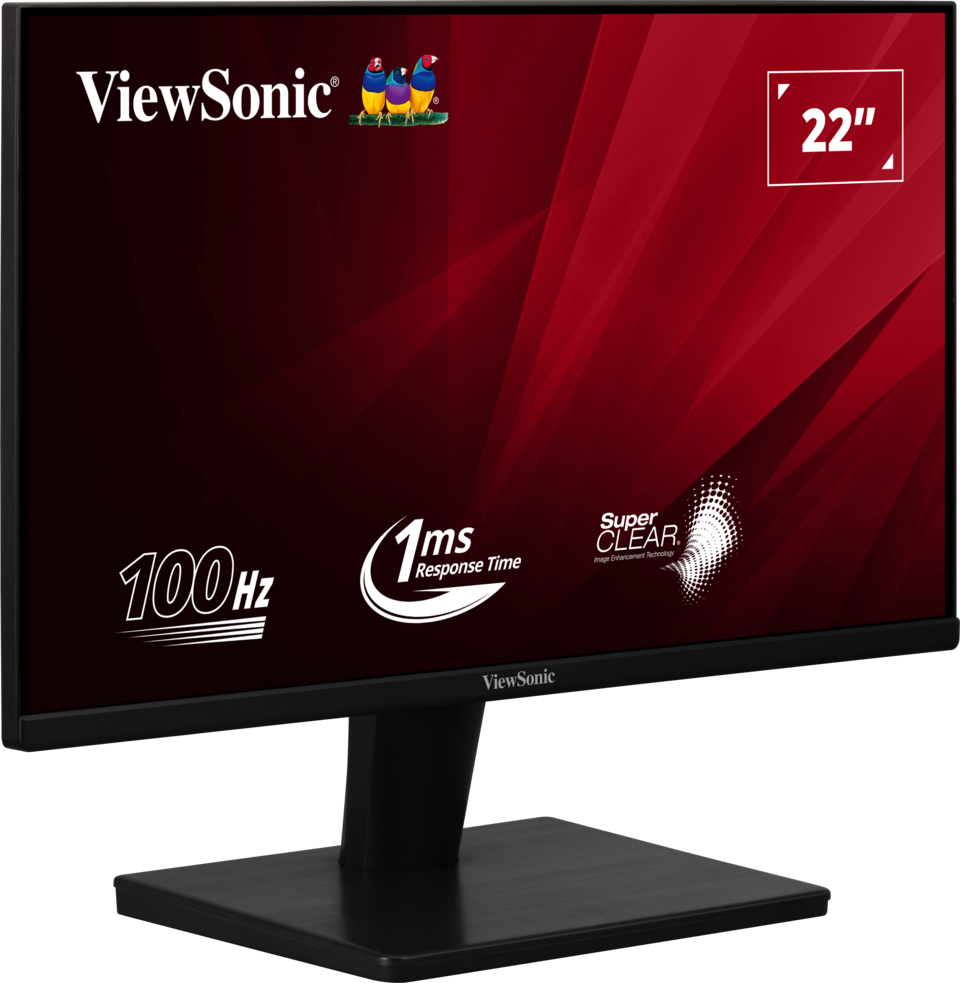

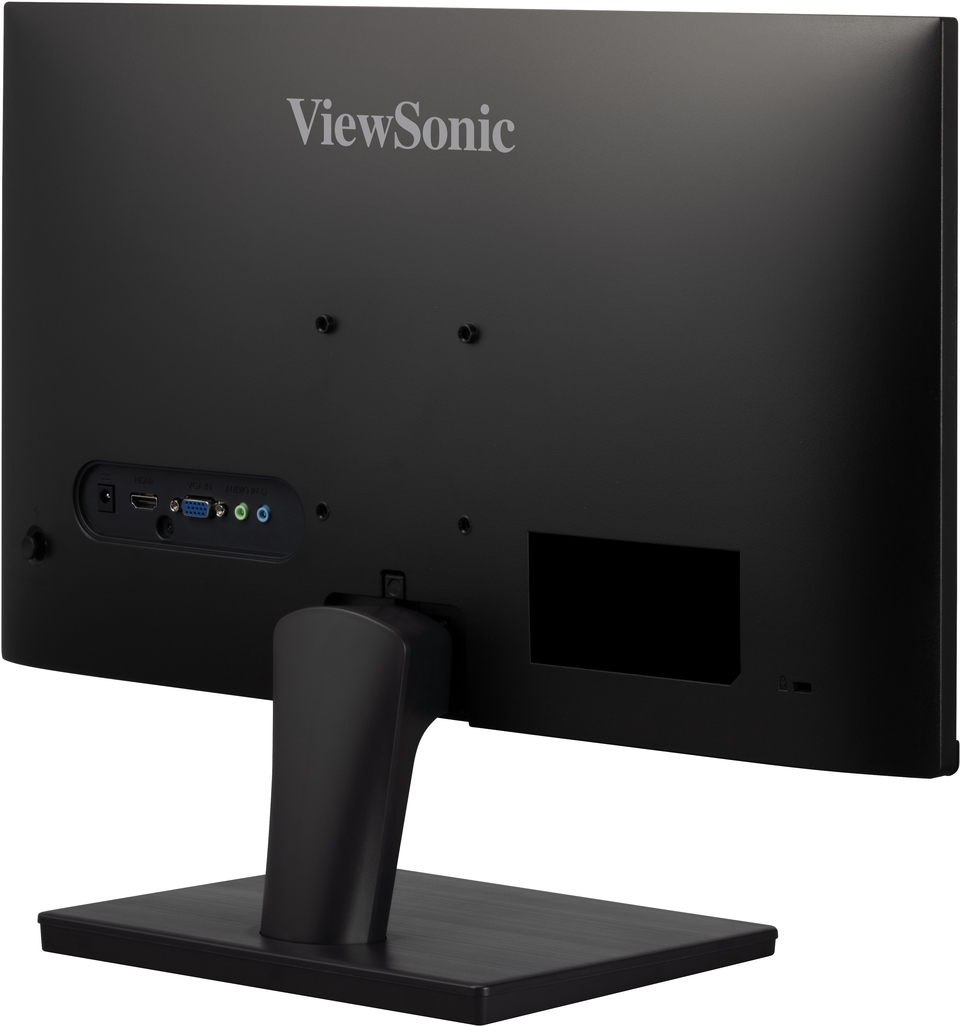

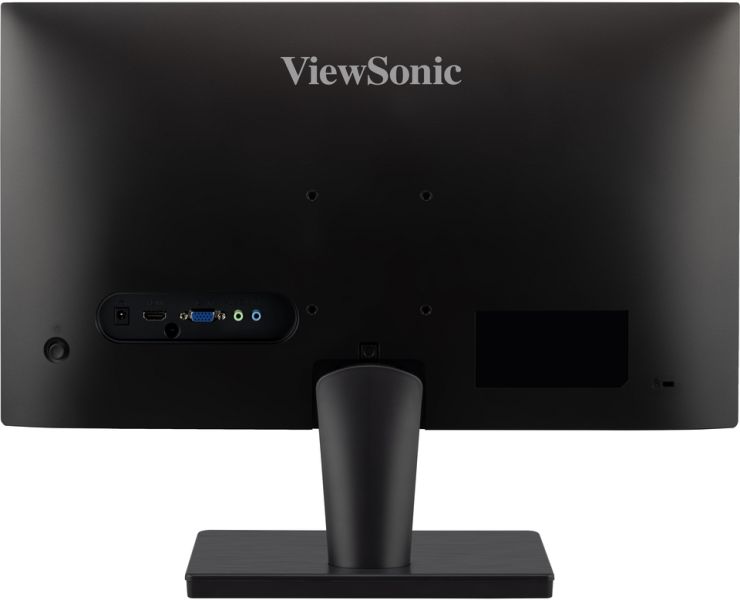

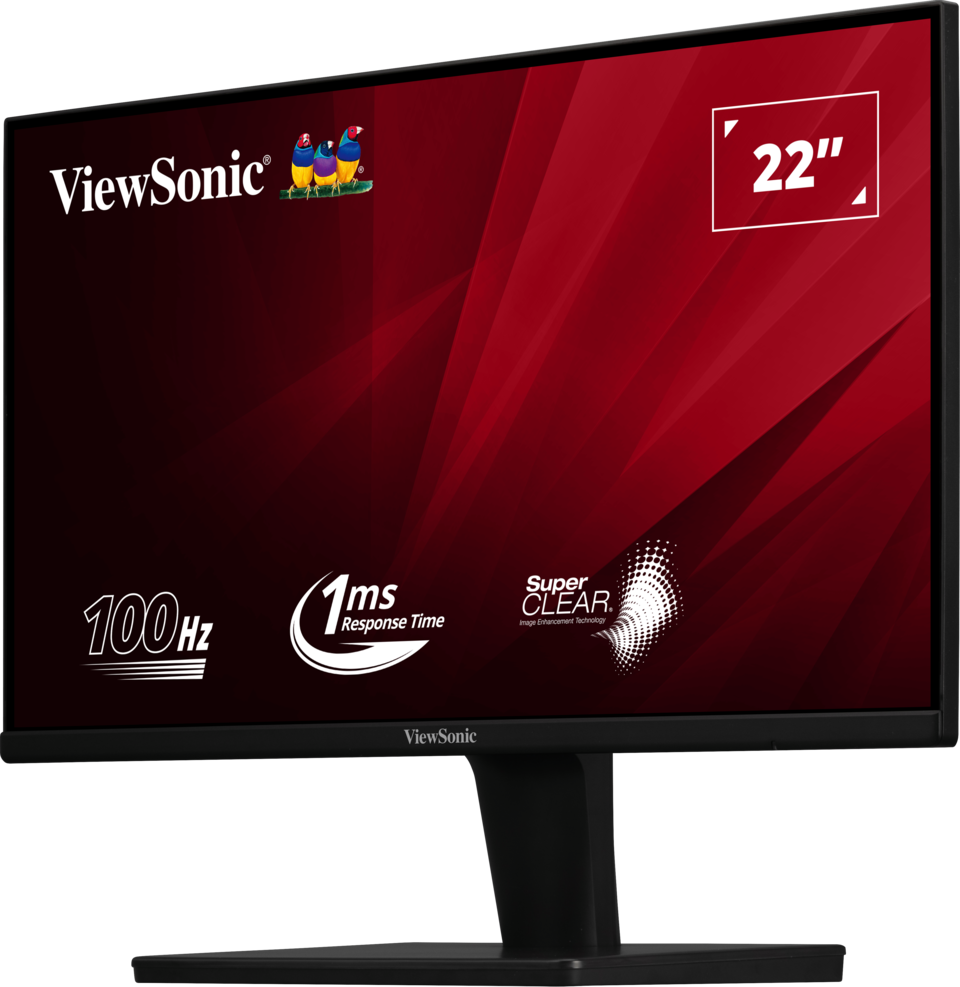

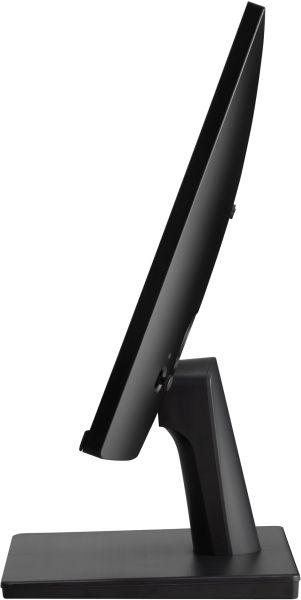

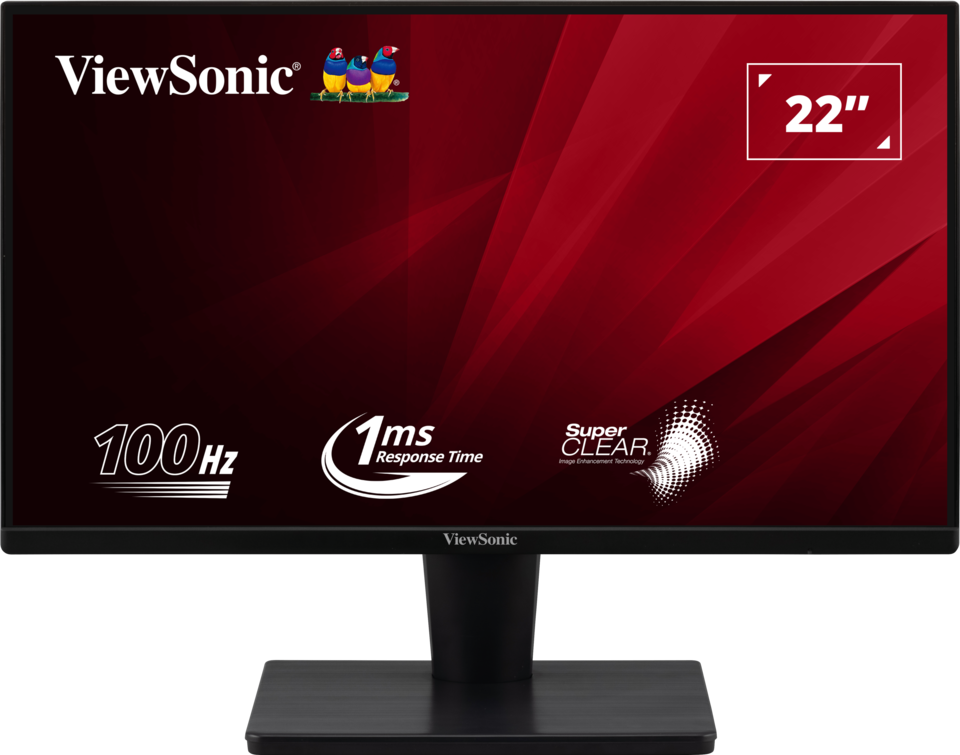

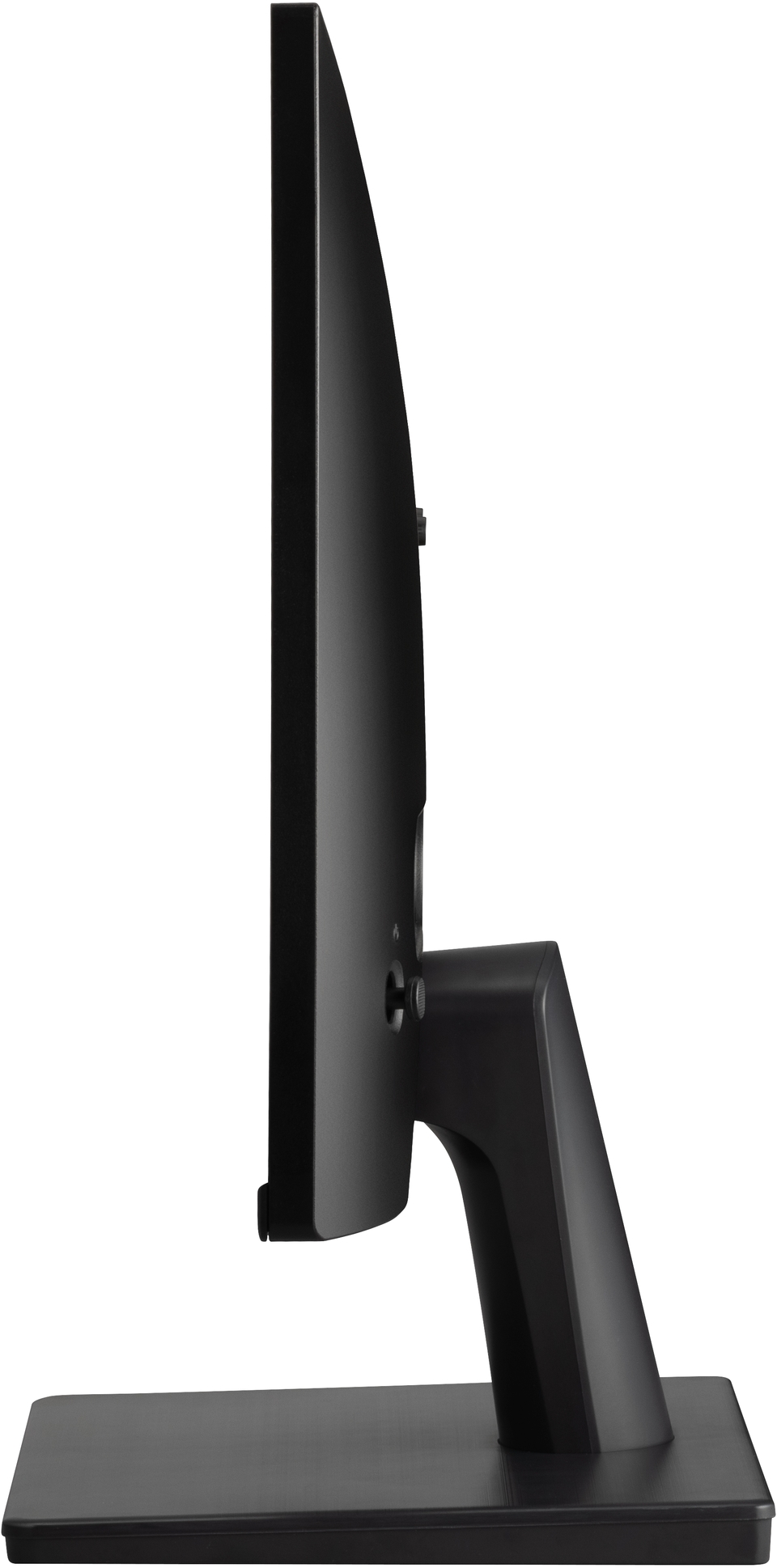

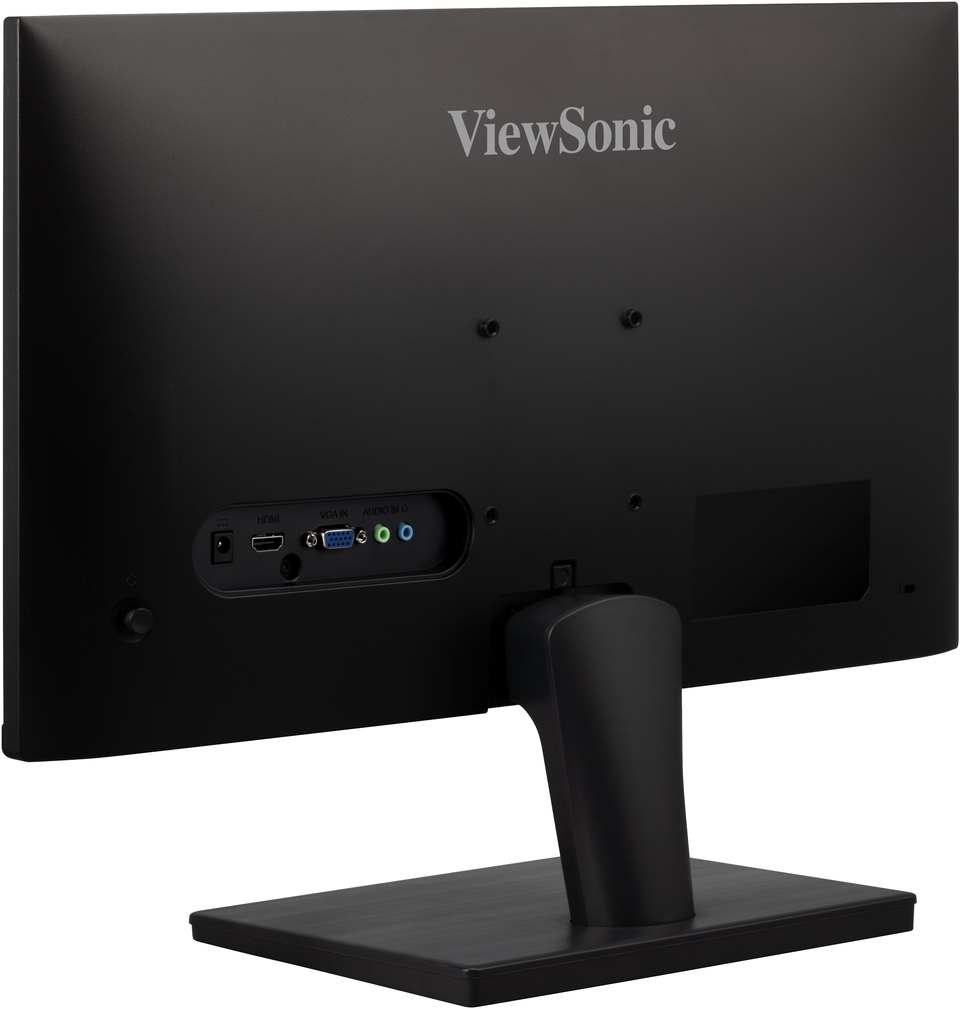

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.249 mm (H) x 0.241 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080

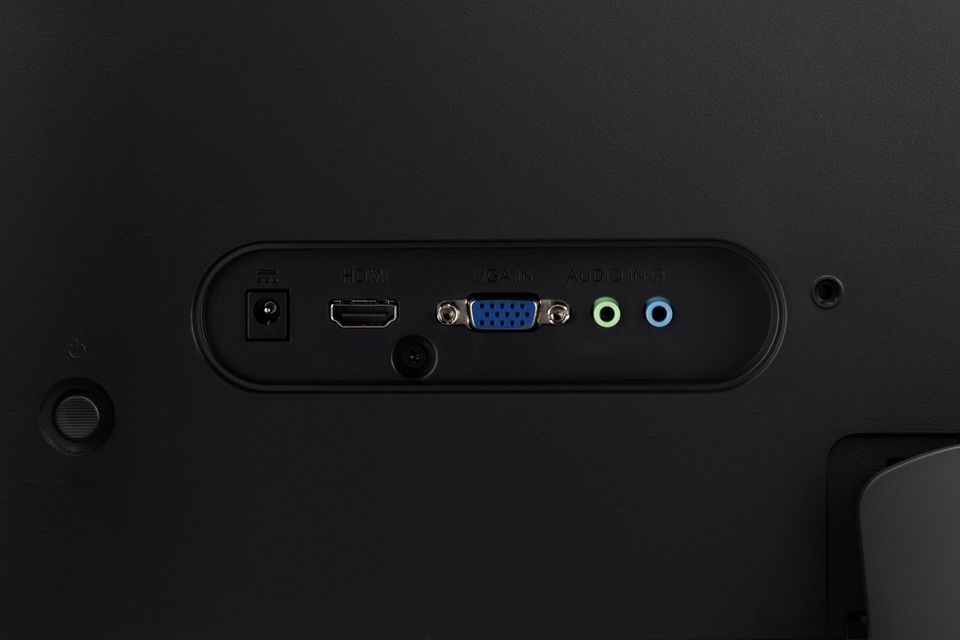

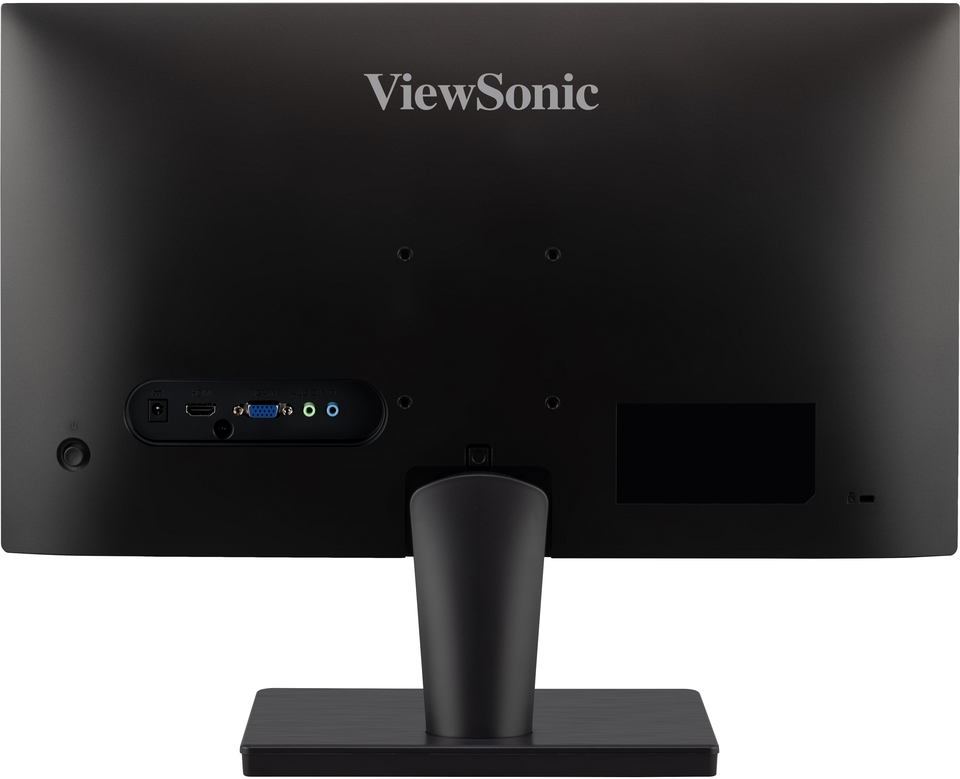

Connector
VGA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 14W
Eco Mode (optimized): 16W
Consumption (typical): 20W
Consumption (max): 22W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: U, R, D, L, EN (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 75 x 75 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 125KHz
Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics
Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 5.3
Net Without Stand (lbs): 4.4
Gross (lbs): 7.7
Weight (metric)
Net (kg): 2.4
Net Without Stand (kg): 2
Gross (kg): 3.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.4 x 15.1 x 4.6
Physical (in.): 19.4 x 14.8 x 7.4
Physical Without Stand (in.): 19.4 x 11.1 x 1.5
Dimensions (metric) (wxhxd)
Packaging (mm): 570 x 383 x 118
Physical (mm): 492 x 377 x 188
Physical Without Stand (mm): 492 x 282 x 38
General
PACKAGE CONTENTS: VA2215-MH x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
