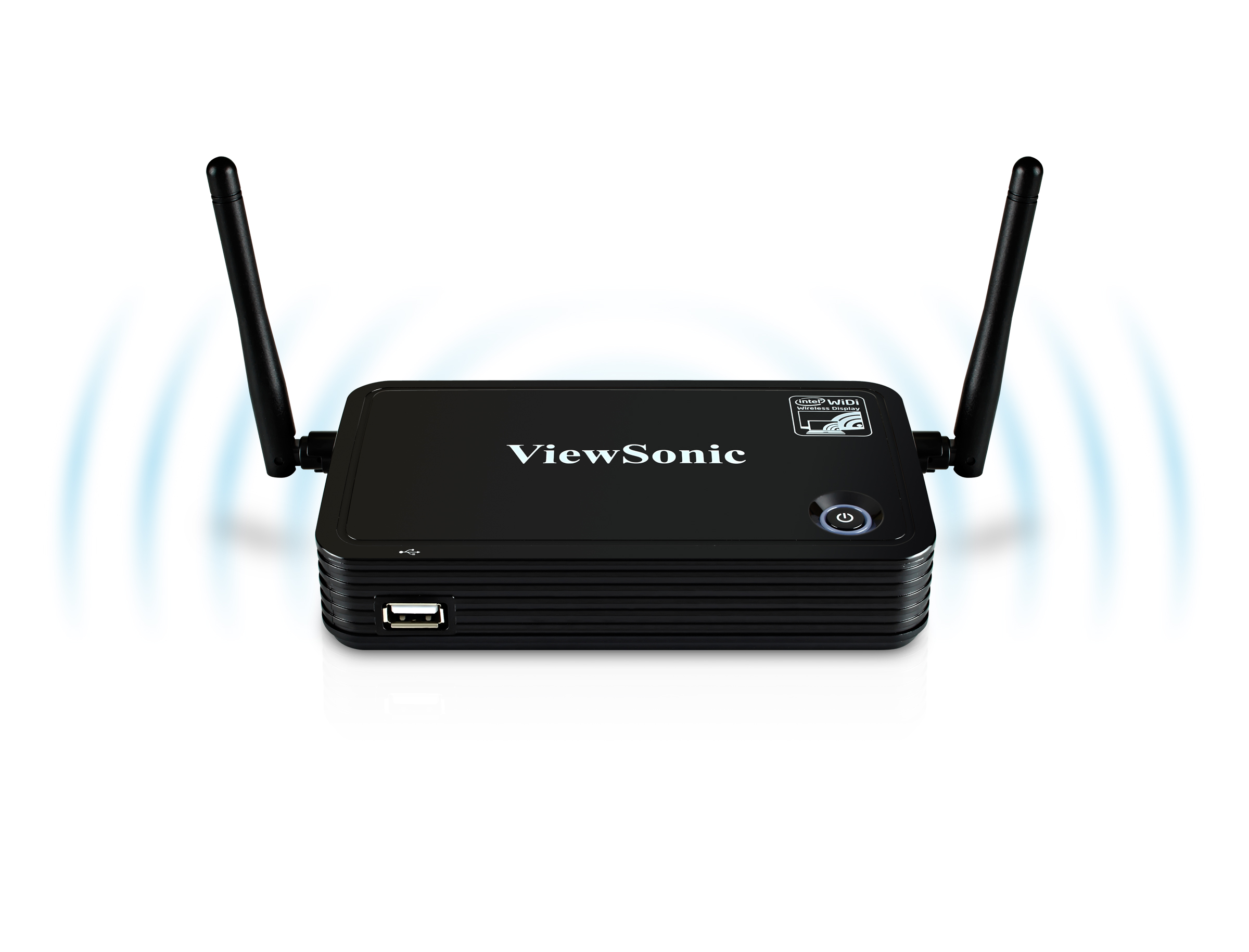

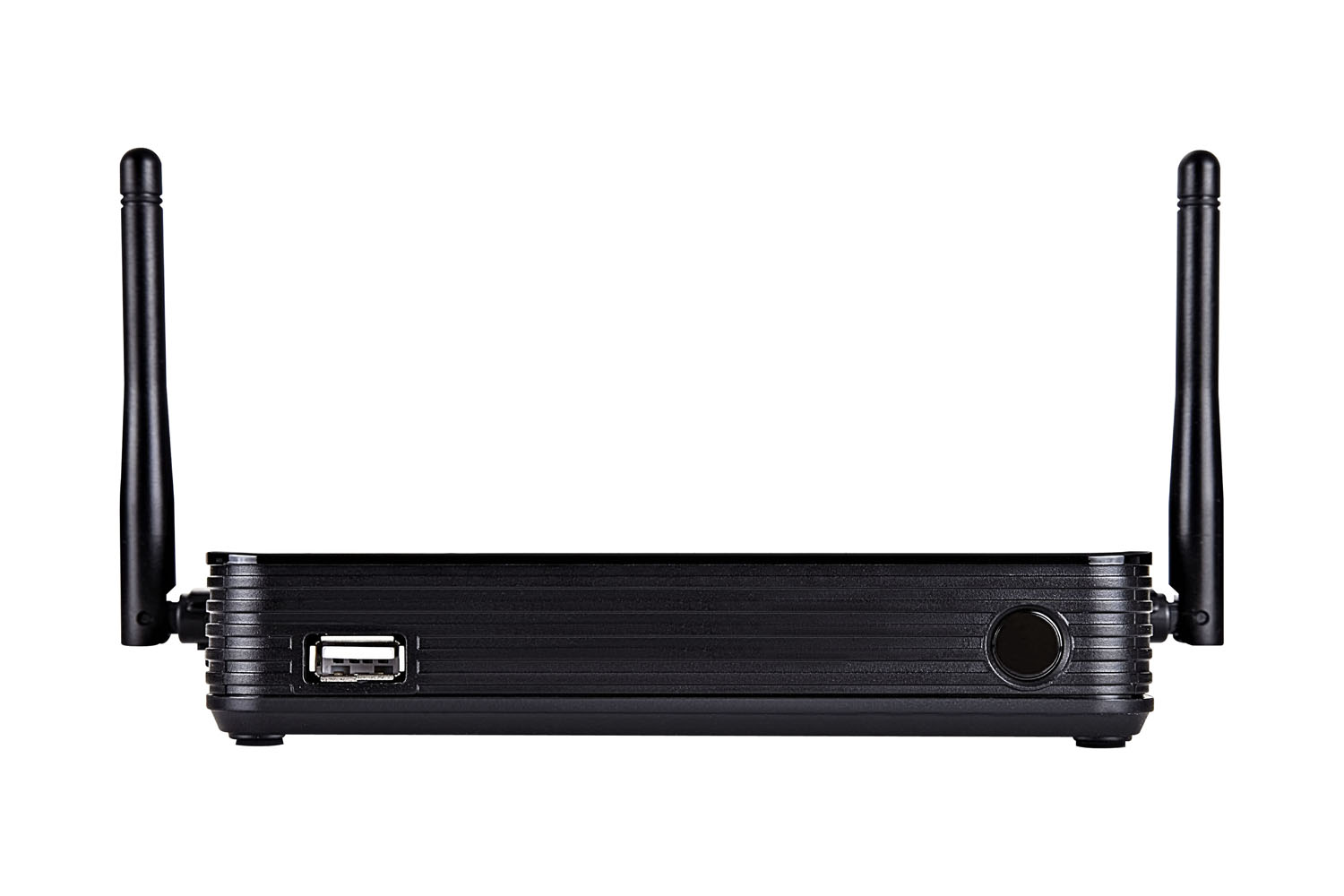

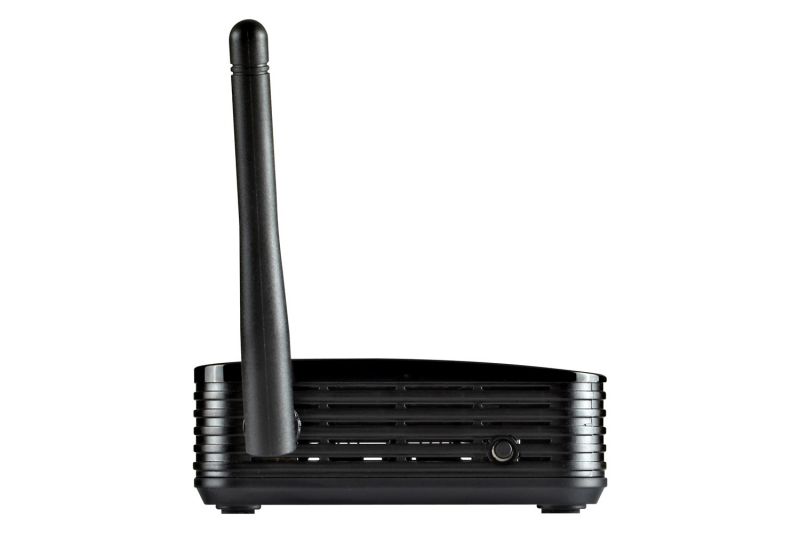

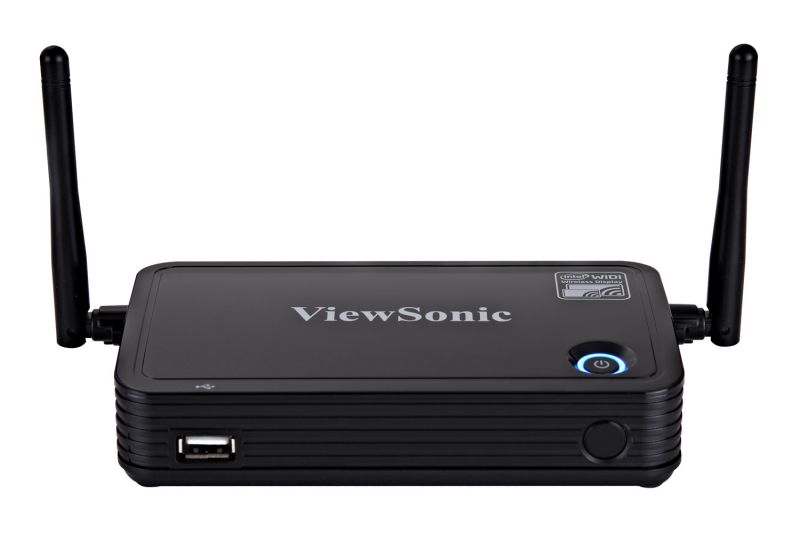

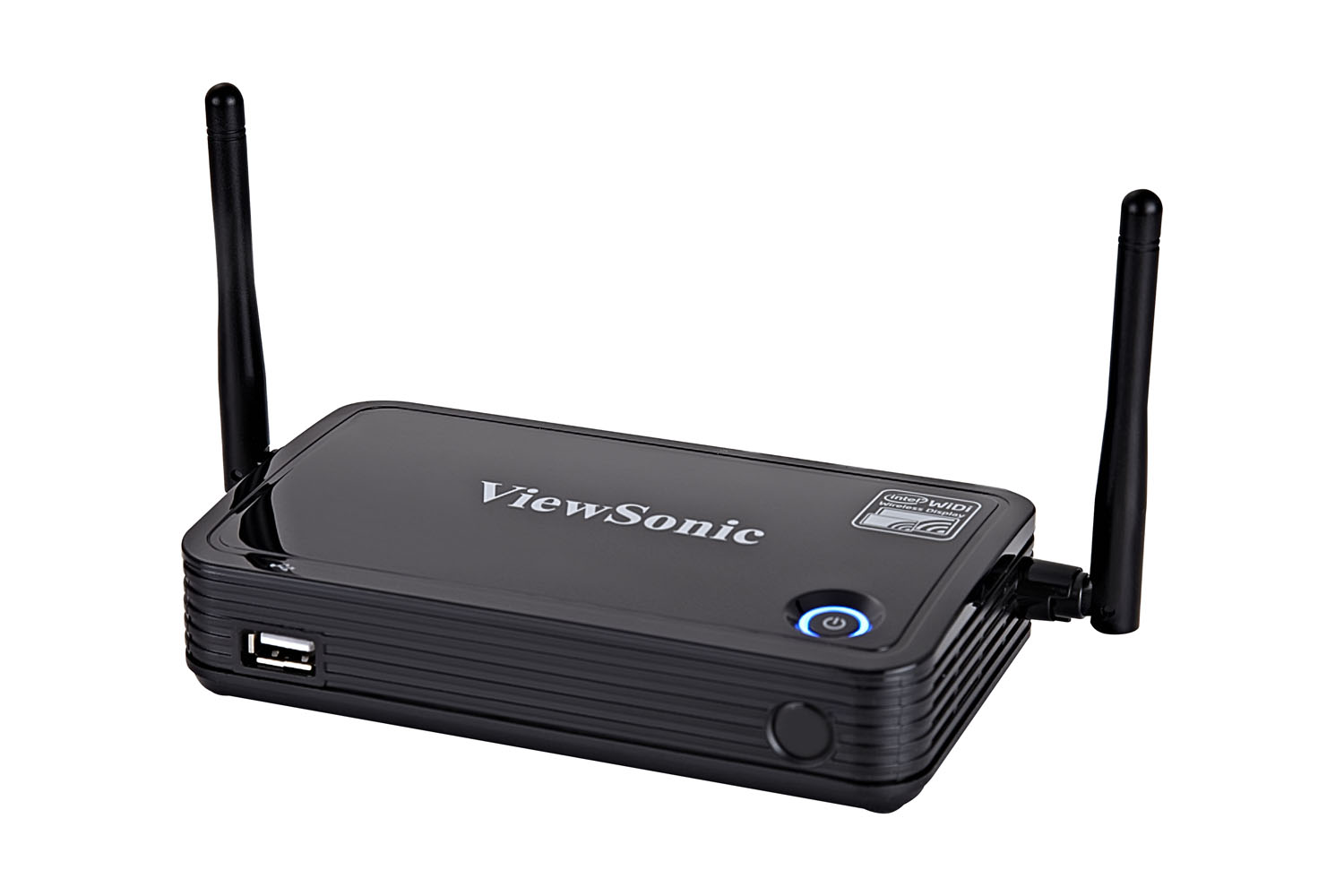

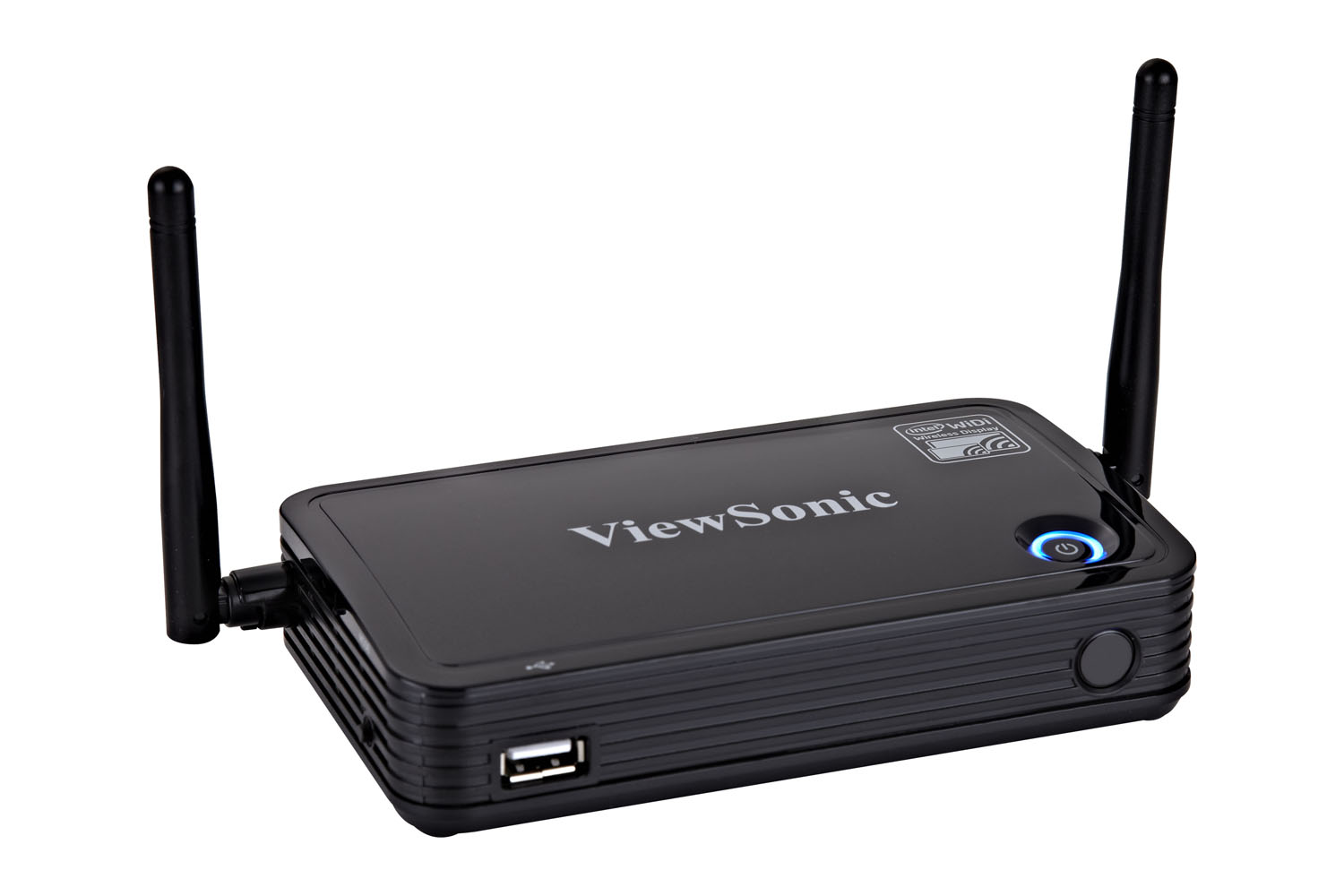

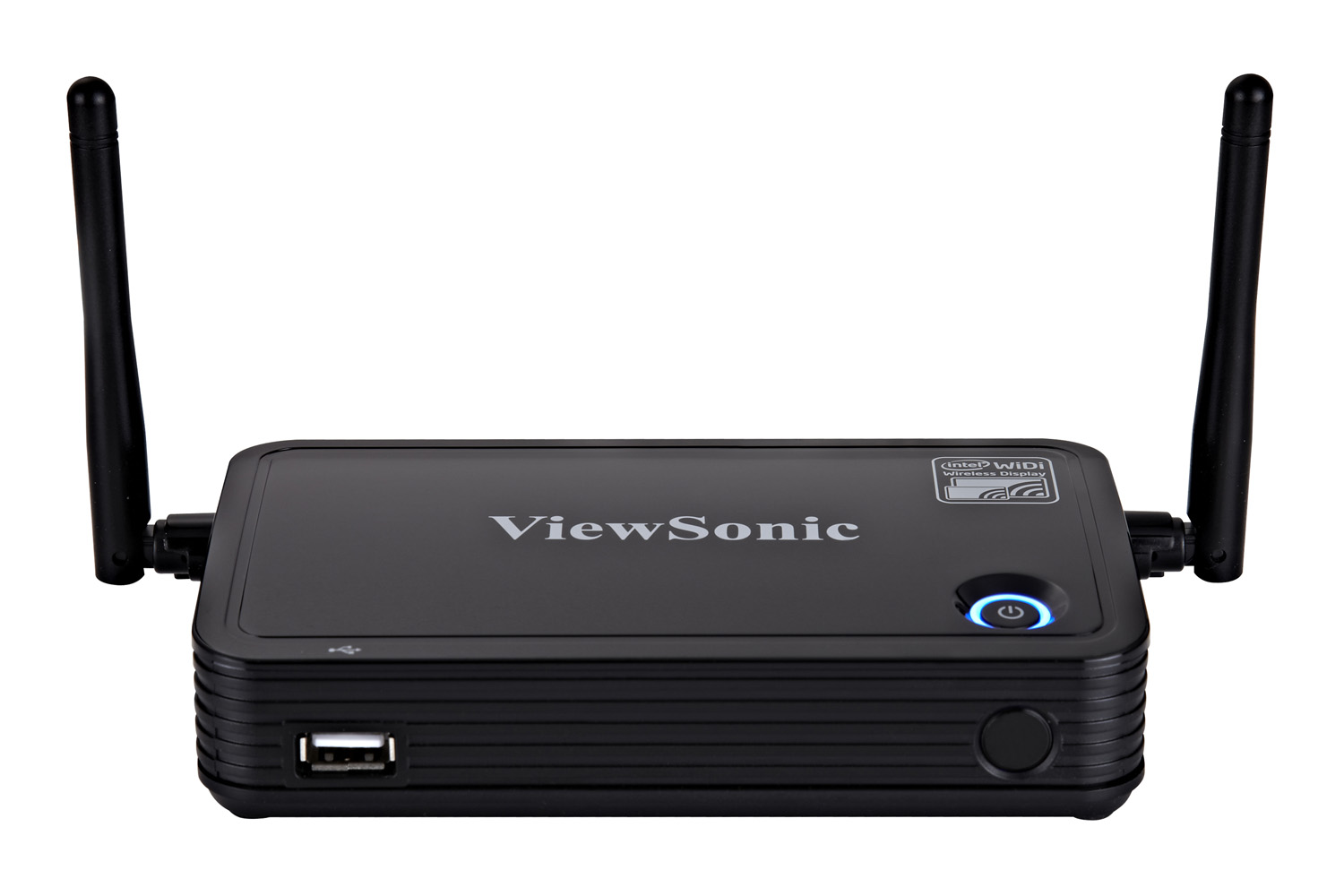

WPG-370
Full HD 1080p Wireless Presentation Gateway
SPECIFICATIONS
- KEY COMPONENTHDMI Resolution: 1080p, 720p, 480p
VGA Resolution: 800x600, 1024x768 (default), 1280x800, 1280x1024, 1366x768
Operation Mode: Presentation (for PC & Mac)
WiDi (for WiDi laptops)
Media Streaming (for Android & iOS devices w/ iMediaShare app) - WIRELESS NETWORKBand Frequency: 2.4GHz / 5GHz Dual Band
802.11a: 54/48/32/24/12/9/6 Mbps
802.11b: 11/5.5/2/1 Mbps
802.11g: 54/48/36/24/12/9/6 Mbps
802.11n (20MHz): MCS0-7, up to 72Mbps
802.11n (40MHz): MCS0-7, up to 150Mbps - WIRELESS ENCRYPTIONWEP 64/128, WPA/WPA2, WPA-PSK, WPA2-PSK

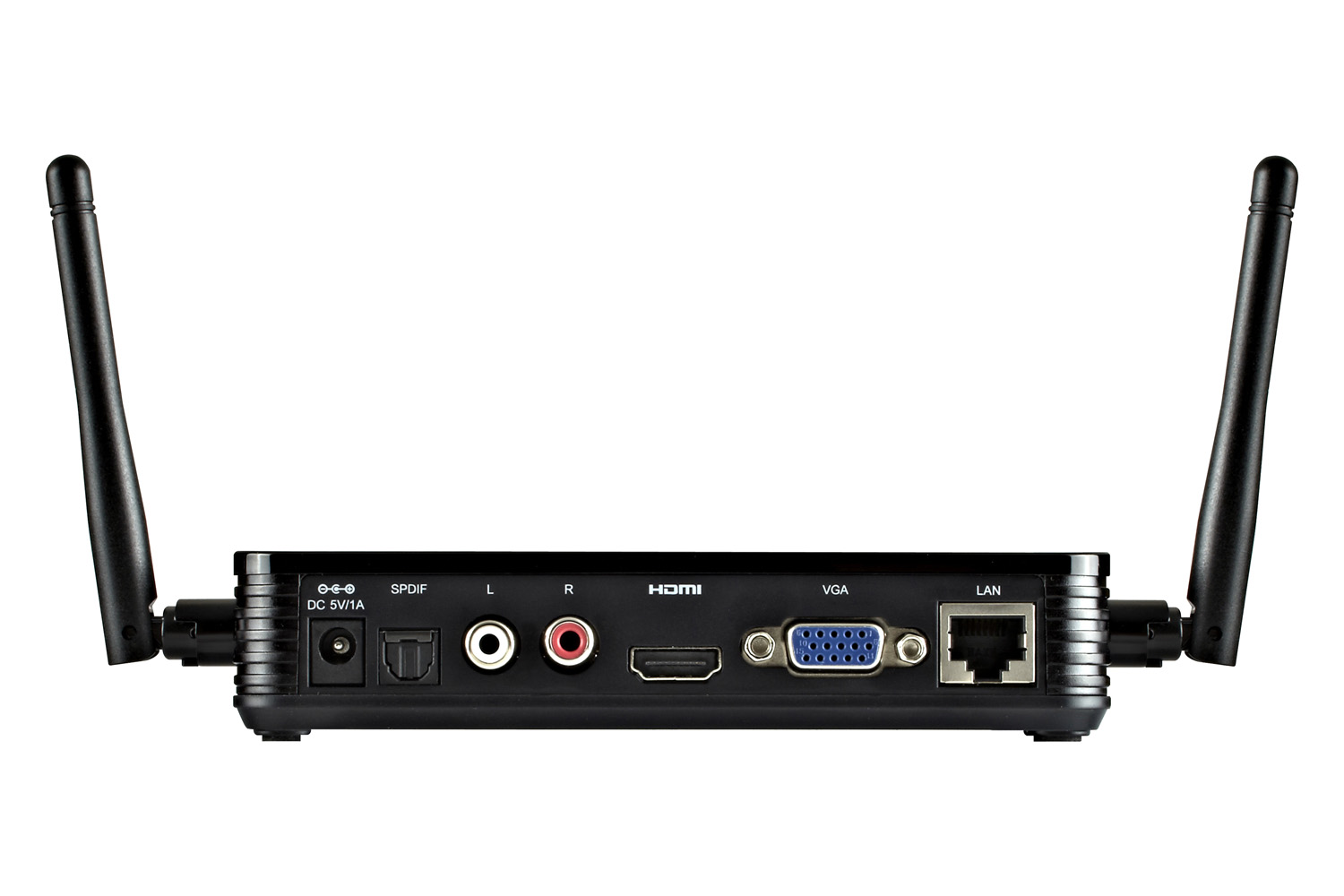

- CONNECTORVideo Output Analog: DB-15
Video Output Digital: HDMI 1.3 w/ HDCP
Audio Output: R/L RCA, SPDIF
LAN: RJ45
Wireless: 802.11a/b/g/n 2.4GHz / 5GHz
USB: Type A (PC-Less Slideshows) - OS compatibilityPC: Windows 7 & 8 for 32bits &64bits
MAC: MAC OS 10.7 and above - POWERVoltage: AC 100–240V (universal), 50 / 60Hz, 5V/1A output
Consumption: 5W (typ.) - CONTROLSButtons: Power (top panel), Mode (side)
Remote: Web-based interface (192.168.59.254/remote)
OSD: Network, Audio, Video, System
(See user guide for full OSD functionality) - OPERATING CONDITIONSTemperature: 23–113º F (-5–45º C)
Humidity: 0–95% (non-condensing)
Altitude: 0~13,123 ft (4,000m) - DIMENSIONS (W x H x D)Physical: 191.5 x 102.6 x 32.2 mm / 57.54 x 4.04 x 1.27 in.
- WEIGHTNet: 0.5 lb. / 0.2 kg
Gross: 1.9 lb. / 0.8 kg - Package ContentViewSync WPG-370 Wireless Presentation Gateway, universal power adapter, Quick Start Guide, ViewSonic Wizard CD
