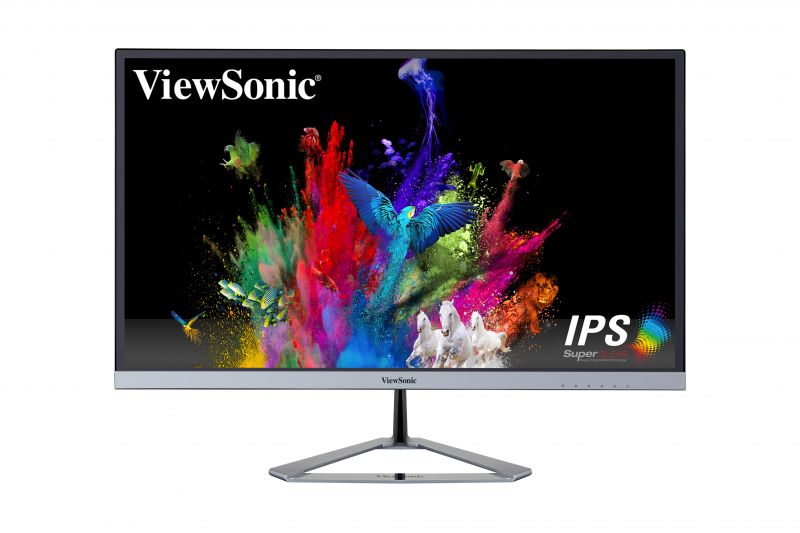

VX2476-smhd

24" Entertainment Monitor

SuperClear® IPS technology
Frameless bezel and metallic triangle stand
Full HD 1080p resolution
Flicker-Free and Blue Light Filter
HDMI, DisplayPort and VGA inputs

REVIEWS

Best Bang for the Buck

“Bottom Line: Intended as a monitor that can handle long work days without losing picture quality or straining a user’s eyesight, this is a good option for users who want a dedicated work space monitor.”

Read Review

ViewSonic VX2776-smhd Review

“the VX2776-smhd is, to our eyes, a solid choice, and it'll look great on your desk as well.”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 13W
Eco Mode (optimized): 15W
Consumption (typical): 18W
Consumption (max): 20W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate - RGB Analog
Ergonomics
Tilt (Forward/Back): -5º / 17º
Weight (imperial)
Net (lbs): 6.5
Net Without Stand (lbs): 5.6
Gross (lbs): 9.9
Weight (metric)
Net (kg): 3
Net Without Stand (kg): 2.5
Gross (kg): 4.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 23.8 x 15.6 x 4.5
Physical (in.): 21.3 x 16.3 x 8.2
Physical Without Stand (in.): 21.3 x 12.7 x 1.3
Dimensions (metric) (wxhxd)
Packaging (mm): 604 x 395 x 115
Physical (mm): 540 x 414 x 209
Physical Without Stand (mm): 540 x 323 x 34
General
PACKAGE CONTENTS: B01GV9H1RS xVX2476-SMHD x1, 3-pin Mickey Mouse Plug (IEC C5) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
