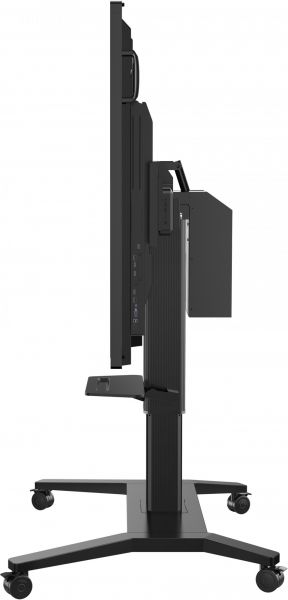

ViewSonic Commercial Display Accessories VB-STND-003

VB-STND-003

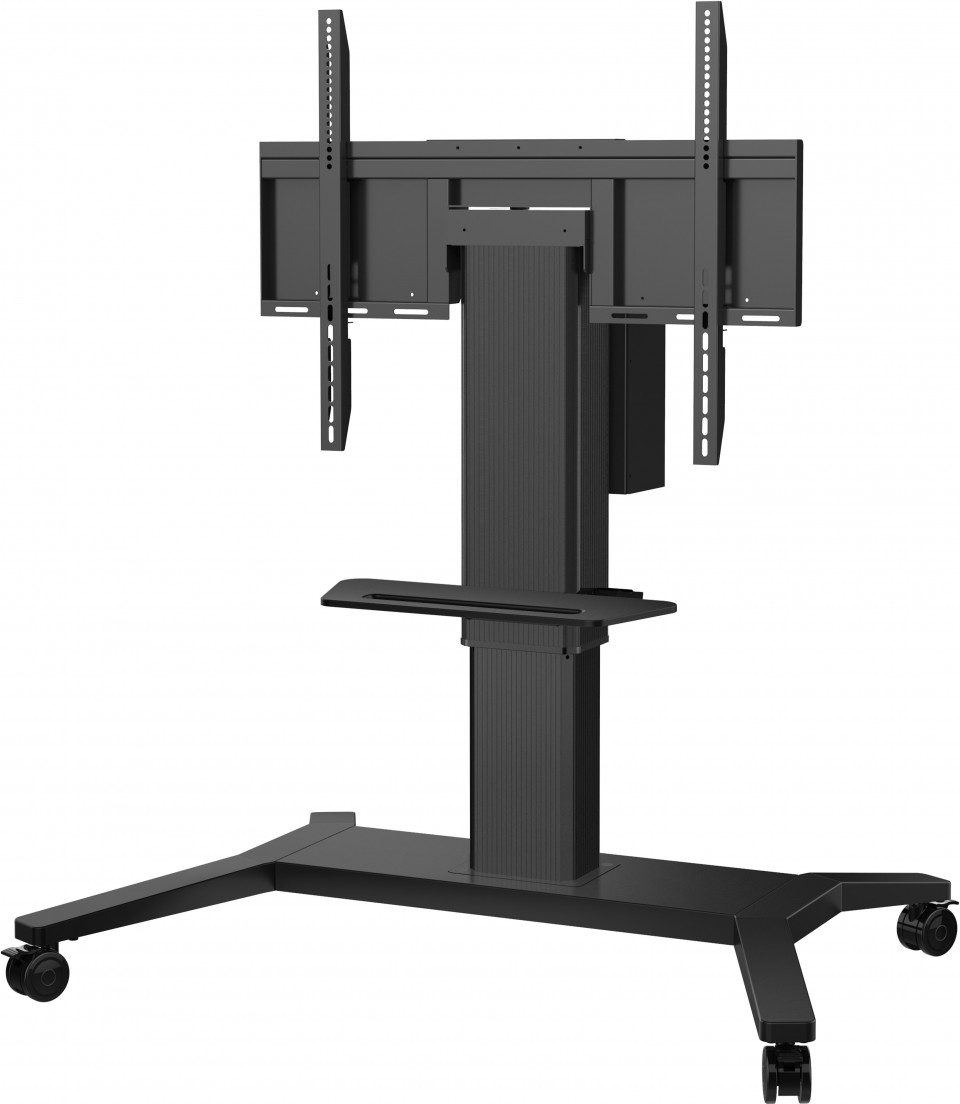

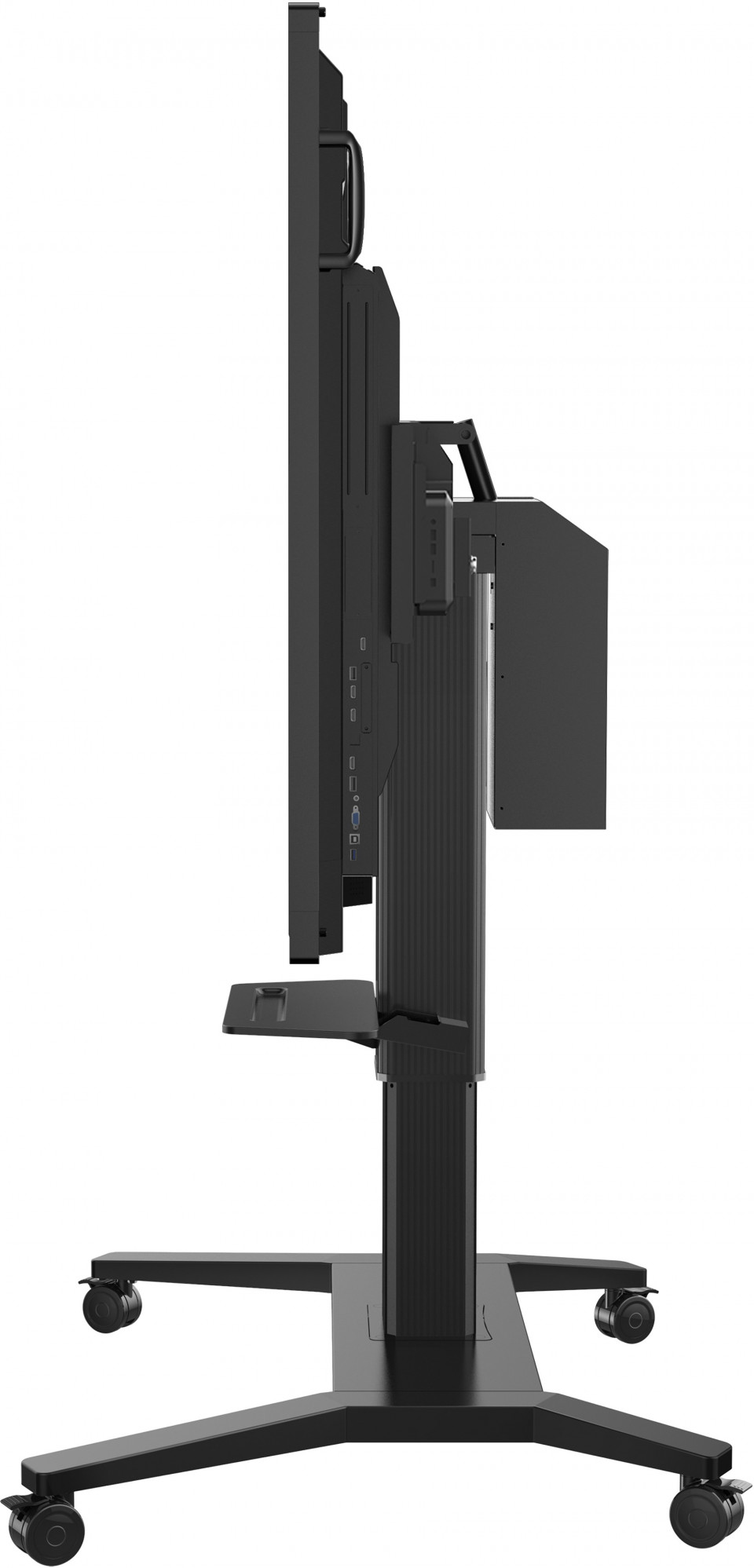

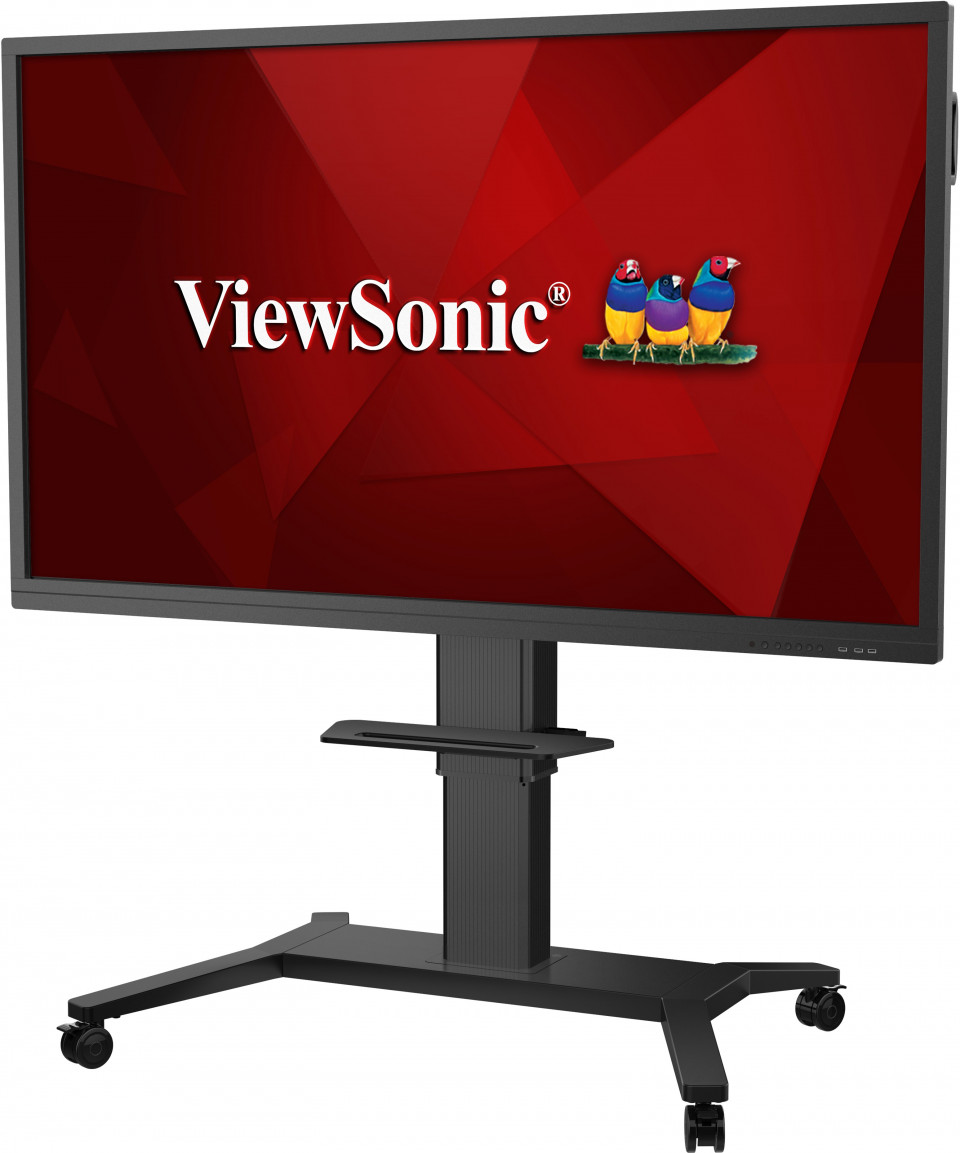

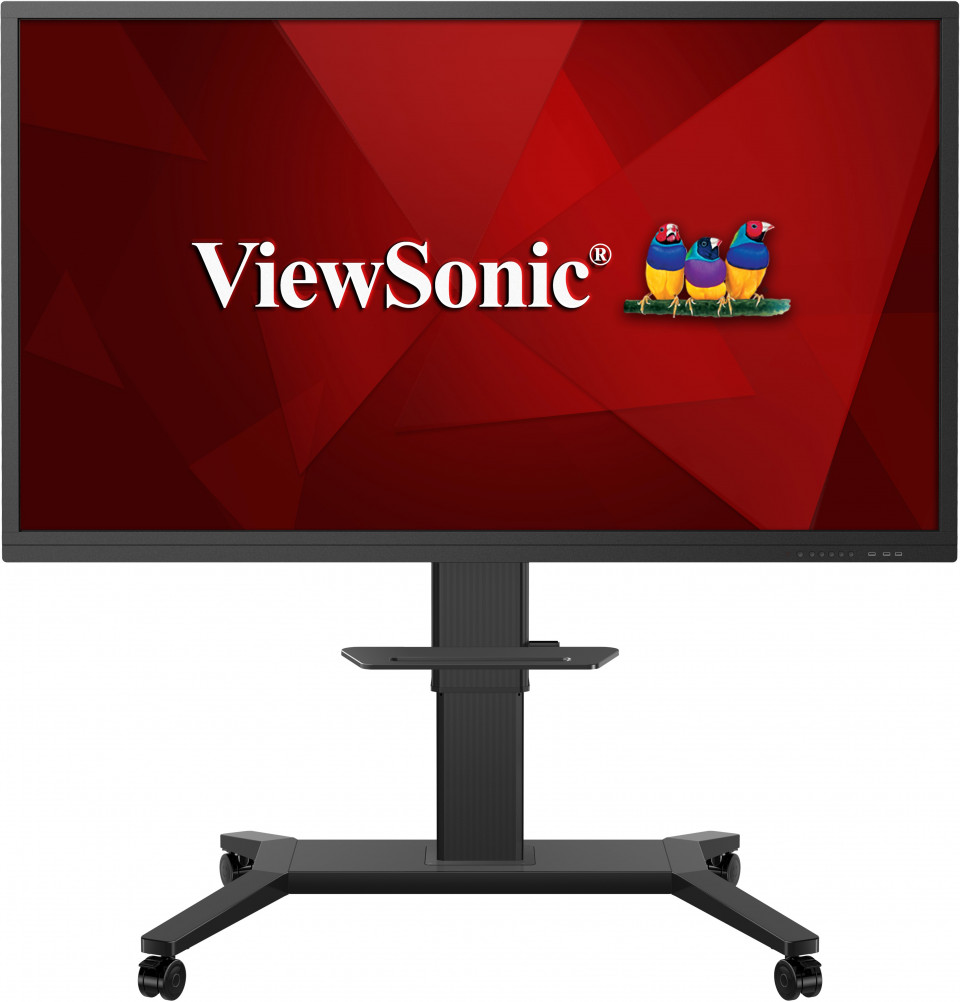

Motorised trolley cart with lift and tilt

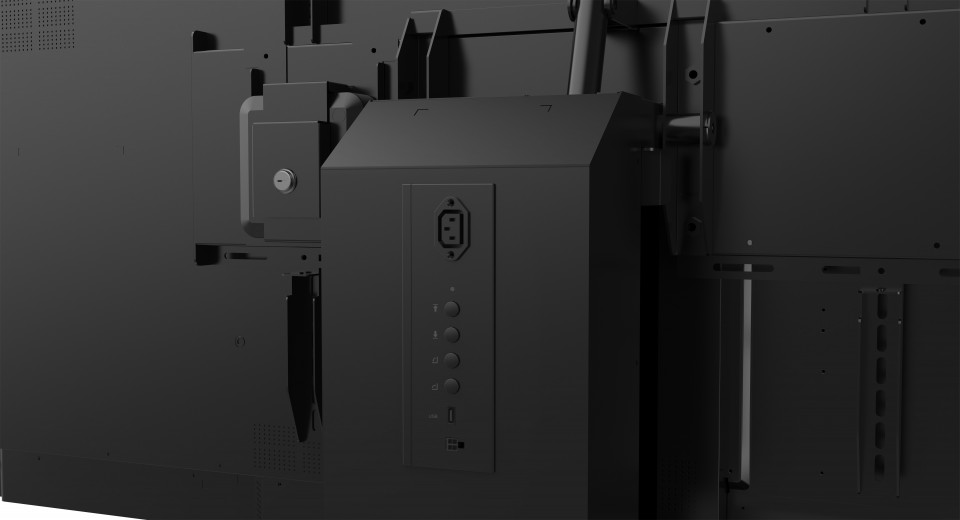

Built-in power supply passthrough
Integrated on-screen control (IFP5550 / IFP6550 / IFP7550)

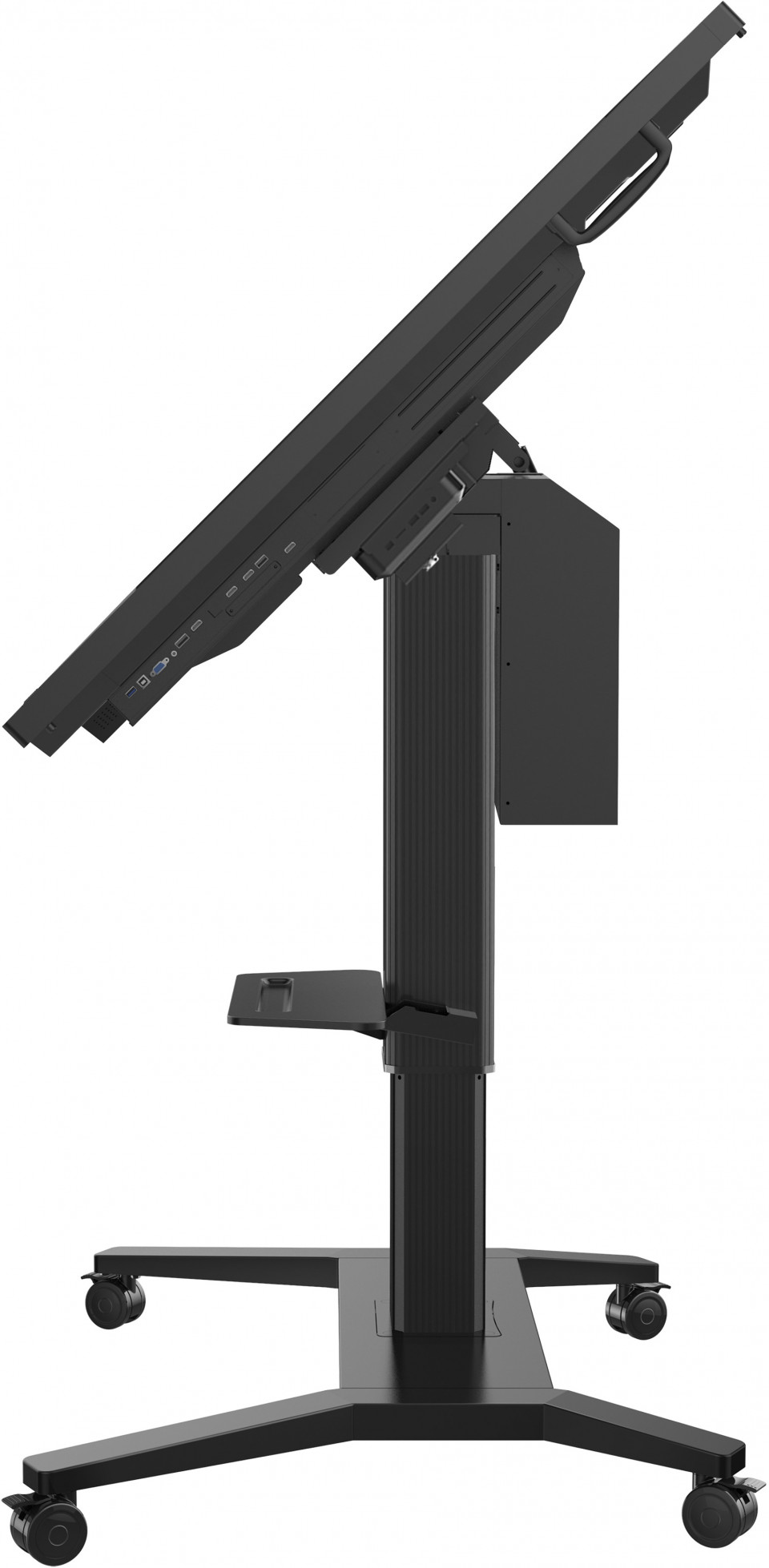

90-degree tilting for tabletop mode
Integrated tray for pens and other items

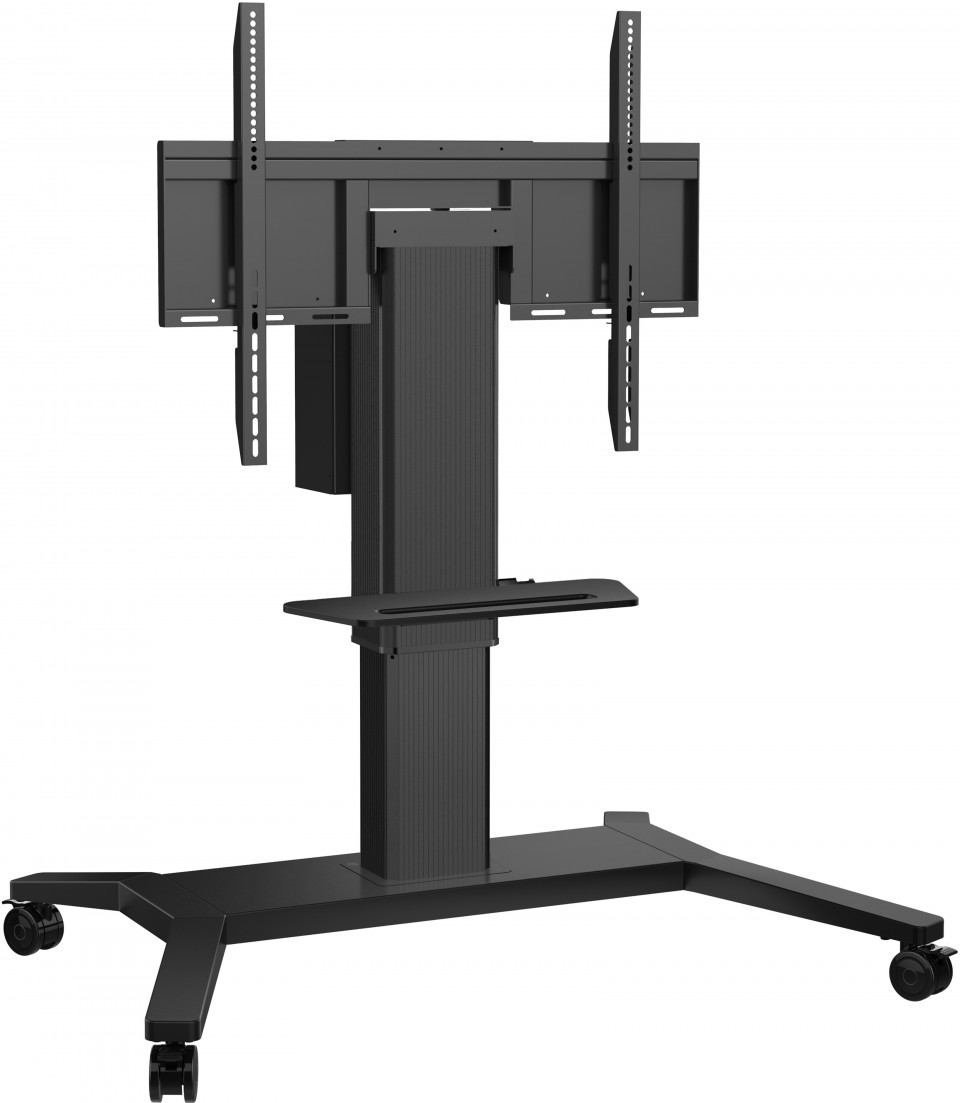

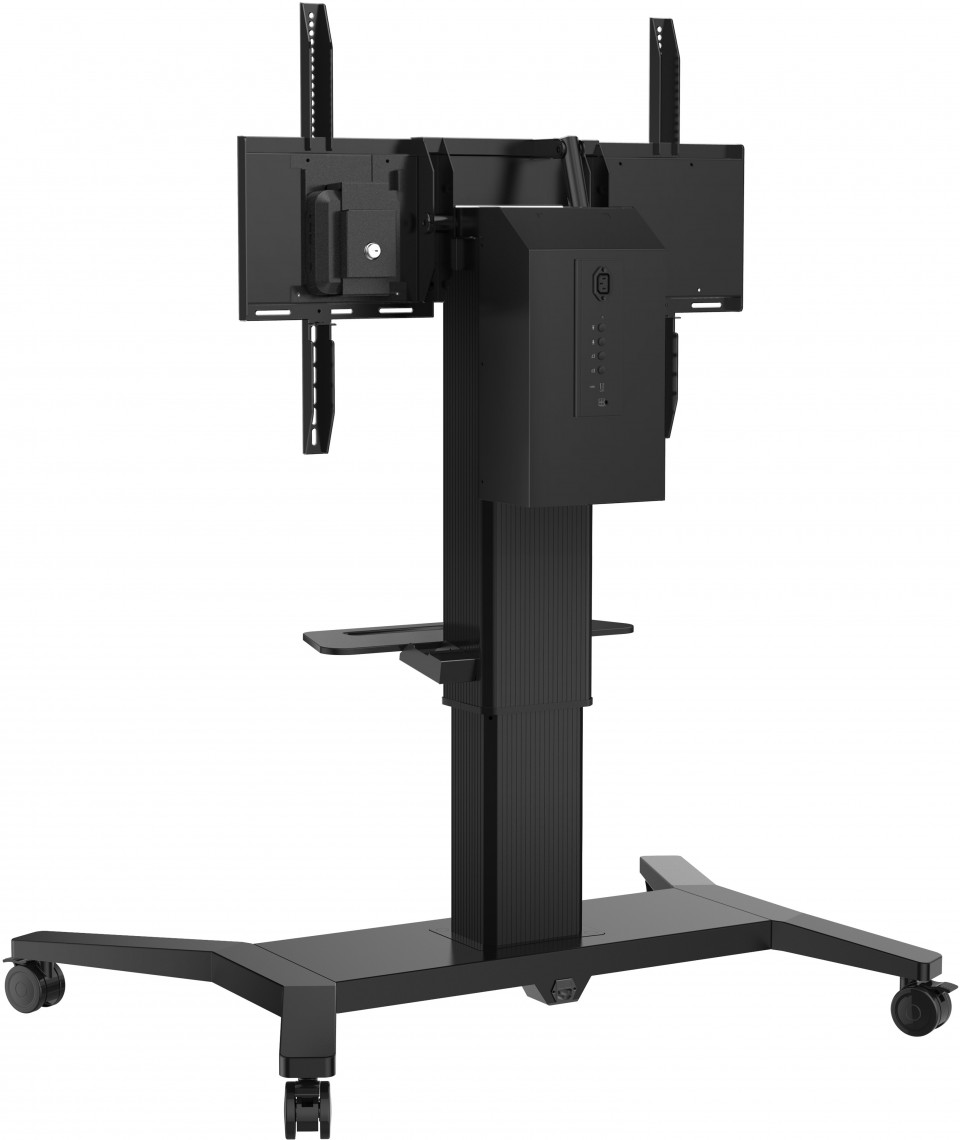

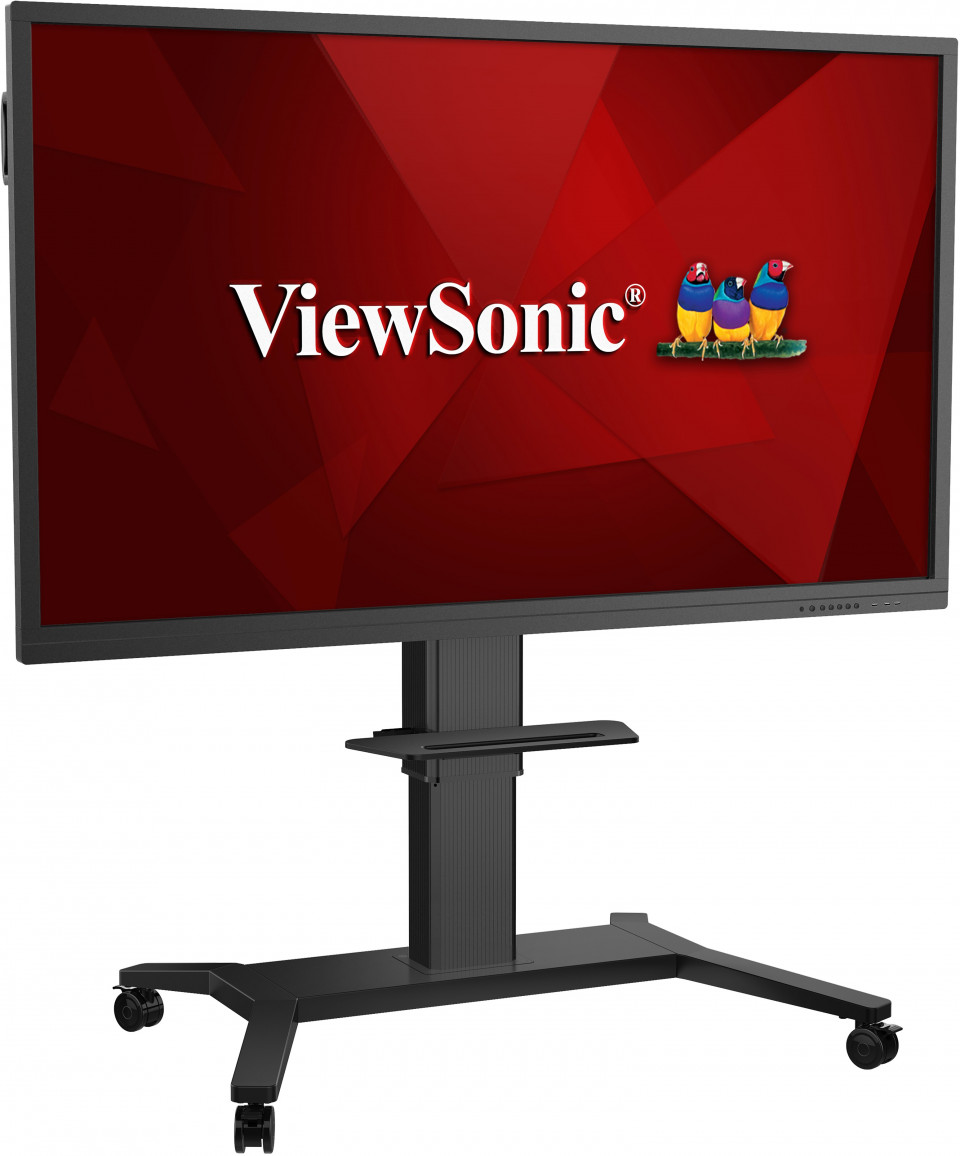

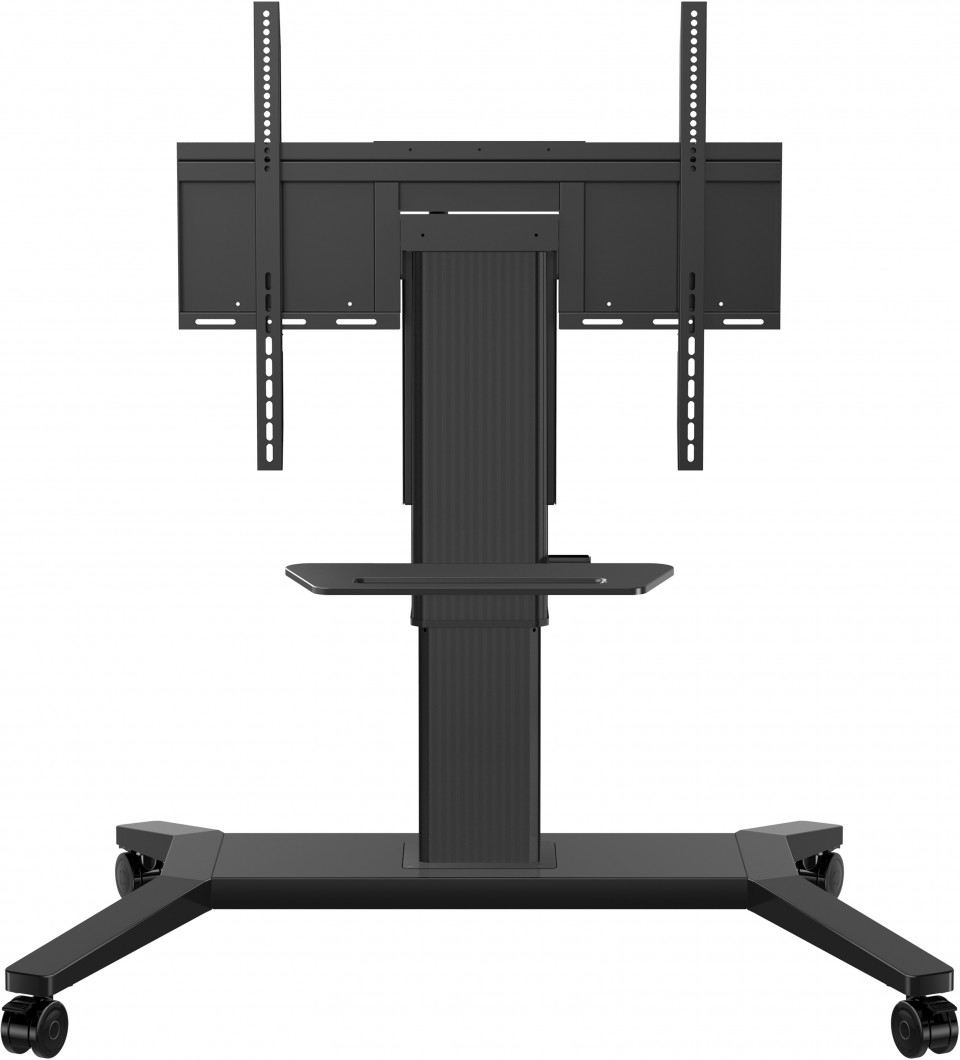

GALLERY

SPECIFICATIONS

Ergonomics
Swivel: 360 degree

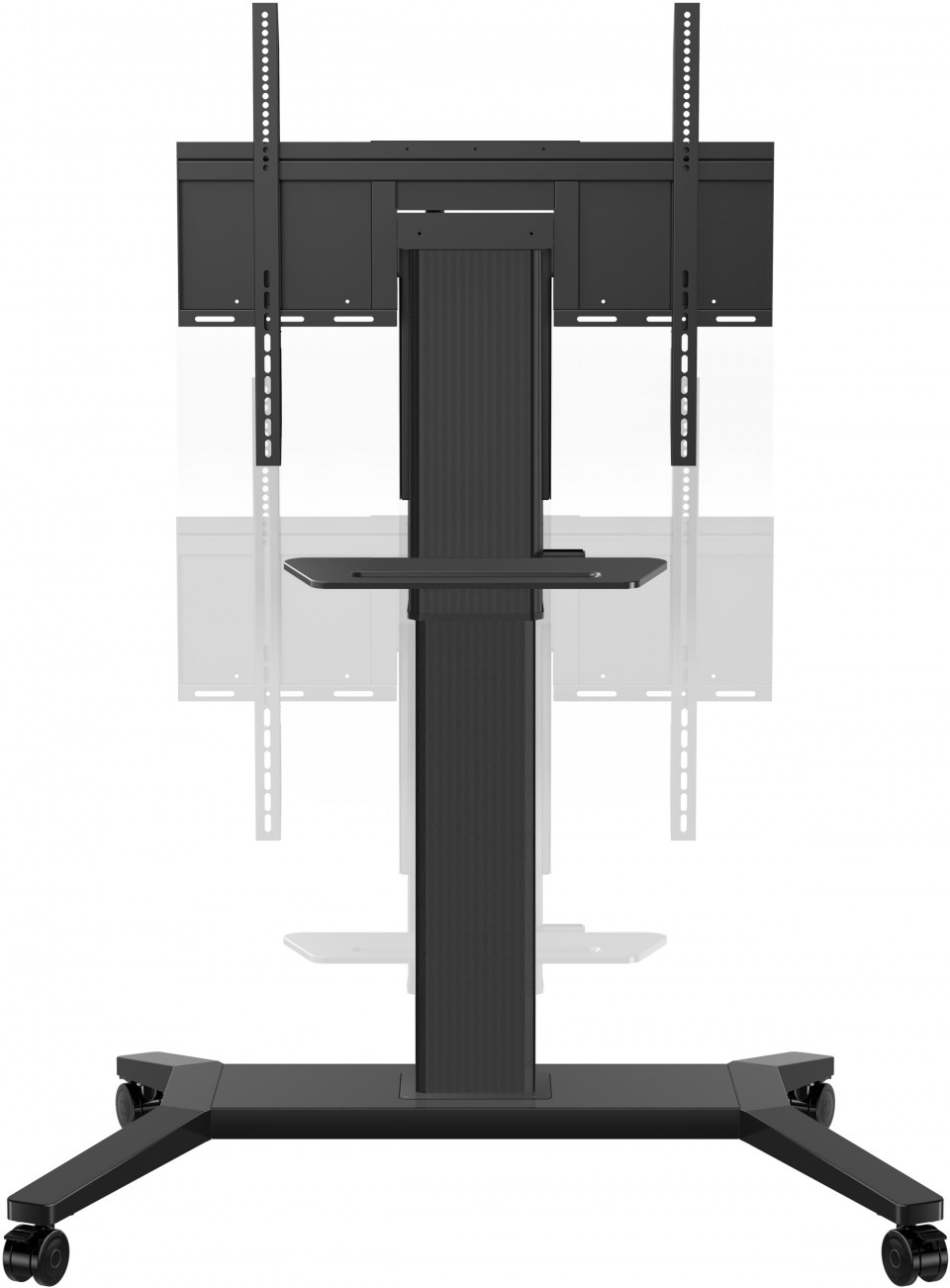

Height Adjust: 560mm (22.05”)

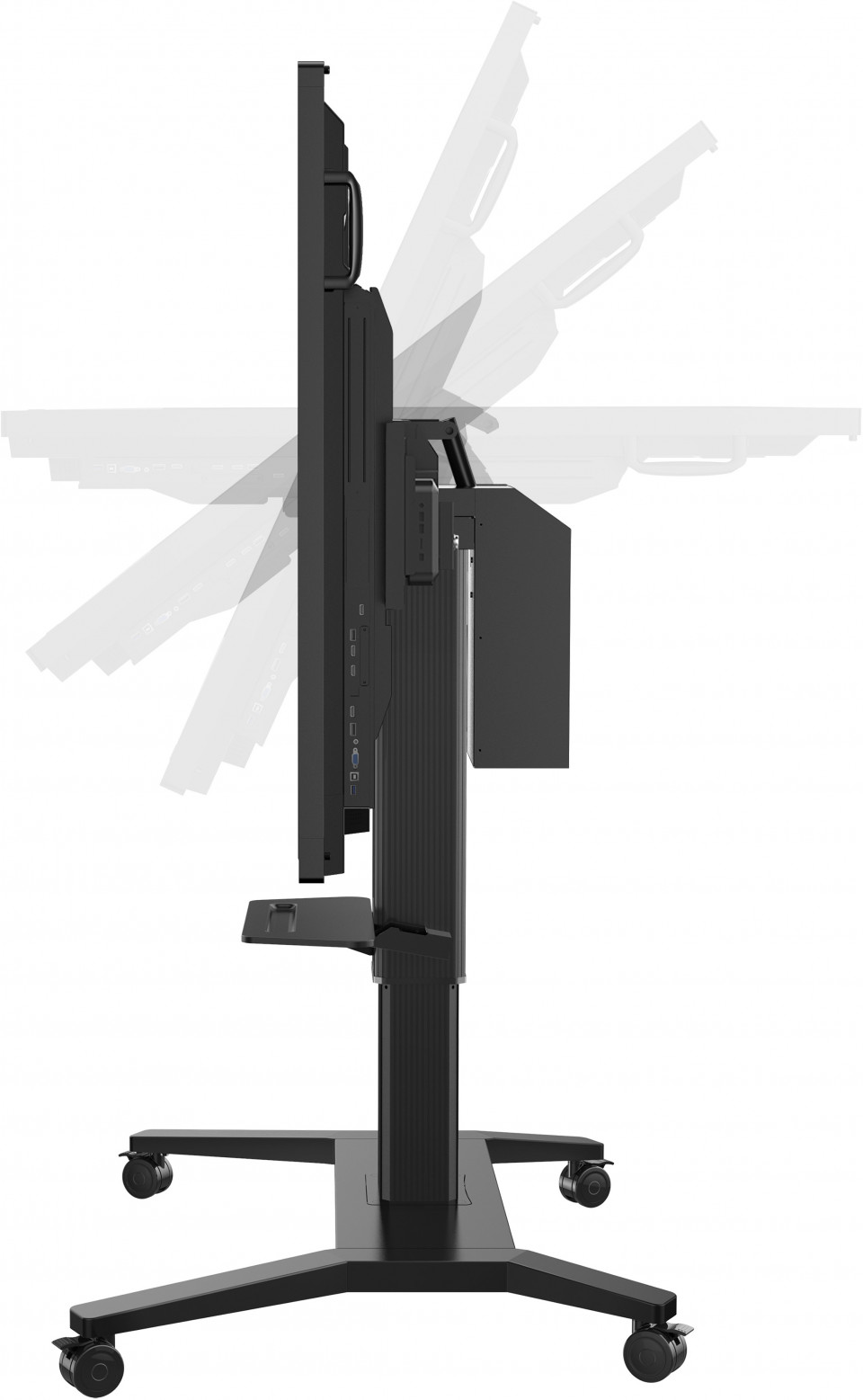

Tilt: 0° ~ 90°
Wall mount bracket
up to 800x600mm
Material
Alumimum Alloy, Plastic, Steel

Loading
Wall mount: 100 kg max. / 220.46 lb max.
Plate: 20 kg max. / 44.09 lb max
Dimensions
Physical (WxHxD): 1234 x 1149.6 x 844 mm / 48.58 x 45.26 x 33.23 in
Packaging (WxHxD): 1342 x 372 x 934 mm / 52.83 x 14.65 x 36.77 in
Weight
Net: 54 kg / 119.05 lb
Gross: 64 kg / 141.10 lb
Input voltage
AC-in 100~240V 50/61Hz
Control panel
Control Pad, Physical button control , Software control for IFP50_IFP50-2
Compliance
FCC, cTUVus, CB, CE, RCM
Inbox items
Control Pad, Power Cord, Power Adapter Cord, USB Cable, Accessory Bag, Quick Start Guide

COMPATIBLE WITH VB-STND-003

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 55” 4K Interactive Display

ViewBoard IFP6533-G

ViewBoard® 65" 4K Interactive Display

ViewBoard IFP6534

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display

ViewBoard IFP6535-1-1C

EDLA-certified 65" display with energy-saving motion sensor

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display

ViewBoard IFP7533-G

ViewBoard® 75" 4K Interactive Display

ViewBoard IFP7534

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display

ViewBoard IFP7535-1-1C

EDLA-certified 75" display with energy-saving motion sensor

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display
