IFP6550

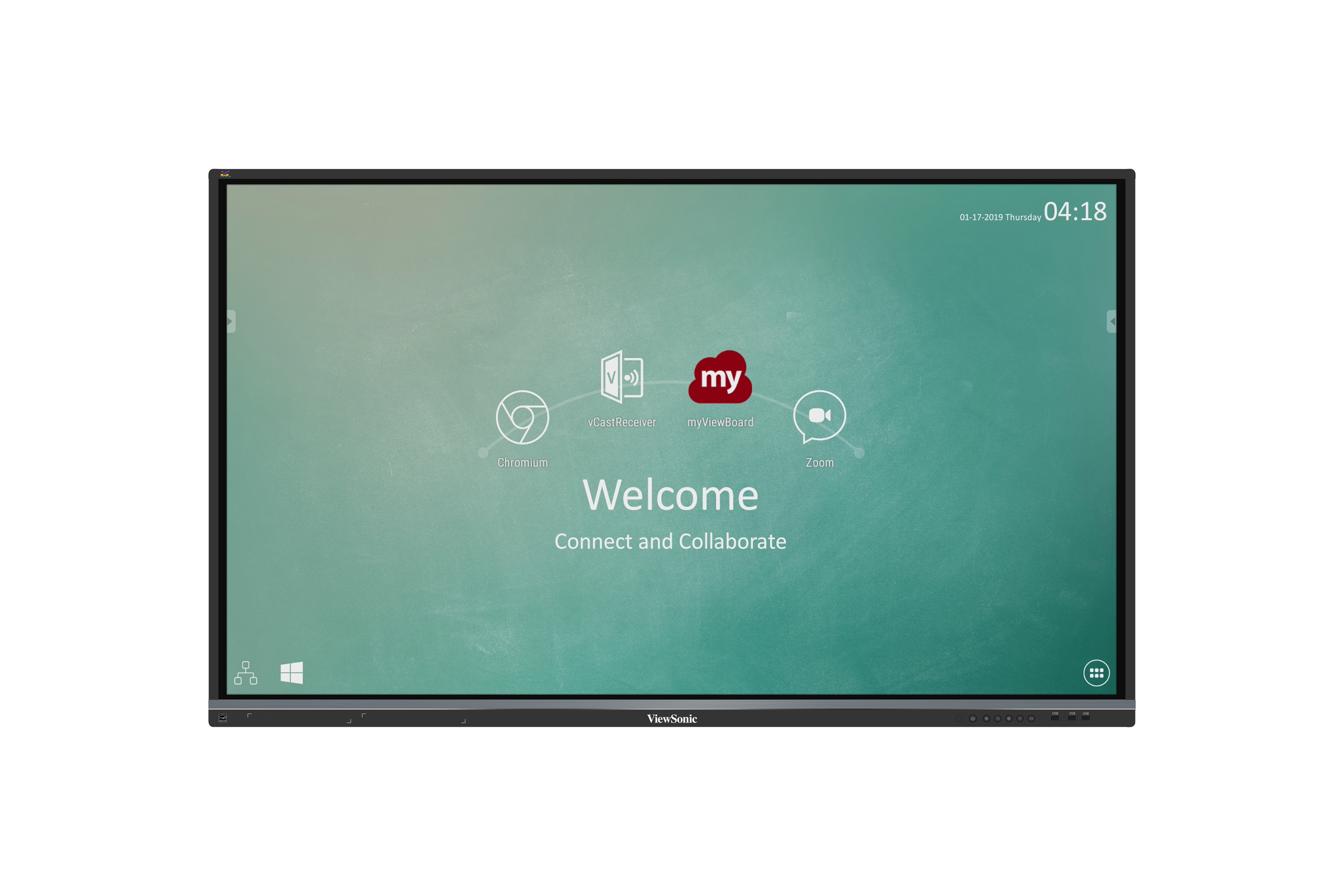

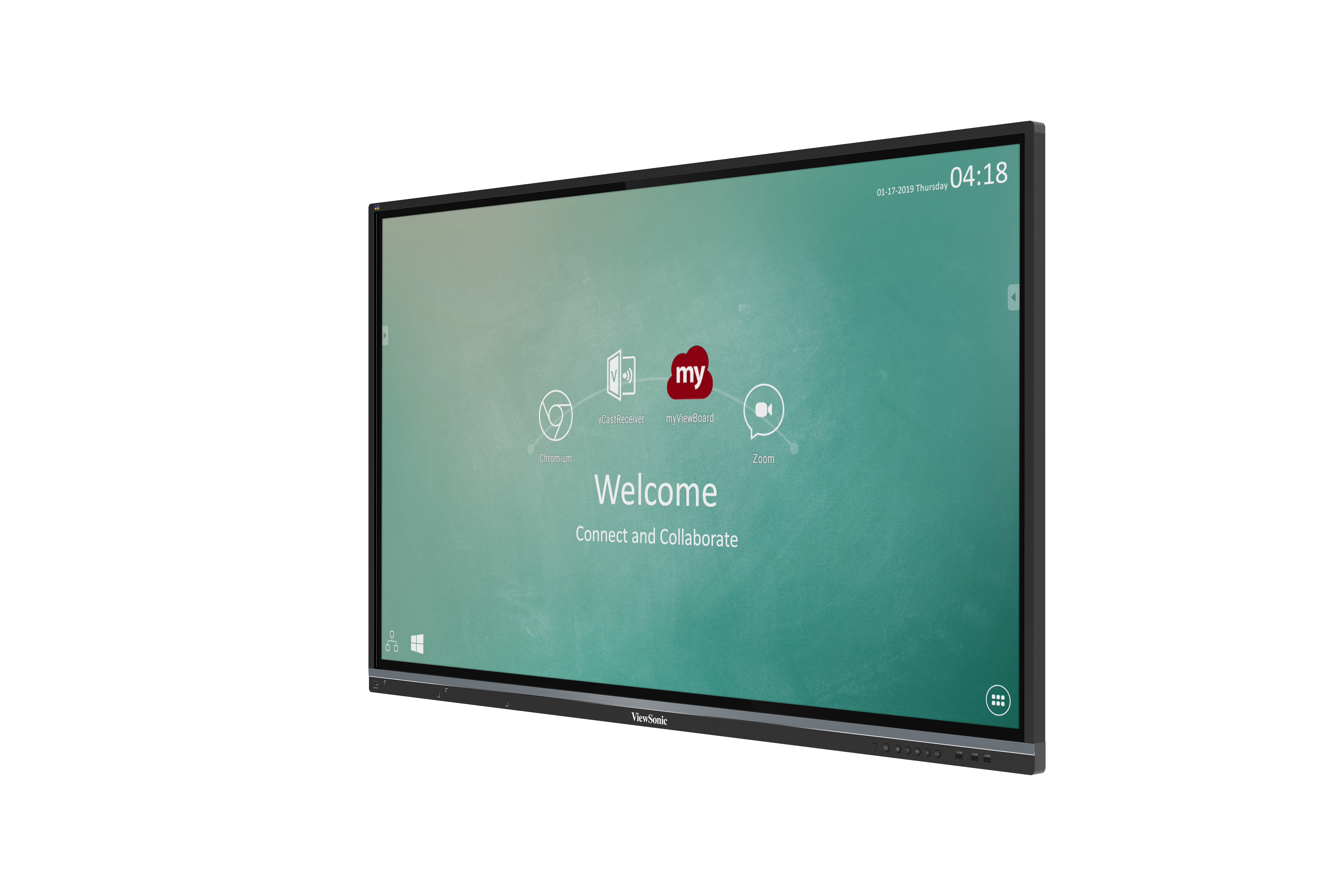

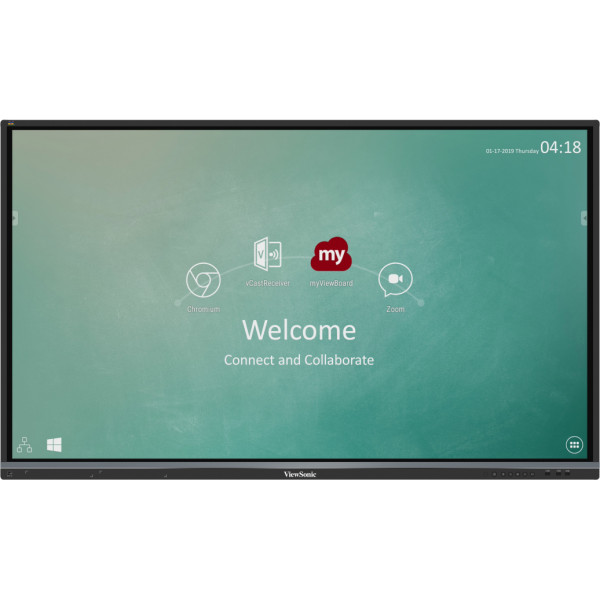

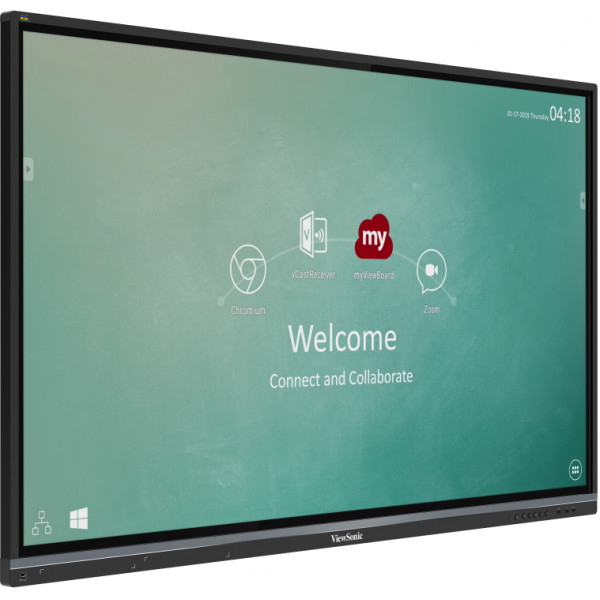

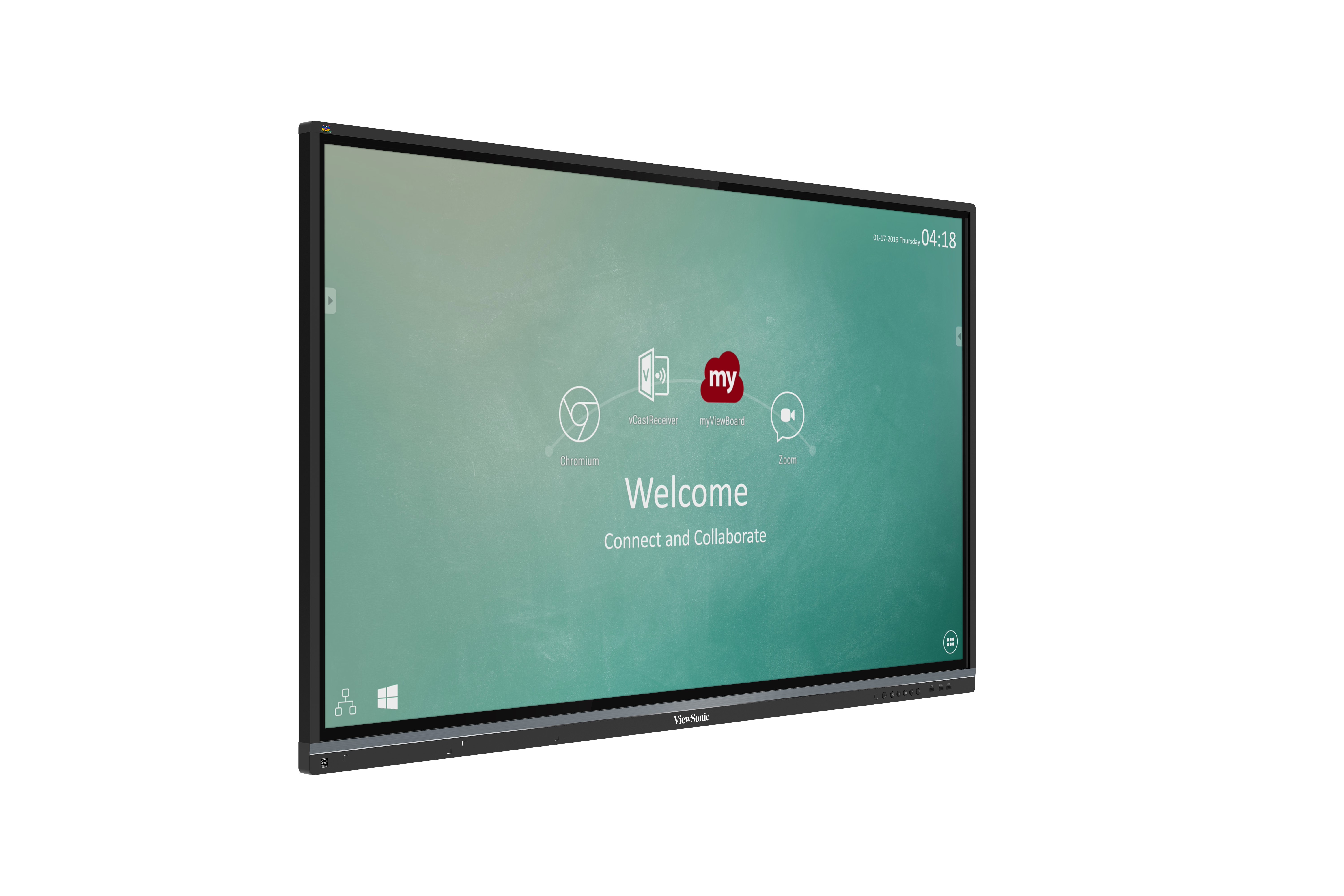

ViewBoard® 65" 4K Interactive Display
- Ultra fine touch technology enables real-time response dual-pen writing with a 3mm diameter pen tip
- 2.1 Stereo sound with a built-in woofer
- Built-in myViewBoard™ whiteboarding software to collaborate on the go
- 4-way split screen content sharing with built-in ViewBoard® Cast software
- SmartPort™ shared front USB ports for internal & external PCs
SPECIFICATIONS
- DisplayPanel Size: 65"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1431 (H) x 807 (V) (64.5” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160 (Pixels)
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.) 300 nits (min.)
Contrast Ratio: 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Anti-Glare

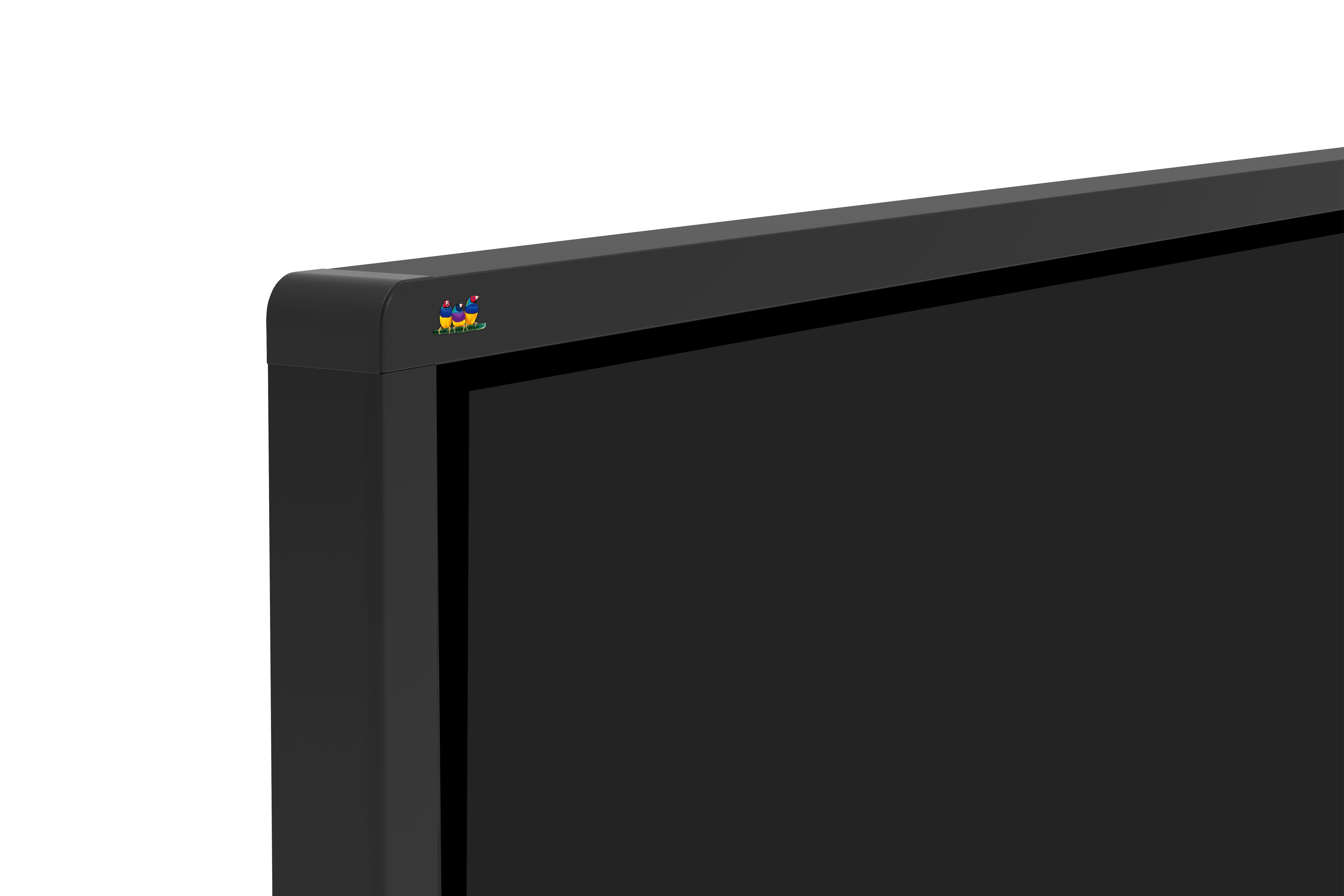

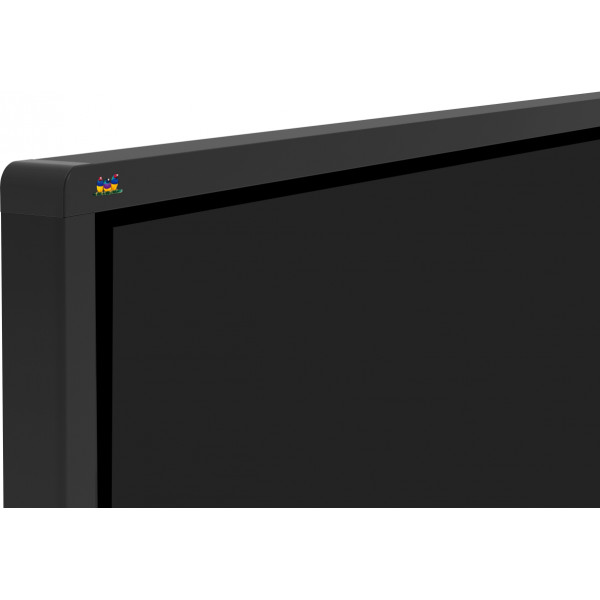

Bezel: Slim
Orientation: Landscape - PlatformProcessor: ARM Cortex A73 Dual-core 1.2GHz
RAM: 2GB DDR4
Storage: 16GB - TouchType/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing

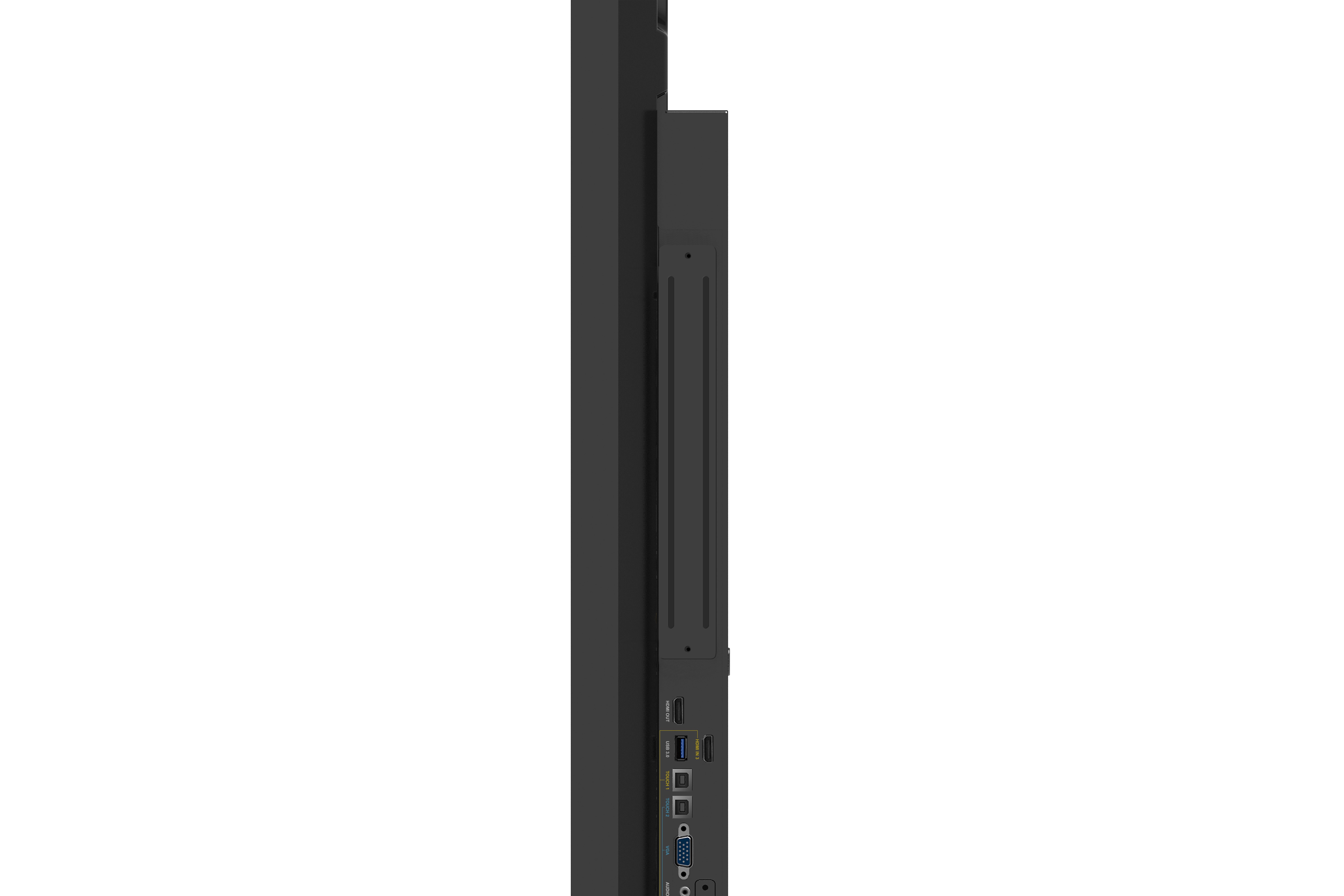

- INPUTHDMI: 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1 (PC audio in)
CVBS: x1
RS232: x1
OPS: x1 PC Slot (proprietary) - OUTPUTHDMI: x1
Audio: x1 (Earphone out)
SPDIF: 1 (optical) - LANRJ45: x1
- USBType A: USB 2.0 x4 (including 2 USB port in front), USB 3.0 x2 (including 1 USB port in front)
Type B: x2, for touch - SPEAKERSSPEAKERS: 10W x 2 + 15W x 1
- Embedded OSEmbedded OS: Android 7
- Bundle SoftwareBasic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
ViewSonic Launcher: Embedded - Special FeaturesAll-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: Yes - PowerVoltage: 100-240VAC +/- 10% Wide Range

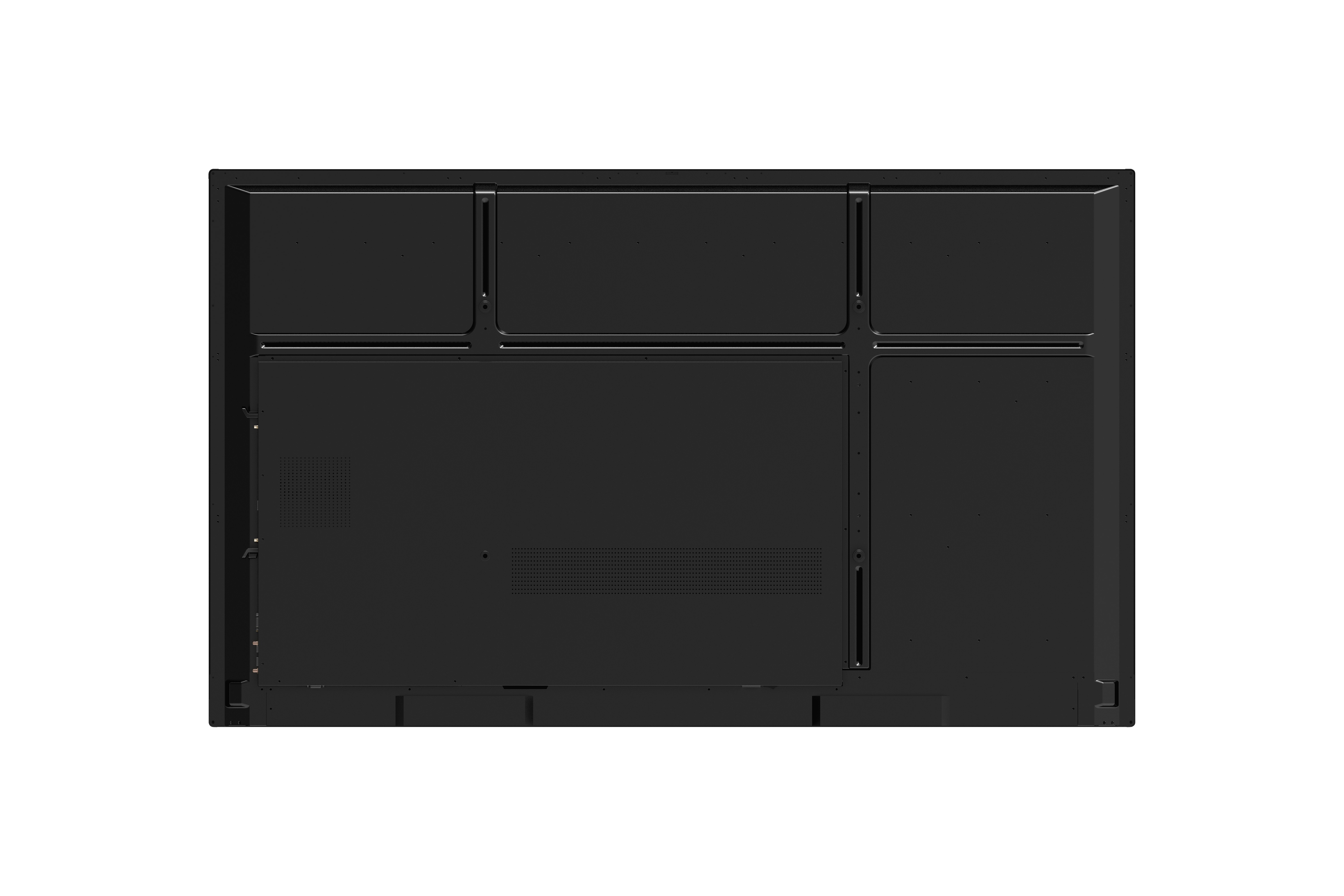

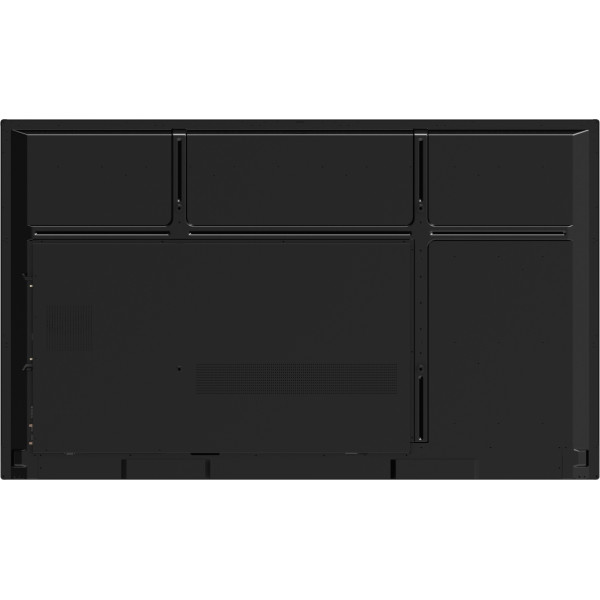

Consumption: 104W (Typ.) , < 0.5 W ("Off") - ERGONOMICSWall Mount (VESA® ): 600 x 400
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm
Packaging (inch / mm): 65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm - WEIGHTNet (lb / kg): 88.85 lb / 40 Kg
Gross (lb / kg): 102.63 lb / 47 Kg - PACKAGE CONTENTSPACKAGE CONTENTS: 1. Power cable (3 meters) x 4, 2. Remote control, 3. USB cable (3 meters), 4. AV cable, 5. Touching pen x 2, 6. Quick Start Guide, 7. RS232 adapter, 8. Clamp x 5, 9. Plate, 10. Screw x 8, 11. HDMI cable
- Compatible Slot-in PCCompatible Slot-in PC: VPC14-WP series, VPC10-WP series, VPC15-WP series, VPC16-WP series, VPC17-WP series
