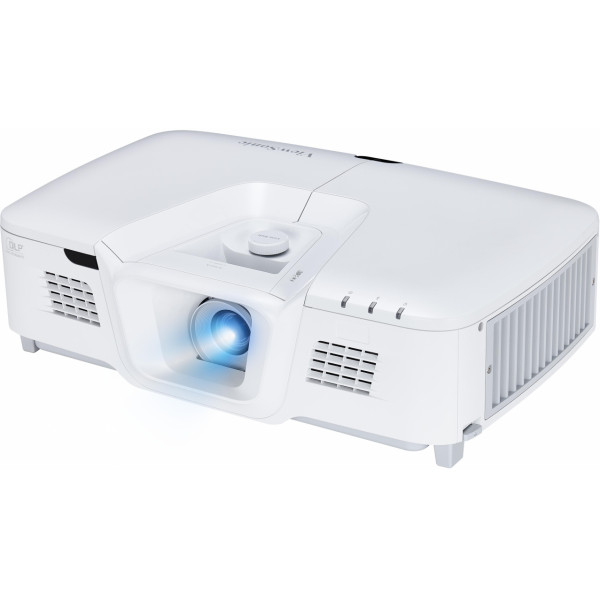

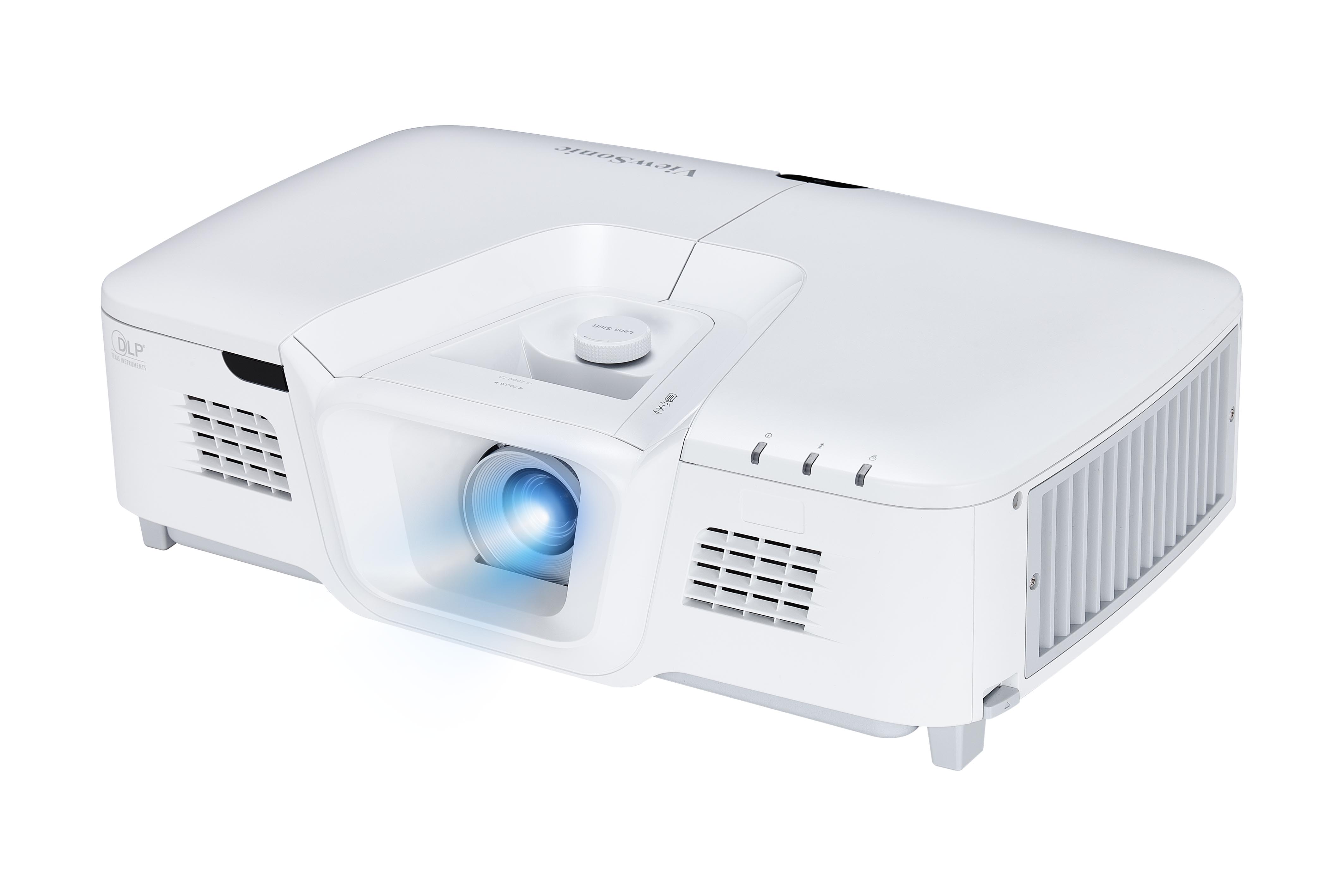

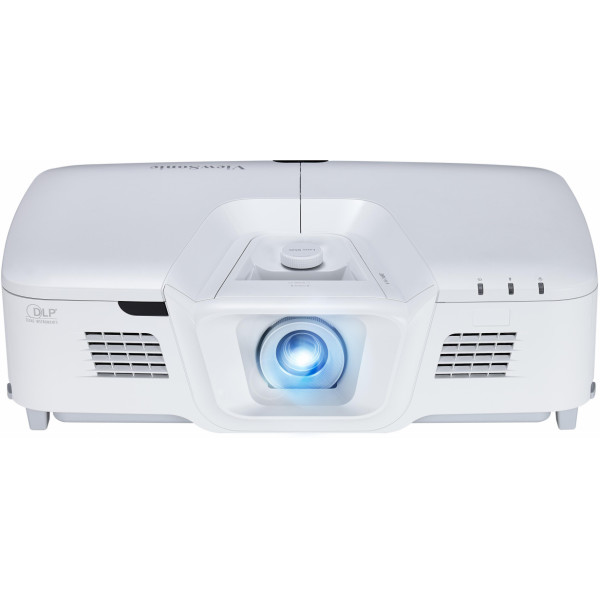

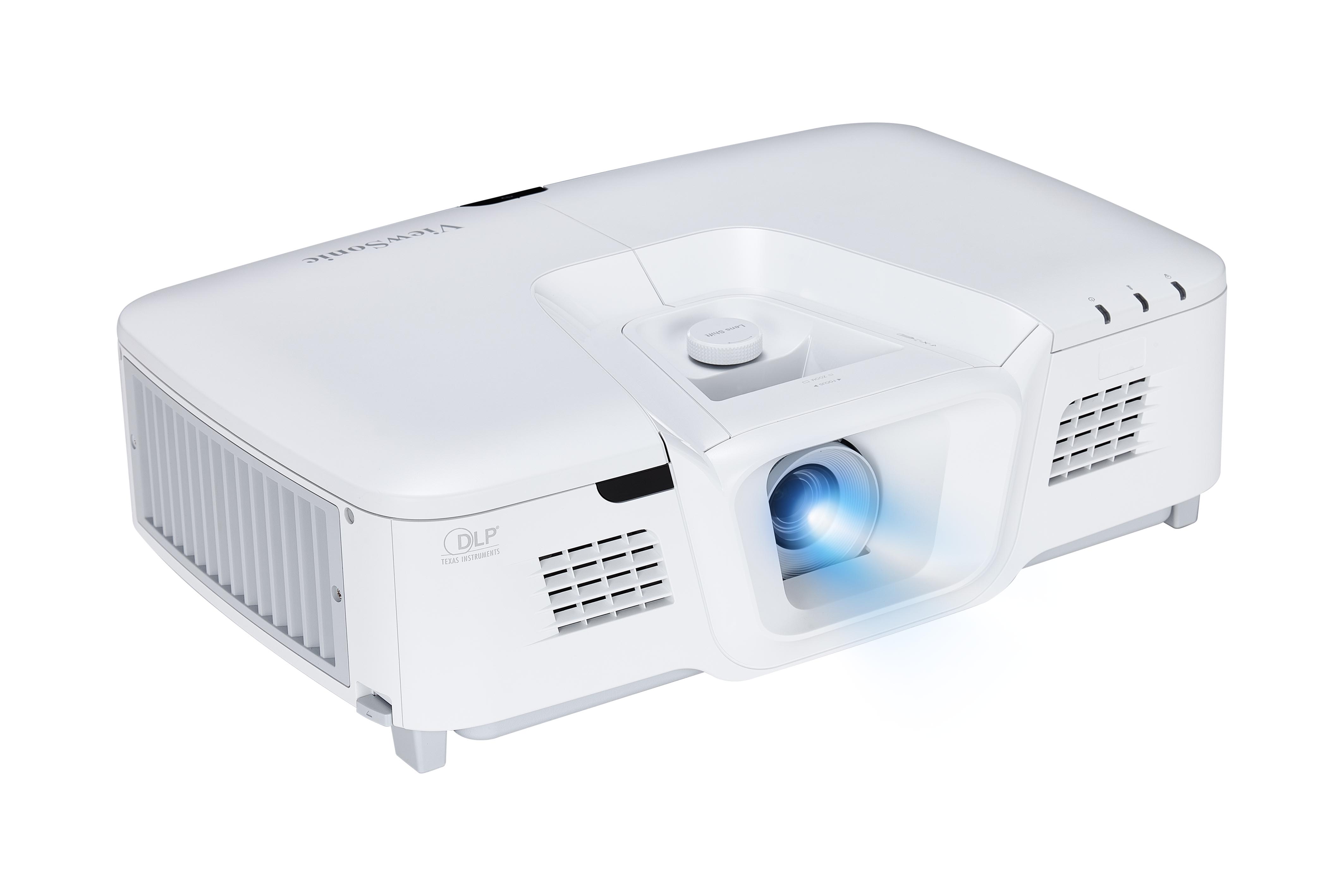

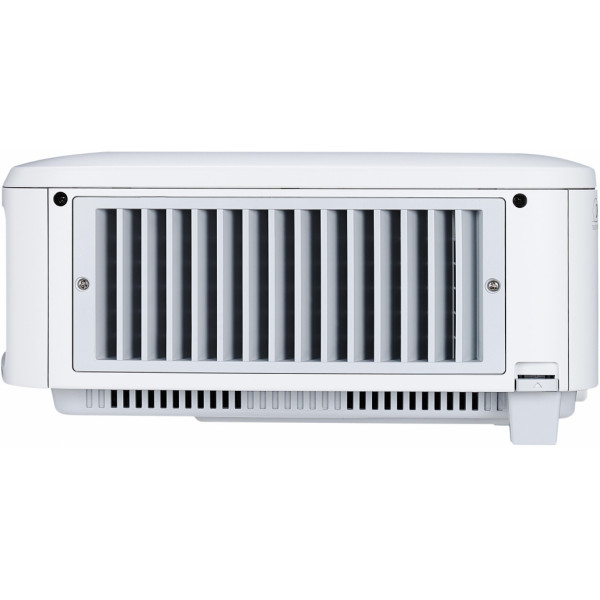

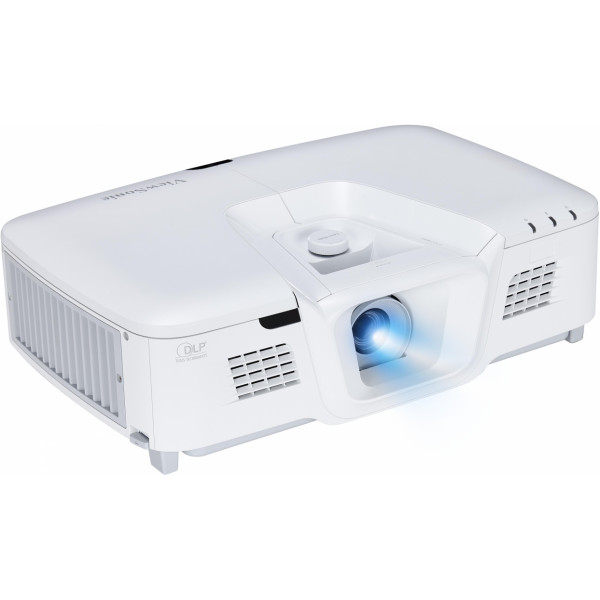

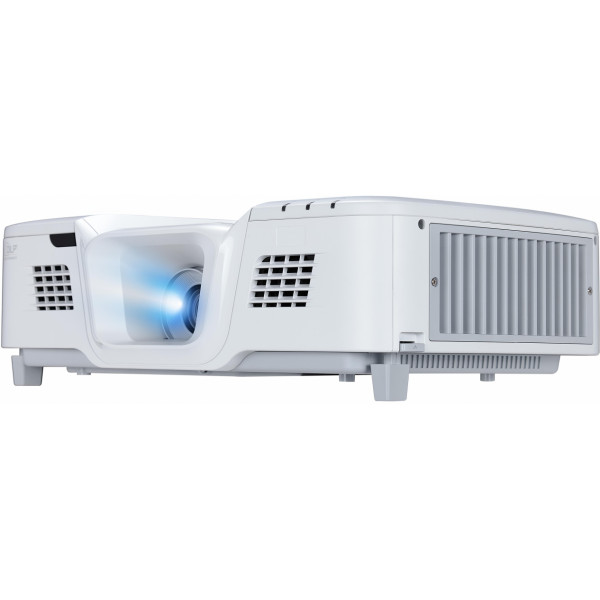

PG800W

5,000 Lumens Installation Projector

  • WXGA resolution

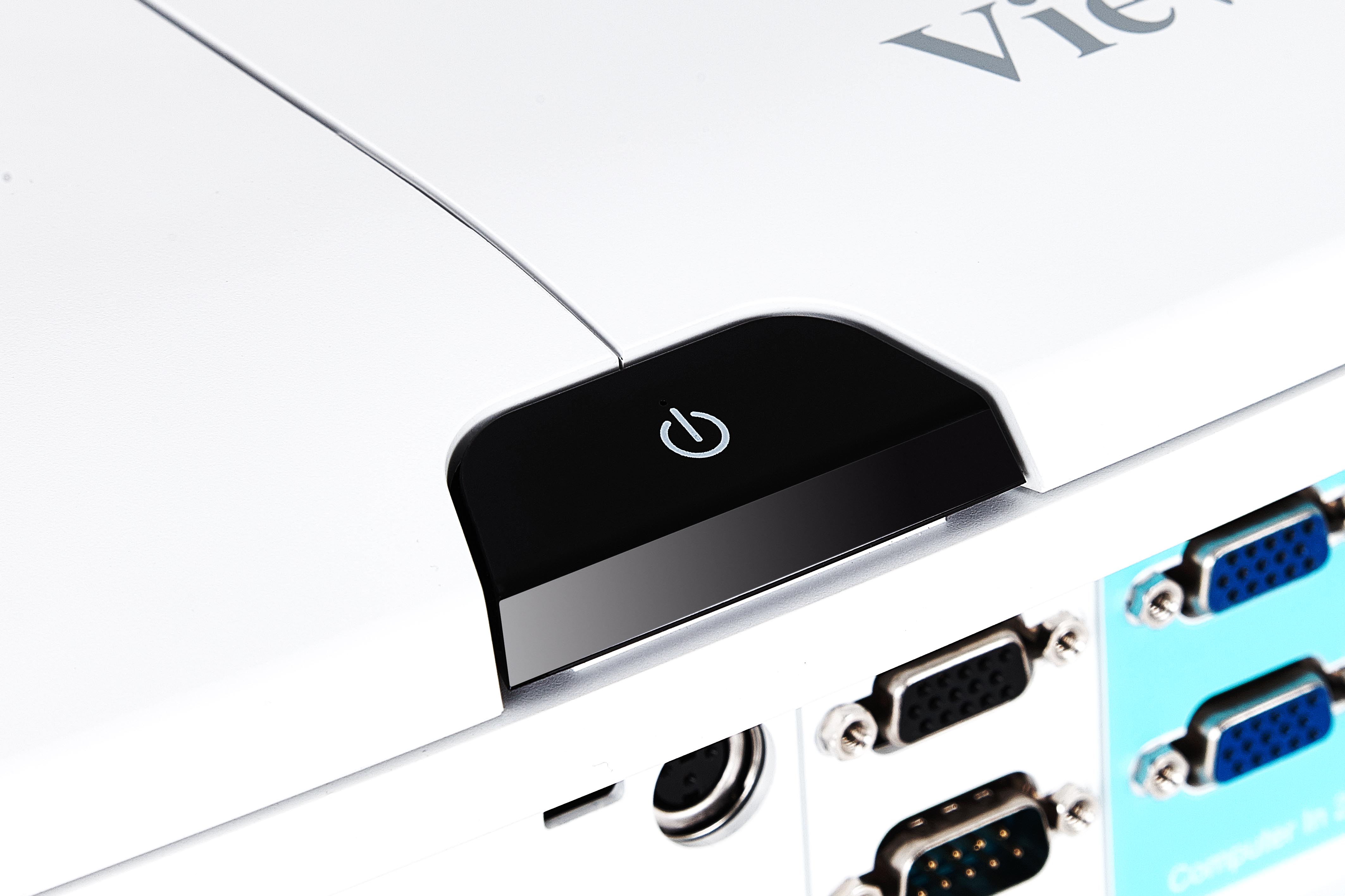

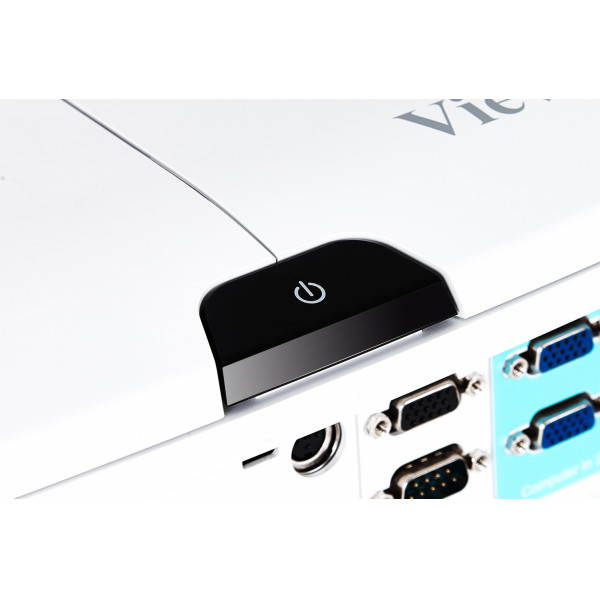

  • 4-in-1 power button

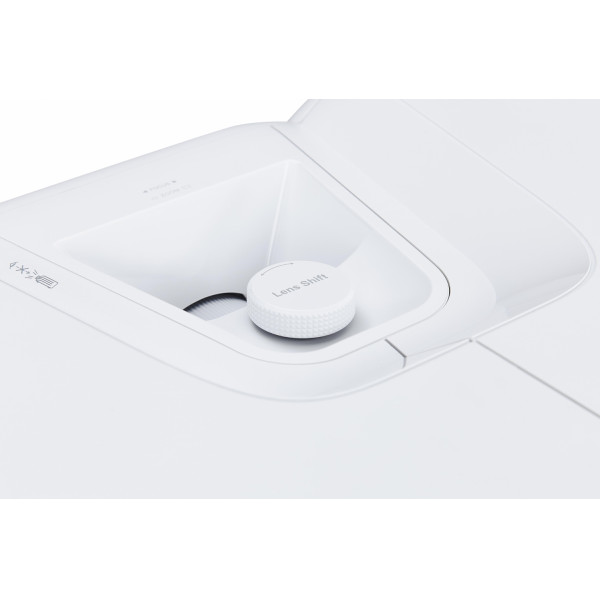

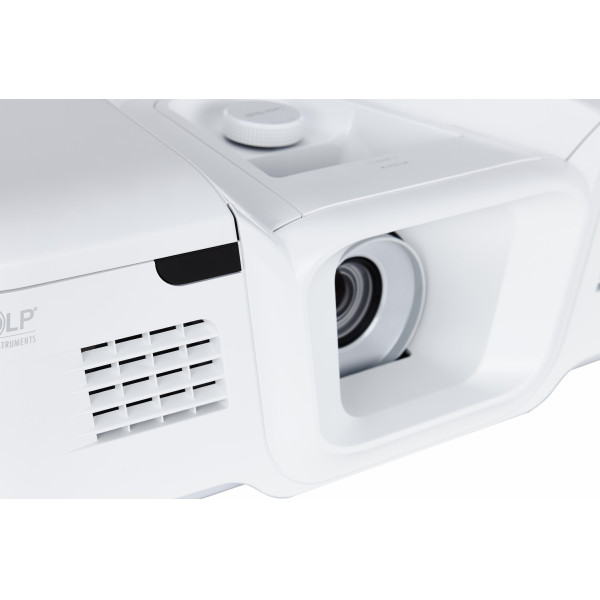

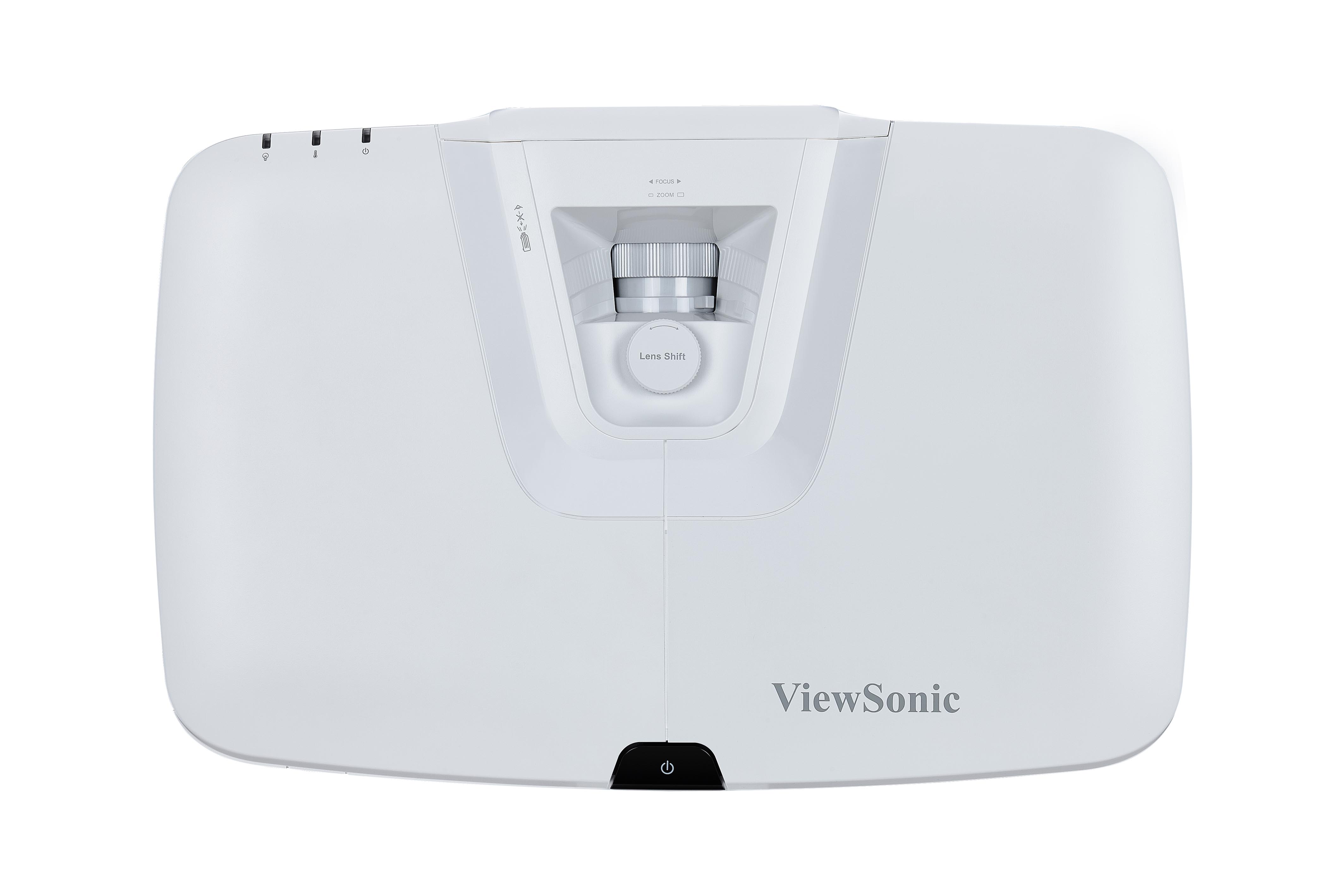

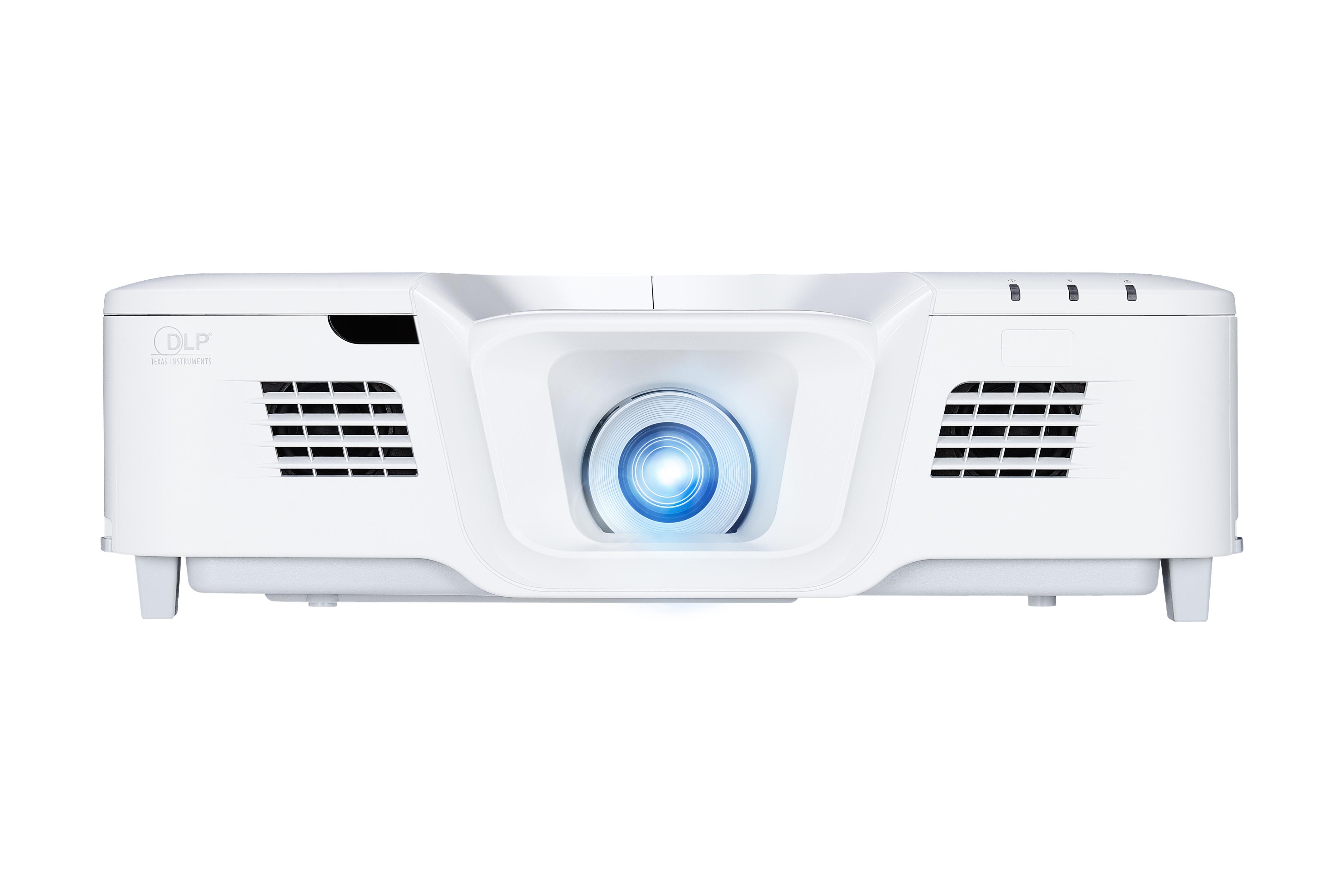

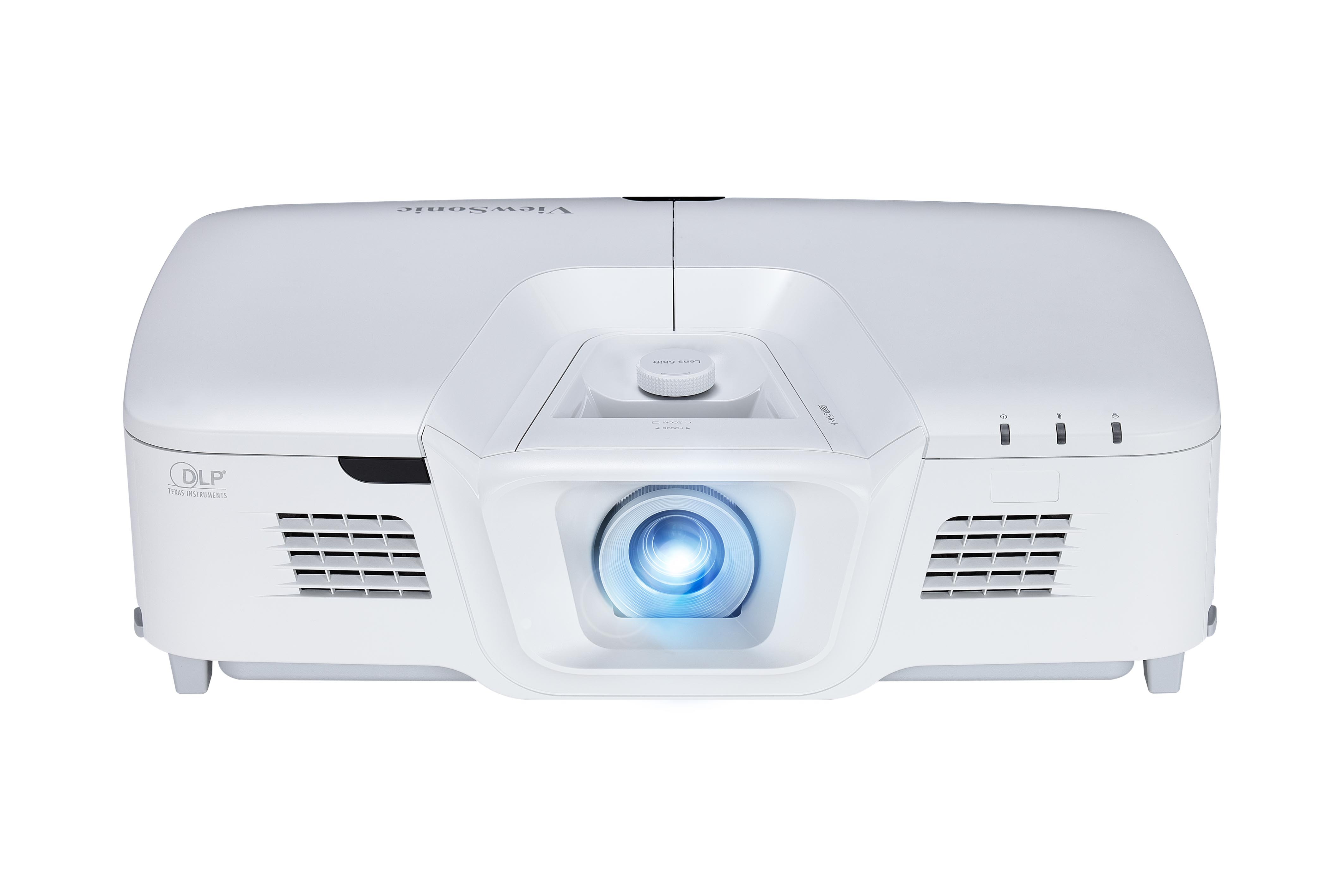

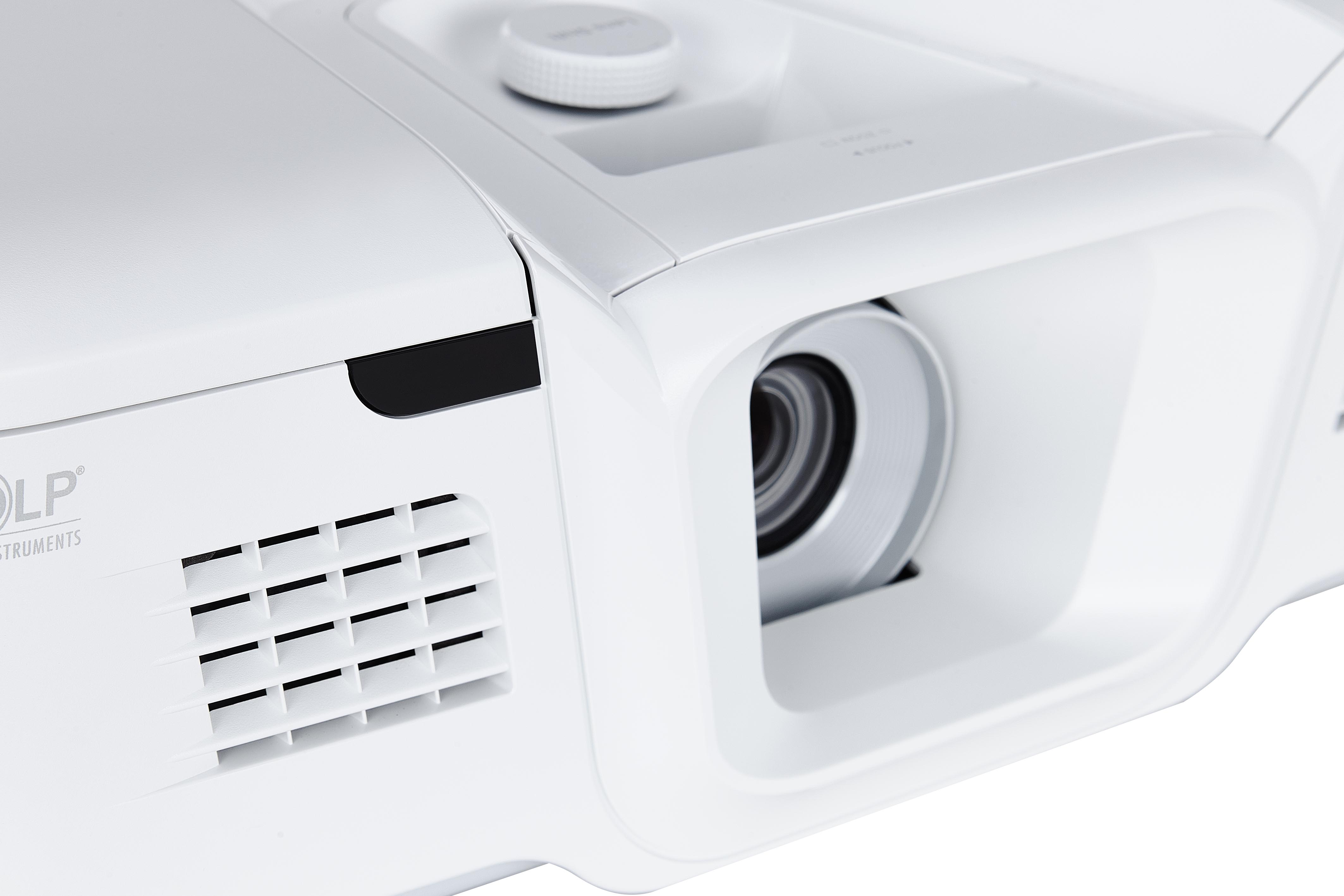

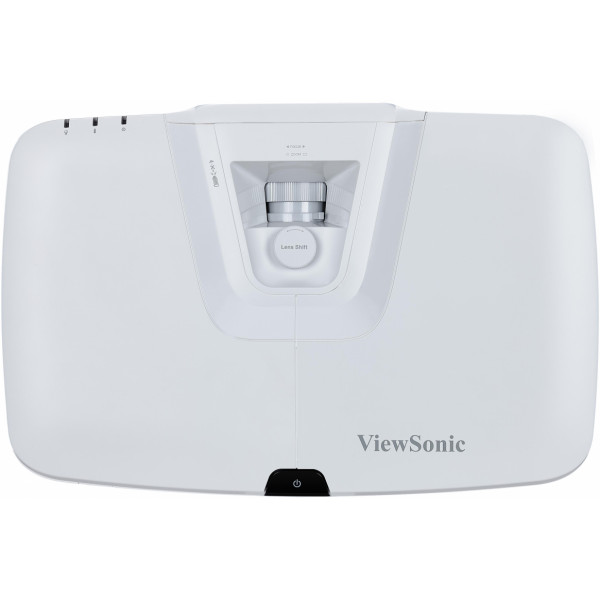

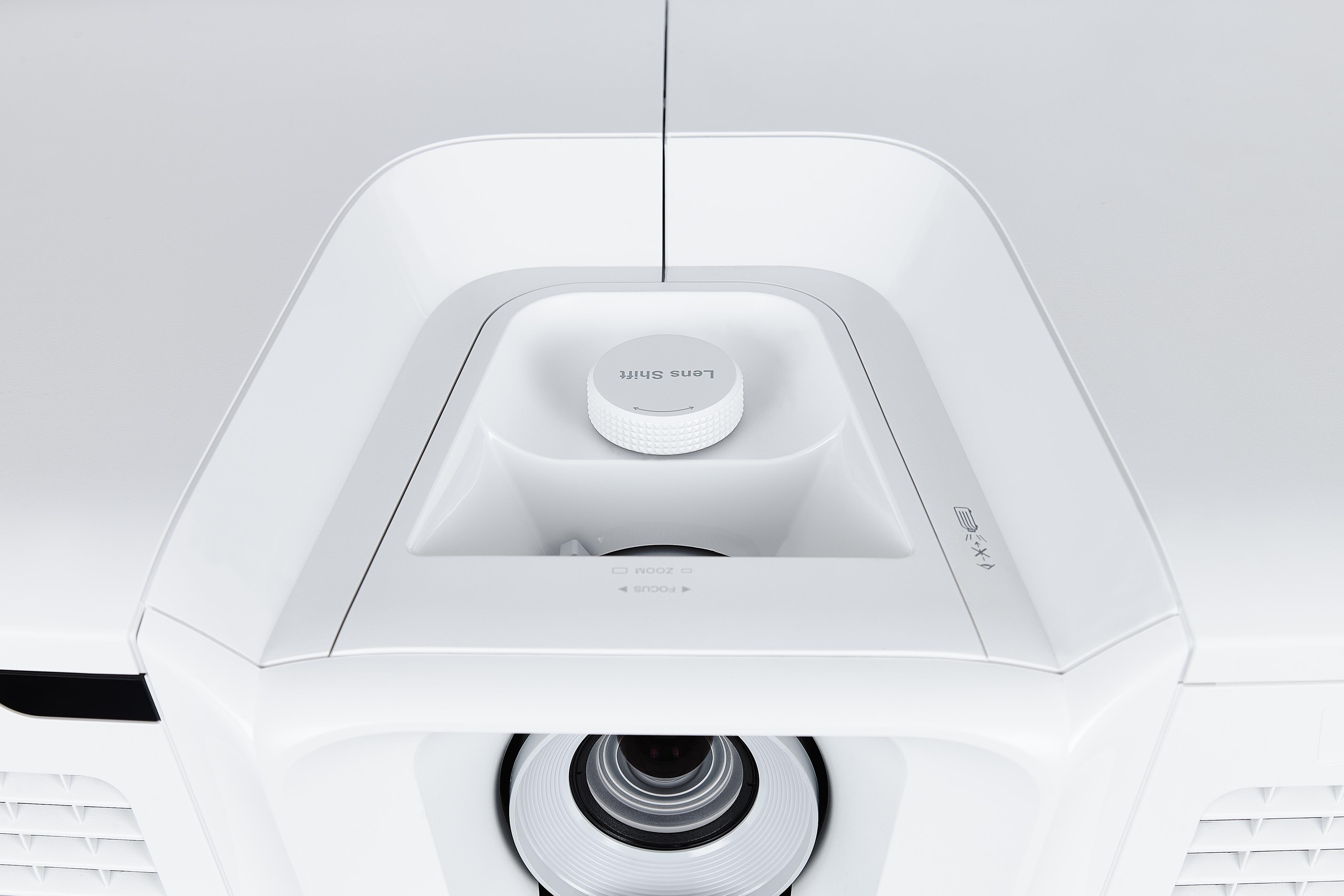

  • Vertical lens shift with centered lens
  • PortAll® compartment for wireless dongle
  • LAN control support-Crestron, AMX and PJ Link

Specificaties


  • SPECIFICATION
    Projection system: 0.65" WXGA
    Native resolutie: 1280 x 800
    DC type: DC3
    Helderheid: 5000 ANSI lumens
    Contrast Ratio with SuperEco mode: 5000:1 (with Eco mode)
    Display Color: 1.07 Billion Colors‎
    Lichtbron: Lamp
    Light source life (Nor/SuperEco): 2000/2500 (Nor/Eco)
    Lamp Watt: 370W
    Lens: F=2.59-2.87, f=16.88-21.88mm
    Projectie offset: 110%+/-5%
    Throw Ratio: 1.21-1.57
    Image size: 30" - 300"
    Throw Distance: 0.78m-10.14m(100" @2.61m)
    Keystone: ±40° (Vertical)
    Lensverschuiving V. Bereik: Yes (+7.5%, -0%)
    Optische zoom: 1.3x
    Audible Noise (Eco): 33dB
    Resolutie Ondersteuning: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibiliteit: NTSC, PAL, SECAM
    Horizontale frequentie: 15K~102KHz
    Verticale scansnelheid: 23~120Hz

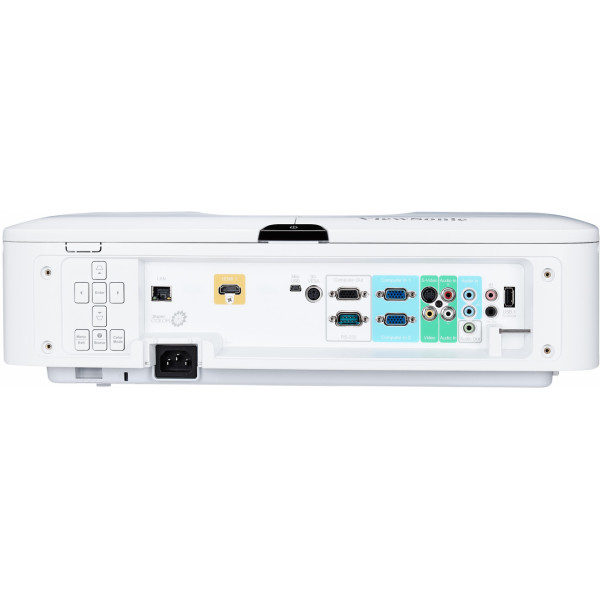

  • Invoer
    Computer in (D-SUB 15 pin): 2
    Composite: 1
    S-video: 1
    Audio-in (3.5mm): 2
    Audio-in (RCA R/L): 1
    Microfoon in: 1 (shared with Audio-in 2)
    HDMI: 2 (Back & PortALL)
    3D VESA (Sync): 1
  • Uitgang
    Monitor out (D-SUB 15 pin): 1
    Audio-uitgang (3,5 mm): 1
    Speaker: 10W Cube x 2
    USB type A (Power): 1 (5V2A)
    USB type Micro B (Power): 1 (5V2A Front)
    12V Trigger: 1 (3.5mm)
    IR out: 1
