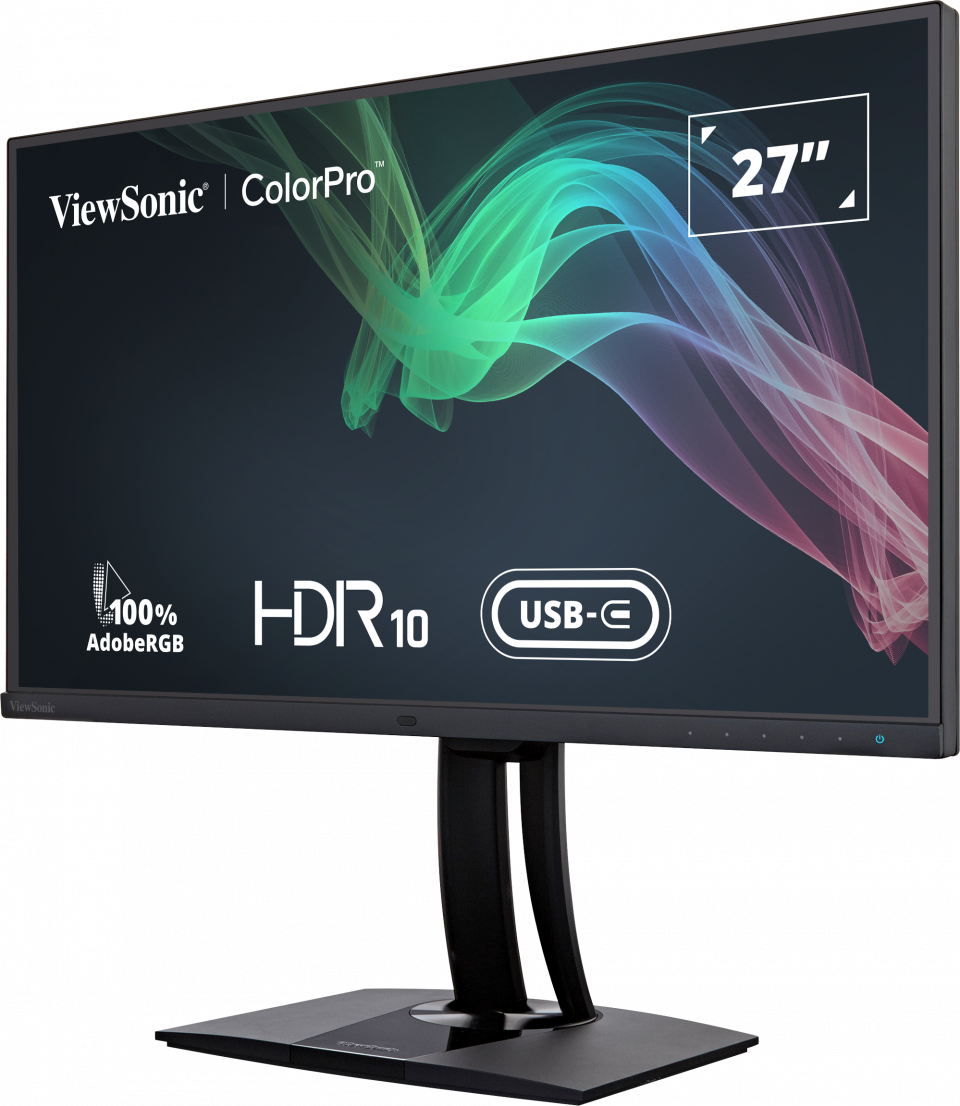

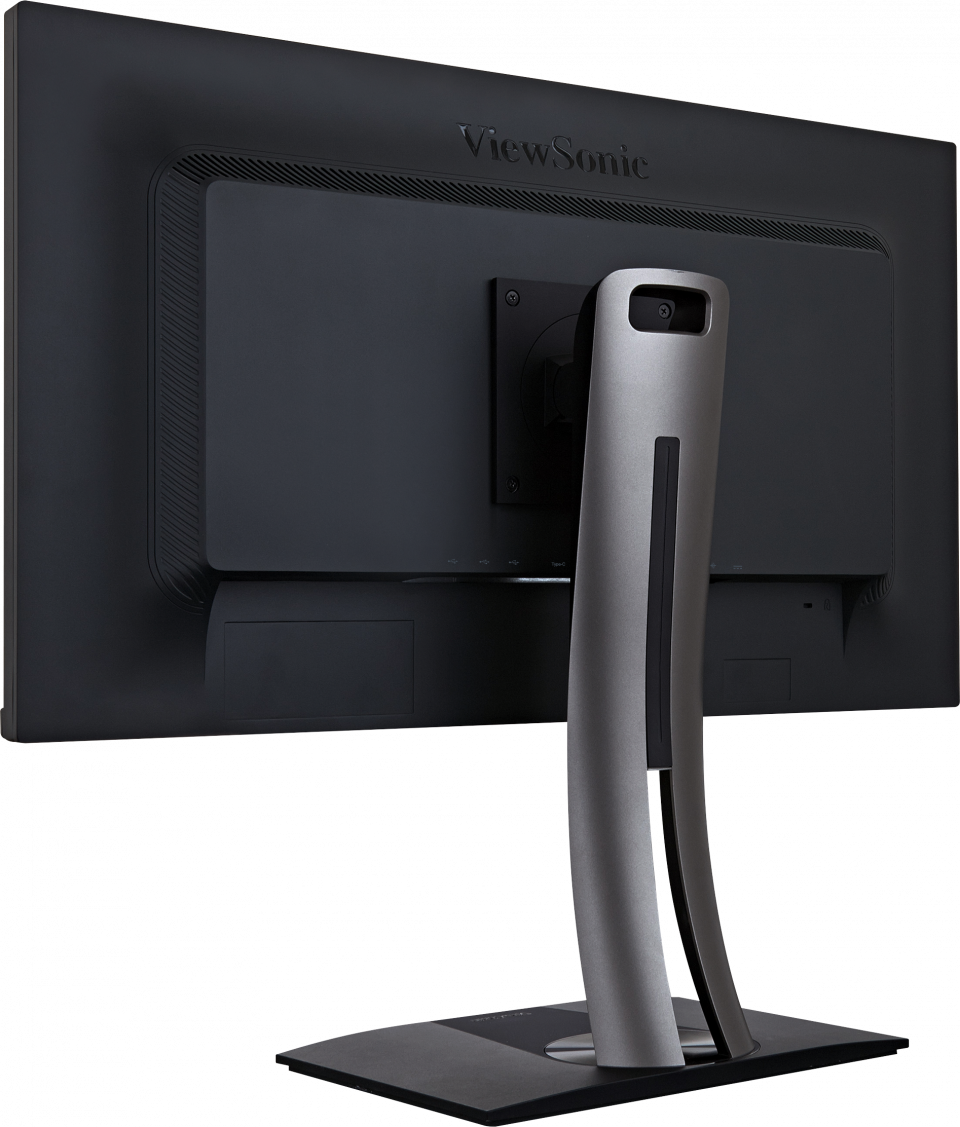

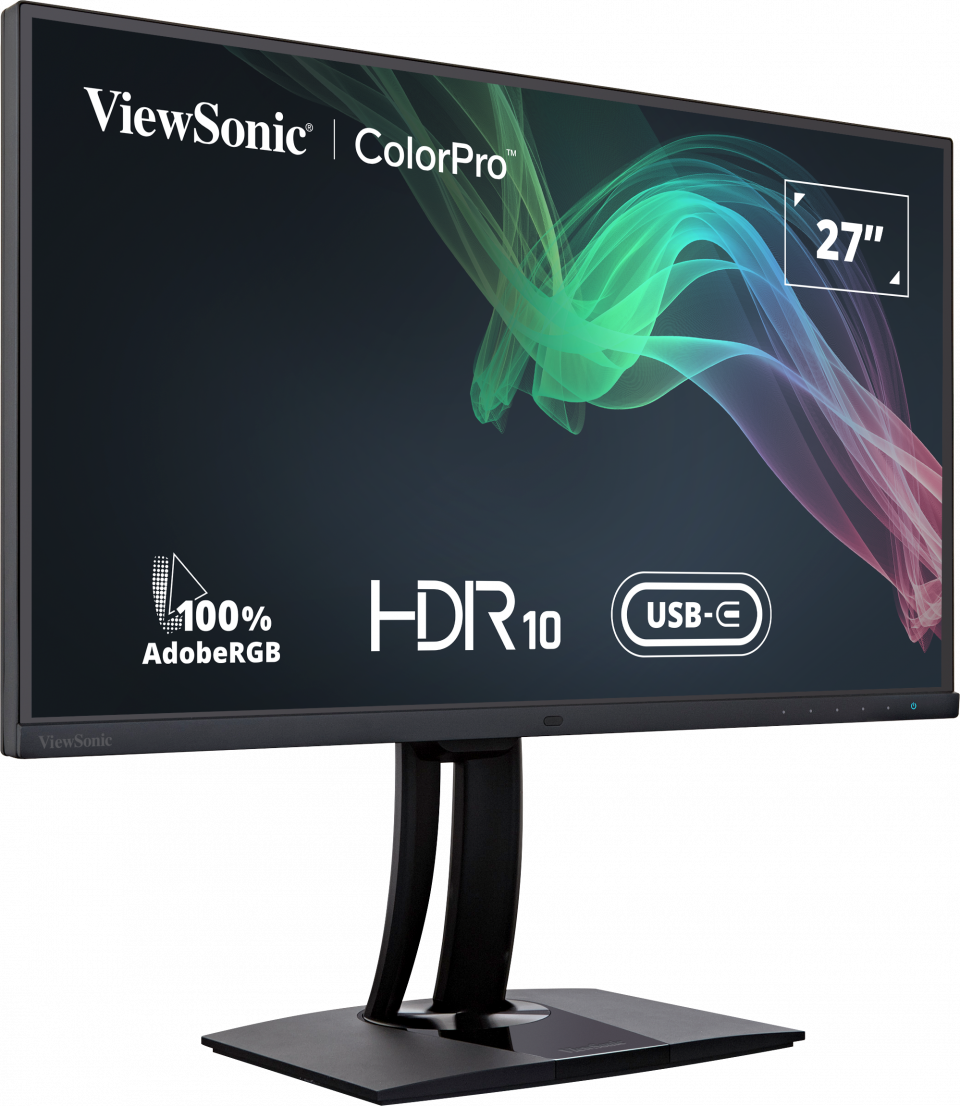

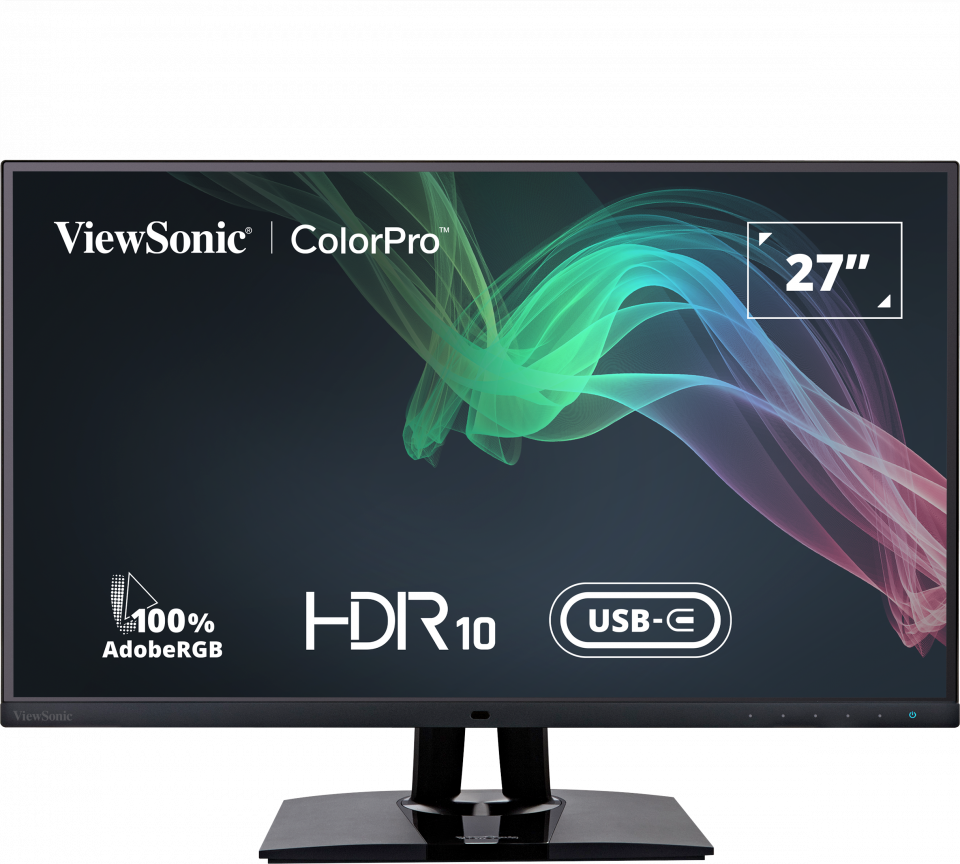

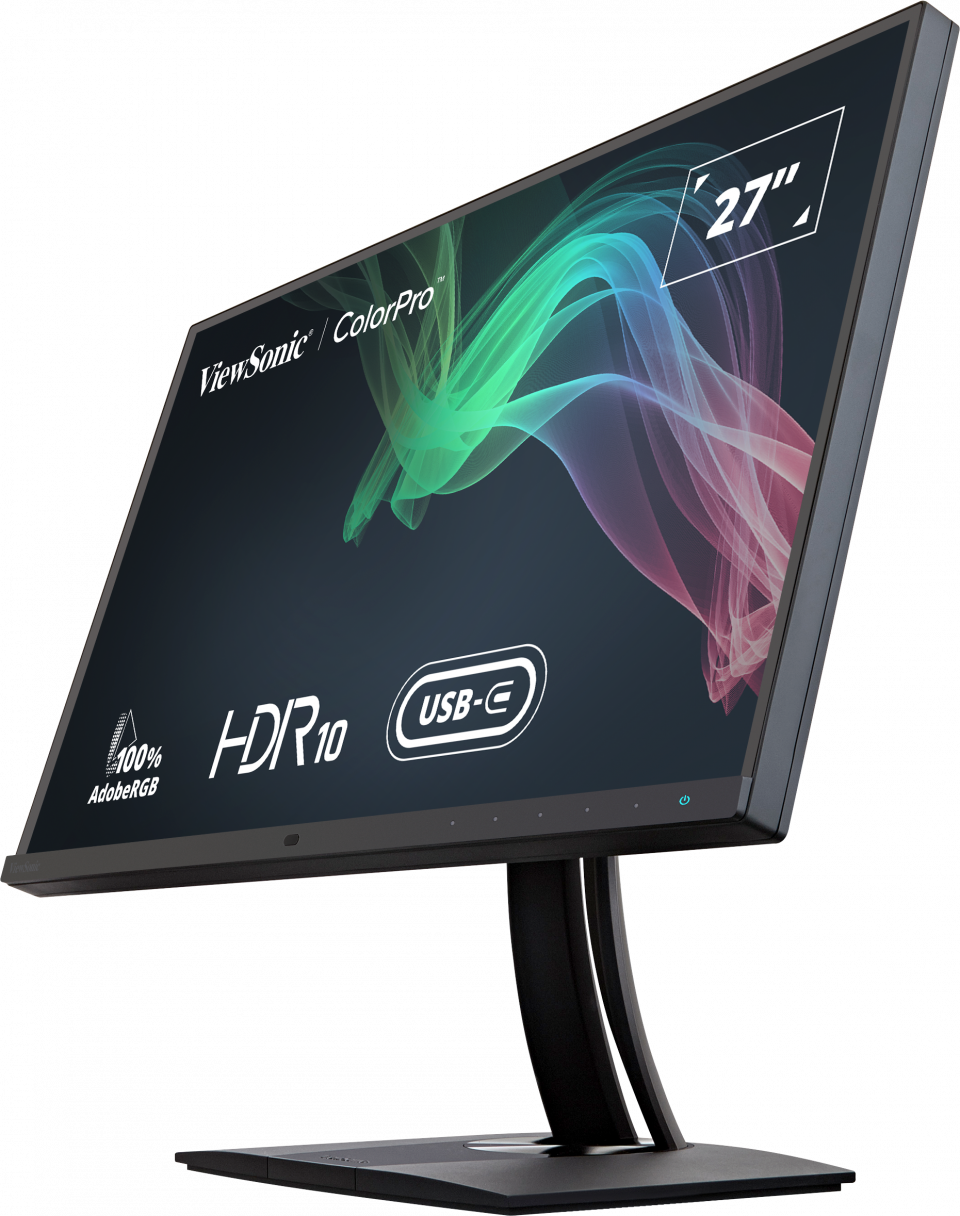

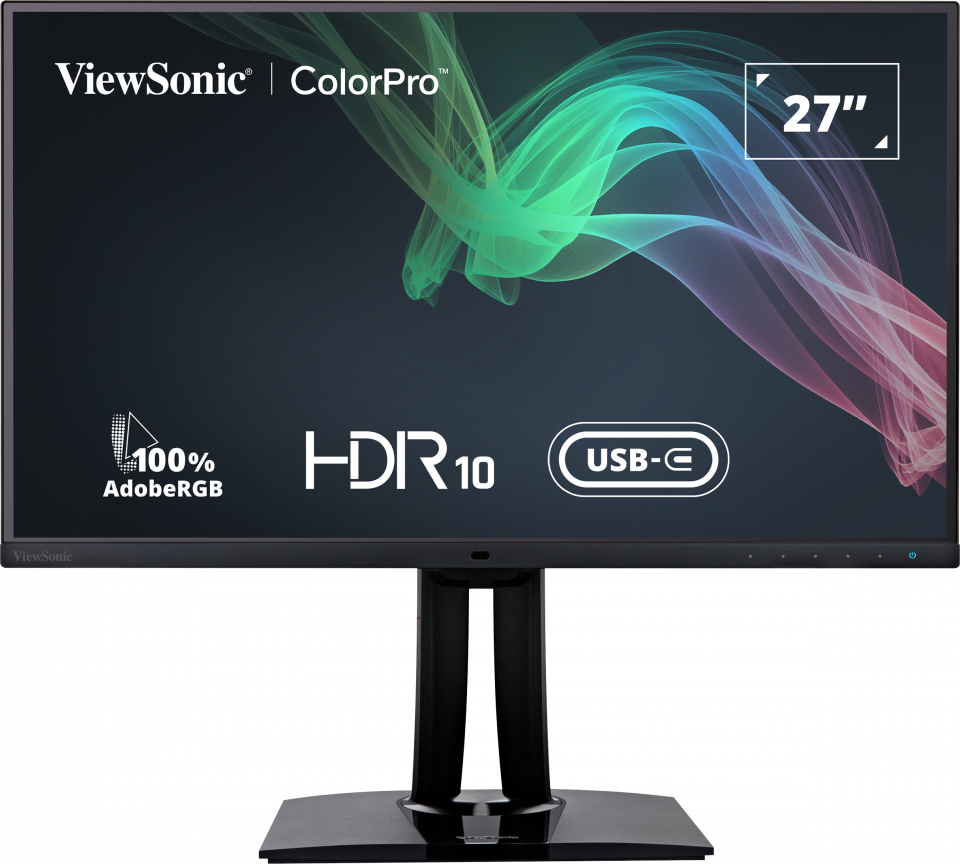

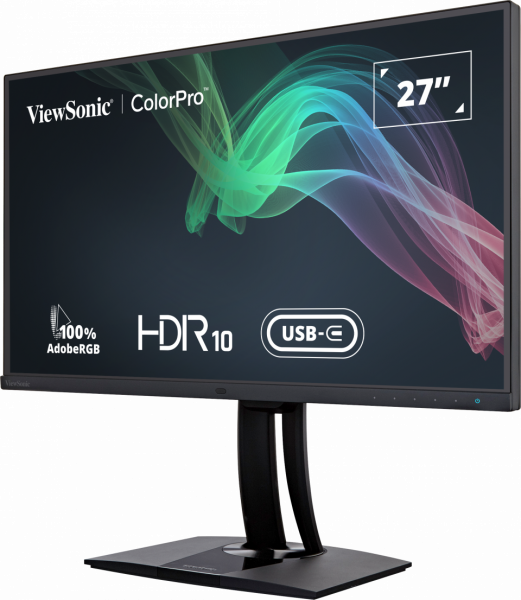

VP2785-4K
27" 100% Adobe RGB Professional Monitor
- Ultra HD-resolutie in 4K
- Achtergrondverlichtingssensor
- KVM Switch-technologie met USB Type-C

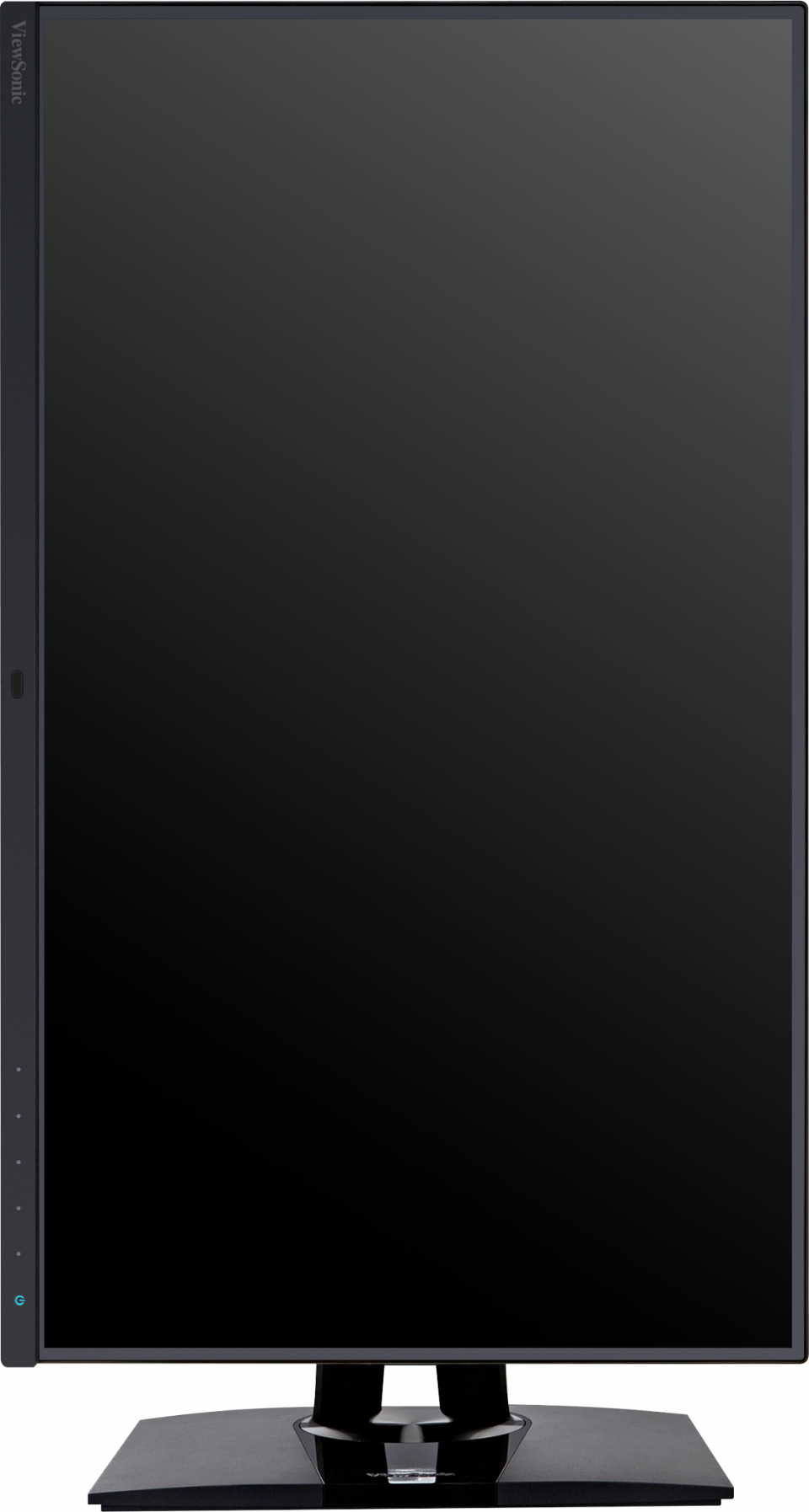

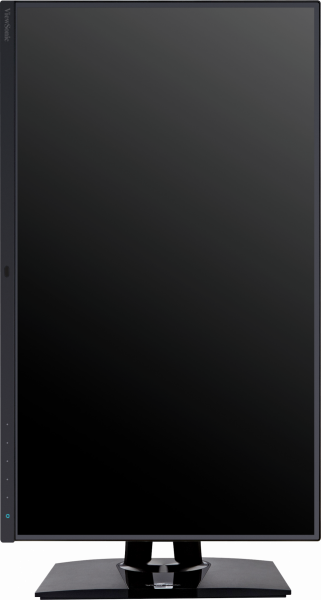

- Ergonomische standaard met Auto Pivot
- Hardware kleurkalibratie
REVIEWS
“While it is very similar to the ViewSonic VP2780-4K, which earned our Editors' Choice way back in 2015, the VP2785-4K offers some distinct improvements. It adds a USB Type-C port, which can charge a laptop that's connected to it, as well as letting you take advantage of an unusual KVM-switch feature.”
“The VP2785-4K combines ergonomic and meaningful design with modern techniques. He has all the usual color profiles, so that photographers, graphic artists, videographers and editors can pursue their work without restrictions.”
“While it is very similar to the ViewSonic VP2780-4K, which earned our Editors' Choice way back in 2015, the VP2785-4K offers some distinct improvements. It adds a USB Type-C port, which can charge a laptop that's connected to it, as well as letting you take advantage of an unusual KVM-switch feature.”
Specificaties
- DisplaySchermgrootte (inch): 27
Zichtbare oppervlakte (in.): 27
Paneeltype: IPS Technology
Resolutie: 3840 x 2160
Resolutietype: UHD (Ultra HD)
Statische contrastverhouding: 1,000:1 (typ)
Dynamische contrastverhouding: 20M:1
Lichtbron: LED
Helderheid: 150 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + A-FRC)
Aspectratio: 16:9
Reactietijd (typische GTG): 5ms
Reactietijd (GTG met OD): 5ms
Kijkhoeken: 178º horizontal, 178º vertical
Levensduur achtergrondverlichting (uren): 30000 Hrs (Min)
Kromming: Flat
Vernieuwingsfrequentie (Hz): 60
Technologie met variabele vernieuwingsfrequentie: Yes
Blauwlichtfilter: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Flikkervrij: HDR10
Color Gamut: Adobe RGB: 109% size / 99% coverage (Typ)
DCI-P3: 108% size / 95% coverage (Typ)
EBU: 145% size / 100% coverage (Typ)
REC709: 147% size / 100% coverage (Typ)
SMPTE-C: 166% size / 100% coverage (Typ)
NTSC: 104% size (Typ)
sRGB: 147% size / 100% coverage (Typ)
Pixelgrootte: 0.155 mm (H) x 0.155 mm (V)
Oppervlakte behandeling: Anti-Glare, Hard Coating (3H) - CompatibiliteitPC-resolutie (max.): 3840x2160
Mac® Resolutie (max.): 3840x2160
Mac® Resolutie (min): 3840x2160 - ConnectorUSB 3.2 Type A Down Stream: 3
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mod: 1 (60W power charger)
3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
DisplayPort: 1
Mini DisplayPort: 1
- StroomEco-modus (behouden): 55W
Eco Mode (optimized): 67W
Verbruik (typisch): 70W
Spanning: External Power Adaptor DC
Stand-by: 45W
Stroomvoorziening: 14 - BesturingFysieke controles: 60000
Schermweergave: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power) - Bedrijfsomstandigheden:Temperatuur: 32°F to 104°F (0°C to 40°C)
Vochtigheid (niet-condenserend): 20% to 90% - Wall Mount VESA-compatibel: 130, VESA Compatible mm
- IngangssignaalFrequentie Horizontaal: 15 ~ 204KHz
Frequentie verticaal: 24 ~ 120Hz - Video-ingangDigitale synchronisatie: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4), PCI-E - mini DisplayPort (v1.4), Micro-Packet - Type C

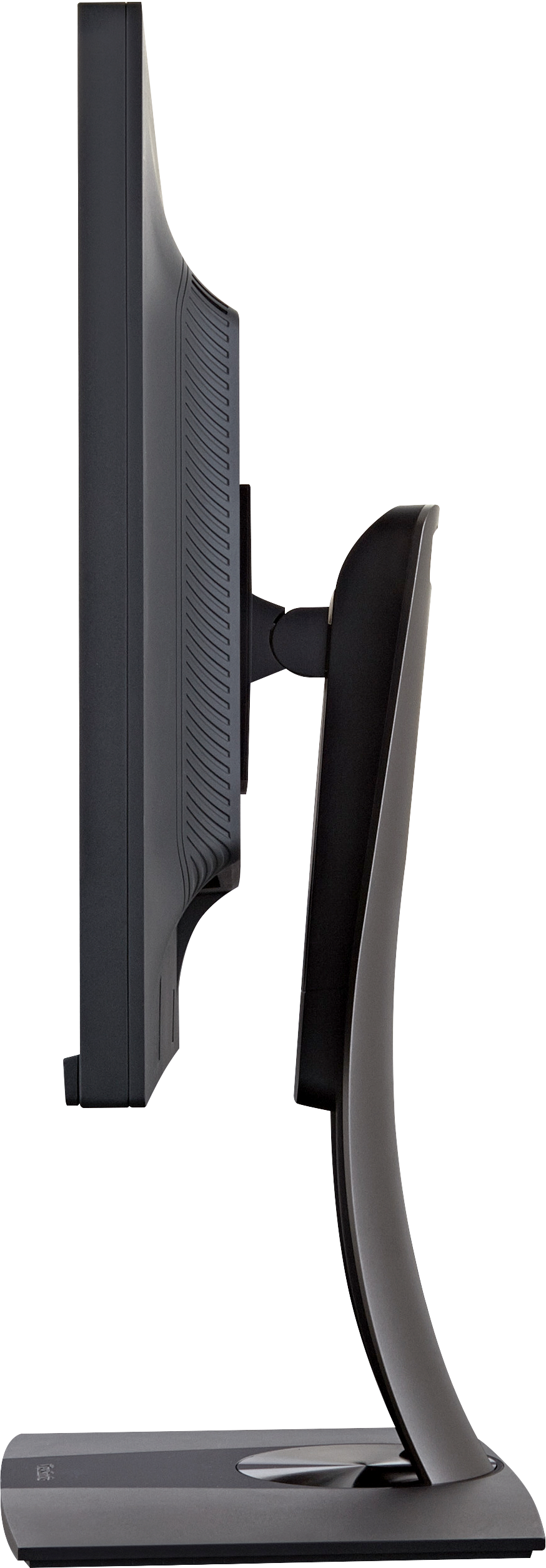

- ErgonomieHoogte aanpassen (mm): 90
draaibaar: 21º
Kantelen (vooruit/achteruit): Mattº / -5º
Draaien (rechts/links): 0º / 60º - Gewicht (imperiaal)Netto (lbs): 13.8
Netto Zonder Standaard (lbs): 8.5
Bruto (lbs): 21.1 - Weight (metric) Netto (kg): 6.3
Netto Zonder Standaard (kg): 3.8
Bruto (kg): 9.6 - Afmetingen (imperiaal) (bxhxd)Verpakking (inch): 28.3 x 18.1 x 10.6
Fysiek (inch/mm): 24.1 x 16.35~21.47 x 8.5
Fysiek zonder standaard (in.): 24.1 x 14.3 x 2.2 - Afmetingen (metrisch) (bxhxd)Verpakking (mm): 720 x 460 x 268
Fysiek (mm): 612 x 415.51~545.51 x 215
Fysiek zonder standaard (mm): 612 x 363 x 57 - AlgemeenVERPAKKINGSINHOUD: VP2785-4K x1, 3-pin Mickey Mouse Plug (IEC C5) x1, mini DisplayPort to DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recyclen/verwijderen: Please dispose of in accordance with local, state or federal laws.
Garantie: *Warranty offered may differ from market to market
