TD2220-2

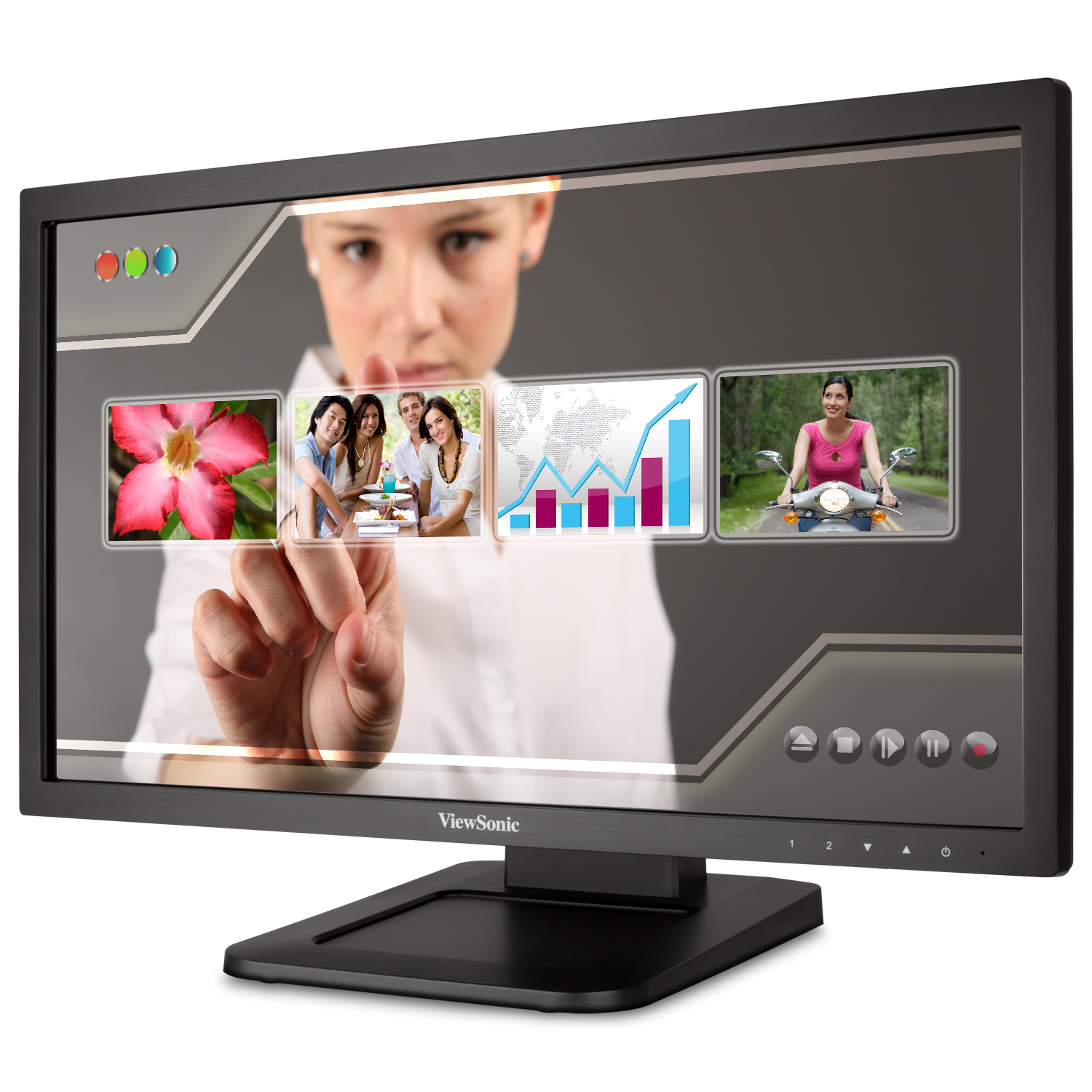

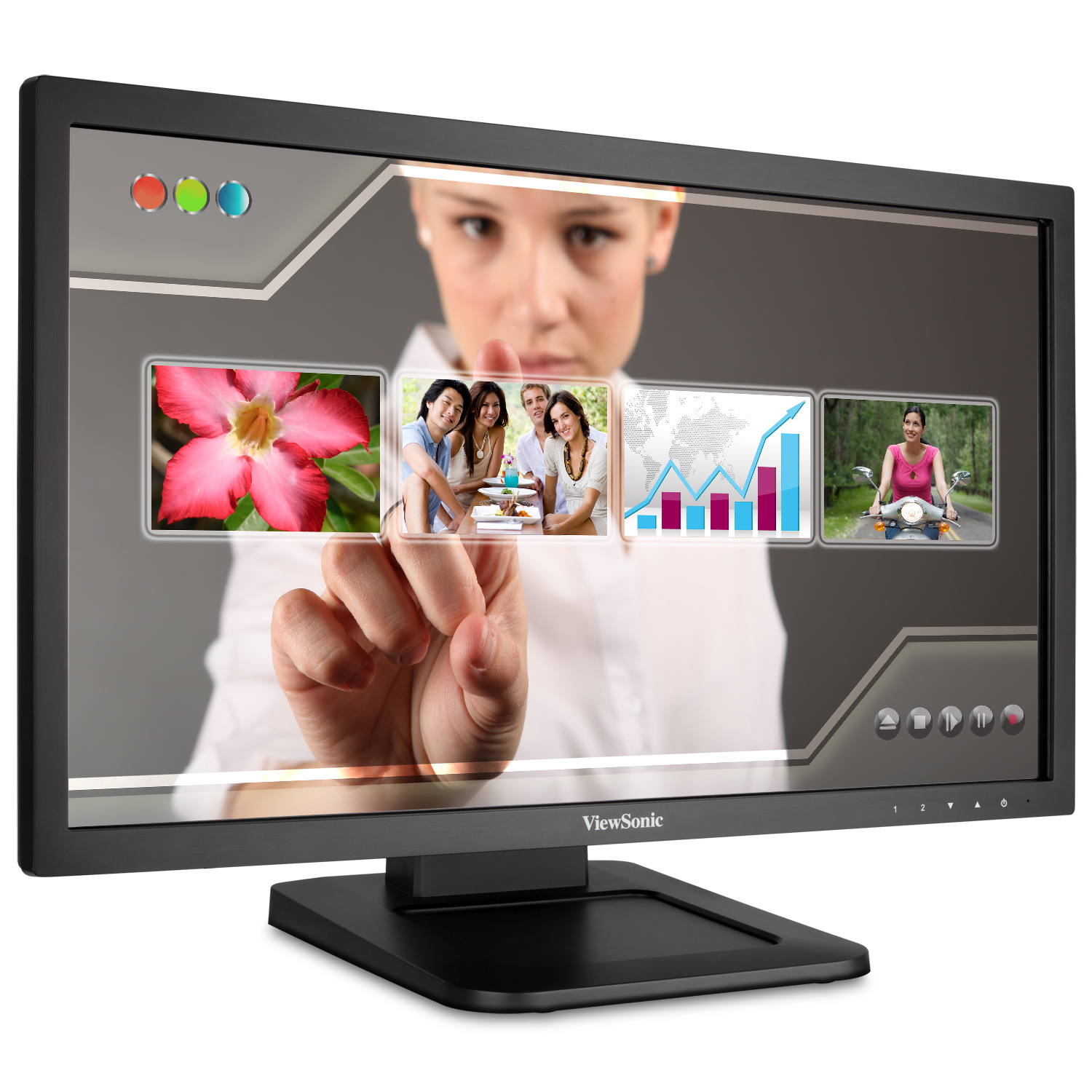

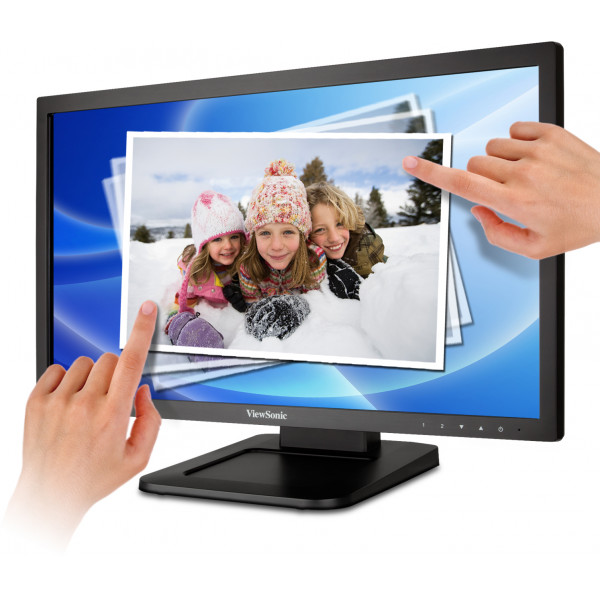

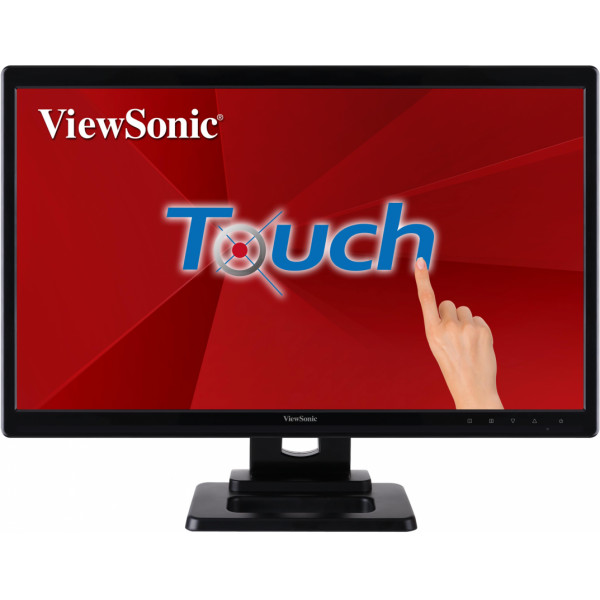

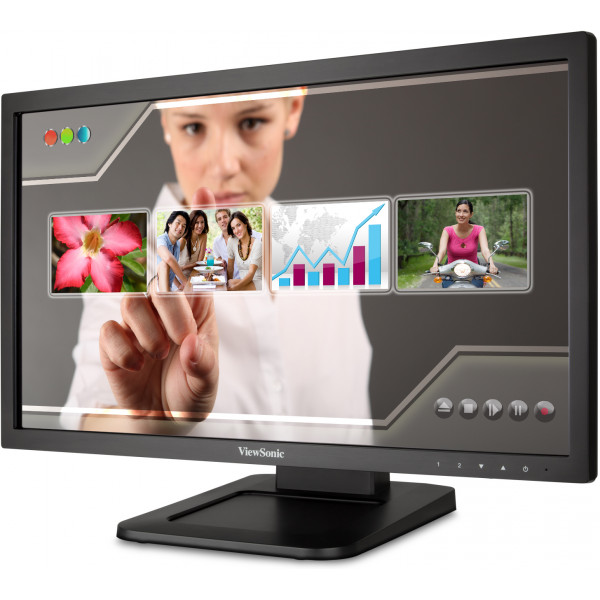

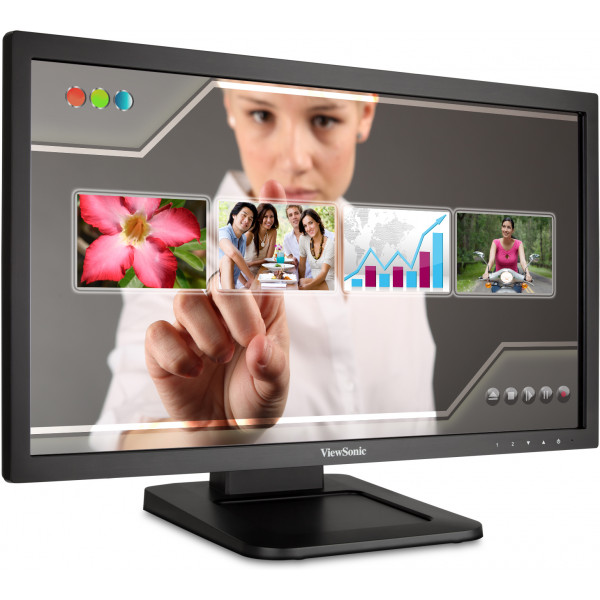

22" 2-point Touchscreen monitor

Koop

LCD
Type: 22" (21.5"/54.6 viewable) Wide Color TFT Active Matrix LED
Optimum Resolution: 1920x1080
Contrastverhouding: 1000:1 (typ.)
Kijkhoeken: 170º horizontaal, 160º verticaal
Reactietijd: 5ms (typ.)
Panel Surface: hard-coating (7H)
Display Area: 18.8"/47.8cm horizontaal x 10.6"/ 26.9 cm vertical;

21.5"/ 54.6 cm diagonaal
Helderheid: 200 cd/m² (typ.)
Dynamische contrastverhouding: 20,000,000:1
Backlight: White-light LED
Levensduur achtergrondverlichting: 40,000 hours (minimaal)
Video-ingang
Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohm)
Digital: DVI (TMDS, 100 ohm)
Frequency: Fh: 24~83kHz, Fv: 50~76Hz
Sync: Separate Sync
Compatibiliteit
PC: PC compatible (Windows ®7, 8, 10 operating system)

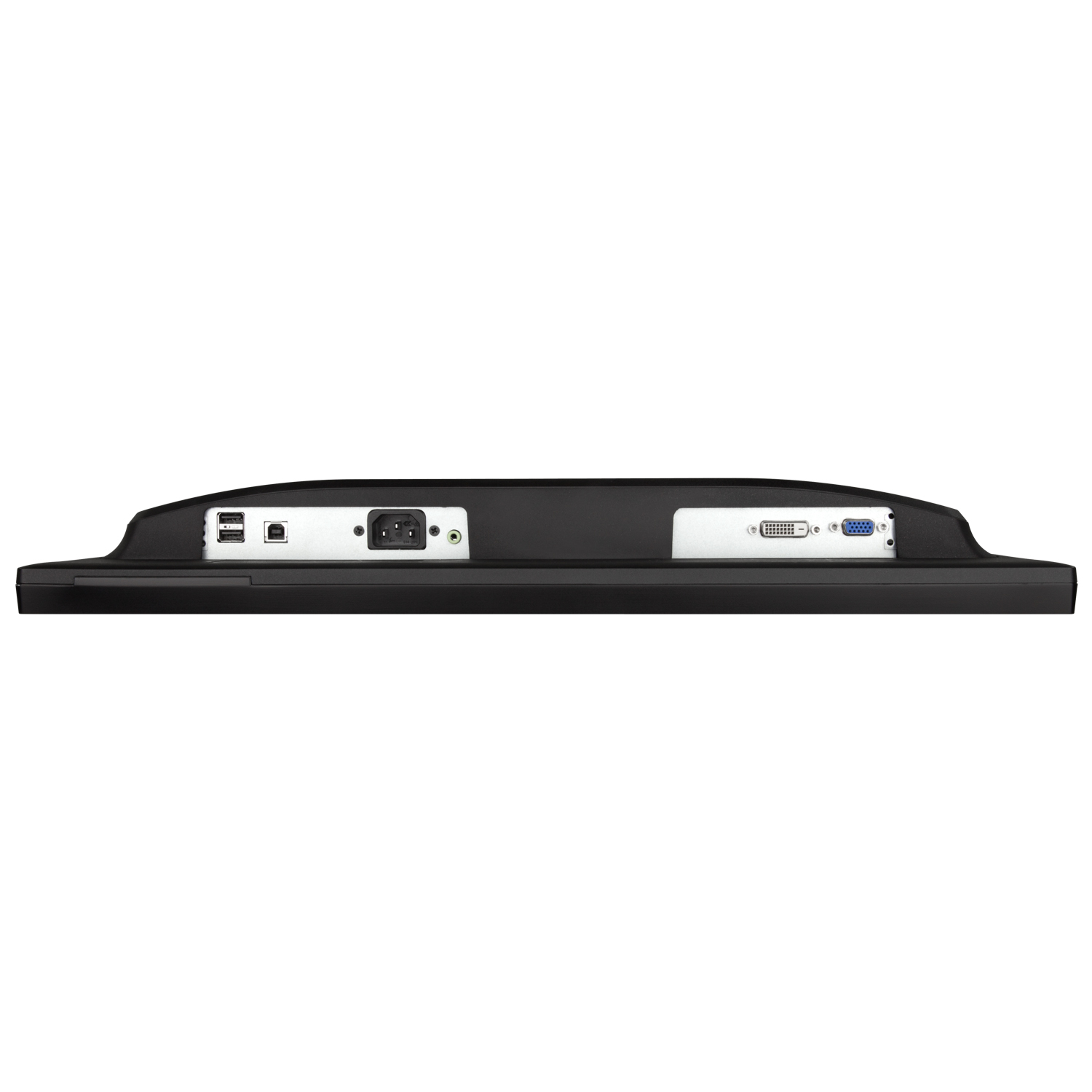

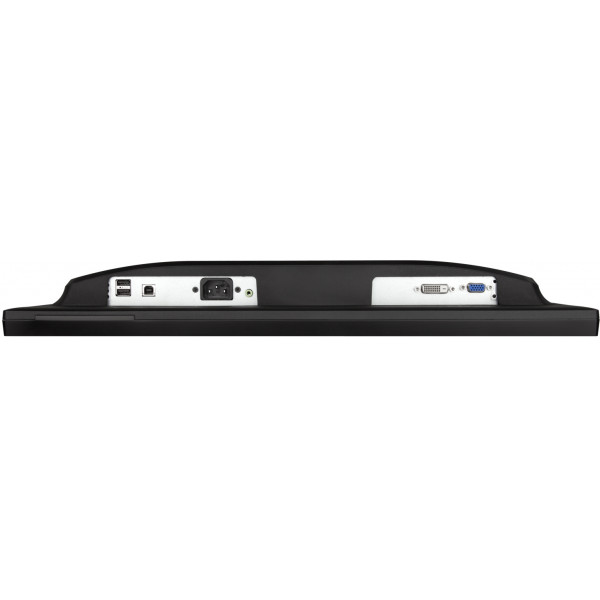

Connector
Stroom: Internal power board, 3-pin plug (CEE22)
Besturing
Front Panel: 1, 2, Down, Up, Power
DIMENSIONS
Physical With Stand: 511 x 635 x 240 mm / 20.11 x 14.37 x 9.45 in.
Physical Without Stand: 511 x 310 x 66 mm / 20.11 x 12.22 x 2.61 in.
Packaging: 570 x 427 x 214 mm / 22.44 x 16.81 x 8.43 in.
POWER
Conserve: 18W (typ.)
Spanning: AC 100–240V (universal), 50 / 60Hz
Consumptie: 26W (typ.) / 43W (max.)
Optimize: 21W (typ.)
OPERATING CONDITIONS
Luchtvochtigheid: 20–90% (niet-condenserend)
Temperatuur: 32–104º F (0–40º C)

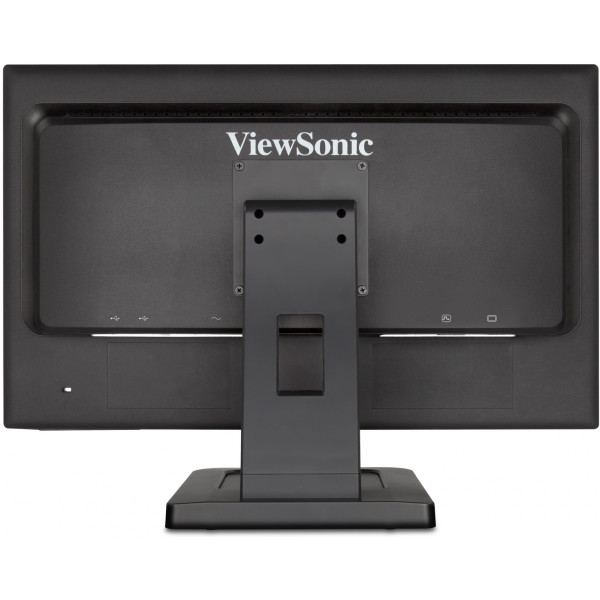

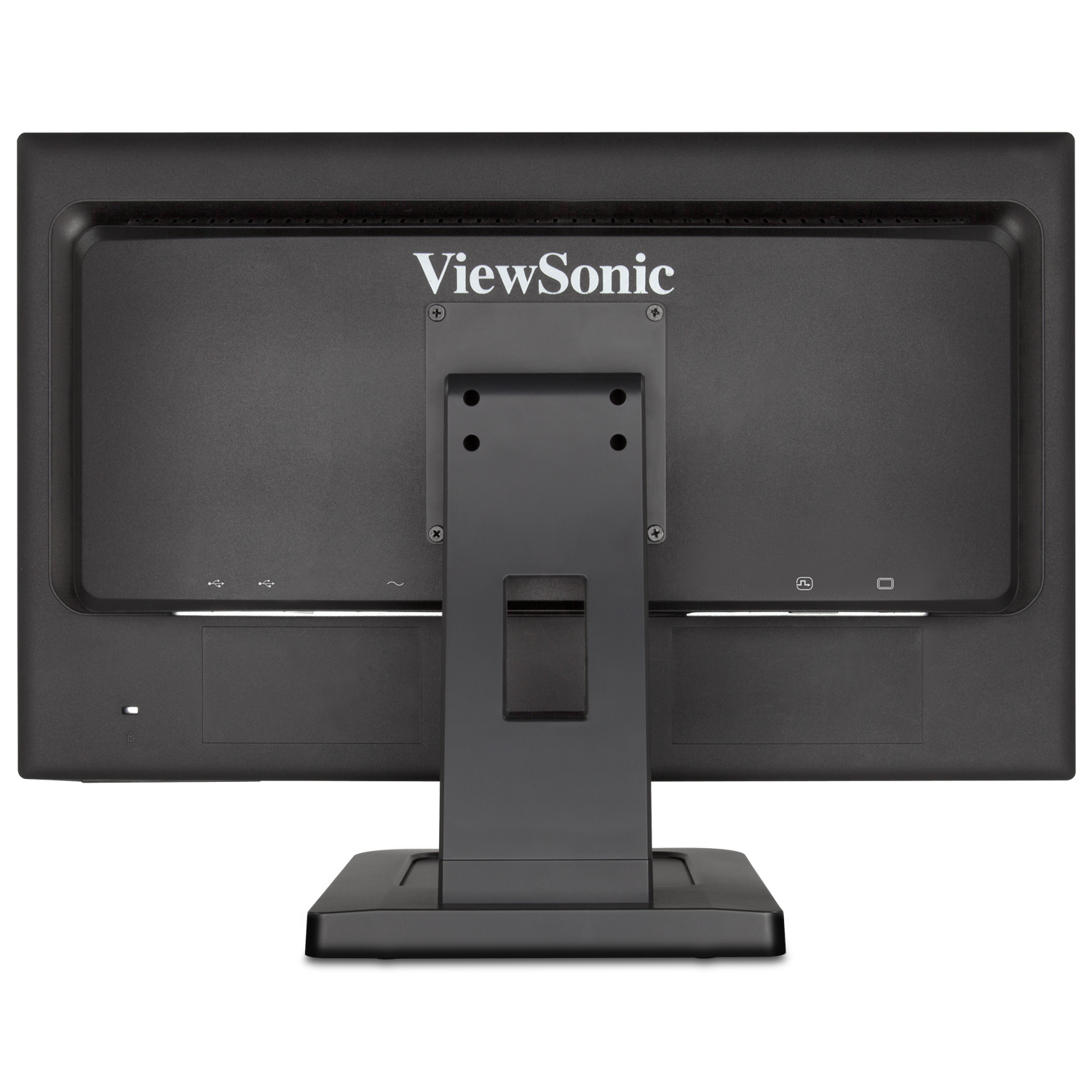

VESA® MOUNT
100mm x 100mm

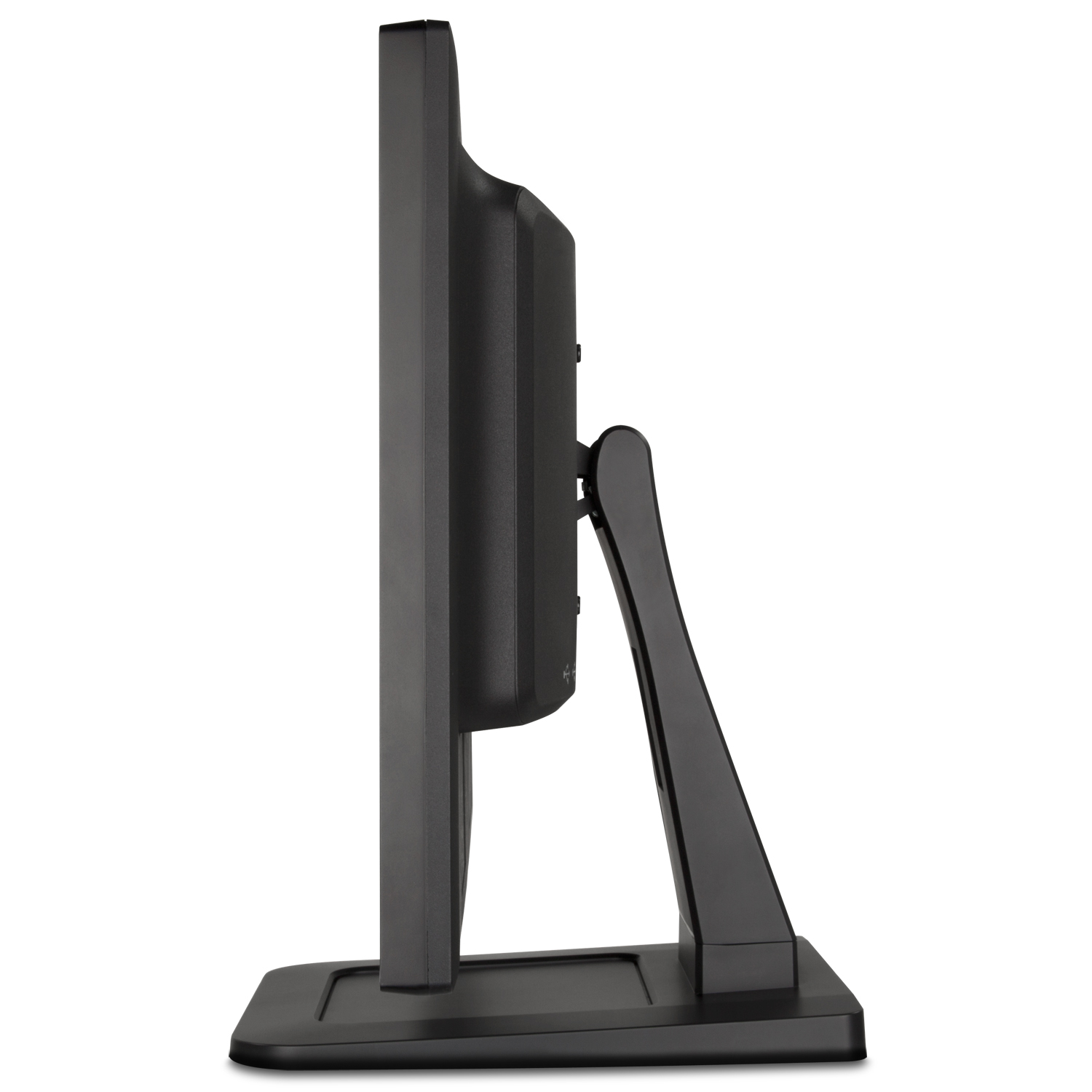

ERGONOMICS
Kantelen: 20º~5º
WEIGHT
Bruto: 6.45 kg / 14.22 lb.
Net With Stand: 4.92 kg / 10.85 lb.
Net Without Stand: 3.96 kg / 8.73 lb.
