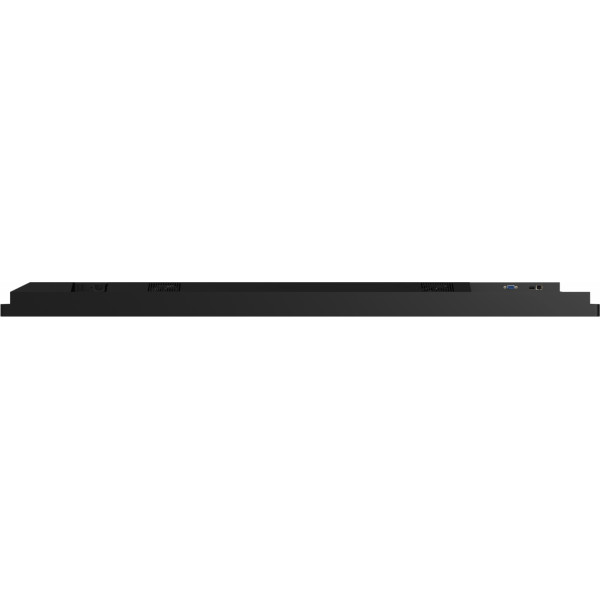

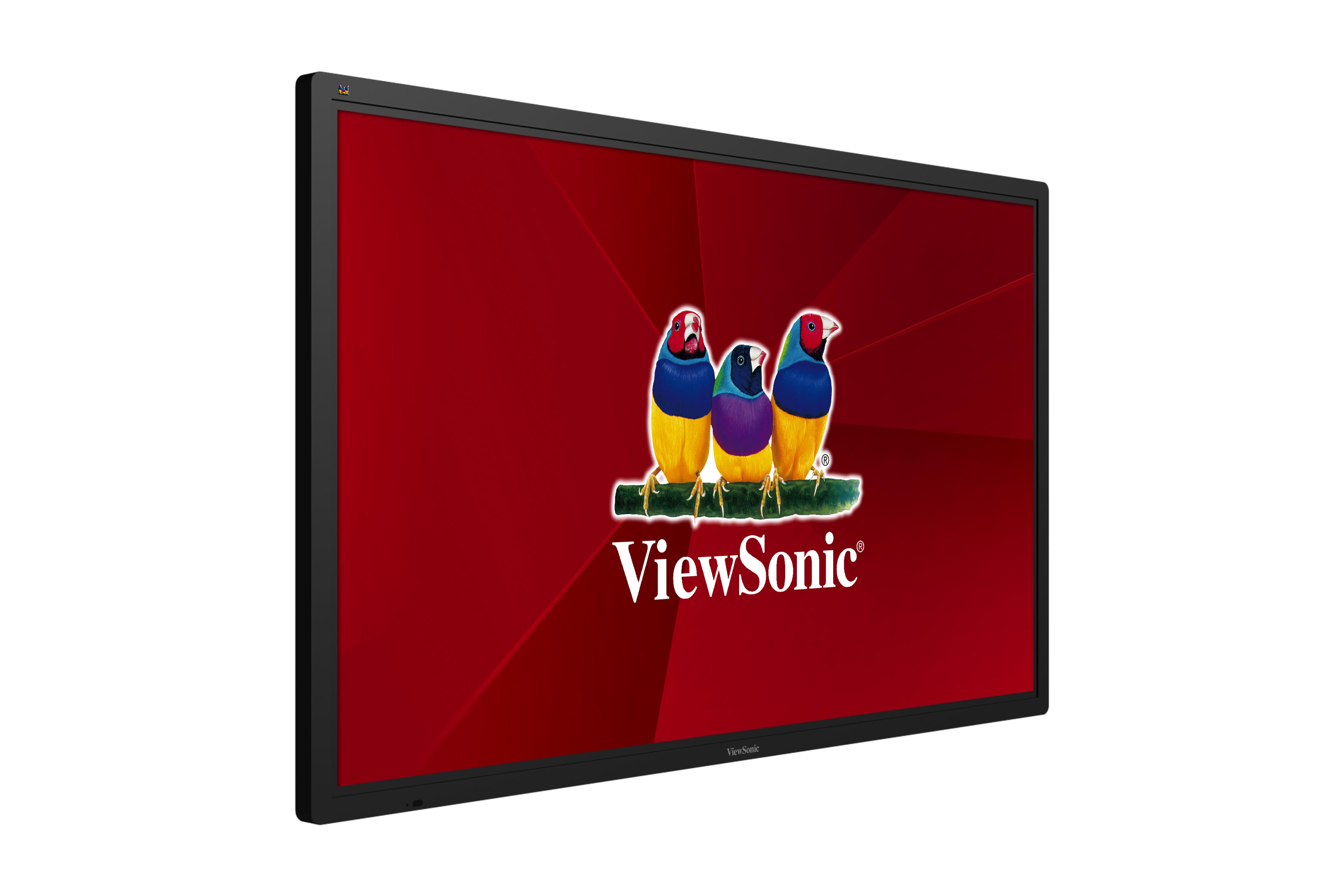

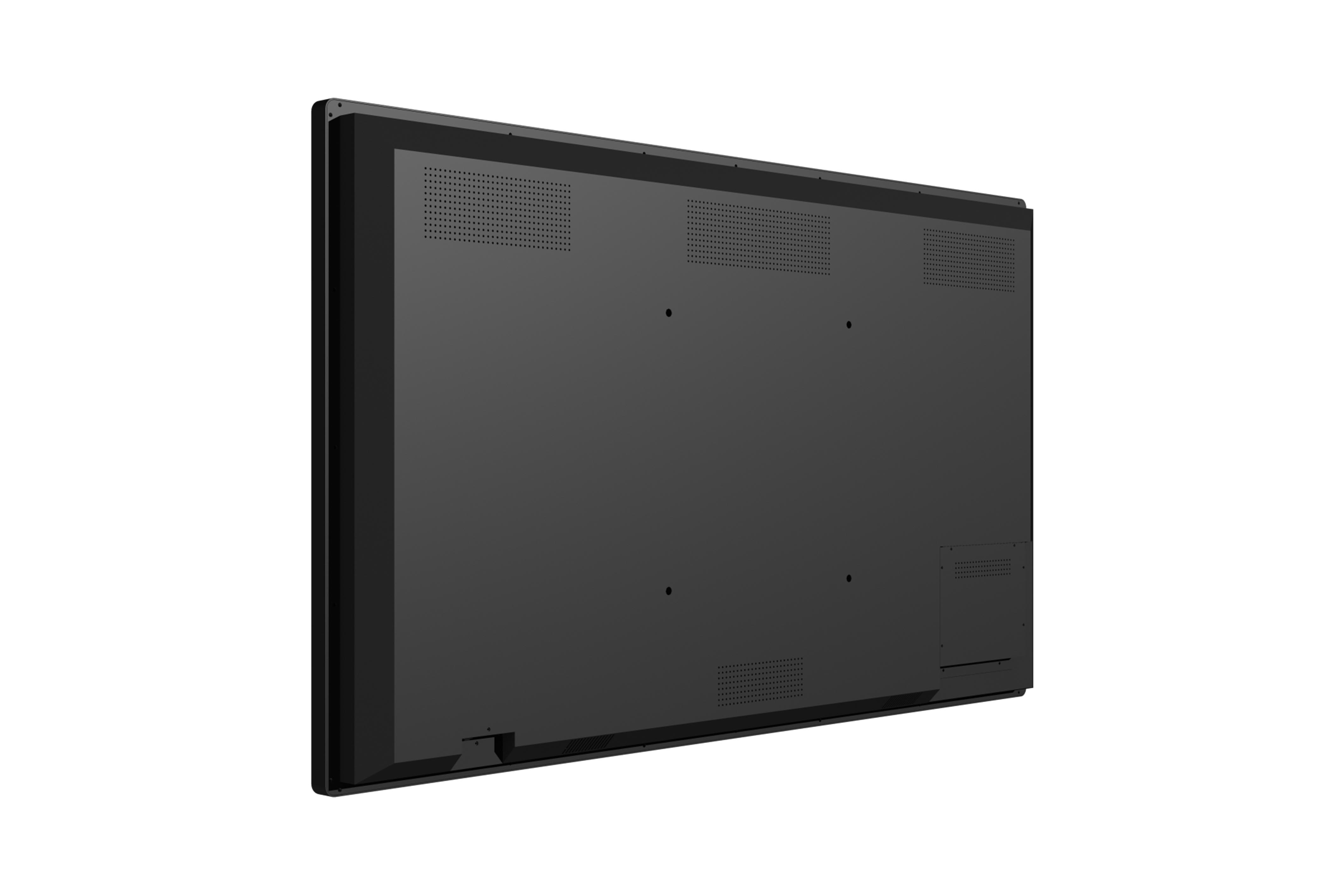

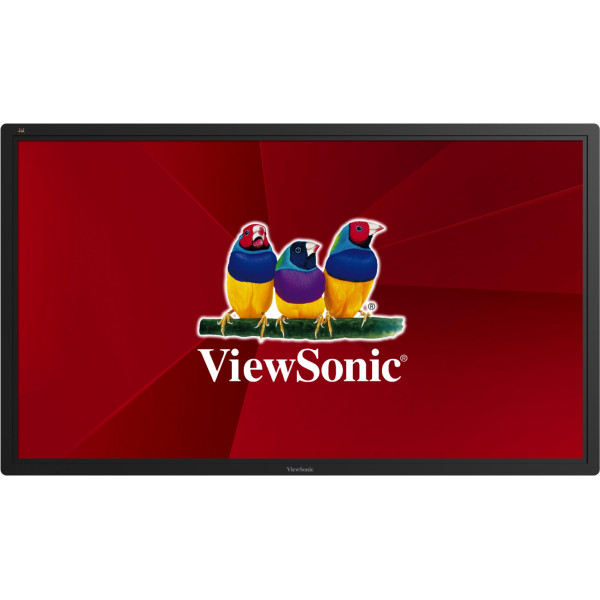

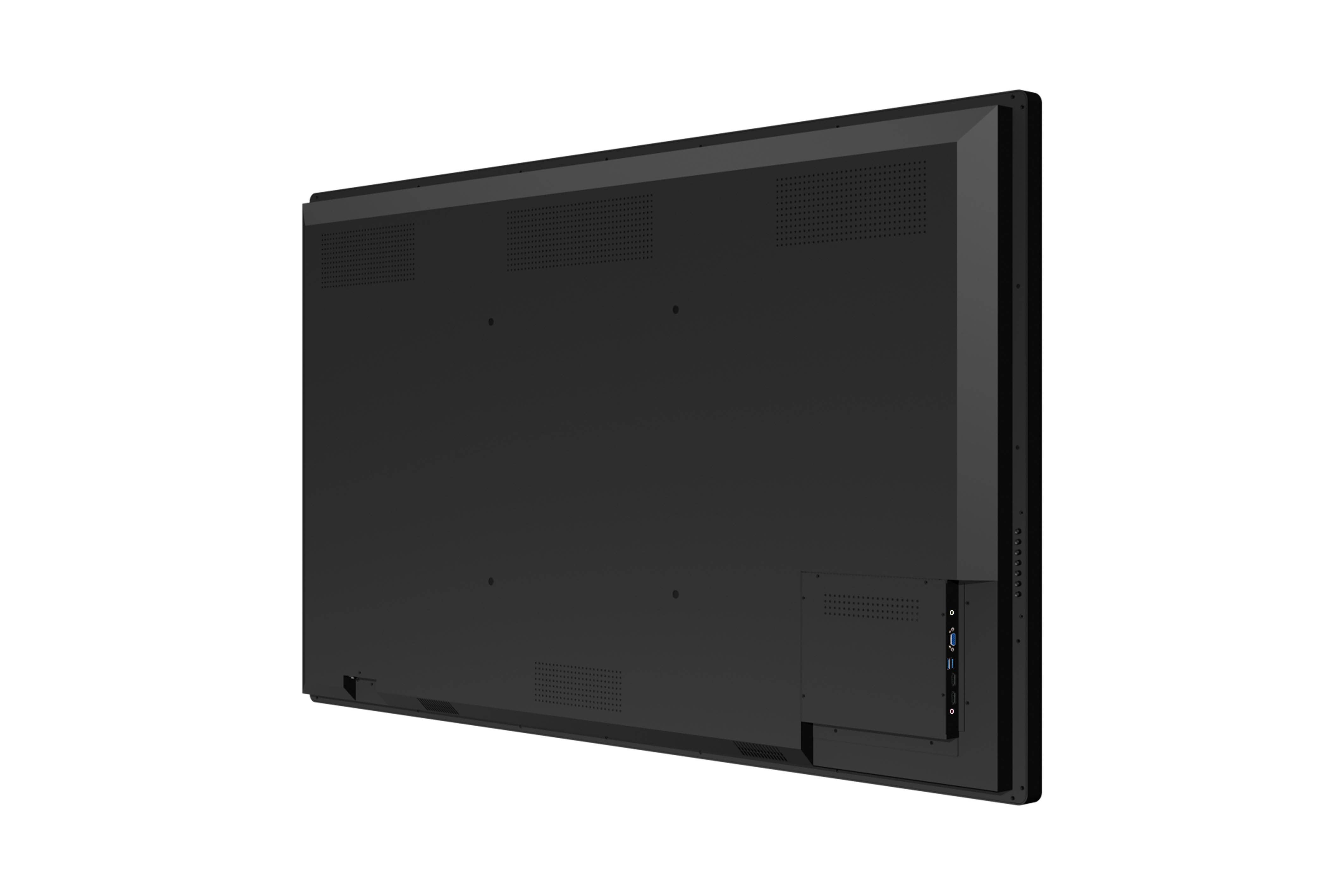

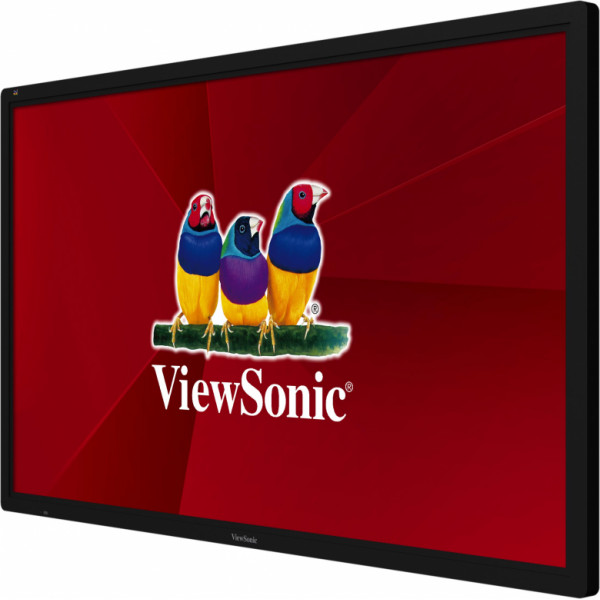

CDE6502

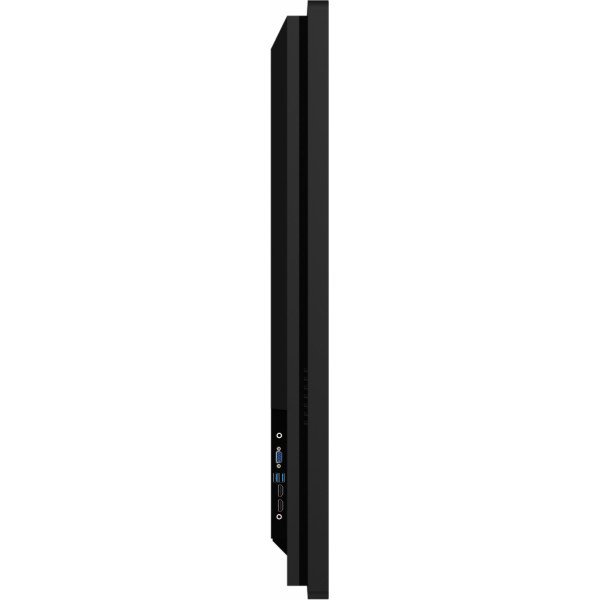

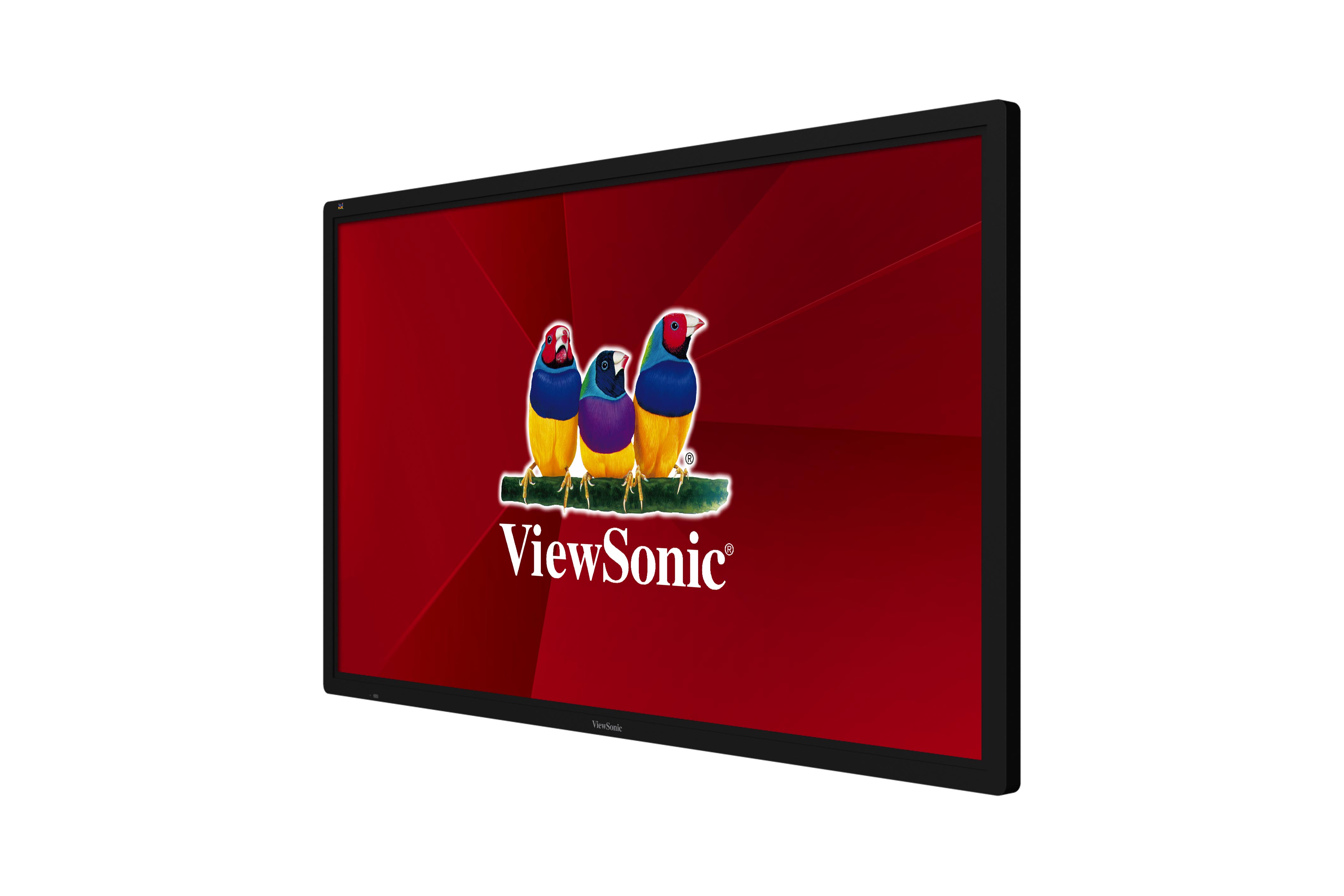

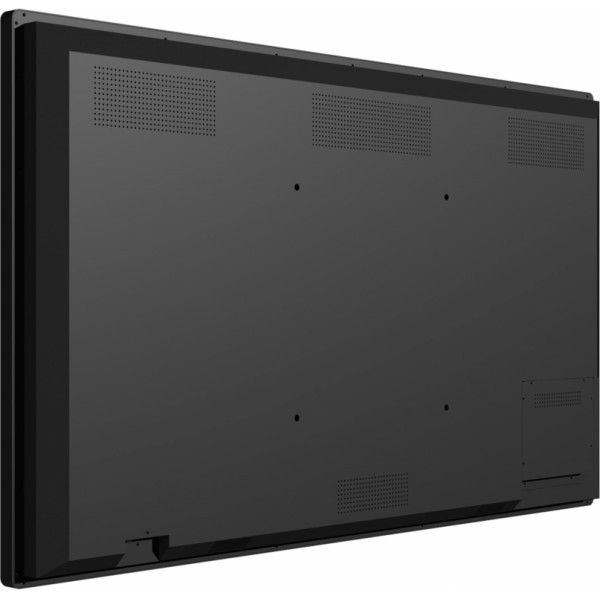

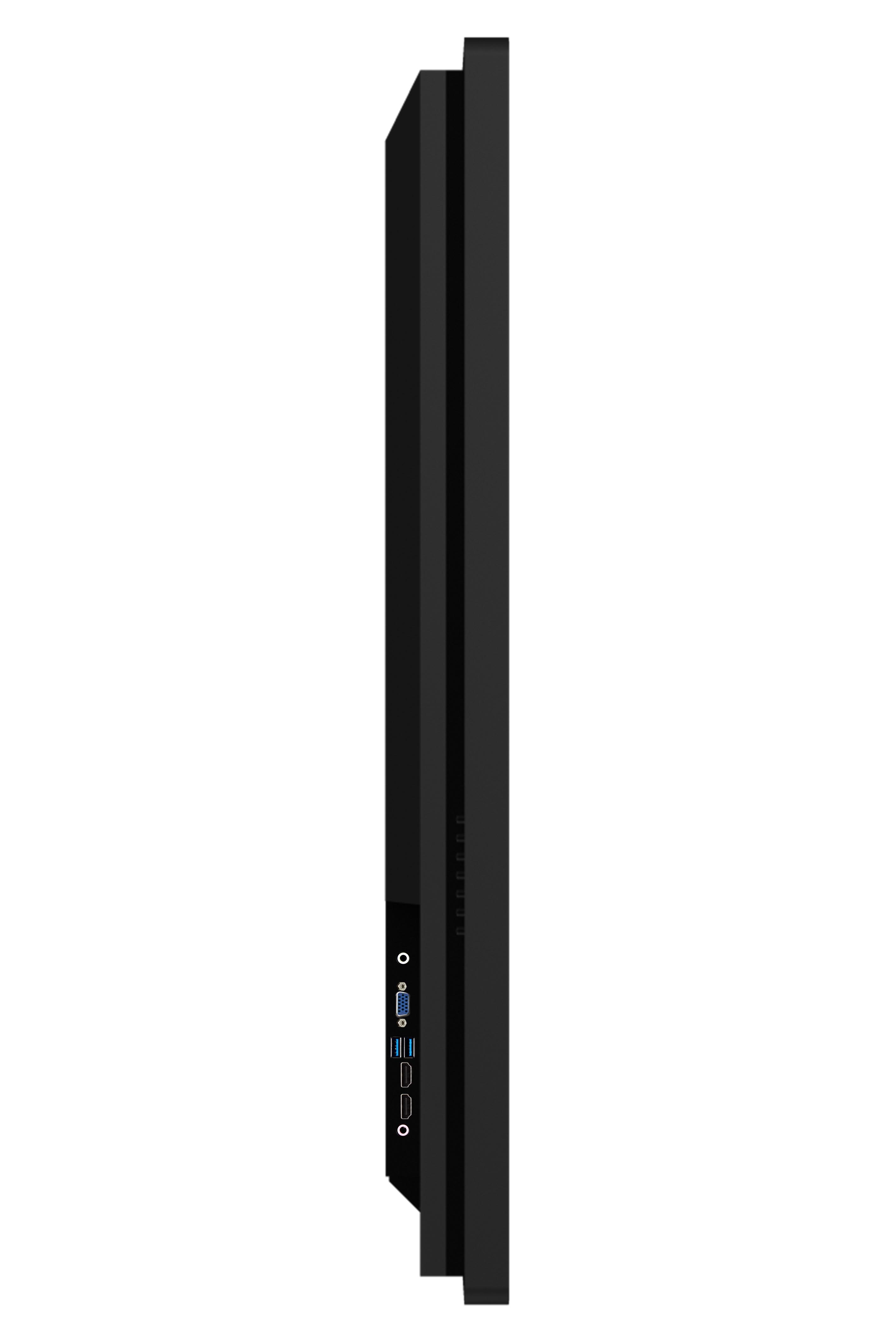

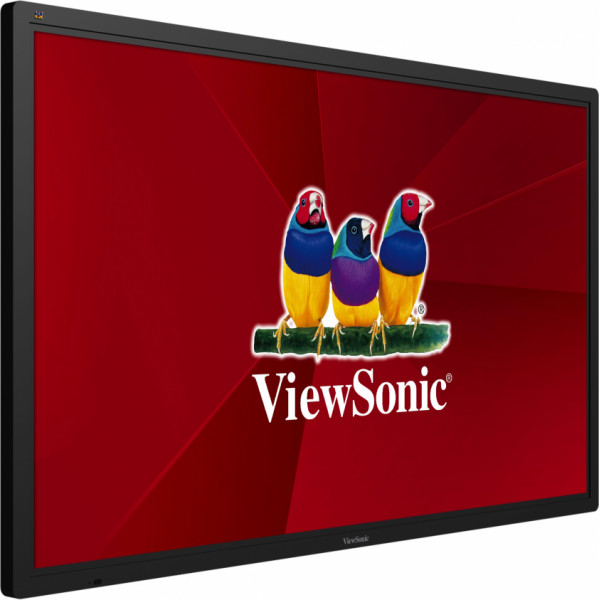

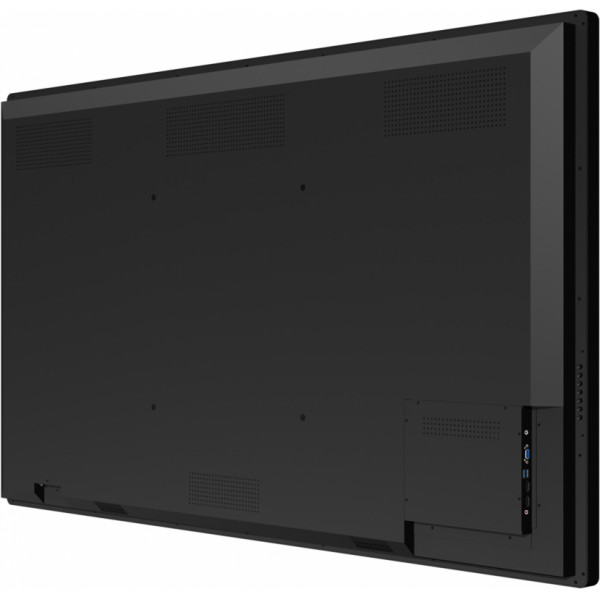

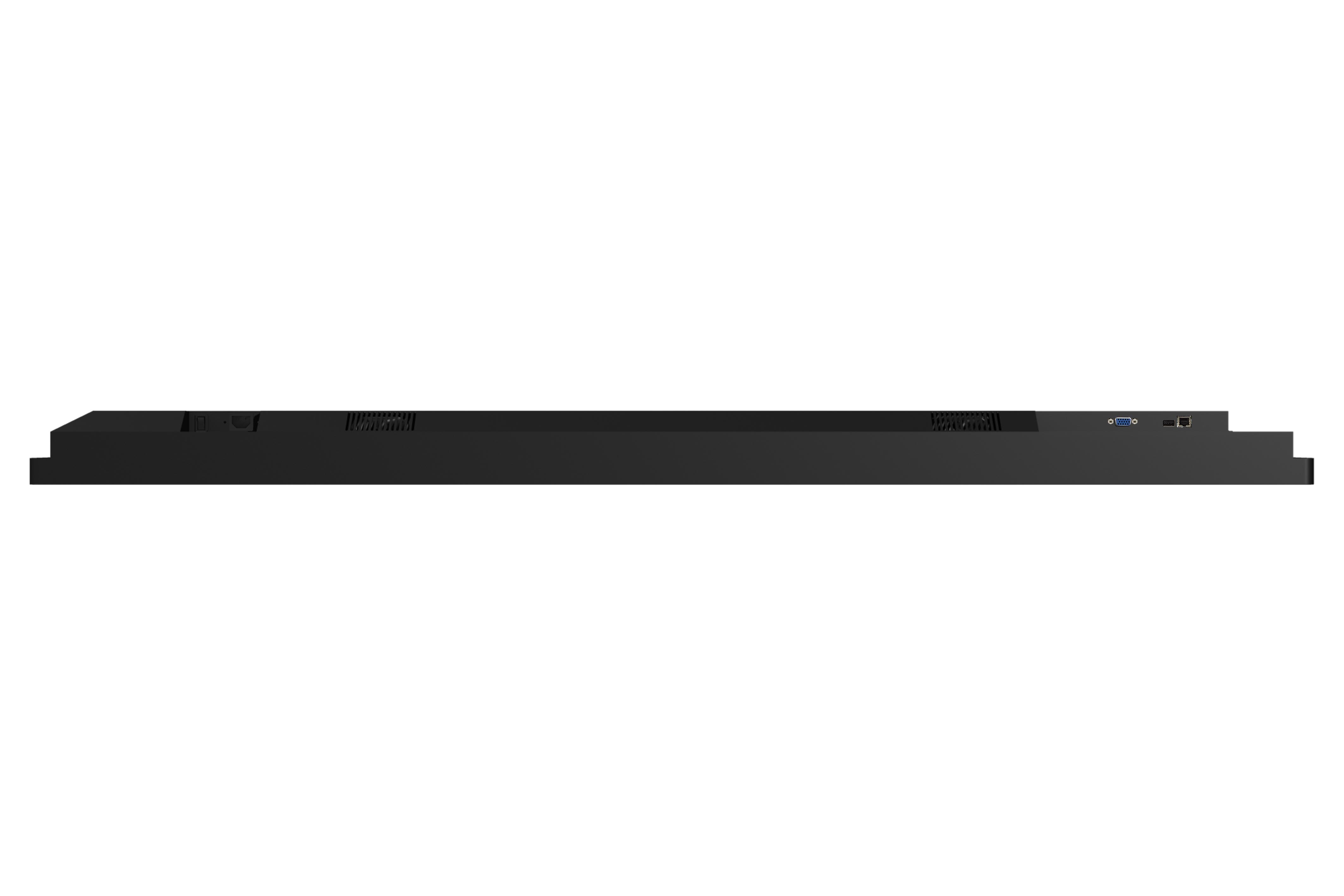

65’’ (64.5” viewable) Full HD LED Commercial Display
- Full HD 1080p resolution
- Advanced media player
- Dual 10W Integrated Speakers
- Supports HDMI CEC and IR pass-through
- Flicker-Free and Blue Light Filter eyecare technologies
Specificaties
- LCD PANELPaneelgrootte: 65''
Type: TFT LCD Module
Weergavegebied (mm): 1428.48 (H) x 803.52 (V) (65” diagonal)
Aspectratio: 16:9
Resolutie: 1920 x1080
Colors: 1.07 Billion colors
Helderheid: 350 nits (typ.)
Contrastverhouding: 4000:1 (typ.)
Reactietijd: 8 ms
Kijkhoeken: H = 178, V = 178 (typ.)
Backlight: LED Backlight
Levensduur achtergrondverlichting: 30,000 Hours (typ.)
Oppervlakte behandeling: Anti-Glare, 3H, Haze 2% (typ) - INPUTHDMI: x 2 (1 support MHL)
RGB/VGA: x1
Audio: x1 (3.5mm jack)
RS232: x1
- OUTPUTAudio: x1 (3.5mm jack)
- LANRJ45: x1
- USBType A: x3 (USB3.0 x2)
- SPEAKERS10W x 2
- BUILT-IN PCProcessor: Quad Core
Geheugen: 2GB
Opslag: 8GB - COMPATIBILITYRGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p, up to 1080p - CONTROLSPhysical- Top OSD: Picture:Picture Mode, Contrast, Brightness, Hue, Sharpness, Saturation, Anti-Flicker, Backlight, Clock, Phase, Horizontal Position, Vertical Position, Auto Tune, Color temperature, Bluelight Filger, Zoom Mode, OverScan, Image NR, MPEG NR
Sound: Sound Mode, Bass, Treble, Balance, Surround, Alone
Setting: Source auto switch, MHL Auto Switch, Movie Mode, Menu Timeout, Date/Time, Off Timer, On Timer, Sleep Time
Lock: Lock System, Set Password, Block Program, System ID, Lock Keypad, Restore To Default - POWERSpanning: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumptie: "On": Max 180 W, 150 W(Default)

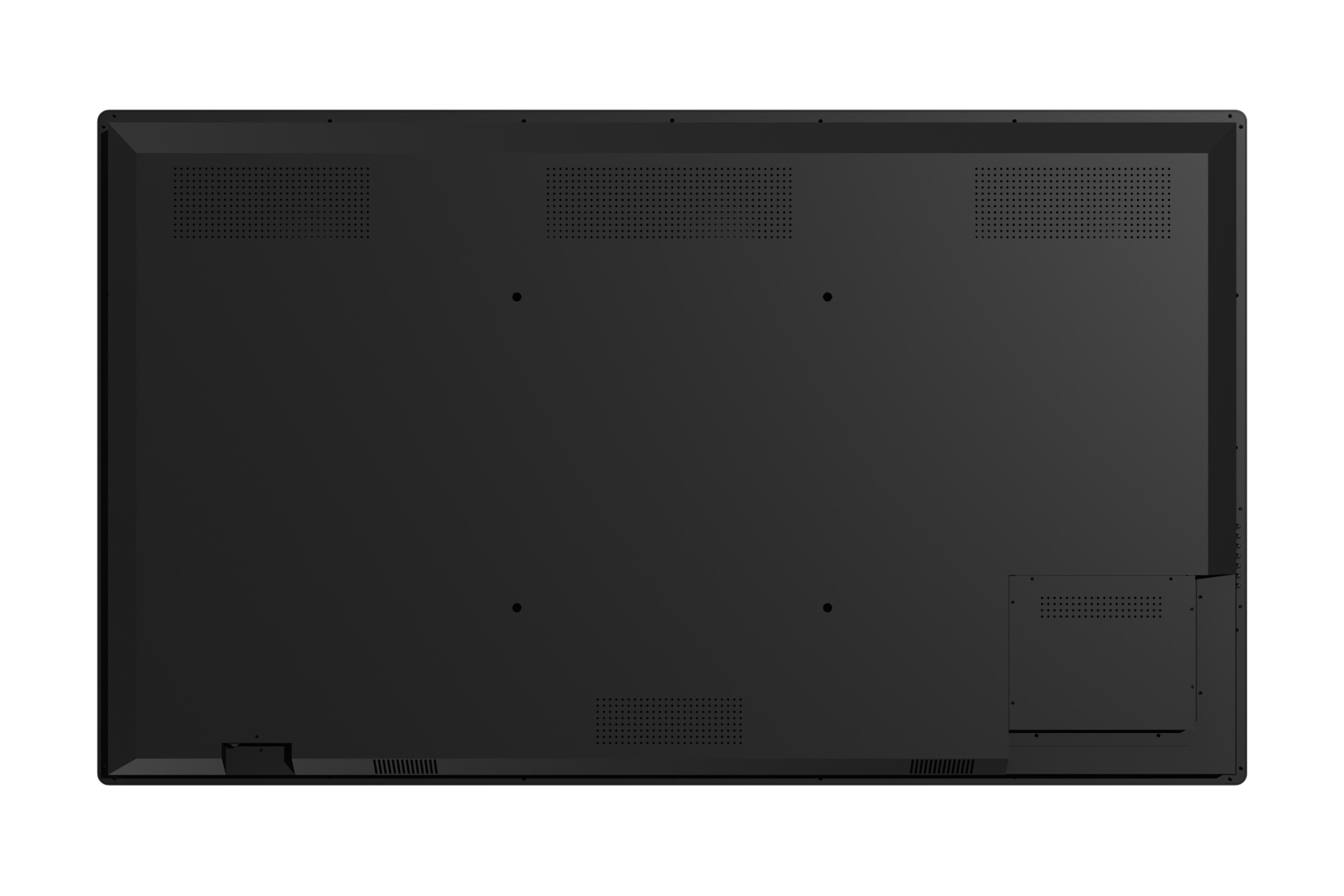

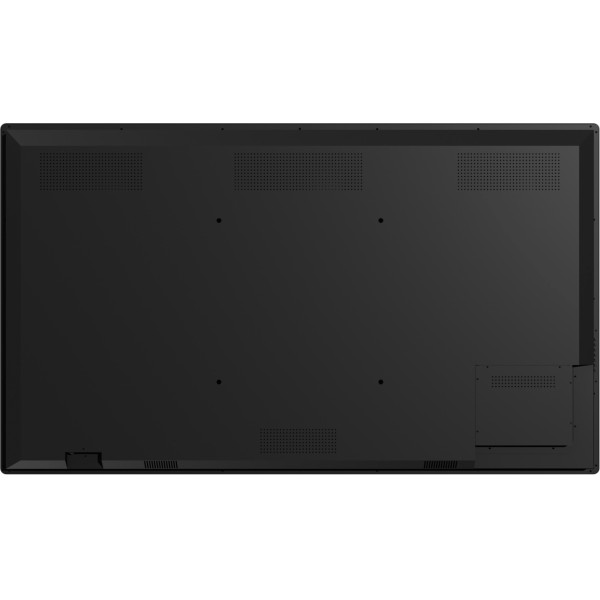

"Off"(Suspend): ≤ 0.5 W - ERGONOMICSWall Mount (VESA® ): 400x400mm ; Screw: M8*15 mm
- OPERATING CONDITIONSTemperature (º C): 32°F to 104°F (0°C to 40°C)
Luchtvochtigheid: 20% ~ 80% non-condensing - DIMENSIONS
(W x H x D)Physical w/ stand (inch / mm): 59.53 x 39.53 x 11.81 / 1512 x 1004 x 300
Physical w/o stand (inch / mm): 59.53 x 34.96 x 3.43 / 1512 x 888 x 87
Verpakking (inch / mm): 63.70 x 40.83 x 8.78 / 1618 x 1037 x 223 - WEIGHTNet w/ stand (lb / kg): 121.25 / 55
Bruto ( lb/kg): 125.67 / 57 (w/o stand) - WARRANTY**Warranty offered may differ from market to market
- What's in the box?1.CDE6502 commercial display
2.Remote Control with batteries
3.User manual CD wizard
4.Quick Start Guide
5.Power Cables
*Actual content may differ from market to market
