Archived

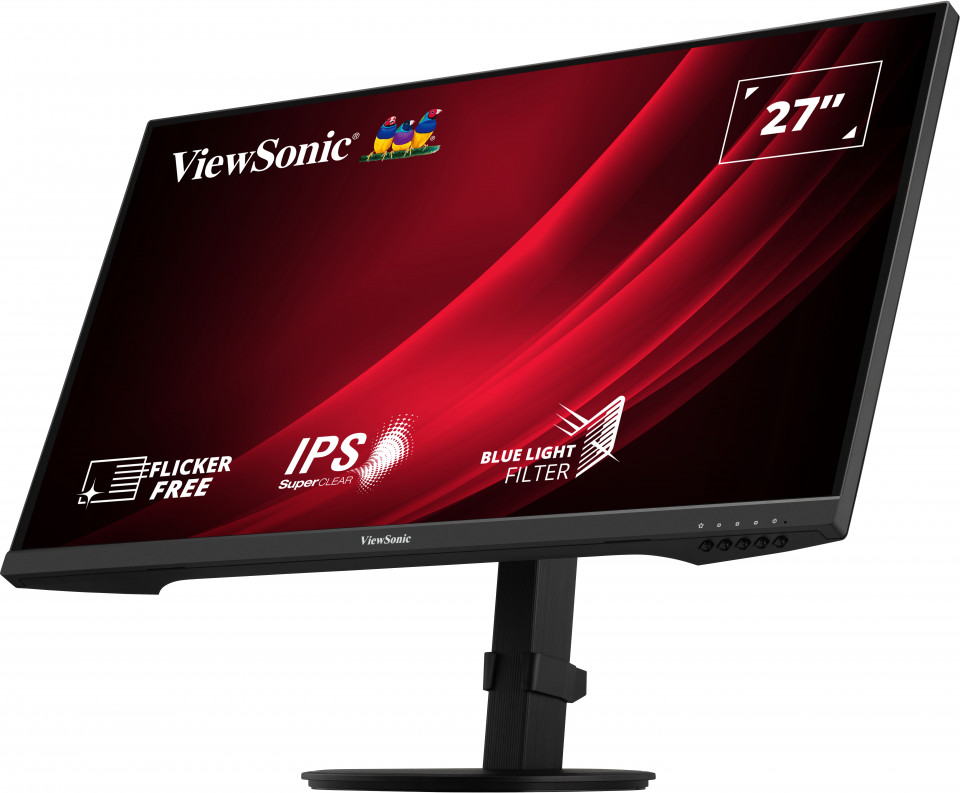

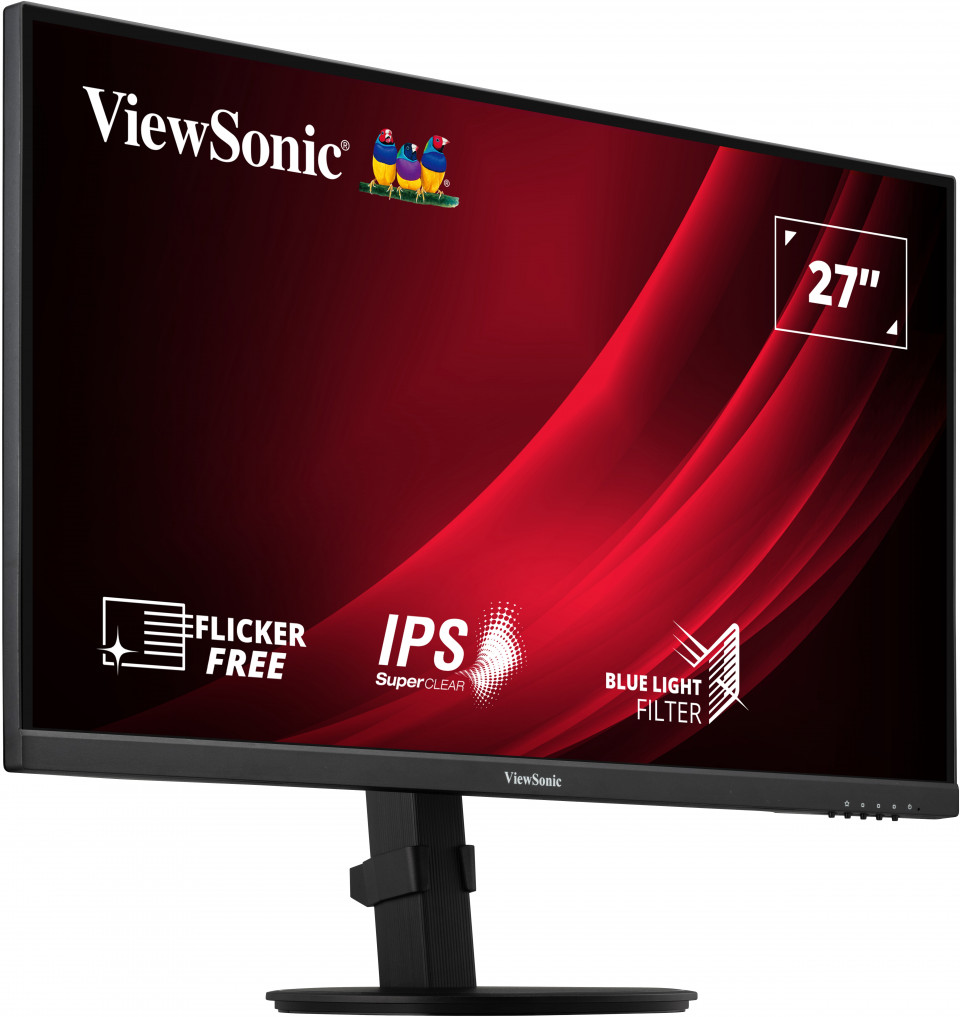

VG2709-2K-MHDU
27” QHD Monitor with Dual Speakers
- SuperClear® IPS panel with QHD 2560 X 1440 resolution
- HDMI, Display Port and USB-C inputs for simple connectivity and 65W power delivery
- Super narrow bezel with dual 2.5W speakers

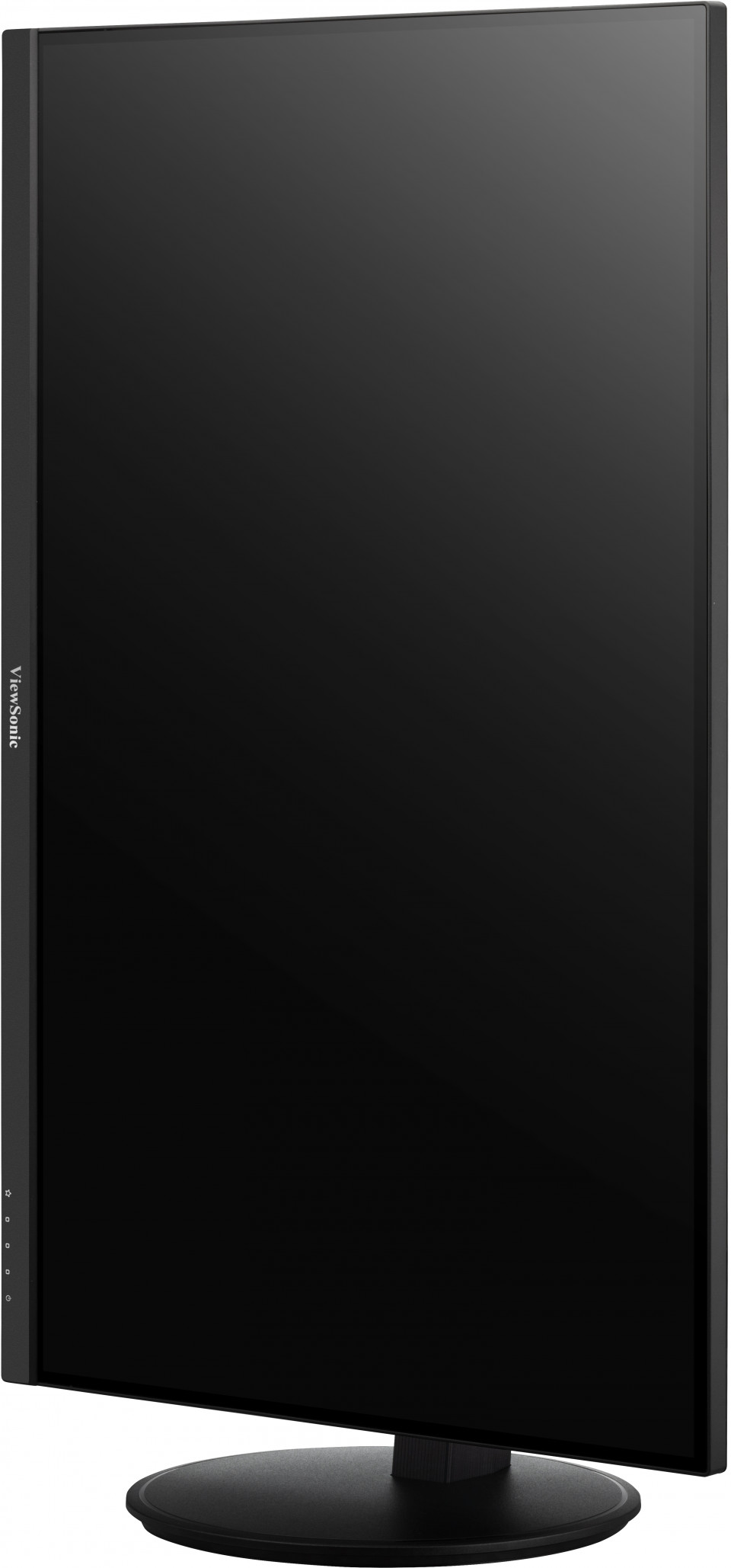

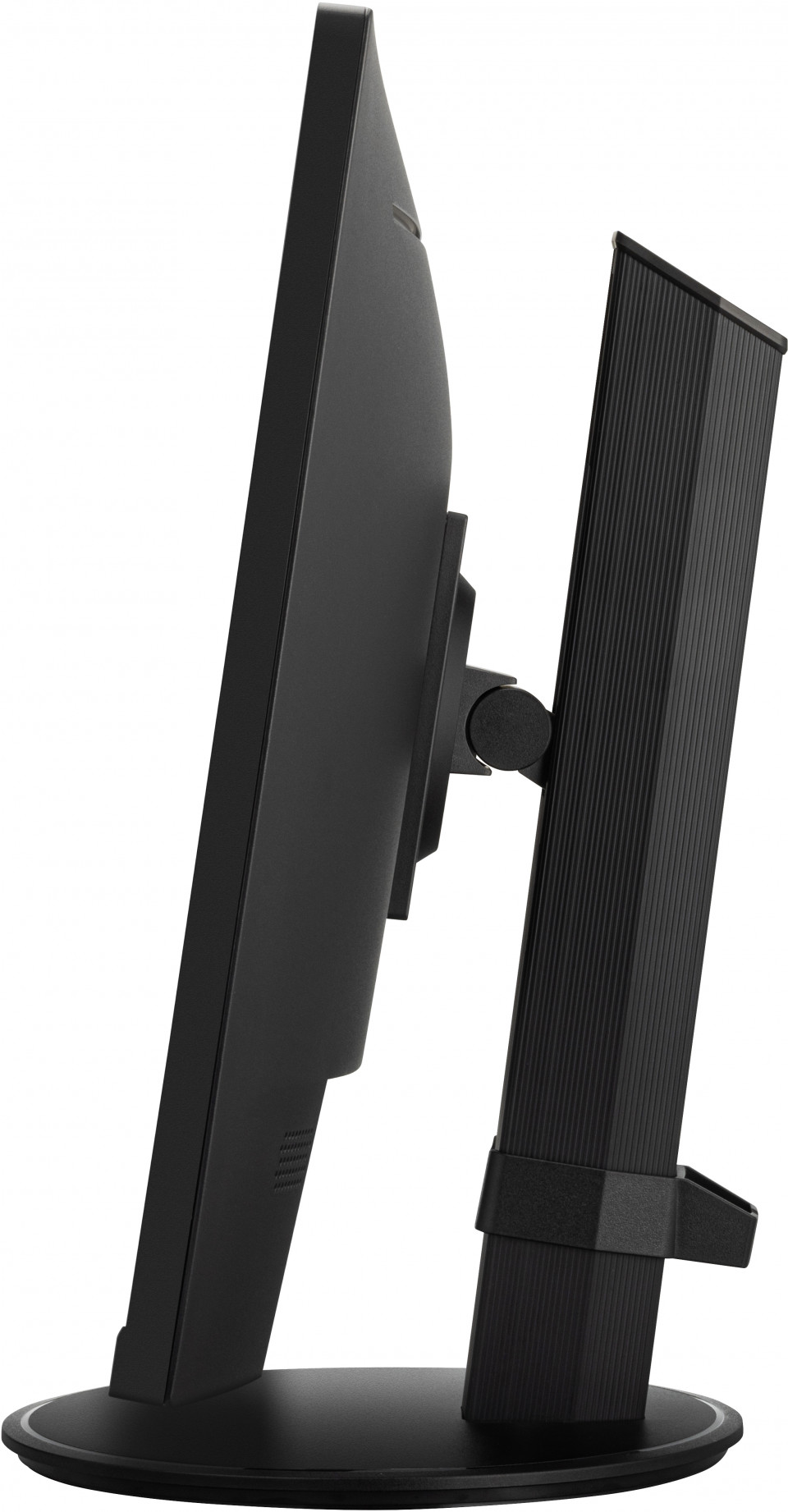

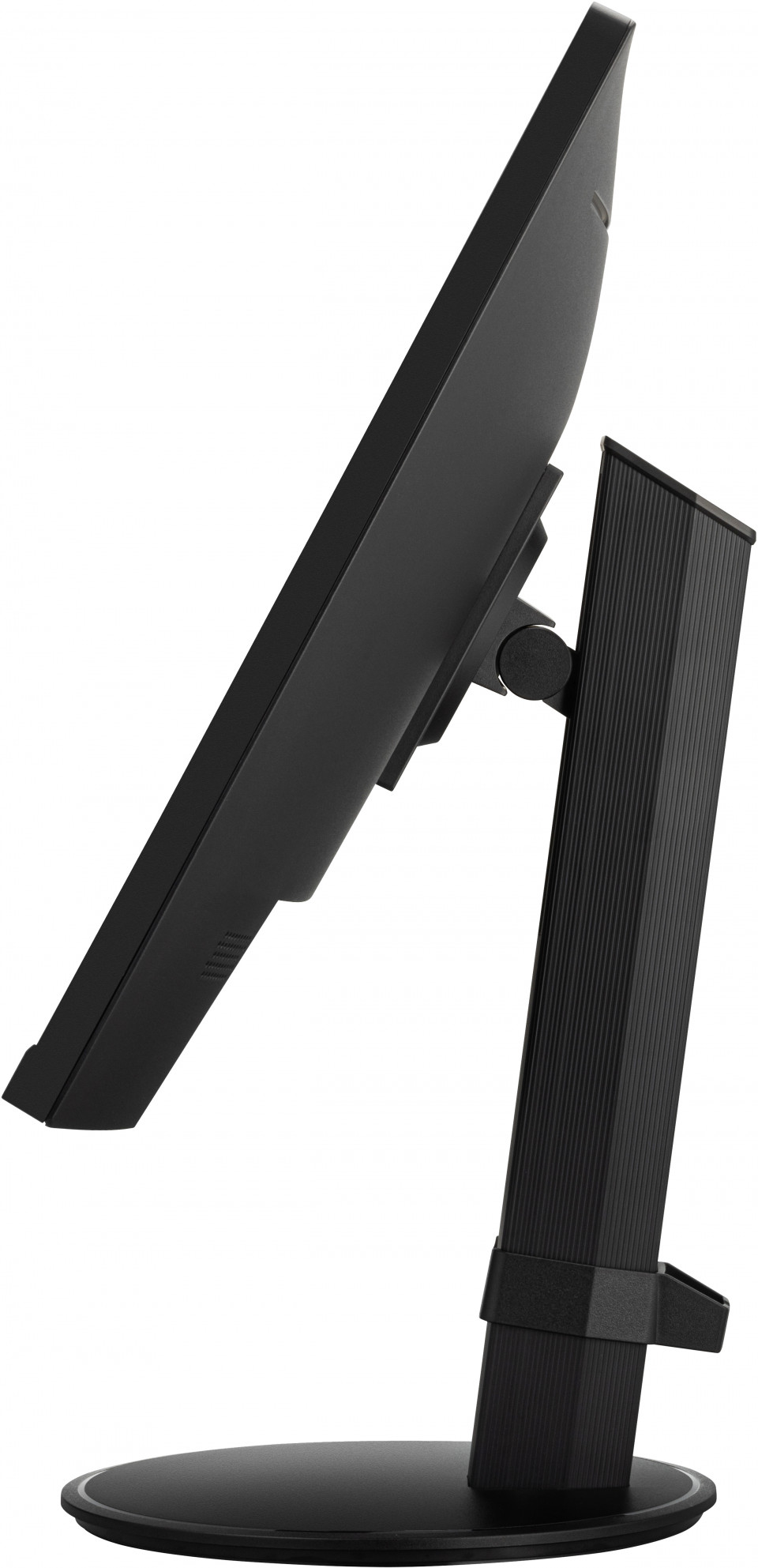

- Ergonomic tilt, swivel, pivot and height adjustment capabilities
- 75Hz Refresh rate for fluid visuals
SPECIFICATIONS
- DisplayDisplay Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 2560 x 1440
Resolution Type: QHD (Quad HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Variable Refresh Rate Technology: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 2560x1440 - Connector
- AudioInternal Speakers: 2.5Watts x2
- PowerEco Mode (Conserve): 21W
Eco Mode (optimized): 26W
Consumption (typical): 31W
Consumption (max): 33W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
Cable Organization: Yes - ControlsPhysical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)

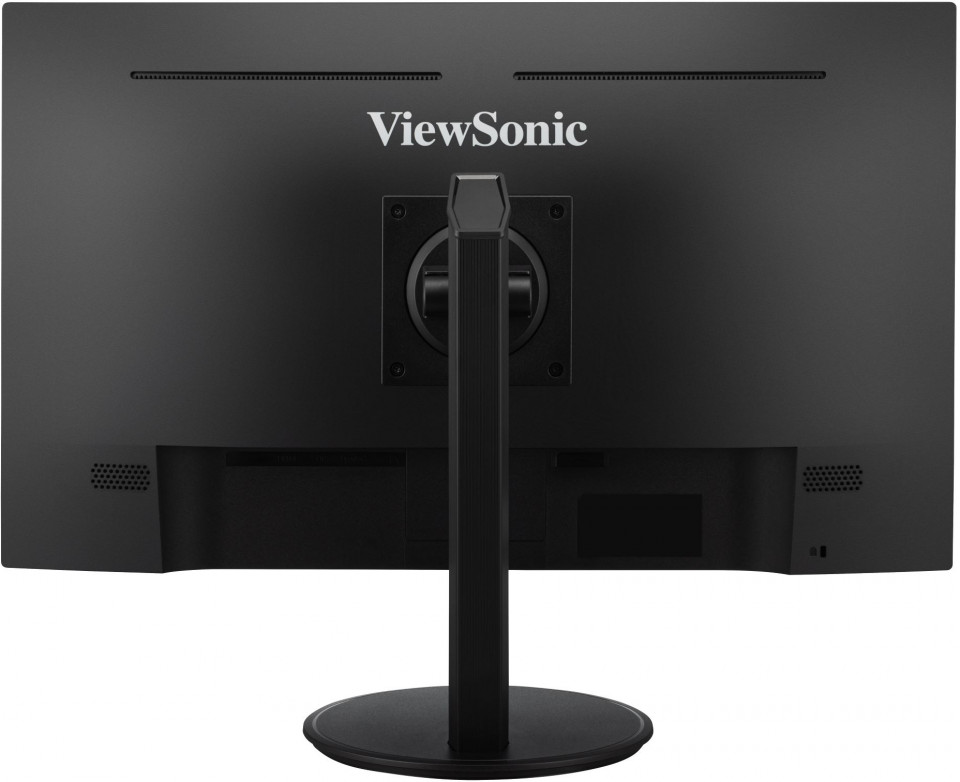

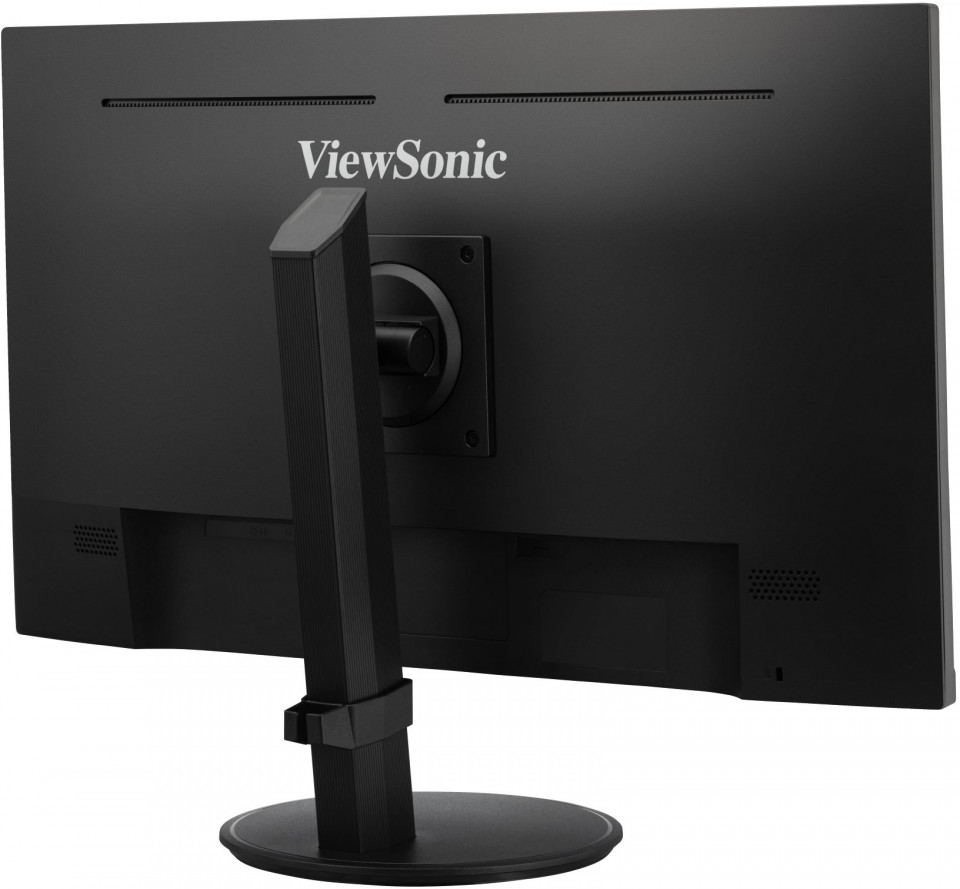

Humidity (non-condensing): 20% to 90% - Wall MountVESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: HDMI (v1.4): 31 ~ 115KHz, DisplayPort (v1.4): 31 ~ 115KHz, Type C: 24 ~ 86KHz
Frequency Vertical: HDMI (v1.4): 48 ~ 75Hz, DisplayPort (v1.4): 48 ~ 75Hz, Type C: 48 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C
- ErgonomicsHeight Adjust (mm): 130
Swivel: 360º
Tilt (Forward/Back): -3.5º / 28º
Pivot (Right/Left): 90º / 90º - Weight (imperial)Net (lbs): 14.8
Net Without Stand (lbs): 10.1
Gross (lbs): 19.3 - Weight (metric)Net (kg): 6.7
Net Without Stand (kg): 4.6
Gross (kg): 8.7 - Dimensions (imperial) (wxhxd)Packaging (in.): 30.5 x 18.3 x 5.5
Physical (in.): 24.2 x 16.06~21.18 x 9.2
Physical Without Stand (in.): 24.2 x 14.4 x 2.1 - Dimensions (metric) (wxhxd)Packaging (mm): 775 x 465 x 140
Physical (mm): 614 x 408~538 x 233
Physical Without Stand (mm): 614 x 366 x 53 - GeneralPACKAGE CONTENTS: VG2709-2K-MHDU x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
