CDE6510
65" 4K Ultra HD Presenation Display
- Embedded Android SOC supports Andriod apps
- Computing expansion PC slot for Intel OPS
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through
SPECIFICATIONS
- LCD PANELPanel Size: 65"
Type/ Tech: TFT LCD Module with DLED Backlight
Display Area (mm): 1428.48 (H) x 803.52 (V)
Aspect Ratio: 16:9
Resolution: 3840x2160 @60Hz
Colors: 1.07B colors
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1 (typ.)
Response Time: 8 ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight: DLED
Backlight Life: 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 4
RGB / VGA: x 1
DisplayPort: x 1
Audio: x1 PC audio (3.5 mm)
RS232: x 1

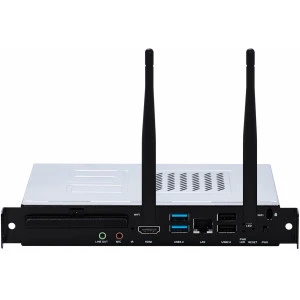

PC Slot: x 1 (optional VPC12-WPO-2)
IR: x 1 - OUTPUTRS232: x 1
IR: x 1
- LANRJ45: x 1
- USBType A: x 1 for 5V/2A
2.0 Type A: x 2 (USB Playback)
3.0 Type A: x 1 (USB Playback) - SPEAKERS10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: Normal 165 W, Max 295 W - ERGONOMICSWall Mount (VESA® ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
- OPERATING CONDITIONSTemperature (º C): 5°C to 40°C
Humidity: 20% ~ 80% non-condensing - DIMENSIONS
(W x H x D)Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in - WEIGHTNet (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
Gross (kg / lb): 34.84 kg / 76.80 lbs - What's in the box?1. CDE6510 presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
