PJ-vTouch-10S

Interactive WhiteBoard Module

System requiremet
PC: Windows (7, 8, 8.1) and above
MAC: Mac OSX (till Yosemite) and above

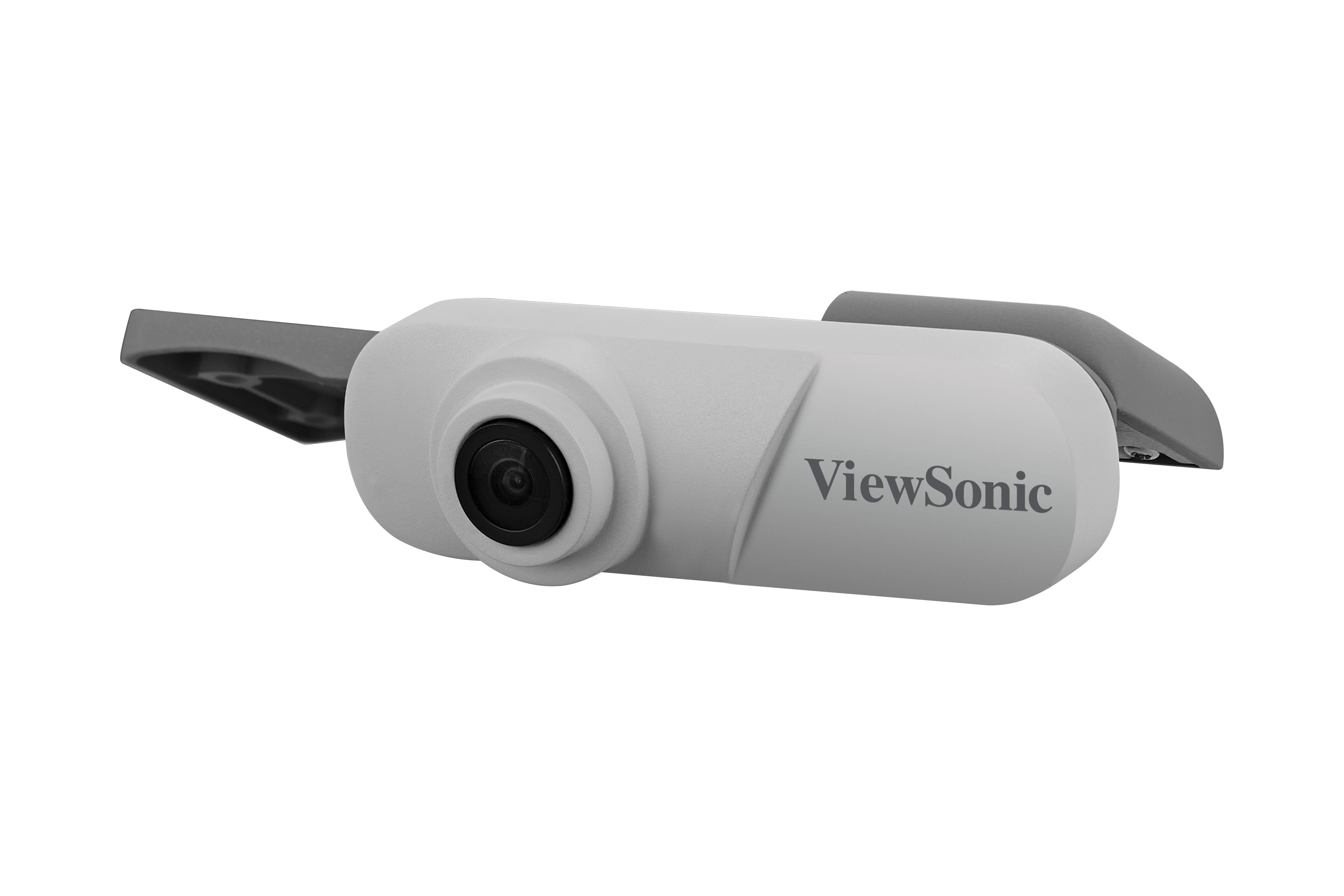

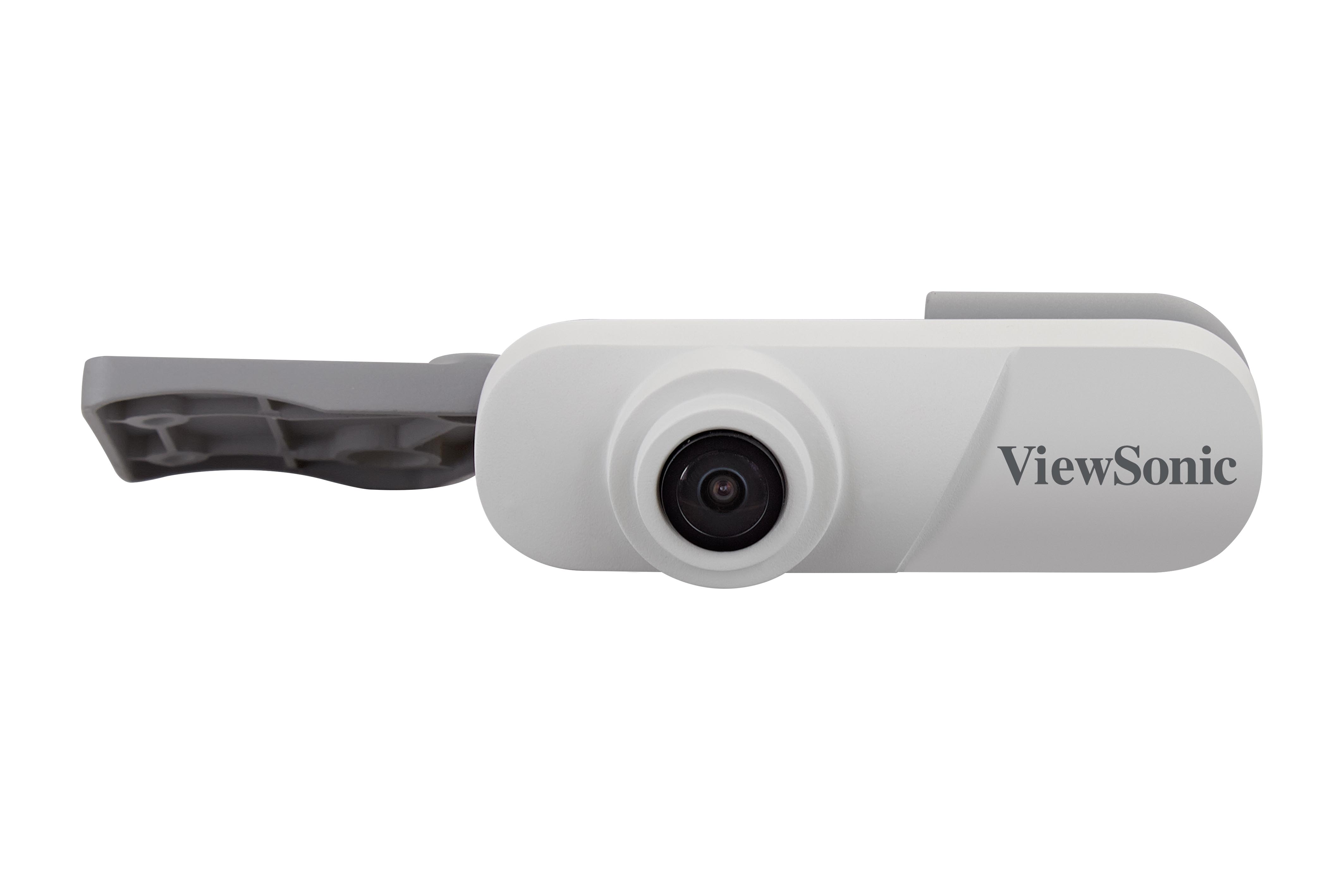

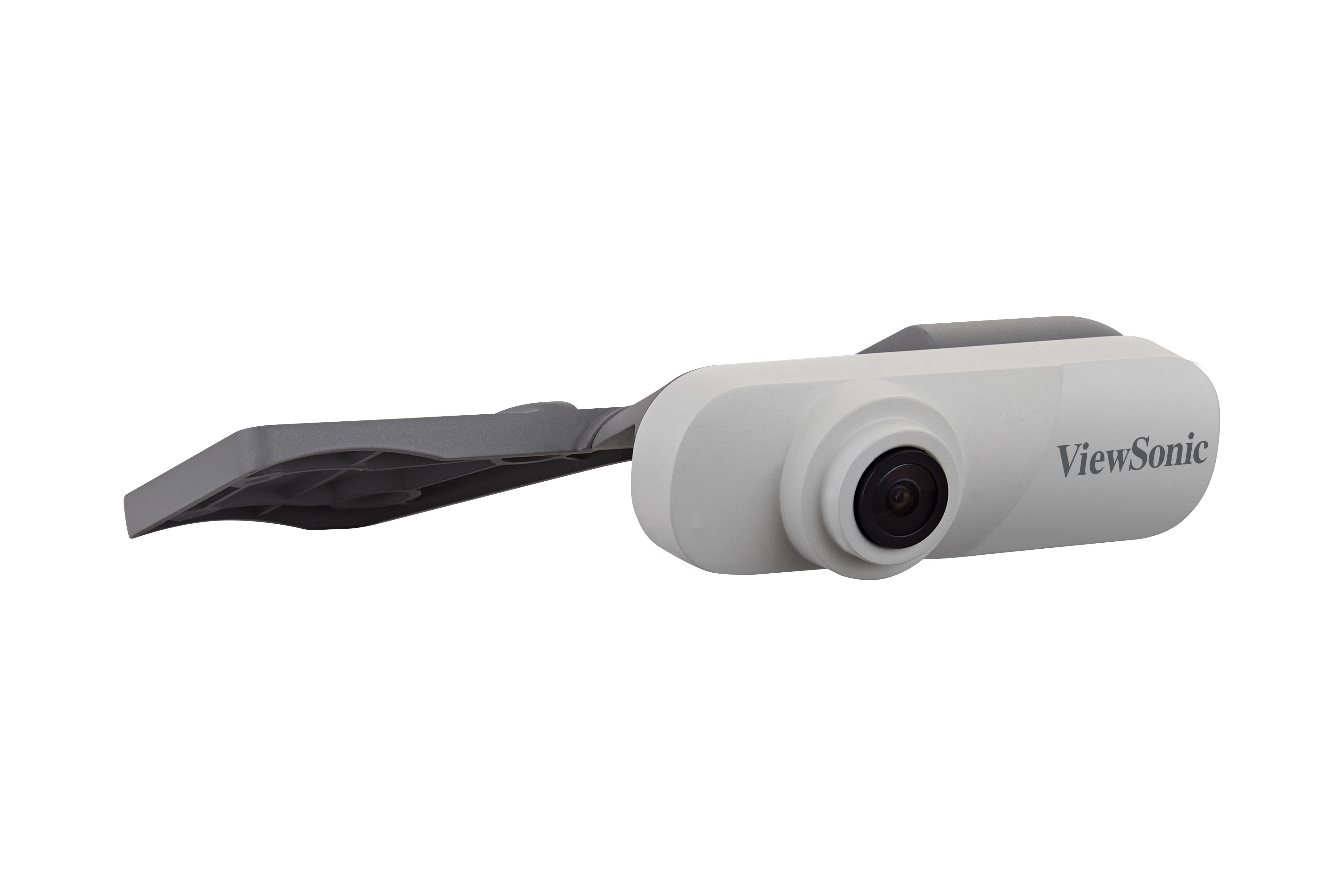

Camera Module
Processor : CYPRESS / CY7C68013_QFN 56PINS
CMOS Digital Image Sensor: ON Semiconductor / MT9V034 _CLCC 48PINS
Output resolution: 752 x 480
Frame Rate: 60 fps/sec
Optical Lens: 1/3.2 inch // F#2.8 // FOV-D 181 degree // TTL18.80mm // 6G // M12 14pie
Tracking Active Area (max projection size): 100" for 16:9 aspect ratio / 80" for 4:3 aspect ratio
Inter-Finger Distance Specification: Middle/Center <3CM , Left &Right Side(Bottom)< 4.5CM

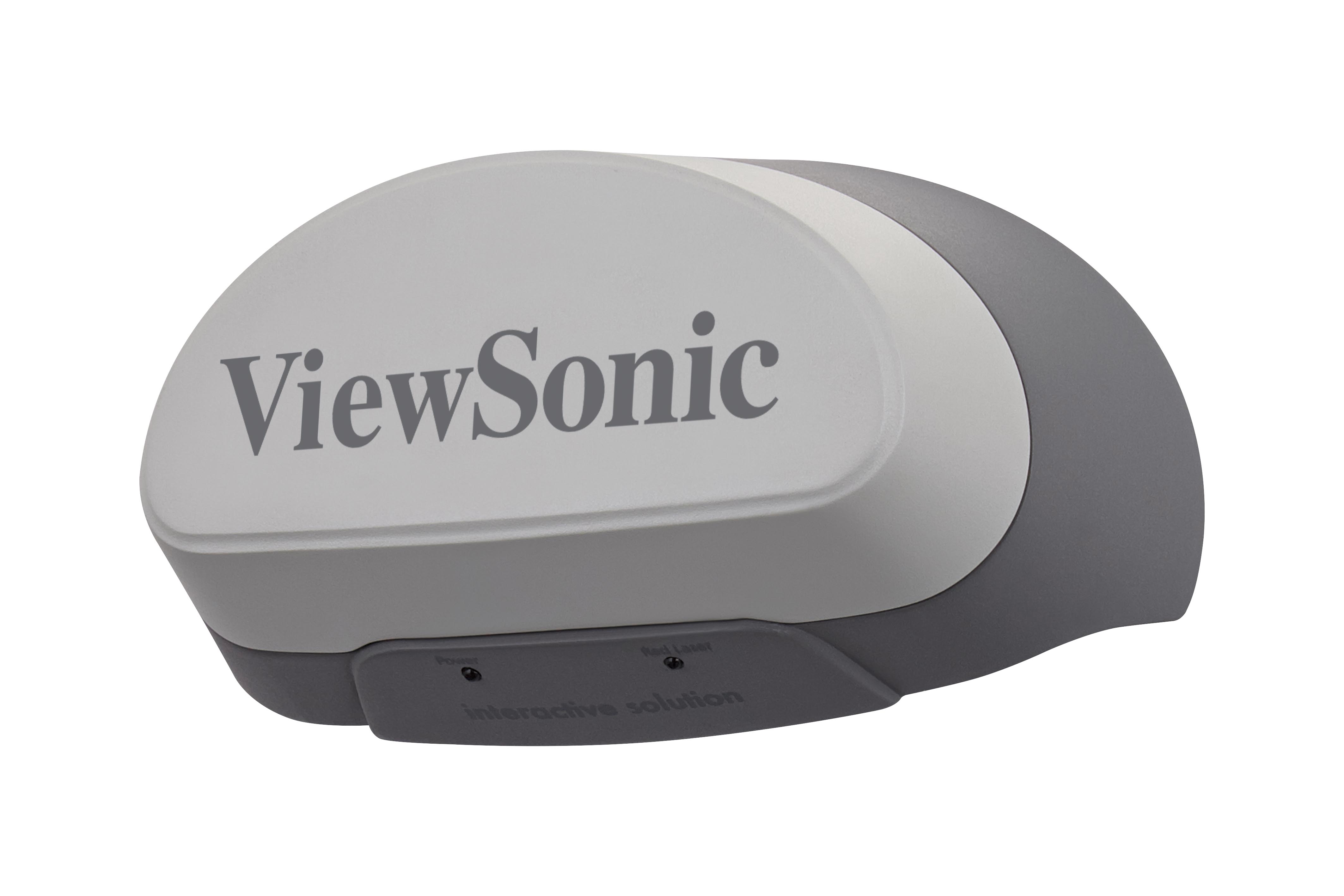

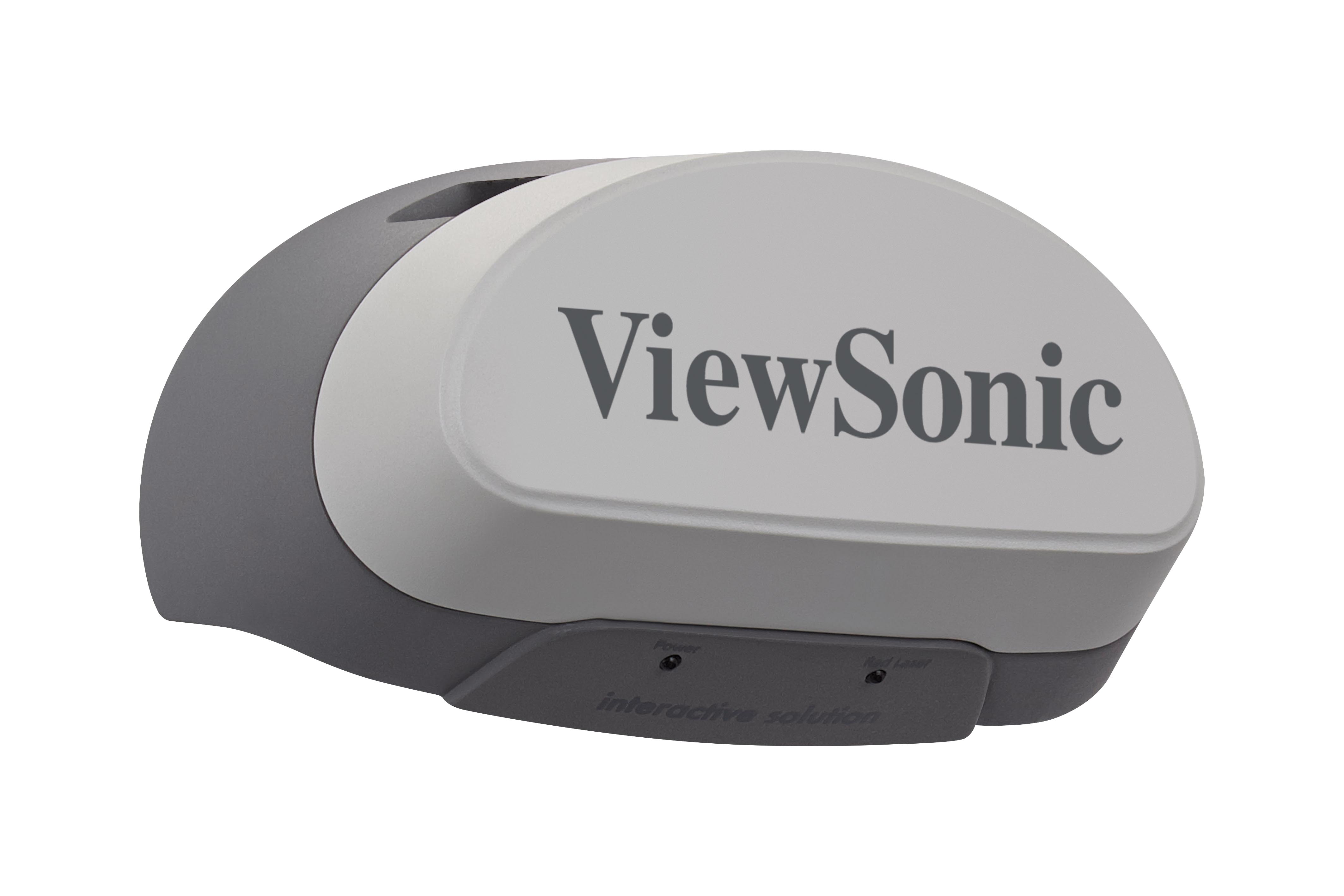

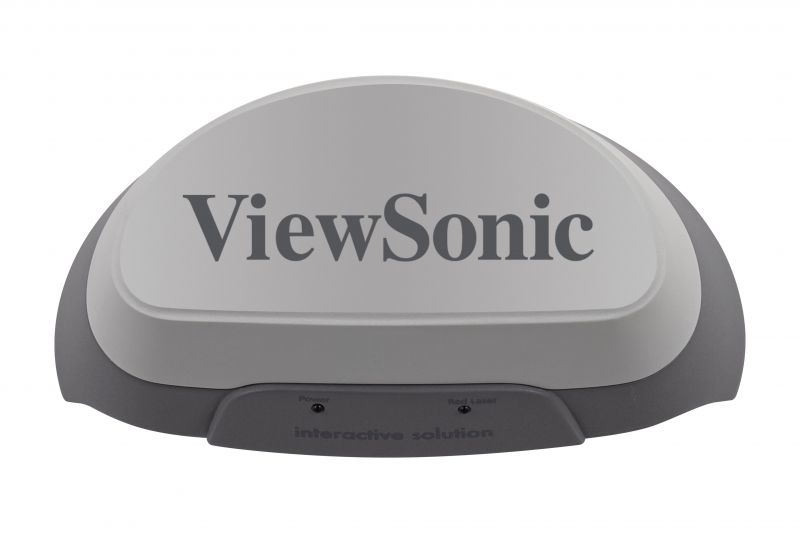

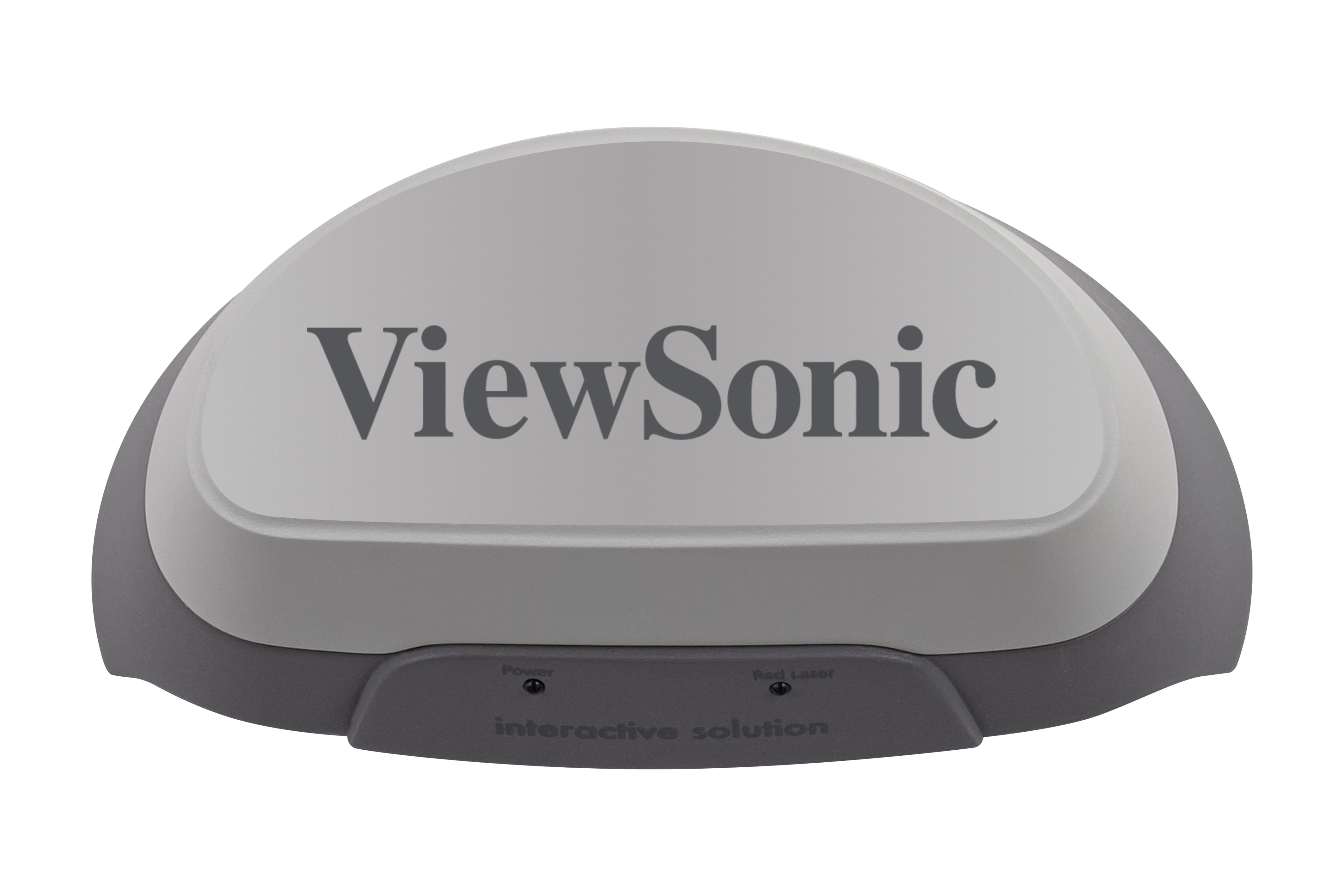

Laser Module
Visible Light Output: λ=830nm ±10nm
Optical Power Output: 200 mW (single mode)
Operating Voltage: DC 5V/1.5A
Surface Flatness: <5mm

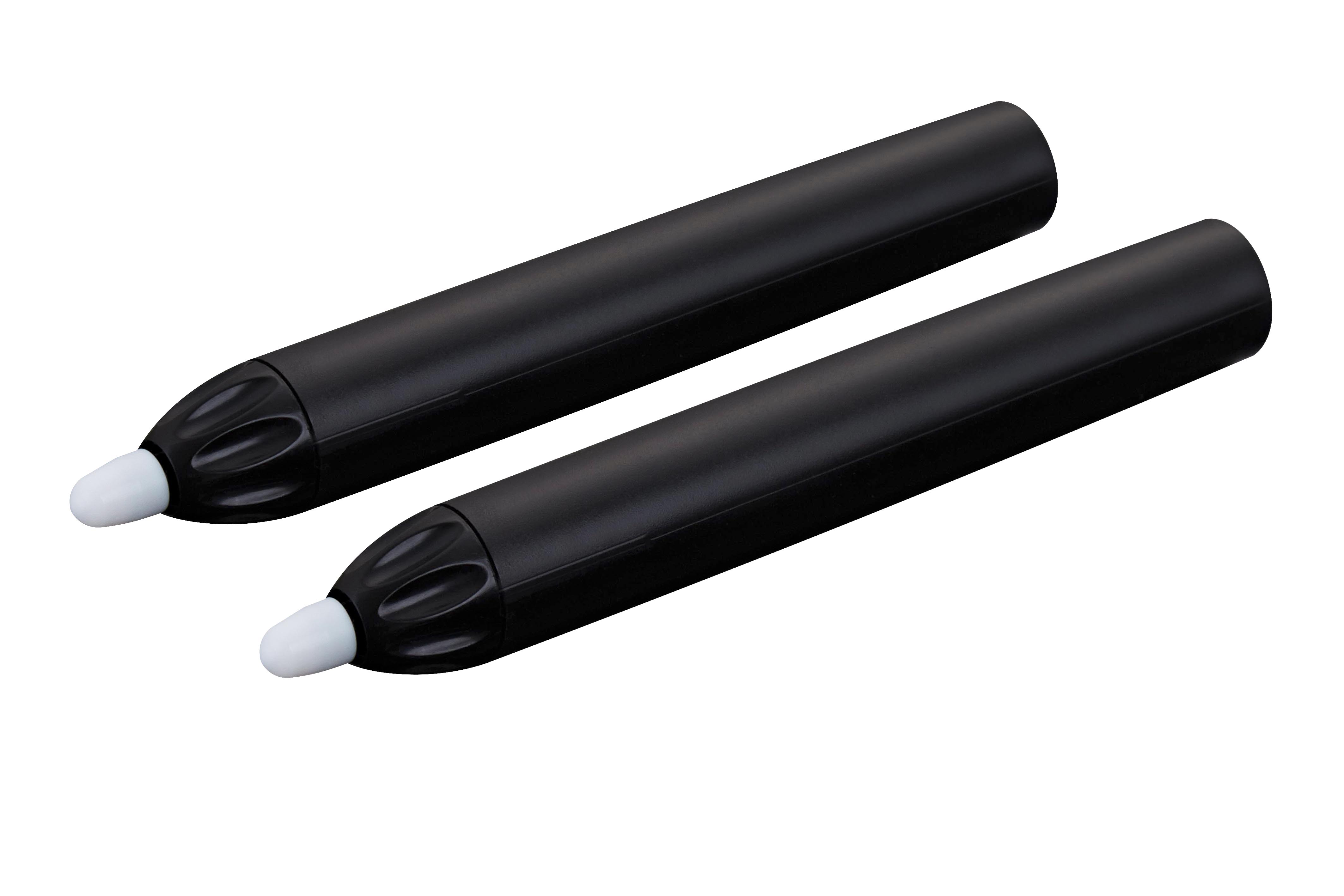

Stylus pen
Pen Tip Light Emission: Infrared (850 nm)
Charging Mode: USB Charging
Charging Voltage Range: 4.5V ~ 5.5V
전원 공급 장치: 1 Super Capacitor (20F/2.7V)
Charging Time: 3 Minute
Using Time by a single charging: About 2 Hours
Standby Time: 72 Hours
커넥터
USB : USB to Camera module, USB 2.0/3.0 compatible ( computer operational )
힘: USB to Laser module
POWER
(USA,EU,UK plug)
DC Adapter: input:100-240VAC 50/60Hz / Output:DC 5V/1.5A
소비.: Camera : Less than 1 watt ; Laser Module:7.5A
Operating Condition
온도: 23°F to 113°F (-5°C to 45°C)
습도: 0% to 95% Non-Condensing
Dimensions Weight
Physical: Camera :142 x 82 x39 (mm) / Laser Module: 109.8 x 65.6 x47.2 (mm)
Carton Box: 208x 209 x 132 (mm)
Shipping carton: 434 x 430 x295 (mm)
그물: Camera : 60g ; Laser Module: 90g
징그러워요: 1050 g
Gross(Shipping carton): 10.8 Kg
소프트웨어
Language: English, French, German, Spanish, Polish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Italian, Czech, Danish, Russian, Dutch, Finnish, Norwegian, Portuguese, Hungarian, Romanian, Slovak, Turkish, Swedish, Greek, Arabic, Indonesian, Hebrew, Thai, Persian.
Included Accessories

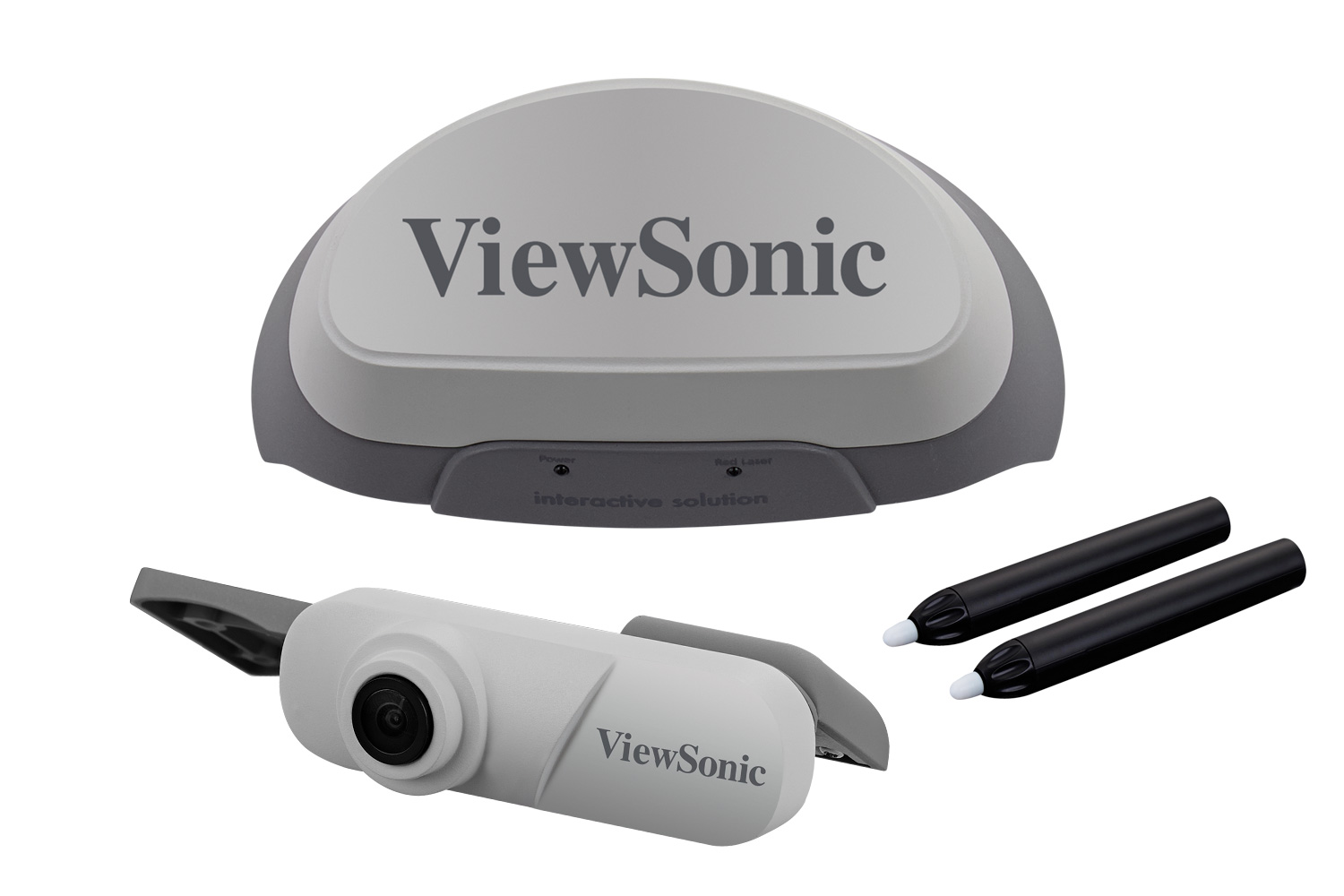

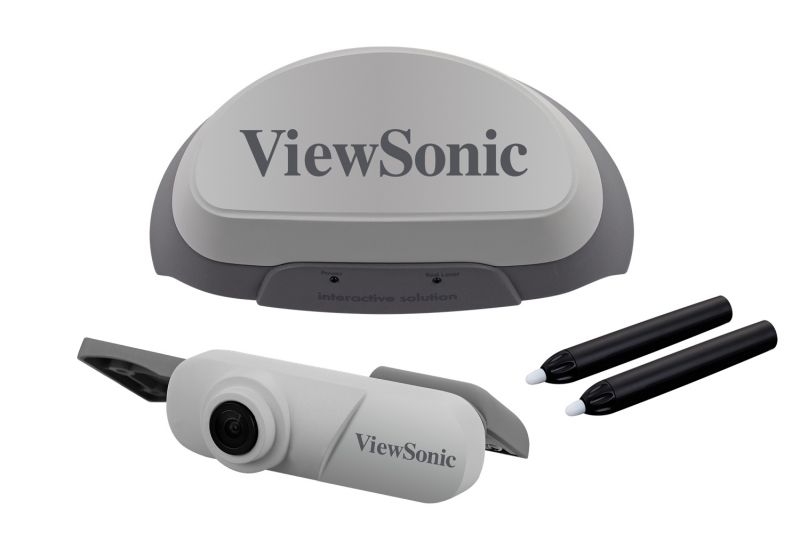

Stylus *2/ Stylus charging cable/ Mini USB cable (MiniUSB 5m for Camera module to PC)/ Y Cable (Laser module USB charging & 2.5mm audio jack sync to CCD)/ DC Adapter (INPUT:100-240VAC 50/60Hz OUTPUT:DC 5V/1.5A)/ Quick Start Guide/ Software CD
