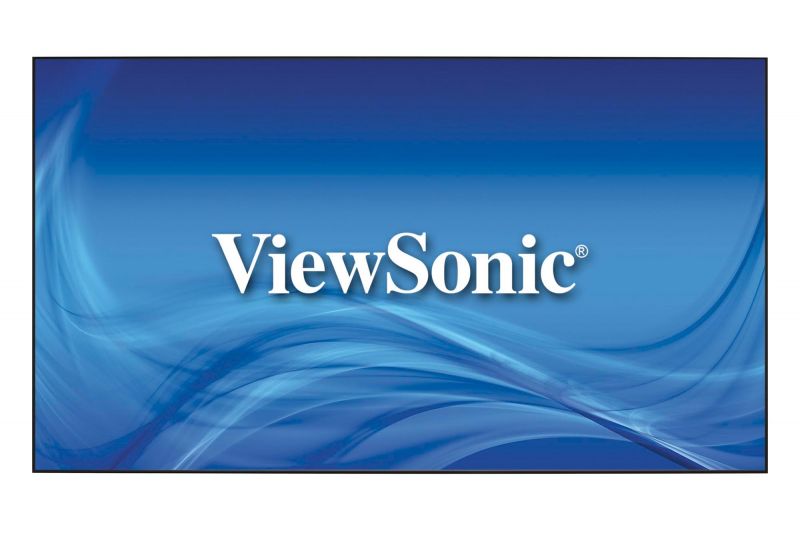

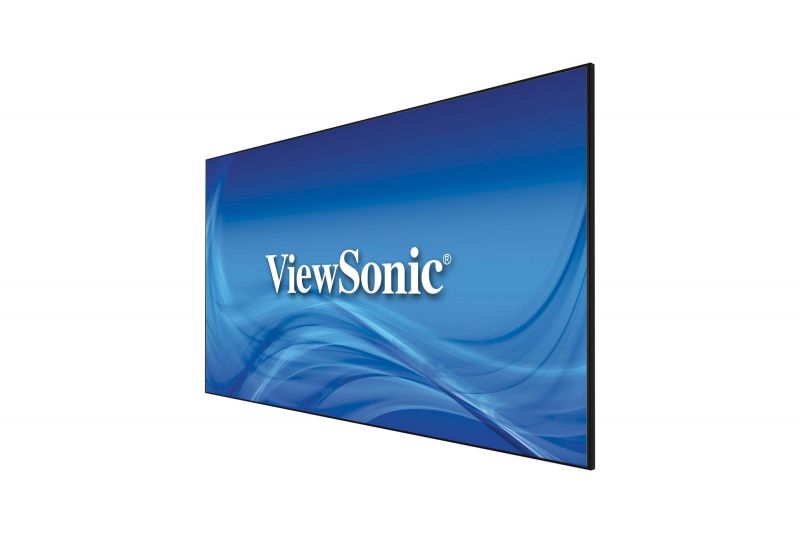

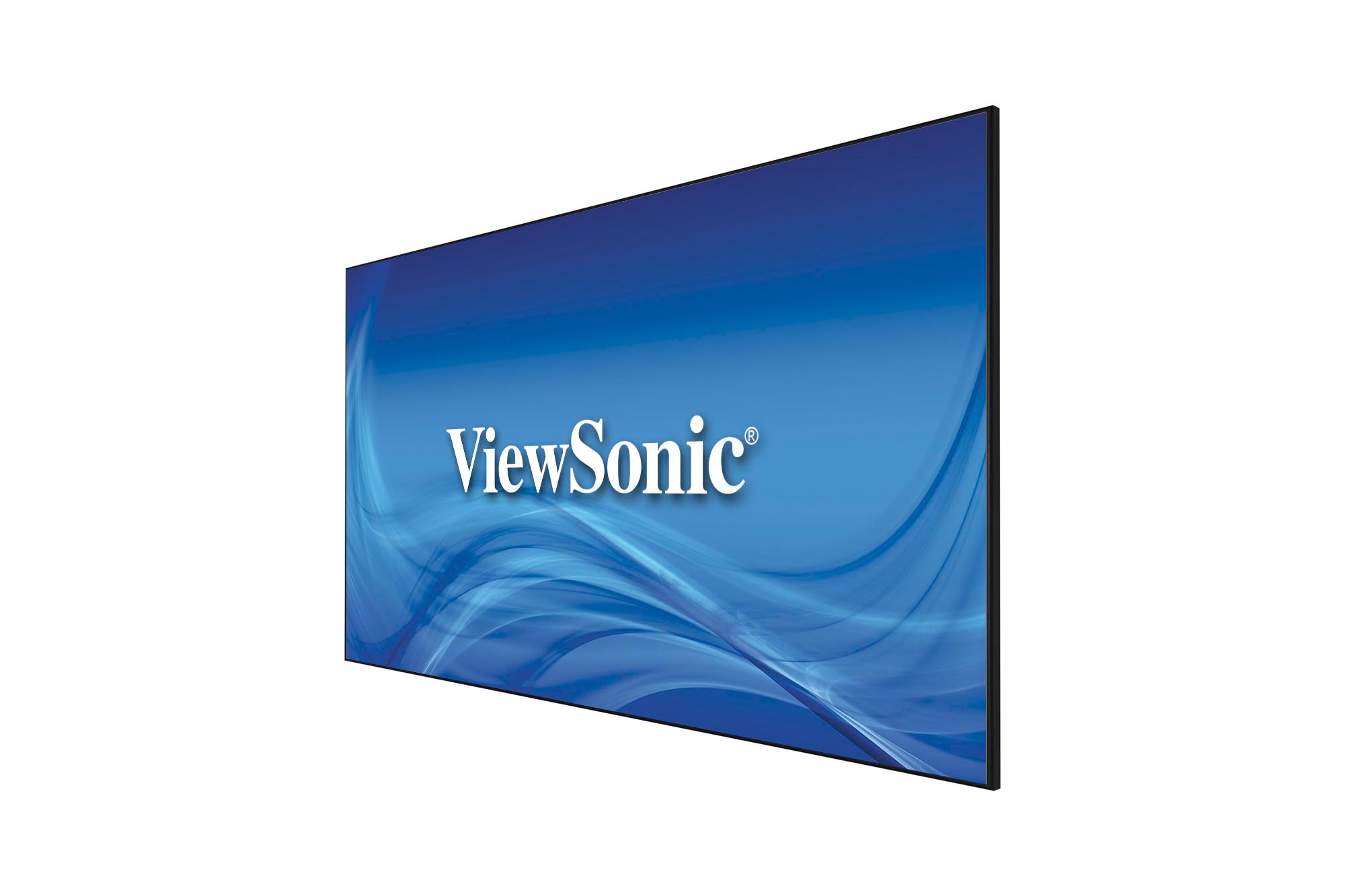

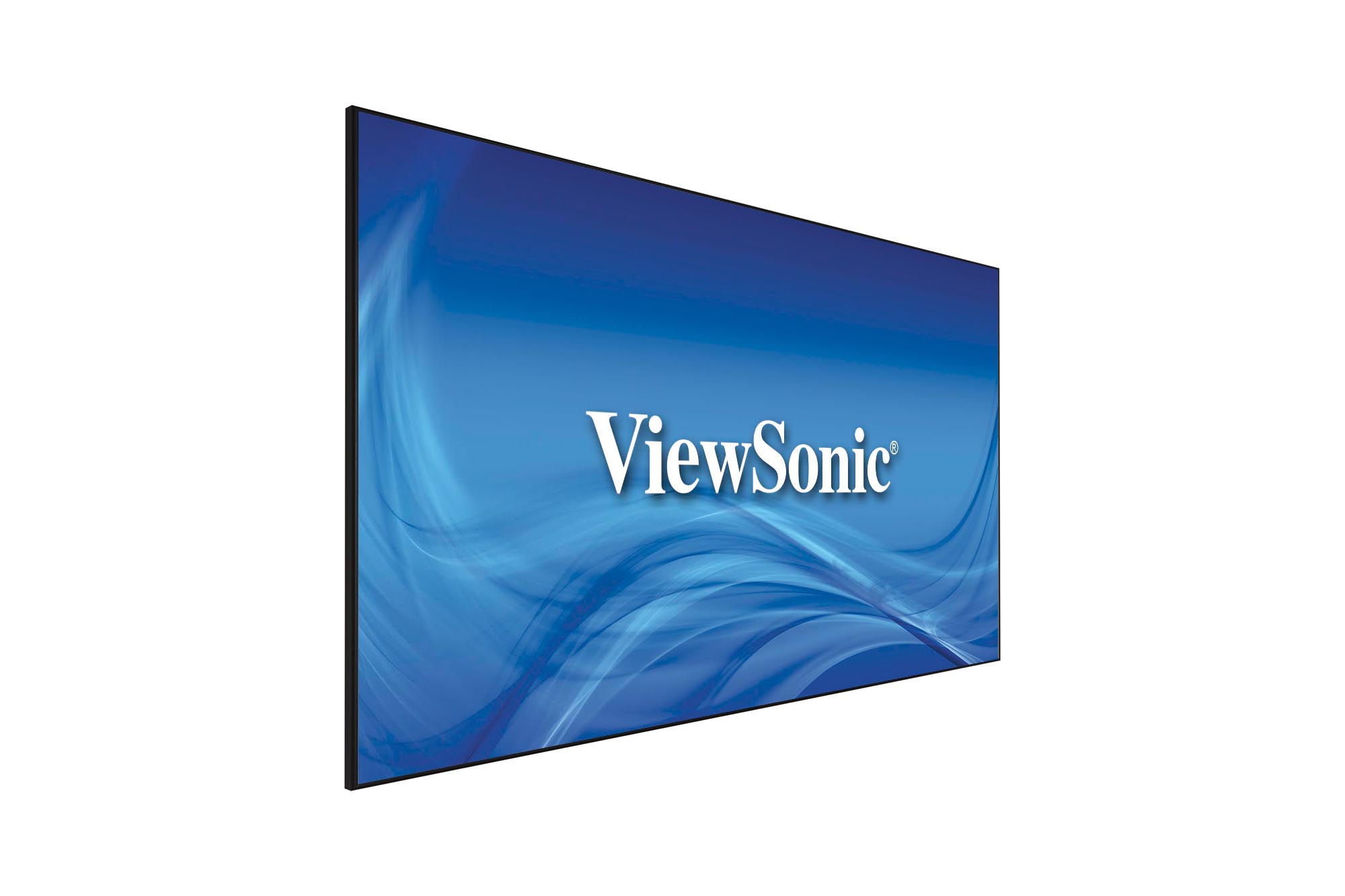

뷰소닉 Projector Accessories BCP120

BCP120

120" BrilliantColorPanel™

스펙

Image Size
(aspect ratio / screen size)
16:9 / 120”
Image Area
2657 x 1494mm
Physical(Assembly)
2679 x 1516 x 35 mm

Carton Box
2770 x 380 x 160mm
체중
Net: 14.5kg; Gross: 33Kg
Optimal Projector Info
Lens Throw ratio <0.3
Film type
TPU
Peak gain
0.6 +/- 0.05
Horizontal half-gain angle
80 degrees
Lens pitch
300 um
Frame Width
11mm
Safety/EMC
RoHS
Included Accessories
Screen * 1
The main frame * 4
Modified box * 4
L-shaped angle iron * 4
Wall bracket * 2
M5 15mm Screw * 8
M5 8mm Screw * 16
Screen height fine adjustment screw * 2
Spring hook * 80
Mounting screws * 4
Plastic plugs * 4
Quick Setup Guide

지원 & 다운로드

데이터 시트

BCP120 데이터 시트

Quick Start Guide

BCP120 Quick Start Guide (English)
