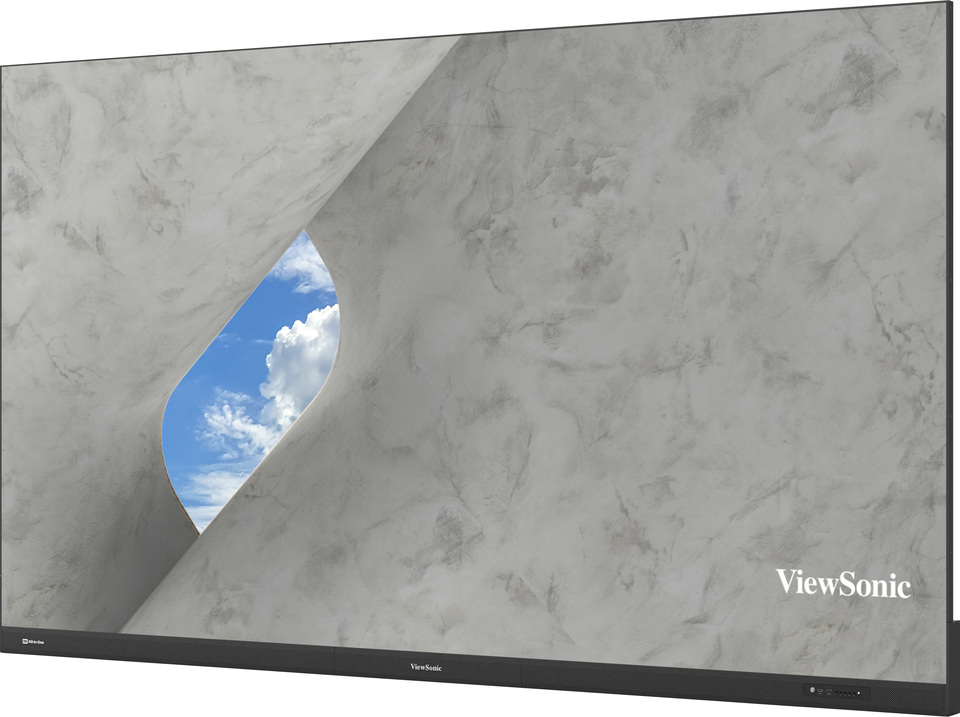

LDM136G-152

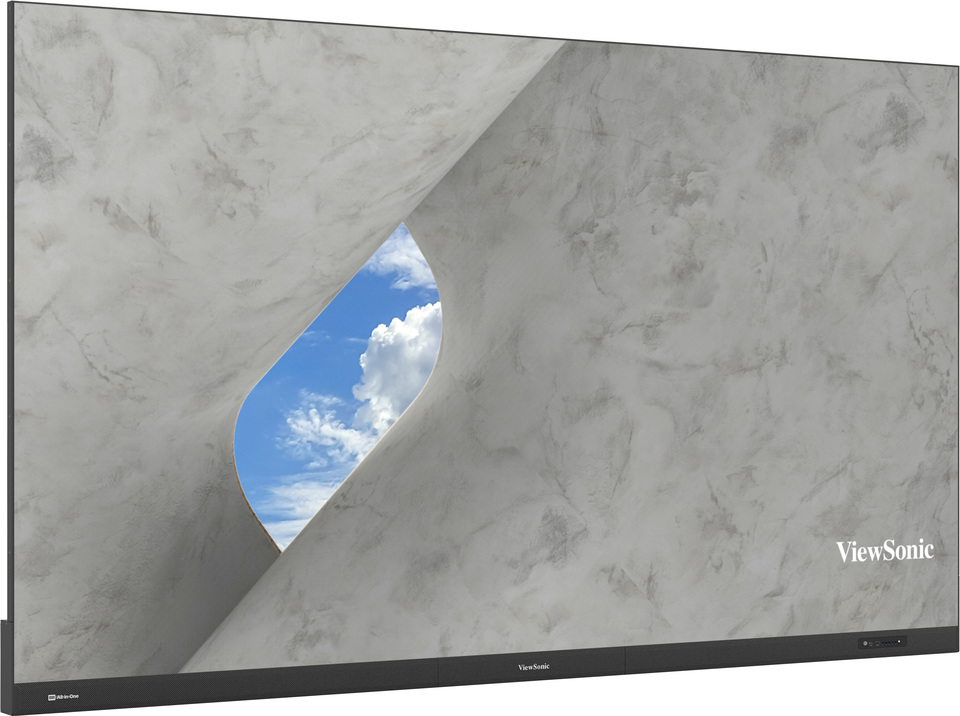

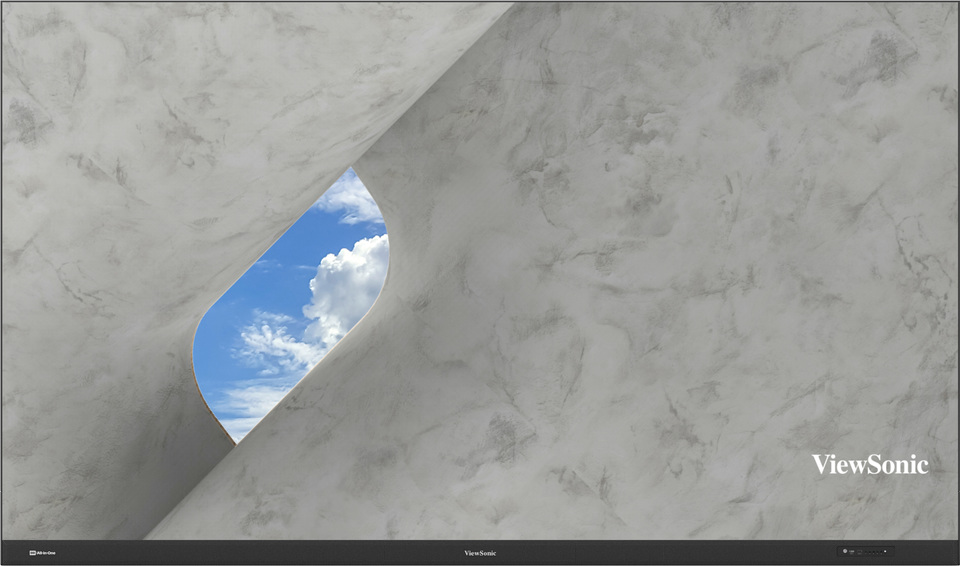

136” All-in-One Direct View LED Display

  • GOB surface treatment for anti-collision, dust, and moisture protection, ideal for high-traffic, high-risk environments
  • Smart power redundancy ensures continuous display performance with automatic backup switching
  • All-in-One integration simplifies installation by combining power, control, image stitching, and display
  • 136" seamless large screen with high brightness and dual 18W speakers for immersive visuals and audio
  • Operating system-free architecture enhances security, minimizes attack risks, and eliminates software maintenance
구매 문의

개요

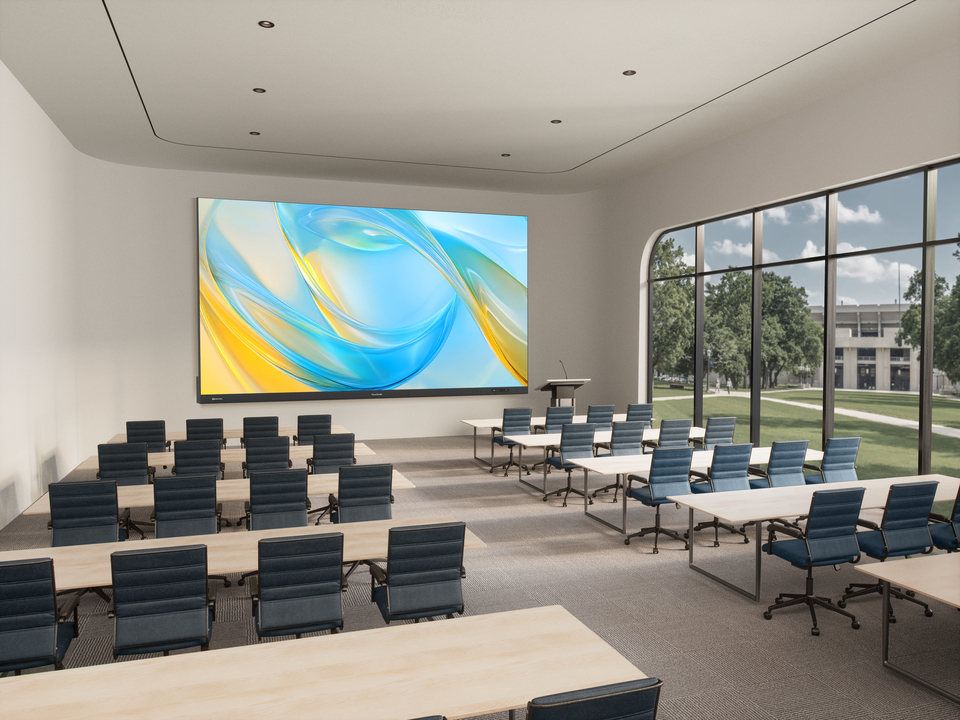

The ViewSonic LDM136G-152 is a 136-inch All-in-One LED display designed for large corporate and education environments. With 600 nits of brightness, a 6,500:1 contrast ratio, and dual 18W speakers, it delivers sharp visuals and powerful audio for meetings, lectures, and presentations. Engineered with Glue-on-Board (GOB) surface treatment, the display offers enhanced durability against impact, dust, and moisture, achieving IP54 and IK06 ratings for added reliability in high-traffic areas. Smart power redundancy ensures uninterrupted performance by automatically switching to a backup power source when needed. All-in-One integration simplifies installation, allowing two people to complete setup in under two hours while minimizing labor and downtime. Its 34mm ultra-slim profile and 7mm bezels create a sleek, modern aesthetic that complements any space. With no built-in operating system, the LDM136G-152 reduces cybersecurity risks and eliminates ongoing software maintenance, making it a secure, low-maintenance solution for professional LED video wall installations.

Enhanced Durability with GOB Surface Treatment​

Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54 and IK06 rating*, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, shopping malls, and transportation hubs.

*Only the LED module surface is rated IP54 and IK06
IP54 & IK06 Certified Protection

Automatic Power Switching for Continuous Operation​​​​

To ensure continuous display in mission-critical environments, the LED display integrates an intelligent power redundancy system. In the event of a cabinet power failure, the system automatically switches to an adjacent cabinet’s power supply, preventing black screens and maintaining uninterrupted operation.​

*If both adjacent cabinets experience simultaneous power failure, the backup mechanism will be unable to operate.

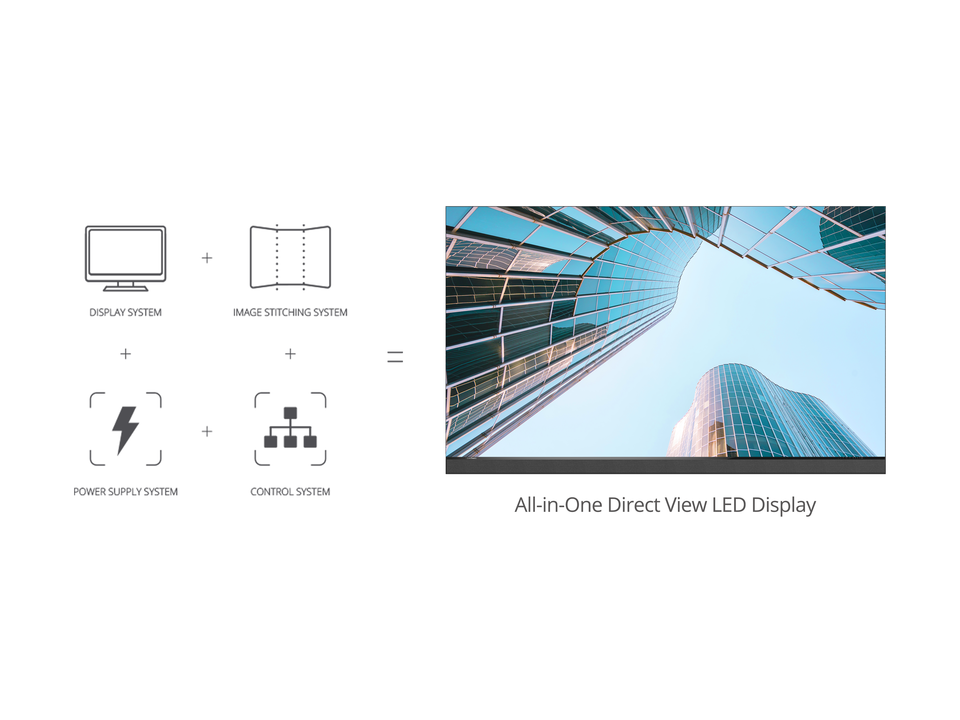

All-in-One Integration for Effortless Installation

The LED display's all-in-one design streamlines installation by eliminating the need for configuration involving power supply, control, image stitching, and display systems. Simply power on the display to initiate operations.
All-in-One Integration for Effortless Installation 1

Modular Design for Easy Installation​

This modular display features a user-friendly design for a simplified installation experience. Each LED module automatically configures and calibrates to its specific location and settings during installation, ensuring a smooth and effortless process​.

Premium Aesthetics with Ultra-Slim & Bezel-Free Design

Spanning an expansive 136” screen, equivalent to nine 46” LCD displays combined, this frameless display seamlessly delivers content without any visible bezel stitching, creating a truly immersive visual experience. Its minimalist and sleek design, with a slim 34mm thickness, exudes sophistication that effortlessly complements any space and interior design.​

Captivating Visuals that Shine Bright

Experience stunning clarity with an impressive brightness of 600 nits, featuring 100-level adjustments and an outstanding 6,500:1 contrast ratio. This display delivers captivating, crystal-clear visuals, effortlessly shining in large venues with ambient lighting. Boasting a lightning-fast 3,840 Hz refresh rate, it effortlessly elevates every presentation to an unparalleled level of excellence.​
600 nits Brightness, 6,500:1 Contrast Ratio
Captivating Visuals that Shine Bright 1

Engage Your Audience through Powerful Audio

Deliver compelling presentations that captivate your audience with the display's dual sets of 18W speakers, ensuring powerful and clear sound even in large venues.
18W Speakers
Engage Your Audience through Powerful Audio 1

Centralized Management via LAN Control

This LED display supports easy and efficient control of multiple-display configurations through LAN control, enabling centralized management, scheduling, and adjustments from a remote location.

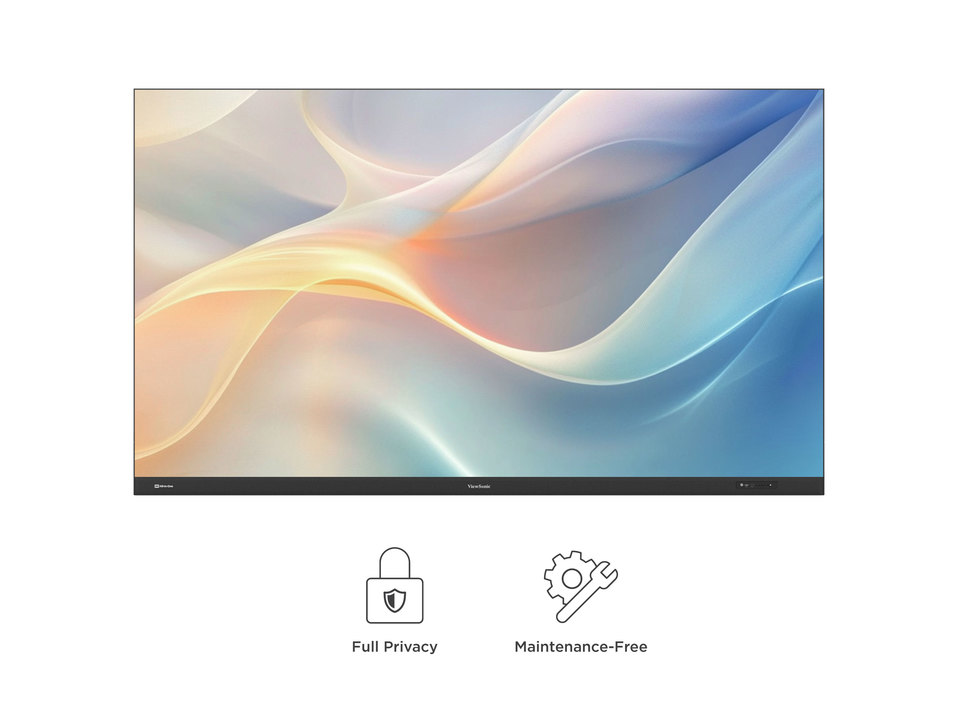

Streamlined and Secure with an OS-Free Design​

This LED display features a secure OS-free design with no pre-installed apps, minimizing software vulnerabilities and hacking risks. It also simplifies maintenance by removing the need for updates.
Streamlined and Secure with an OS-Free Design​ 1

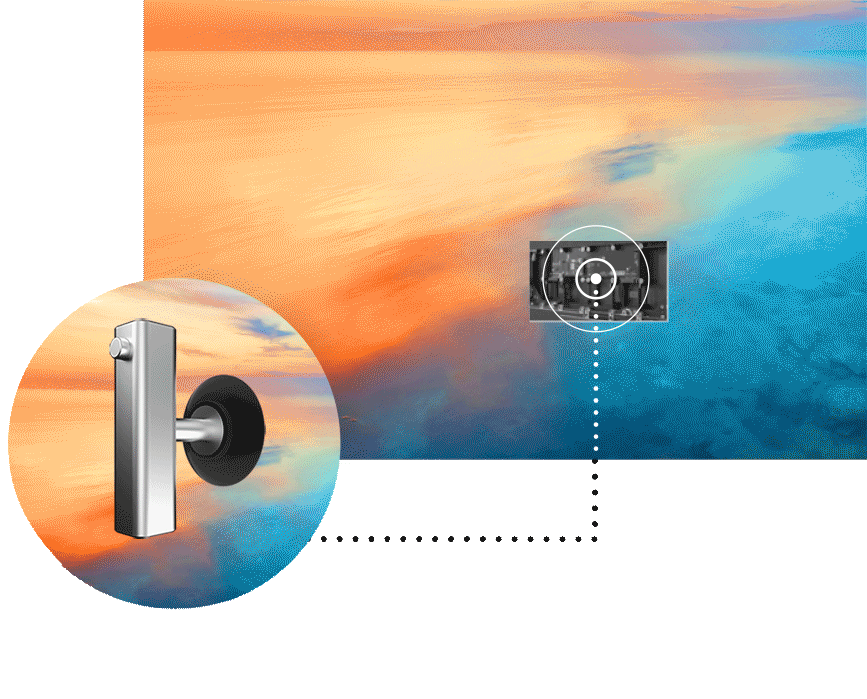

Full Front Maintenance

Instead of relocating an entire set of display for maintenance, users can effortlessly replace any defective piece with the hot-swappable front LED modules using the electric vacuum suction tool – it's easy to use regardless of technical expertise.
Hot-Swappable
Full Front Maintenance 1

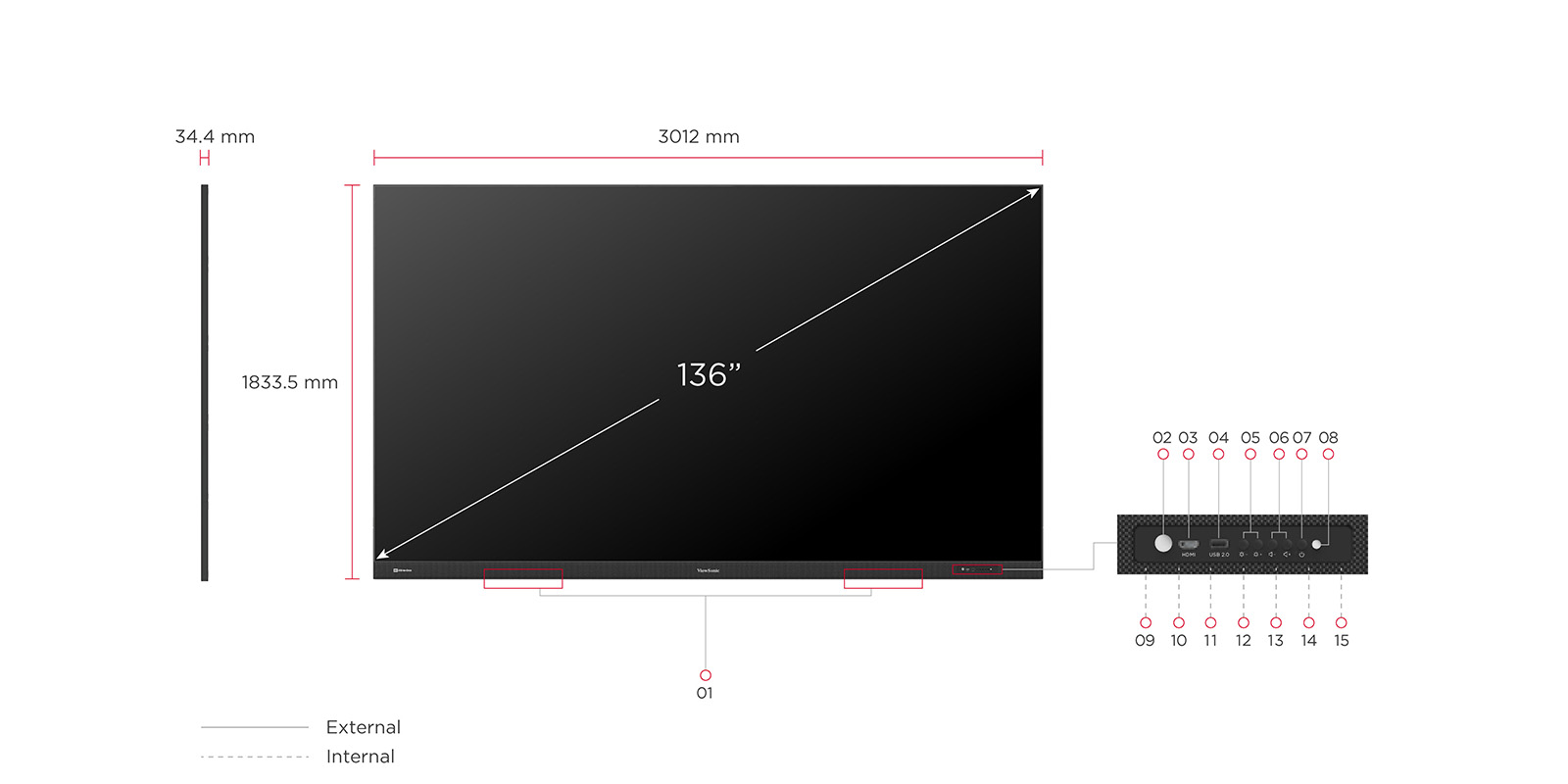

Dimensions & I/O Ports

  1. Speakers
  2. IR Receiver
  3. HDMI 1
  4. USB 2.0
  5. Menu Control: Brightness Level
  6. Menu Control: Volume Level
  7. Power Button
  8. Indicator Light
  9. HDMI 2
  10. HDMI Out
  11. RJ45
  12. USB 2.0
  13. SPDIF Out
  14. Audio Out x2
  15. RS-232

스펙


  • 사양
    Screen Size: 136"
    표시면적(mm): 3000 (H) x 1687.5(V)
    기본 해상도: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1 (GOB)
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.56
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 6500:1
    Color Temperature: 3000K -10000K
    오리엔테이션: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    임베디드 OS: Simplified OS
    해상도 지원: SVGA(800 x 600) to 1080p(1920 x 1080@60hz)
    HDTV 호환성: 720p, 1080p
    수평 주파수: 31K-94kHz
    수직 검색 속도: 56-85Hz
  • 입력
    HDMI: 2
    (HDMI 1.3/HDCP 1.4)
    (internal x1, external x1)
    USB 타입 A: 2
    (USB2.0)
    (internal x1, external x1)
    RJ45 입력: 1
    (control)
  • 산출량
    HDMI out: 1
    (HDMI 1.3/HDCP 1.4)
    스피커: 18Wx2
    오디오 출력(3.5mm): 2
    (internal speaker x1)
    S/PDIF: 1
    USB 타입 A(전원): Shared with USB A input
    (5V/0.5A )
