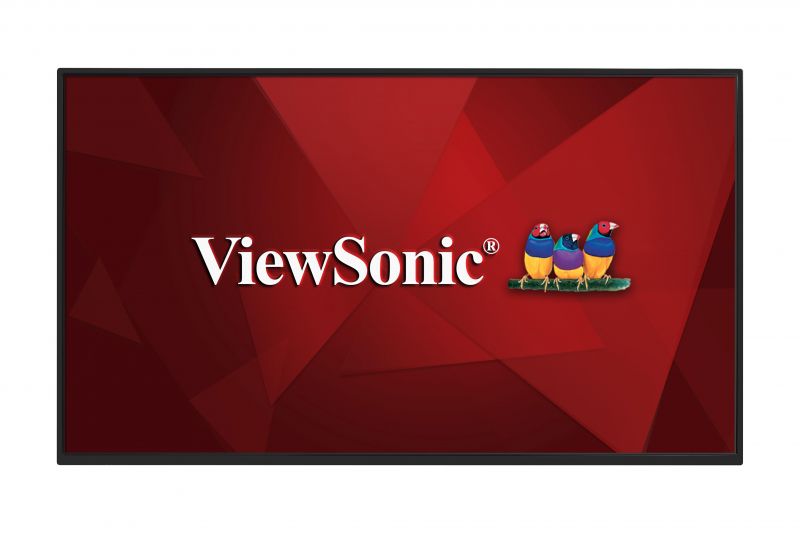

뷰소닉 상업용 디스플레이 CDM5500R

CDM5500R

55" 24/7 Usage Commercial Display

Built-in Quad Core Media Player with 16GB Storage
Embedded LAN
Internet Browser
Internal Scheduler
Content Management Software

스펙

LCD PANEL
패널 크기: 55"
Type/Tech: TFT LCD Module. (IPS, ELED backlight)
Display Area: 1209.6 (H) x 680.4 (V)
가로 세로 비율: 16:9
결의안: 1920x1080
Colors: 16.7M
밝기: 450 nits (typ.)
대비 비율: 1100:1 Typ.
응답 시간: 12ms
보기 각도: H = 178, V = 178 typ.
백라이트 라이프: 50,000 Hours Typ.
표면 처리: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.)
오리엔테이션: Landscape and Portrait Enabled

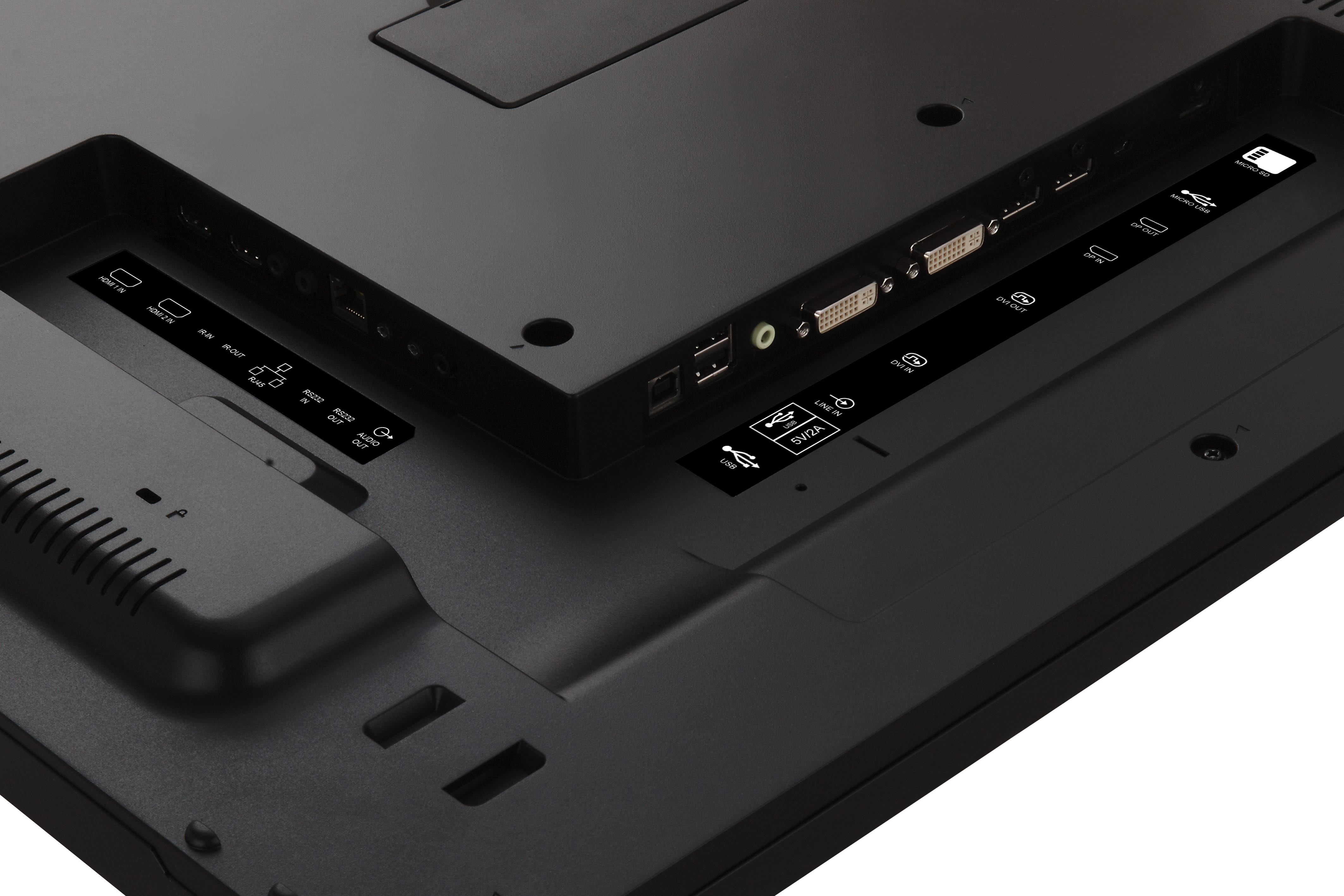

INPUT
HDMI: x2
디스플레이 포트: x1
DVI: x1
오디오: x1
RS232: x1
IR Pass Through: x1
OUTPUT
디스플레이 포트: x1
DVI: x1
RS232: x1
IR Pass Through: x1

LAN
RJ45: x1
USB
A형: x2 (Multi-media playback x 1, 5V/2A x 1)
B형: x1 (Up Stream)
마이크로 USB: x1 (Support USB OTG)
스피커
10W (L) + 10W ( R )
COMPATIBILITY
HDMI: 480i, 480p,720p,1080i,1080p
디스플레이 포트: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p
CONTROLS
Embedded Linux OS: Yes (4.4.4)
USB 지원 파일 형식: JPG, JPEG, PNG, GIF, BMP, DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, AAC, M4A
POWER
전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
소비.: 75W (typ)
ERGONOMICS

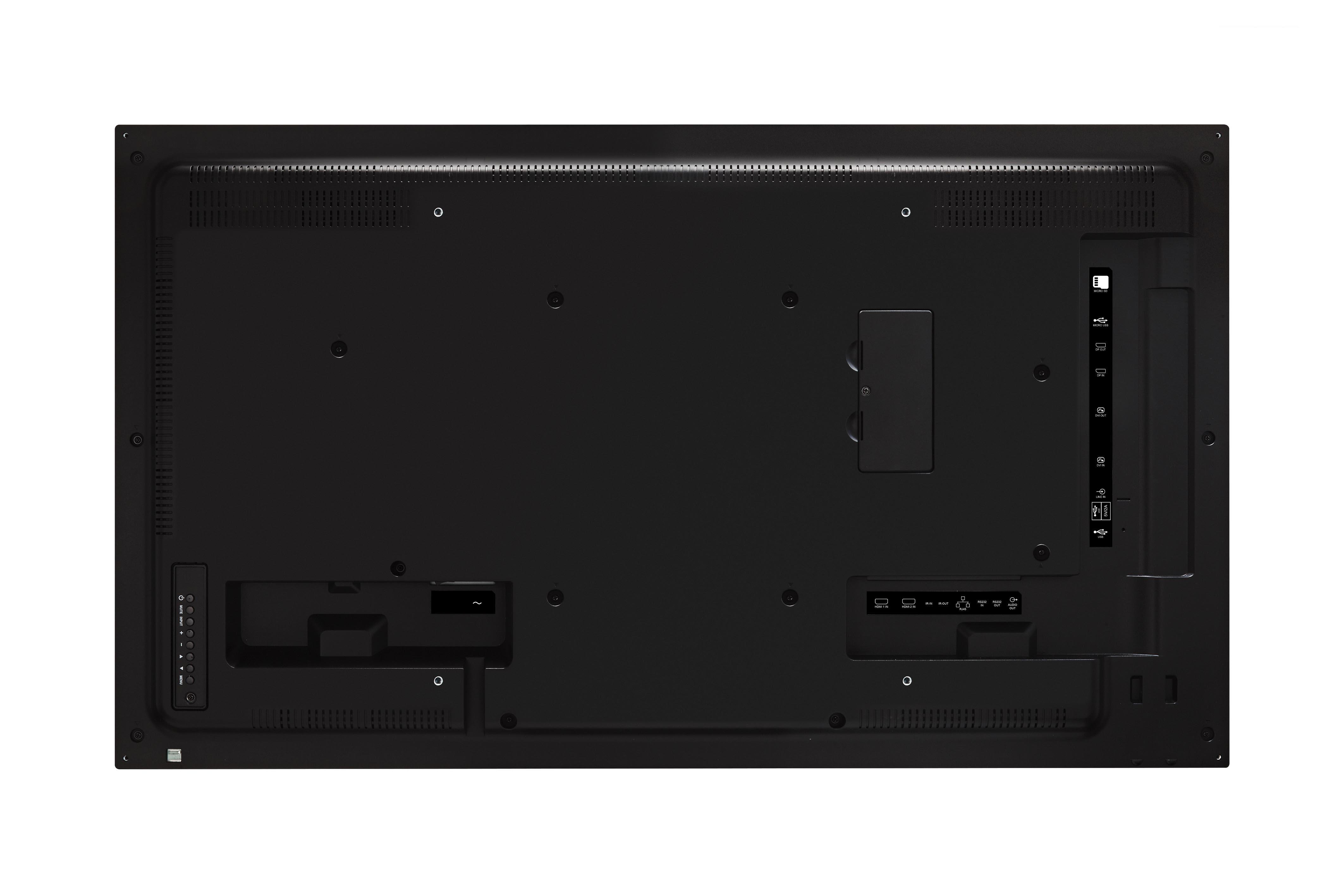

Wall Mount (VESA® ): 400 x 400
OPERATING CONDITIONS
Temperature (º C): 0 to 40°C (Landscape) / 0 to 35°C (Portrait)
습도: 20% ~ 80% non-condensing
DIMENSIONS (W x H x D)
물리적(인치/mm): 48.56 x 27.96 x 1.79 / 1233.4 x 710.3 x 45.5
WEIGHT
순(lb/kg): 39.68 / 18.0 (w/o stand)
패키지 내용물
CDM5500R commercial display/ Remote Control with batteries / User manual CD wizard / Quick Start Guide / Power Cables / RS232 cable / 2.4mm – 2.4mm cable
