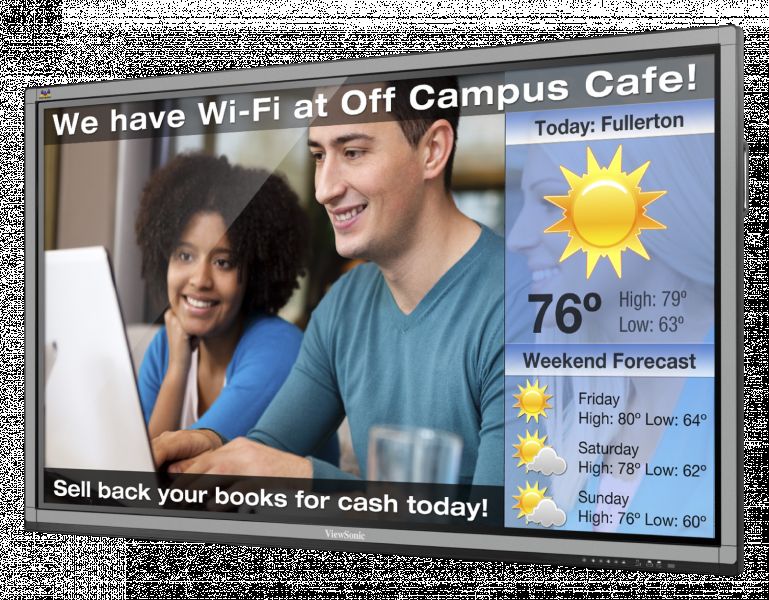

CDE7060T

70 “(69.5 viewable) 10-Point Touch Interactive Commercial Display

표시
패널 크기: 69.5"
Type/Tech: TFT LCD Module with LED Backlight
표시면적(mm): 1538.88(H) x 865.62(V) (69.5” diagonal)
가로 세로 비율: 16:9
기본 해상도: 1920 x 1080
Colors: 1.07 Billion
밝기: 350 nits (typ.)
대비 비율: 4000:1 Typ.
응답 시간: 6ms
보기 각도: H = 176, V = 176 typ.
백라이트 라이프: 50,000 Hours Typ.
표면 처리: AG coating (7H)
오리엔테이션: Landscape
Touch
유형/기술: IR
터치 해상도: 32767 x 32767
터치 포인트: 10 point for gesture, 5 point for writing
INPUT
HDMI: x3
RGB / VGA: x3
오디오: x3 PC audio(3.5 mm)
CVBS: x1
RS232: x1
OPS: PC Slot (proprietary)

OUTPUT
RGB / VGA: x1
오디오: x1 Earphone Out
SPDIF: x1
LAN
RJ45: x1
USB
A형: x3 (2.0), x1 (3.0)
B형: x1, for touch
스피커
10Wx2
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table
CVBS: 480i,
HDMI: 480i, 480p,720p,1080i,1080p
CONTROLS
Physical- Top OSD: INPUT:Power, Home, Return, Setting, VOL-, VOL+
PC, Embd Player, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4
LIGHT:1~10
VOLUME:0~100
VGA:H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode
PICTURE:Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
Embedded Linux OS: Yes
소프트웨어 번들
ViewBoard Lite, ViewBoard 2.0
힘
전압: 100V-240V AC 50/60HZ
소비.: 350W (Typ.)
< 0.5 W ("Off")
ERGONOMICS
Wall Mount (VESA® ): 400 x 400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
습도: 20% ~ 80% non-condensing
DIMENSIONS
(W x H x D)
물리적(인치/mm): 10Wx2
포장(inch/mm): 65.0 x 39.3 x 3.9 / 1650 x 999 x 98
WEIGHT
순(lb/kg): 156.53 / 71
총중량(파운드/kg): 191.80 / 87
패키지 내용물
1. CDE7060T display 2. power cable 3. VGA cable 4. audio cable 5. USB cable 6. remote control with batteries 7. stylus (x3) 8. ViewSonic Wizard CD (User Guide and ViewBoard software) 9. RS232 adapter 10. Wall Mount Spacer
