LDM136G-152

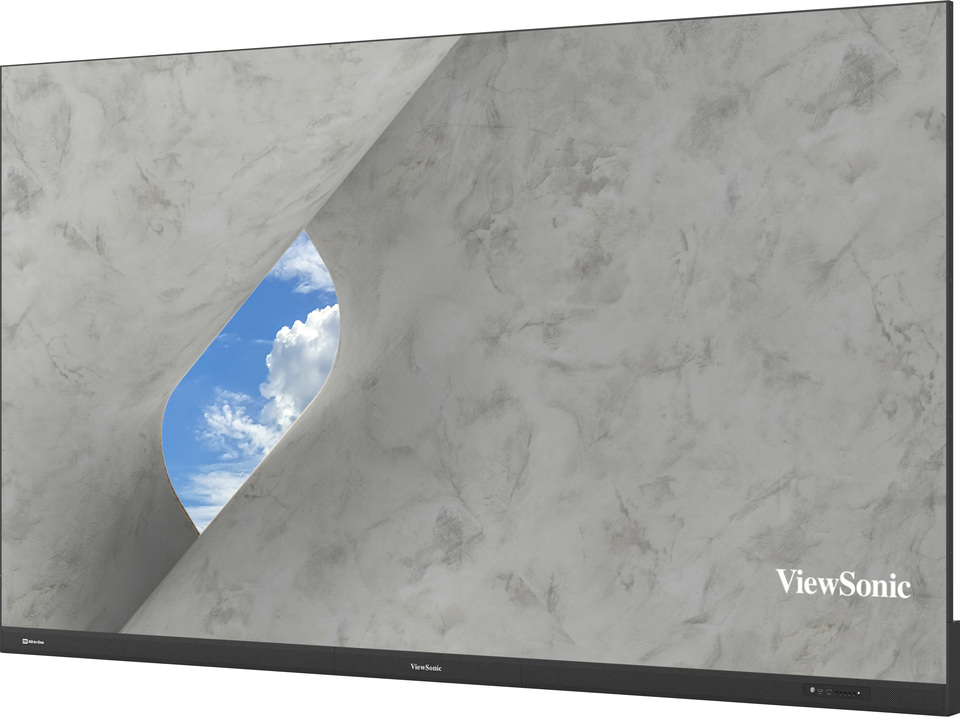

136” All-in-One Direct View LED Display

  • GOB surface treatment for anti-collision, dust, and moisture protection, ideal for high-traffic, high-risk environments
  • Smart power redundancy ensures continuous display performance with automatic backup switching
  • All-in-One integration simplifies installation by combining power, control, image stitching, and display
  • 136" seamless large screen with high brightness and dual 18W speakers for immersive visuals and audio
  • Operating system-free architecture enhances security, minimizes attack risks, and eliminates software maintenance
Sales Enquiry

OVERVIEW

he LDM136G-152 136” All-in-One Direct View LED Display delivers professional-grade, large-format 4K visuals for enterprise and commercial environments. Featuring a 136-inch Direct View LED screen, this display ensures seamless imagery, vibrant colors, and high brightness, perfect for presentations, corporate events, or digital signage.

Its all-in-one architecture integrates the LED modules, control system, power supply, and audio into a single unit, simplifying installation and setup. The Direct View LED technology provides uniform brightness, wide viewing angles, and long operational life, making it a reliable choice for demanding professional spaces.

Ideal for boardrooms, auditoriums, experience centers, control rooms, and high-end retail, the LDM136G-152 combines performance, durability, and visual impact, making it a top-tier choice for large-format LED displays.

🔹 Key Features

  • 136” 4K UHD Direct View LED Display

  • All-in-One design with integrated modules, controller, power, and audio

  • Seamless, bezel-free visuals for immersive viewing

  • High brightness for well-lit spaces

  • Wide viewing angles for large audiences

  • Ideal for boardrooms, auditoriums, training centers, and commercial displays

  • Plug-and-play installation for fast deployment

  • Durable LED technology for long operational life

🔹 SEO Keywords (Horizontal)

LDM136G-152 LED display, 136 inch Direct View LED display, All-in-One LED display, 4K large-format LED display, Corporate LED display, Boardroom LED display, Auditorium LED screen, Control room LED display, Professional LED video wall, Luxury LED signage

🔹 Open Graph (OG) Tags


🔹 Twitter Card

Enhanced Durability with GOB Surface Treatment​

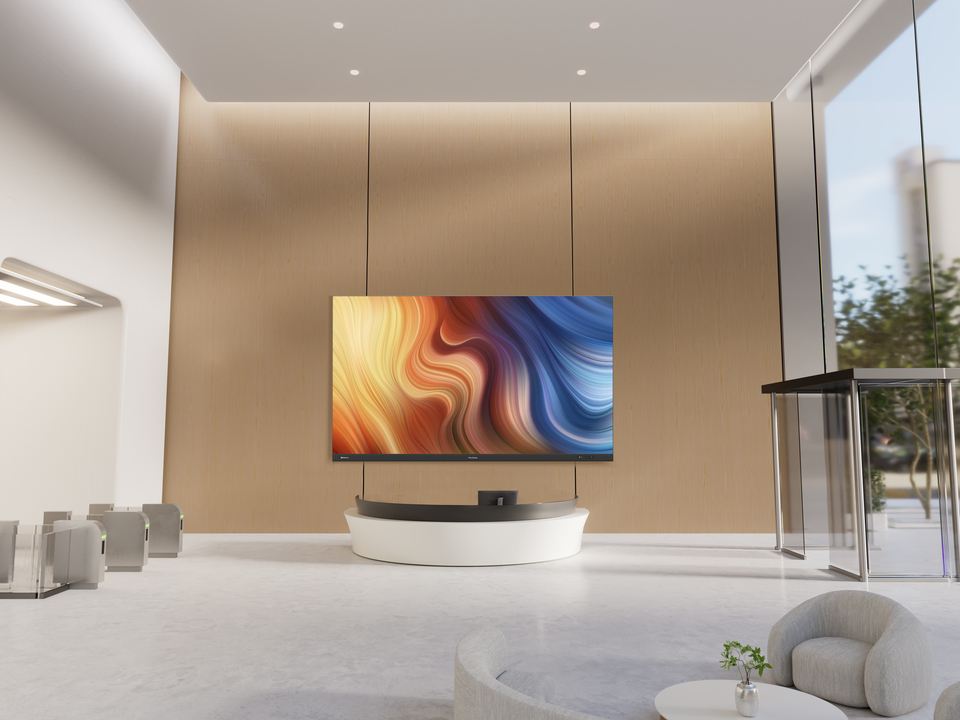

Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54 and IK06 rating*, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, shopping malls, and transportation hubs.

*Only the LED module surface is rated IP54 and IK06
IP54 & IK06 Certified Protection
Automatic Power Switching for Continuous Operation​​​​
To ensure continuous display in mission-critical environments, the LED display integrates an intelligent power redundancy system. In the event of a cabinet power failure, the system automatically switches to an adjacent cabinet’s power supply, preventing black screens and maintaining uninterrupted operation.​

*If both adjacent cabinets experience simultaneous power failure, the backup mechanism will be unable to operate.

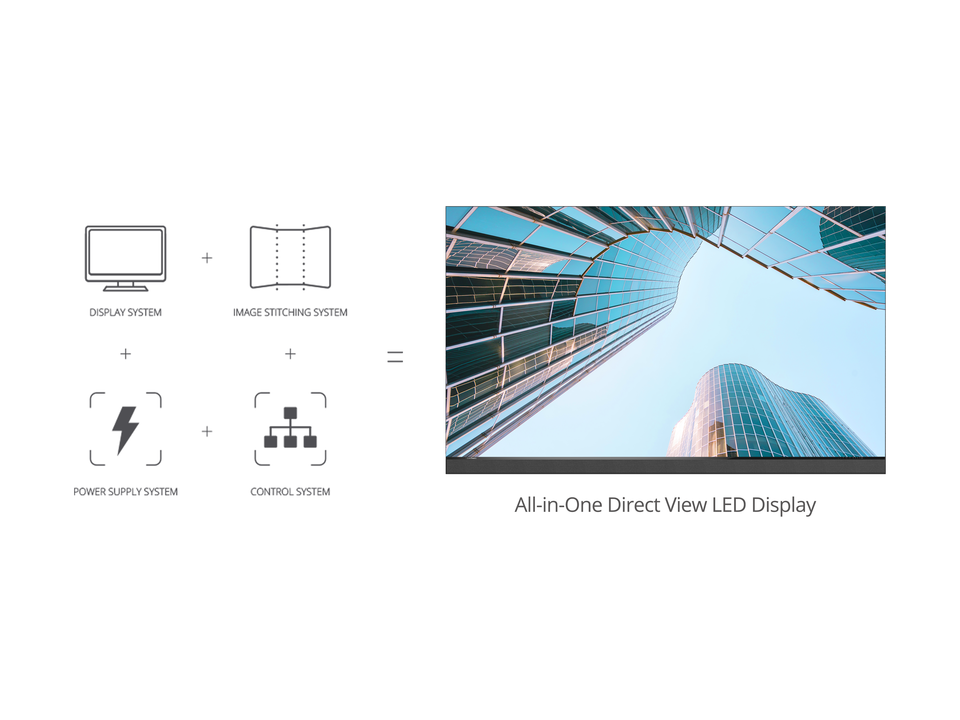

All-in-One Integration for Effortless Installation
The LED display's all-in-one design streamlines installation by eliminating the need for configuration involving power supply, control, image stitching, and display systems. Simply power on the display to initiate operations.
All-in-One Integration for Effortless Installation 1
Modular Design for Easy Installation​
This modular display features a user-friendly design for a simplified installation experience. Each LED module automatically configures and calibrates to its specific location and settings during installation, ensuring a smooth and effortless process​.
Premium Aesthetics with Ultra-Slim & Bezel-Free Design
Spanning an expansive 136” screen, equivalent to nine 46” LCD displays combined, this frameless display seamlessly delivers content without any visible bezel stitching, creating a truly immersive visual experience. Its minimalist and sleek design, with a slim 34mm thickness, exudes sophistication that effortlessly complements any space and interior design.​
Captivating Visuals that Shine Bright
Experience stunning clarity with an impressive brightness of 600 nits, featuring 100-level adjustments and an outstanding 6,500:1 contrast ratio. This display delivers captivating, crystal-clear visuals, effortlessly shining in large venues with ambient lighting. Boasting a lightning-fast 3,840 Hz refresh rate, it effortlessly elevates every presentation to an unparalleled level of excellence.​
600 nits Brightness, 6,500:1 Contrast Ratio
Captivating Visuals that Shine Bright 1

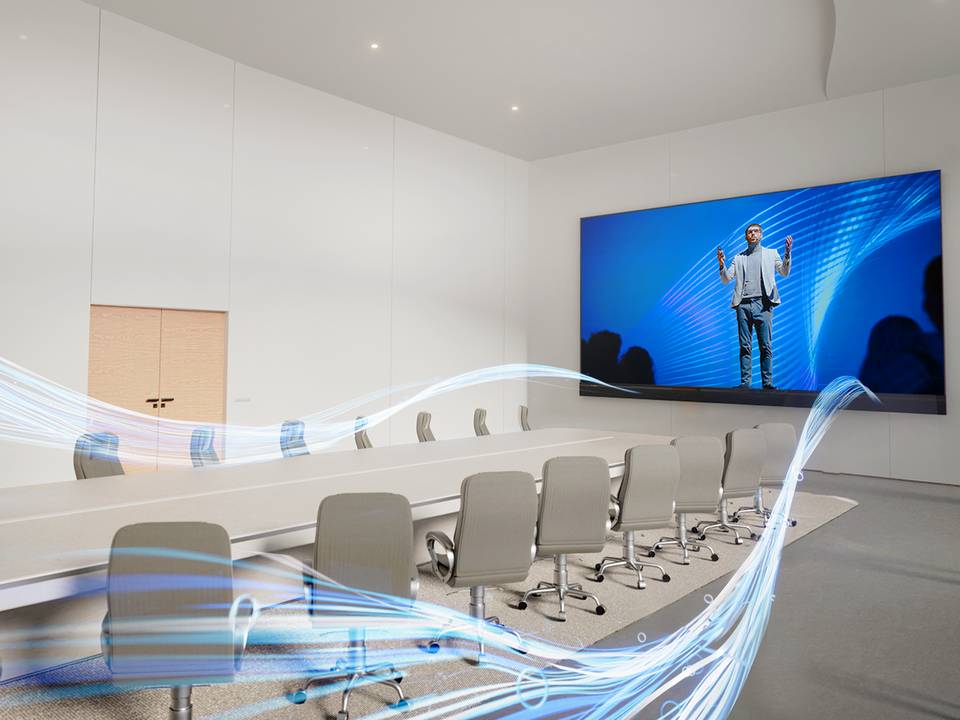

Engage Your Audience through Powerful Audio
Deliver compelling presentations that captivate your audience with the display's dual sets of 18W speakers, ensuring powerful and clear sound even in large venues.
18W Speakers
Engage Your Audience through Powerful Audio 1
Centralized Management via LAN Control
This LED display supports easy and efficient control of multiple-display configurations through LAN control, enabling centralized management, scheduling, and adjustments from a remote location.

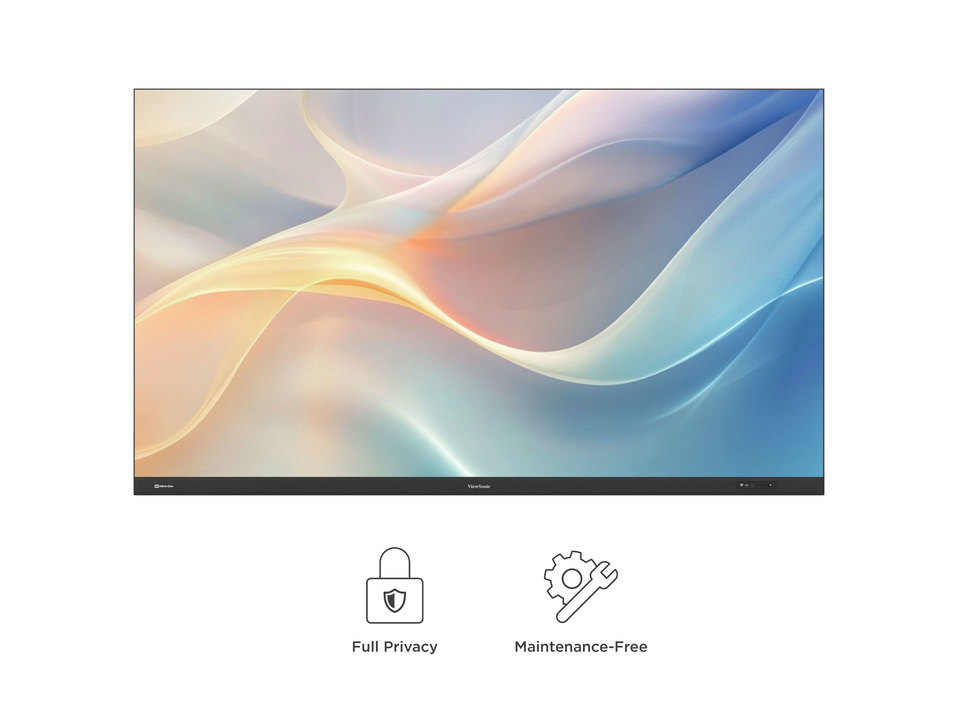

Streamlined and Secure with an OS-Free Design​
This LED display features a secure OS-free design with no pre-installed apps, minimizing software vulnerabilities and hacking risks. It also simplifies maintenance by removing the need for updates.
Streamlined and Secure with an OS-Free Design​ 1

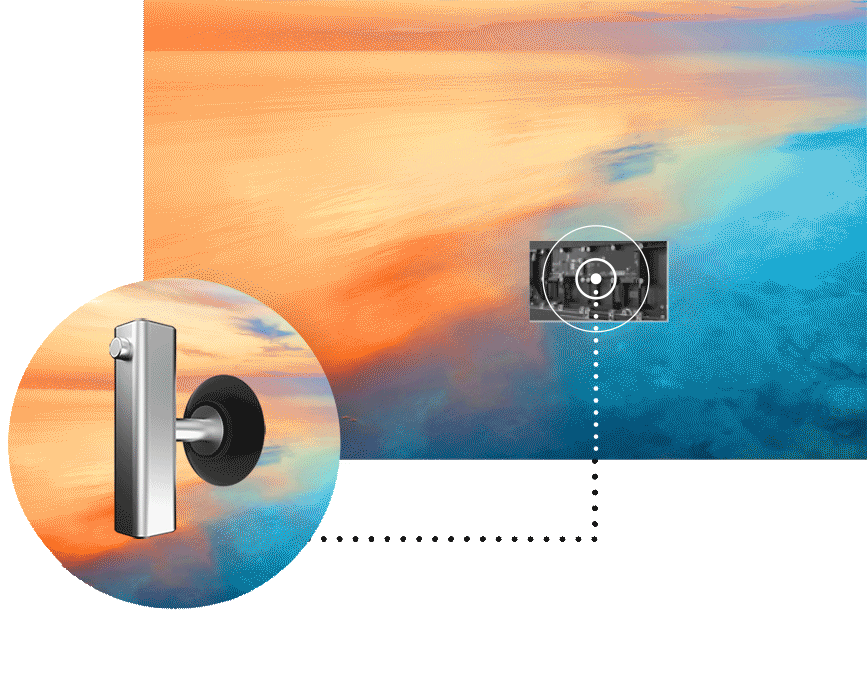

Full Front Maintenance
Instead of relocating an entire set of display for maintenance, users can effortlessly replace any defective piece with the hot-swappable front LED modules using the electric vacuum suction tool – it's easy to use regardless of technical expertise.
Hot-Swappable
Full Front Maintenance 1

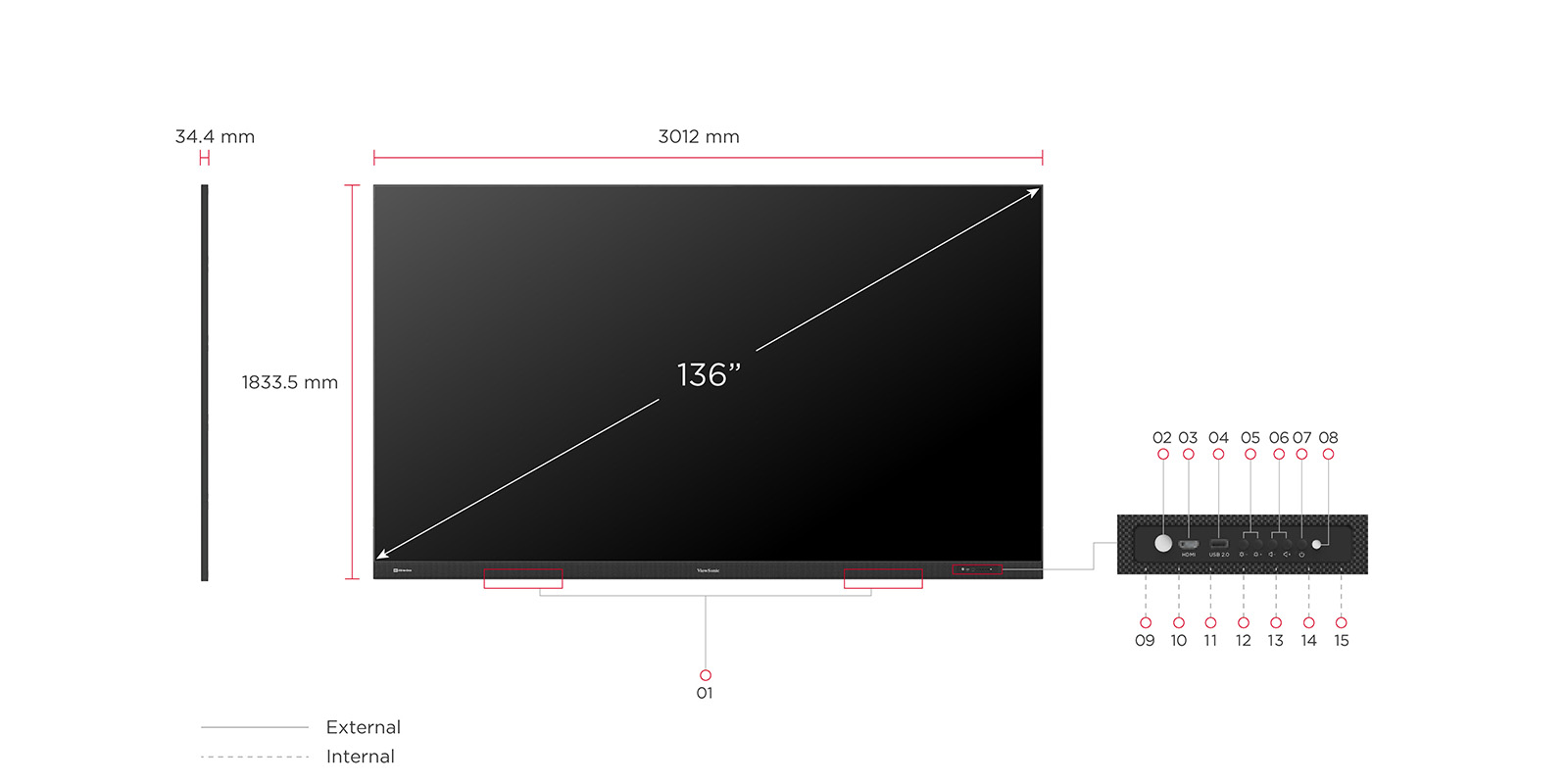

Dimensions & I/O Ports
  1. Speakers
  2. IR Receiver
  3. HDMI 1
  4. USB 2.0
  5. Menu Control: Brightness Level
  6. Menu Control: Volume Level
  7. Power Button
  8. Indicator Light
  9. HDMI 2
  10. HDMI Out
  11. RJ45
  12. USB 2.0
  13. SPDIF Out
  14. Audio Out x2
  15. RS-232







SPECIFICATIONS




  • Specification
    Screen Size: 136"
    Display Area (mm): 3000 (H) x 1687.5(V)
    Native Resolution: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1 (GOB)
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.56
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 6500:1
    Color Temperature: 3000K -10000K
    Orientation: Landscape
    Viewing Angles  (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Embedded OS: Simplified OS
    Resolution Support: SVGA(800 x 600) to 1080p(1920 x 1080@60hz)
    HDTV Compatibility: 720p, 1080p
    Horizontal Frequency: 31K-94kHz
    Vertical Scan Rate: 56-85Hz
  • Input
    HDMI: 2

(HDMI 1.3/HDCP 1.4)

(internal x1, external x1)
    USB Type A: 2

(USB2.0)

(internal x1, external x1)
    RJ45 Input: 1

(control)
  • Output
    HDMI out: 1

(HDMI 1.3/HDCP 1.4)
    Speaker: 18Wx2
    Audio out (3.5mm): 2

(internal speaker x1)
    S/PDIF: 1
    USB Type A (Power): Shared with USB A input

(5V/0.5A )
