X1

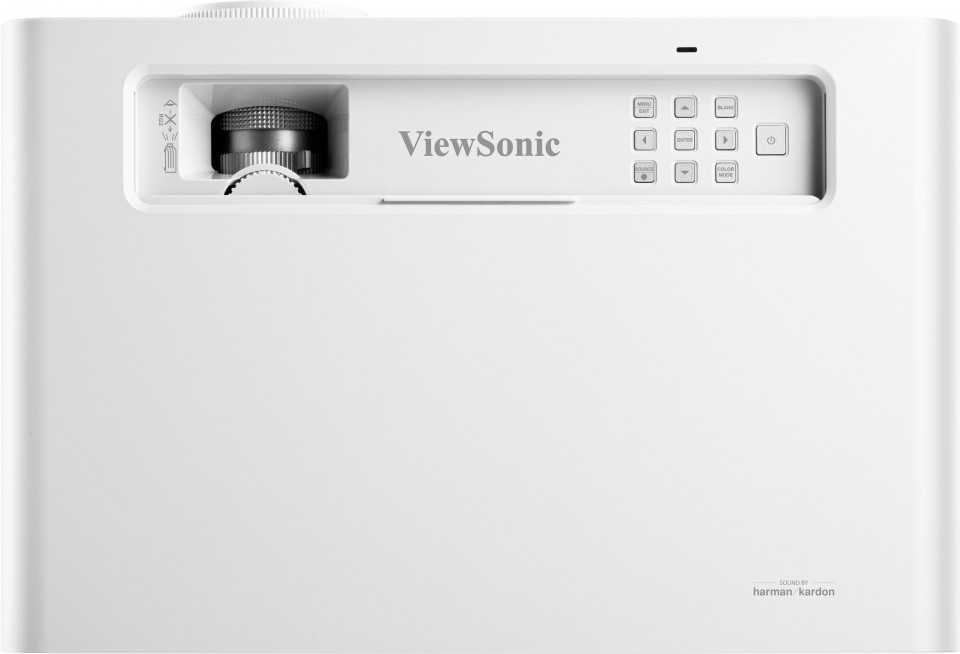

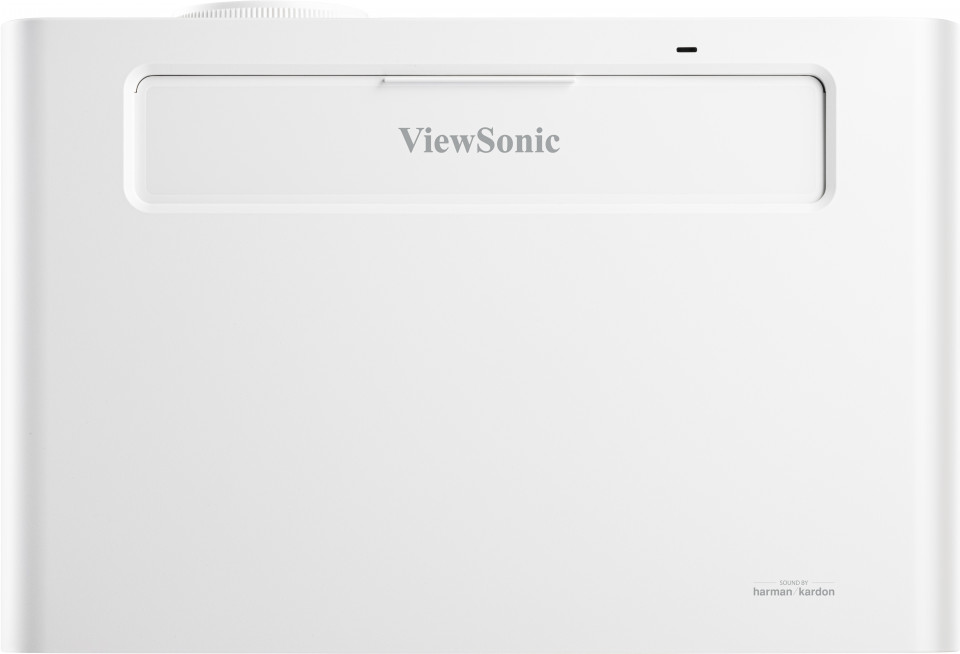

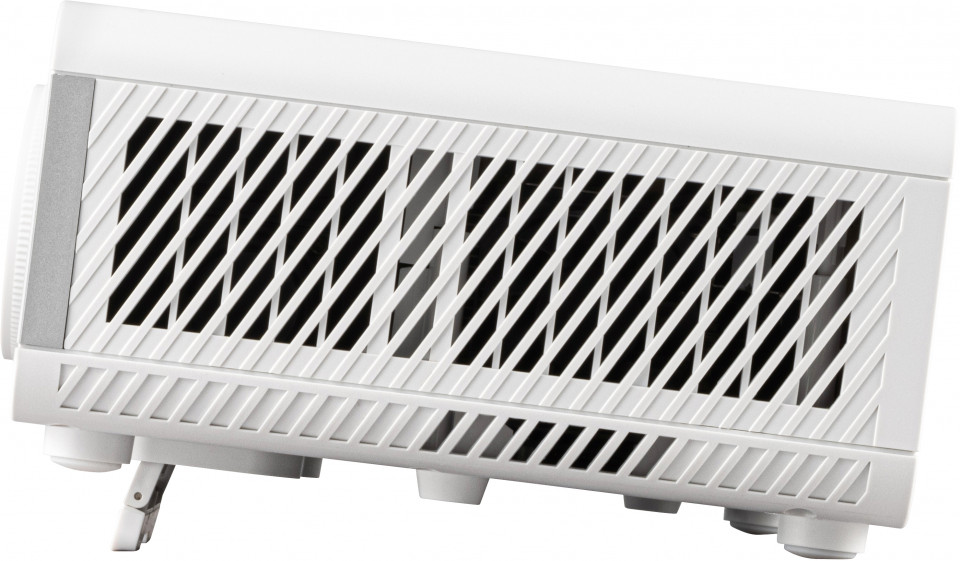

3,100 LED Lumens Full HD Smart LED Home Projector
- 3rd generation LED technology with a 30,000-hour lifespan
- 3,100 LED Lumens for bright and clear images in any environment
- Cinema SuperColor+™ Technology with 125% Rec.709 wide color gamut
- Custom-built speakers by Harman Kardon
- Smart connectivity via Wi-Fi, Bluetooth, and USB-C
- V lens shift, H/V keystone, and 1.3x zoom for easy setup
SPECIFICATIONS
- SpecificationProjection System: 0.65" 1080p
Native Resolution: 1920x1080
Brightness: 3100 (LED Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lamp Watt: RGBG LED
Lens: F=2.59-2.87, f=16.88-21.88mm
Projection Offset: 110%+/-5%
Throw Ratio: 1.15-1.5
Optical Zoom: 1.3X
Digital Zoom: 0.8x-2.0x
Image Size: 60"-150"
Throw Distance: 1.53m-4.98m
(100"@2.55m)
Keystone: H:+/-40° , V:+/-40°
Lens Shift V. Range: +10%, -0%
Audible Noise (Normal): 31dB
Audible Noise (Eco): 27dB
Local Storage: Total 16GB
(11GB available storage)
Input Lag: 8.3ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz

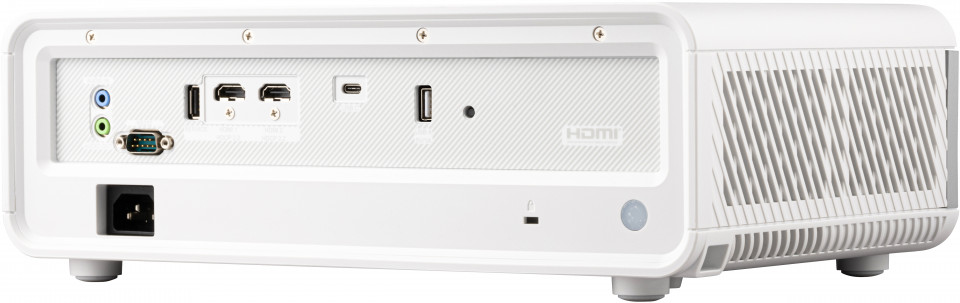

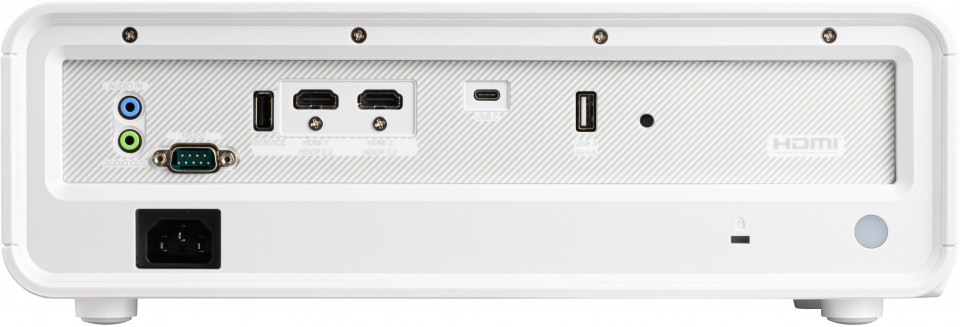

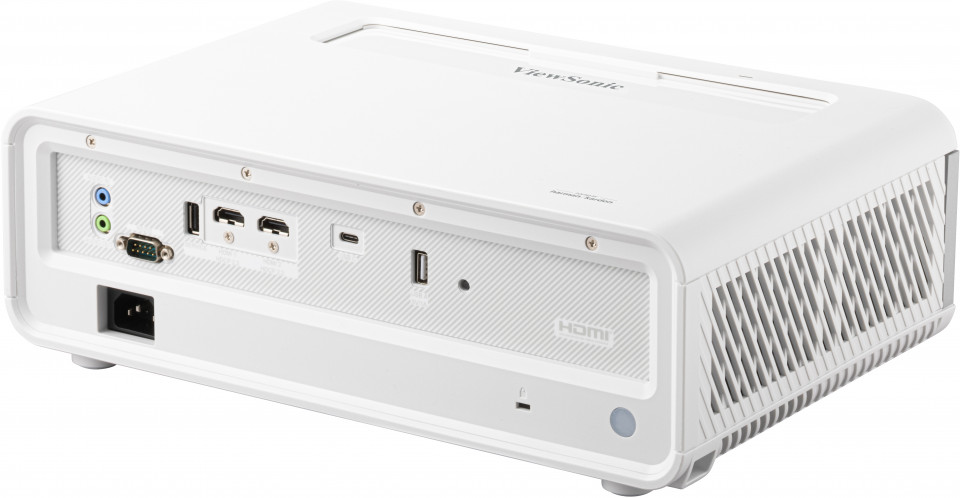

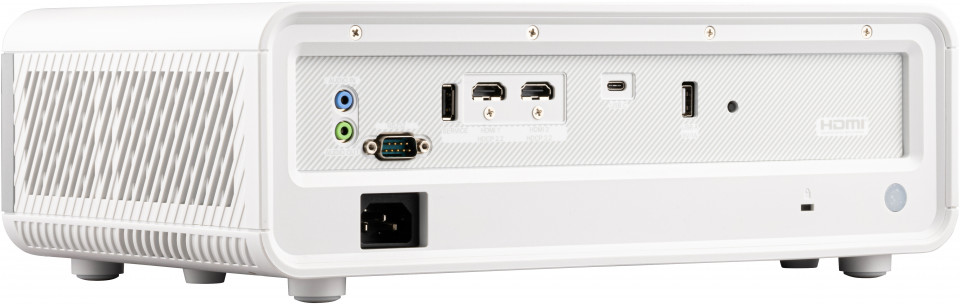

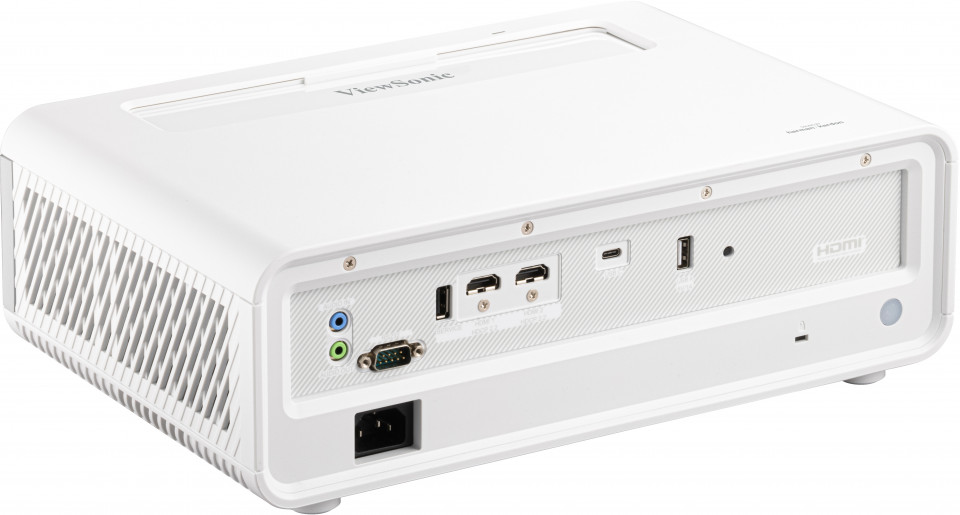

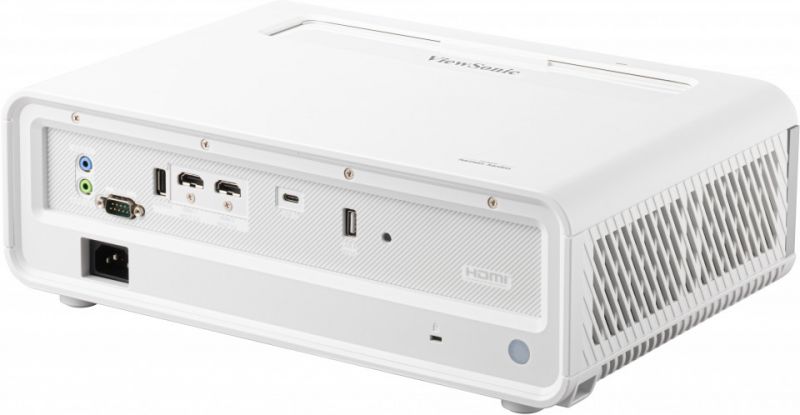

Vertical Scan Rate: 23-120Hz - InputHDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)
USB Type C: 1 (5V/ 1A)
Audio-in (3.5mm): 1
Audio-in (Bluetooth): 1 (BT4.2)
USB Type A: 1
(USB2.0 Reader x1)
Wifi Input: 1 (5Gn) - OutputAudio-out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT4.2)
Speaker: 6W Cube x2
(Full range x2)
USB Type A (Power): 1
(USB2.0 - 5V/1A x1,
share with USB A Input)
- ControlRS232 (DB 9-pin male): 1
USB Type A (Services): 1 - OthersPower Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 218W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Color
Net Weight: 3.6kg
Gross Weight: 5.5kg
Dimensions (WxDxH) with Adjustment Foot: 355x244x121mm
Packing Dimensions: 490x376x313mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard AccessoryPower Cord: 1
USB-C Cable: 1 (1m)

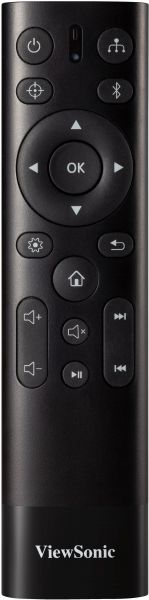

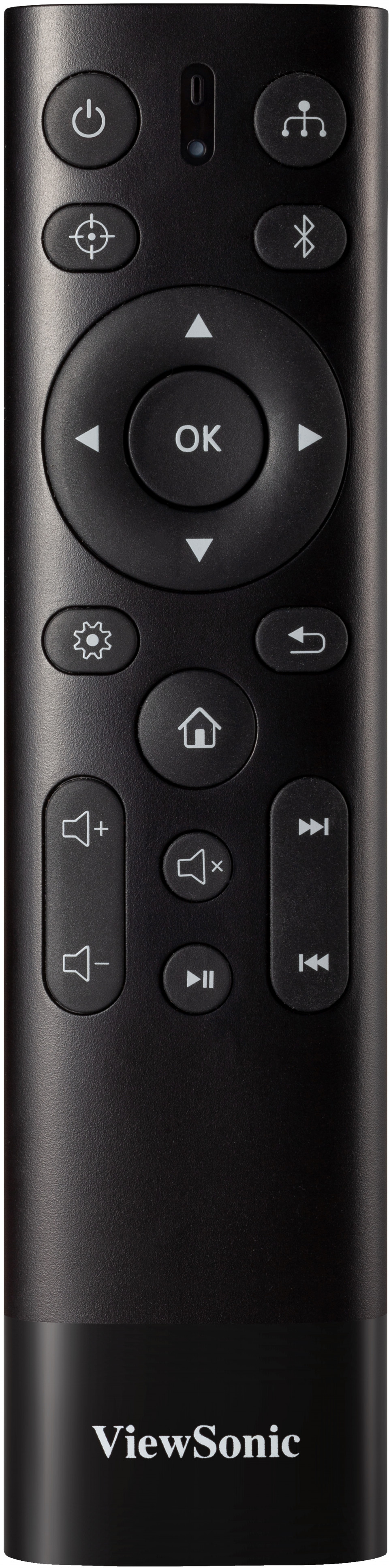

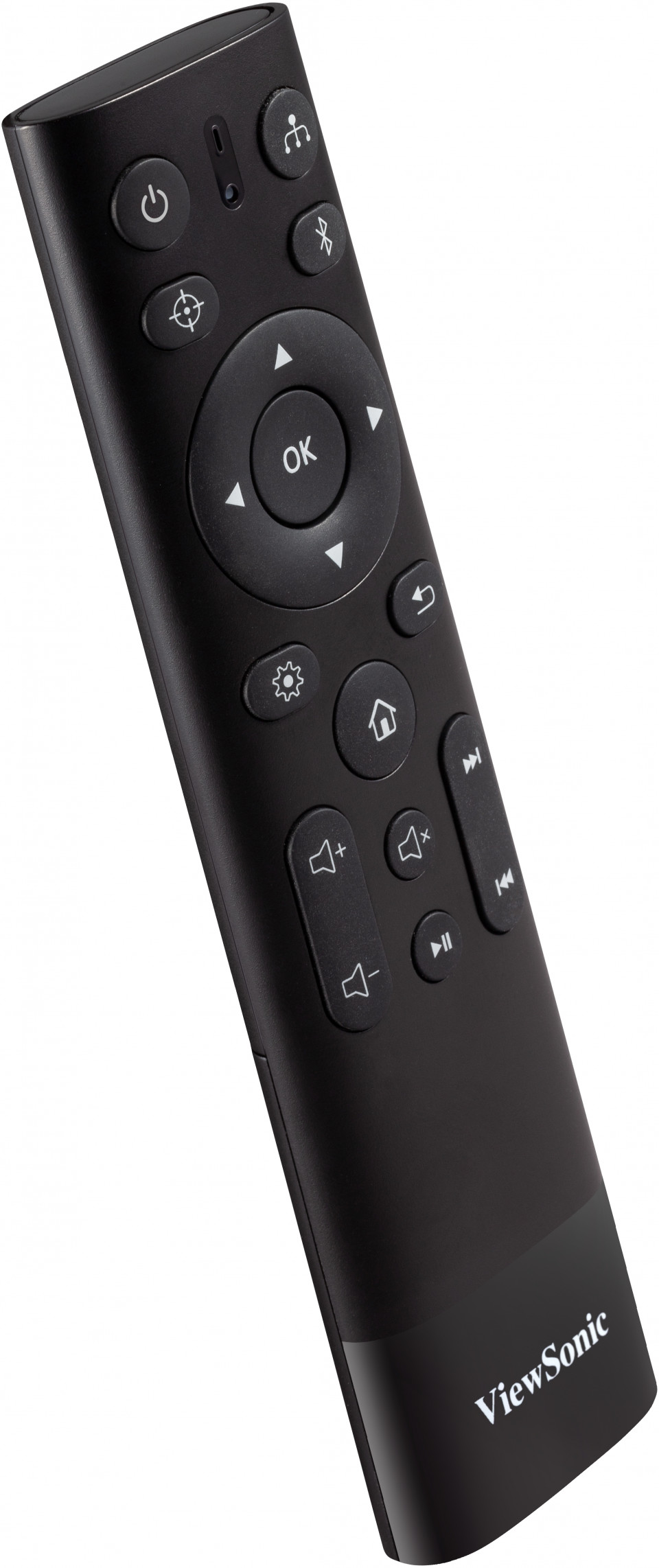

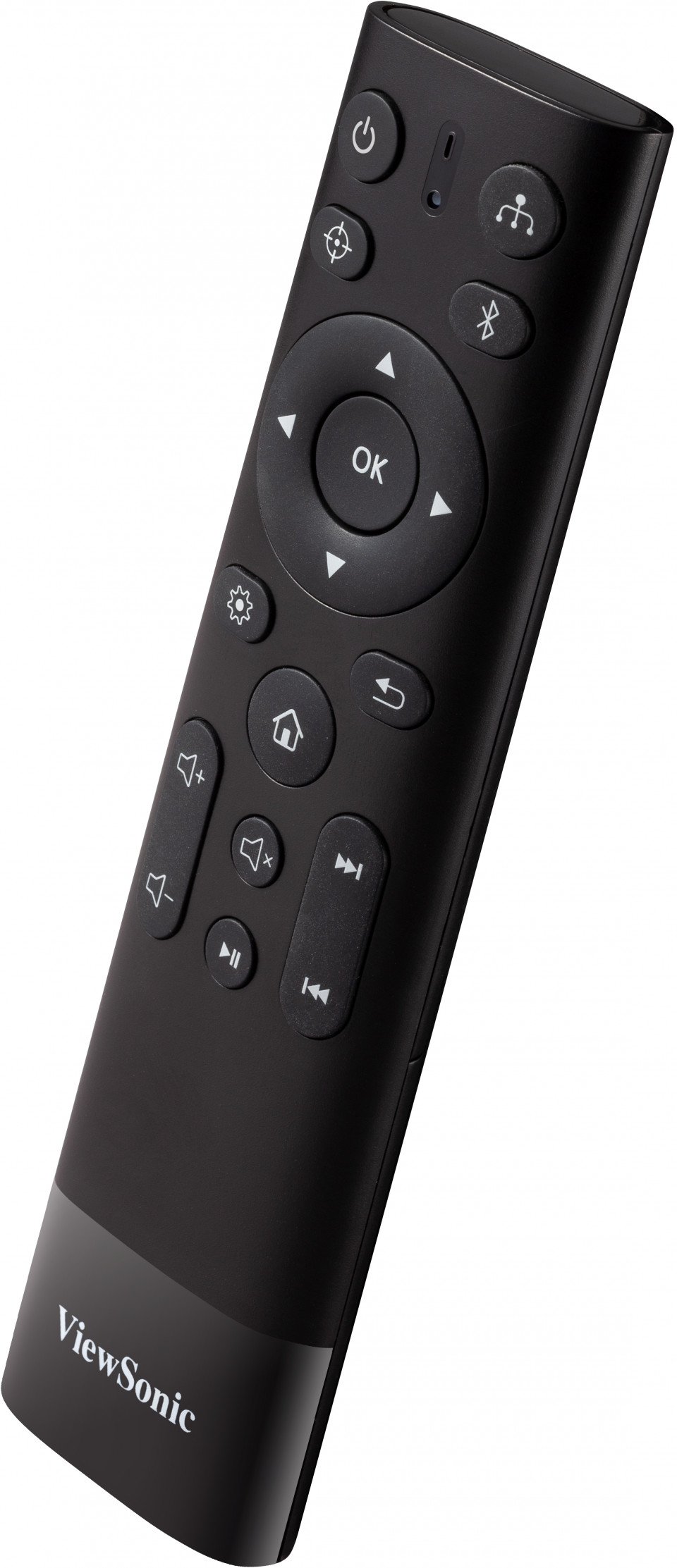

Remote Control: 1
(w/ backlit)
QSG: Yes
Warranty: *Warranty offered may differ from market to market - Optional AccessoryWall/Ceiling Mount: PJ-WMK-007
