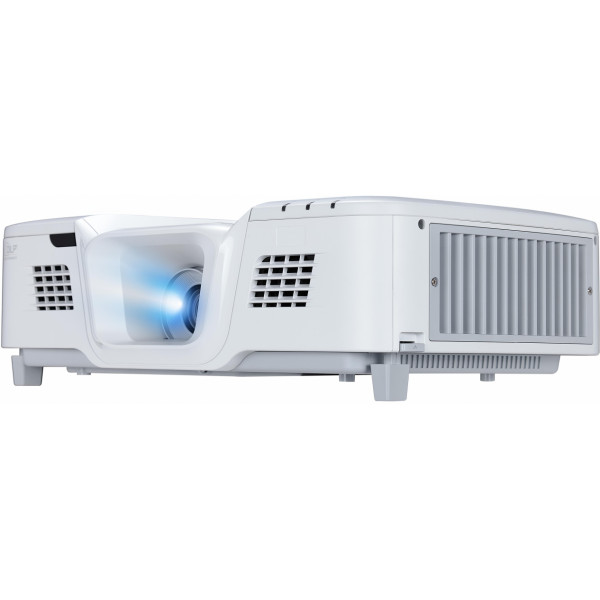

PG800HD

5,000 Lumens Installation Projector

  • Full HD 1080p resolution
  • 4-in-1 power button
  • Vertical lens shift with centered lens
  • PortAll® compartment for wireless dongle
  • LAN control support-Crestron, AMX and PJ Link
Sales Enquiry  Projector Warranty Extension  Share

OVERVIEW

Delivering 5000 ANSI Lumens of brightness in 1080p resolution, the ViewSonic PG800HD is the perfect installation projector for large, brightly lit environments such as conference rooms, classrooms, or any other large public venue. Utilizing an intuitive design, PG800HD is highly flexibility and easy to install. It comes equipped with centered lens and vertical lens shift, which offer extra flexibility that makes the projectors more adaptable to difficult installation locations. The concealed PortAll® compartment can accommodate optional HDBT or wireless dongles for versatile content projection. PG800HD is certified by Creston, AMX, PJ Link and Extron, meaning that it can be controlled remotely via LAN connection for efficient projector management. Other notable features include SuperColor™ technology for true-to-life image color, SonicExpert, and SonicMode for incredibly clear sound which allows PG800HD to deliver a professional audio-visual experience.


Ease of Use

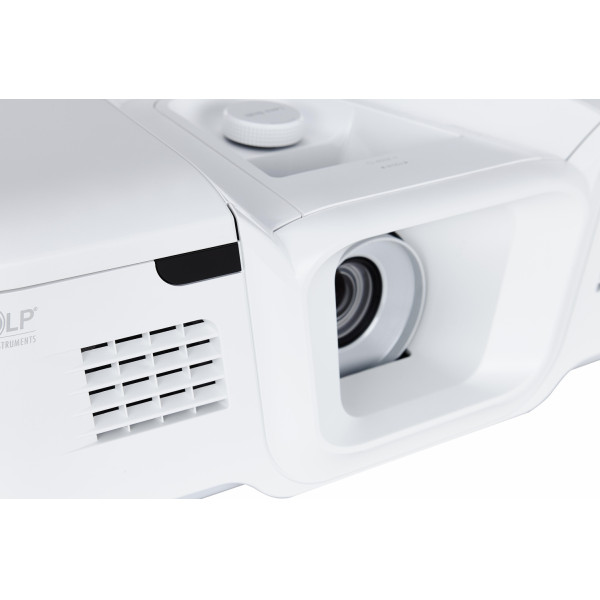

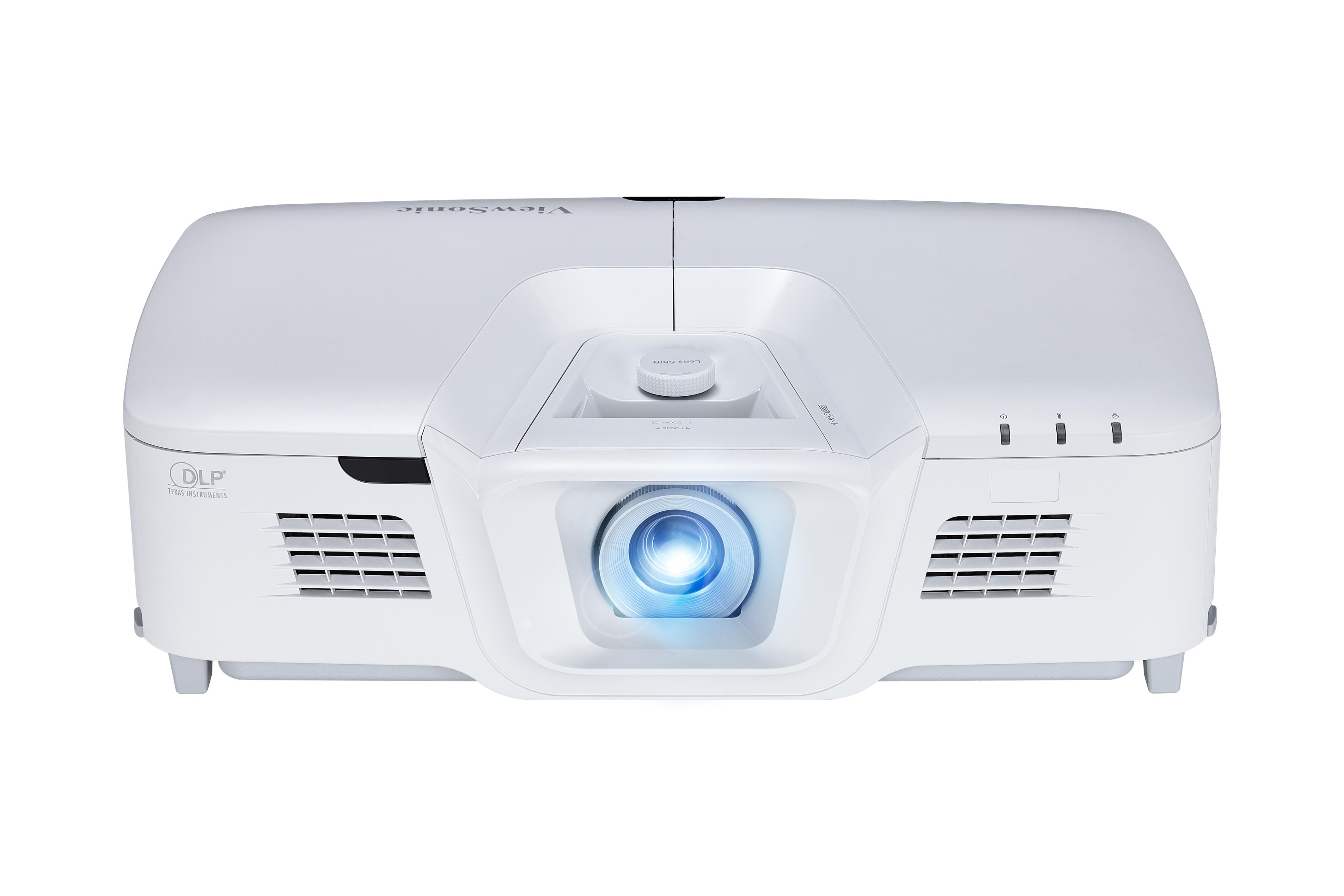

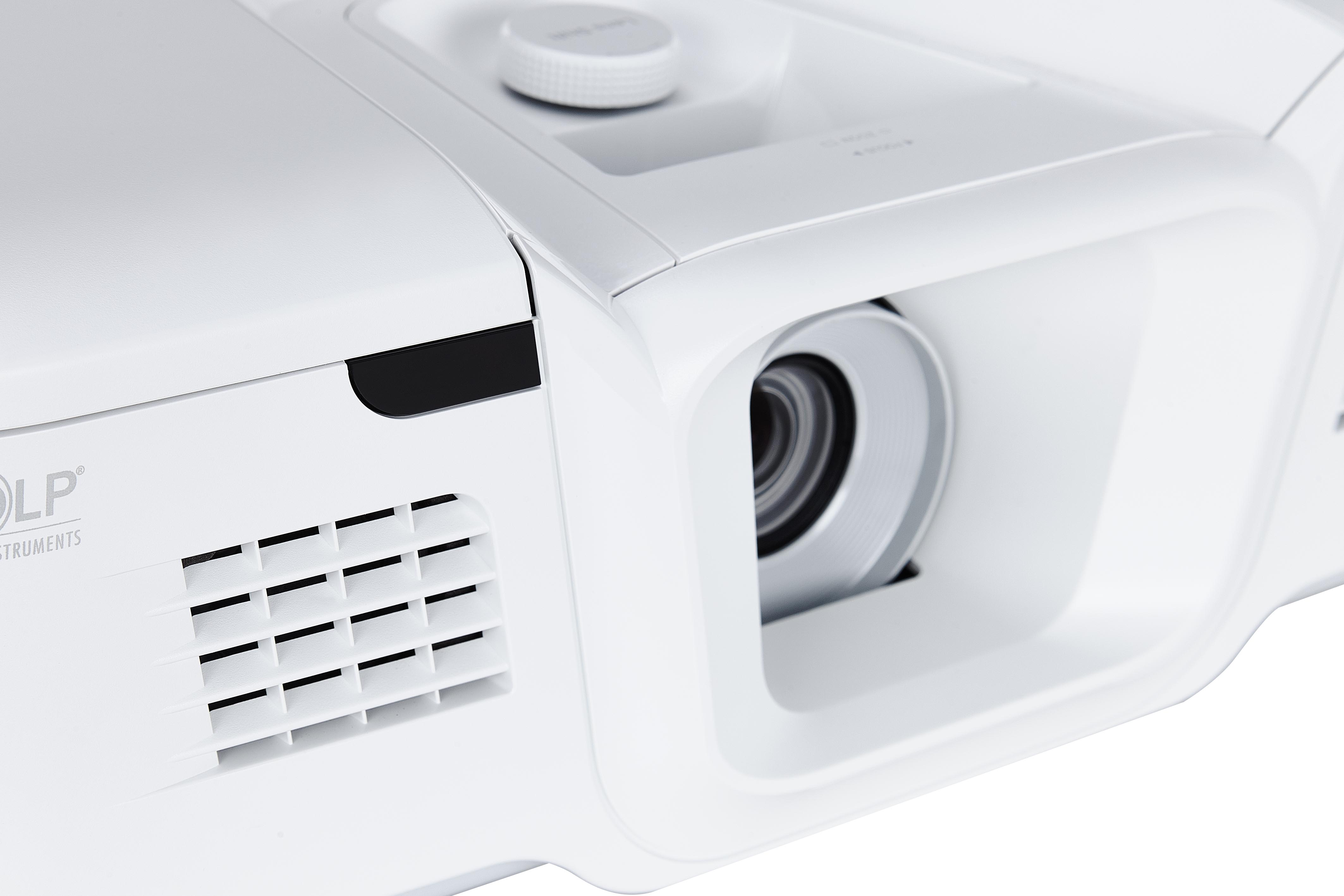

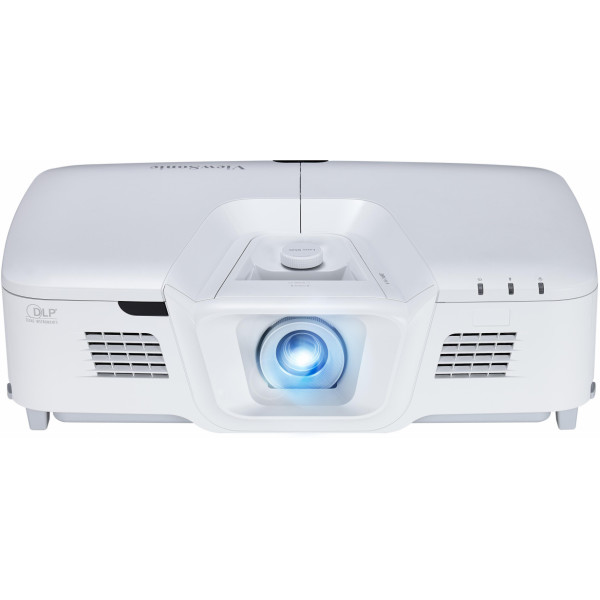

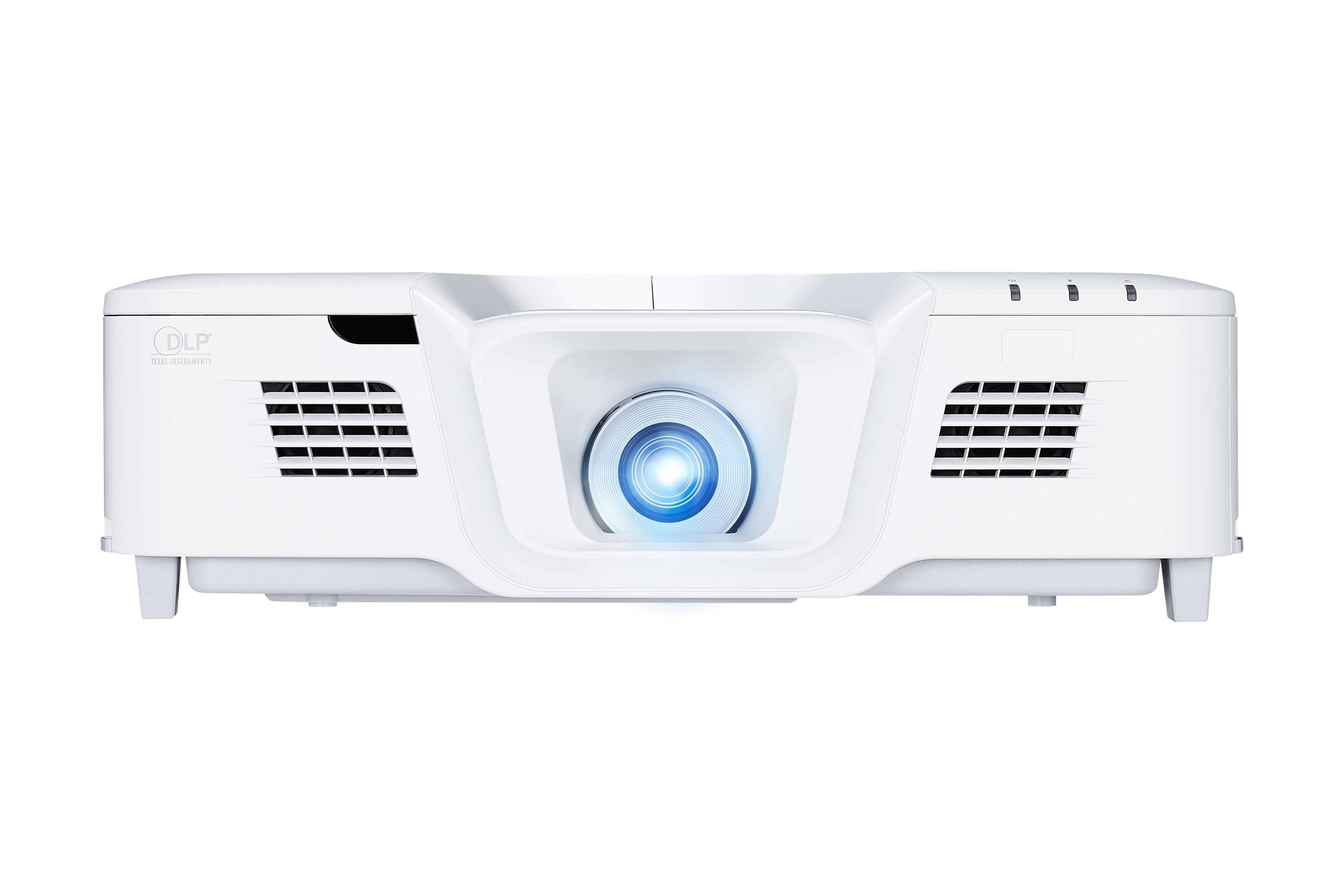

Centered Projection

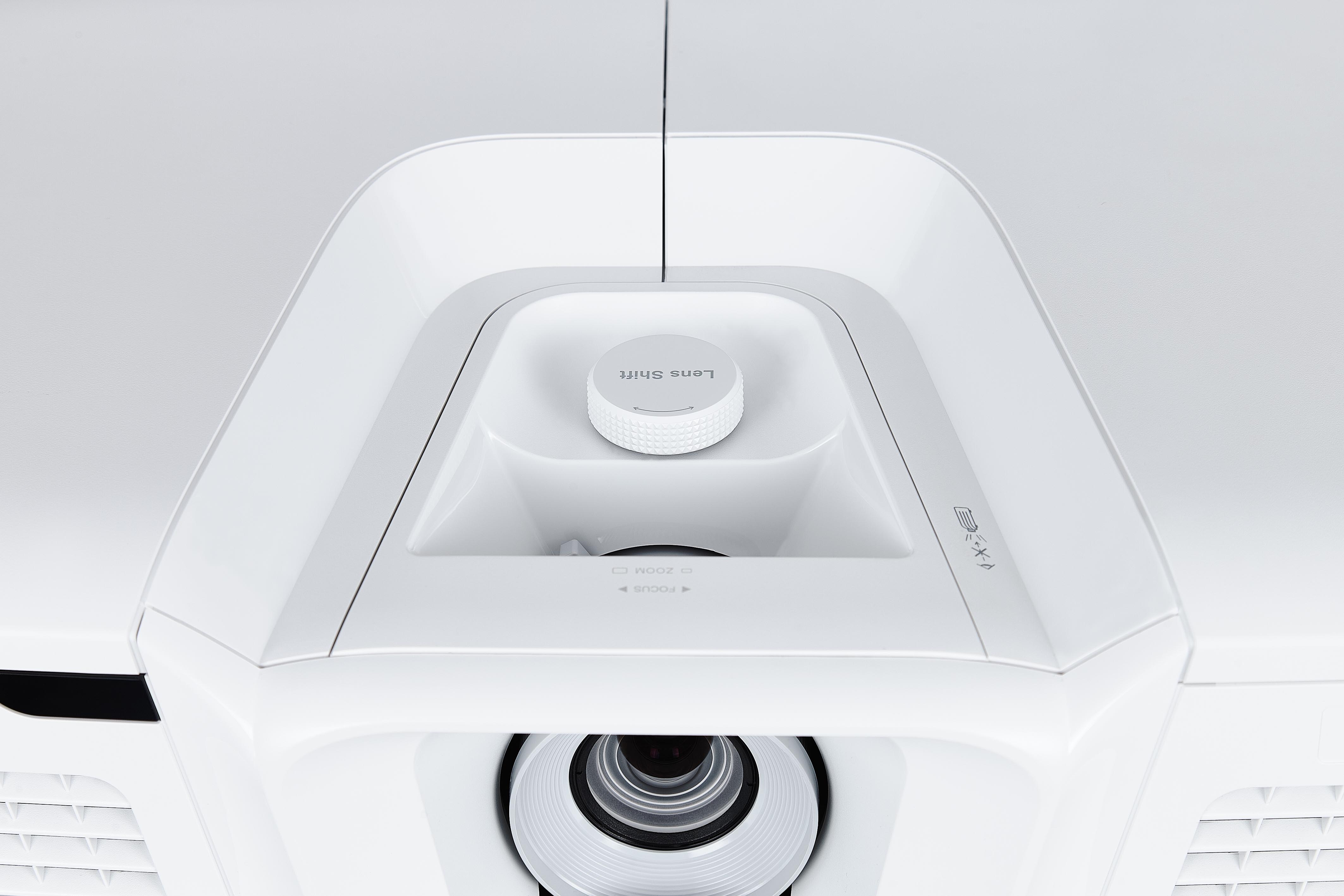

A centered lens design makes this projector ideal for upgrading existing centered lens installations by allowing users to use the same positioning as existing ceiling mounts and projection screens.

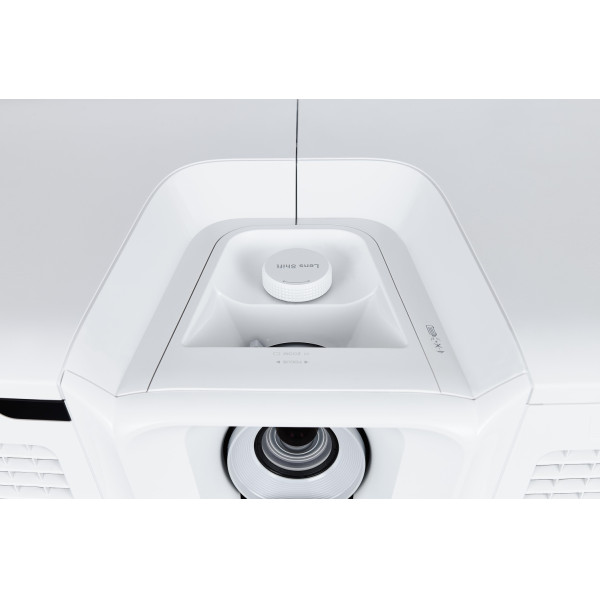

Installation Flexibility

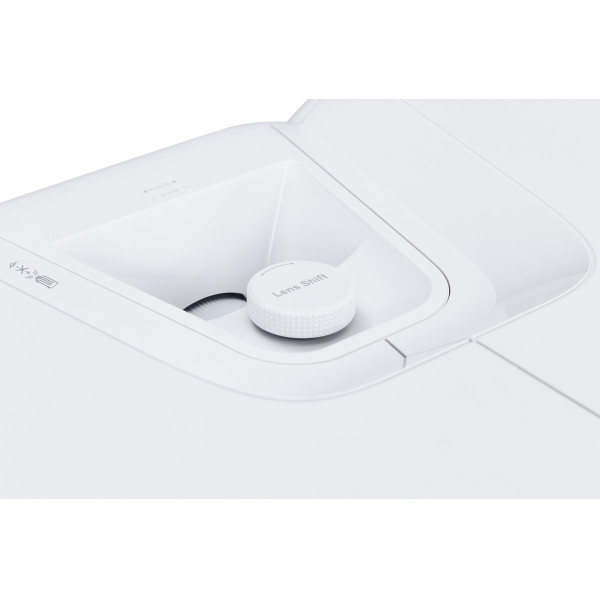

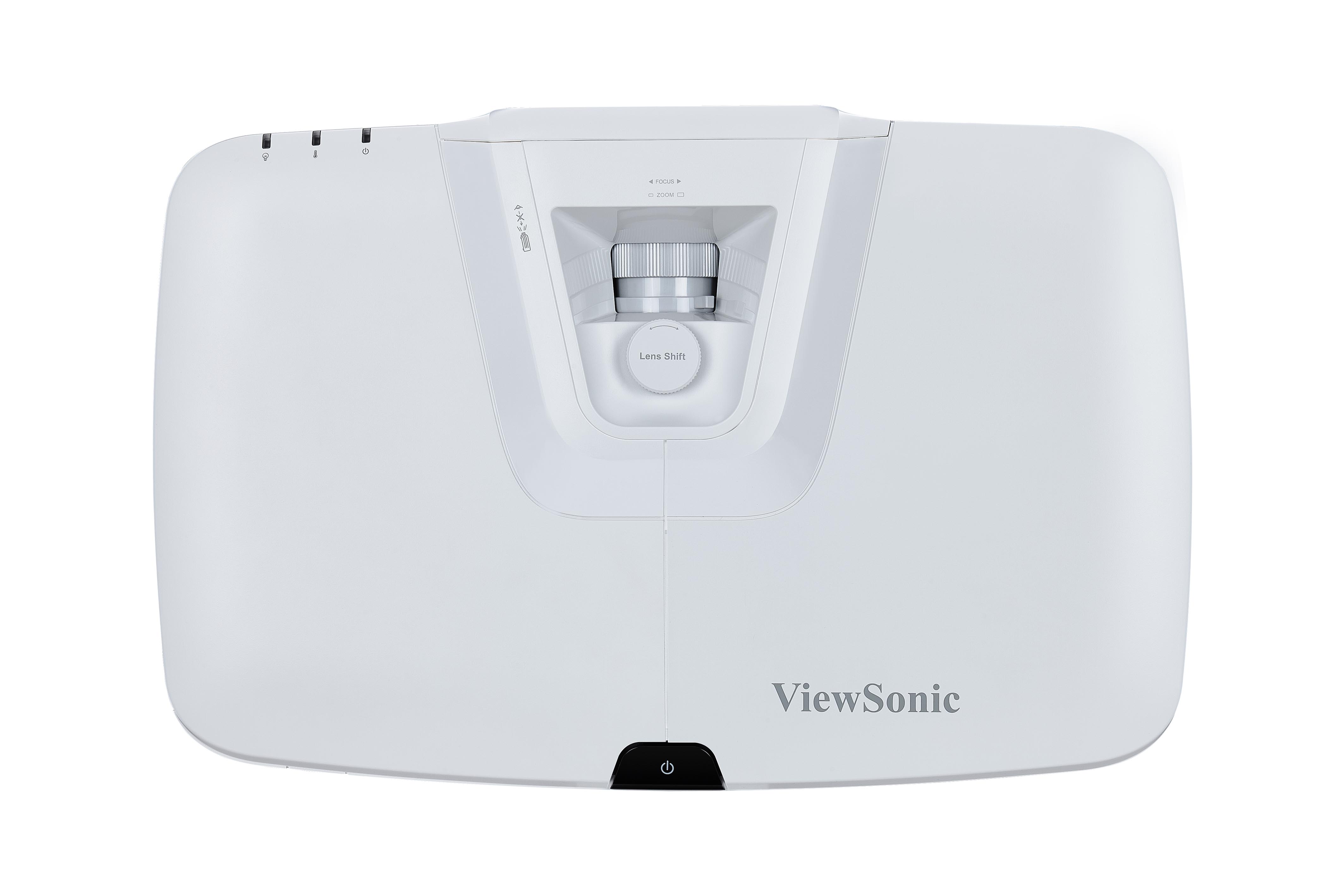

Vertical Lens Shift offers vertical adjustments of the projection lens, providing flexible installation options with less placement restrictions.



Auto V Keystone

The automatic vertical keystone improves usability and makes setup and image positioning more convenient for a perfectly proportioned picture every time.

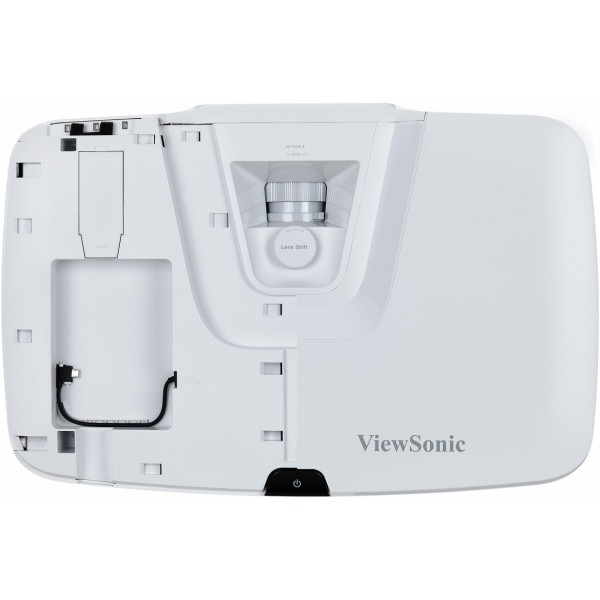

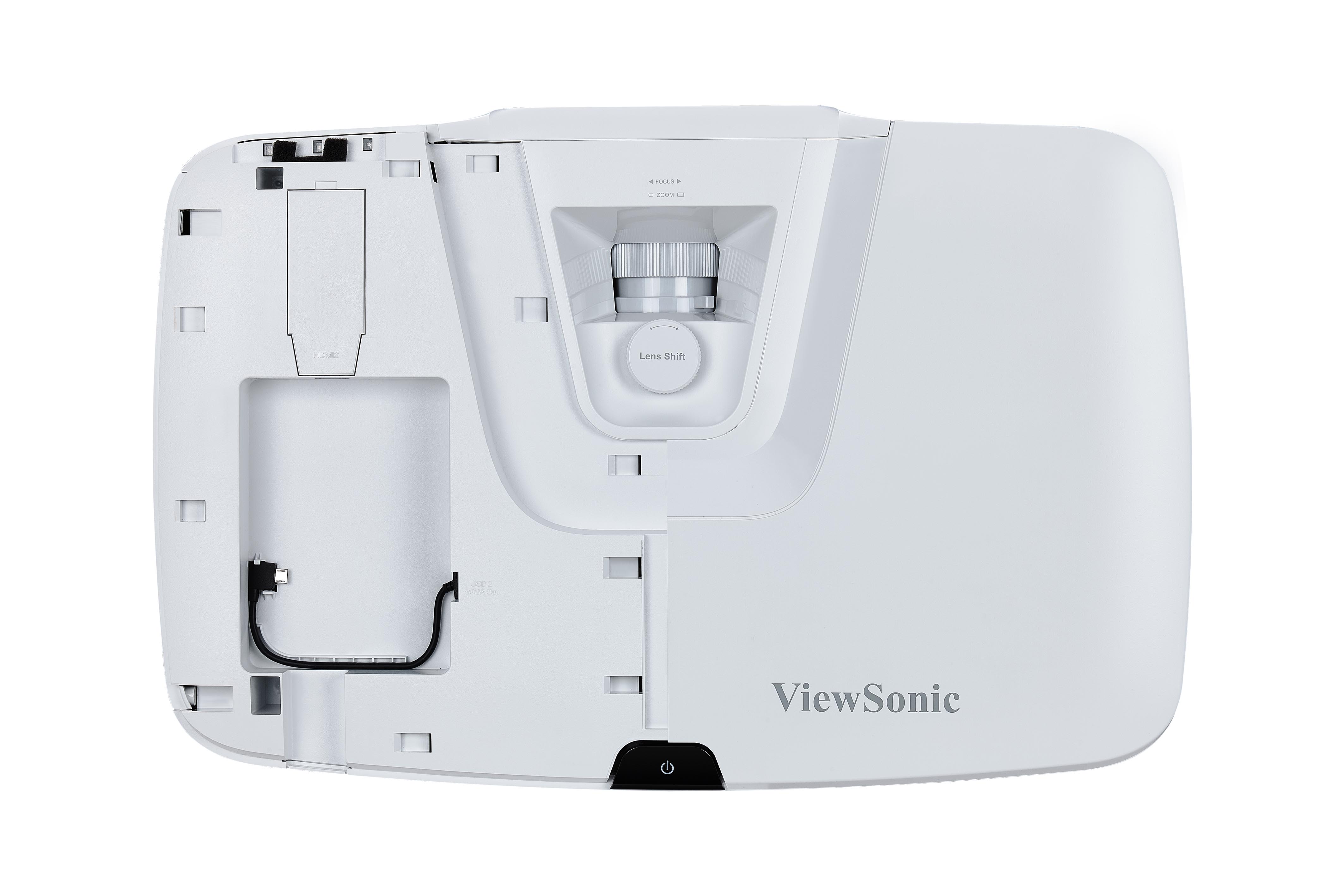

Cleverly Concealed Streaming

ViewSonic’s exclusive PortAll® concealed compartment has an integrated HDMI port that lets you discretely stream multimedia content from an HDBT dongle or other wireless dongle. Connected dongles can be powered via the built-in Micro USB cable which charges the dongle with 10 watts of power.

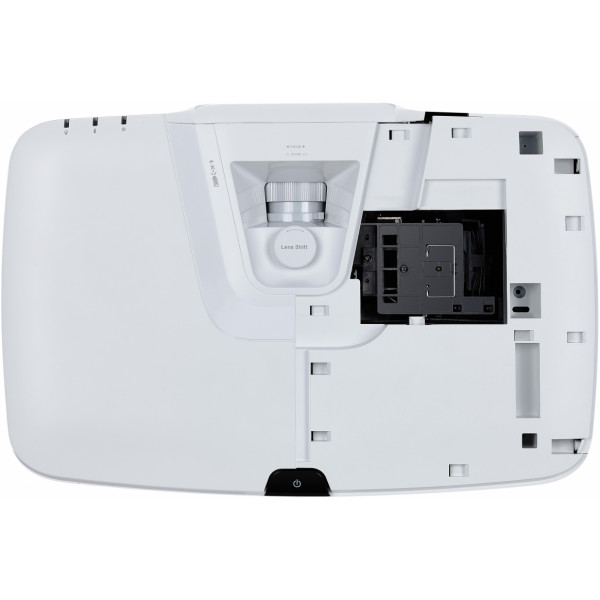

Effortless Maintenance

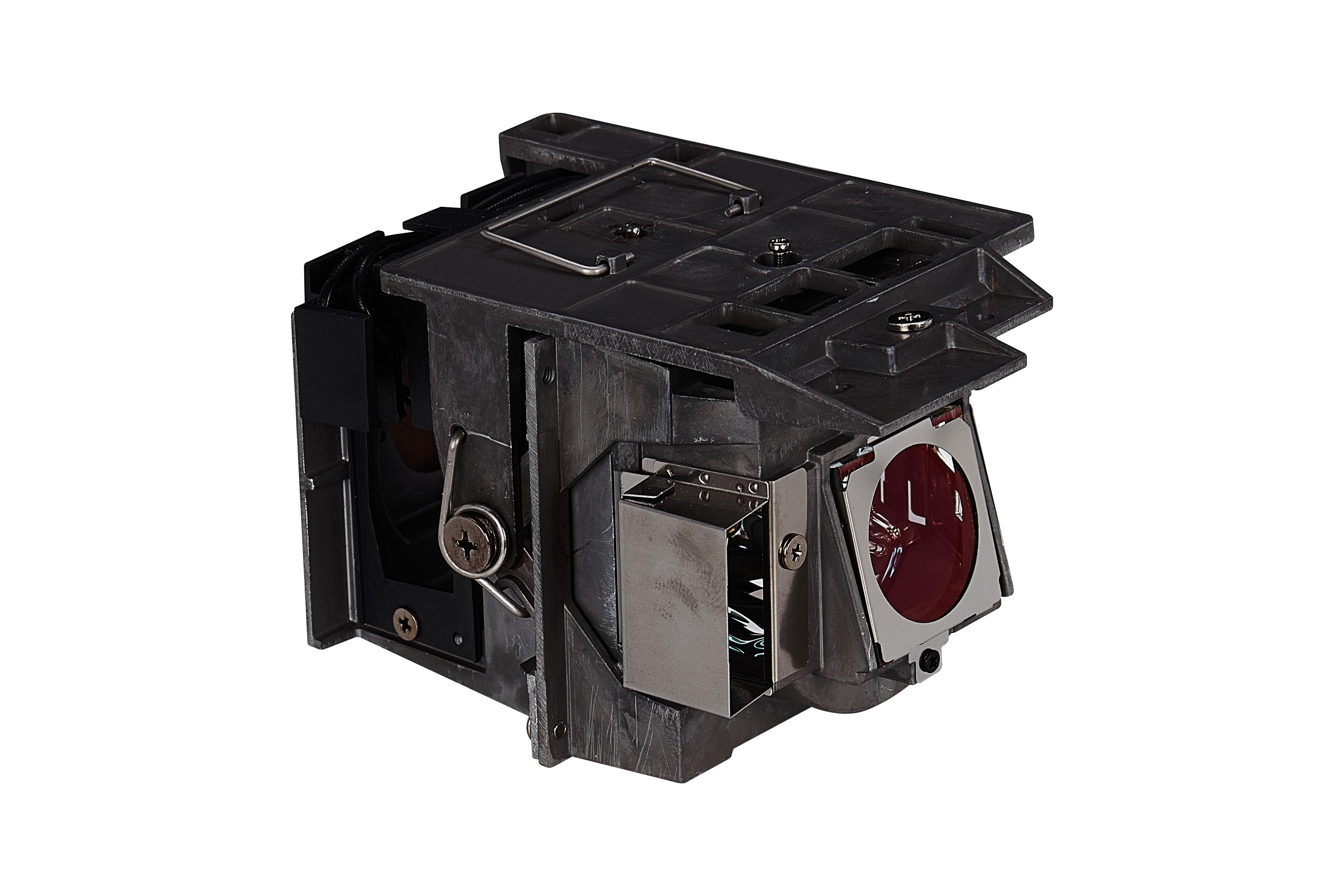

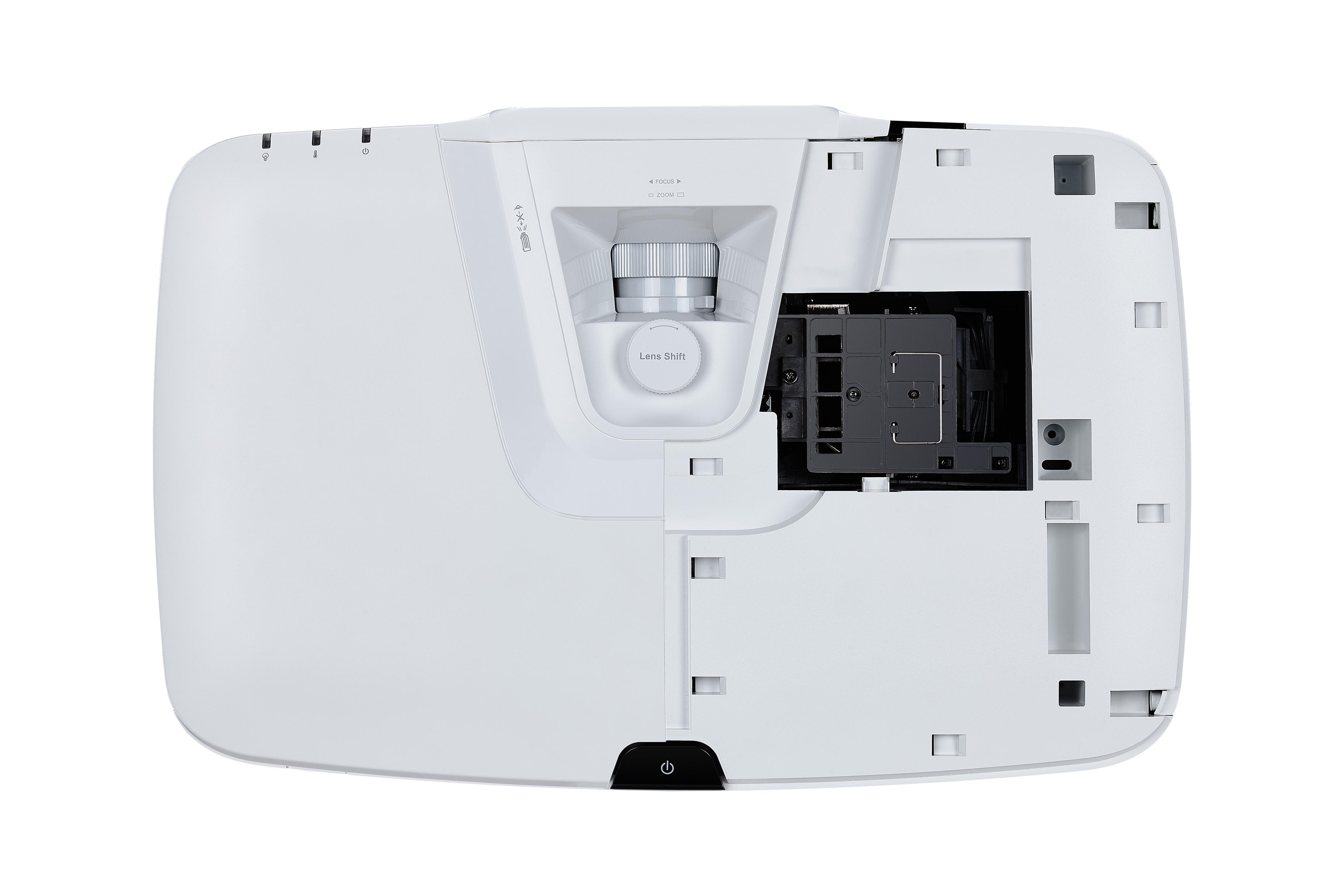

The tool-free top cover design is easy enough for users to check the maintenance room without any hassle. Under the top cover, the ample room provides users to adjust or change a dongle or lamp conveniently, making ceiling mounted applications easier to manage.




Secure Power Connection

The power cable locker fastens the power cable connection in place to avoid the inconvenience of an unexpected projector shutdown due to a loose or accidently unplugged cord.




Centralized Control

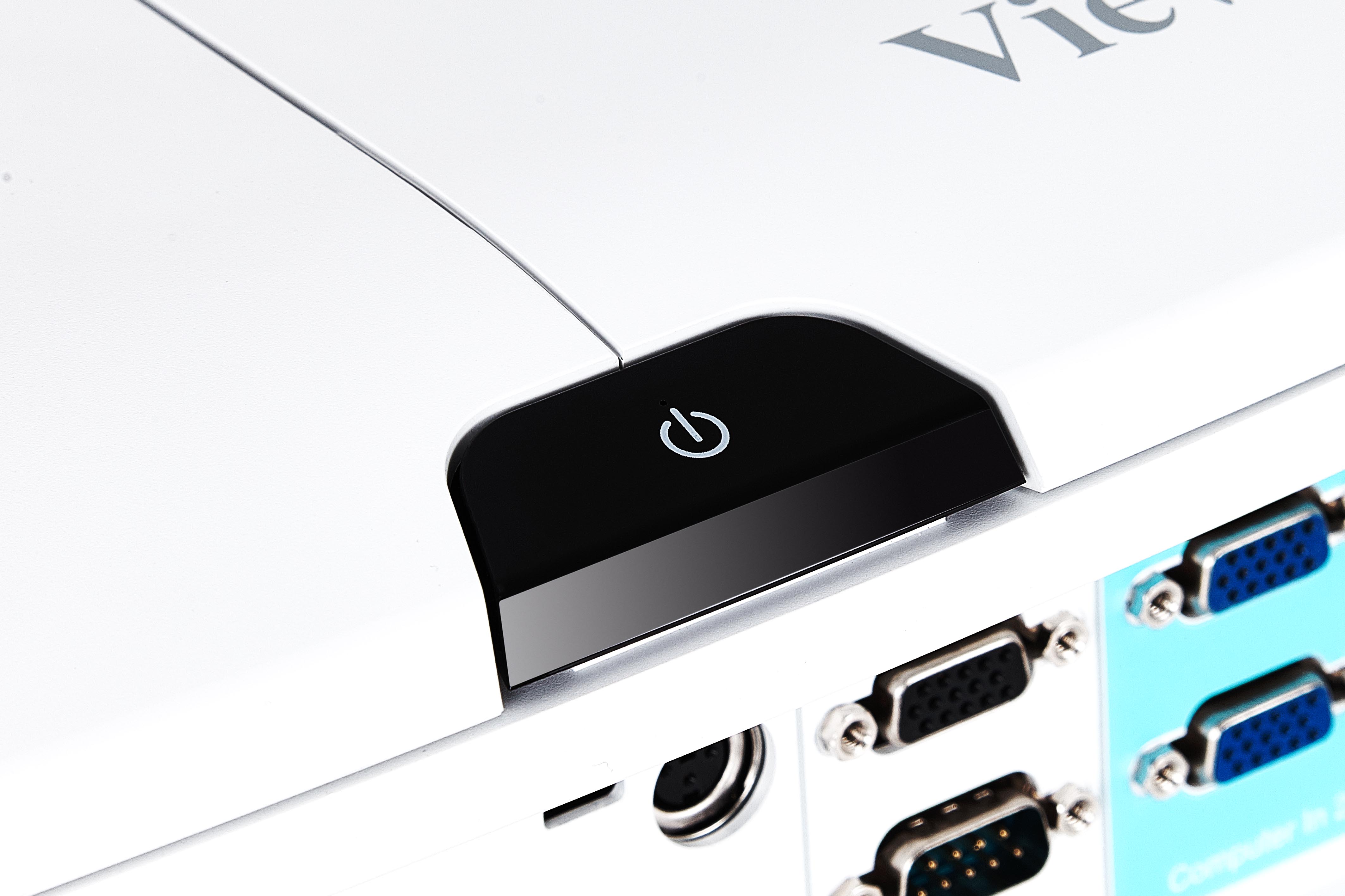

A centrally located, easy-to-use power button acts as the control center for projector management. In addition to turning the projector on and off, it is also an IR receiver and indicates whether any dongles are connected to the PortAll® compartment via an LED that lights up the power button.




LAN Control

PG800HD is Creston, AMX, PJ Link, and Extron certified for easy-to-use network management that allows administrators to remotely observe and control up to 256 projectors at one time through a LAN IP. An advanced real-time alert system sends status updates about power, lamp life, and unit location for efficient monitoring.




Optional ViewSonic® HB10B HDBT dongle

Based on HDBT technology, ViewSonic HB10B fits into the PortAll® compartment and is a stable method to transmit uncompressed 4K UHD audio & video over distances of up to 35 meters*.

* When combined with a Cat.5e/6/7 LAN cable

  • 1080P up to 70m by Cat 6
  • 4K/2k up to 35m by Cat 6



Impressive AudioVisual Performance

Amazing Color Accuracy

ViewSonic’s proprietary SuperColor™ Technology displays a wide range of visible color to ensuring stunningly vibrant images.




Powerful Sound

PG800HD is designed with ViewSonic’s SonicExpert® technology which incorporates an enlarged speaker chamber, a more powerful amplifier, and dual 10W cube speakers for room filling sound.




Optimized Audio

SonicMode uses an embedded DSP chip to optimize sound performance for 3 different usage scenarios.

  • Standard Mode: A preset mode that offers the best sound levels for general use.
  • Speech Mode: A preset mode that enhances the sound of spoken words, making it ideal for projecting speeches and lectures.
  • Entertainment Mode: a preset mode that is fine-tuned with more bass and richer mid-high frequencies; ideal for music and movies.






Low TCO

Instant Activation

Auto Power On and Signal Power On can be used to get your projector up and running instantly:

  • Auto Power On: The projector will power on automatically by simply connecting the power cord or through HDMI CEC.
  • Signal Power On: The projector will power on automatically upon detection of a VGA cable connection.



Extended Lamp Life

Sleep Timer allows you to put the projector into sleep mode automatically after a determined period of inactivity to extend the projector’s lamp life.




Reduced Energy Consumption

When no signal has been detected, the projector will automatically power off to conserve energy.

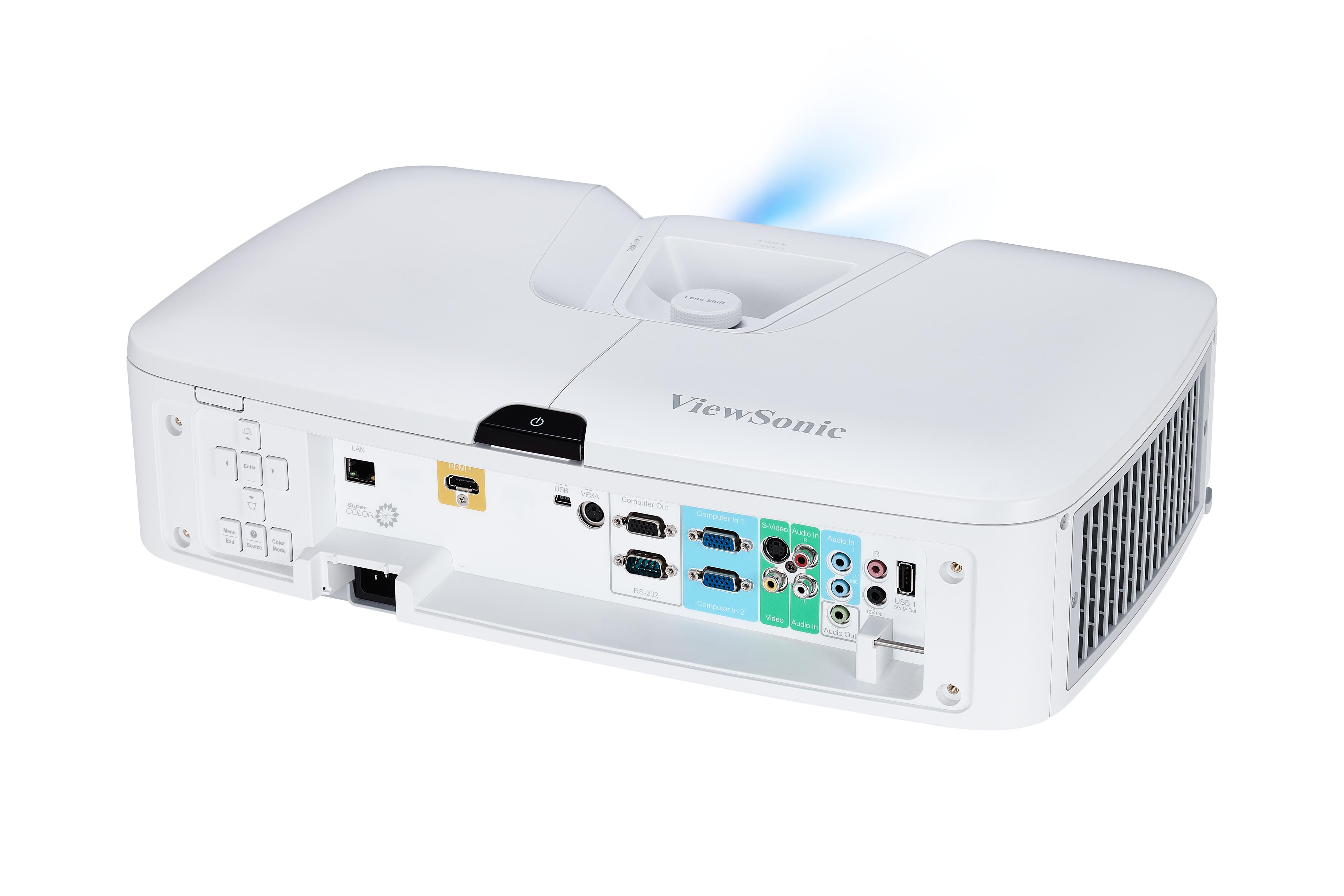

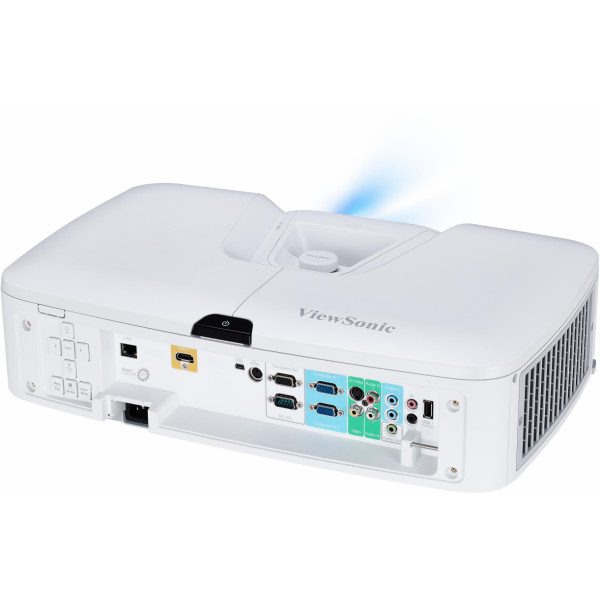

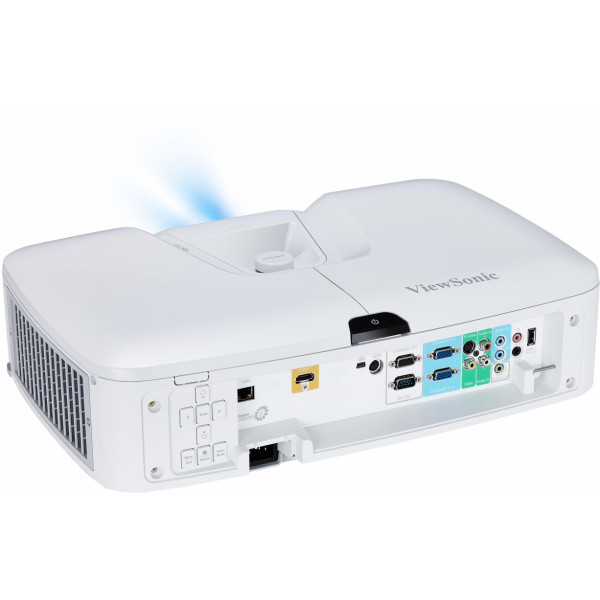

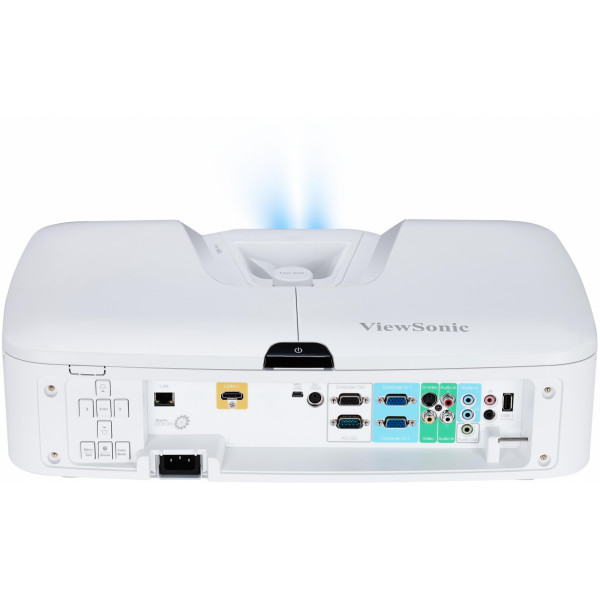

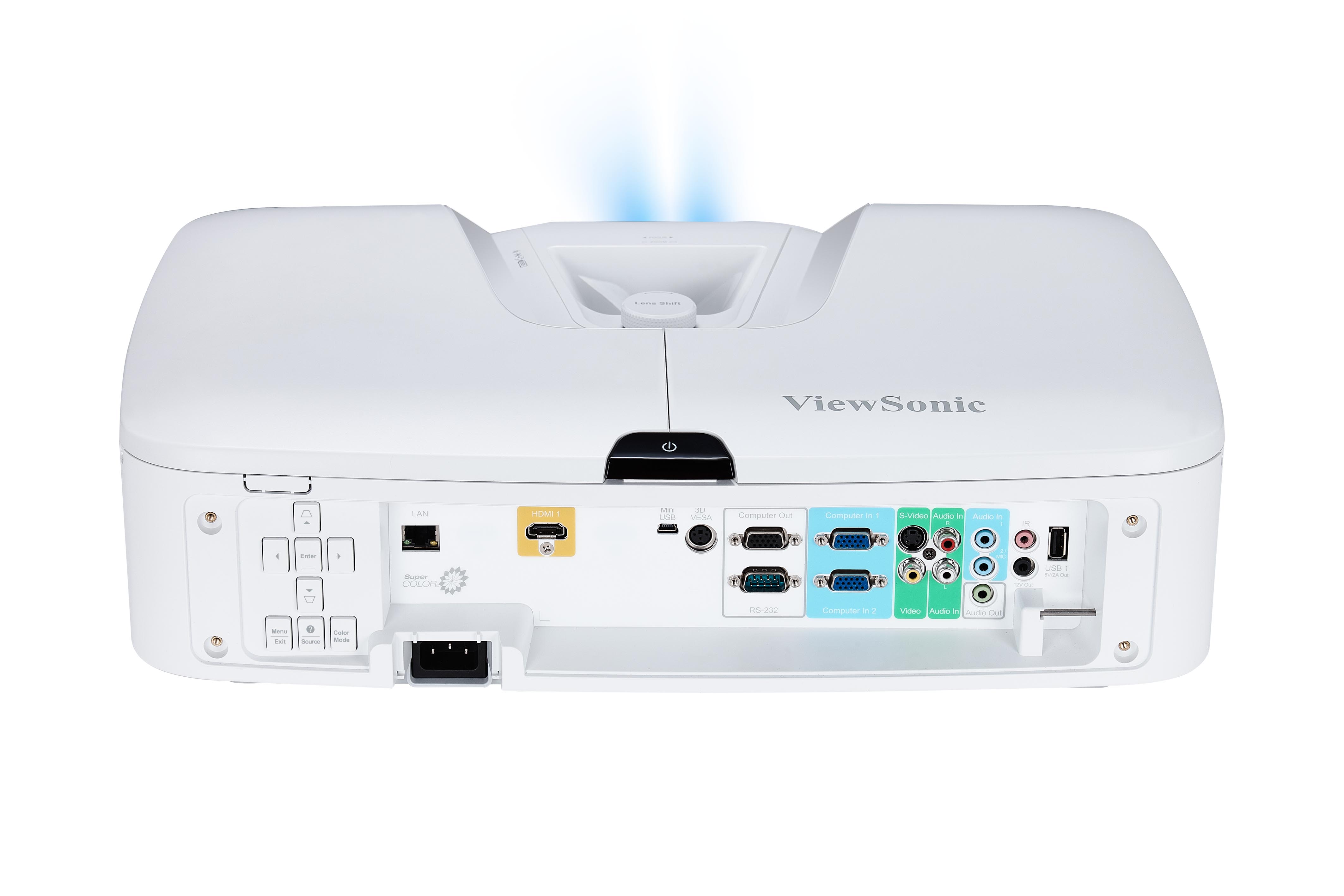

Exterior & Rear I/O Connectors

  1. Front IR receiver
  2. Lens shift adjustment
  3. 1.3X optical zoom
  4. 10W x2 cube
  5. Air filter

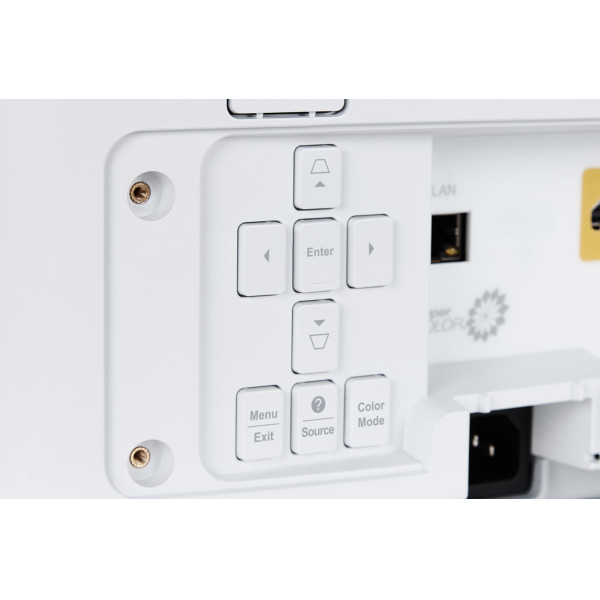

  6. Keypad
  7. LAN
  8. HDMI
  9. 4-in-1 power button
  10. 3D VESA
  11. Monitor out
  12. Computer in
  13. S-Video
  14. Audio in/out
  15. IR out
  16. Kensington lock
  17. Mini USB for service
  18. RS232
  19. Video
  20. Audio in L/R (RCA)
  21. 12V out
  22. Security bar
  23. Cable managenment screw hole
  24. USB type A (5V/2A)

REVIEWS


Heimkino

“Der ViewSonic PG800HD lässt sich flächenübergreifend sehr gut nutzen.”

Hifitest.de

“Der PG800HD wird in Vereins- und anderen Lokalen eine ebenso gute Figur machen wie in Schulen oder anderen Unterrichts-Umgebungen.”

Read Review

Hifitest.de

“The PG800HD will look as good in clubs and other venues as it does in schools or other classroom settings.”

Read Review

SPECIFICATIONS


  • SPECIFICATION
    Native Resolution: 1920 x 1080P
    DC type: DC3
    Brightness: 5000 ANSI Lumens
    Contrast Ratio with SuperEco mode: 5000:1 (with Eco mode)
    Display Colour: 1.07 Billion Colours
    Light Source: Lamp
    Light source life (Nor/SuperEco): 2000/2500 (Nor/Eco)
    Lamp Watt: 370W
    Lens: F=2.59-2.87, f=16.88-21.88mm
    Projection Offset: 116%+/-5%
    Throw Ratio: 1.15-1.5
    Image size: 30" - 300"
    Throw Distance: 0.76m-9.96m(100" @2.55m)
    Keystone: ±40° (Vertical)
    Lens Shift V. Range: Yes (+7%, -0%)
    Optical Zoom: 1.3x
    Audible Noise (Eco): 33dB
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • Input
    Computer in (D-SUB 15 pin): 2
    Composite: 1
    S-video: 1
    Audio-in (3.5mm): 2
    Audio-in (RCA R/L): 1
    Microphone in: 1 (shared with Audio-in 2)
    HDMI: 2 (Back & PortALL)
    3D VESA (Sync): 1
  • Output
    Monitor out (D-SUB 15 pin): 1
    Audio out (3.5mm): 1
    Speaker: 10W Cube x 2
    USB type A (Power): 1 (5V2A)
    USB type Micro B (Power): 1 (5V2A Front)
    12V Trigger: 1 (3.5mm)
    IR out: 1
