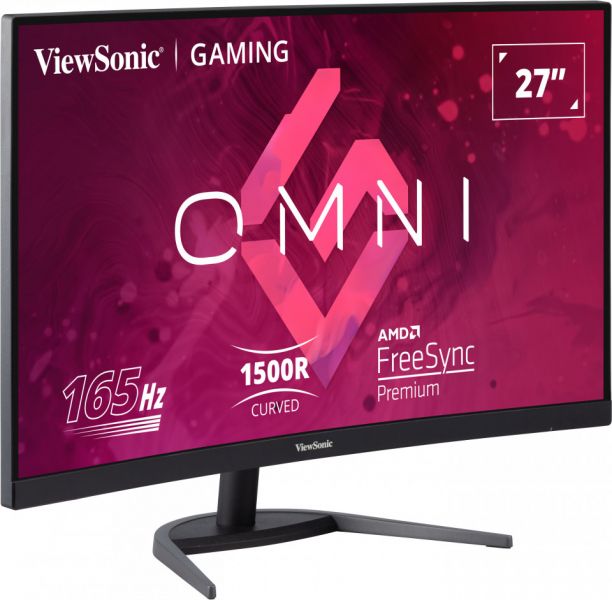

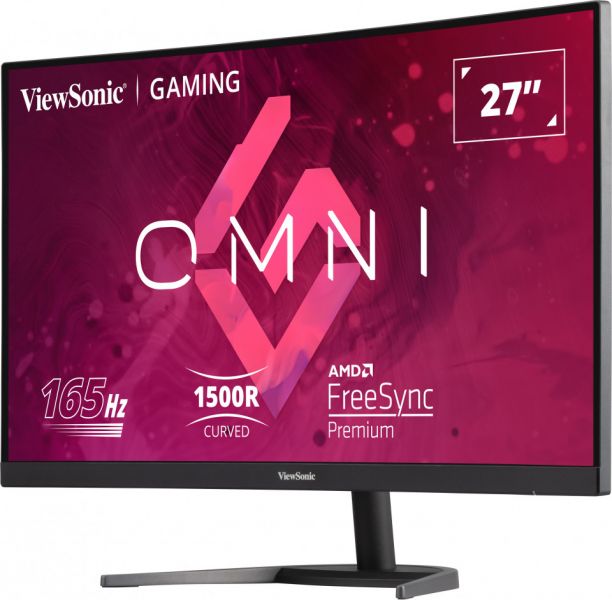

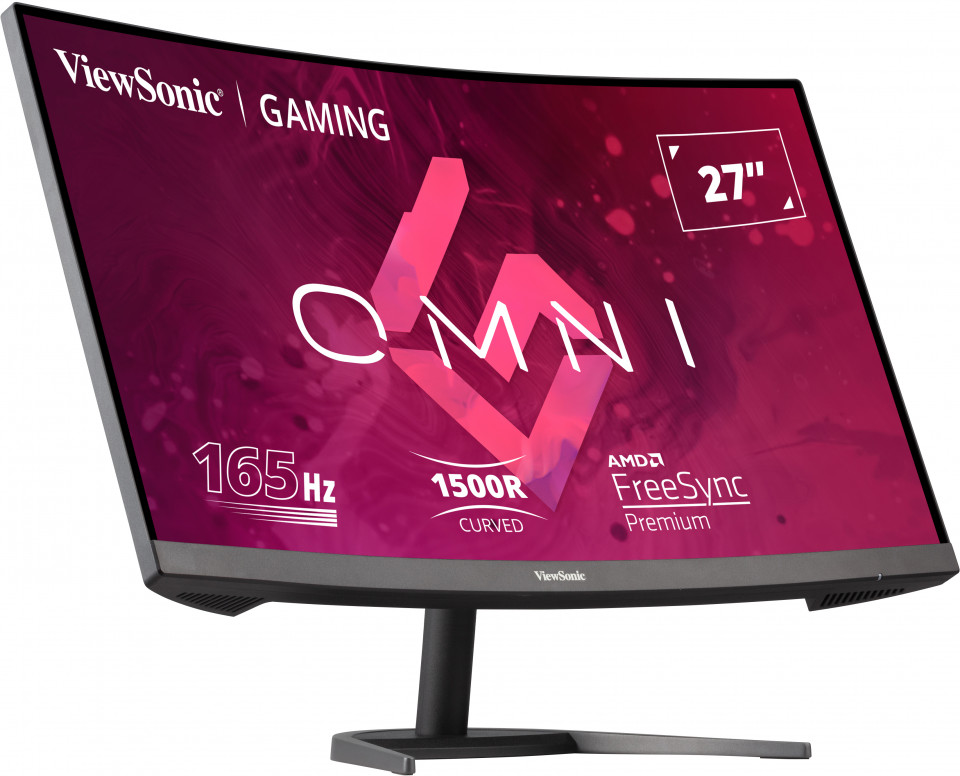

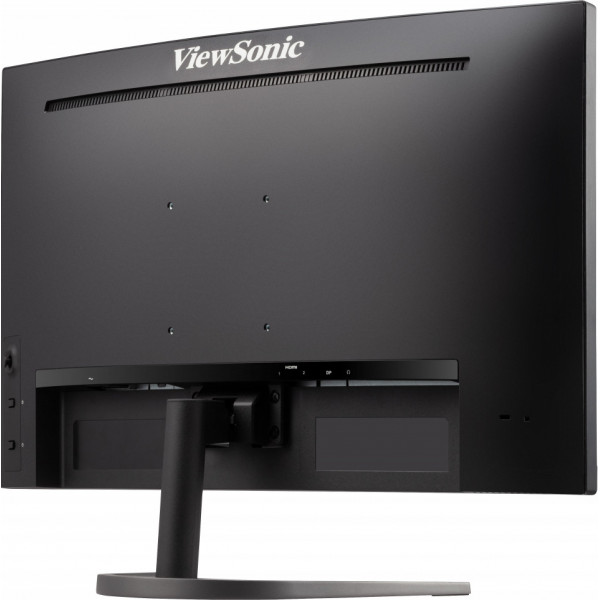

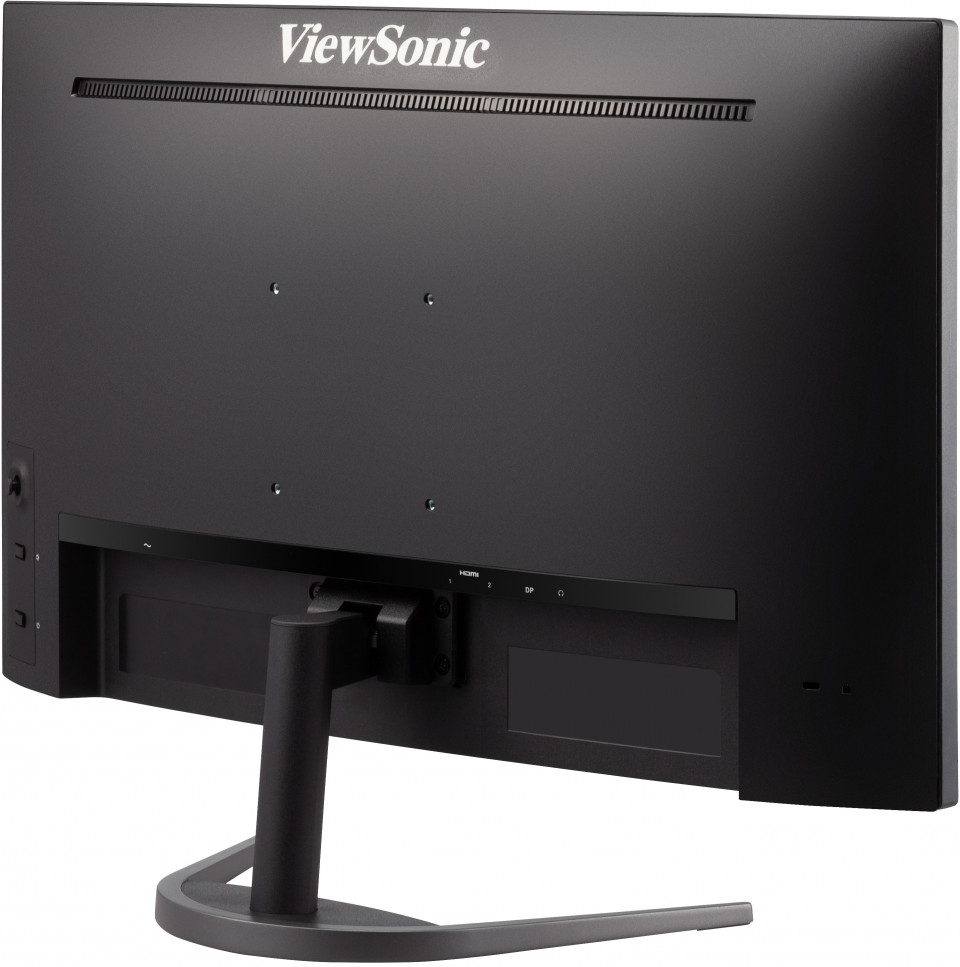

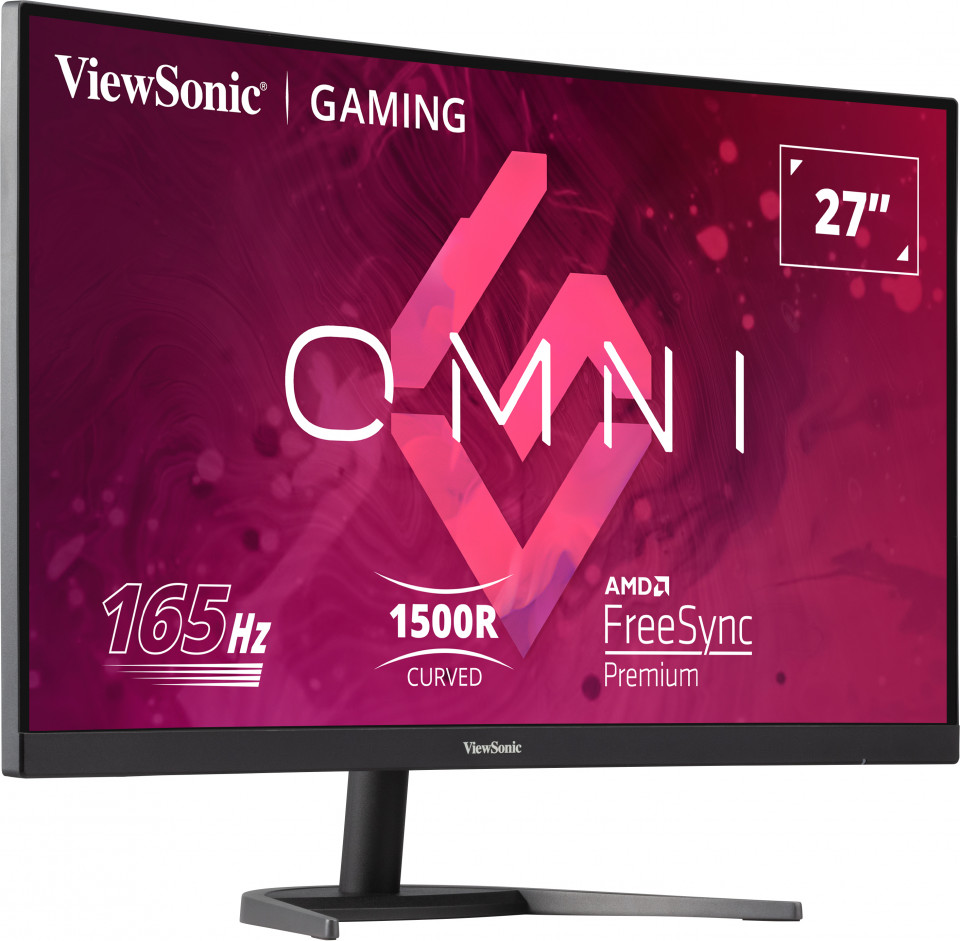

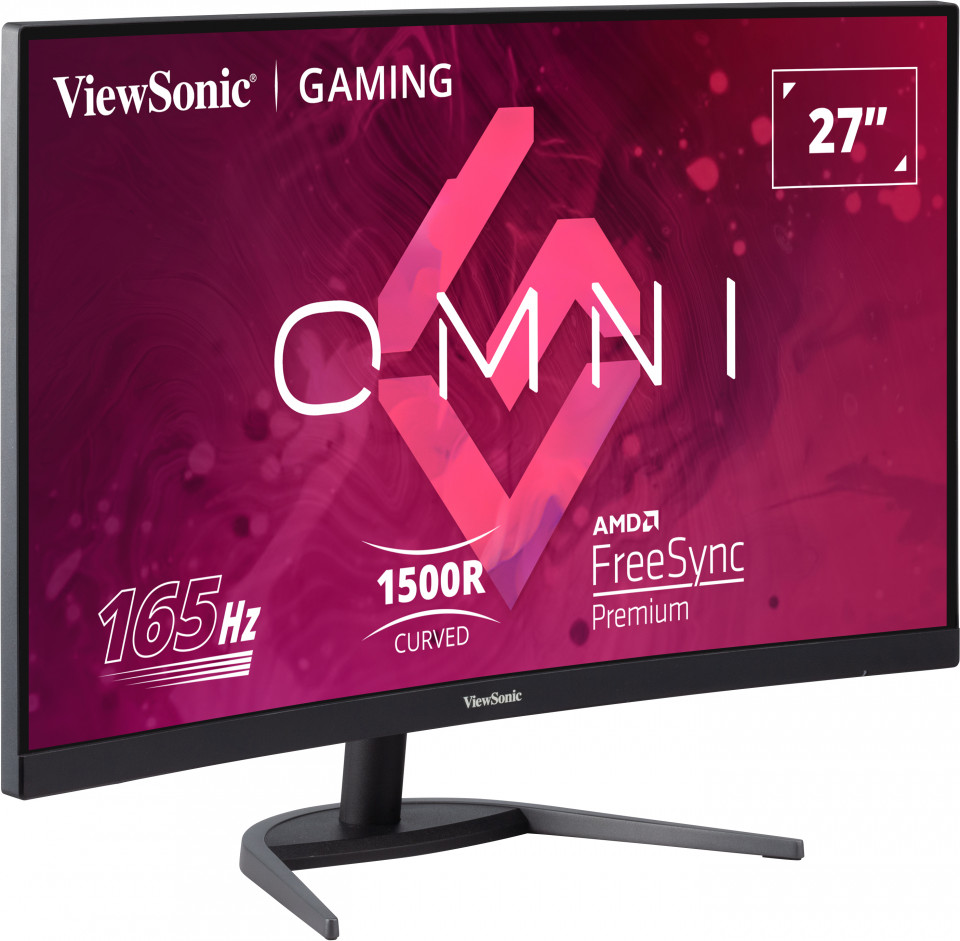

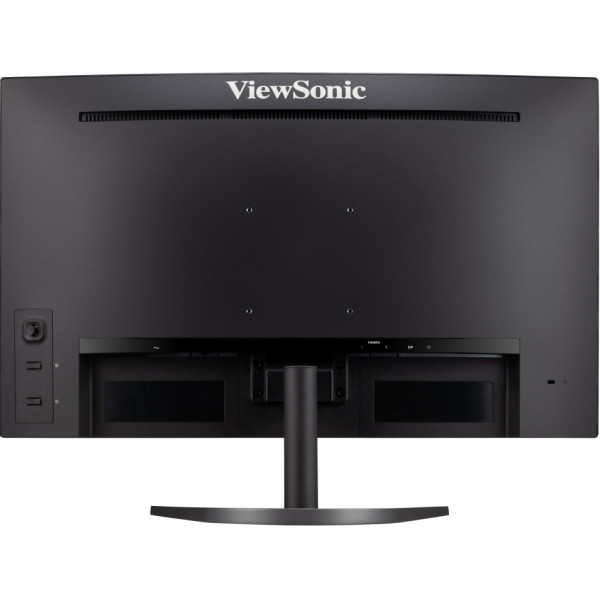

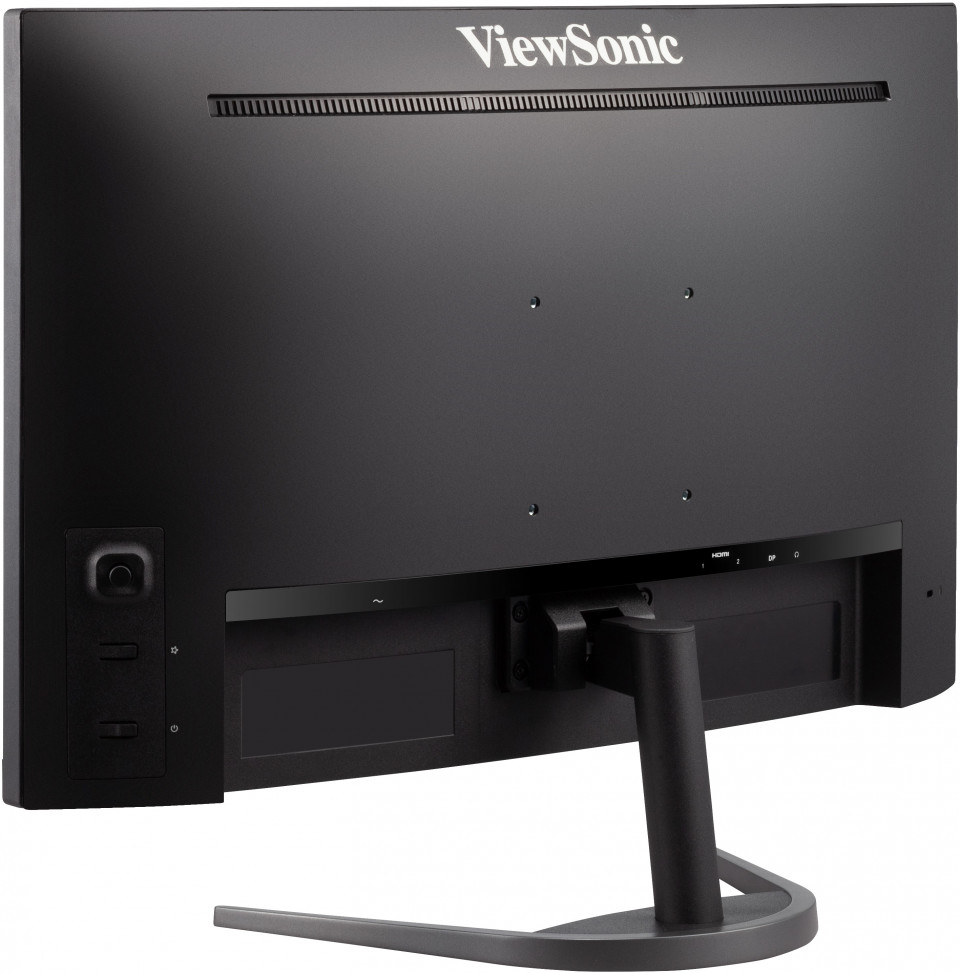

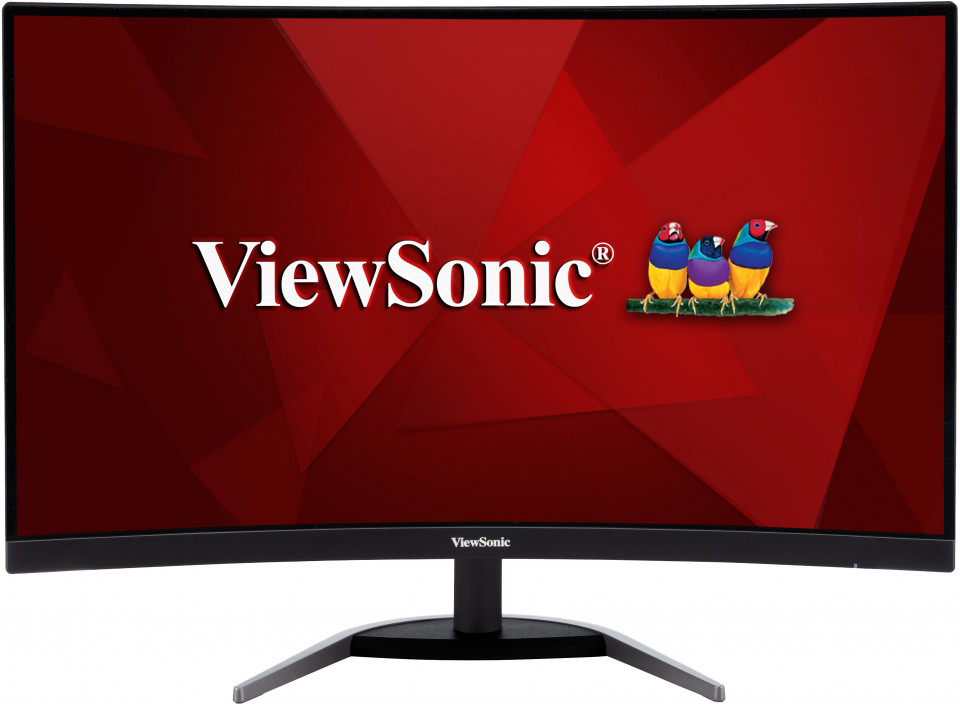

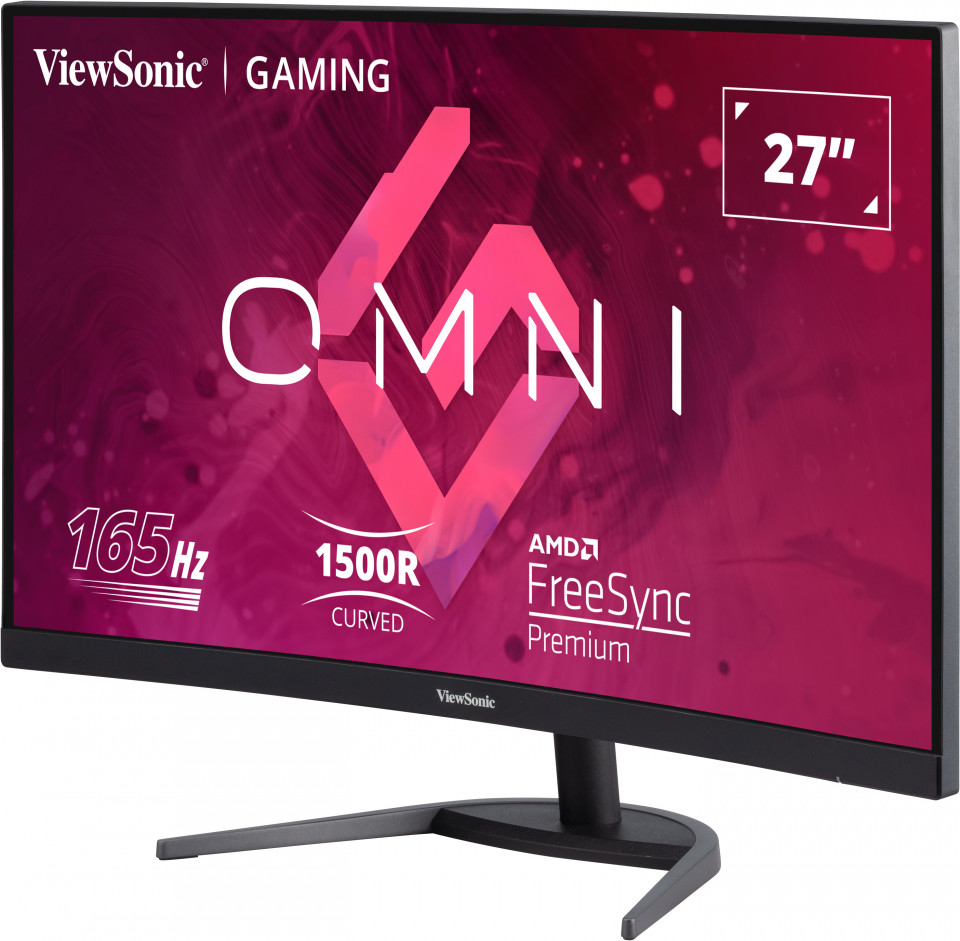

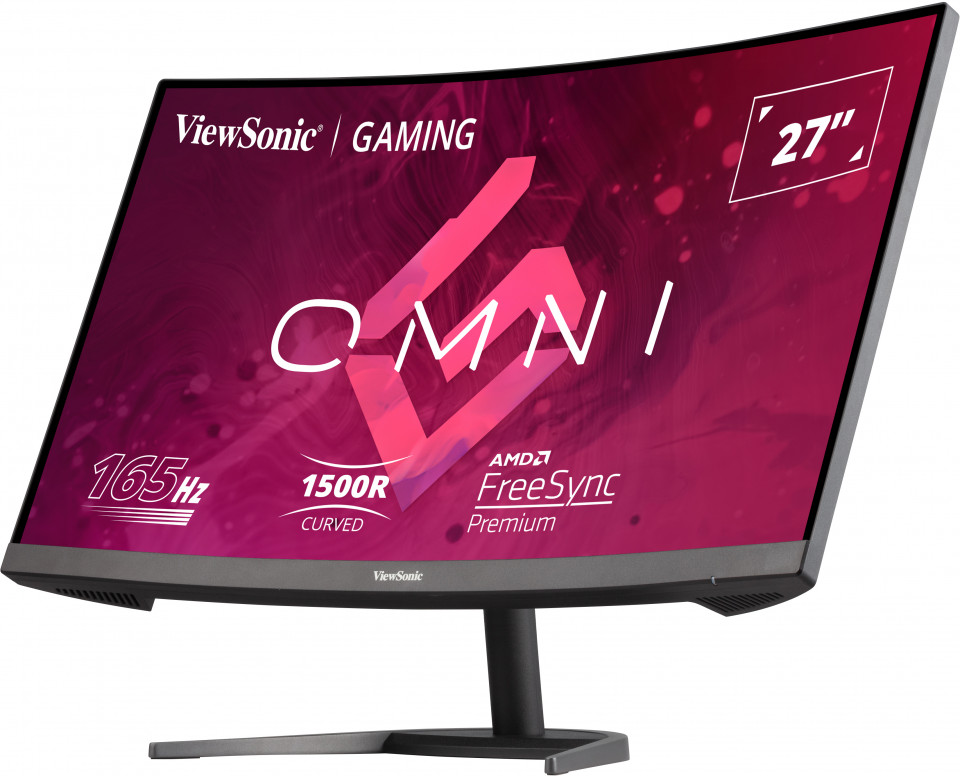

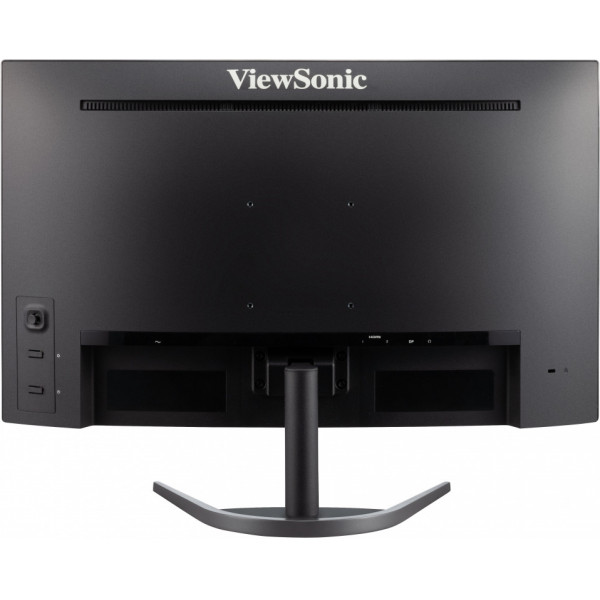

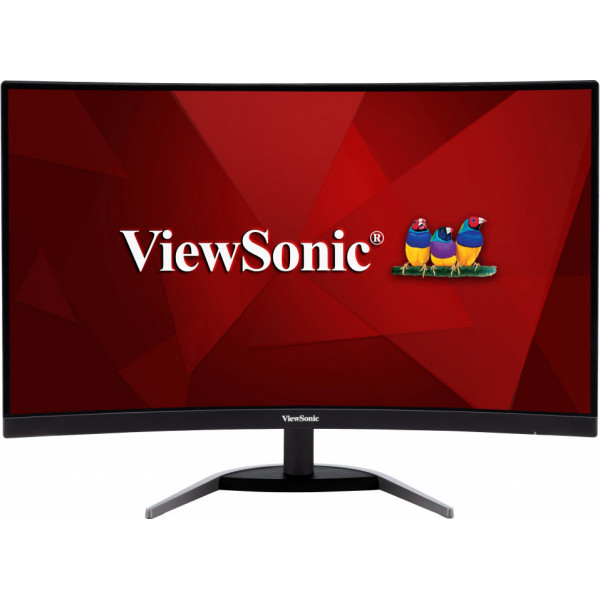

VX2768-PC-MHD
27” 165Hz 1ms Curved Gaming Monitor
- 1500R curved screen for a perfect balance of immersion and comfort
- 165Hz refresh rate ensures clarify in motion
- 1ms (MPRT) response time ensures smooth images
- AMD FreeSync™ Premium prevents screen tearing
- FHD 1080p resolution for clear detail
SPECIFICATIONS
- DisplayDisplay Size (in.): 27
Viewable Area (in.): 27
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)

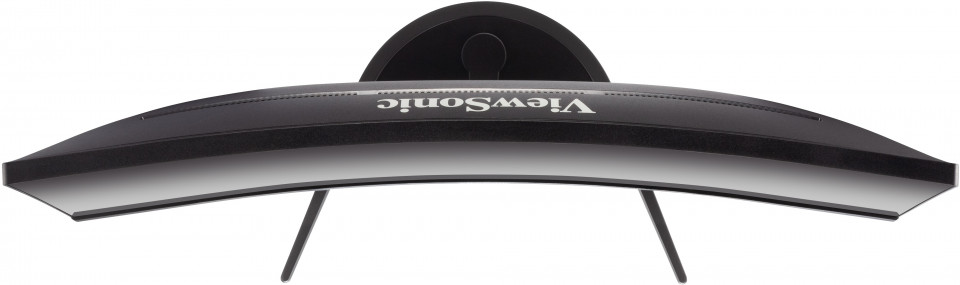

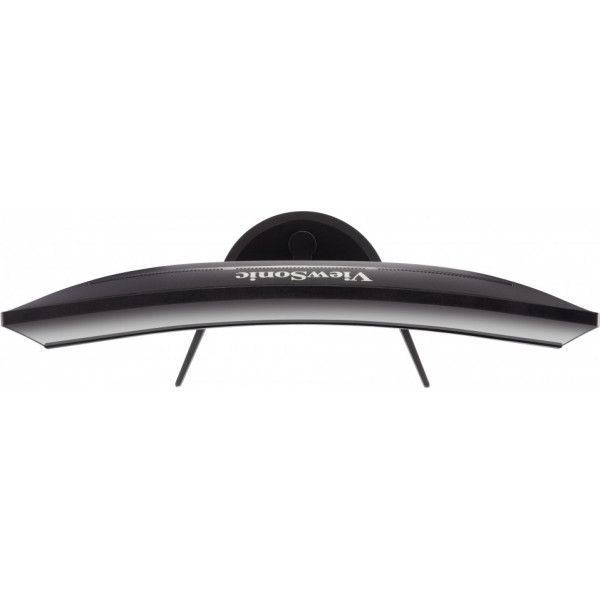

Curvature: 1500R
Refresh Rate (Hz): 165
Variable Refresh Rate Technology: FreeSync Premium
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 85% size (Typ)
sRGB: 120% size (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested

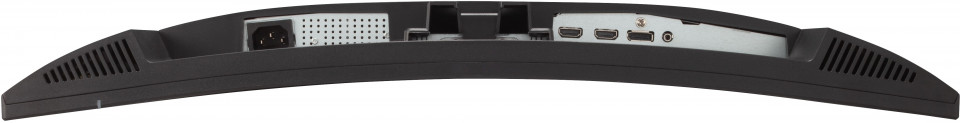

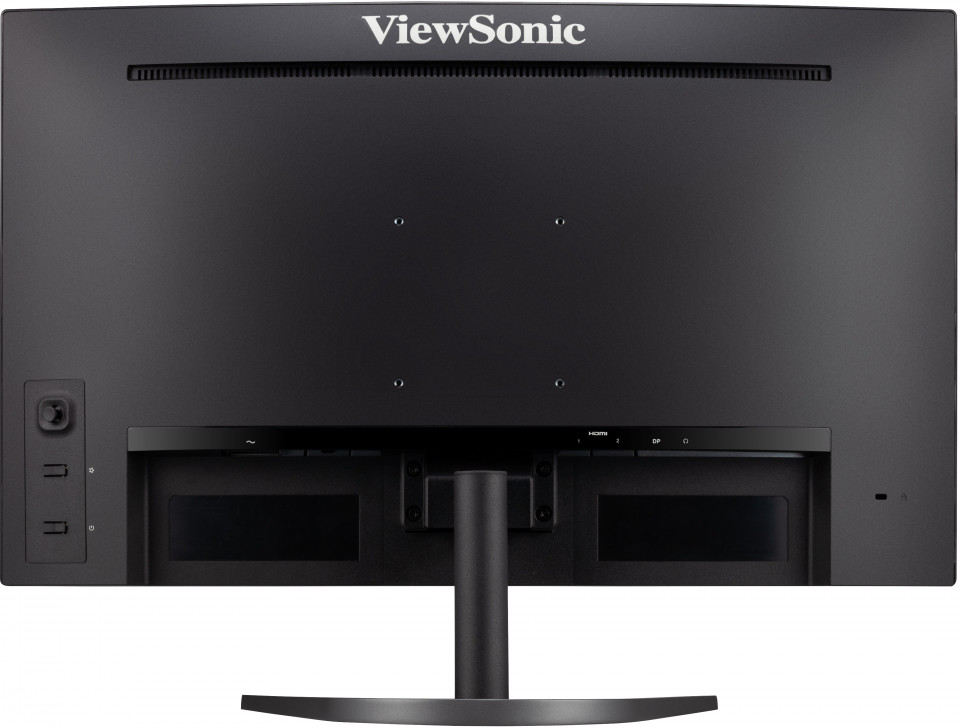

Mac® Resolution (min): 1920x1080 - Connector3.5mm Audio Out: 1
HDMI 1.4: 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- AudioInternal Speakers: 2Watts x2
- PowerEco Mode (Conserve): 17W
Eco Mode (optimized): 22W
Consumption (typical): 26W
Consumption (max): 40W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1

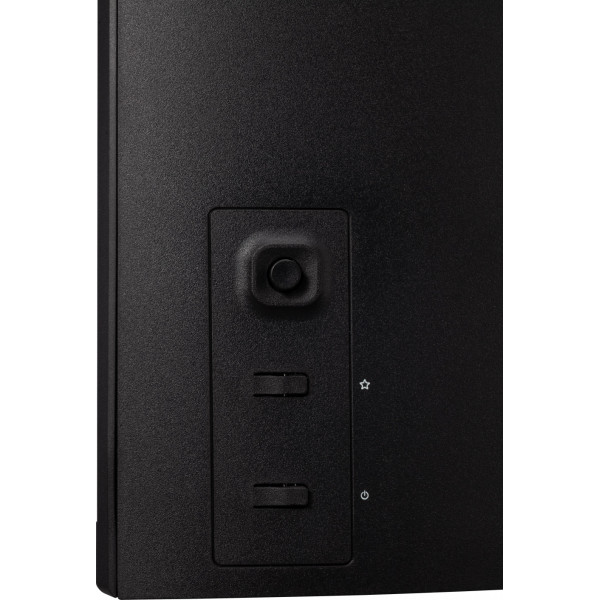

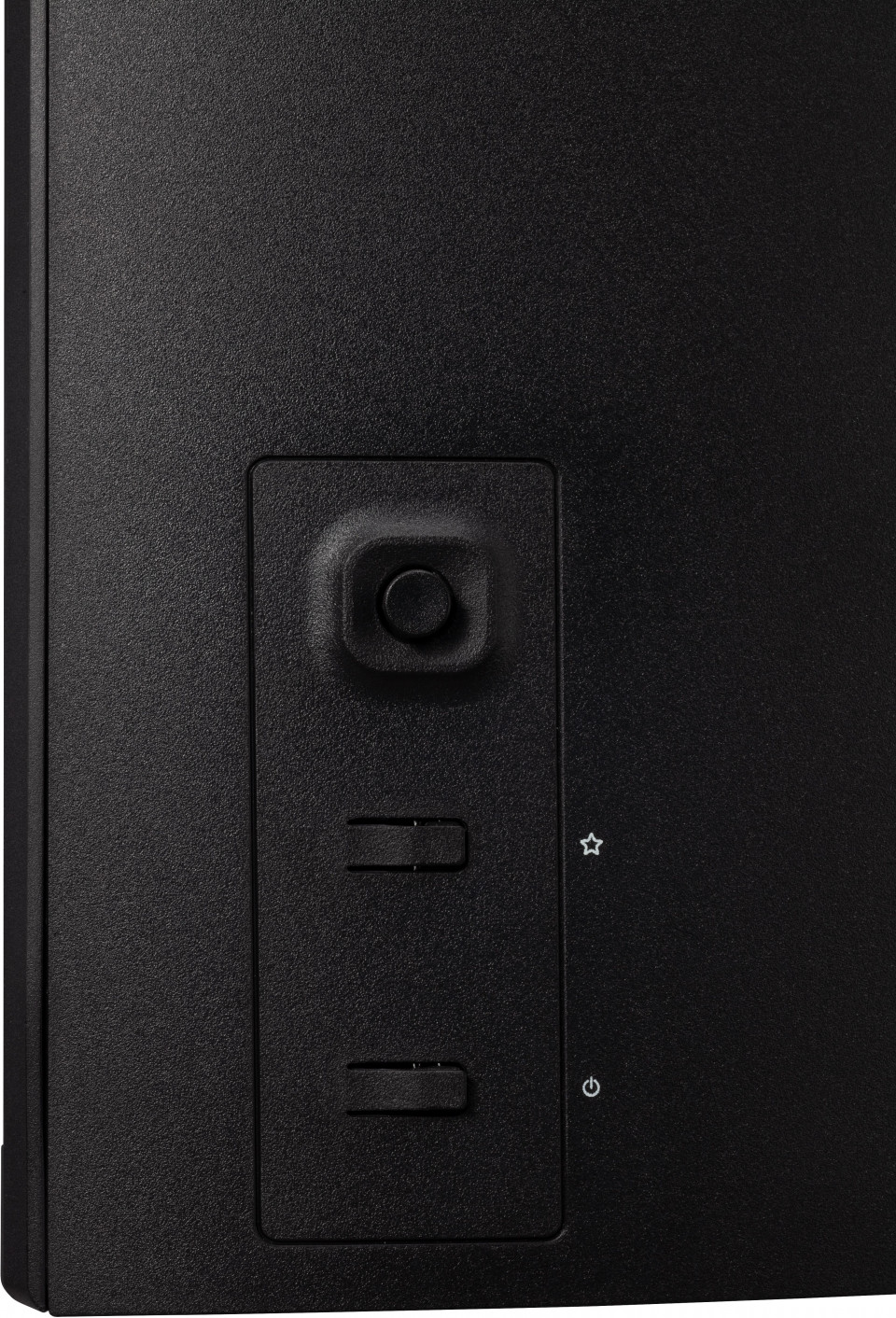

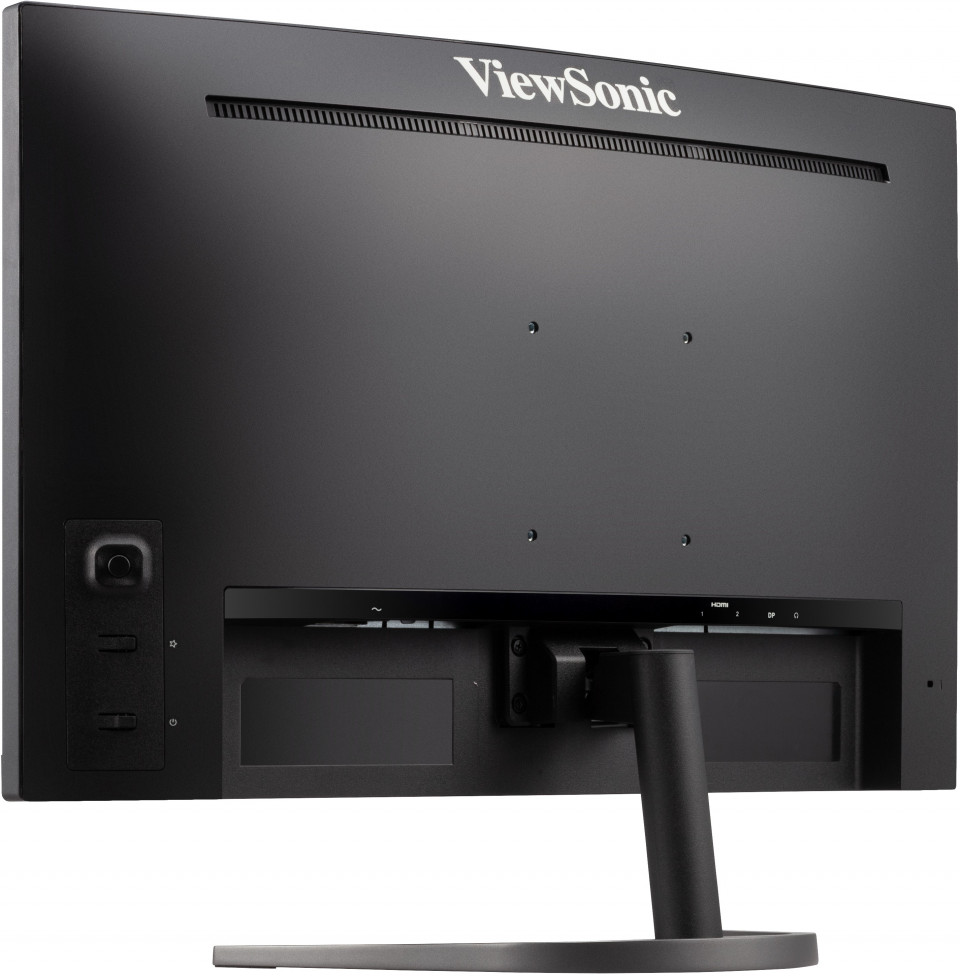

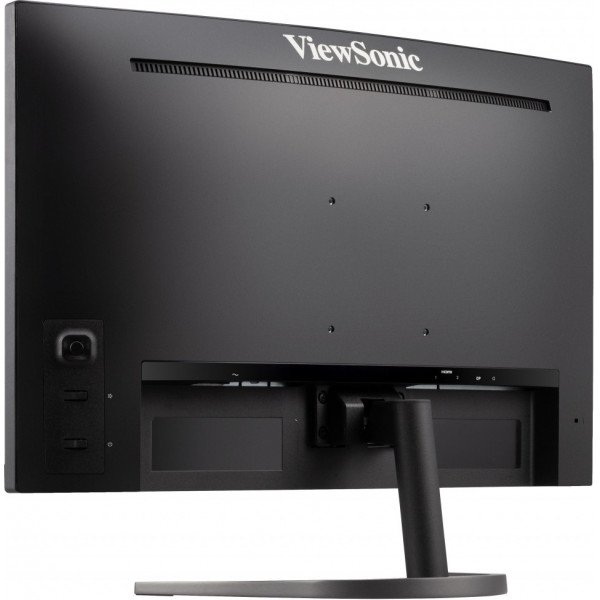

- ControlsPhysical Controls: Joystick key: Up, Right, Down, Left, Center; Key 1 (favorite); Key 2 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)

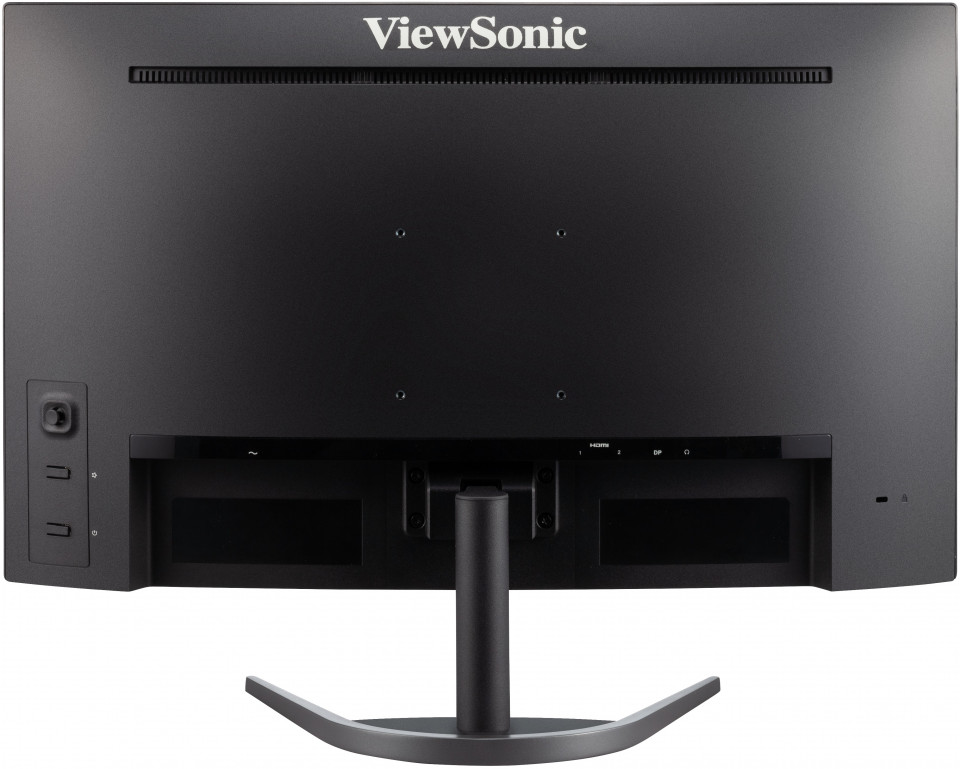

Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: HDMI (v1.4): 30 ~ 180KHz, DisplayPort (v1.2): 30 ~ 200KHz
Frequency Vertical: HDMI (v1.4): 48 ~ 144Hz, DisplayPort (v1.2): 48 ~ 165Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

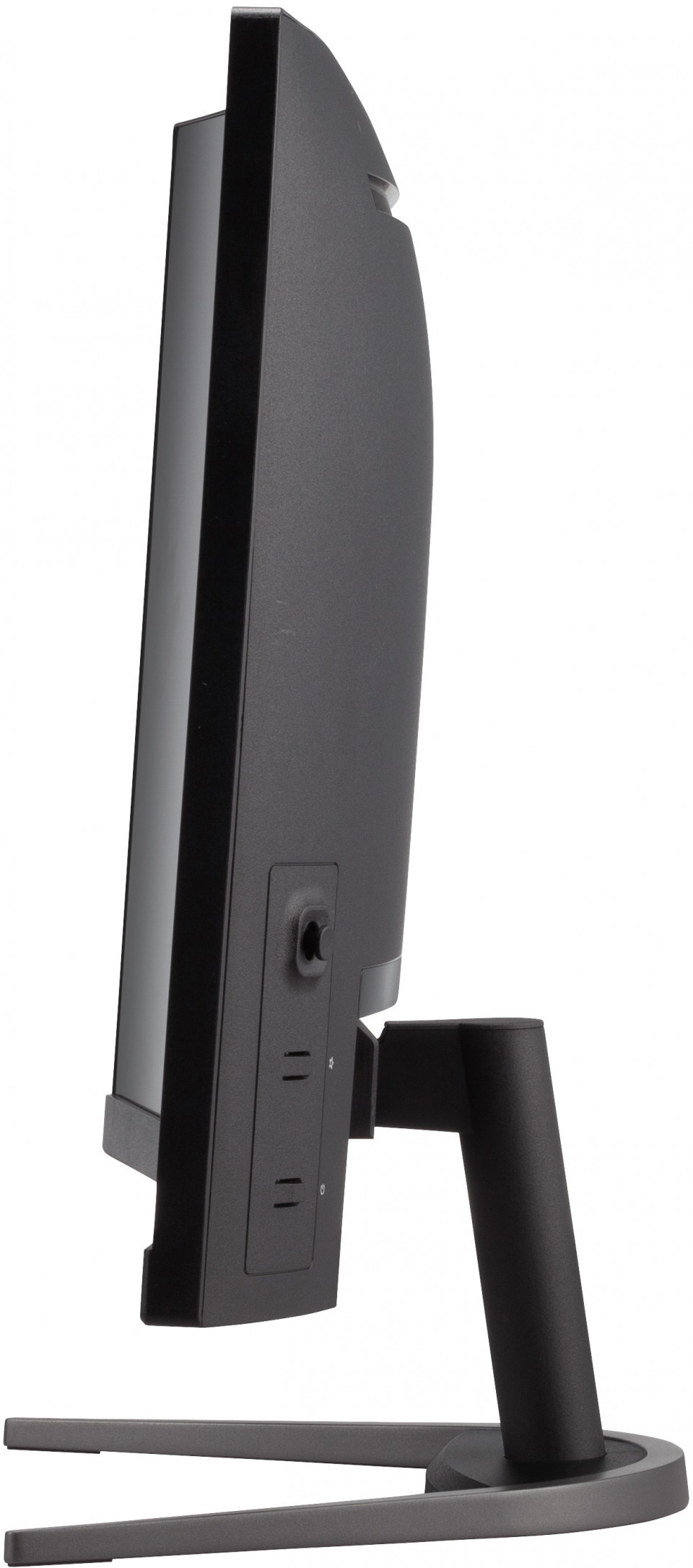

- ErgonomicsTilt (Forward/Back): -3º / 21º
- Weight (imperial)Net (lbs): 11
Net Without Stand (lbs): 9.6
Gross (lbs): 14.9 - Weight (metric) Net (kg): 5
Net Without Stand (kg): 4.4
Gross (kg): 6.8 - Dimensions (imperial) (wxhxd)Packaging (in.): 26.8 x 18.4 x 6.5
Physical (in.): 24 x 17.8 x 8.6
Physical Without Stand (in.): 24 x 14.5 x 3.1 - Dimensions (metric) (wxhxd)Packaging (mm): 680 x 467 x 166
Physical (mm): 610 x 452 x 219
Physical Without Stand (mm): 610 x 367 x 78 - GeneralPACKAGE CONTENTS: B08D5L82B6 xVX2768-PC-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1,
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
