VB-Wifi-002

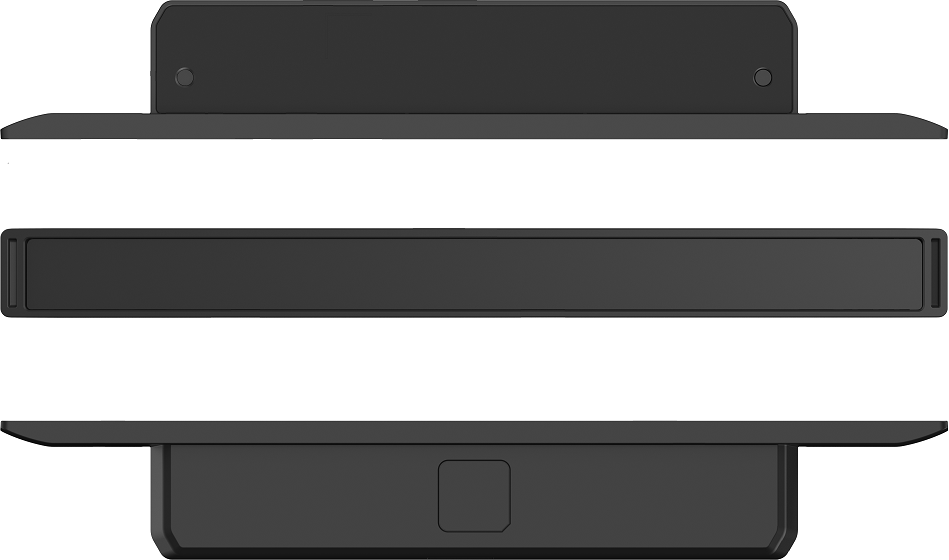

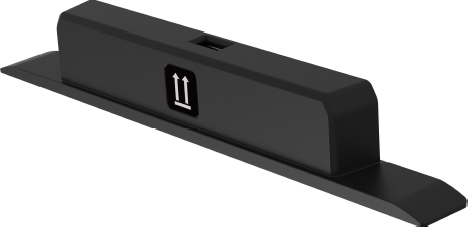

ViewSonic Wireless Module for the ViewBoard®32 Series
SPECIFICATIONS
- Wifi-Standard802.11 a/b/g/n/ac
- Operating Frequency2.4GHz & 5GHz
- PowerRequirements: 5V DC
Consumption: ＜5W
- DimensionPhysical: 208×30×20mm / 8.19x1.18x0.79 in
Packaging: 212×35×25mm / 8.35x1.38x0.98 in - WEIGHTNet: 85g / 0.187lb
Gross: 102g / 0.225lb - OPERATING CONDITIONTemperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% ~ 90% non-condensing - STORAGE / SHIPPING CONDITIONTemperature: -4°F to 140°F (-20°C to 60°C)
Humidity: 10% ~ 90% non-condensing - COMPLIANCECE(EMC-safety), CE-RED, WPC, LVD, RCM, FCC ID, IC ID
COMPATIBLE WITH VB-WIFI-002
ViewBoard® 65" 4K Interactive Display
ViewBoard® 65" 4K Interactive Display
ViewBoard® 75" 4K Interactive Display
ViewBoard® 75" 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
