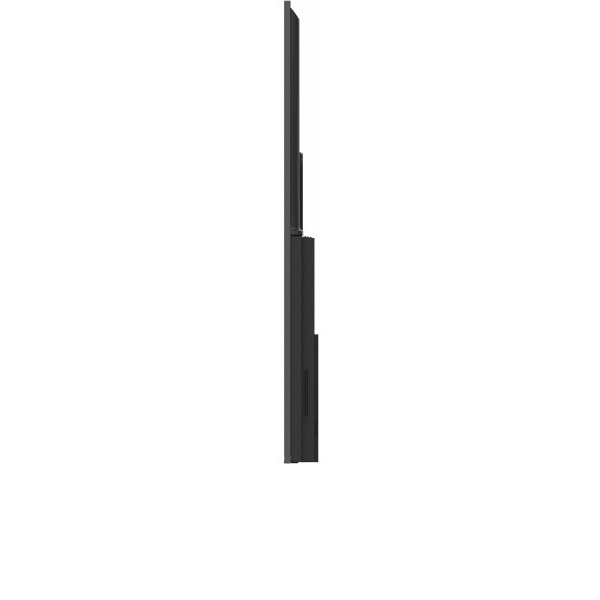

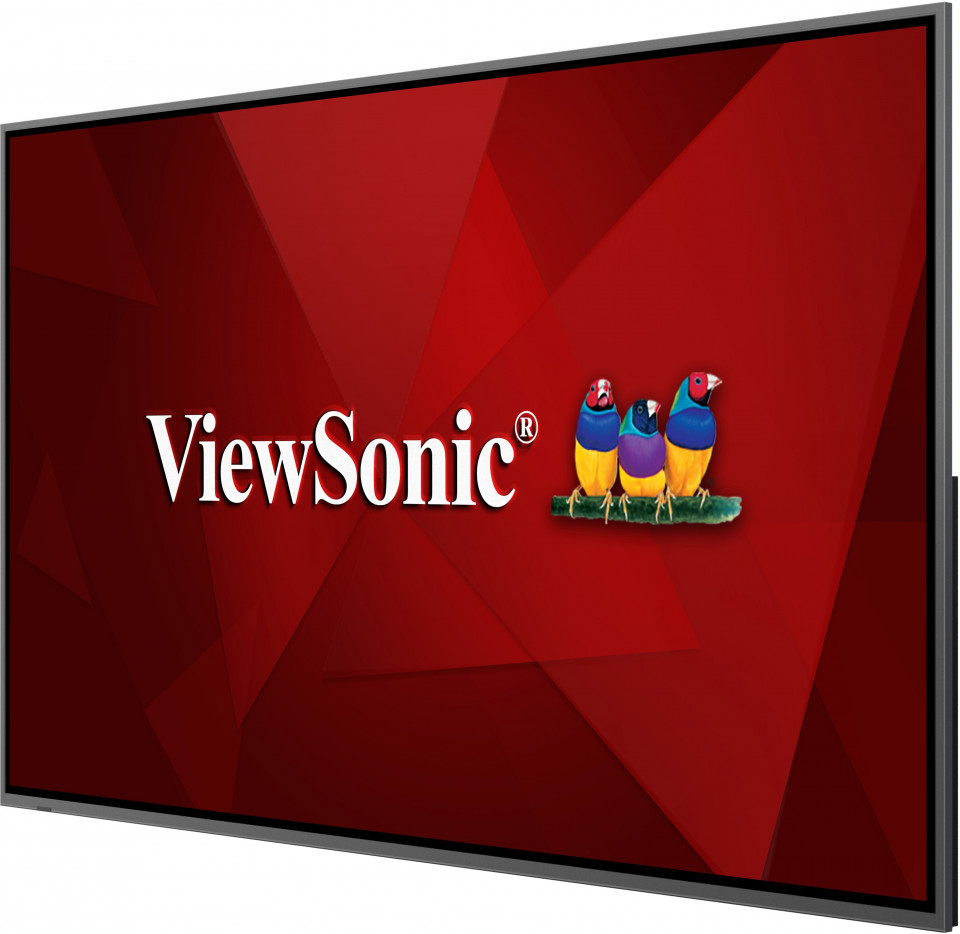

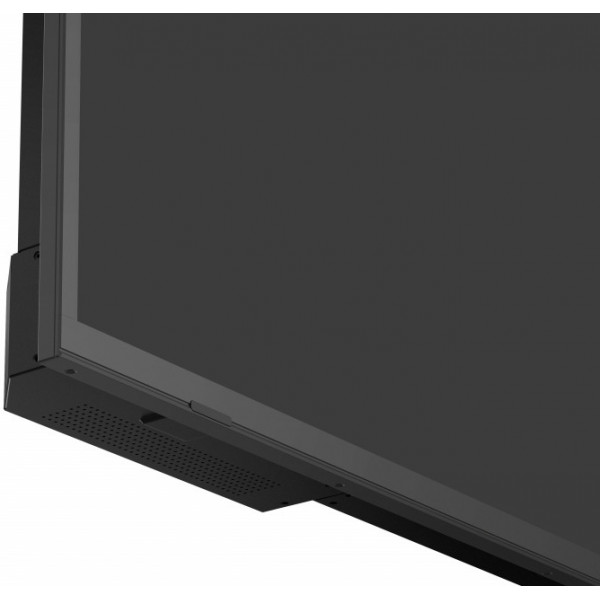

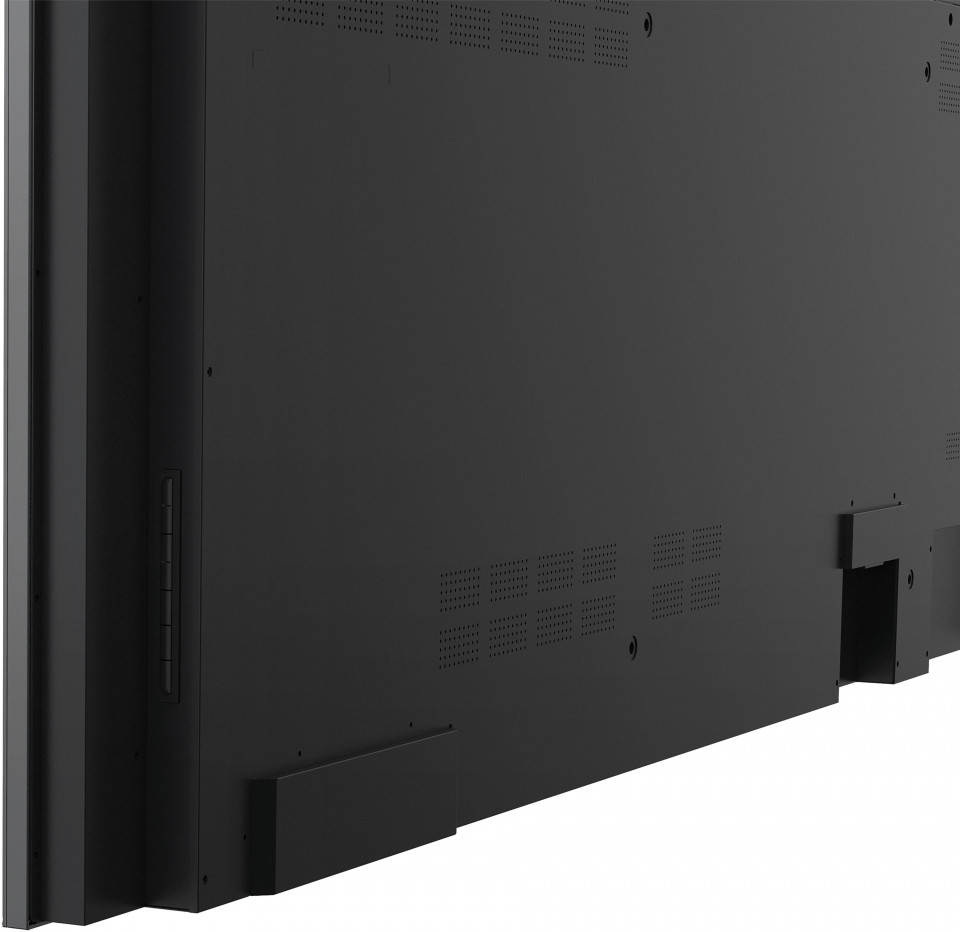

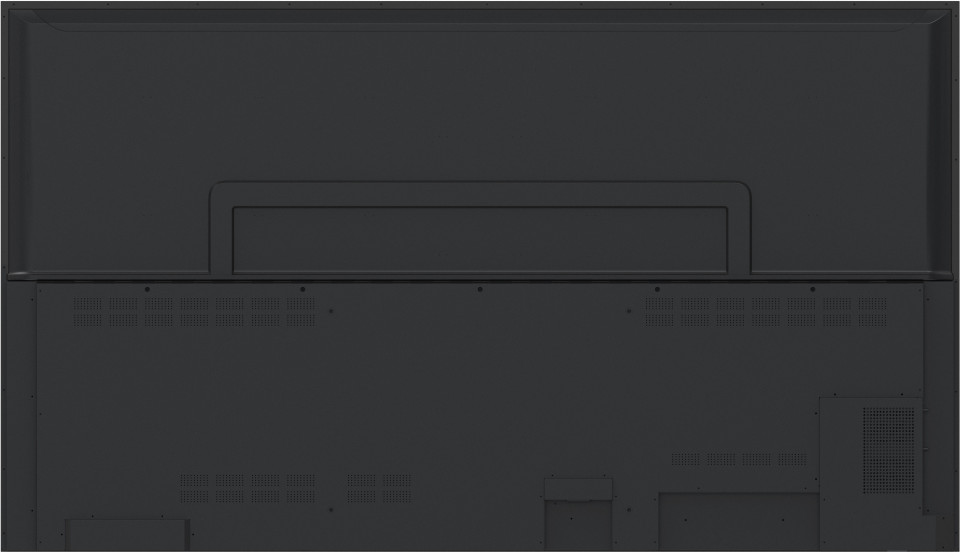

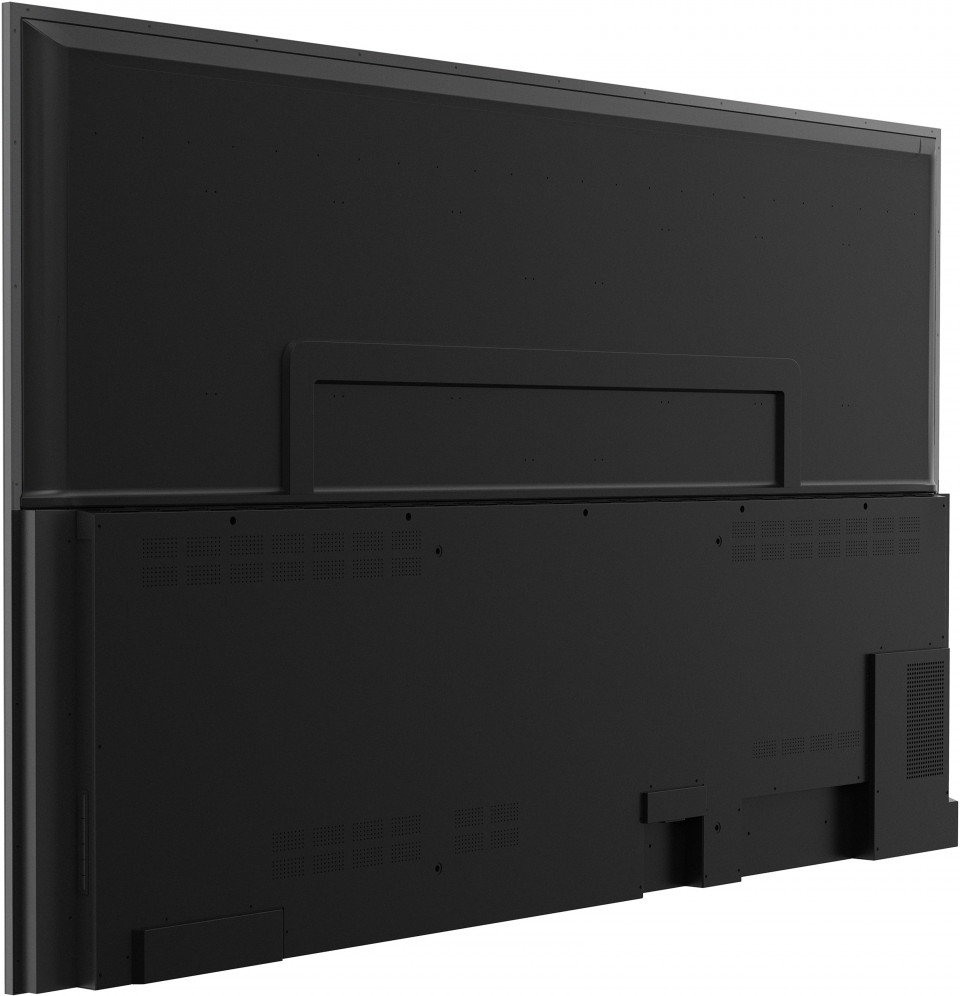

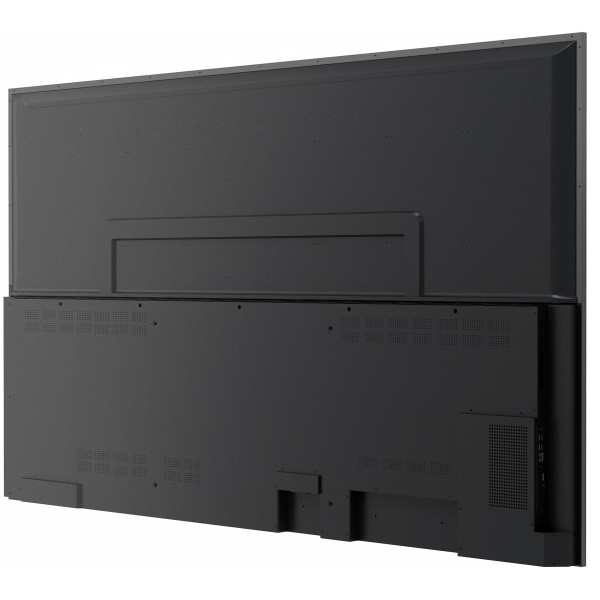

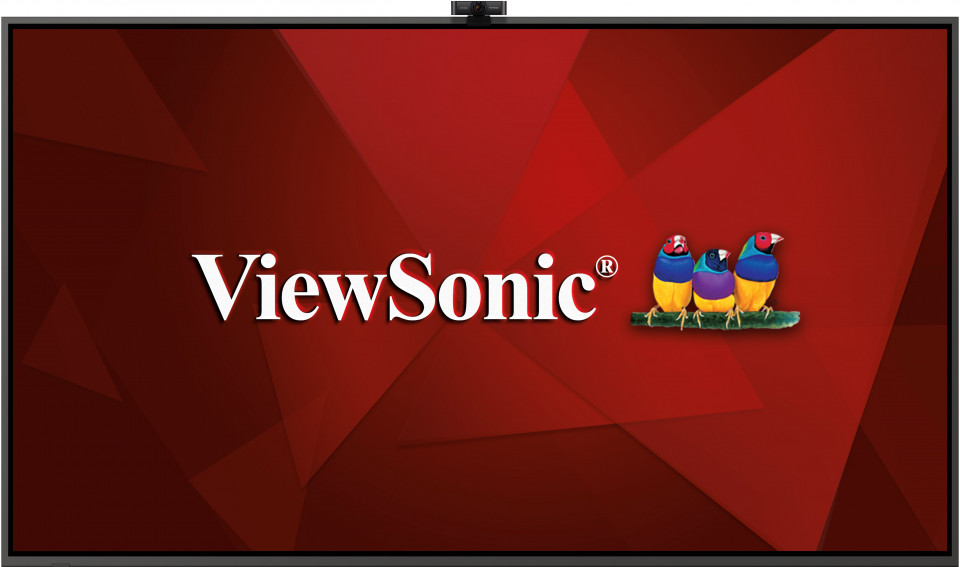

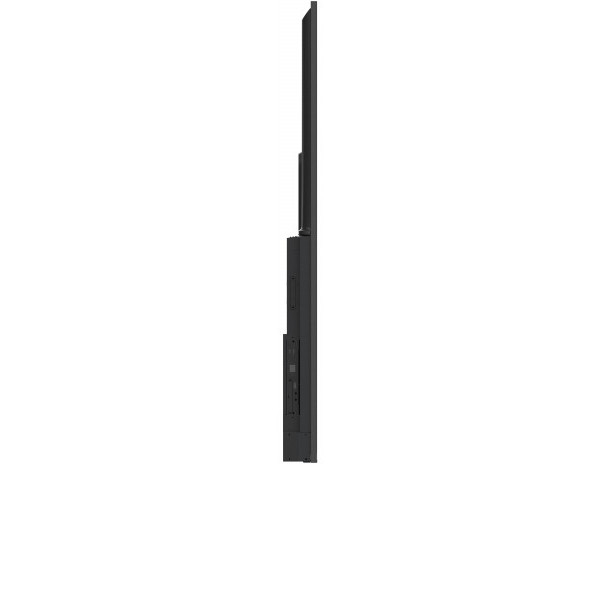

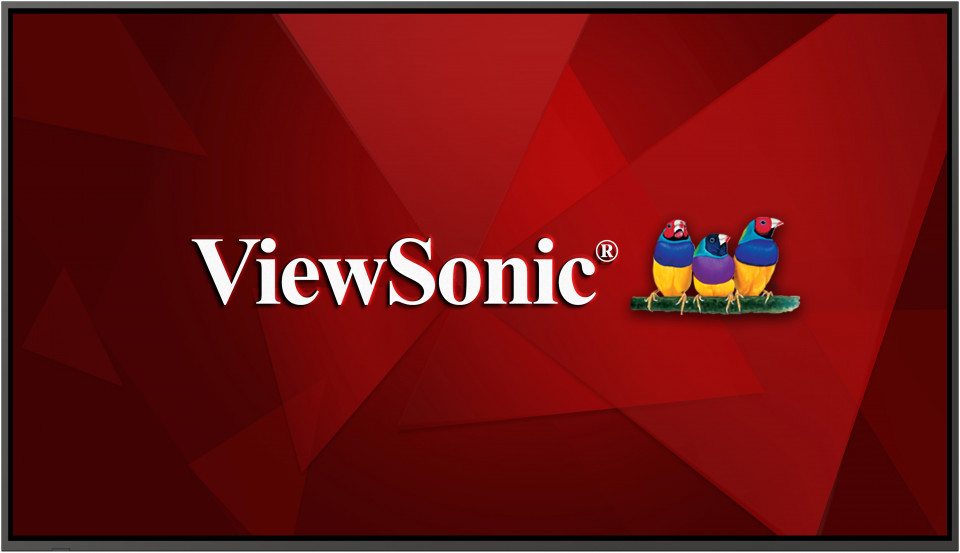

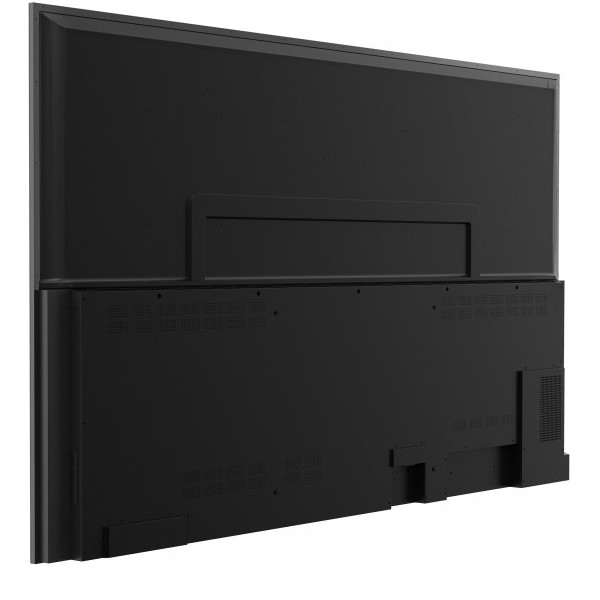

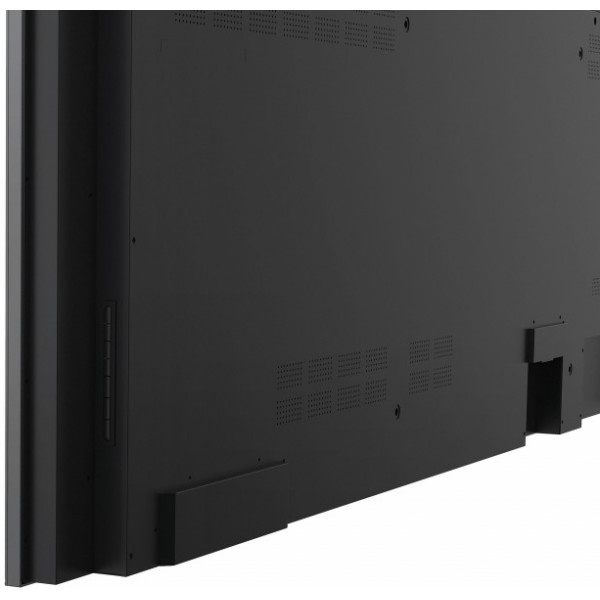

ViewSonic Commercial Display CDE8620

CDE8620

86" Presentation Display

Easy cast function
Wireless presentation across devices and rooms
USB flash drive plug-and-play for photos, music & video
Multitasking with powerful embedded player & OPS PC slot
4K slim bezel presentation display

SPECIFICATIONS

Display
Panel Size: 86"
Type/ Tech: TFT LCD Module. IPS type, DLED backlight
Display Area (mm): 1895.040 (H) × 1065.960 (V) (86" diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G colors
Brightness: 450 nits (typ.)
Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Response Time: 8 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (min)
Surface Treatment: Anti-glare, 2H hardness, Haze 28%
Bezel: Slim
Orientation: Landscape

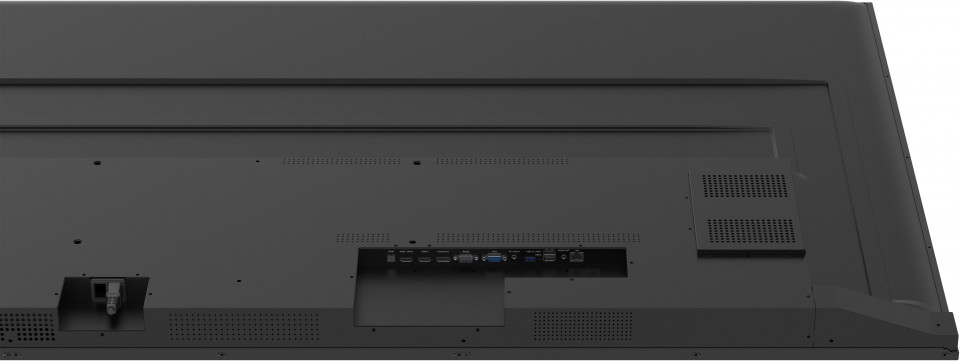

INPUT
HDMI: x2
RGB / VGA: x1
DisplayPort: x1
Audio: x1 (3.5mm)
RS-232: x1
OPS Slot: x1 (Optional Intel OPS VPC12-WPO)
WiFi Slot: x1

OUTPUT
Audio: x1 (3.5mm)
SPDIF: x1 (Fiber)
LAN
RJ45: x1
USB
Type A: 2.0 Type A : x 2 (USB Playback), 3.0 Type A : x 1 (USB Playback)
SPEAKERS
SPEAKERS: Max. 16Wx2
COMPATIBILITY
RGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
Android Version: Android 8.0
POWER
Voltage: 100V-240V,50/60Hz (AC)
Consumption: Normal 178 W
ERGONOMICS
Wall Mount (VESA® ): 600x400 mm
OPERATING CONDITIONS
Temperature (º C): 0 to 40°C
Humidity: 20% ~ 80% non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 76.02 x 43.67 x 3.24 in/ 1931.0 x 1109.0 x 82 mm
Packaging (inch / mm): 83.39 x 50.05 x 11.02 in/2118 x 1271 x 280 mm
WEIGHT
Net (lb / kg): 50.4 kg / 111.11 lbs (w/o stand)
Gross (lb / kg): 69.8 kg/153.88 lbs
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. CDE8620 presentation display, 2. Remote control with batteries, 3. Quick start guide, 4. Power cables (1.5M), 5. HDMI-IN cable (3M) 6. Wall mount screw, 7. RS232 adapter
